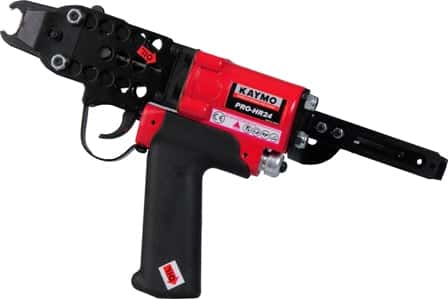

SKU: PRO-HR24

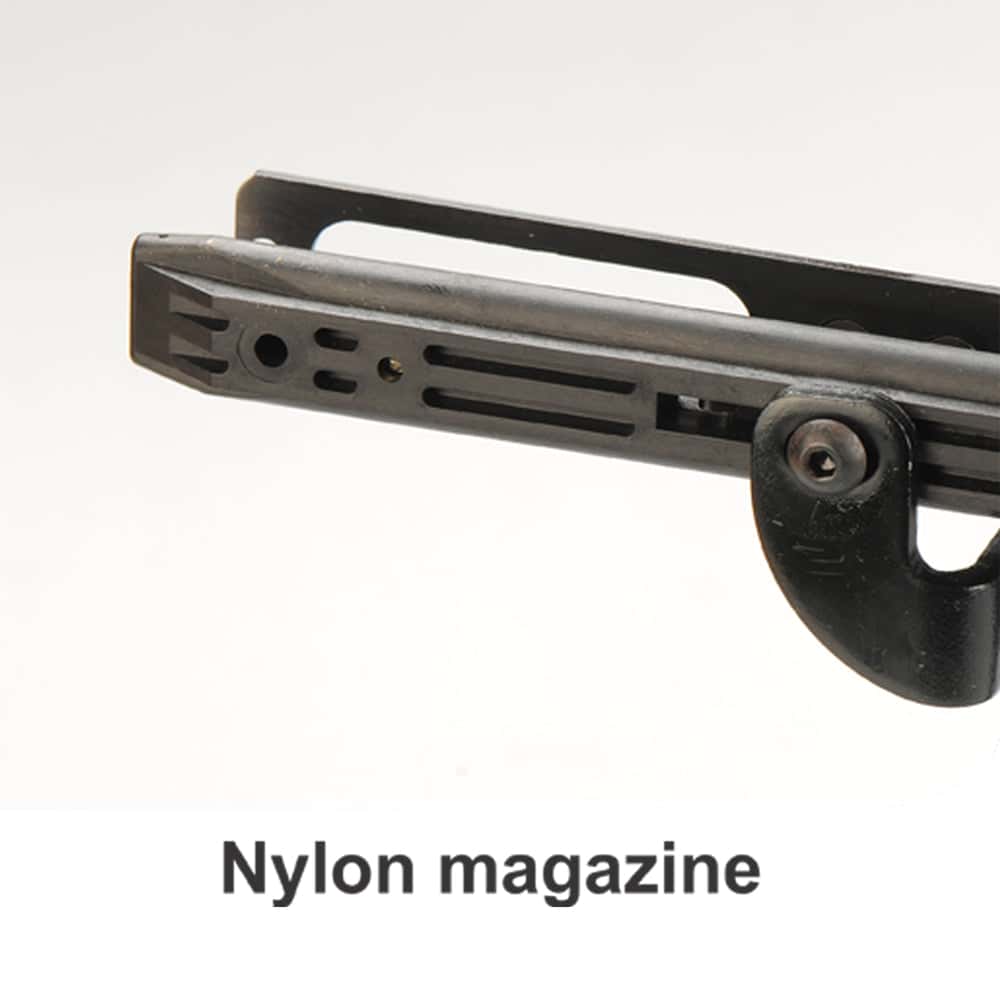

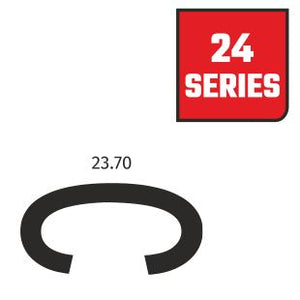

Rubber grip. Noiseless tool. Magazine loading capacity 120 pcs in a slab. Length of clinching anvils 46.50 mm. Inner diameter of hog ring when closed 7.80 mm. PRESSURE: 60 - 100 psi
₹ 1/-

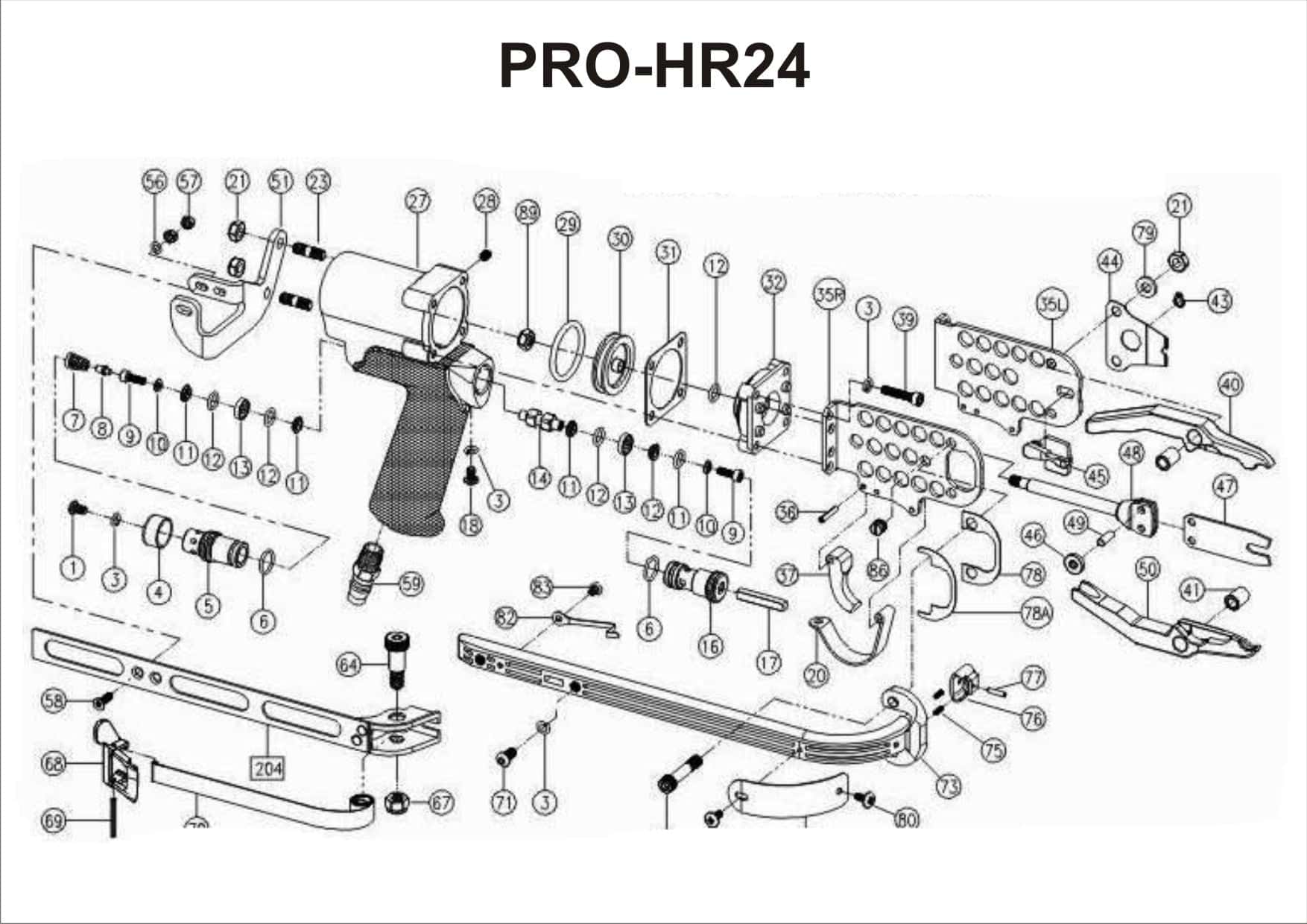

Blow Up
Spares
| . | TOOL NAME: | PRO-HR24 | REV.1ST APRIL 2022 | ||||||
| SR | FMS | PART CODE | PART NAME | ALT CODE | SR | FMS | PART CODE | PART NAME | ALT CODE |
| 1 | FMS | AC01001 | Set Screw | 49 | FMS | AC01049 | Roller Pin | ||
| 3 | FMS | AC01003 | Shakeproof lock Washer | 50 | FMS | AC04050 | Lower Jaw | ||
| 4 | FMS | AC01004 | Air Deflector | 51 | AC01051 | Feeder Arm | |||
| 5 | FMS | AC01005 | Rear Valve Seat | 56 | FMS | AC01056 | Washer | ||
| 6 | FMS | AC01006 | O-Ring | 57 | FMS | AC01057 | Nut | ||
| 7 | FMS | AC01007 | Throttle Spring | 58 | FMS | AC01058 | Screw | ||
| 8 | FMS | AC01008 | Throttle Spring Locator | 59 | AC01059 | Inlet Bushing | S3120PMA | ||
| 9 | FMS | AC01009 | Throttle Valve Screw | 64 | FMS | AC01064 | Socket Head Cap Screw | ||
| 10 | FMS | AC01010 | Valve Screw Washer | 67 | FMS | AC01067 | Nut | ||
| 11 | FMS | AC01011 | O-Ring Support | 68 | FMS | AC02068 | Pusher | ||
| 12 | FMS | AC01012 | O-Ring | 69 | FMS | AC01069 | Extruded Rivet | ||
| 13 | FMS | AC01013 | O-Ring Center Support | 70 | FMS | AC01070 | Pusher Spring | ||
| 14 | FMS | AC01014 | Throttle Valve Spacer | 71 | AC01071 | Button Head Screw | |||

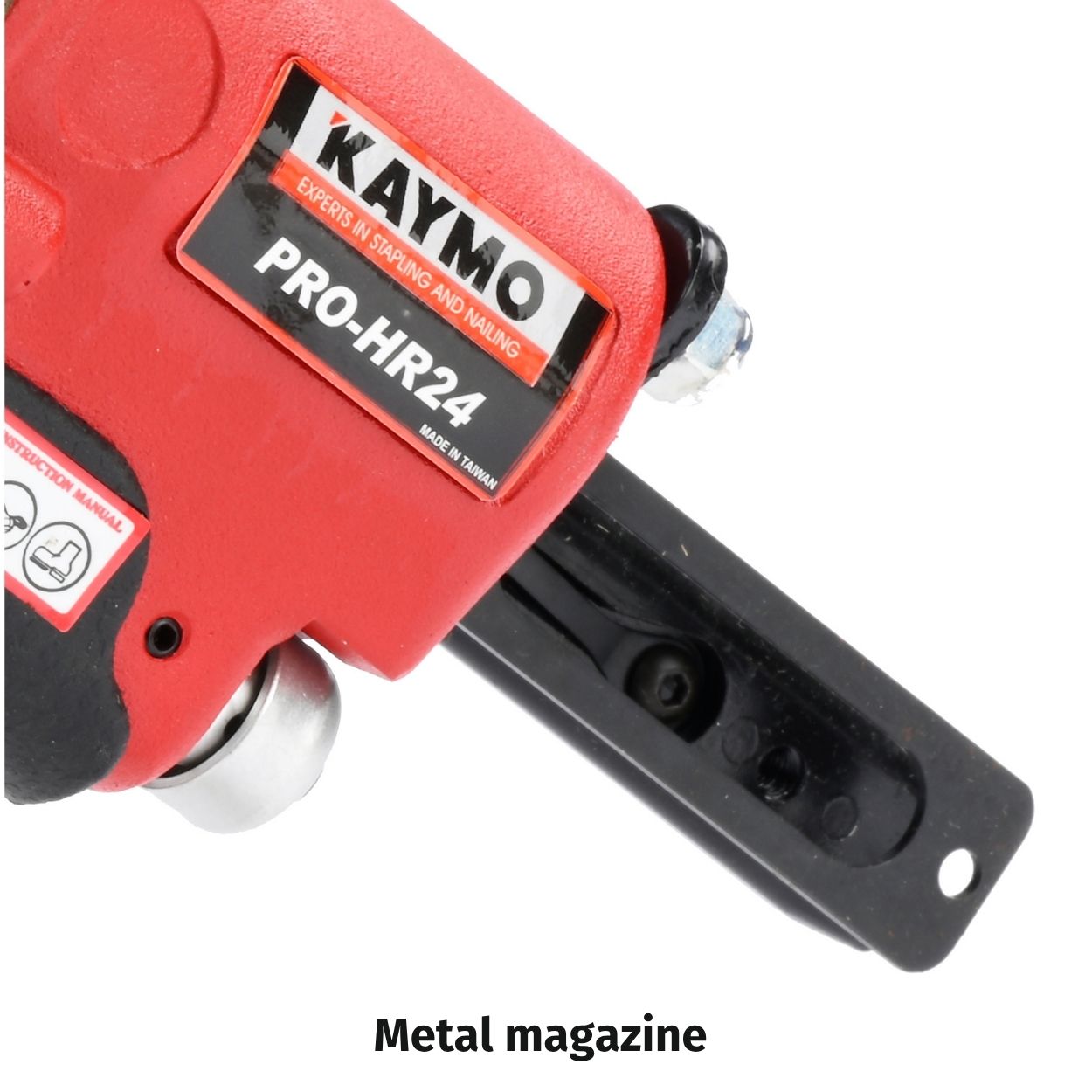

| 16 | FMS | AC01016 | Front Valve Seat | 73 | FMS | AC02073 | Magazine Body PLASTIC | ||
| 17 | FMS | AC01017 | Throttle Stem | 73 | FMS | AC02M073 | Magazine Body ALUMINIUM | AC02AR206 | |
| 18 | AC01018 | Button Head Cap Screw | 74 | AC02074 | Jaw Bolt | ||||
| 20 | AC01020 | Trigger Guard | 75 | FMS | AC02075 | Magazine Spring | |||
| 21 | FMS | AC01021 | Flexloc Nut | 76 | FMS | AC02076 | Magazine Shoe | ||
| 23 | AC01023 | Stud | 76 | FMS | AC02M076 | Magazine Shoe NEW | |||
| 27 | AC01027 | Housing | 77 | FMS | AC02077 | Roll Pin | |||
| 28 | AC01028 | Set Screw | 78 | AC01078 | Magazine Shim | ||||
| 29 | FMS | AC01029 | O-Ring | 79 | FMS | AC01079 | Washer | ||
| 30 | FMS | AC01030 | Piston | 80 | FMS | AC02080 | Guard Screw | ||
| 31 | FMS | AC01031 | Cylinder Gasket | 81 | AC02081 | Guard | |||
| 32 | AC01032 | Piston Stop Spacer | 82 | FMS | AC02082 | Clip Anti-Backup | |||
| 36 | FMS | AC01036 | Roll Pin | 83 | FMS | AC02083 | Screw | AC01M083 | |

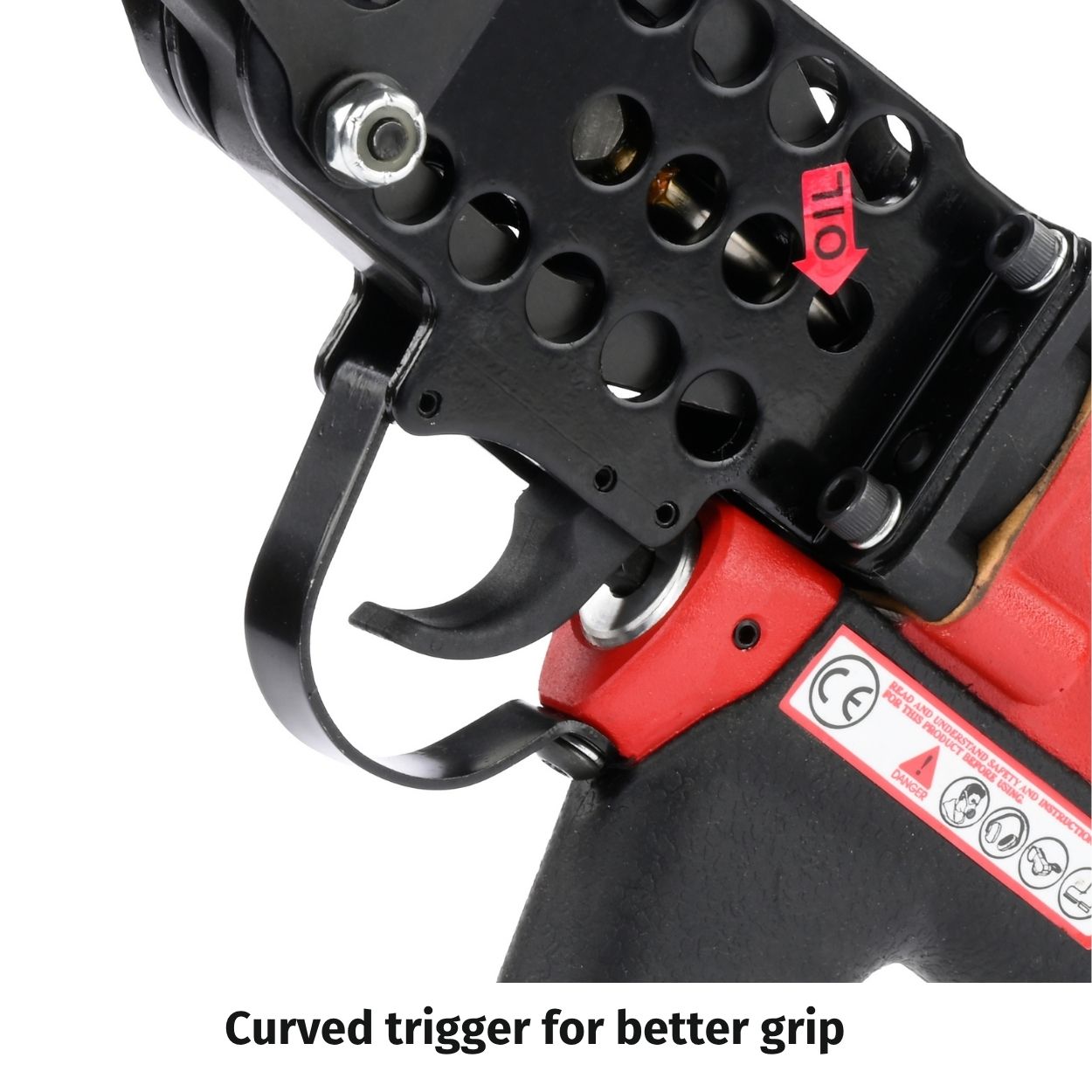

| 37 | FMS | AC01037 | Trigger | 86 | AC01086 | Plate Screw | |||
| 39 | FMS | AC01039 | Socket Head Cap Screw | 89 | FMS | AC01089 | Flexloc Nut | ||
| 40 | FMS | AC04040 | Upper Jaw | 204 | AC02204 | Feeder Guide Rail | |||
| 41 | FMS | AC01041 | Jaw Bushing | 205 | AC02205 | Pusher assembly | |||
| 43 | FMS | AC01043 | Latch Pin Clip | 206 | AC02AR206 | Magazine assembly | |||
| 44 | FMS | AC01044 | Latch Spring | 208 | AC01208 | Throttle assembly | |||
| 45 | FMS | AC03045 | Latch | 35L | AC0135L | Side Plate (Left) | |||
| 46 | FMS | AC01046 | Roller | 35R | AC0135R | Side Plate (Right) | |||
| 47 | FMS | AC03047 | Feeder Blade | 78A | AC0178A | Magazine Shim | |||
| 48 | FMS | AC03048 | Piston Rod |

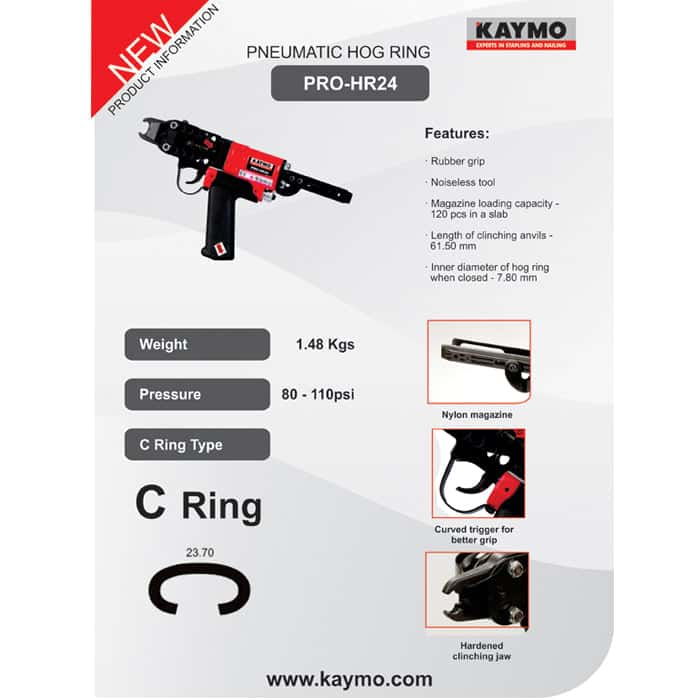

One Sheeter
Application
| CAR SEATS | To fix seat cover to metal springs |
| MATTRESSES | To fix inner lining to metal springs |
