PNEUMATIC HOG RINGER KAYMO PRO-HR24 LONG NOSE

PNEUMATIC HOG RINGER KAYMO PRO-HR24 LONG NOSE

Name: PNEUMATIC HOG RINGER KAYMO PRO-HR24 LONG NOSE
Brand: Kaymo
SKU: PRO-HR24LN
Price: 1.0 INR
Availability: InStock

SKU: PRO-HR24LN

The KAYMO PRO-HR24LN is a powerful long-nose pneumatic hog ring tool, designed for fastening in hard-to-reach areas and securing thick materials with precision. It features Read More...

Features:

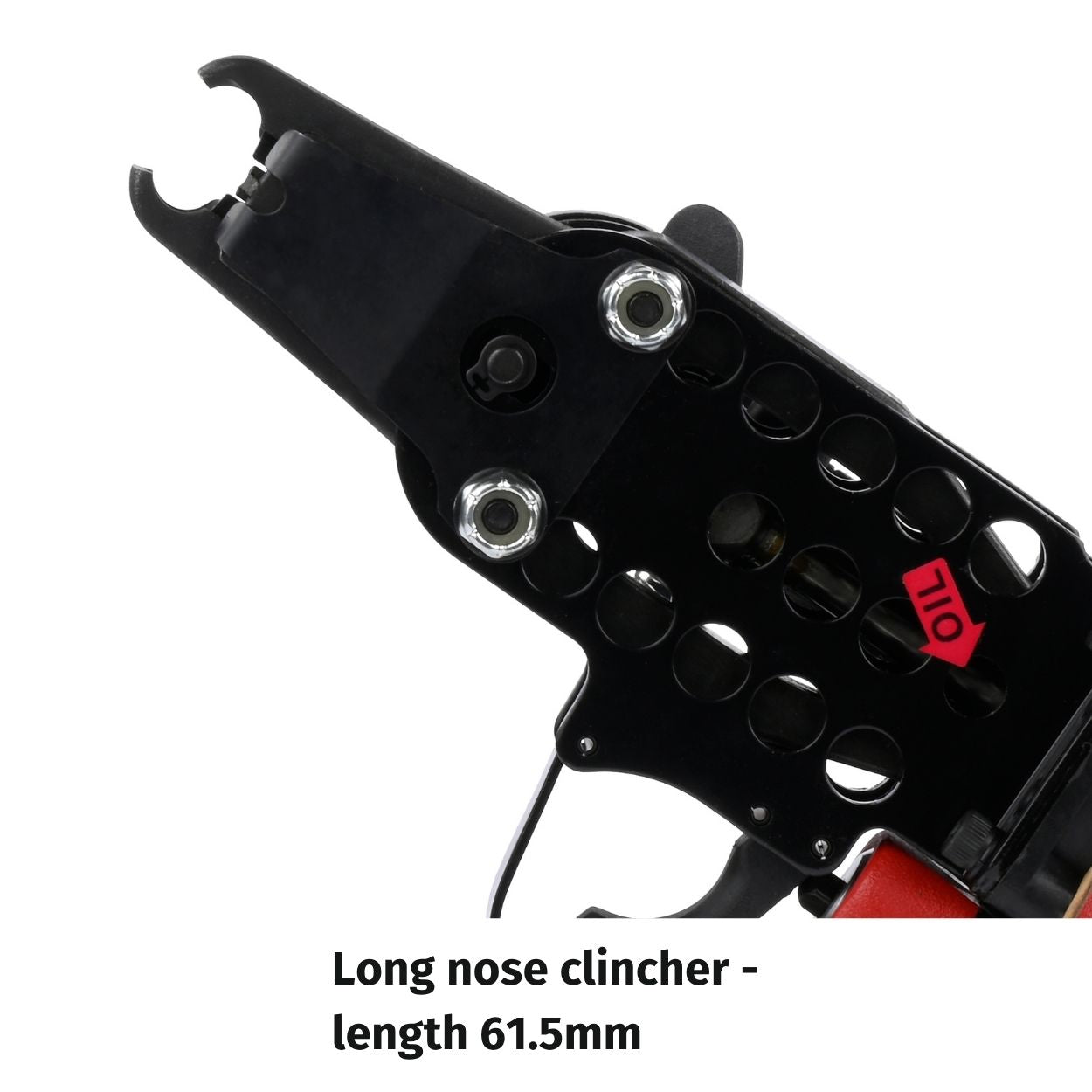

Long nose clincher – length 61.5mm

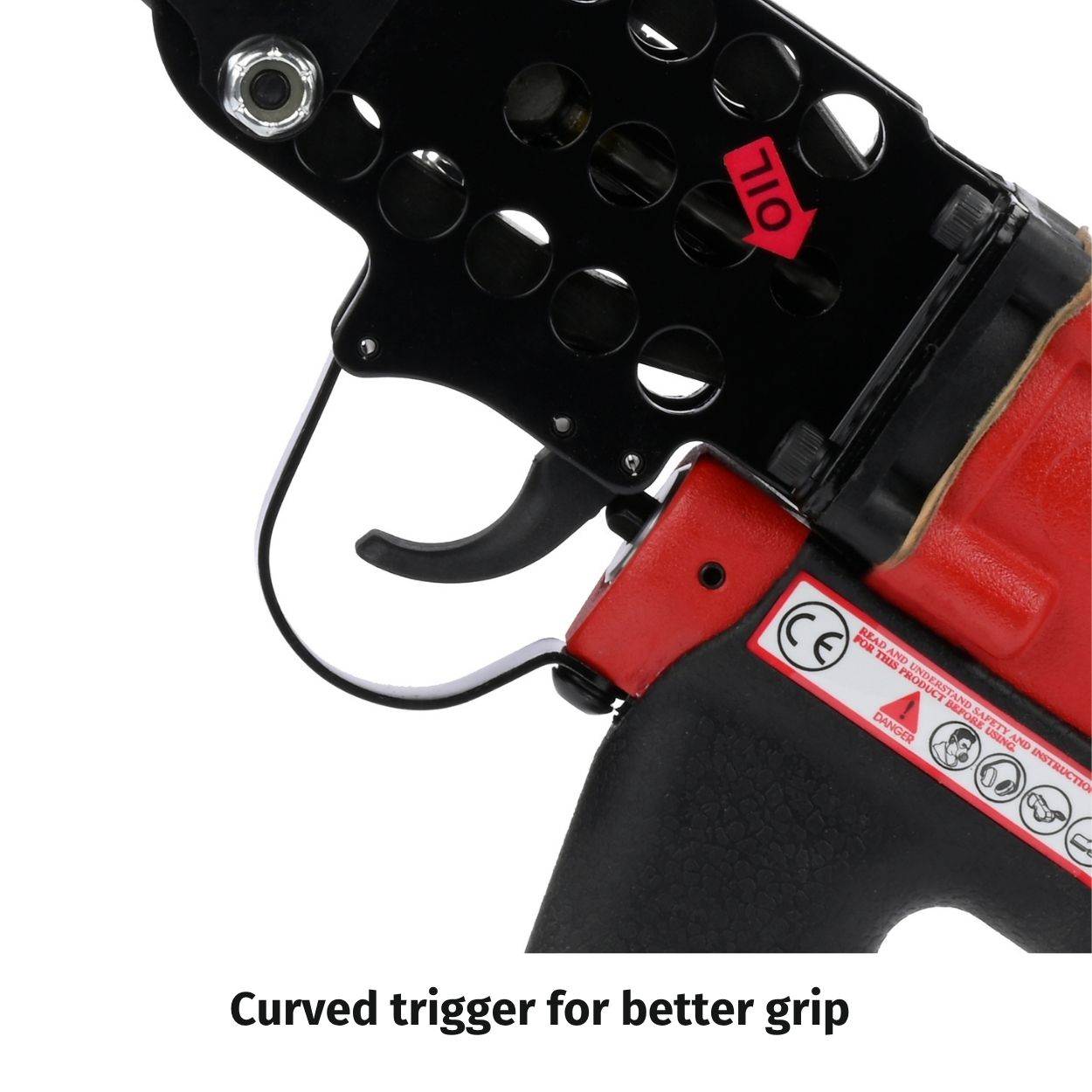

Curved trigger for better grip

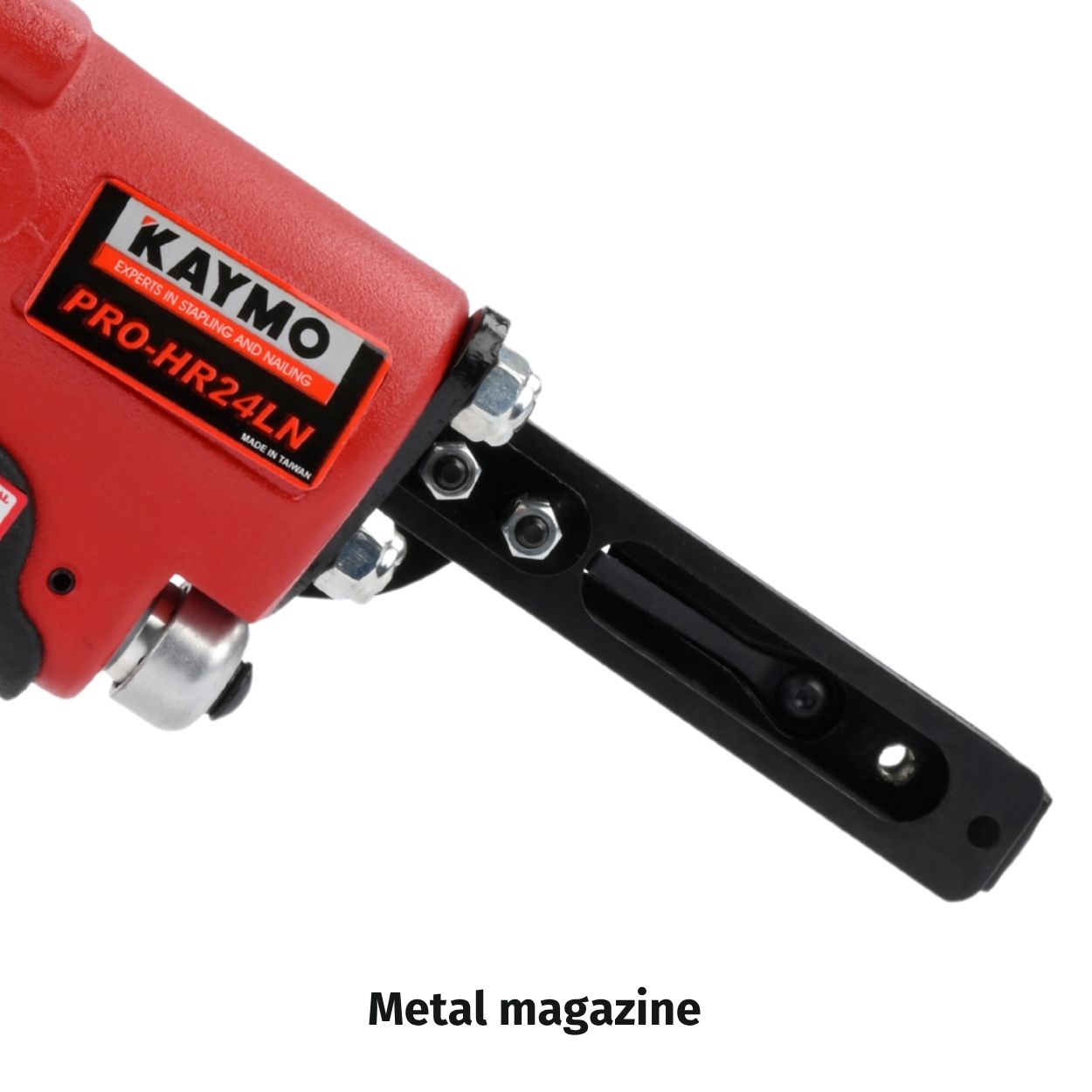

Metal magazine
Loads 120 C Rings
Closed ring diameter - 7.80mm

Applications:

Fencing
Car seats
Mattresses

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

C RINGS KAYMO 24 SERIES

AIR FILTER + REGULATOR LUBRICATOR SET KAYMO 1/2" WITH GAUGE

Blow Up

Spares

.		TOOL NAME:	PRO-HR24LN					REV.1ST APRIL 2022
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1	FMS	AC01001	Set Screw		48	FMS	AC03048	Piston Rod
3	FMS	AC01003	Shakeproof lock Washer		49	FMS	AC01049	Roller Pin
4	FMS	AC01004	Air Deflector		50	FMS	AC05050	Lower Jaw
5	FMS	AC01005	Rear Valve Seat		51		AC01051	Feeder Arm
6	FMS	AC01006	O-Ring		56	FMS	AC01056	Washer
7	FMS	AC01007	Throttle Spring		57	FMS	AC01057	Nut
8	FMS	AC01008	Throttle Spring Locator		58	FMS	AC01058	Screw
9	FMS	AC01009	Throttle Valve Screw		59		AC01059	Inlet Bushing	S3120PMA
10	FMS	AC01010	Valve Screw Washer		64	FMS	AC01064	Socket Head Cap Screw
11	FMS	AC01011	O-Ring Support		67	FMS	AC01067	Nut
12	FMS	AC01012	O-Ring		68	FMS	AC02068	Pusher
13	FMS	AC01013	O-Ring Center Support		69	FMS	AC01069	Extruded Rivet
14	FMS	AC01014	Throttle Valve Spacer		70	FMS	AC01070	Pusher Spring
16	FMS	AC01016	Front Valve Seat		71		AC01071	Button Head Screw
17	FMS	AC01017	Throttle Stem		73		AC02073	Magazine Body PLASTIC
18		AC01018	Button Head Cap Screw		73		AC02M073	Magazine Body ALUMINIUM	AC02AR206
20		AC01020	Trigger Guard		74		AC02074	Jaw Bolt
21	FMS	AC01021	Flexloc Nut		75	FMS	AC02075	Magazine Spring
23		AC01023	Stud		76	FMS	AC02076	Magazine Shoe
27		AC01027	Housing		77	FMS	AC02077	Roll Pin
28		AC01028	Set Screw		78	FMS	AC01078	Magazine Shim
29	FMS	AC01029	O-Ring		79	FMS	AC01079	Washer
30	FMS	AC01030	Piston		80	FMS	AC02080	Guard Screw
31	FMS	AC01031	Cylinder Gasket		81		AC02081	Guard
32		AC05032	Piston Stop Spacer		82	FMS	AC02082	Clip Anti-Backup
36	FMS	AC01036	Roll Pin		83	FMS	AC02083	Screw	AC01M083
37	FMS	AC01037	Trigger		86		AC01086	Plate Screw
39	FMS	AC01039	Socket Head Cap Screw		89	FMS	AC01089	Flexloc Nut
40	FMS	AC05040	Upper Jaw		204		AC02204	Feeder Guide Rail
41	FMS	AC01041	Jaw Bushing		205		AC02205	Pusher assembly
43	FMS	AC01043	Latch Pin Clip		206		AC02AR206	Magazine assembly
44	FMS	AC05044	Latch Spring		208		AC01208	Throttle assembly
45	FMS	AC05045	Latch		35L		AC0135L	Side Plate (Left)
46	FMS	AC01046	Roller		35R		AC0135R	Side Plate (Right)
47	FMS	AC05047	Feeder Blade		78A	FMS	AC0178A	Magazine Shim

One Sheeter

Application

CAR SEATS	To fix seat cover to metal springs
MATTRESSES	To fix inner lining to metal springs
