ROLL AIR BOXER KAYMO PRO-RABI22

SKU: PRO-RABI22
Introducing Kaymo's latest innovation in packaging tools - The Roll Air Boxer PRO-RABI22 - Designed specifically for the packaging industry, this pneumatic tool is perfect for closing cartons from the top.
- Load More Do More - With an impressive high staple carrying capacity of 1000 staples at a time, it ensures uninterrupted efficient packaging .
- Not only is the Roll Air Boxer user-friendly, but it also prioritizes safety during operation.
- Compared to other carton staplers, this automated tool significantly reduces packaging time, allowing businesses to increase productivity and meet tight deadlines.

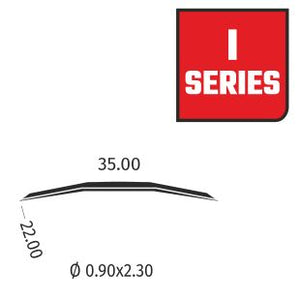

- I-series staples i.e I-22 (22mm)
- The I-series staples can be stored easily as it comes in a roll form and standard carton packing.

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

₹ 0/-
Blow Up
Spares
TOOL MODEL: PRO-RABI22 REV.1ST APRIL2023
SR FMS PART CODE PART NAME ALT CODE SR FMS PART CODE PART NAME ALT CODE
1   A01200115 CAP   53 FMS A01202301 SHAFT
2 FMS A02800201 PISTON   501 FMS BAC0604142 HEX.SOC.HD.BOLT KM0412
3 FMS A02800301 PISTON ROD A02800302 503 FMS BAB019028 O-RING
4 FMS A00100401 BLOCK   504 FMS BAD02061 HEX.NUT
5 FMS A00100501 SPRING   505 FMS BAE06094 WASHER
6 FMS A00100601 COLLAR   506 FMS BAB017076 O-RING
7   ADCSN-P31 BODY UNIT   507 FMS BAB057476 O-RING
8   A00100801 AIR PLUG   508 FMS A00104101 WASHER
9 FMS A00100902 BLOCK   510 FMS BAC0604102 HEX.SOC.HD.BOLT
10 FMS A00101001 SPRING   511 FMS BAA025014 SPRING PIN
11 FMS A00101101 TRIGGER A00101101-03 512 FMS BAB017036 O-RING
12 FMS A00101201 SPRING   513 FMS A00104401 TRIGGER SCREW
13 FMS A00101302 ROD   514 FMS BAE01042 SPRING WASHER
14 FMS A00101402 TRIGGER'S CONTROL   515 FMS BAA030020 SPRING PIN
15 FMS A00101501 SPRING   516 FMS BAE02042 OUTSIDE TEETH WASHER
16 FMS A00101603 VALVE   517 FMS BAC0404102 HEX.SOC.HD.BOLT
17 FMS A00101702 TUBE   518 FMS BAA030010 SPRING PIN
18 FMS A00101801 ADJUSTING  ROD   519 FMS BAB017124 O-RING
19 FMS A00101901 ADJUSTING PLATE   520 FMS BAB017076 O-RING
20 FMS A01102501 FRONT PLATE   521 FMS BAB016145 O-RING
20   A01102503 FRONT PLATE   522 FMS BAB016150 O-RING
21 FMS A01200501 RIGHT TEETH   523 FMS BAB016155 O-RING
22 FMS A01200601 LEFT TEETH   524 FMS BAB016160 O-RING
23 FMS A00102301 TEETH SEAT   525   A00104702 ROD
24 FMS A00102401 PLATE   526 FMS BAC0306142 HEX.SOC.HDLESS.
25 FMS A03700902 DRIVER   527 FMS BAC0608162 HEX.SOC.HD.BOLT
27 FMS A03600102 DRIVER GUIDE   528 FMS BAA050014 SPRING PIN
29 FMS A02300404 ANVIL   529 FMS BAA030010 SPRING PIN
30 FMS A03600203 PUSHER   530 FMS BAC0605142 HEX.SOC.HD.BOLT KM0520
31 FMS A02201101 SPRING   531 FMS BAD01051 LOCK NUT
32 FMS A02200501 ANVIL CAP   532 FMS A00106201 HEX.SOC.FLAT COUNTER SNK HD.SCREW
33 FMS A02201201 SPRING   532 FMS A00106301 HEX.SOC.FLAT COUNTER SNK HD.SCREW
34 FMS A02200901 PLATE   533 FMS A00104501 PIN
35   A02202901 TOP GUIDE   534 FMS A00104602 PIN
36 FMS A02201803 LEAF SPRING   537 FMS BAA060016-R SPRING PIN
37 FMS A03700601 RIGHT COIL GUIDE   538 FMS BAA040022 SPRING PIN
38 FMS A03700701 LEFT COIL GUIDE   540   BAC0205202 HEX.SOC.FLAT COUNTER SNK HD.SCREW
39 FMS A03600505 MAGAZINE SEAT   541 FMS BAC0205082 HEX.SOC.FLAT COUNTER SNK HD.SCREW
40 FMS A02201301 SHAFT   542 FMS BAC0603082 HEX.SOC.HD.BOLT
42 FMS A02200801 SHAFT   542 FMS BAC0703063 ROUND HD.SCREW
43 FMS A02201001 LEVER   543 FMS BAF10252 E-RING
44 FMS A02201402 COVER   544 FMS BAA040020 SPRING PIN
45   A02300801 PLATE   545 FMS BAF22002 C-RING
47 FMS A02202402 WASHER   546 FMS BAF10252 E-RING
48 FMS BAI1401 SILENCER   548 FMS A00104901 PLASTIC PIN
50 FMS A01202201 WASHER   549 FMS A02203102 WAVE WASHER
51 FMS A00106001 WASHER   551 FMS BAC0404102 HEX.SOC.HD.BOLT
52 FMS A00105801 COVER
One Sheeter
Application
CORRUGATED BOXES- TOP CLOSING Onsite carton closing
To close top of corrugated cartons
