ROLL STAPLES I22

Name: ROLL STAPLES I22
Brand: Kaymo Company
SKU: PRO-RABI22
Availability: InStock

SKU: PRO-RABI22

The KAYMO PRO-RABI22 is a high-capacity pneumatic carton stapler, designed for efficient and secure carton sealing. With its roll staple system, it enables faster operations Read More...

Features:

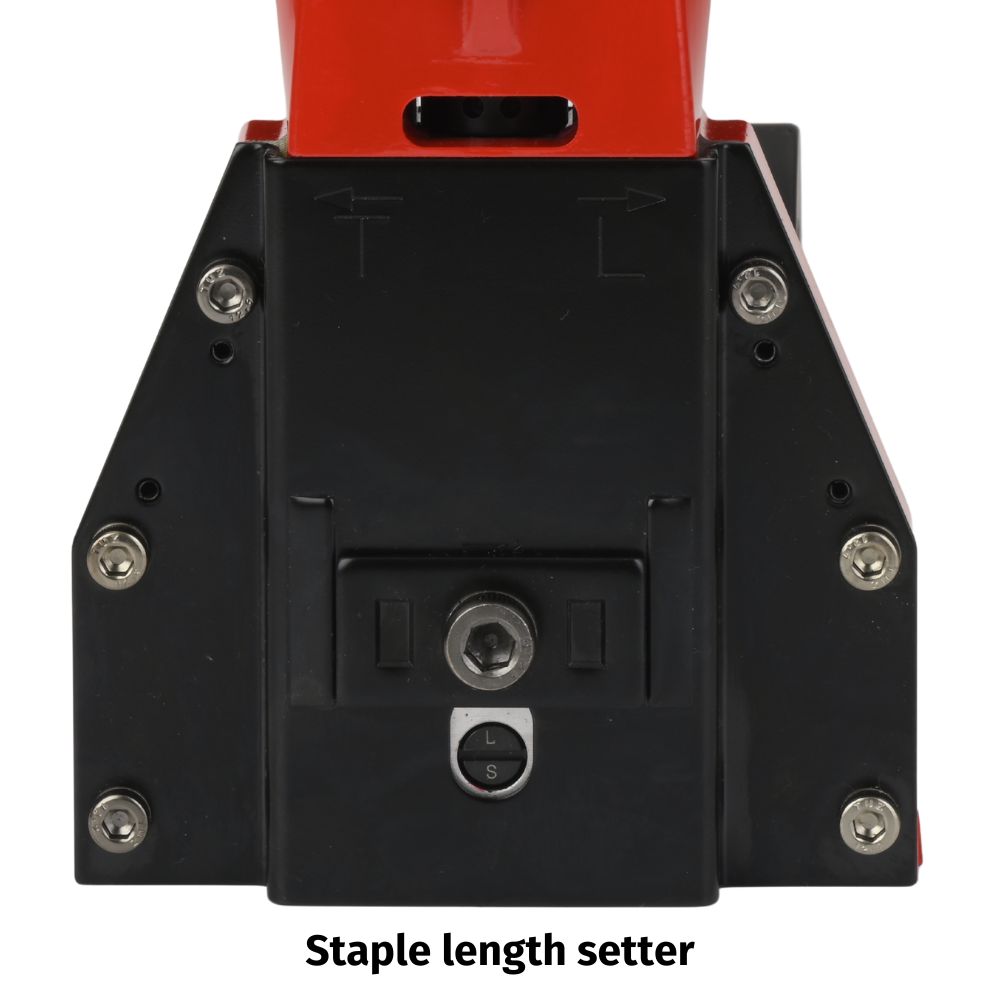

Staple length setter

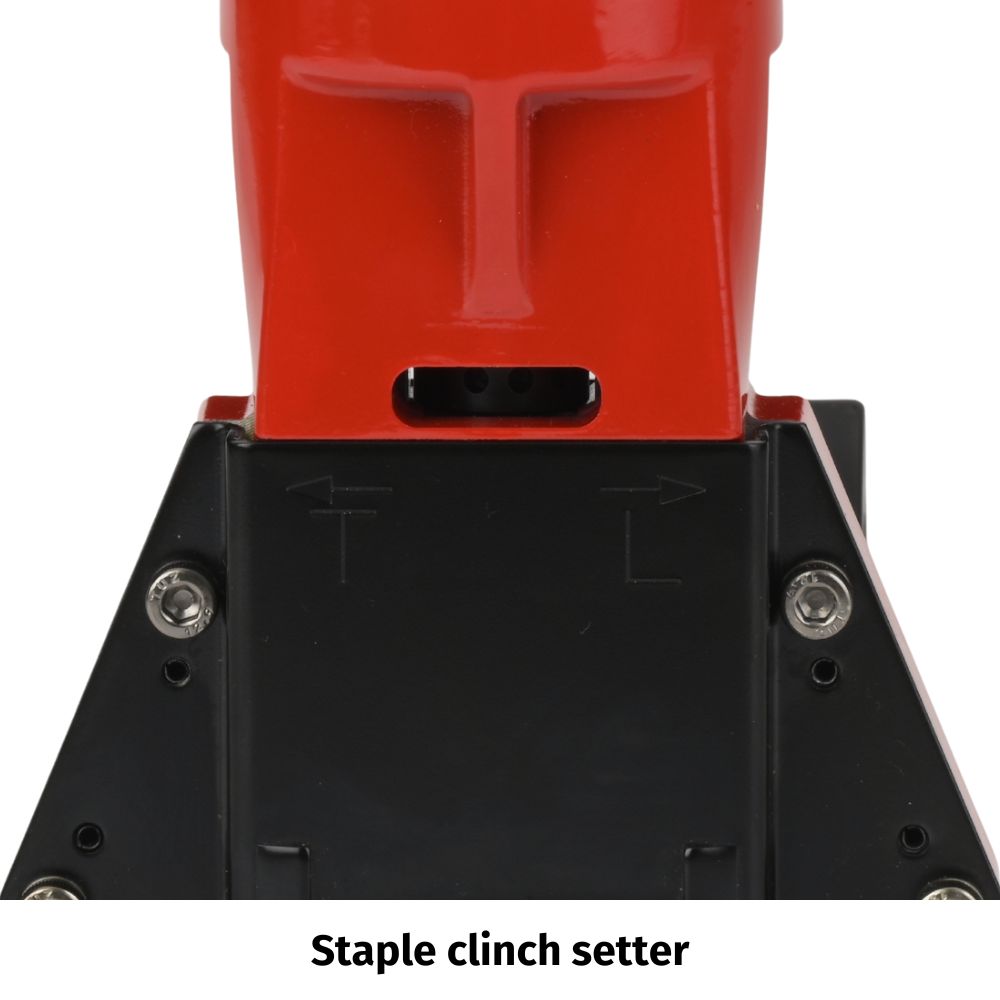

Staple clinch setter

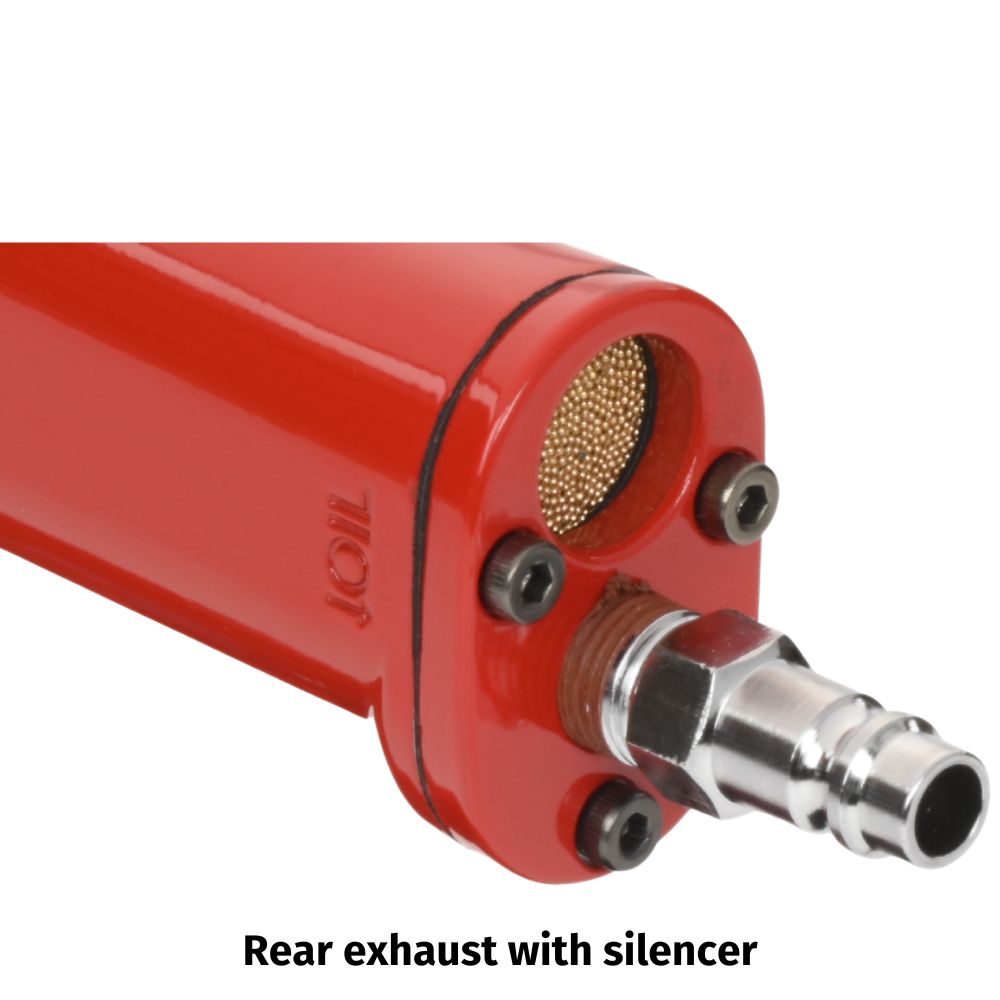

Rear exhaust with silencer

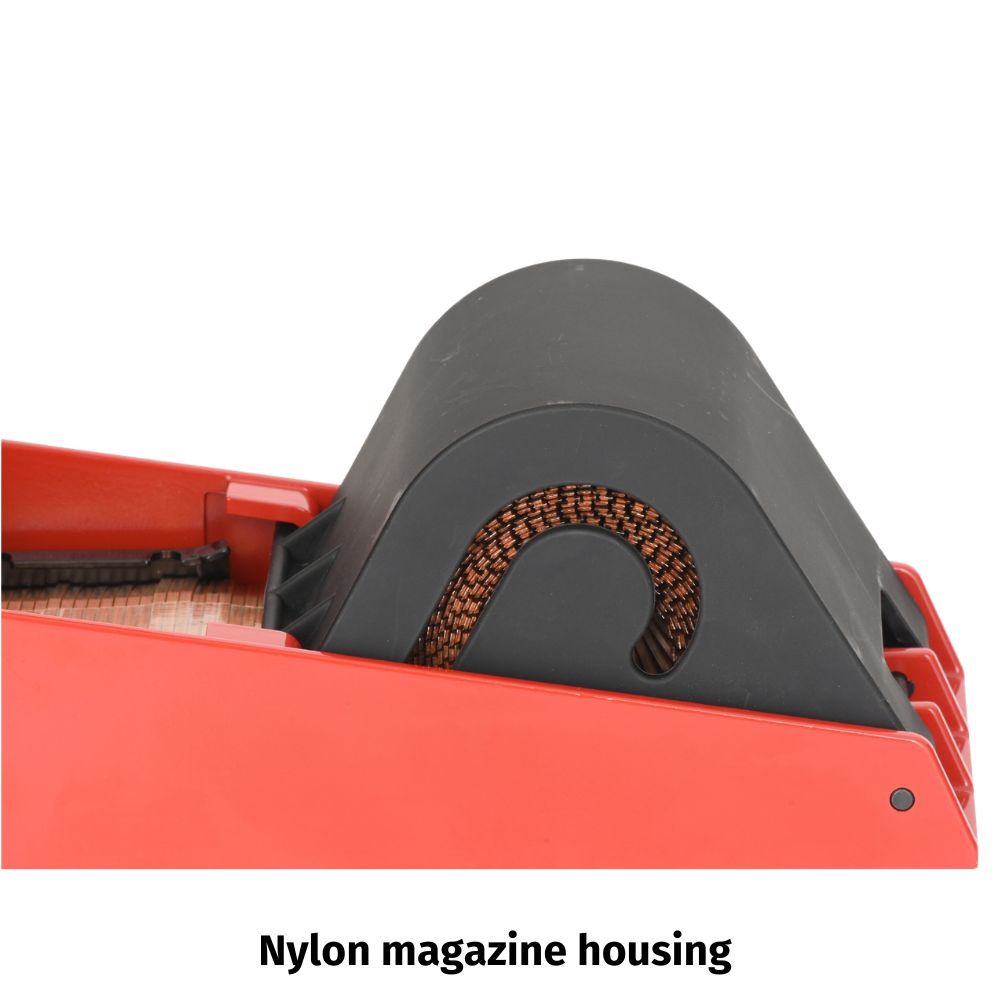

Nylon housing magazine
Loads 1000 staples at a time
Staples in roll form
Fastener Range: 22mm

Applications:

Corrugated boxes – top closing

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

STAPLES KAYMO I SERIES

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

FITTING KAYMO 6.35mmx8mm(1/4"x8 mm) PUSH TO CONNECT STRAIGHT

Blow Up

Spares

		TOOL MODEL:	PRO-RABI22					REV.1ST APRIL2023
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1		A01200115	CAP		53	FMS	A01202301	SHAFT
2	FMS	A02800201	PISTON		501	FMS	BAC0604142	HEX.SOC.HD.BOLT	KM0412
3	FMS	A02800301	PISTON ROD	A02800302	503	FMS	BAB019028	O-RING
4	FMS	A00100401	BLOCK		504	FMS	BAD02061	HEX.NUT
5	FMS	A00100501	SPRING		505	FMS	BAE06094	WASHER
6	FMS	A00100601	COLLAR		506	FMS	BAB017076	O-RING
7		ADCSN-P31	BODY UNIT		507	FMS	BAB057476	O-RING
8		A00100801	AIR PLUG		508	FMS	A00104101	WASHER
9	FMS	A00100902	BLOCK		510	FMS	BAC0604102	HEX.SOC.HD.BOLT
10	FMS	A00101001	SPRING		511	FMS	BAA025014	SPRING PIN
11	FMS	A00101101	TRIGGER	A00101101-03	512	FMS	BAB017036	O-RING
12	FMS	A00101201	SPRING		513	FMS	A00104401	TRIGGER SCREW
13	FMS	A00101302	ROD		514	FMS	BAE01042	SPRING WASHER
14	FMS	A00101402	TRIGGER'S CONTROL		515	FMS	BAA030020	SPRING PIN
15	FMS	A00101501	SPRING		516	FMS	BAE02042	OUTSIDE TEETH WASHER
16	FMS	A00101603	VALVE		517	FMS	BAC0404102	HEX.SOC.HD.BOLT
17	FMS	A00101702	TUBE		518	FMS	BAA030010	SPRING PIN
18	FMS	A00101801	ADJUSTING ROD		519	FMS	BAB017124	O-RING
19	FMS	A00101901	ADJUSTING PLATE		520	FMS	BAB017076	O-RING
20	FMS	A01102501	FRONT PLATE		521	FMS	BAB016145	O-RING
20		A01102503	FRONT PLATE		522	FMS	BAB016150	O-RING
21	FMS	A01200501	RIGHT TEETH		523	FMS	BAB016155	O-RING
22	FMS	A01200601	LEFT TEETH		524	FMS	BAB016160	O-RING
23	FMS	A00102301	TEETH SEAT		525		A00104702	ROD
24	FMS	A00102401	PLATE		526	FMS	BAC0306142	HEX.SOC.HDLESS.
25	FMS	A03700902	DRIVER		527	FMS	BAC0608162	HEX.SOC.HD.BOLT
27	FMS	A03600102	DRIVER GUIDE		528	FMS	BAA050014	SPRING PIN
29	FMS	A02300404	ANVIL		529	FMS	BAA030010	SPRING PIN
30	FMS	A03600203	PUSHER		530	FMS	BAC0605142	HEX.SOC.HD.BOLT	KM0520
31	FMS	A02201101	SPRING		531	FMS	BAD01051	LOCK NUT
32	FMS	A02200501	ANVIL CAP		532	FMS	A00106201	HEX.SOC.FLAT COUNTER SNK HD.SCREW
33	FMS	A02201201	SPRING		532	FMS	A00106301	HEX.SOC.FLAT COUNTER SNK HD.SCREW
34	FMS	A02200901	PLATE		533	FMS	A00104501	PIN
35		A02202901	TOP GUIDE		534	FMS	A00104602	PIN
36	FMS	A02201803	LEAF SPRING		537	FMS	BAA060016-R	SPRING PIN	BAA060016
37	FMS	A03700601	RIGHT COIL GUIDE		538	FMS	BAA040022	SPRING PIN
38	FMS	A03700701	LEFT COIL GUIDE		540		BAC0205202	HEX.SOC.FLAT COUNTER SNK HD.SCREW
39	FMS	A03600505	MAGAZINE SEAT		541	FMS	BAC0205082	HEX.SOC.FLAT COUNTER SNK HD.SCREW
40	FMS	A02201301	SHAFT		542	FMS	BAC0603082	HEX.SOC.HD.BOLT
42	FMS	A02200801	SHAFT		542	FMS	BAC0703063	ROUND HD.SCREW
43	FMS	A02201001	LEVER		543	FMS	BAF10252	E-RING
44	FMS	A02201402	COVER		544	FMS	BAA040020	SPRING PIN
45		A02300801	PLATE		545	FMS	BAF22002	C-RING
47	FMS	A02202402	WASHER		546	FMS	BAF10252	E-RING
48	FMS	BAI1401	SILENCER		548	FMS	A00104901	PLASTIC PIN
50	FMS	A01202201	WASHER		549	FMS	A02203102	WAVE WASHER
51	FMS	A00106001	WASHER		551	FMS	BAC0404102	HEX.SOC.HD.BOLT
52	FMS	A00105801	COVER

One Sheeter

Application

CORRUGATED BOXES- TOP CLOSING	Onsite carton closing
	To close top of corrugated cartons

ROLL STAPLES I22
