SKU: ECO-1013JV2

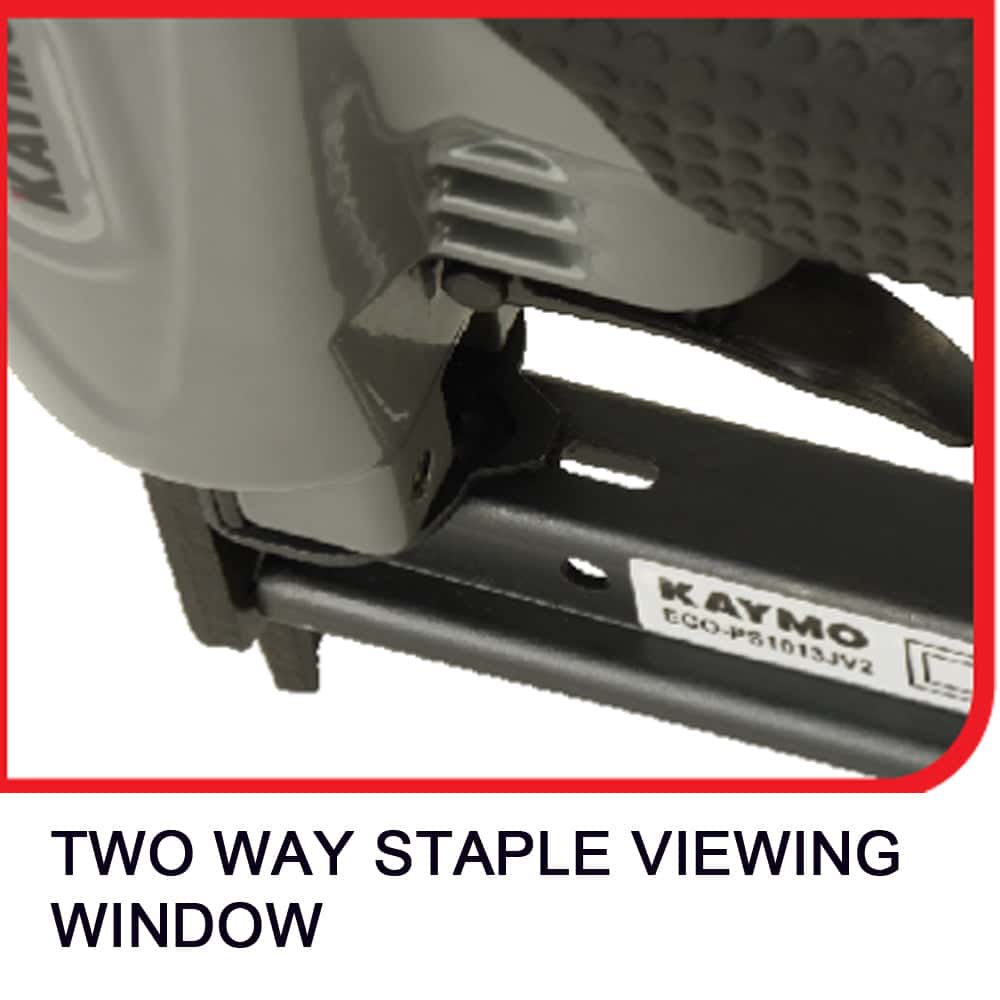

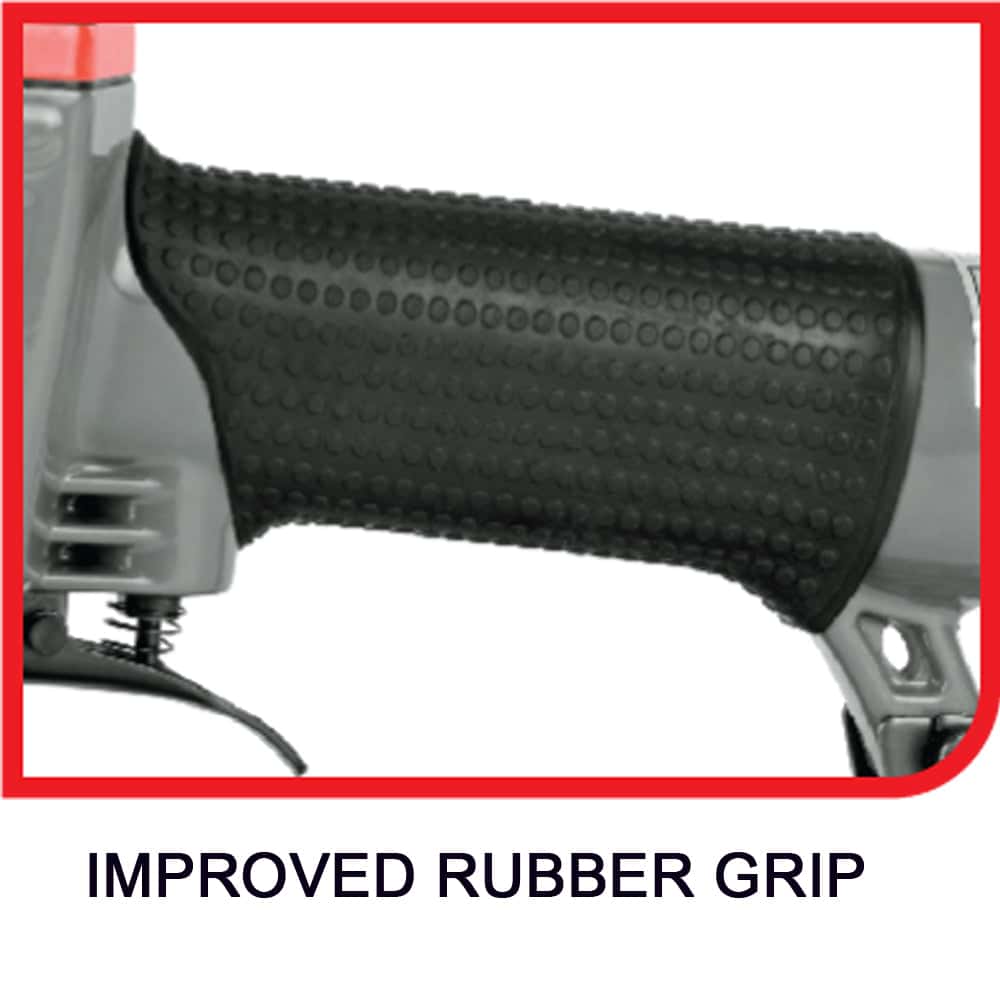

Ergonomic rubber grip.Full metal magazine and slider.Two way staple viewing window on magazine.Metal internal spare parts for long life cycle.Efficiently designed nose piece for tool stability.

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

₹ 0/-

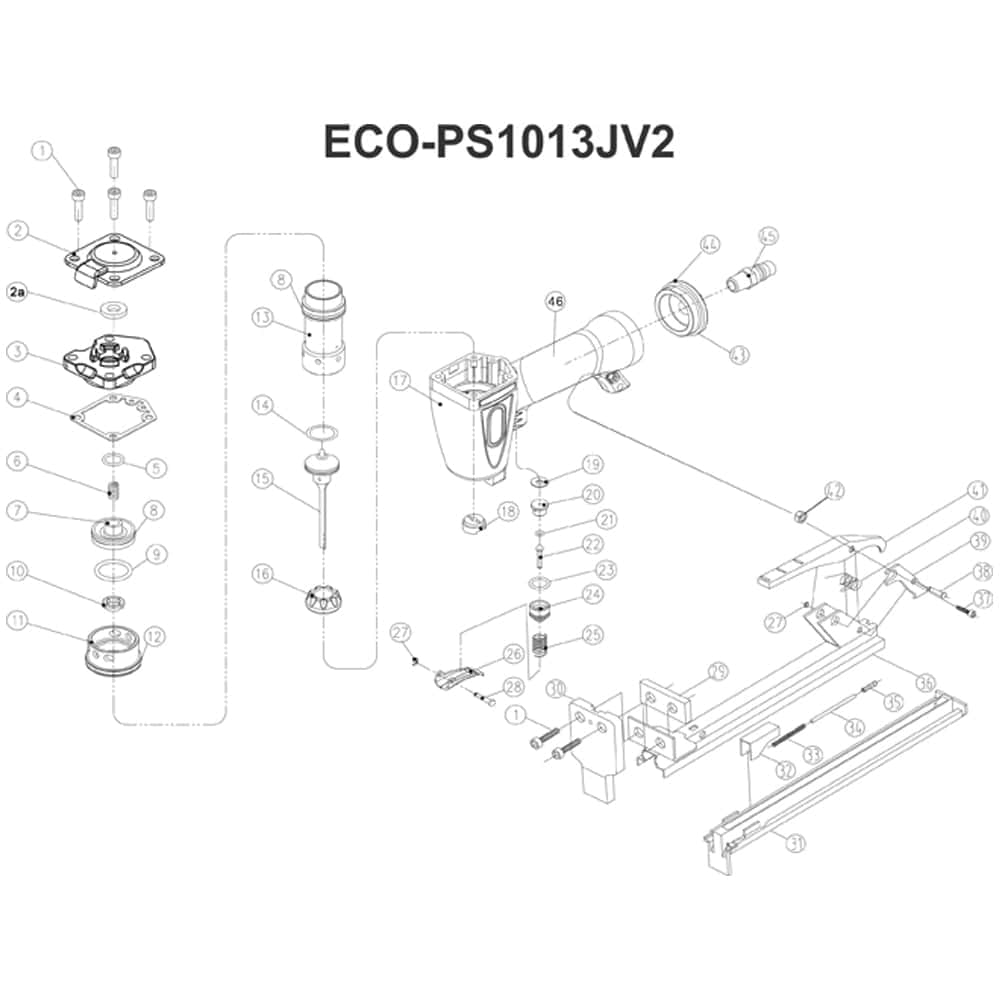

Blow Up

Spares


TOOL NAME: ECO-PS1013JV2
SR FMS PART CODE PART NAME ALT CODE
1 FMS ECO1013JV201 SCREW KM0520
2 FMS ECO1013JV202 SEAL
2A
ECO1013JV202A EXHAUST COVER
3
ECO1013JV203 CYLINDER CAP
4   ECO1013JV204 GASKET
5 FMS ECO1013JV205 O-RING HY1013J005
6 FMS ECO1013JV206 SPRING HY1013J006
7 FMS ECO1013JV207 VALVE HY1013J008
8 FMS ECO1013JV208 O-RING HY8016007
9 FMS ECO1013JV209 O-RING HY1013J009
10 FMS ECO1013JV210 STOPPED WASHER HY1013J010
11
ECO1013JV211 COLLAR
12
ECO1013JV212 O-RING
13
ECO1013JV213 CYLINDER
14 FMS ECO1013JV214 O-RING HY1013J012
15 FMS ECO1013JV215 PISTON ASSEMBLY HY1013J013
16 FMS ECO1013JV216 BUMPER HY1013J016
17
ECO1013JV217 BODY
18
ECO1013JV218 JOINT GUIDER
19 FMS ECO1013JV219 SEAL HY1013J019
20 FMS ECO1013JV220 TRIGGER VALVE HEAD HY1013J020
21 FMS ECO1013JV221 O-RING HY1013J022
22 FMS ECO1013JV222 TRIGGER VALVE STEM HY1013J021
23 FMS ECO1013JV223 O-RING HY1013J024
24 FMS ECO1013JV224 TRIGGER VALVE GUIDE HY1013J023
25 FMS ECO1013JV225 SPRING HY1013J025
26
ECO1013JV226 TRIGGER
27 FMS ECO1013JV227 LOCK WASHER YE2501
28
ECO1013JV228 PIN HY1013J027
29
ECO1013JV229 SPACER HY1013J028
30
ECO1013JV230 DRIVE GUIDE HY1013J030
31
ECO1013JV231 FIXED MAGAZINE HY1013J037
32 FMS ECO1013JV232 FEEDER SHOE HY1013J033
33 FMS ECO1013JV233 SPRING ECO1013F34
34 FMS ECO1013JV234 SPRING GUIDER HY1013J035
35 FMS ECO1013JV235 SCREW HY1013J036
36
ECO1013JV236 MOVABLE MAGAZINE ECO1013F32
37
ECO1013JV237 SCREW KM0520
38 FMS ECO1013JV238 PIN HY1013J039
39 FMS ECO1013JV239 STOPPDEÂ   PIECE HY1013J040
40
ECO1013JV240 TORSIN SPRING ECO1013F41
41
ECO1013JV241 LOCK ECO1013F42
42 ECO1013JV242 NUT HY8016049
43 FMS ECO1013JV243 O-RING HY1013J045
44
ECO1013JV244 END CAP HY7116052
45
ECO1013JV245 AIR PLUG ACC016
46
ECO1013JV246 SOFT GRIP SLEEVE HY1013J044
One Sheeter

Application
SOFAS To fix 3mm / 4mm veneer to wooden frame

To fix upholstery & elastic band
MODULAR / KITCHENS To fix fabric to MDF, particle board or ply tiles
BICYCLE SEATS To fix rexine & foam to moulded plastic base
