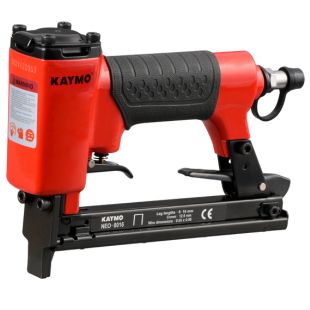

SKU: NEO-PS8016

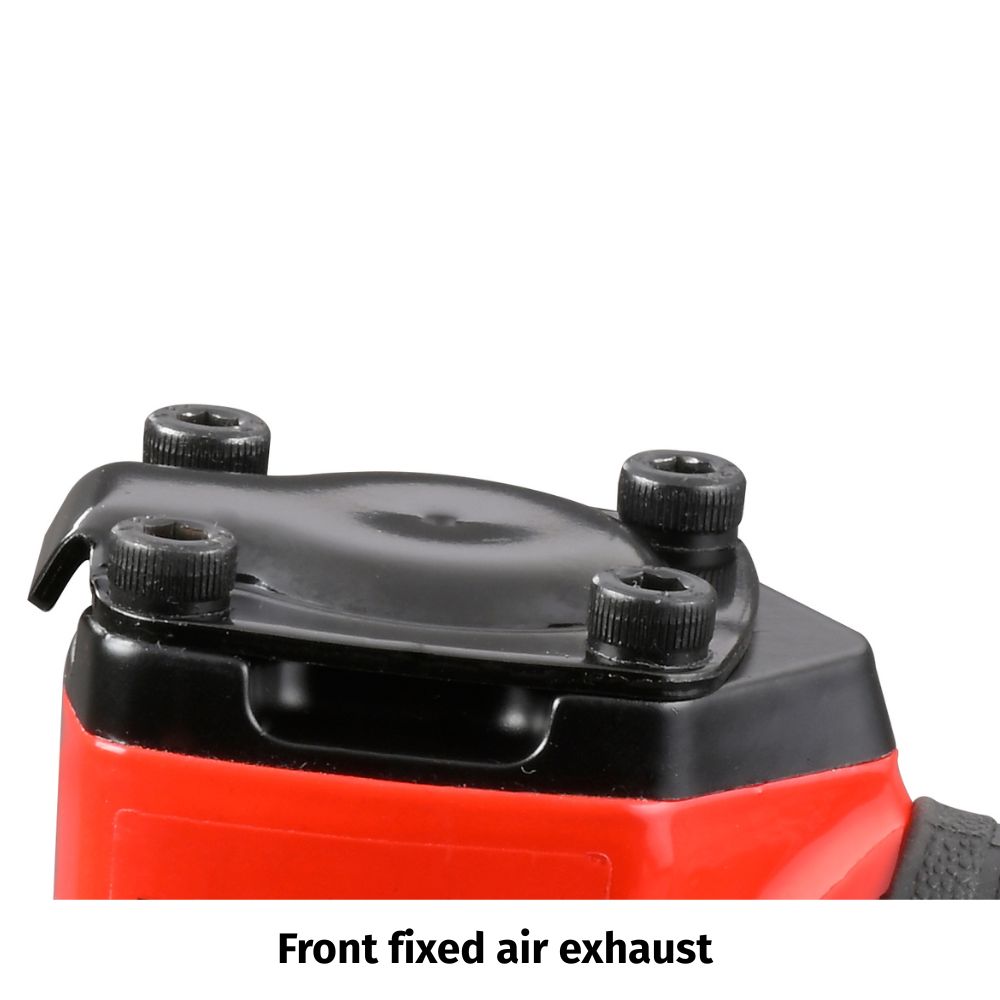

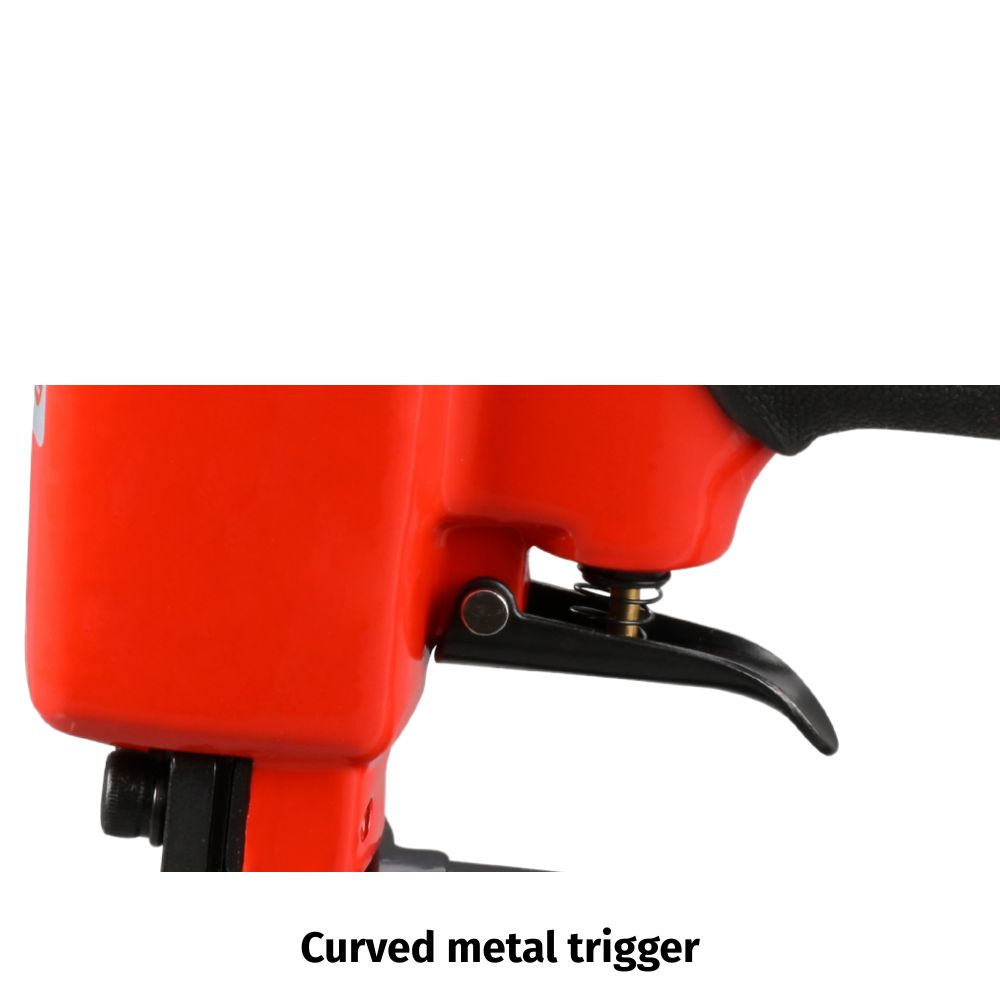

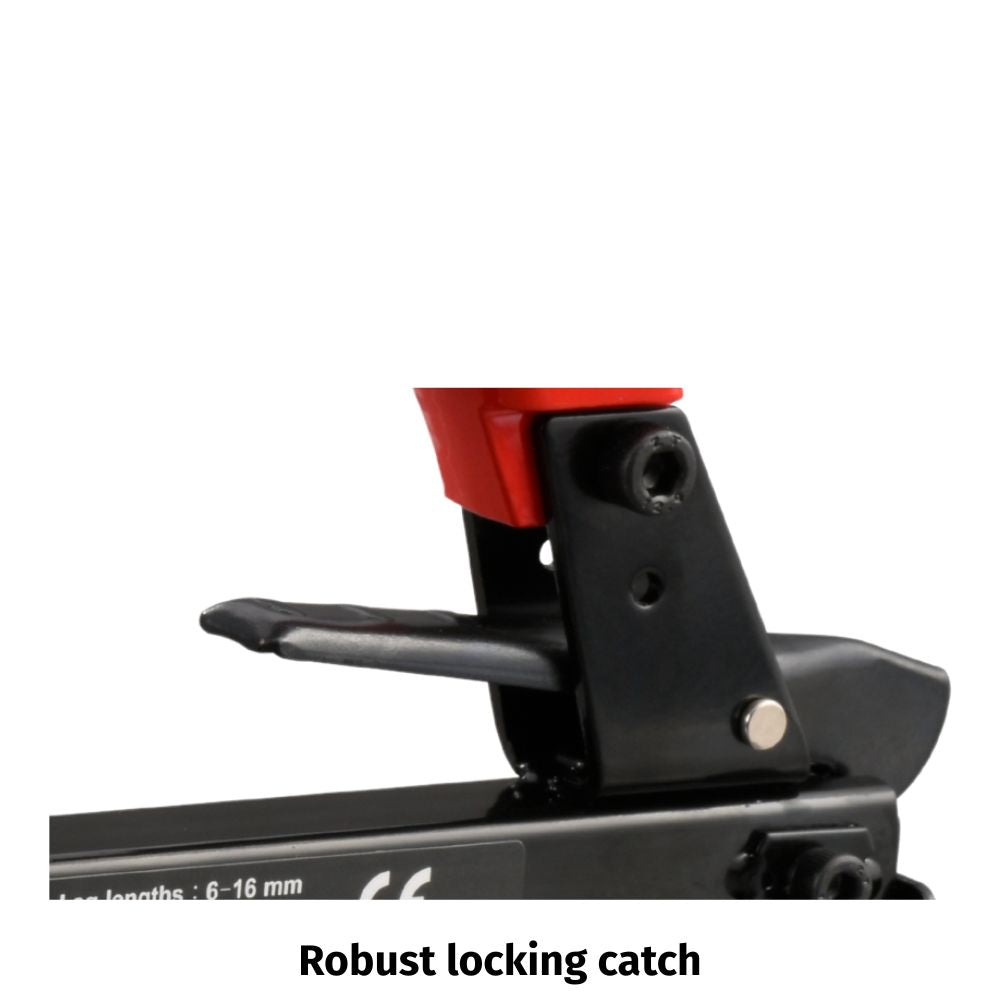

Durable full metal magazine and slider.Curved metal trigger for fast stapling.Fixed top air exhaust.User friendly robust magazine opening latch.Durable driver blade for different wood varities. Internal brass servo valve parts that do not corrode. 130 staples loading capacity.
₹ 0/-

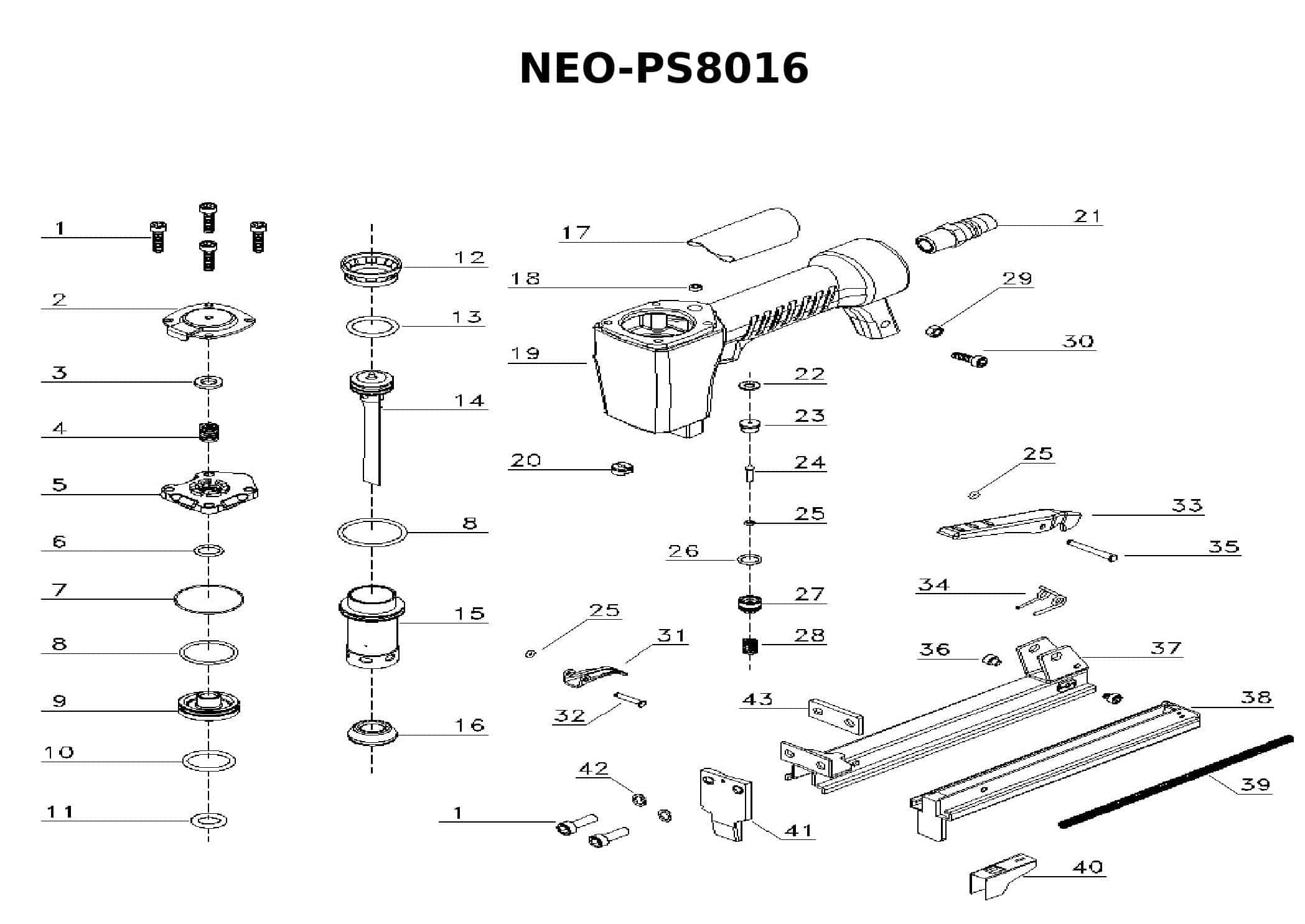

Blow Up
Spares
| TOOL MODEL: | NEO-PS8016 | |||
| SR | FMS | PART CODE | PART NAME | ALT CODE |
| 1 | FMS | M5 X 20 | Hex bolt M5 X 20 | KM0520 |
| 2 | FMS | 1013JY-100-02 | Exhaust cover | NEO80002 |
| 3 | FMS | 16X8X2.5 | seal 1 6X8X 2.5 | NEO80003 |
| 4 | FMS | 1013JY-100-04 | Compression Spring | HY1013J006 |
| 5 | FMS | NEO80005 | cylinder cap | |
| 6 | FMS | 11. 7x 2.5 | O ring 11.7x 2.5 | NEO80006 |
| 7 | FMS | 32.6X 1.2 | O ring 32.6X1.2 | NEO80007 |
| 8 | FMS | 26.2x 2.5 | O ring 26.2x 2.5 | NEO80008 |
| 9 | FMS | NEO80009 | Head valve piston | |
| 10 | FMS | 21. 3X3 | O ring 21.3X3 | NEO80010 |
| 11 | FMS | 10x 3.5 | O ring 10x3.5 | NEO80011 |
| 12 | FMS | 1013JY-200-02 | support collar | NEO80012 |
| 13 | FMS | 17.3x 3 | O ring 17.3x3 | NEO80013 |
| 14 | FMS | NEO80014 | Piston driver | |
| 15 | FMS | NEO80015 | Cylinder | |
| 16 | FMS | 1013JY-200-04 | bumper | NEO80016 |
| 17 | NEO80017 | grip | ||
| 18 | FMS | 7.5X4.5X3 | seaI 7.5X4.5X3 | NEO80018 |
| 19 | NEO80019 | Body | ||
| 20 | FMS | F3OYA-200-07 | Nozzle | NEO80020 |
| 21 | FMS | ACC016 | Air Plug | |
| 22 | FMS | 1 2.5X7X 2 | Seal 1 2.5X7X 2 | NEO80022 |
| 23 | FMS | F30YA-220-03 | trigger valve head | NEO80023 |
| 24 | FMS | F30YA-220-02 | trigger valve stem | NEO80024 |
| 25 | FMS | 1.2X 1. 9 | O ring 1.2X1.9 | NEO80025 |
| 26 | FMS | 11.2X 1. 9 | O rIng 11.2X1.9 | NEO80026 |
| 27 | FMS | F30YA-220-01 | trigger valve guide | NEO80027 |
| 28 | FMS | F30YA-220-04 | compression spring | NEO80028 |
| 29 | FMS | M5 | screw nut M5 | NEO80029 |
| 30 | FMS | M5X 22 | Hex bolt M5X 22 | KM0520 |
| 31 | FMS | F30YA-200-05 | trigger | NEO80031 |
| 32 | FMS | 3X15.3 | step pin 3X 15.3 | NEO80032 |
| 33 | FMS | NEO80033 | magazine click latch | |
| 34 | FMS | 1013JY-3100-02 | torsion spring | NEO80034 |
| 35 | FMS | 3X18 | step pin 3X18 | NEO80035 |
| 36 | FMS | M14 x 3 | hex bolt M14 x3 | NEO80036 |
| 37 | FMS | NEO80037 | fixed magazine | |
| 38 | FMS | NEO80038 | mobile magazine | |
| 39 | FMS | UH0901 | compression spring | |
| 40 | FMS | 8016A-320-00 | naiI pusher | NEO80040 |
| 41 | FMS | NEO80041 | driver guide | |
| 42 | FMS | 5 | Washer 5 | S0410500 |
| 43 | FMS | 1013JY-000-01 | spacer | NEO80043 |
One Sheeter
Application
|
To fix 3mm / 4mm veneer to wooden frame |
|
|
To fix upholstery & elastic band |
|
|
To fix upholstery to chair / stool base |
|
|
To fix fabric to MDF, particle board or ply tiles |
|
|
To fix rubber pad to wooden runner base |
|
|
To join wooden strips together |
|
|
To fix netted pockets |
|
|
To fix sole to the heel |
|
|
To fix canvas to wooden frame |
|
|
To fix screens onto the wooden frame |
