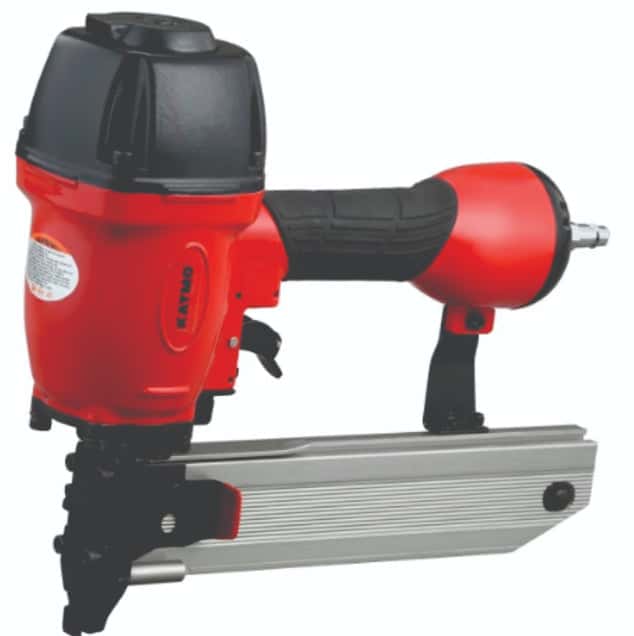

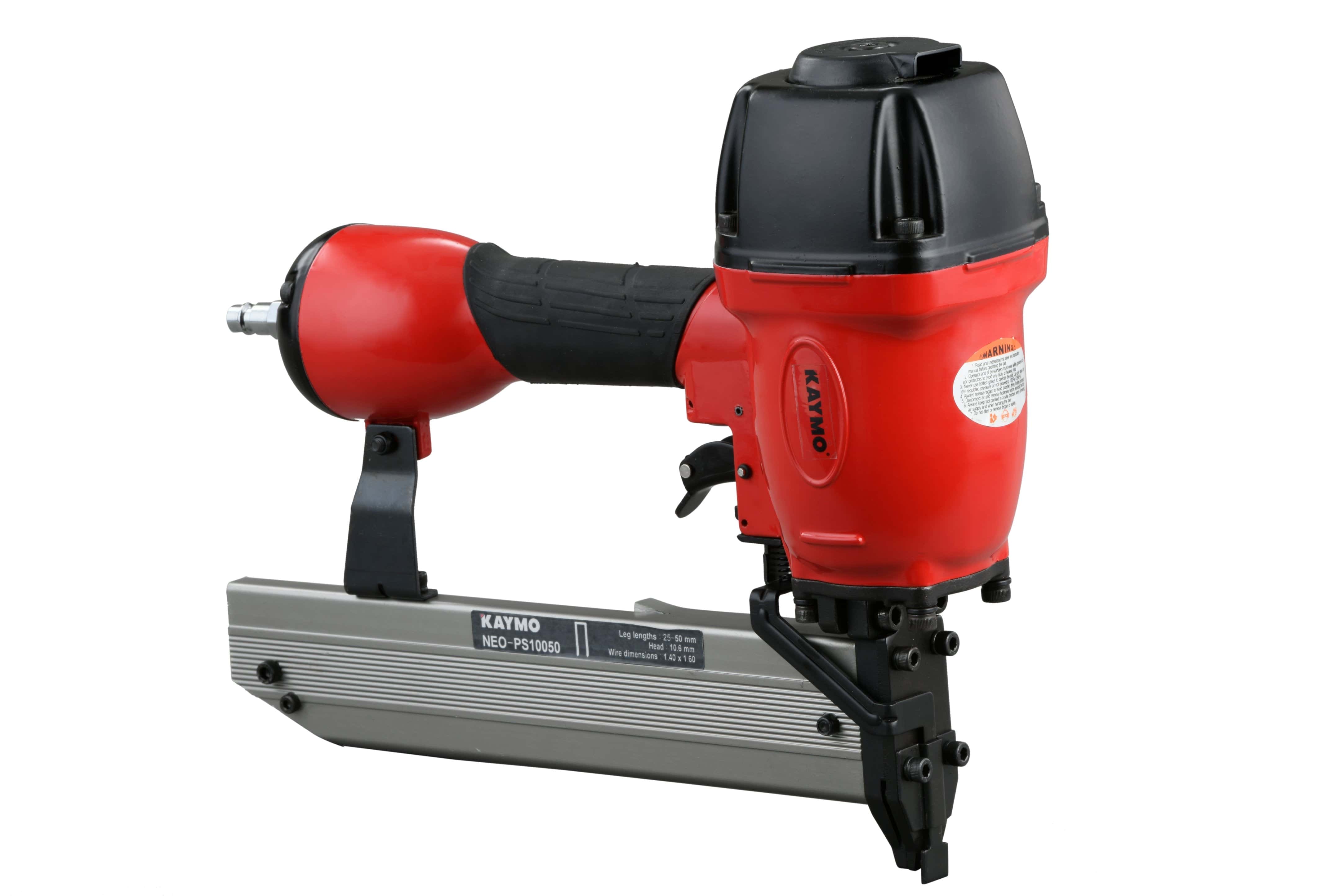

PNEUMATIC STAPLER KAYMO NEO-PS10050

Name: PNEUMATIC STAPLER KAYMO NEO-PS10050
Brand: Kaymo
SKU: NEO-PS10050
Price: 1.0 INR
Availability: InStock

SKU: NEO-PS10050

Safety device. High grade aluminium magazine unit. Smooth feeding pusher unit. Long lasting pusher spring. All metal internal spares for extra durability. 360 degree top Read More...

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

1/2" F/RL AIR CONTROL UNIT, PT FRL884

Blow Up

Spares

		TOOL NAME:	NEO-PS10050 (N)
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1		NEO1005001N	Hex Bolt M8X25	100009	41		NEO1005041N	Trigger Valve
2		NEO1005002N	Exhaust Cover Bushing		42		NEO1005042N	O ring 8.5X2
3		NEO1005003N	Exhaust Cover		43		NEO1005043N	Straight Pin
4		NEO1005004N	O ring 11.7X2.5	NEO80006	44		NEO1005044N	Trigger valve Housing
5		NEO1005005N	Hex Bolt M6X22	ECO235732	45		NEO1005045N	O ring 19.8X2.4
6		NEO1005006N	Spring Washer 6		46		NEO1005046N	O ring 2.5X1.4
7		NEO1005007N	Cylinder Cap		47		NEO1005047N	Compression Spring	KFCBS00287
8		NEO1005008N	Cylinder Cap Gasket		48		NEO1005048N	Trigger valve stem
9		NEO1005009N	Spacer Exhaust		49		NEO1005049N	Trigger valve cap
10		NEO1005010N	Piston Stop		50		NEO1005050N	Trigger Plunging Plate
11		NEO1005011N	Compression Spring		51		NEO1005051N	Trigger body
12		NEO1005012N	O ring 41.5X2.6		52		NEO1005052N	Step Pin 3X16.7
13		NEO1005013N	Head Valve Washer		53		NEO1005053N	O ring 42.2X1.4
14		NEO1005014N	Head Valve Piston		54		NEO1005054N	Driver Guide Chassis
15		NEO1005015N	O ring 50.47X2.6		55		NEO1005055N	Hex Bolt M6X22
16		NEO1005016N	O ring 41.5X3.5		56		NEO1005056N	Compression Spring
17		NEO1005017N	Driver		57		NEO1005057N	Saftety Tip
18		NEO1005018N	Support Collar		58		NEO1005058N	Hex Bolt M5X16	KM0520
19		NEO1005019N	O ring 75X3		59		NEO1005059N	He Bolt M5X6
20		NEO1005020N	Cylinder Seal		60		NEO1005060N	Driver Guide Cover Holder
21		NEO1005021N	O ring 52.5X2.6		61		NEO1005061N	Driver Guide Cover
22		NEO1005022N	Cylinder		62		NEO1005062N	Spring Pin 3X22
23		NEO1005023N	O ring 49.1X2.5		63		NEO1005063N	Hex Bolt M4X14	666022
24		NEO1005024N	Bumper		64		NEO1005064N	Driver Guide
25		NEO1005025N	Air Plug	ACC016	65		NEO1005065N	Nailer Pusher
26		NEO1005026N	Hex Bolt M5X20	KM0520	66		NEO1005066N	Hex Bolt M4X10	KM0412
27		NEO1005027N	Spring Washer 5	S0410500	67		NEO1005067N	Roller Bushing
28		NEO1005028N	End Cap		68		NEO1005068N	Roller
29		NEO1005029N	End Cap Gasket		69		NEO1005069N	Elastic Spring
30		NEO1005030N	Handle Grip		70		NEO1005070N	Bushing
31		NEO1005031N	Body		71		NEO1005071N	Positioner
32		NEO1005032N	O ring 1.2X1.9	NEO80025	72		NEO1005072N	Compression Spring
33		NEO1005033N	Safety Guide Frame		73		NEO1005073N	Base
34		NEO1005034N	Step Pin 3X30.5		74		NEO1005074N	Magazine
35		NEO1005035N	Spring Pin 2.5X30		75		NEO1005075N	Screw Nut M4
36		NEO1005036N	O ring 15.2X1.9		76		NEO1005076N	Hex Bolt M4X16	KM0412
37		NEO1005037N	Spacer		77		NEO1005077N	Hex Nut M4	NEO1005075N
38		NEO1005038N	O ring 11X2		78		NEO1005078N	Magazine Holder
39		NEO1005039N	O ring 6.8X1.9		79		NEO1005079N	Screw Nut M5
40		NEO1005040N	O ring 5.8X1.9		80		NEO1005080N	Spring Pin 3X30	KFCBS00626

One Sheeter

Application

SOFAS	To fix 3mm / 4mm veneer to wooden frame
	To fix upholstery & elastic band
MODULAR / KITCHENS	To fix fabric to MDF, particle board or ply tiles
CARROM BOARDS	To fix upholstery & elastic band

PNEUMATIC STAPLER KAYMO NEO-PS10050
