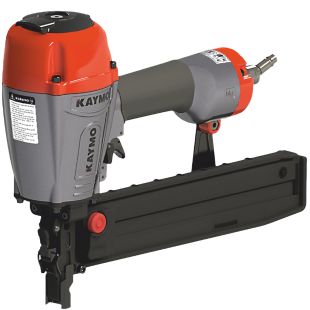

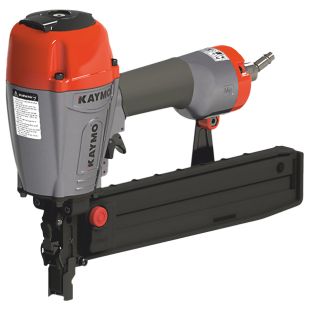

PNEUMATIC STAPLER KAYMO ECO-10050E3

Name: PNEUMATIC STAPLER KAYMO ECO-10050E3
Brand: Kaymo
SKU: ECO-PS10050E3
Price: 1.0 INR
Availability: InStock

SKU: ECO-PS10050E3

The KAYMO ECO-PS10050E3 is a versatile and high-performance pneumatic stapler, ideal for demanding applications. It features a quick-release unjamming latch, swivel air inlet adaptor, and Read More...

Features:

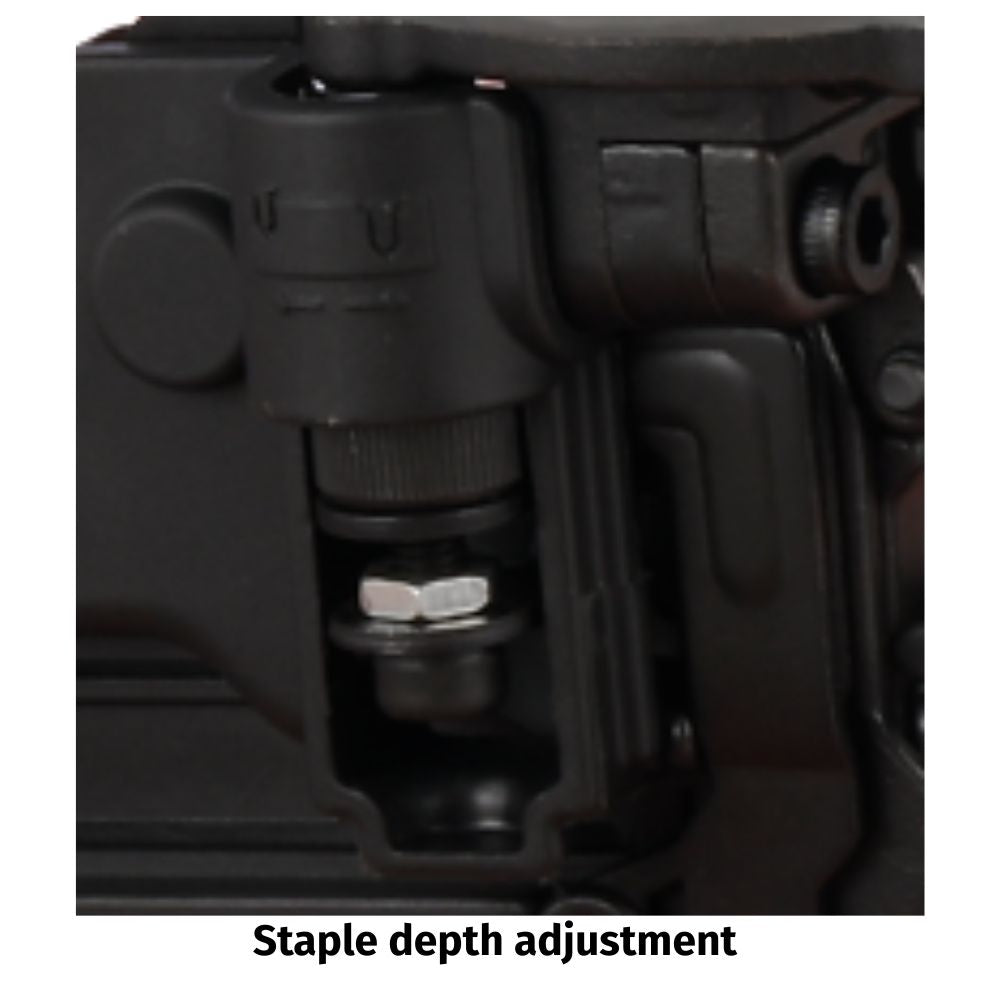

Staple depth adjustment

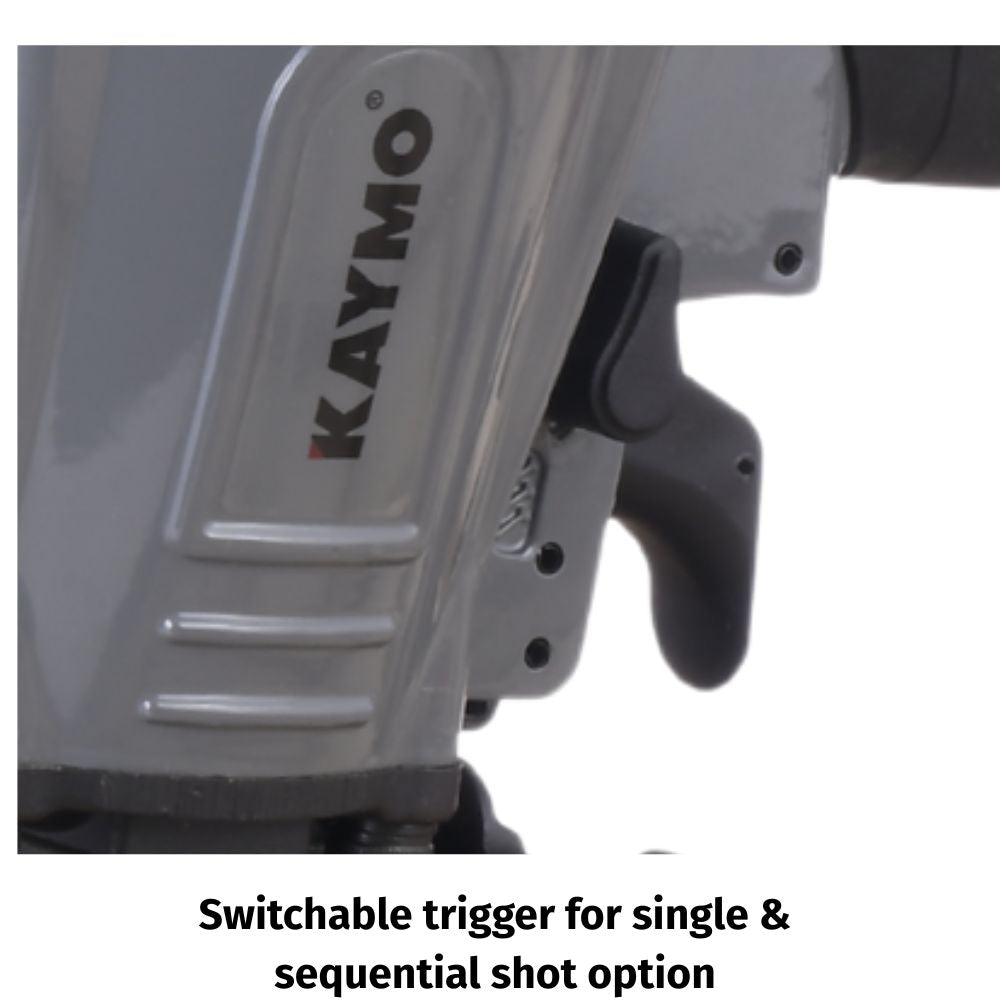

Switchable trigger for single & sequential shot option

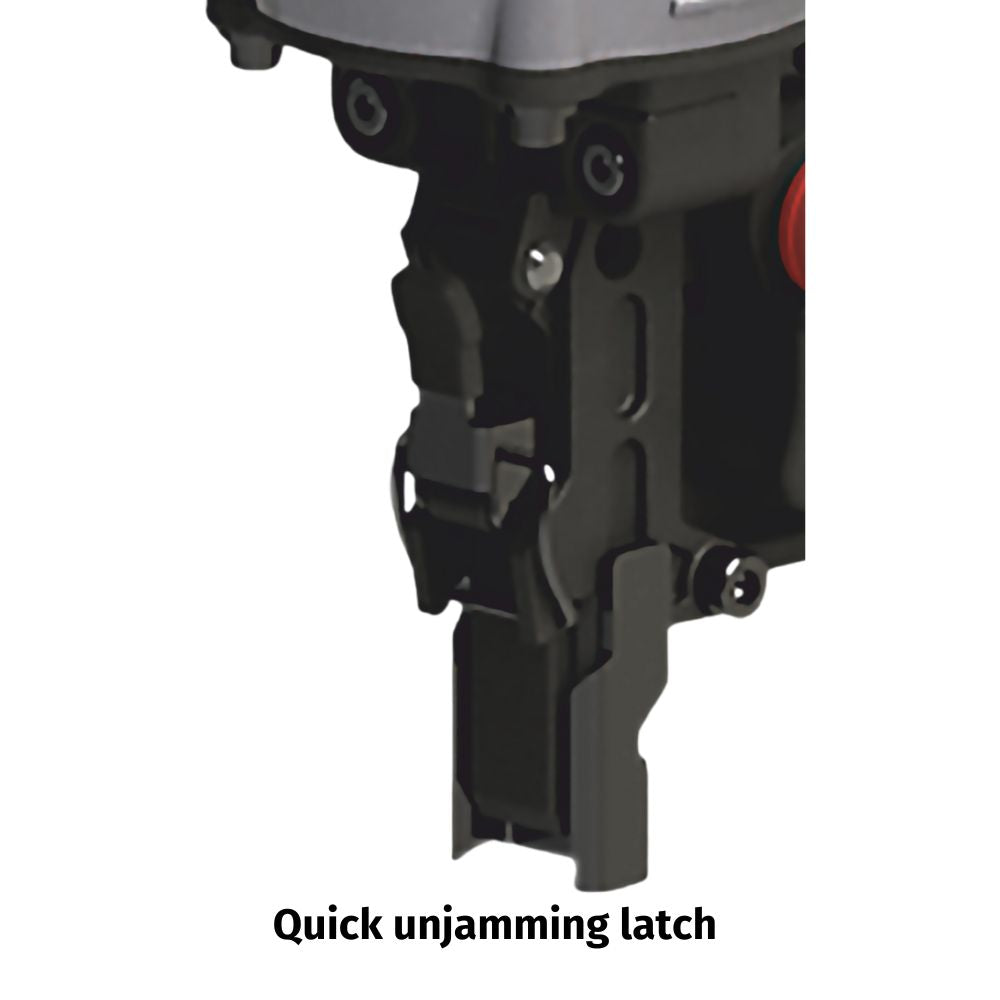

Quick unjamming latch

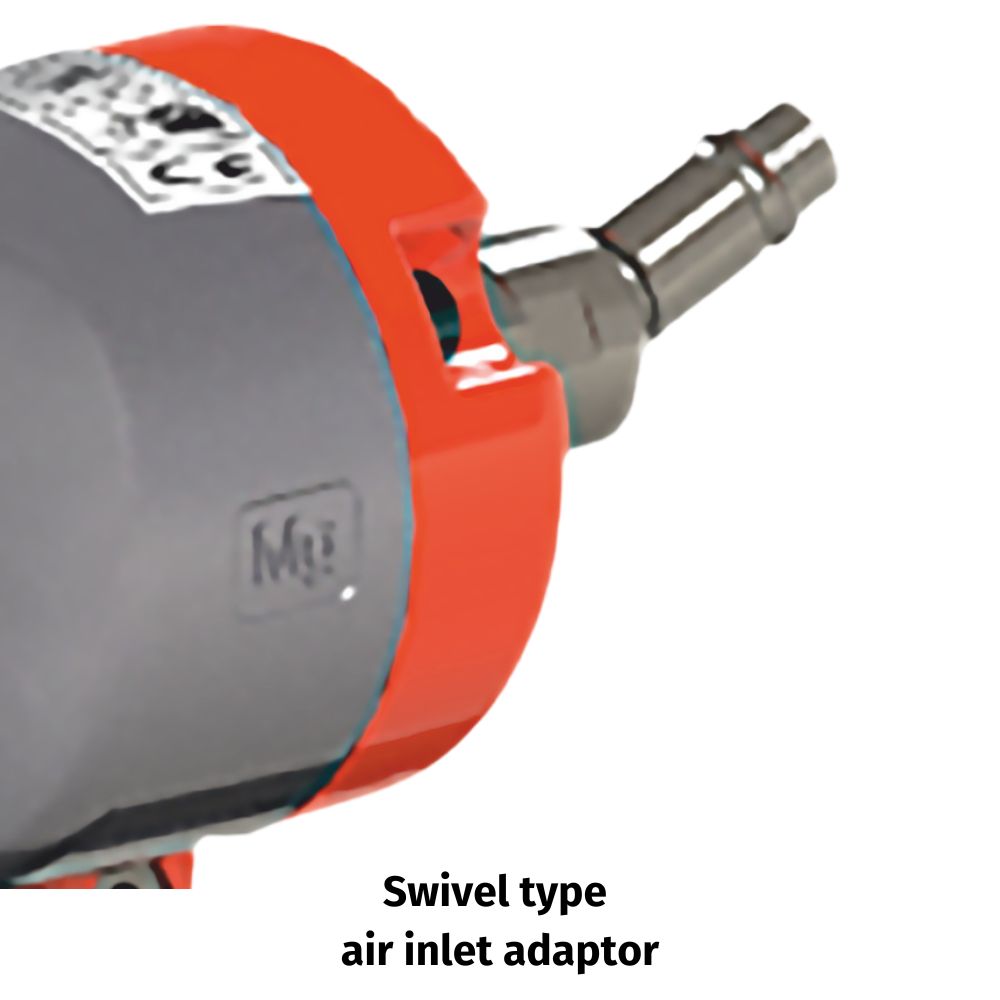

Swivel type air inlet adaptor
360° top air exhaust
Fastener Range: 16mm – 50mm

Applications:

Sofas
Modular kitchens
Carrom boards
Speaker boxes
Plywood boxes

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

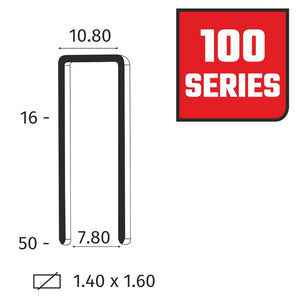

STAPLES KAYMO 100 SERIES

AIR FILTER + REGULATOR LUBRICATOR SET KAYMO 1/2" WITH GAUGE

FITTING KAYMO 6.35mmx8mm(1/4"x8 mm) PUSH TO CONNECT STRAIGHT

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

Blow Up

Spares

		TOOL MODEL:	ECO-PS10050E3					REV.1ST APRIL 2023
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1	FMS	ECOE3001	SCREW	ECO16G6401	47	FMS	ECOE3047	TRIGGER VALVE HEAD	ECO3FT9039
2	FMS	ECOE3002	BUSHING	HY1005002	48	FMS	ECOE3048	SPRING	HY1005045
3	FMS	ECOE3003	EXHAUST COVER	HYE2003	49	FMS	ECOE3049	O-RING	HY1005044
4	FMS	ECOE3004	SPRING	HYE2004	50	FMS	ECOE3050	TRIGGER VALVE STEM	ECO16G6455
5	FMS	ECOE3005	SEAL	HY1005004	51	FMS	ECOE3051	TRIGGER VALVE GUIDER	ECO16G6438
6	FMS	ECOE3006	SCREW	NEO1005055N	52	FMS	ECOE3052	SPRING	ECO16G6444
7	FMS	ECOE3007	SPRING WASHER	HYE2007	53	FMS	ECOE3053	LOCKING WASHER	HY1005054
8		ECOE3008	CYLINDER CAP	HYE2008	54	FMS	ECOE3054	SWITCH SHAFT SET	ECO16G6441
9	FMS	ECOE3009	GASKET	HYE2009	55	FMS	ECOE3055	TRIGGER SPRING	HYE2055
10	FMS	ECOE3010	SPRING	HYE2010	56	FMS	ECOE3056	TRIGGER	HYE2056
11	FMS	ECOE3011	O-RING	HYE2011	57	FMS	ECOE3057	SPRING	ECO16G6444
12	FMS	ECOE3012	VALVE	HYE2012	58	FMS	ECOE3058	SWITCH HANDLE SUIT	HYE2058-1
13	FMS	ECOE3013	O-RING	HYE2013	59	FMS	ECOE3059	SPRING PIN	HYE2059
14	FMS	ECOE3014	VALVE SEAT	HYE2014	60	FMS	ECOE3060	SCREW	HYE2028
15	FMS	ECOE3015	COLLAR	HYE2015	61		ECOE3061	SPACER	HYE2060
16	FMS	ECOE3016	CYLINDER SEAL	HYE2016	62	FMS	ECOE3062	FRONT PLATE
17	FMS	ECOE3017	O-RING	HYE2017	63	FMS	ECOE3063	PIN	HYE2065
18	FMS	ECOE3018	PISTON ASSEMBLY	HYE2018	64	FMS	ECOE3064	PRESSING PLATE (LATCH)
19	FMS	ECOE3019	RESTRICTIVE PLATE	HYE2019	65		ECOE3065	DRIVE GUIDE	HYE2066
20	FMS	ECOE3020	CYLINDER	HYE2020	66	FMS	ECOE3066	COIL SPRING	HYE2067
21	FMS	ECOE3021	O-RING 56.4*2.5	ECO235721	67	FMS	ECOE3067	WASHER	HYE2068
22	FMS	ECOE3022	CYLINDER STRIP	HYE2022	68	FMS	ECOE3068	SPRING	HYE2069
23	FMS	ECOE3023	O-RING	HYE2023	69	FMS	ECOE3069	SPRING BLOCK A 10	HYE2070
24	FMS	ECOE3024	BUMPER	HYE2024	70	FMS	ECOE3070	HANG PlN SLEEVE	HYE2071
25		ECOE3025	BODY	HYE2025	71	FMS	ECOE3071	PIN	HYE2072
26	FMS	ECOE3026	O-RING	HYE2026	72	FMS	ECOE3072	SCREW	HYE2073
27	FMS	ECOE3027	BASE	HYE2027	73	FMS	ECOE3073	MAGAZINE	HYE2074
28		ECOE3028	SCREW	HYE2028	74	FMS	ECOE3074	LIMITED NAIL PLATE	HYE2075
29	FMS	ECOE3029	SPRING	HYE2029	75	FMS	ECOE3075	FEEDER SHOE	HYE2077
30	FMS	ECOE3030	NUT	HYE2030	76	FMS	ECOE3076	PIN	HYE2078
31	FMS	ECOE3031	WASHER	HYE2031	77	FMS	ECOE3077	SPRING SEAT	HYE2079
32	FMS	ECOE3032	SAFE BRACKET A	HYE2032	78	FMS	ECOE3078	PIN	HYE2080
33	FMS	ECOE3033	ADJUST SCREW	HYE2033	79	FMS	ECOE3079	COMMAND	HYE2081
34	FMS	ECOE3034	SPRING	HYE2034	80	FMS	ECOE3080	SCREW	HYE2082
35	FMS	ECOE3035	BALL	HY1005038	81	FMS	ECOE3081	REPRIPT SPRlNG	HYE2083
36	FMS	ECOE3036	SAFE BRACKET B	HYE2036	82		ECOE3082	SCREW	HYE2084
37	FMS	ECOE3037	NUT	HYE2037	83	FMS	ECOE3083	SPRING	HYE2085
38	FMS	ECOE3038	SCREW	HYE2038	84		ECOE3084	MAGAZINE PLATE	HYE2086
39	FMS	ECOE3039	SAFE GUIDER	HYE2039	85	FMS	ECOE3085	NUT	HYE2087
40	FMS	ECOE3040	PIN	ECO297036	86	FMS	ECOE3086	SOFT GRIP SLEEVE	ECO297081
41	FMS	ECOE3041	O-RING	ECO16G6435	87	FMS	ECOE3087	GASKET END CAP	HYE2089
42	FMS	ECOE3042	O-RING	HY1005048	88		ECOE3088	END CAP	HYE2090
43	FMS	ECOE3043	VALVE SLEEVE	ECO16G6437	89	FMS	ECOE3089	SPRING WASHER	S0410500
44	FMS	ECOE3044	O-RING	ECO16G6449	90		ECOE3090	SCREW	KM0520
45	FMS	ECOE3045	O-RING	HY1005041	91	FMS	ECOE3091	SWIVEL PLUG	J702G
46	FMS	ECOE3046	O-RING	HY1005042	92	FMS	ECOE3092	SCREW	HYE2094

One Sheeter

Application

SOFAS	To fix 3mm / 4mm veneer to wooden frame
SOFAS	To fix upholstery & elastic band
MODULAR / KITCHENS	To fix fabric to MDF, particle board or ply tiles
WOODEN CRATES	To close wooden cases
WOODEN PALLETS	To make wooden pallets
CARROM BOARDS	To fix the back reinforcement to the frame
CARROM BOARDS	To make the board frame
