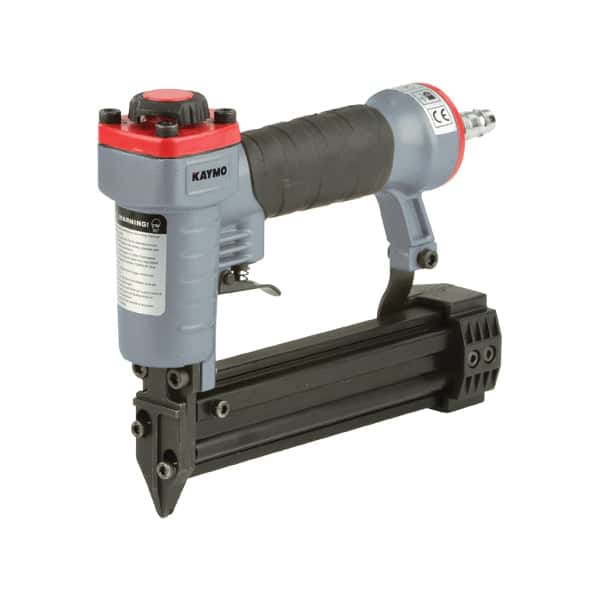

SKU: ECO-PP6422

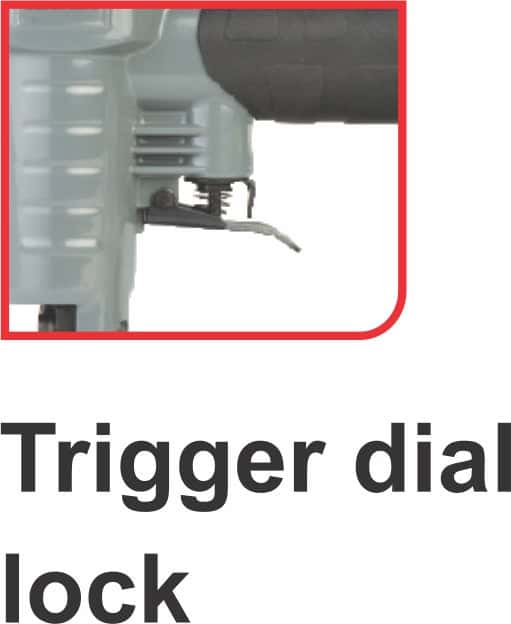

TRIGGER DIAL LOCK. 360 DEGREE TOP AIR EXHAUST. PINS LOADING MECHANISM. FULL METAL MAGAZINE. ERGONOMIC RUBBER GRIP .
₹ 0/-

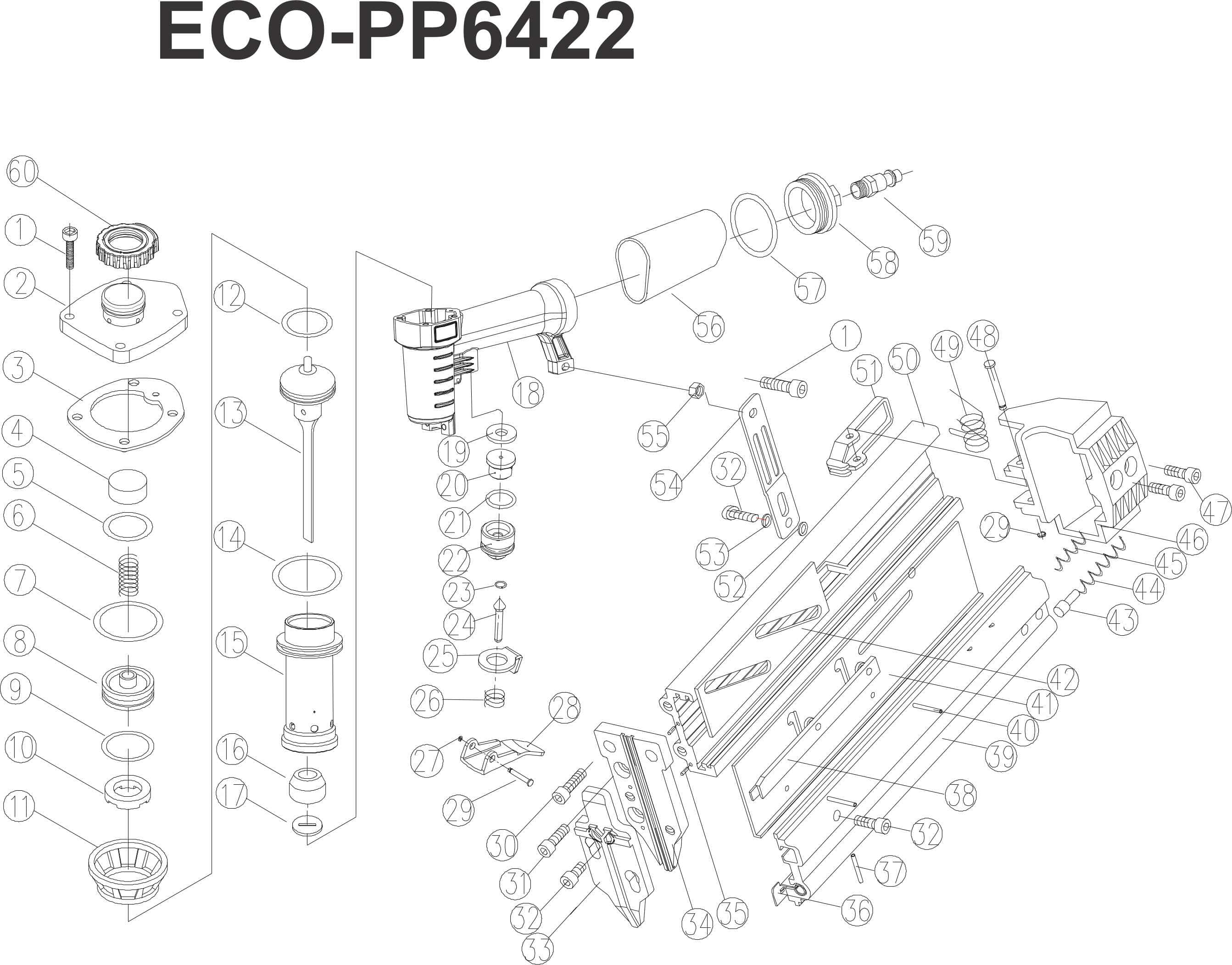

Blow Up
Spares
| . | TOOL NAME: | ECO-PP6422 | REV.1ST APRIL 2022 | |||||||
| SR | FMS | PART CODE | PART NAME | ALT CODE | SR | FMS | PART CODE | PART NAME | ALT CODE | |
| 1 | FMS | ECO642201 | SCREW | KM0520 | 31 | FMS | ECO642231 | SCREW | KM0412 | |
| 2 | ECO642202 | CYLINDER CAP | 32 | FMS | ECO642232 | SCREW | KM0408 | |||
| 3 | FMS | ECO642203 | GASKET | HY1013J003 | 33 | ECO642233 | PLATE | |||
| 4 | FMS | ECO642204 | SEAL | HY1013J004 | 34 | ECO642234 | DRIVE GUIDE | |||
| 5 | FMS | ECO642205 | O-RING 15.7×2 | HY1013J005 | 35 | ECO642235 | PIN 1.5X10 | |||
| 6 | FMS | ECO642206 | SPRING | HY1013J006 | 36 | FMS | ECO642236 | FEEDER SHOE | ||
| 7 | FMS | ECO642207 | O-RING 31.3×2.3 | HY8016007 | 37 | ECO642237 | SPRING PIN 2X10 | |||
| 8 | FMS | ECO642208 | VALVE | HY1013J008 | 38 | ECO642238 | LIMITED PIECE ASSEMBLY | |||
| 9 | FMS | ECO642209 | O-RING 26.8×2.8 | HY1013J009 | 39 | ECO642239 | MOVABLE MAGAZINE | |||
| 10 | FMS | ECO642210 | STOPPED WASHER | HY1013J010 | 40 | FMS | ECO642240 | SPRING PIN 2.5X10 | ||
| 11 | FMS | ECO642211 | COLLAR | HY1013J011 | 41 | ECO642241 | PLATE | |||
| 12 | FMS | ECO642212 | O-RING 23.3×3 | HY1013J012 | 42 | ECO642242 | SLIDE PLATE | |||
| 13 | FMS | ECO642213 | PISTON ASSEMBLY | 43 | ECO642243 | FEEDER SHOE BASE | ||||
| 14 | FMS | ECO642214 | O-RING 35.3×2.5 | HY1013J014 | 44 | ECO642244 | SPRING | |||
| 15 | FMS | ECO642215 | CYLINDER | 45 | ECO642245 | SPRING | ||||
| 16 | FMS | ECO642216 | BUMPER | HY1013J016 | 46 | ECO642246 | STOPPED PLATE | |||
| 17 | FMS | ECO642217 | SEAL | HY8016018 | 47 | FMS | ECO642247 | SCREW | 666022 | |
| 18 | ECO642218 | BODY | 48 | ECO642248 | PIN | |||||
| 19 | FMS | ECO642219 | SEAL | HY1013J019 | 49 | ECO642249 | SPRING | |||
| 20 | FMS | ECO642220 | TRIGGER VALVE HEAD | HY1013J020 | 50 | ECO642250 | FIXED MAGAZINE | |||
| 21 | FMS | ECO642221 | O-RING 15X1.9 | HY1013J024 | 51 | ECO642251 | LOCK | |||
| 22 | FMS | ECO642222 | TRIGGER VALVE GUIDER | HY1013J023 | 52 | ECO642252 | WASHER | |||
| 23 | FMS | ECO642223 | O-RING 6.5X1.4 | HY1013J022 | 53 | ECO642253 | SPRING WASHER | S0410400 | ||
| 24 | FMS | ECO642224 | TRIGGER VALVE STEM | HY1013J021 | 54 | ECO642254 | SUPPORT | |||
| 25 | ECO642225 | SAFE BRAKECT | 55 | FMS | ECO642255 | NUT | NEO1005079N | |||
| 26 | FMS | ECO642226 | SPRING | HY1013J025 | 56 | ECO642256 | SOFT GRIP SLEEVE | HY1013J044 | ||
| 27 | FMS | ECO642227 | LOCK WASHER | YE2501 | 57 | FMS | ECO642257 | O-RING 40.2×2.3 | HY1013J045 | |
| 28 | ECO642228 | TRIGGER | 58 | ECO642258 | END CAP | HY7116052 | ||||
| 29 | FMS | ECO642229 | PIN | HY1013J027 | 59 | ECO642259 | AIR PLUG | ACC016 | ||
| 30 | FMS | ECO642230 | SCREW | KM0520 | 60 | ECO642260 | EXHAUST COVER |

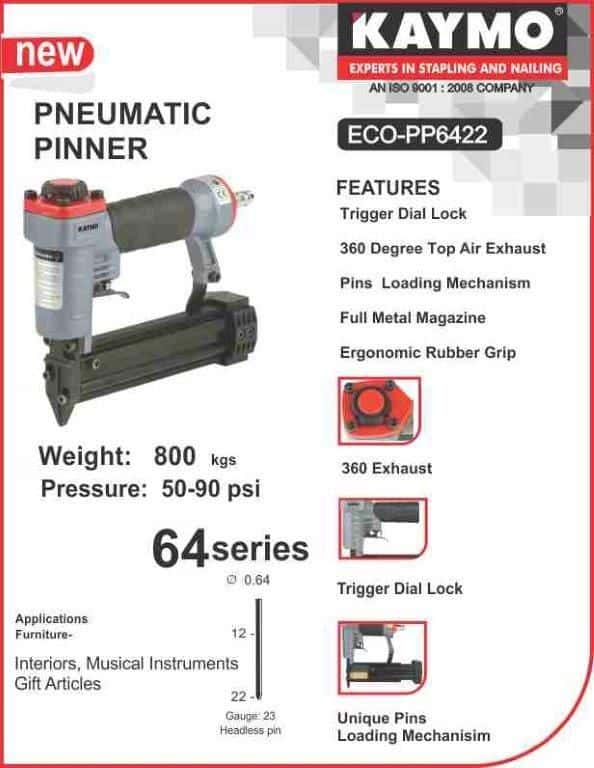

One Sheeter
Application
| INTERIORS | To fix decorative mouldings on to wooden cupboards & windows |
| MUSICAL INSTRUMENTS | To fix finishing veneer onto wood |
| GIFT ARTICLES | To join MDF to MDF to make gift articles |
| To join wood to wood to make gift articles |
