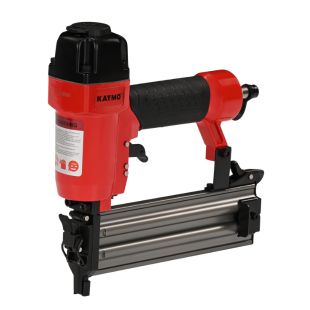

PNUEMATIC BRAD NAILER KAYMO NEO-F50

Name: PNUEMATIC BRAD NAILER KAYMO NEO-F50
Brand: Kaymo Company
SKU: NEO-F50
Price: 1.0 INR
Availability: InStock

SKU: NEO-F50

The KAYMO NEO-F50 Pneumatic Brad Nailer is a high-performance tool designed for precision nailing in woodworking and interior applications. It features a 360° air exhaust Read More...

Features:

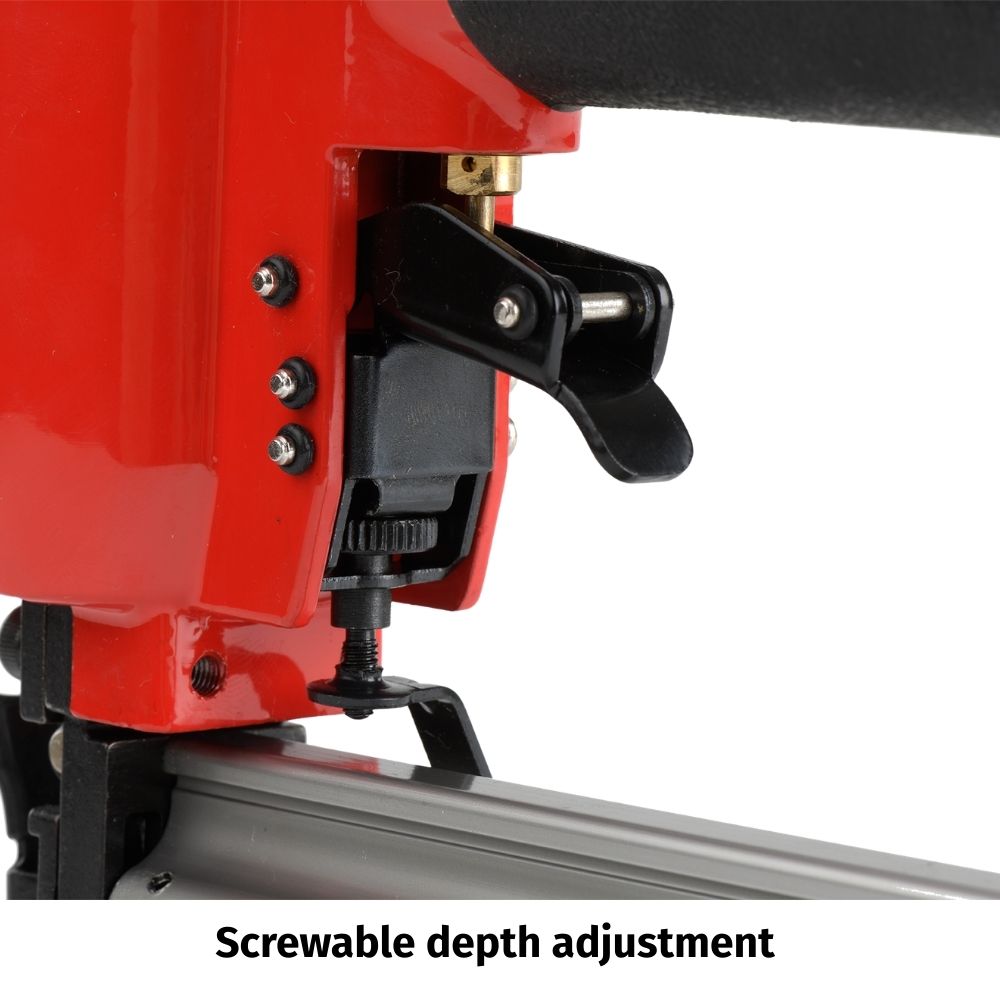

Screwable depth adjustment

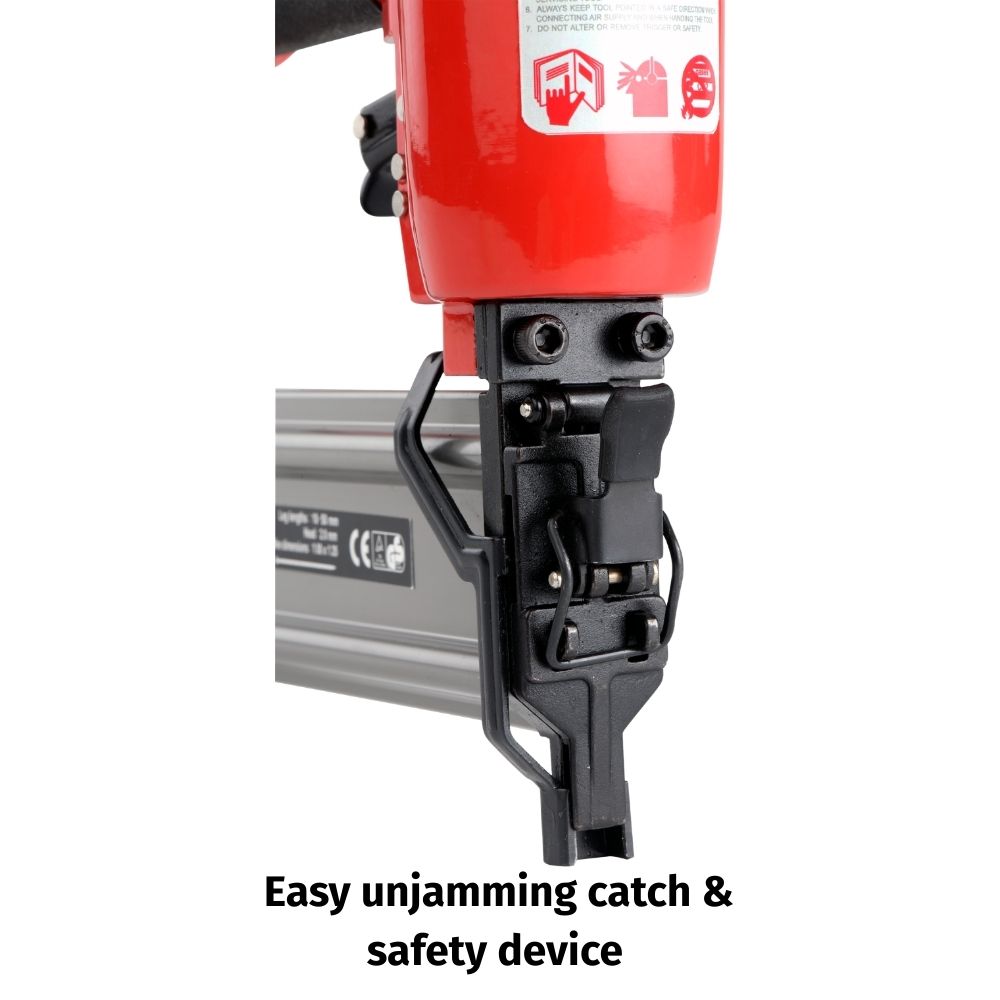

Easy unjamming catch& safety device

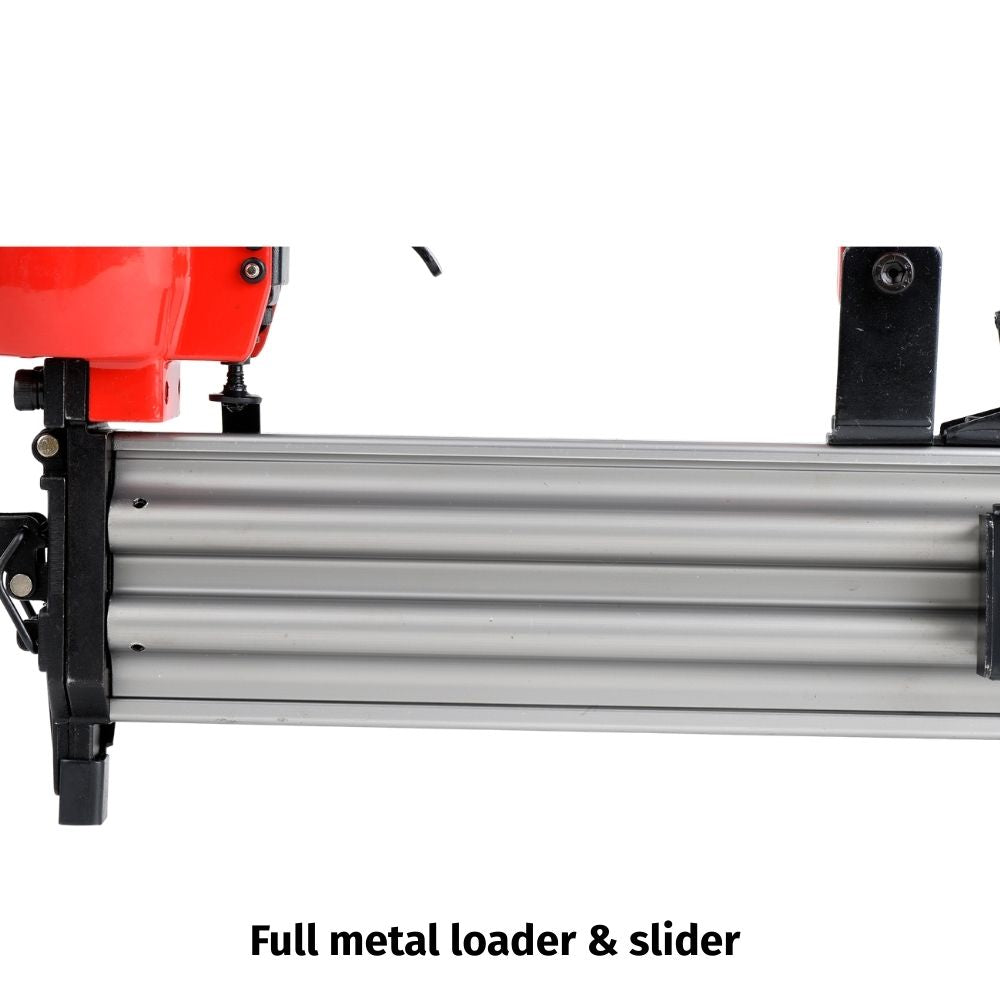

Full metal loader & slider
Internal metal parts

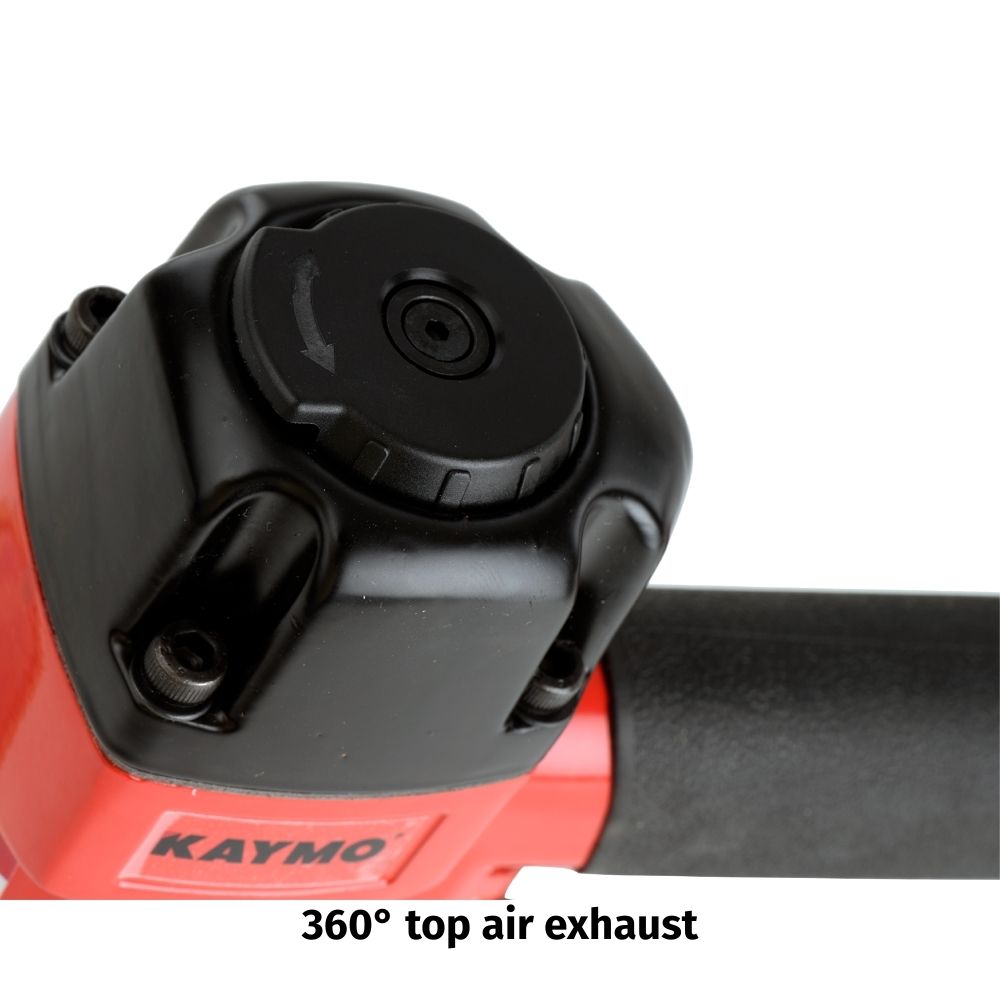

360° top air exhaust
Fastener Range: 10mm - 50mm

Applications:

Chairs
Interiors
Modular kitchens
Door & window frames
Handicrafts
Wooden flooring
Carrom boards
Wooden decking

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

BRAD NAILS KAYMO 18G (F TYPE)

Blow Up

Spares

		TOOL MODEL:	NEO-F50					REV.1ST APRIL 2022
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1	FMS	KM0412	Hex Bolt M4Xl4		36	FMS	CN55-200-09	Trigger Plate	NEOF50036
2	FMS	F50G-100-05	Bush	NEOF50002	37	FMS	F32/ 9032-230-0l	Trigger Body	NEOF50037
3	FMS	F50G- l00-04	Exhaust Cover	NEOF50003	38	FMS	NEOF50038	Step Pin 3X17.2
4	FMS	KM0520	Hex Bolt M5X22		39	FMS	NEOF50039	Seal (12.5-8-1.5)
5	FMS	NEOF50005	O-Ring 7.8X1.9		40	FMS	F50C-220-01	Trigger Valve	NEOF50040
6	FMS	NEOF50006	Cylinder Cap		41	FMS	F50C-220-02	Compression Spring	NEOF50041
7	FMS	F32/9032- 100-04	Shim	NEOF50007	42	FMS	NEOF50042	O-Ring 2.2X1.5
8	FMS	NEOF50008	O-Ring 13.6X2.4		43	FMS	F50G-220-0 4	Trigger Valve Stem	NEOF50043
9	FMS	F50G- l00-01	Cylinder Cap Gasket	NEOF50009	44	FMS	F50C-220-03	Trigger Valve Guide	NEOF50044
10	FMS	F32/9032- 100-05	Compression Spring	NEOF50010	45	FMS	NEOF50045	O-Ring 11.2X1.9
11	FMS	NEOF50011	Head Valve Piston		46	FMS	KM0520	Hex Bolt M5X20
12	FMS	NEOF50012	O-Ring 32.99X2.62		47	FMS	NEOF50047	Hex Nut 5
13	FMS	NEOF50013	O-Ring 27.3X3.55		48	FMS	KM0406	Hex Bolt M4X6
14	FMS	NEOF50014	O-Ring 13.87X3.53		49	FMS	F30YA-3 10-04B	Click Fixer	NEOF50049
15	FMS	NEOF50015	O-Ring 40.3X2.5		50	FMS	F30YA-310-06	Torsion Spring	NEOF50050
16	FMS	F50G-200-02	Support Collar	NEOF50016	51	FMS	ST38-310-03	Tail Magazine Holder	NEOF50051
17	FMS	NEOF50017	O-Ring 33.3X2.5		52	FMS	NEOF50052	Step Pin 3X13.5
18	FMS	NEOF50018	Cylinder		53	FMS	NEOF50053	Fixed Magazine
19	FMS	NEOF50019	O-Ring 24.3X3		54	FMS	F30YA-3l0-03	Inlaid Strip	NEOF50054
20	FMS	NEOF50020	Driver		55	FMS	F50C-320-03	Magazine End Stopper	NEOF50055
21	FMS	NEOF50021	Bumper		56	FMS	NEOF50056	Mobile Magazine
22		NEOF50022	Rubber Grip		57	FMS	F50C-320-04	Compression Spring	NEOF50057
23		NEOF50023	Body		58	FMS	NEOF50058	Spring Pin 2.5Xl2
24	FMS	NEOF50024	O-Ring 34X3.5		59	FMS	F50C-320-01	Nail Pusher	NEOF50059
25	FMS	NEOF50025	End Cap		60	FMS	NEOF50060	Spring Pin 1.5X15
26		ACC016	Air Plug		61	FMS	NEOF50061	Driver Guide
27	FMS	NEOF50027	Nozzle		62	FMS	NEOF50062	Spacer
28	FMS	F50G-230-0l	Safety Guide	NEOF50028	63	FMS	NEOF50063	Step Pin 3X18
29	FMS	F50C-OOO-O 1	Compression Spring	NEOF50029	64	FMS	NEOF50064	Step Pin 3X14.8
30	FMS	F50G-230-02	Top Safety	NEOF50030	65	FMS	NEOF50065	Driver Guide Cover
31	FMS	F50G-230-03	Adjuster	NEOF50031	66	FMS	NEOF50066	Washer 5
32	FMS	NEOF50032	snap ring 2.5		67	FMS	F50C-330-03	Quick Release Latch	NEOF50067
33	FMS	NEOF50033	Safety		68	FMS	F50C-330-02	Washer	NEOF50068
34	FMS	NEOF50034	O-Ring 1.2X1.9		69	FMS	F50G-330-04	Torsion Spring	NEOF50069
35	FMS	NEOF50035	Step Pin 3X26

One Sheeter

Application

MODULAR / KITCHENS	To join MDF to MDF, ply & particle board
WOODEN FLOORING	Wooden skirting
