PNEUMATIC STRIP NAILER KAYMO PRO-A22160

Name: PNEUMATIC STRIP NAILER KAYMO PRO-A22160
Brand: Kaymo
SKU: PRO-PSNA22160
Availability: InStock

SKU: PRO-PSNA22160

The KAYMO PRO-PSNA22160 is a high-performance pneumatic strip nailer, designed for heavy-duty nailing applications. Its durable construction and precision features make it ideal for industrial Read More...

Features:

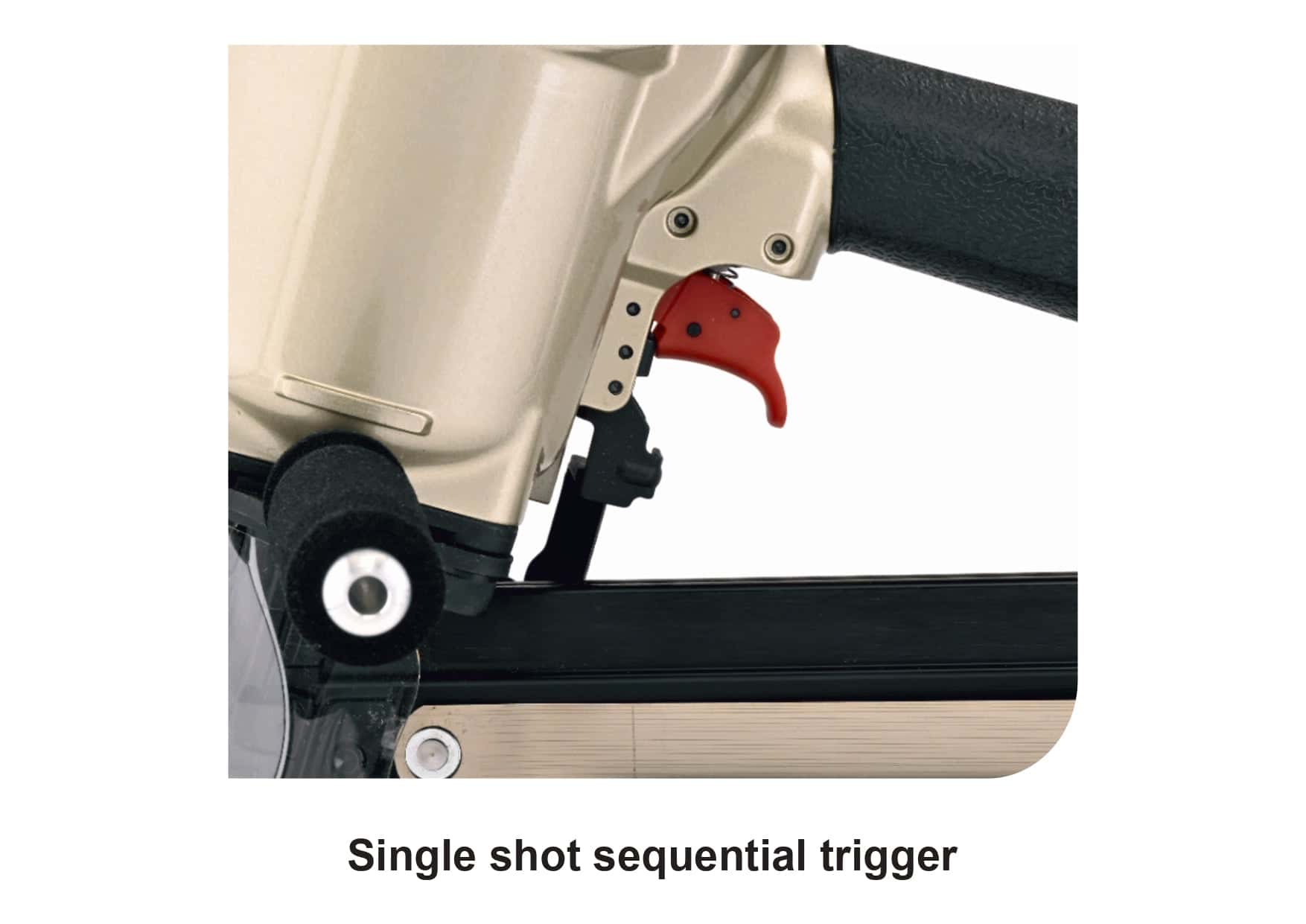

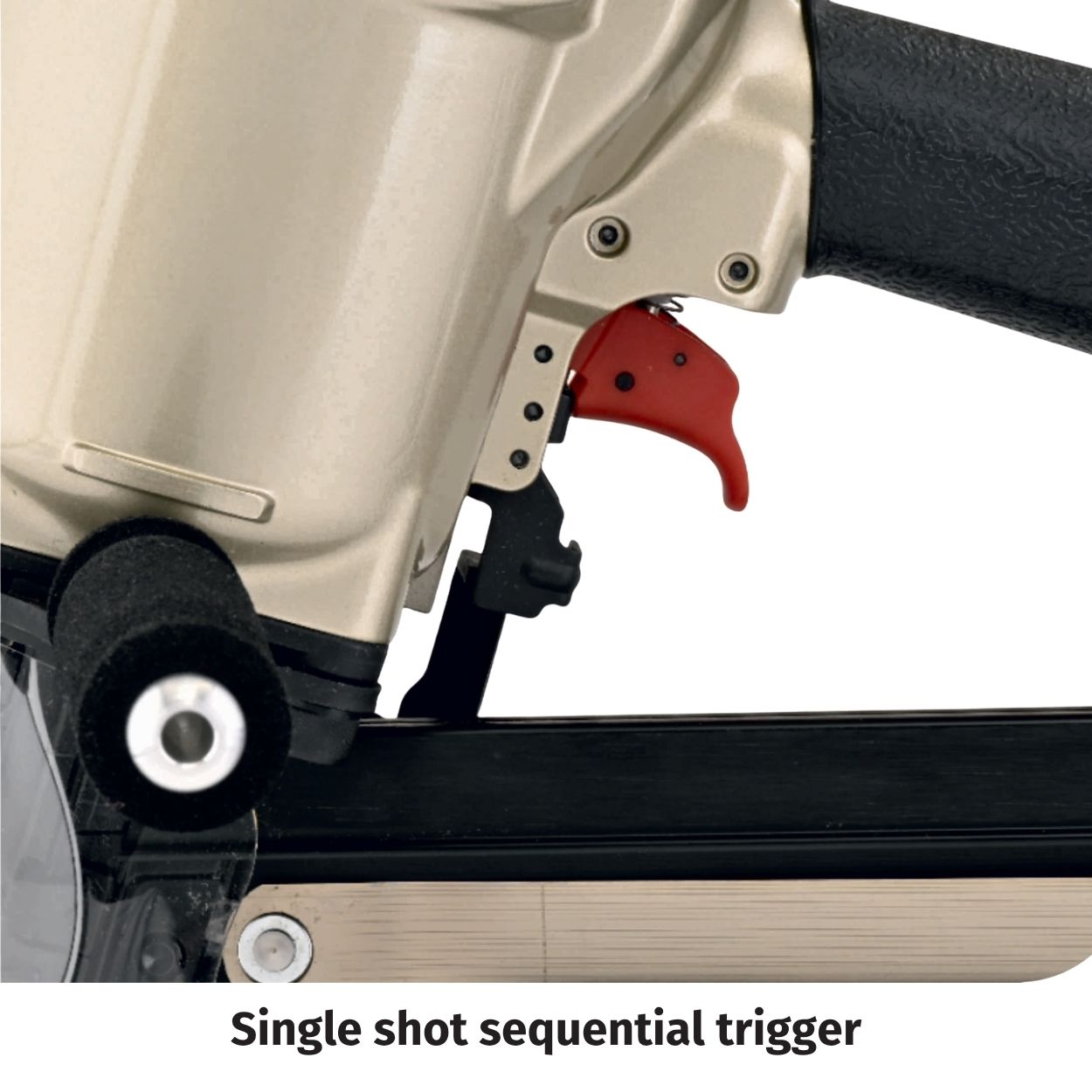

Single shot sequential trigger

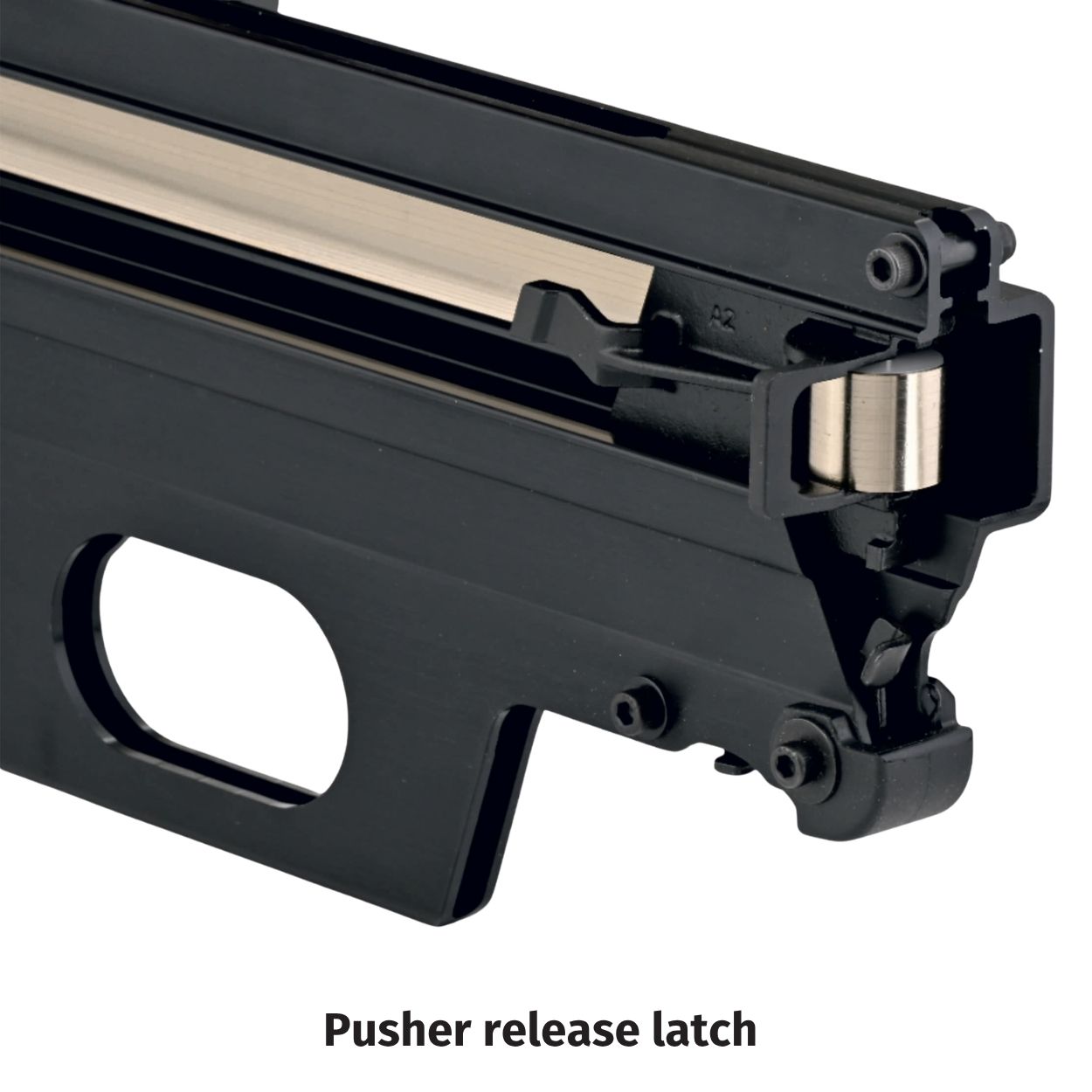

Pusher release latch

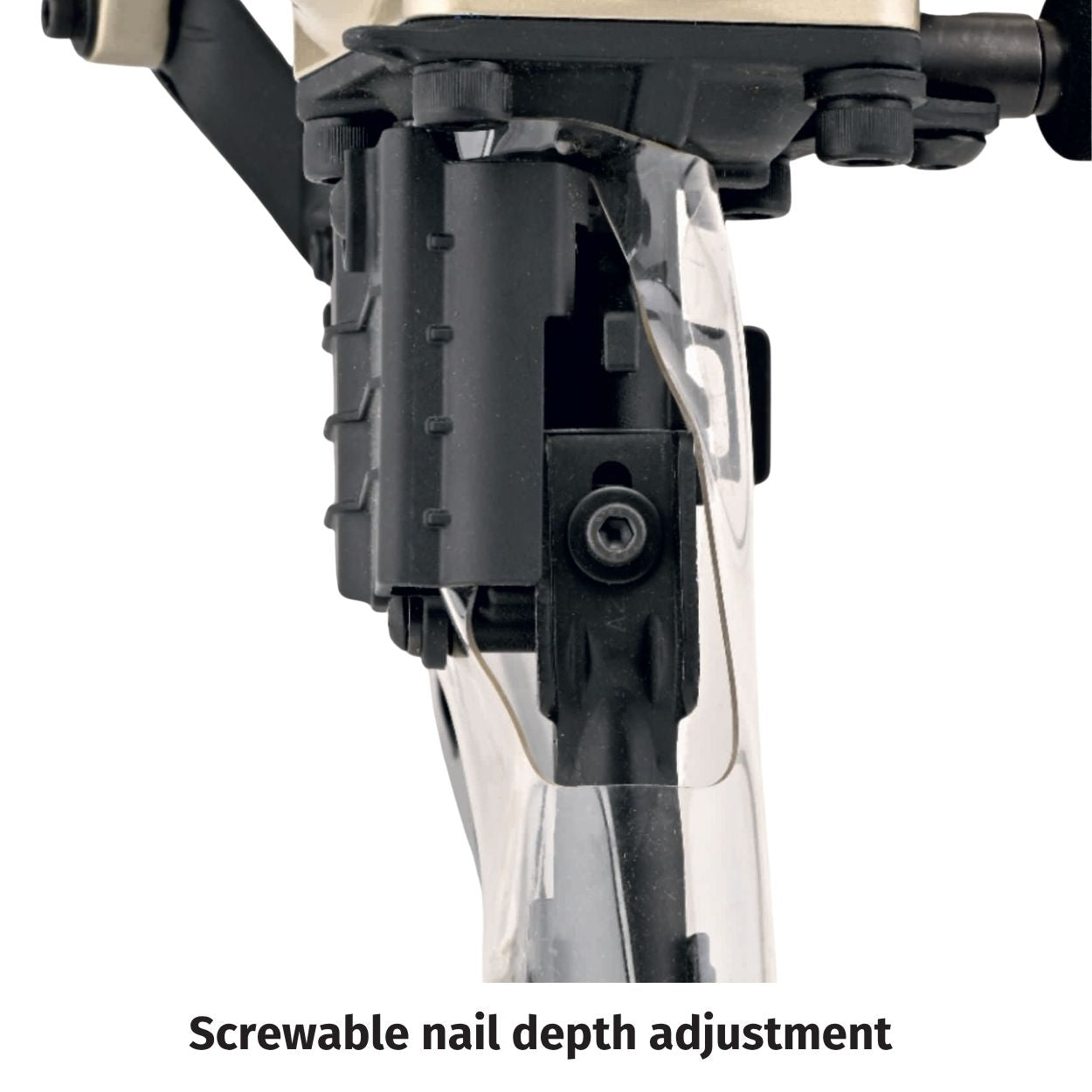

Screwable nail depth adjustment

Fully closed metal magazine

Lock out safety device

Fastener Range: 100mm – 160mm

Applications:

Crates, pallets

Roofs, decks

Shipping cases

Construction

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

AIR FILTER + REGULATOR LUBRICATOR SET KAYMO 1/4" WITH GAUGE

AIR HOSE KAYMO 8x12 MM PU 100M RED

QRC KAYMO 6.35mm(1/4") FEMALE EUROPEAN STEEL

FITTING KAYMO 6.35mmx12mm(1/4"x12 mm) PUSH TO CONNECT MALE ELBOW

FITTING KAYMO 6.35mmx12mm(1/4"x12 mm) PUSH TO CONNECT MALE STRAIGHT

Blow Up

Spares

		TOOL MODEL:	PRO-PSNA22160
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
101		2040101-04241-2	HEX.SOC.HD.BOLT	KFCBS00847	405		2040101-05010-2	HEX.SOC.HD.BOLT	KFCBS00858
102		11369-103C401-1	KAYMO RED CAP	KFCBS00749	406		1135B-1454701-1	GUIDE	KFCBS00859
103	FMS	1135S-0350001-1	GROMMET	KFCBS00363	407	FMS	1135G-1454701-1	RUBBER PAD	KFCBS00860
104	FMS	2040104-03010-0	HEX.SOC.HD.SCREW	KFCBS00364	408		11389-1454701-1	MAGAZINE A	KFCBS00861
105		11397-1034701-1	GUIDE COVER	KFCBS00711	409	FMS	2040101-04111-0	HEX.SOC.HD.BOLT	KFCBS00485
108	FMS	11360-1030001-2	COMPRESSION SPRING	KFCBS00572	410	FMS	2040202-04010-0	FLAT WASHER	KFCBS00087
110	FMS	11381-1030001-1	WASHER	KFCBS00574	411	FMS	12319-0070001-3	SEAL	KFCBS00862
111	FMS	11368-1030002-1	HD.VALVE PISTON	KFCBS00892	412	FMS	2040501-04010-0	BOLT CAP	KFCBS00088
114	FMS	11204-1450006-1	DRIVER UNIT	KFCBS00848	413	FMS	11323-1454701-1	POSITIONING SHEET	KFCBS00863
115	FMS	11399-1030001-1	COLLAR	KFCBS00579	414	FMS	2040102-04060-0	HALF ROUND HD.HEX.BOLT	KFCBS00864
116		11320-1450001-2	CYLINDER	KFCBS00849	416	FMS	11386-1450001-1	ROLLING ELEMENT	KFCBS00865
117	FMS	11321-1450001-1	CYLINDER SPACER	KFCBS00850	417	FMS	2040403-07150-0	PIN	KFCBS00866
118	FMS	2041104-11010-0	O - RING	KFCBS00582	418	FMS	11363-1454702-1	PUSHER	KFCBS00867
119	FMS	2041108-07060-0	O - RING	KFCBS00583	419	FMS	1133W-1454701-1	PUSHER BEARING	KFCBS00868
120	FMS	11327-1454703-1	BUMPER	KFCBS00851	420	FMS	2040501-03040-0	BOLT CAP	KFCBS00889
121	FMS	2040101-03050-9	HEX.SOC.HD.BOLT	KFCBS00624	421	FMS	11398-1454701-1	LATCH SPRING BUSHING	KFCBS00869
122	FMS	11371-1034701-1	DEFLECTOR	KFCBS00585	422	FMS	2040201-03040-0	FLAT WASHER	KFCBS00437
123	FMS	1132T-1030001-1	MUFFLER	KFCBS00573	423	FMS	2040101-03210-0	HEX.SOC.HD.BOLT	KFCBS00870
124	FMS	11327-1454704-1	BUMPER	KFCBS00852	424	FMS	1132F-0374701-1	LATCH SPRING	KFCBS00871
125		1130E-145C401-1	CAP	KFCBS00853	425	FMS	11381-0374701-1	WASHER	KFCBS00872
201	FMS	2041104-02060-0	O - RING	KFCBS00283	426	FMS	11343-1454701-1	LATCH	KFCBS00873
202	FMS	11374-0860001-1	PLUNGER CAP	KFCBS00284	427	FMS	1134W-1374701-1	FEED BUMPER	KFCBS00874
203	FMS	2041100-02050-0	O - RING	KFCBS00400	428	FMS	113BF-1374701-1	FEED BUMPER SPACER RING	KFCBS00875
204	FMS	2041100-01070-0	O - RING	KFCBS00392	429	FMS	2040101-03200-0	HEX.SOC.HD.BOLT	KFCBS00890
205	FMS	1133S-0860001-1	VALVE PLUNGER	KFCBS00285	430	FMS	2040101-03110-0	HEX.SOC.HD.BOLT	KFCBS00876
206	FMS	2041100-01030-0	O - RING	KFCBS00395	431	FMS	1133V-1374701-1	MAGAZINE SPACER	KFCBS00877
207	FMS	11376-0860001-1	SPRING	KFCBS00287	432		2040102-04050-2	HALF ROUND HD.HEX.BOLT	KFCBS00125
208	FMS	2041108-01020-0	O - RING	KFCBS00288	433	FMS	1136L-1454701-1	PROTECTIVE INSERT	KFCBS00878
209	FMS	11375-0860002-1	PLUNGER	KFCBS00289	434	FMS	1134R-1374701-1	SPRING COVER	KFCBS00879
210	FMS	11373-0860001-1	TRIGGER VALVE HEAD	KFCBS00290	435	FMS	11338-0864701-2	SAFETY GUIDE	KFCBS00343
211	FMS	11329-0860001-1	PIN	KFCBS00291	436	FMS	11395-1374701-1	SAFETY ROD	KFCBS00880
212	FMS	1137A-0860001-1	COVER-PLUNGER	KFCBS00292	437	FMS	11337-1374701-1	SAFETY SPRING	KFCBS00881
213	FMS	2041104-02070-0	O - RING	KFCBS00293	438	FMS	11256-1374702-1	SAFETY B UNIT	KFCBS00882
214	FMS	2041100-01050-0	O - RING	KFCBS00294	439	FMS	11331-1454702-1	SAFETY A	KFCBS00883
215	FMS	11376-0370001-1	SPRING	KFCBS00644	440		2040101-04020-0	HEX.SOC.HD.BOLT	KFCBS00884
216	FMS	11224-1111101-2	TRIGGER UNIT	KFCBS00854	441	FMS	1134W-0374701-1	FEED BUMPER	KFCBS00885
217	FMS	2040401-05150-0	SPIRAL PINS	KFCBS00625	442	FMS	1135G-1114701-1	RUBBER PAD	KFCBS00611
218	FMS	2040401-05120-0	SPIRAL PINS	KFCBS00626	443		1120K-1034701-1	SECOND HANDLE BASE UNIT	KFCBS00609
301		11230-1457401-1	GUN BODY UNIT	KFCBS00855	444	FMS	11215-1374701-2	HANDLE	KFCBS00886
302	FMS	2041101-05020-0	O - RING	KFCBS00333	445	FMS	11383-1450001-1	MUZZLE PROTECTOR	KFCBS00887
303	FMS	11346-0864303-1	END CAP	KFCBS00489	106*	FMS	11302-1034701-1	CYLINDER CAP SEAL	KFCBS00630
304	FMS	1132L-0014701-2	DUST COVER	KFCBS00053	107*	FMS	11370-1030001-1	SEAL	KFCBS00571
305		1135V-0000021-3	AIR PLUG	S3120PMA5208	109*	FMS	2041108-06050-0	O - RING	KFCBS00322
401	FMS	2041104-08020-0	O - RING	KFCBS00588	112*	FMS	2041108-07050-0	O - RING	KFCBS00576
402		11382-1454703-1	NOSE PIECE	KFCBS00856	113*	FMS	2041100-06011-0	O - RING	KFCBS00577
403	FMS	2040101-06010-2	HEX.SOC.HD.BOLT	KFCBS00751	415*	FMS	11278-1450001-1	SPRING UNIT	KFCBS00888
404		11396-1454701-1	STEEL CHANNEL	KFCBS00857

One Sheeter

Application

CRATES	Wood to Wood
PALLETS	Wood to Wood
SHIPPING CASES	Wood to Wood
ROOFS	Wood to Wood
DECKS	Wood to Wood
CONSTRUCTION	Wood to Wood
