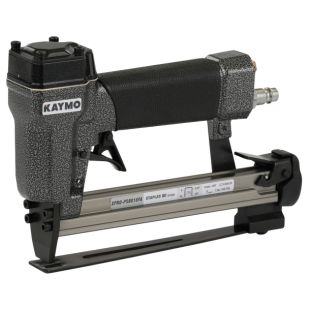

PNEUMATIC STAPLER OM XPRO-8016 FOLD ATT.

PNEUMATIC STAPLER OM XPRO-8016 FOLD ATT.

Name: PNEUMATIC STAPLER OM XPRO-8016 FOLD ATT.
Brand: Kaymo
SKU: XPRO-PS8016FA
Price: 1.0 INR
Availability: InStock

SKU: XPRO-PS8016FA

The XPRO-PS8016FA Pneumatic Stapler is a high-performance tool designed for precision stapling in car interiors, expansion joints, and high-end furniture applications. With its staple clinching Read More...

Features:

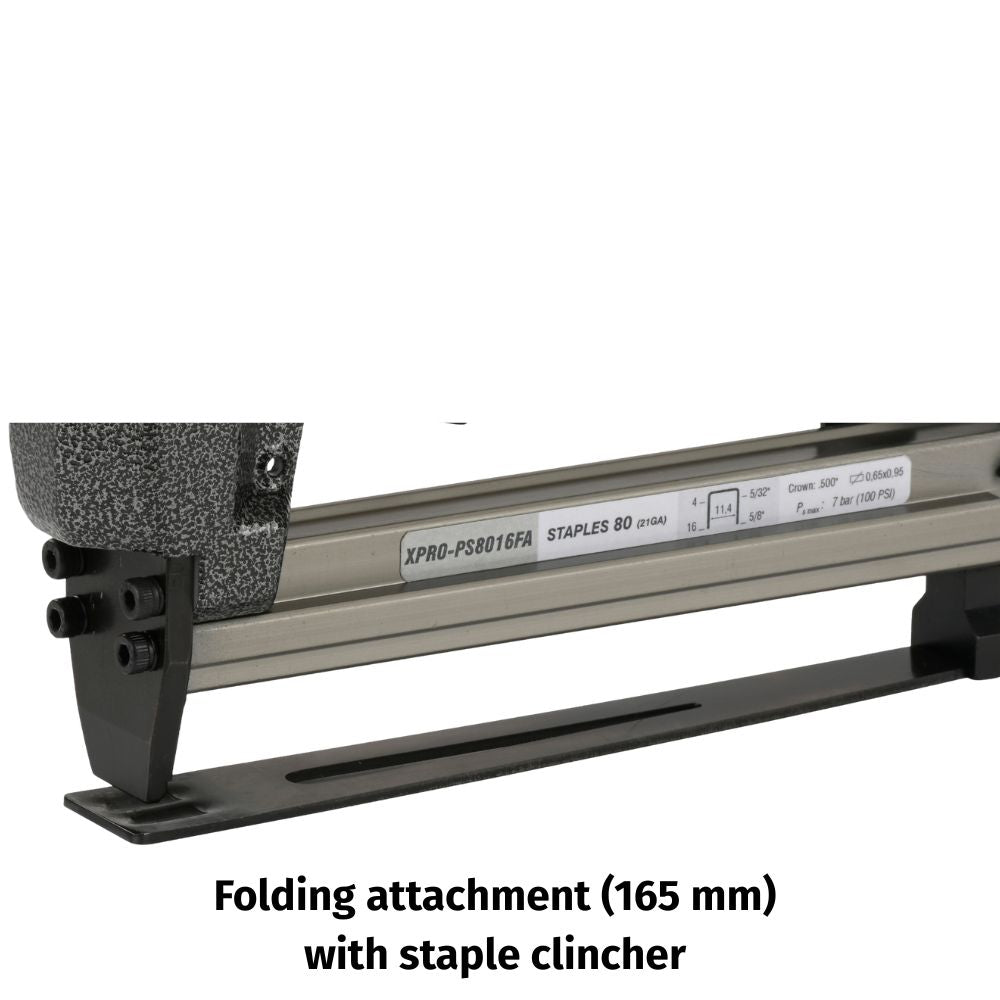

165mm folding attachment with staple clincher

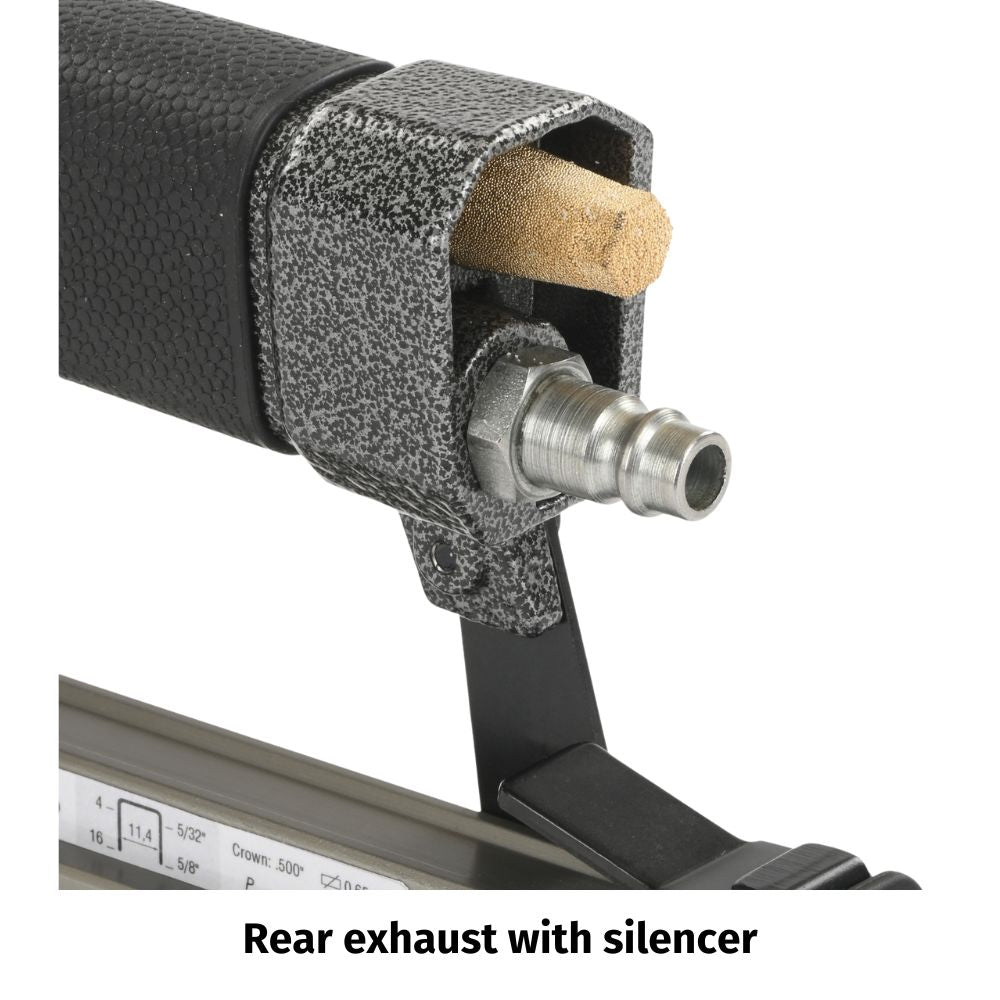

Rear exhaust with silencer

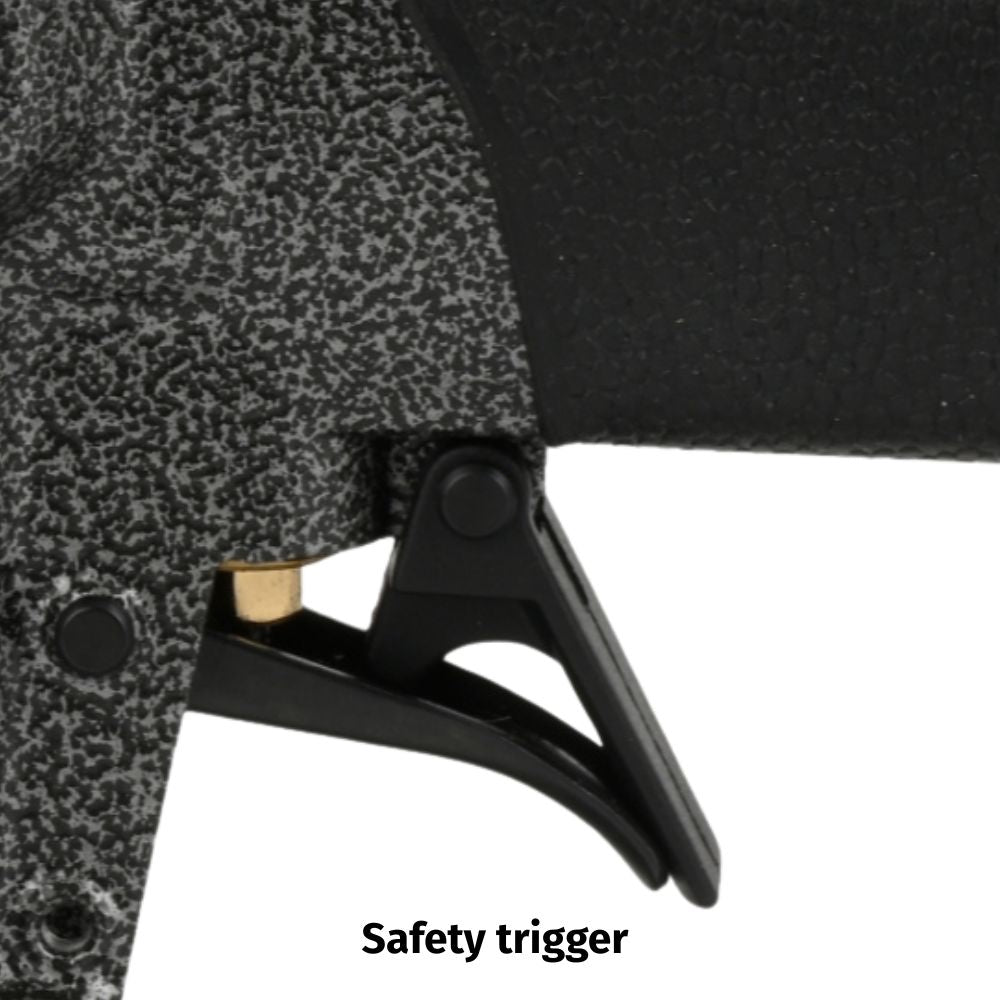

Safety trigger
Folding attachment alignment screw
Elastic blade
Easy magazine opening latch
Fastener Range: 6mm – 16mm

Applications:

Automobile interiors
Auto ancillary
Corrugated trays
Mini angle boards
High end furniture
Mattresses
Expansion joints

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

STAPLES KAYMO 80 SERIES

STAPLES KAYMO 80 SERIES BLACK

STAPLES KAYMO 80 SERIES SS

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

Blow Up

Spares

.		TOOL NAME:	XPRO-PS8016FA					REV.1ST APRIL 2022
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
0.06		2000006	O-RING 00.06		54.03	FMS	2005403	TRIGGER VALVE 54.03
0.13		2000013	O-RING 00.13		55.06	FMS	2005506	CONNECTOR 55.06
0.14	FMS	2000014	O-RING 00.14		76.04	FMS	2007604	PIN 76.04
0.27	FMS	2000027	O-RING 00.27		76.14	FMS	2007614	PIN 76.14
0.35	FMS	2000035	O-RING 00.35		81.09	FMS	2008109	TRIGGER CONTROL 81.09
4.08		2000408	SCREW 04.08		81.15	FMS	2008115	TRIGGER SAFETY 81.15
4.12	FMS	2000412	SCREW 04.12	KM0412	90.1	FMS	2009010	SPRING 90.10	P1115203362
4.16	FMS	2000416	SCREW 04.16	KM0412	93.02	FMS	2009302	PUSHER SPRING 93.02	UH0901
4.2	FMS	2000420	SCREW 04.20	666022	01.21.1	FMS	20001211	O-RING 01.21.1
4.35	FMS	2000435	SCREW 04.35		01.21.3	FMS	20001213	O-RING 01.21.3
7.05	FMS	2000705	BALL 07.05		06.12.1		20006121	SCREW 06.12.1
7.3	FMS	2000730	HEXAGONAL WRENCH 07.30		14.18.1	FMS	20014181	ROLL PIN 14.18.1
7.4		2000740	HEXAGONAL WRENCH 07.40		22.00.80-1685	FMS	2220080-1685	DRIVER BLADE 22.00.80-1685
9.02	FMS	2000902	SPRING RING 09.02	YE2501	23.04G		2002304G	PACKING 23.04G
9.14		2000914	WASHER 09.14		30.07.3	FMS	20030073	PISTON 30.07.3
17.1		2001710	AIR PLUG 17.10		40.04.2		20040042	VALVE 40.04.2
20		200200000	BODY 20.00		53.00.80		2530080	MAGAZINE 53.00.80
24	FMS	2002400	SILENCER 24.00	971004	62.02.80		2620280	SLIDER 62.02.80
25.04		2002504	BAFFLE 25.04		69.01.1		20069011	CLINCHING PLATE 69.01.1
26.07		2002607	CYLINDER 26.07		70.00.80	FMS	2700080	PUSHER 70.00.80
28	FMS	2002800	GASKET 28.00		72.03.3		20072033	MAGAZINE SUPPORT 72.03.3
32.05	FMS	2003205	BUMPER 32.05		81.00.80		2810080	BACKNOSE 81.00.80
39	FMS	2003900	PAKING 39.00		91.00.80		2910080	NOSE PLATE 91.00.80
43.13		2004313	WASHER 43.13		91.03X	FMS	2009103X	PLUNGER SPRING 91.03X
45.04	FMS	2004504	RING VALVE 45.04		92.01X	FMS	2009201X	VALVE SPRING 92.01X

One Sheeter

Application

ANGLE & EDGE BOARDS

To make angle & edge boards trays
