PNEUMATIC STAPLER OM XPRO-8016

Name: PNEUMATIC STAPLER OM XPRO-8016
Brand: Kaymo
SKU: XPRO-PS8016
Price: 1.0 INR
Availability: InStock

SKU: XPRO-PS8016

The XPRO-PS8016 Pneumatic Stapler is a high-performance, professional-grade tool designed for precision fastening in upholstery, furniture, and framing applications. Made in Italy, it features a Read More...

Features:

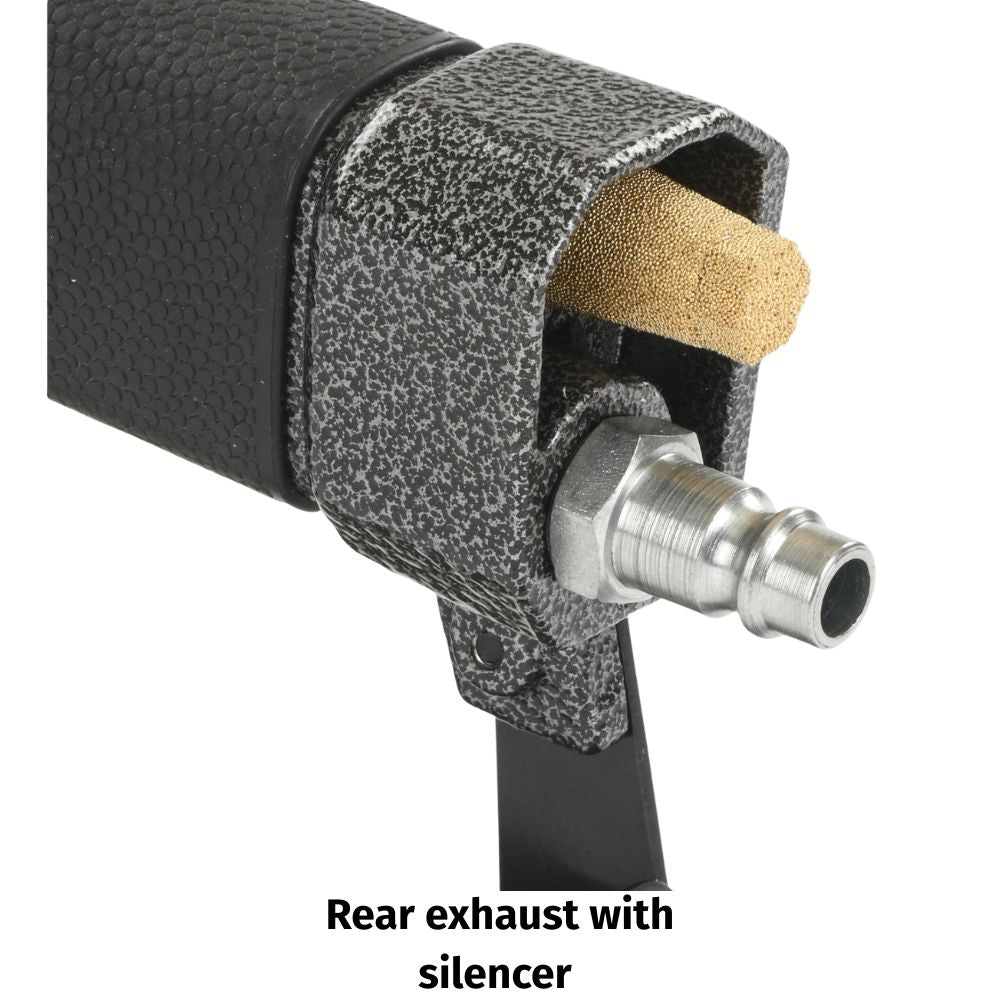

Rear exhaust with silencer

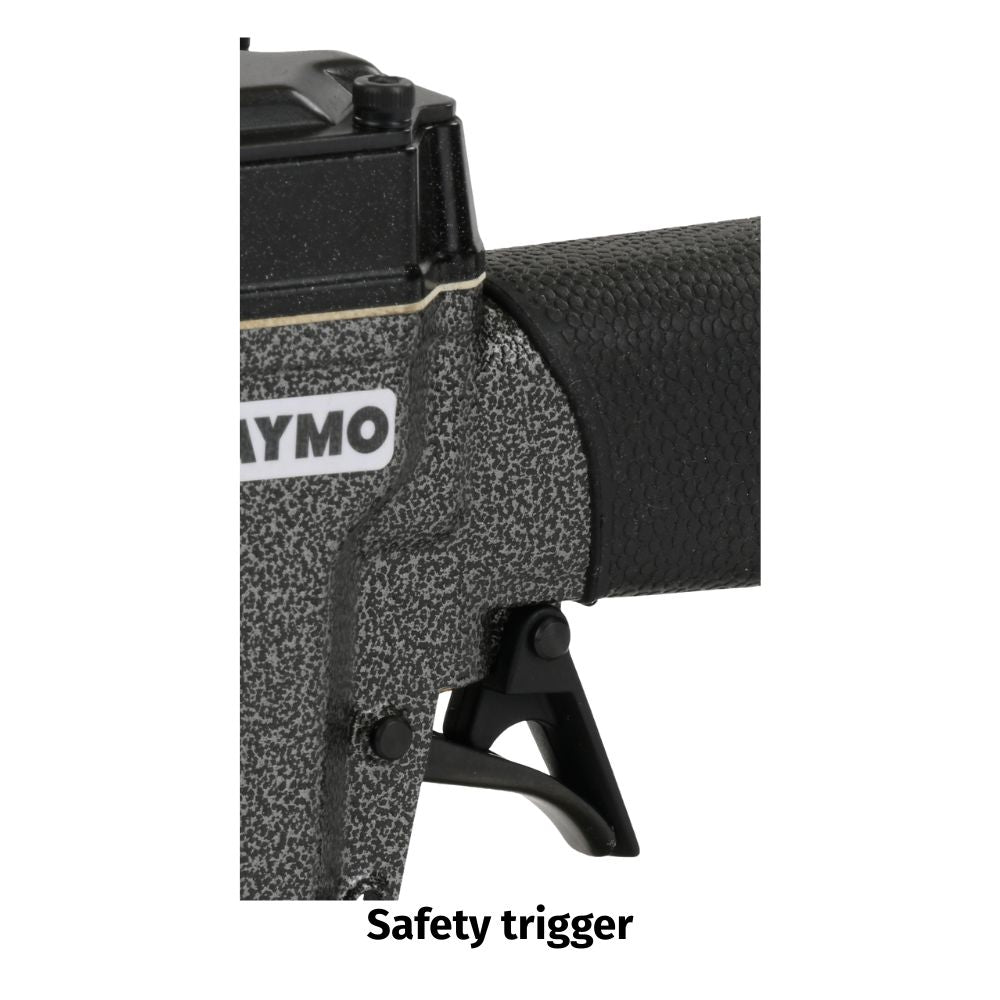

Safety trigger

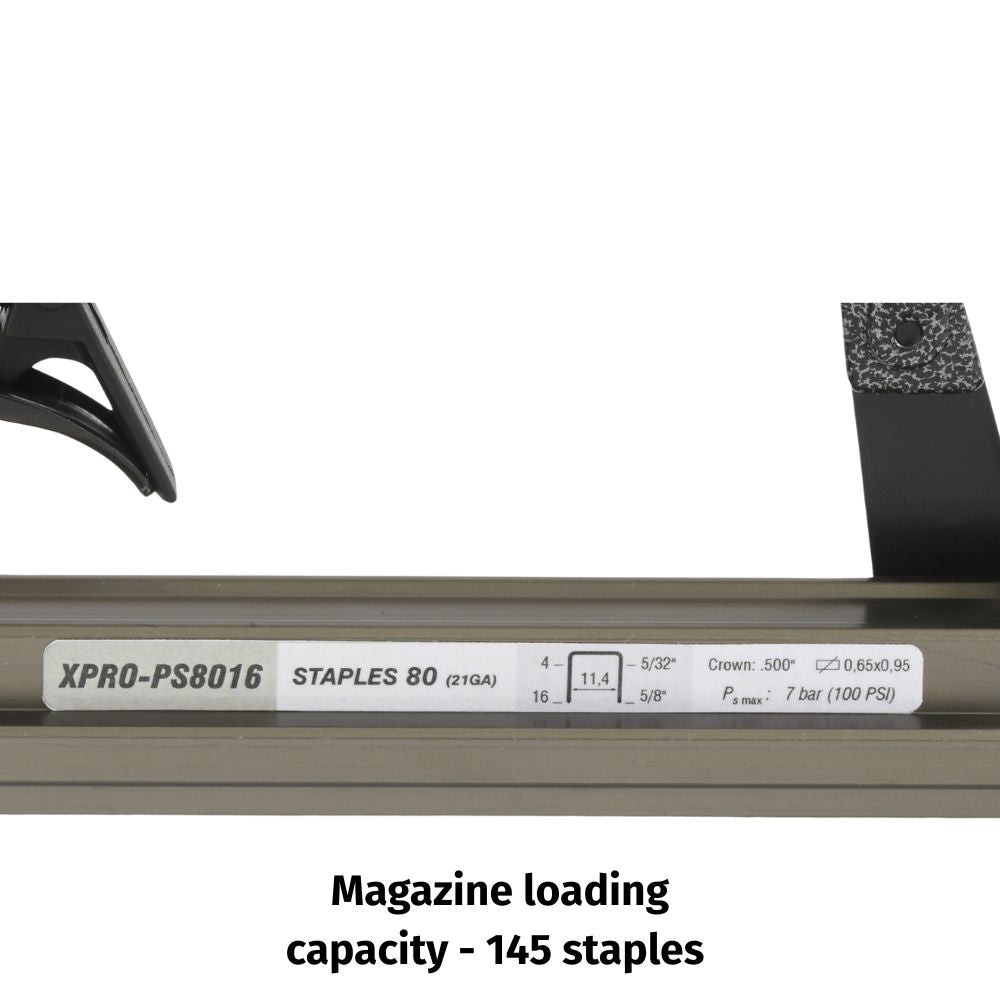

Magazine loading capacity – 145 staples
Metal internal parts
Ergonomic rubber grip
Twin piston rings
Fastener Range: 4mm - 16 mm

Applications:

Two wheeler seats
Sofas
Chairs
Modular kitchens
Wooden flooring
Flush doors
Carrom boards
Shoes
Artist’s canvas
Musical instruments
Ironing boards
Interiors
Screen printing

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

STAPLES KAYMO 80 SERIES

STAPLES KAYMO 80 SERIES BLACK

STAPLES KAYMO 80 SERIES SS

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

Blow UP

Spares

		TOOL NAME:	XPRO-PS8016						REV.1ST APRIL 2023
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
0.06		2000006	O-RING 00.06		45.04	FMS	2004504	RING VALVE 45.04
0.12	FMS	2000012	O-RING 00.12		54.03	FMS	2005403	TRIGGER VALVE 54.03
0.13		2000013	O-RING 00.13		55.06	FMS	2005506	CONNECTOR 55.06
0.14	FMS	2000014	O-RING 00.14		70.04	FMS	2007004	GUARD 70.04
0.26	FMS	2000026	O-RING 00.26		76.04	FMS	2007604	PIN 76.04
0.27	FMS	2000027	O-RING 00.27		76.14		2007614	PIN 76.14
0.35	FMS	2000035	O-RING 00.35		76.45	FMS	2007645	PIN 76.45
1.29	FMS	2000129	O-RING 01.29		80.08		2008008	CLOSING TRIGGER 80.08
1.33	FMS	2000133	O-RING 01.33		81.09	FMS	2008109	TRIGGER CONTROL 81.09
4.08	FMS	2000408	SCREW 04.08		81.15	FMS	2008115	TRIGGER SAFETY 81.15
4.1	FMS	2000410	SCREW 04.10	KM0406	90.07	FMS	2009007	CLOSING TRIGGER SPRING 90.07
4.12	FMS	2000412	SCREW 04.12	KM0412	90.1	FMS	2009010	SPRING 90.10	P1115203362
4.16	FMS	2000416	SCREW 04.16	KM0412	93.02	FMS	2009302	PUSHER SPRING 93.02	UH0901
4.2	FMS	2000420	SCREW 04.20	666022	01.21.1	FMS	20001211	O-RING 01.21.1
4.35	FMS	2000435	SCREW 04.35		01.21.3	FMS	20001213	O-RING 01.21.3
7.05	FMS	2000705	BALL 07.05		04.06.5	FMS	20004065	SCREW 04.06.5
9.02	FMS	2000902	SPRING RING 09.02	YE2501	14.18.1		20014181	ROLL PIN 14.18.1
9.14		2000914	WASHER 09.14		22.00.80	FMS	2220080	DRIVER BLADE 22.00.80
17.1		2001710	AIR PLUG 17.10		30.07.3	FMS	20030073	PISTON 30.07.3
20		2002000	BODY 20.00		53.00.80		2530080	MAGAZINE 53.00.80
22.07		2002207	CAP 22.07		62.00.80		2620080	SLIDER 62.00.80
22.08	FMS	2220880	DRIVER BLADE SHORT 22.08.80		69.01.1		20069011	FOLDING ATT FOR XPRO-PS8016
24	FMS	2002400	SILENCER 24.00	971004	70.00.80	FMS	2700080	PUSHER 70.00.80
25.04		2002504	BAFFLE 25.04		72.03.3		20072033	MAGAZINE SUPPORT 72.03.3
26.07		2002607	CYLINDER 26.07		81.00.80		2810080	BACKNOSE 81.00.80
28	FMS	2002800	GASKET 28.00		91.00.80		2910080	NOSE PLATE 91.00.80
32.05	FMS	2003205	BUMPER 32.05		91.03X	FMS	2009103X	PLUNGER SPRING 91.03X
39	FMS	2003900	PAKING 39.00		92.01X		2009201X	VALVE SPRING 92.01X

One Sheeter

Application

SOFAS	To fix 3mm / 4mm veneer to wooden frame
	To fix upholstery & elastic band
CHAIRS	To fix upholstery to chair / stool base
MODULAR / KITCHENS	To fix fabric to MDF, particle board or ply tiles
WOODEN FLOORING	To fix rubber pad to wooden runner base
FLUSH DOORS	To join wooden strips together
CARROM BOARDS	To fix netted pockets
SHOES	To fix sole to the heel
ARTIST'S CANVAS	To fix canvas to wooden frame
SCREEN PRINTING	To fix screens onto the wooden frame
