PNEUMATIC STAPLER OM XPRO-16WC38 FOLD ATT

PNEUMATIC STAPLER OM XPRO-16WC38 FOLD ATT

Name: PNEUMATIC STAPLER OM XPRO-16WC38 FOLD ATT
Brand: Kaymo
SKU: XPRO-PS16WC38FA
Price: 1.0 INR
Availability: InStock

SKU: XPRO-PS16WC38FA

The XPRO-PS16WC38FA Pneumatic Stapler is designed for industrial packaging and assembly with advanced clinching and folding capabilities. Ideal for edge boards and submersible pump packing, Read More...

Features:

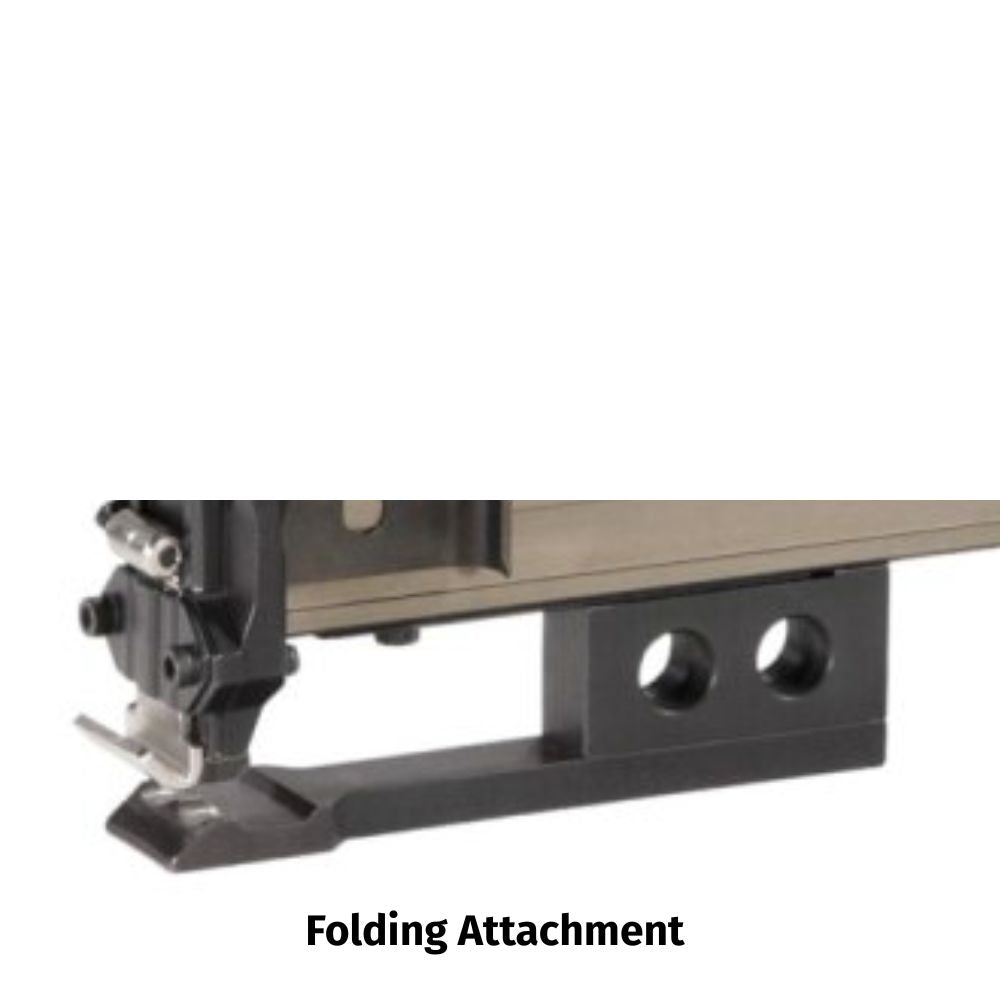

Folding attachment

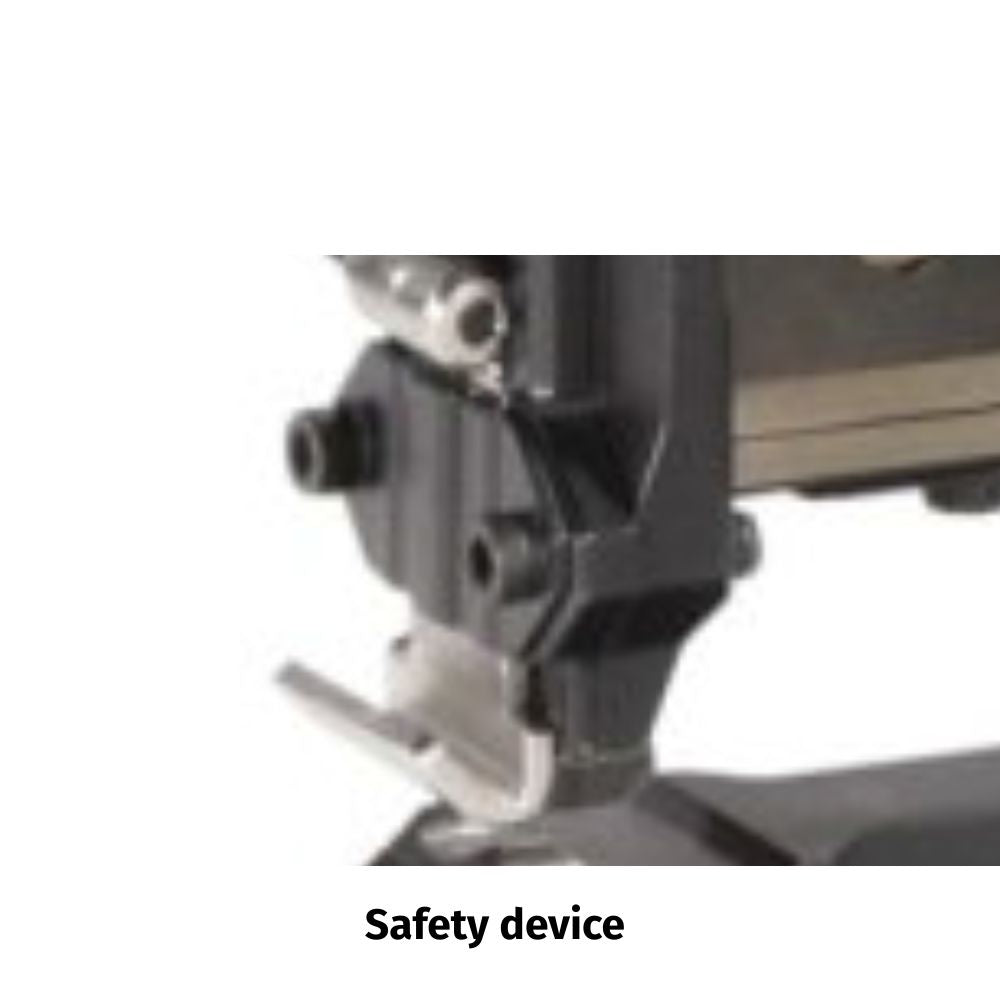

Safety Device
Set of packing plates to adjust clincher height

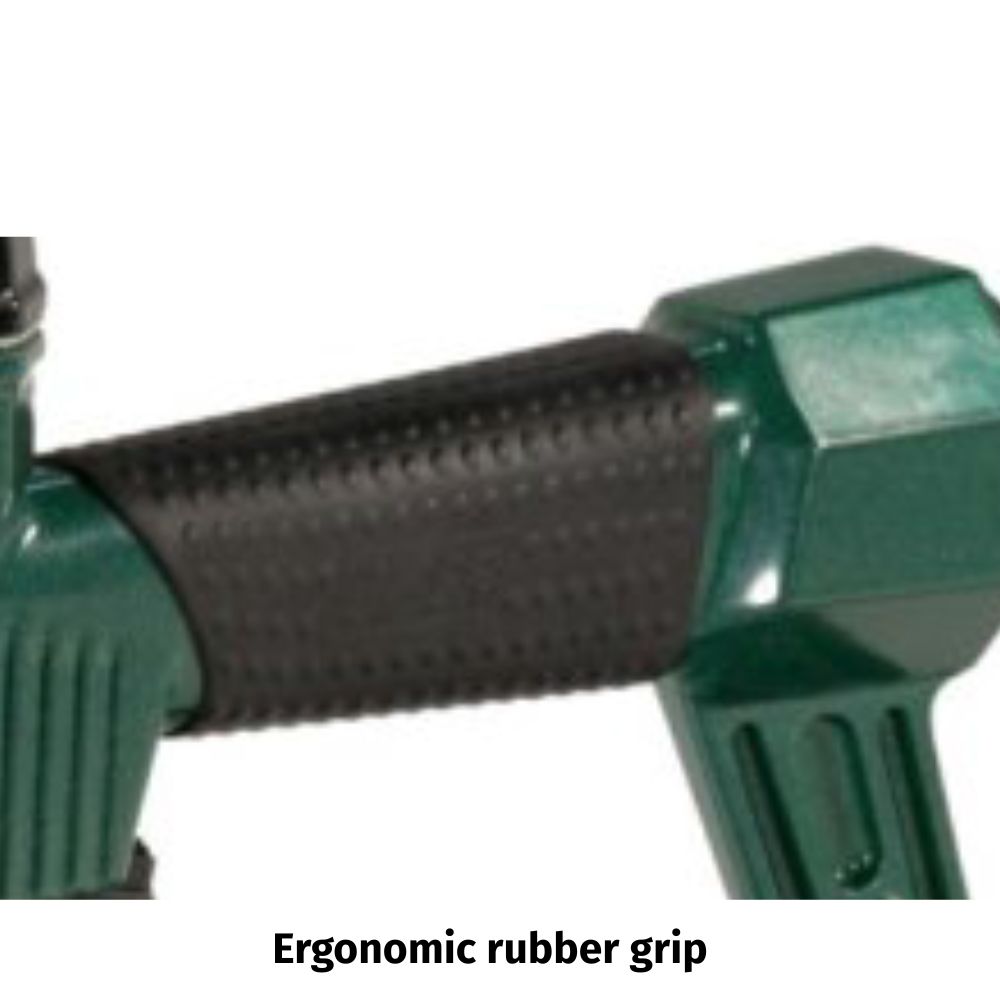

Ergonomic rubber grip
Fastener Range: 22mm – 38mm

Applications:

Edge Boards
Submersible Pump Packing

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

STAPLES KAYMO 16WC SERIES

AIR FILTER + REGULATOR LUBRICATOR SET KAYMO 1/2" WITH GAUGE

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

Blow Up

Spares

		TOOL MODEL:	XPRO-PS16WC38FA NEW					REV.1st APRIL 2023
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
0.11	FMS	2000011	O-RING 00.11		53.74		2005374	PISTON VALVE 53.74
0.14	FMS	2000014	O-RING 00.14		54.83		2005483	TRIGGER VALVE 54.83
0.18		2000018	O-RING 00.18		55.74		2005574	CONNECTOR 55.74
0.22		2000022	O-RING 00.22		64.79		2006479	CARTER 64.79
0.45		2000045	O-RING 00.45		69.74		2006974	CLINCHING PLATE 69.74
1.48		2000148	O-RING 01.48		71.76		2007176	MAGAZINE SUPPORT 71.76
1.64		2000164	O-RING 01.64		73.71		2007371	CLOSING PIN 73.71
2.48		2000248	O-RING 02.48		76.44		2007644	ROLLER 76.44
3		2000300	NUT 03.00		77.78		2007778	SAFETY GUIDE 77.78
3.3		2000330	SCREW 03.30		78.76		2007876	LEVER 78.76
4.19		2000419	SCREW 04.19		81.78		2008178	TRIGGER CONTROL 81.78
5		2000500	NUT 05.00		86.74		2008674	FERRULE 86.74
5.14		2000514	SCREW 05.14		91		2009100	PLUNGER SPRING 91.00
5.25	FMS	2000525	SCREW 05.25		91.73		2009173	SPRING 91.73
5.3	FMS	2000530	SCREW 05.30		91.74		2009174	SPRING 91.74
6.2		2000620	SCREW 06.20		92.73		2009273	SPRING 92.73
6.5		2000650	SCREW 06.50		93.73		2009373	PUSHER SPRING 93.73
6.7		2000670	SCREW 06.70		00.15.2		20000152	O-RING 00.15.2
7.25		2000725	HEXAGONAL WRENCH 07.25		02.38.2		20002382	O-RING 02.38.2
7.3		2000730	HEXAGONAL WRENCH 07.30		04.05.5		20004055	SCREW 04.05.5
7.4		2000740	HEXAGONAL WRENCH 07.40		05.16.1		20005161	SCREW 05.16.1
7.5		2000750	HEXAGONAL WRENCH 07.50		06.20.2		20006202	SCREW 06.20.2
9.03		2000903	SPRING RING 09.03		09.24.1		20009241	SPRING RING 09.24.1
10.55		2001055	O-RING 10.55		23.70.60		2237060	DRIVER BLADE 23.70.60
17.27		2001727	INLET CAP 17.27		23.70.63		2237063	DRIVER BLADE 23.70.63	2237060
21.76		2002176	BODY 21.76		30.75.		20030751	PISTON 30.75.
22.74		2002274	HEAD 22.74		32.75.		20032751	BUMPER 32.75.
25.74		2002574	BAFFLE 25.74		54.70.60		2547060	MAGAZINE 54.70.60
26.74		2002674	CYLINDER 26.74		64.78.1		20064781	SAFETY CARTER 64.78.1
27.7		2002770	RING 27.70		69.73.1		20069731	SPACER 69.73.1
27.74		2002774	CYLINDER RING 27.74		69.73.2		20069732	SPACER 69.73.2
28.74		2002874	GASKET 28.74		69.73.6		20069736	SPACER 69.73.6
40.74		2004074	VALVE 40.74		71.70.60		2717060	PUSHER 71.70.60
43.11		2004311	WASHER 43.11		73.71.2		20073712	PIN 73.71.2
44.73		2004473	CYLINDER GASKET 44.73		75.66.1		20075661	SAFETY 75.66.1
44.74		2004474	PACKING 44.74		84.71.63		2847163	BACK NOSE 84.71.63
45.7		2004570	PLUNGER SPACER 45.70		90.76.1		20090761	PLATE 90.76.1
51.74		2005174	BUSH PLUNGER 51.74		94.70.63		2947063	NOSE PLATE 94.70.63
