PNEUMATIC STAPLER OM XPRO-16WC38

Name: PNEUMATIC STAPLER OM XPRO-16WC38
Brand: Kaymo
SKU: XPRO-PS16WC38
Availability: InStock

SKU: XPRO-PS16WC38

The XPRO-PS16WC38 Pneumatic Stapler is a powerful and reliable tool designed for industrial packaging and assembly applications. With an ergonomic rubber grip, safety device, and Read More...

Features:

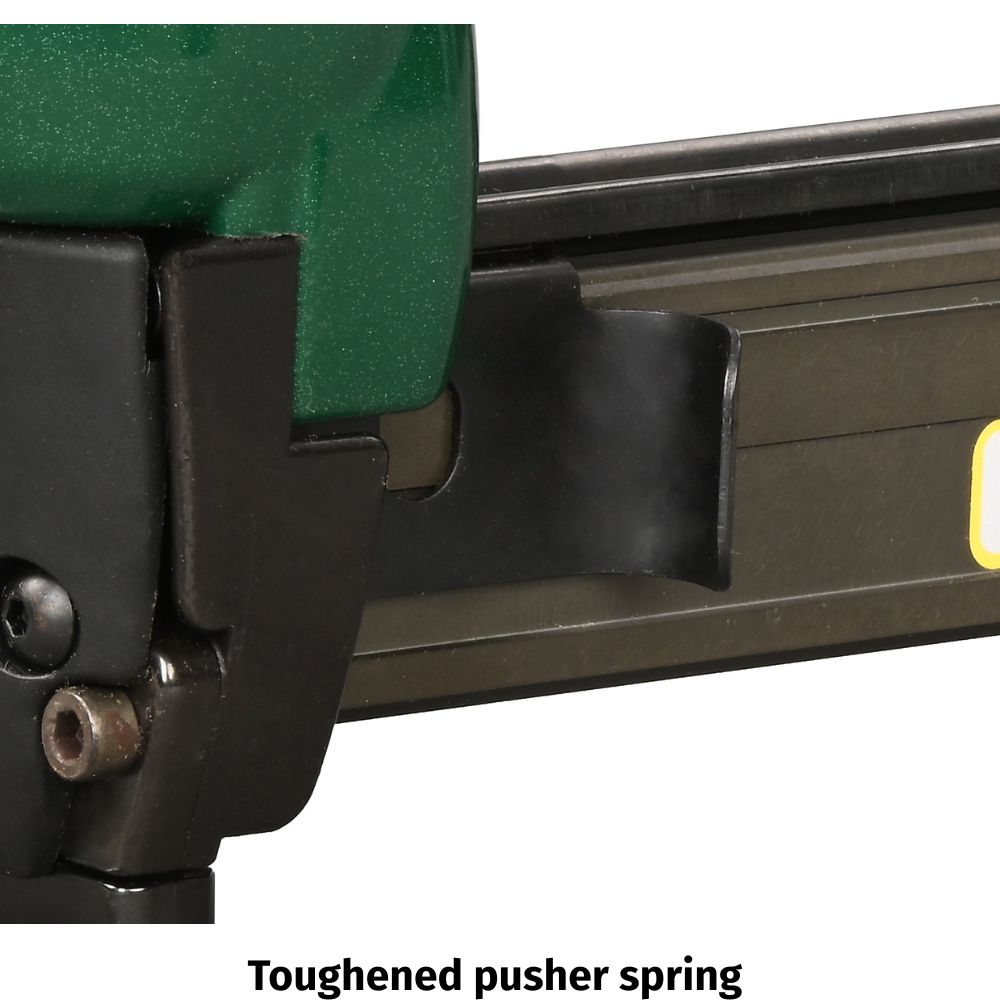

Toughened pusher

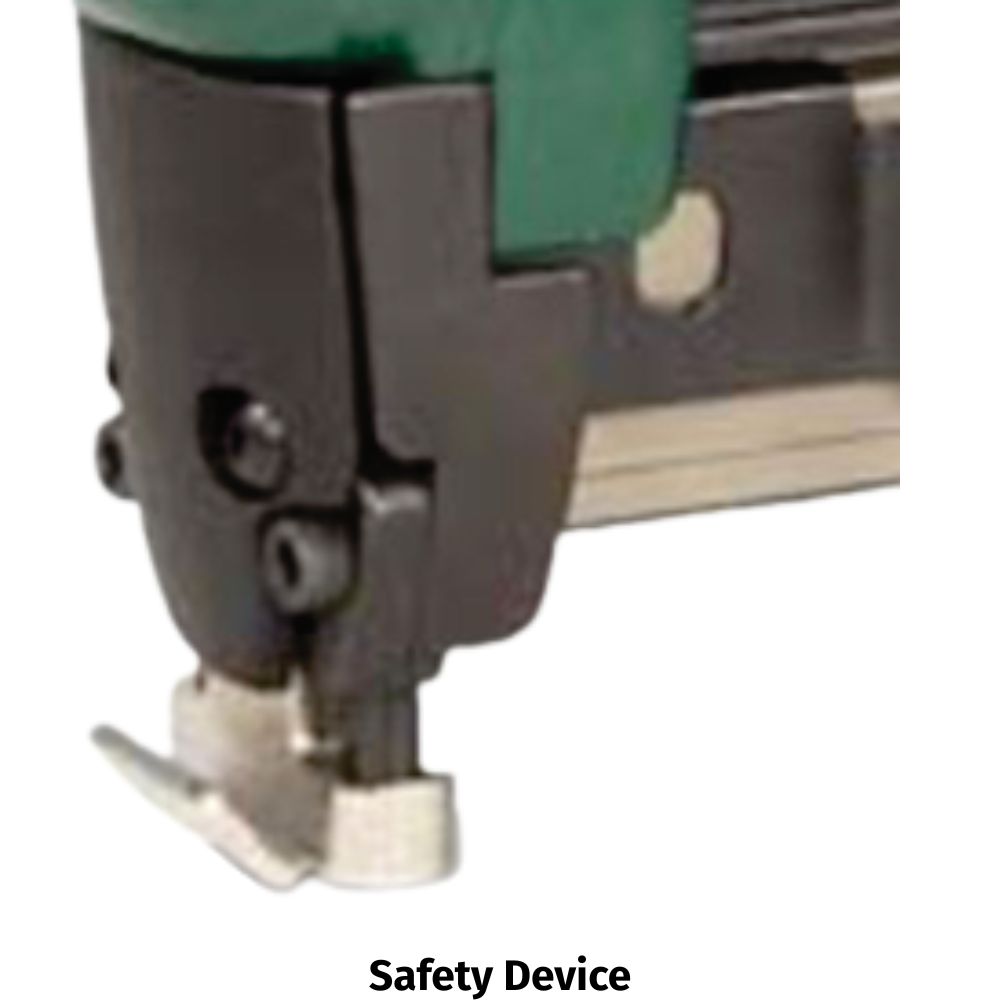

Safety device

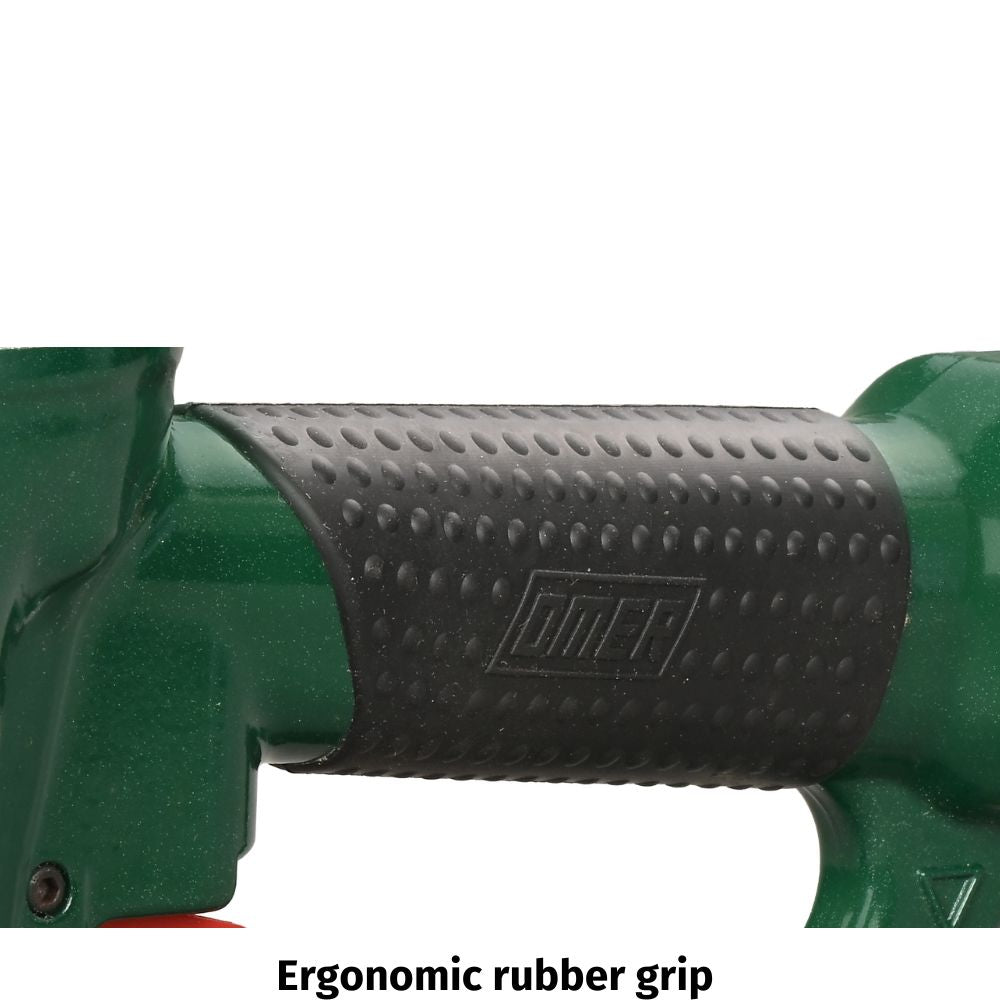

Ergonomic rubber grip
Heavy duty tool
Fastener Range: 16mm – 38mm

Applications:

Edge boards
Submersible pump packing
Door & window frames

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

STAPLES KAYMO 16WC SERIES

Blow Up

Spares

.		TOOL NAME:	XPRO-PS16WC38FA					REV.1ST APRIL 2022
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1		2000011	O-RING	0.11	39		2005374	PISTON VALVE	53.74
2	FMS	2000014	O-RING	0.14	40		2005483	TRIGGER VALVE	54.83
3		2000018	O-RING	0.18	41		2005574	CONNECTOR	55.74
4		2000022	O-RING	0.22	42		2006479	CARTER	64.79
5		2000045	O-RING	0.45	43		2006974	CLINCHING PLATE	69.74
6		2000148	O-RING	1.48	44		2007176	MAGAZINE SUPPORT	71.76
7		2000164	O-RING	1.64	45		2007371	CLOSING PIN	73.71
8		2000248	O-RING	2.48	46		2007644	ROLLER	76.44
9		2000300	NUT	3	47		2007778	SAFETY GUIDE	77.78
10		2000330	SCREW	3.3	48		2007876	LEVER	78.76
11		2000419	SCREW	4.19	49		2008178	TRIGGER CONTROL	81.78
12		2000500	NUT	5	50		2008674	FERRULE	86.74
13		2000514	SCREW	5.14	51		2009100	PLUNGER SPRING	91
14	FMS	2000525	SCREW	5.25	52		2009173	SPRING	91.73
15	FMS	2000530	SCREW	5.3	53		2009174	SPRING	91.74
16		2000620	SCREW	6.2	54		2009273	SPRING	92.73
17		2000650	SCREW	6.5	55		2009373	PUSHER SPRING	93.73
18		2000670	SCREW	6.7	56		20000152	O-RING	00.15.2
19		2000725	HEXAGONAL WRENCH	7.25	57		20002382	O-RING	02.38.2
20		2000730	HEXAGONAL WRENCH	7.3	58		20004055	SCREW	04.05.5
21		2000740	HEXAGONAL WRENCH	7.4	59		20005161	SCREW	05.16.1
22		2000750	HEXAGONAL WRENCH	7.5	60		20006202	SCREW	06.20.2
23		2000903	SPRING RING	9.03	61		20009241	SPRING RING	09.24.1
24		2001055	O-RING	10.55	62		2237063	DRIVER BLADE	23.70.63
25		2001727	INLET CAP	17.27	63		20030751	PISTON	30.75.
26		2002176	BODY	21.76	64		20032751	BUMPER	32.75.
27		2002274	HEAD	22.74	65		2547060	MAGAZINE	54.70.60
28		2002574	BAFFLE	25.74	66		20064781	SAFETY CARTER	64.78.1
29		2002674	CYLINDER	26.74	67		20069731	SPACER	69.73.1
30		2002770	RING	27.7	68		20069732	SPACER	69.73.2
31		2002774	CYLINDER RING	27.74	69		20069736	SPACER	69.73.6
32		2002874	GASKET	28.74	70		2717060	PUSHER	71.70.60
33		2004074	VALVE	40.74	71		20073712	PIN	73.71.2
34		2004311	WASHER	43.11	72		20075661	SAFETY	75.66.1
35		2004473	CYLINDER GASKET	44.73	73		2847163	BACK NOSE	84.71.63
36		2004474	PACKING	44.74	74		20090761	PLATE	90.76.1
37		2004570	PLUNGER SPACER	45.7	75		2947063	NOSE PLATE	94.70.63
38		2005174	BUSH PLUNGER	51.74

One Sheeter

Application

CORRUGATED TO WOOD	To fix angle boards to wooden pallets
BUFFING WHEELS	To fix layers of leather / cloth to form wheel
