PNEUMATIC STAPLER KAYMO PRO-PS10040SCH SPRING CLIP HOLDER

SKU: PRO-PS10040SCH

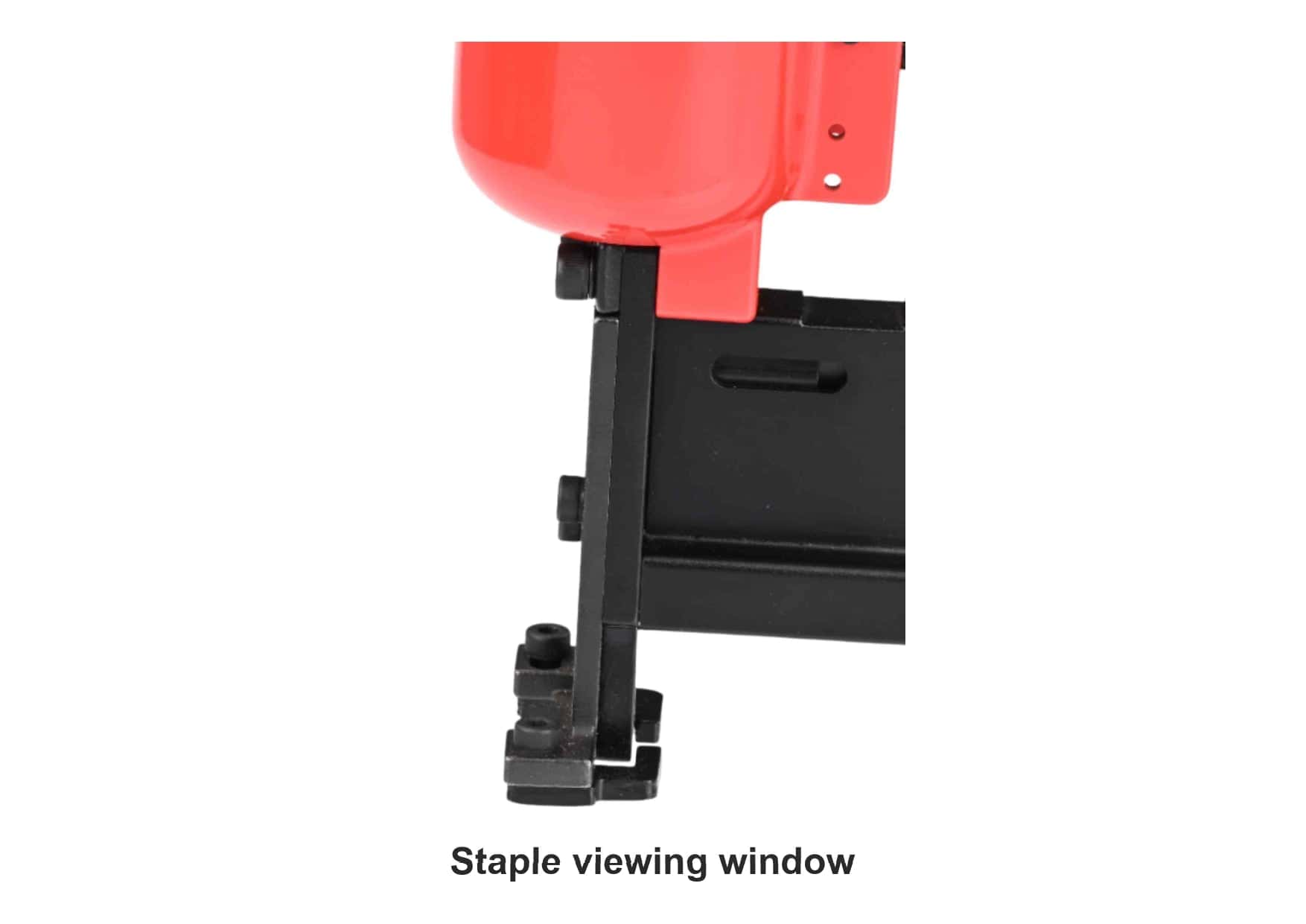

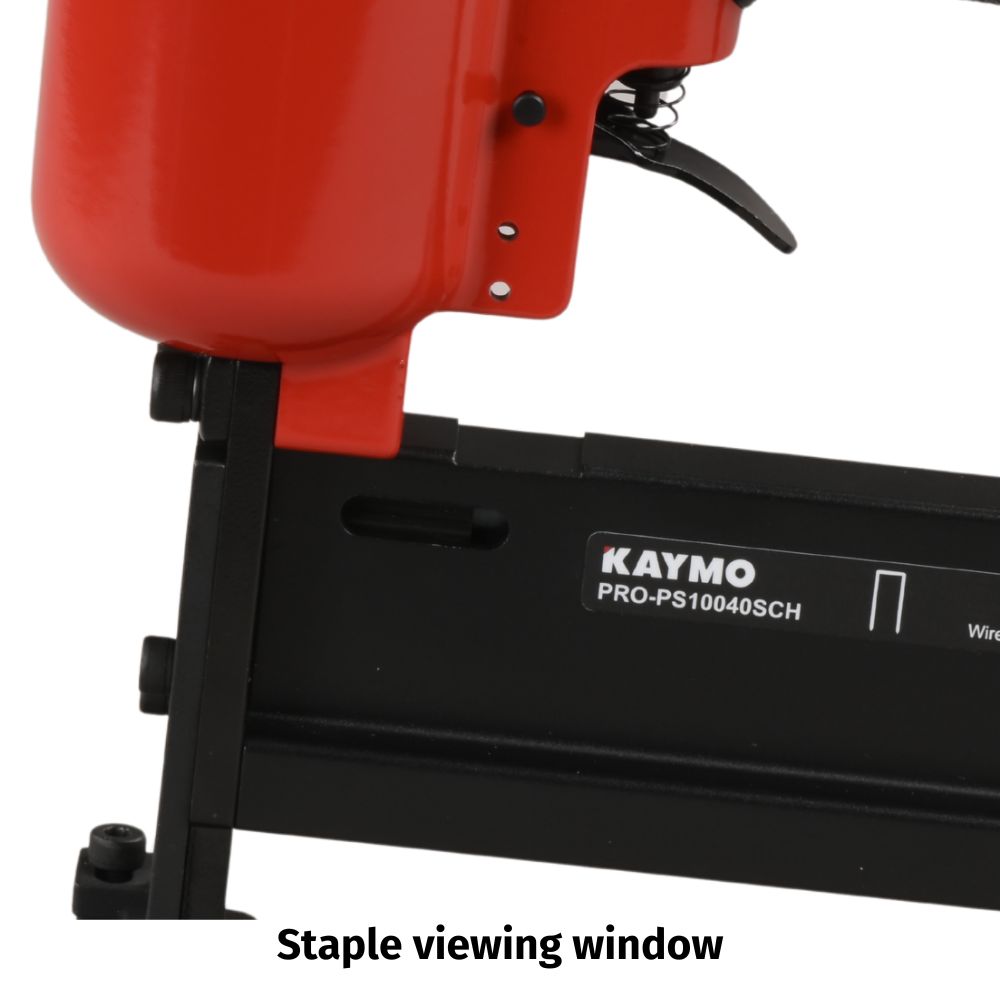

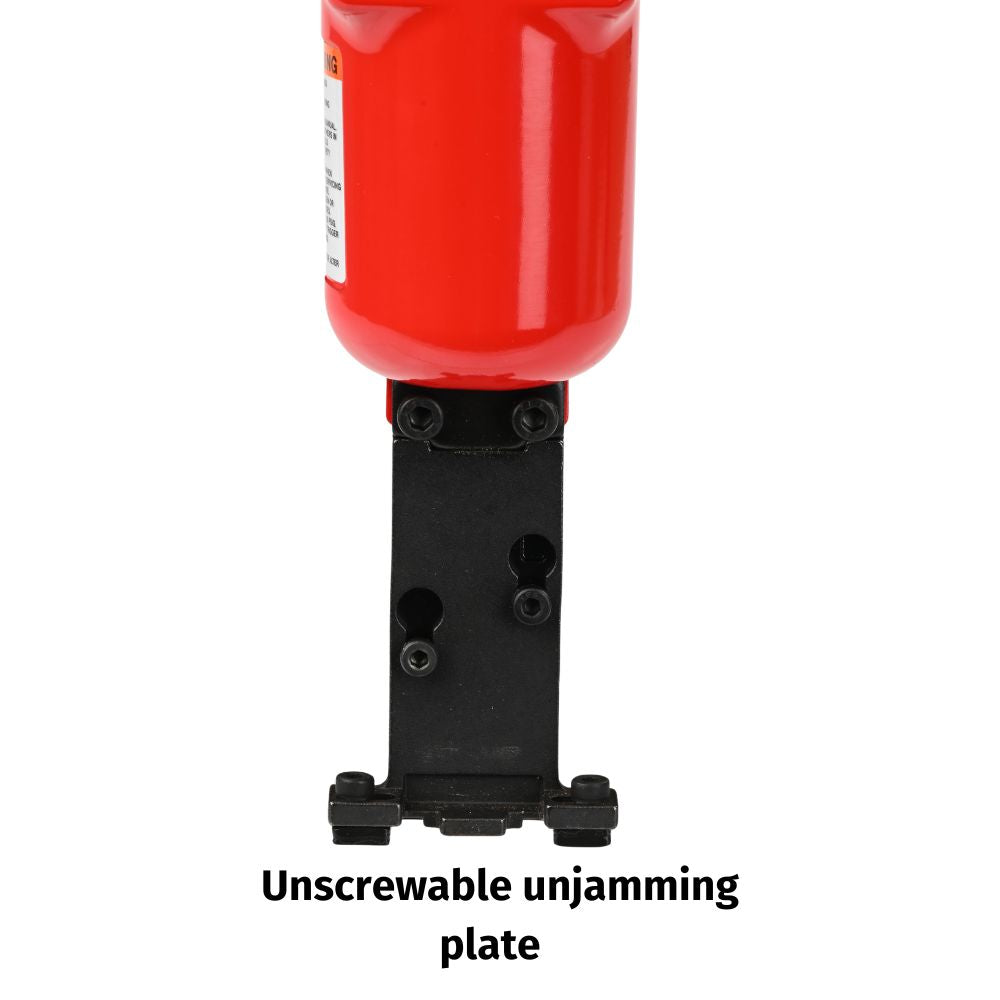

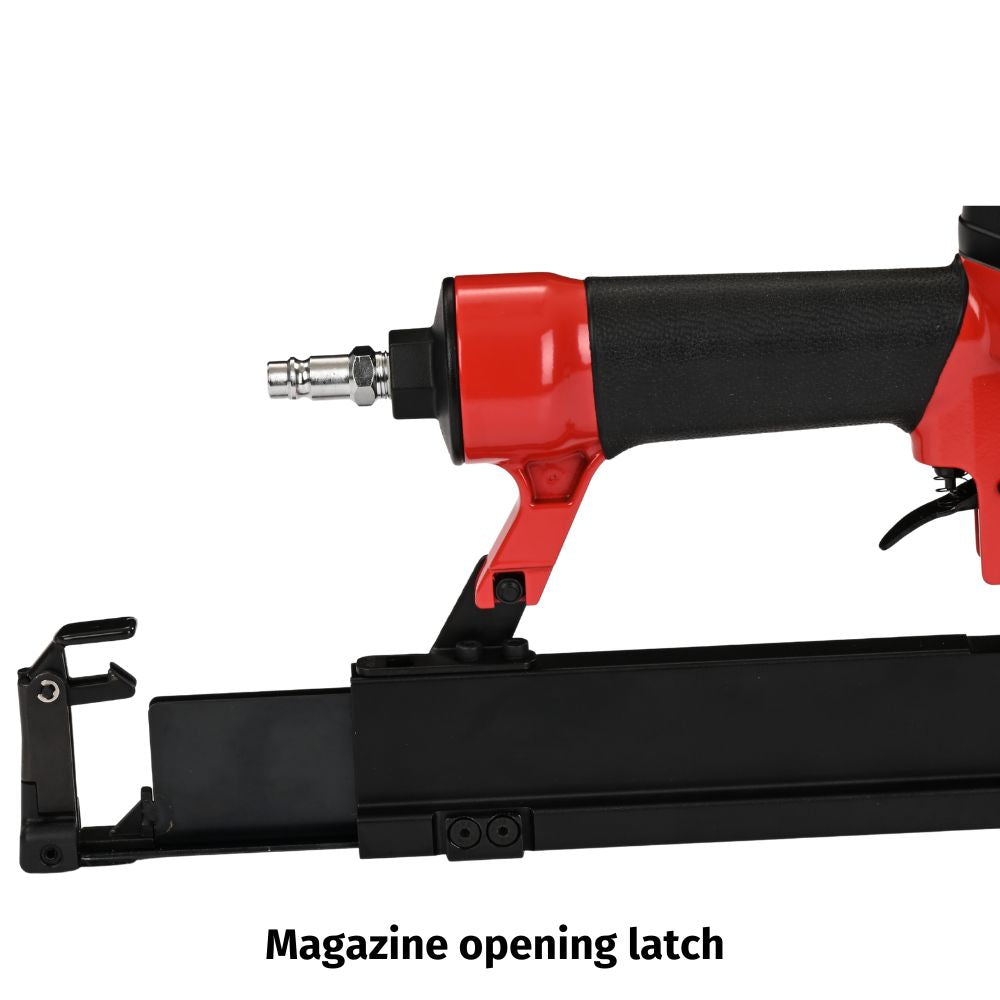

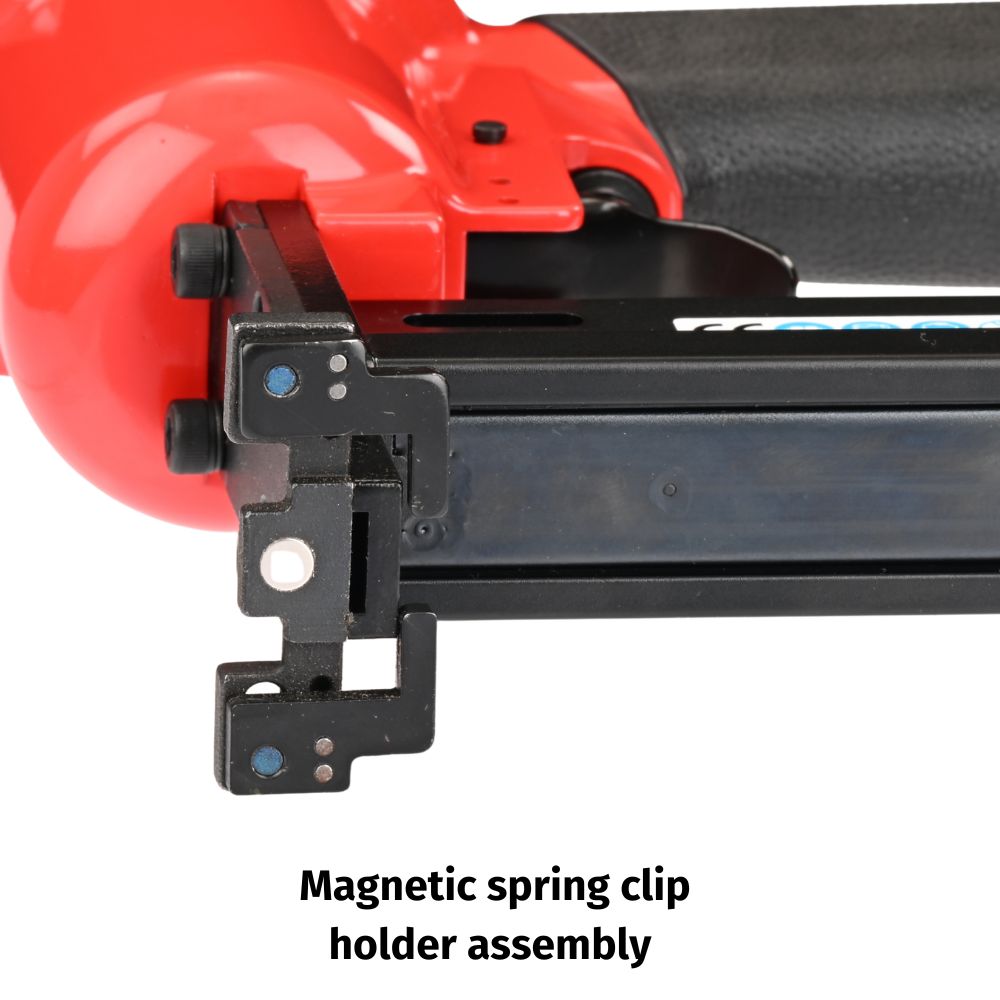

Magnetic spring clip holder assembly. Un screwable unjamming plate. Magazine opening latch. Staple viewing window. Full metal magazine assembly. 360 degree top air exhaust

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

₹ 1/-
Blow Up
Spares
TOOL MODEL: PRO-PS10040SCH
SR FMS PART CODE PART NAME ALT CODE SR FMS PART CODE PART NAME ALT CODE
0 FMS CC0801 END CAP   0   MG2101 COVER
0   EMO0401 PERMANENT MAGNET   0   MH0701 SPACER
0   FA4102 BODY   0   MU0201 GUIDE PLATE
0   FA4401 EXHAUST CAP   0 FMS MU0301W DRIVER ASSY.
0 FMS FA4501 CAP SEAL   0   MU0401 MAGAZINE CAP
0 FMS FA4801 BUMPER   0   MU0501 MAGAZINE SEAT SET
0 FMS FA4901 COLLAR   0 FMS MU1101 PUSHER
0 FMS FA7401 NOZZLE   0 FMS MU1801 COVER PLATE
0 FMS FB1801 COVER PLATE(A)   0 FMS OA003A O-RING  NEO80025
0 FMS FB2302 HEAD VALVE PISTON   0 FMS OA004A O-RING
0 FMS FB2401 COMPRESSION SPRING   0 FMS OA024A O-RING
0 FMS FB2501 PISTON STOP   0 FMS OA127A O-RING
0   FB3104 CYLINDER   0 FMS OA134A O-RING
0 FMS FB3201 PIN   0 FMS OB221H O-RING
0 FMS FB3601 PISTON STOP   0 FMS OB323A O-RING
0 FMS FB3801 PISTON STOP   0 FMS OG030A O-RING
0   FB7001 CYLINDER CAP   0 FMS OP010A O-RING
0 FMS FE1201 EXHAUST CAP RING   0 FMS OP014A O-RING
0 FMS KF0408 FLAT HD.BOLT    0 FMS OP025A O-RING
0 FMS KF0510 FLAT HD.BOLT    0   PA1901 PIN HY1013J039
0 FMS KM0406 HEX.SOC.HD.BOLT    0   UE1101W TRIGGER VALVE ASSY.
0 FMS KM0408 HEX.SOC.HD.BOLT    0 FMS UE1301 COMPRESSION SPRING NEO80028
0 FMS KM0410 HEX.SOC.HD.BOLT    0   UE1401 TRIGGER VALVE STEM
0 FMS KM0418 HEX.SOC.HD.BOLT    0 FMS UE1501 SEAL HY1013J019
0 FMS KM0516 HEX.SOC.HD.BOLT    0   UE1601 TRIGGER VALVE GUIDE
0 FMS KM0520 HEX.SOC.HD.BOLT    0   UE1701 TRIGGER VALVE SEAT
0 FMS KM0522 HEX.SOC.HD.BOLT    0 FMS UE1801 TRIGGER
0   KP2005 PARALLEL PIN    0 FMS UH0901 PULL SPRING
0 FMS KP3005 PARALLEL PIN    0 FMS UH1101 MAGAZINE RETAINER
0 FMS KS3026 SPRING PIN    0   UL5801 SUPPORT BASE
0   MG1702 SUPPORT   0 FMS YE2501 E-RING
0 FMS MG1801 LATCH   0 FMS YG0501 SPRING WASHER  S0410500
0 FMS MG1901 SPRING   0 FMS YL0508 LOCK NUT  NEO1005079N




One Sheeter
Application
FURNITURE - SOFAS To fix metal spring clip holder onto wooden frames
