PNEUMATIC STAPLER KAYMO PRO-9716

Name: PNEUMATIC STAPLER KAYMO PRO-9716
Brand: Kaymo
SKU: PRO-PS9716
Price: 1.0 INR
Availability: InStock

SKU: PRO-PS9716

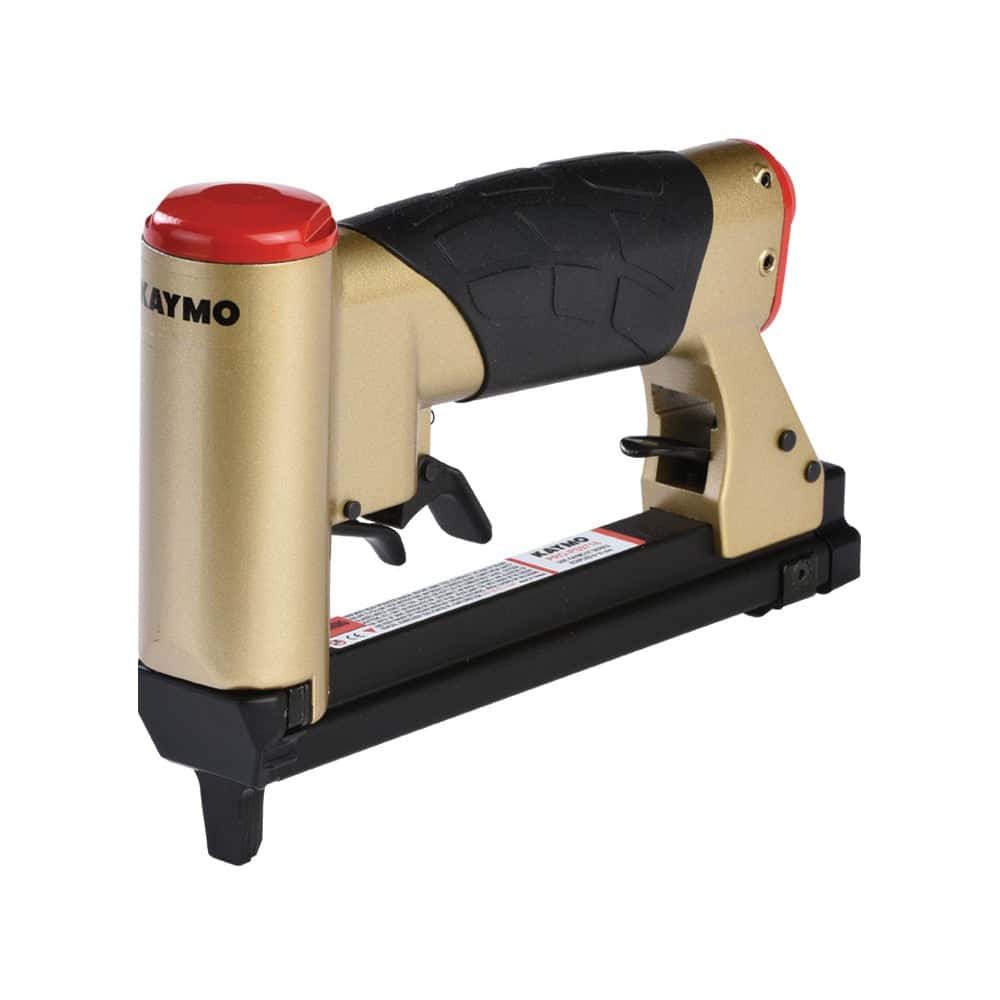

The KAYMO PRO-PS9716 is a lightweight and precision-driven pneumatic stapler, ideal for shoe manufacturing. Engineered for efficiency and durability, it offers seamless operation in high-volume Read More...

Features:

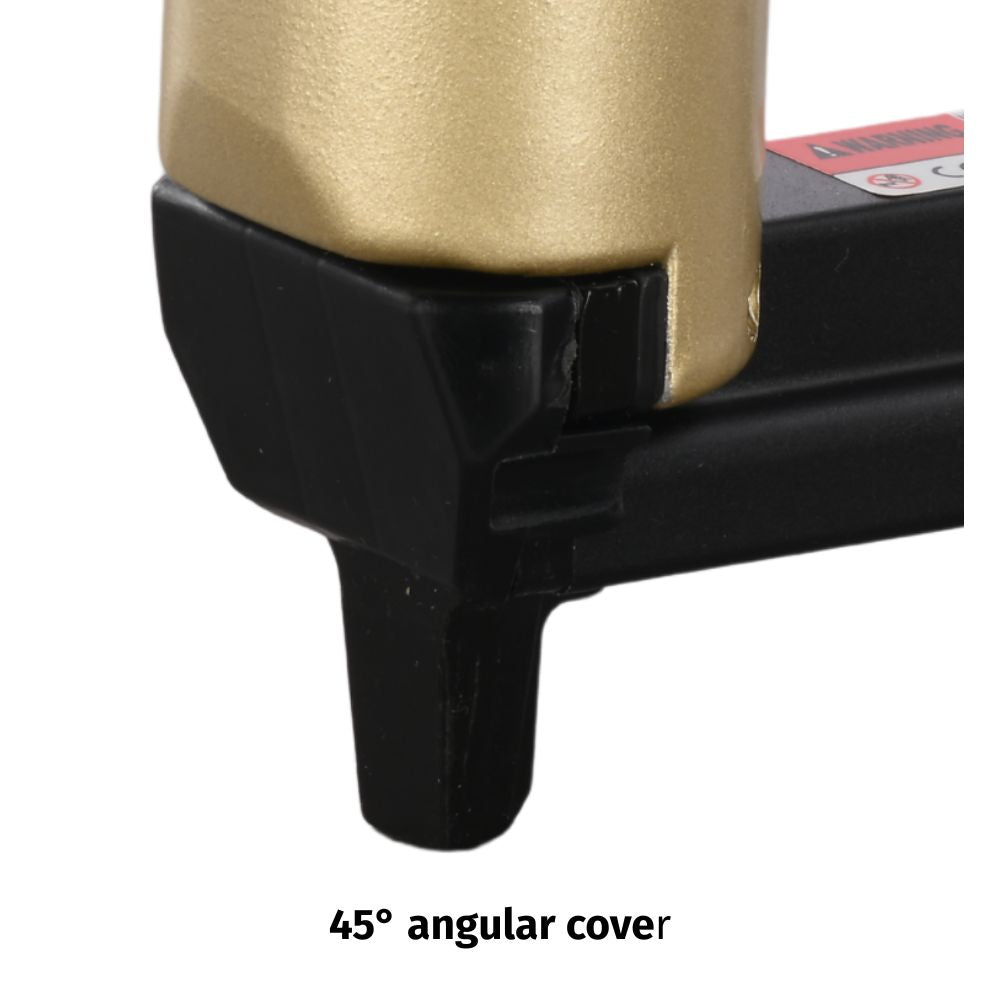

45° angular cover

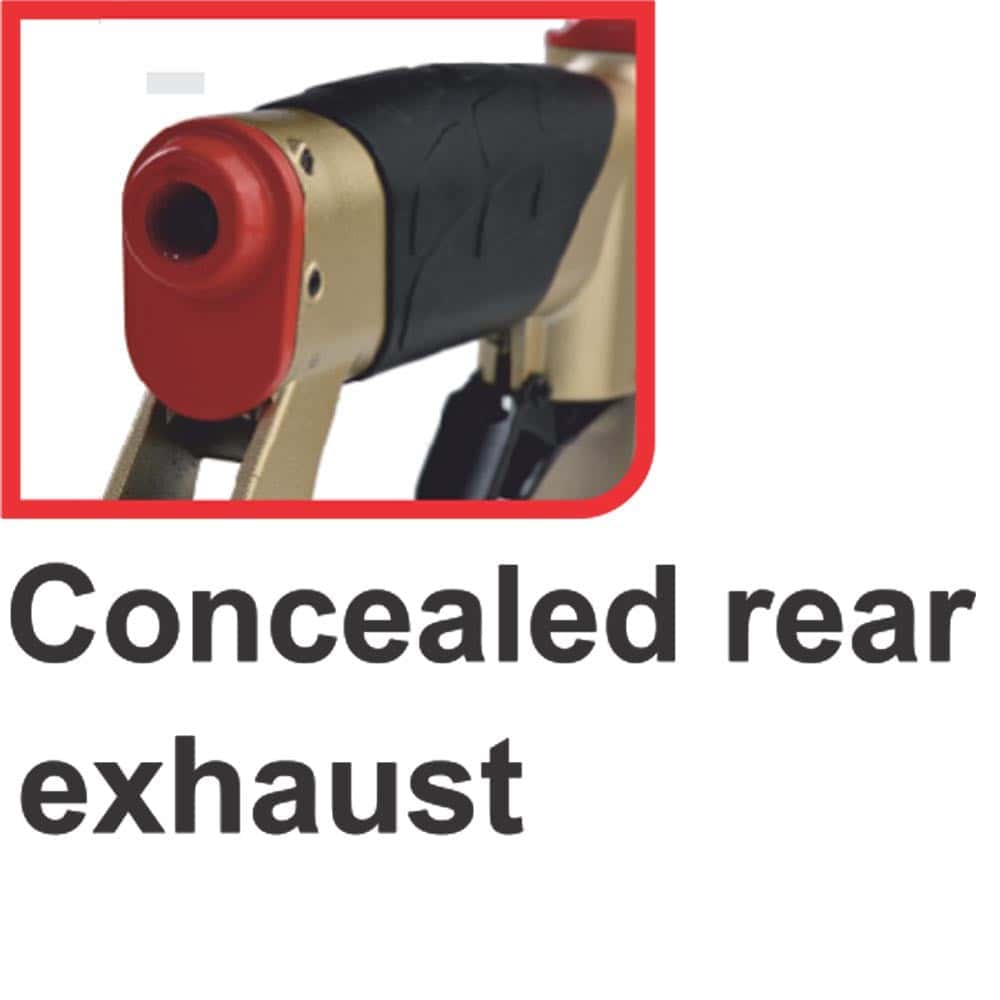

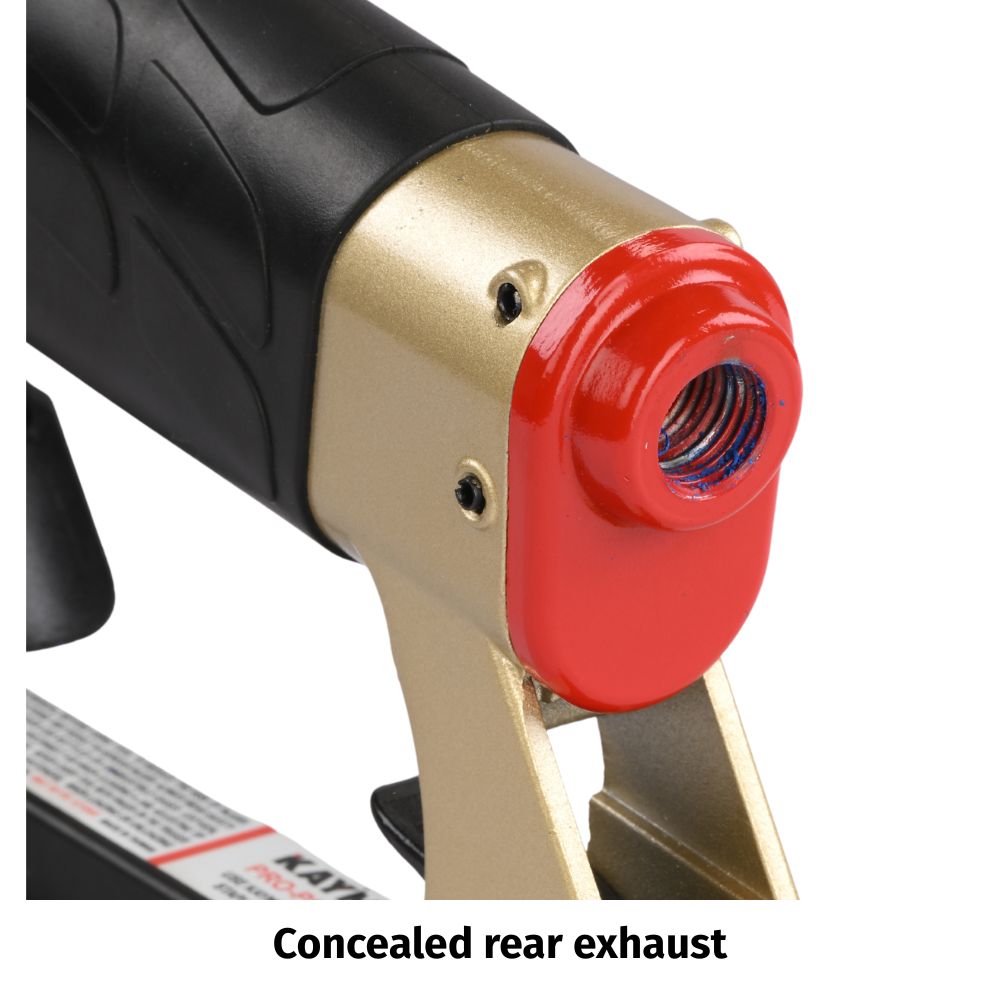

Concealed rear exhaust

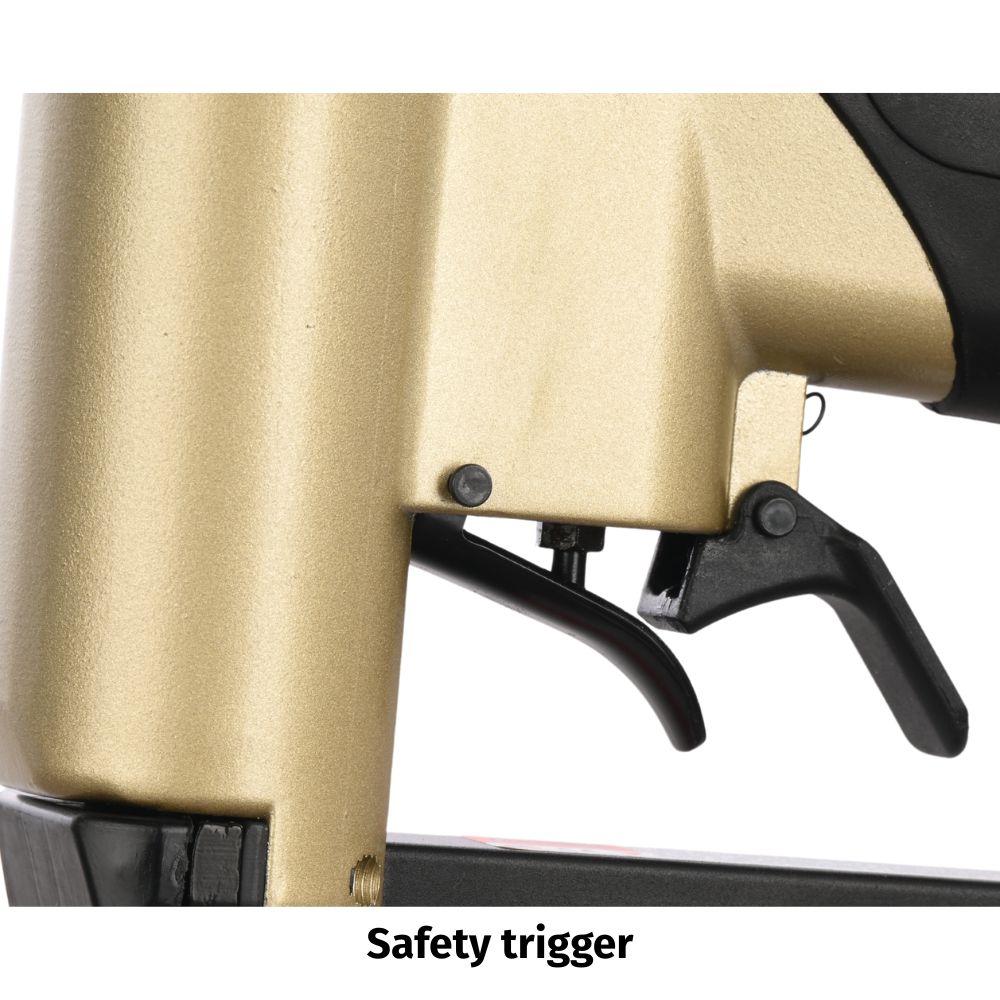

Safety trigger
Fastener Range: 6mm – 16mm

Applications:

Shoes
Textile brushes
Skipping ropes
Party poppers
Interiors

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

STAPLES KAYMO 97 SERIES

AIR FILTER + REGULATOR LUBRICATOR SET KAYMO 1/2" WITH GAUGE

FITTING KAYMO 6.35mmx8mm(1/4"x8 mm) PUSH TO CONNECT STRAIGHT

Related Products

Example product title

Rs. 1.00; Rs. 1.00
Unit price: per

Example product title

Rs. 1.00; Rs. 1.00
Unit price: per

Example product title

Rs. 1.00; Rs. 1.00
Unit price: per

Example product title

Rs. 1.00; Rs. 1.00
Unit price: per

Example product title

Rs. 1.00; Rs. 1.00
Unit price: per

Example product title

Rs. 1.00; Rs. 1.00
Unit price: per

Example product title

Rs. 1.00; Rs. 1.00
Unit price: per

Example product title

Rs. 1.00; Rs. 1.00
Unit price: per

Example product title

Rs. 1.00; Rs. 1.00
Unit price: per

Example product title

Rs. 1.00; Rs. 1.00
Unit price: per

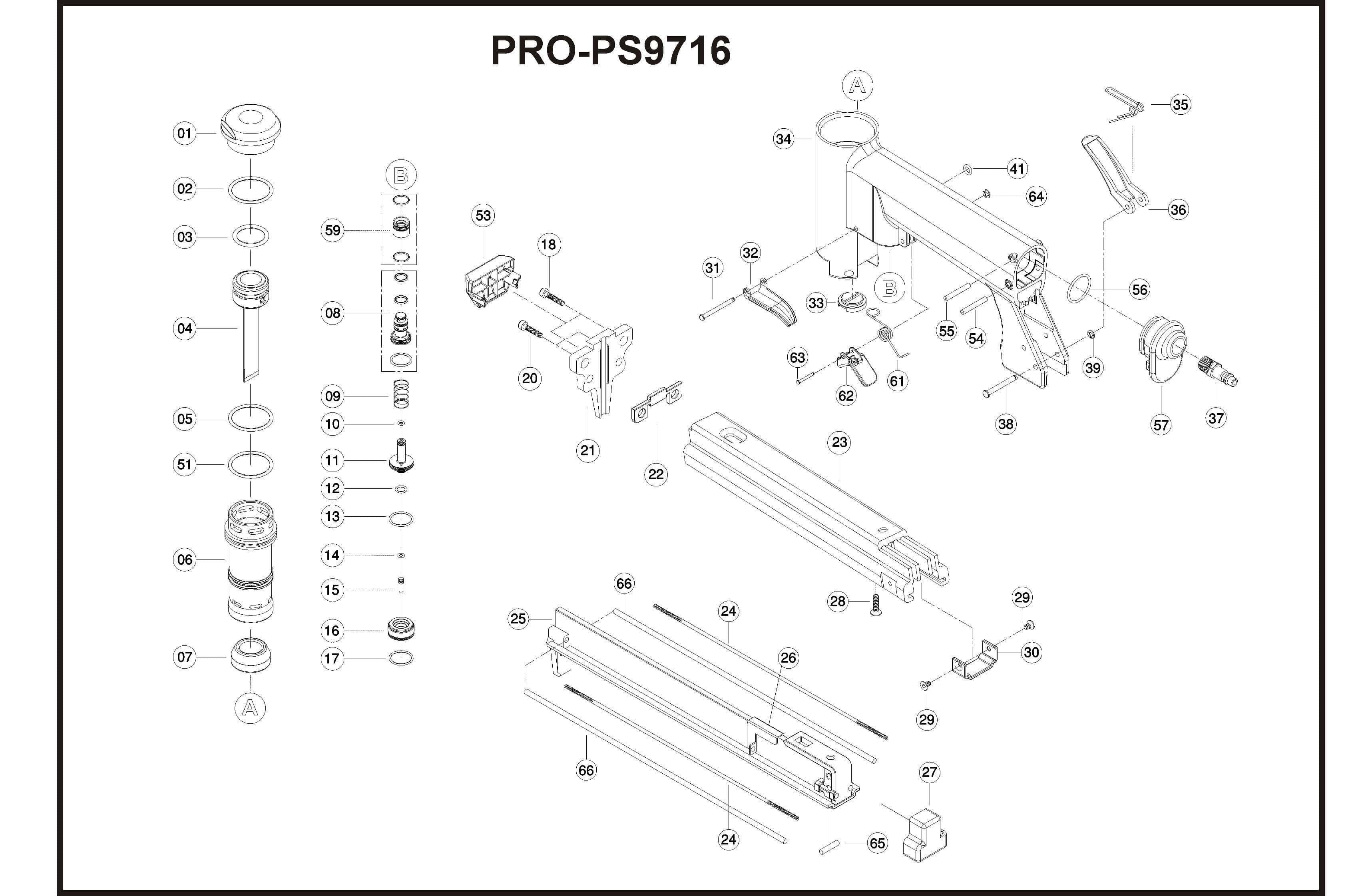

.		TOOL NAME:	PRO-PS9716					REV.1ST APRIL 2022
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1		18012	Cap		28		93001	Hex. Soc. FT HD Screw
2		90036	O-Ring	90036A	29	FMS	93003	Hex.Soc. FT HD Screw
3		90001	O-Ring		30		18210	Magazine Retainer
4	FMS	47020-1	Piston Ram Assembly		31		18410	Step Pin
5		90034	O-Ring		32		18230	Trigger
6		18041	Cylinder		33		18240	Seal
7	FMS	18050	Bumper		34		18463	Body
8	FMS	18060-1	Trigger Valve Set		35		18270	Magazine Latch Spring
9	FMS	18070	Trigger Valve Spring		36		18280	Magazine Latch
10	FMS	90055	O-Ring		37		94001-1	Air Plug
11		18080	Trigger Valve		38		18290	Pin
12	FMS	90005	O-Ring		39	FMS	95001	E-Ring	YE2501
13	FMS	90007	O-Ring		41	FMS	90010	O-Ring
14	FMS	90009	O-Ring		51	FMS	90015	O-Ring
15	FMS	18100	Trigger Valve Stem		53		18330	Nose Cover
16	FMS	18120	Trigger Valve Guide		54		96002	Split Pin
17	FMS	90007	O-Ring		55		96001	Split Pin
18		91000-1	Hex.HD Soc Screw+Washer		56		90035	O-Ring
20		91001	Hex.HD Soc Screw		57		18360	End Cap
21		47140	Nose		59		18350-1	Trigger Valve A KIT
22		15150	Nose Plate B		61		18390	Double Trigger Latch Spring
23		47160	Magazine Cover		62		28100	Double Trigger
24	FMS	23172	Pusher Spring		63		18370	Pin
25		47180	Magazine		64	FMS	95002	E-Ring
26		47190	Pusher		65		23060	Pn
27		18200	Rear Magazine Bumper		66		23050	Steel Bar

SHOES	To fix the sole to the heel
TEXTILE BRUSHES	To fix felt to plastic in textile brushes
SKIPPING ROPES	To fix PVC holder to PVC rope
