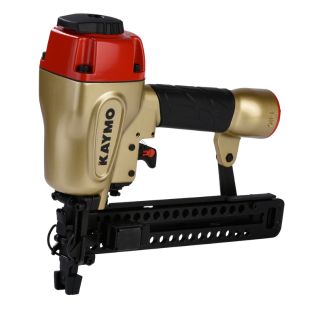

PNEUMATIC STAPLER KAYMO PRO-9240

SKU: PRO-PS9240

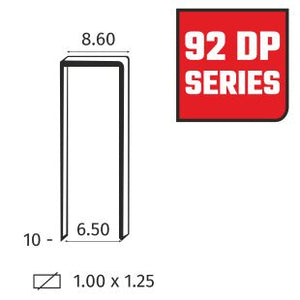

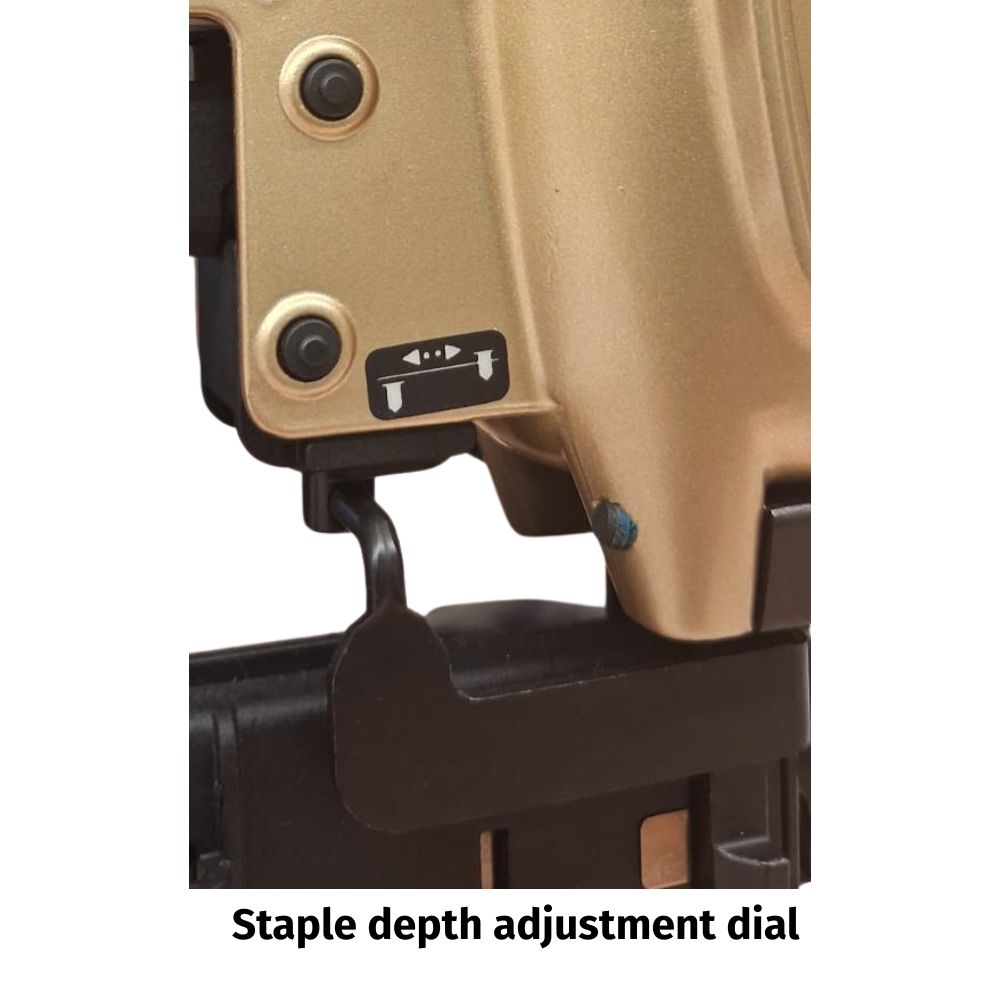

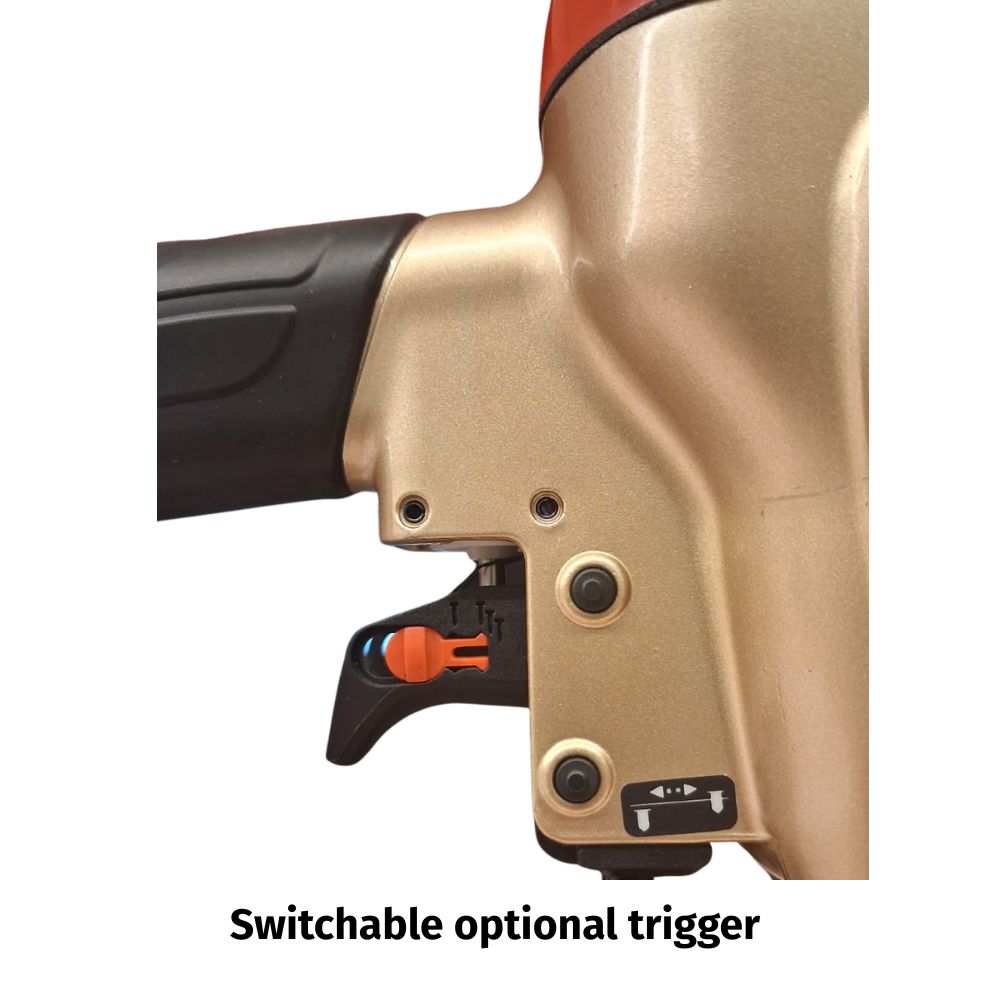

Metal cylinder and head valve piston. 360 degree exhaust. Screw mounted depth adjustment for different hardness of wood. Design of the safety device ensures that the tool does not slip. Optional trigger. PRESSURE: 70-100 PSI. Fasteners recommended 19-40 mm.

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

₹ 1/-
Blow Up
Spares
TOOL NAME: PRO-PS9240 REV.1ST APRIL2023
SR FMS PART CODE PART NAME ALT CODE SR FMS PART CODE PART NAME ALT CODE
1   30105140766 Hex.Soc.Hd.Bolt   45 FMS 20771630000 Adjusting Spring
2 FMS 20790000001 Bushing,Deflector   46   22011500001 Adjusting Post
3 FMS 20790010115 Deflector   47 FMS 31200200000 Ball,Steel
4   31605220766 Hex.Soc.Hd.Bolt   48   22021510001 Lower Safety
5   215700202XX Cap 215700203XX 49 FMS 31303000001 E-ring
6   21570230001 Metal Shim   50 FMS 20771490001 Spring,Safety
7 FMS 21570140117 Piston Stopper 21570140217 51   22021580015 Safety Cover
8 FMS 20970160100 Head Valve Spring   52   22021350266 Nose 22021350366
9 FMS 30700110000 O-Ring   53 FMS 22011330266 Upper Door
10 FMS 30700111000 O-Ring   54 FMS 21221170001 Pin 21221170101
11 FMS 21970150000 Piston Head Valve   55   22021340166 Door
12 FMS 21570130000 Cap, Gasket   57 FMS 30803160001 Spring Pin
13   21570250017 Seal   58   30105300866 Hex.Soc.Hd.Bolt
14 FMS 30700153000 O-Ring   59 FMS 21442180415 Magzine Cap
15   21570370016 Cylinder Spacer   60   30105220266 Hex.Soc.Hd.Bolt
16 FMS 30700042000 O-Ring   61   22022050201 Magzine 22022050301
17 FMS 30700169000 O-Ring   62   22022170001 Bracket
18   22010350000 Cylinder   63   22022620100 Spring
19 FMS 30700108000 O-Ring   64   31605100766 Hex.Soc.Hd.Bolt
20   21570510015 O-Ring   65   22022130201 Pusher 22022130266
22 FMS 21570470015 Bumper   66 FMS 20792360115 Latch
23 FMS 22010480101 Driver Guide   67 FMS 20792290001 Spring
25   30700185000 O-Ring   68 FMS 21442090000 Spiral Spring
26 FMS 207707X02XX End Cap 207707X04XX 69 FMS 21442110016 Roller
27 FMS 30700079000 O-Ring   70 FMS 32104198012 Roller Pin
28 FMS 30700081000 O-Ring   71   30900005001 Flat Washer
29 FMS 20770900016 Valve   72   30105140166 Hex.Soc.Hd.Bolt
30   30700002000 O-Ring   73   30605080001 Locknut
31 FMS 30700201000 O-Ring   74   30700136000 O-Ring
32 FMS 30700071000 O-Ring   75 FMS 30700157000 O-Ring 30700329000
33 FMS 20770910016 Valve Plunger   76   30104040166 Hex.Soc.Hd.Bolt
34 FMS 20770960001 Spring   21A FMS 22020462201 Driver Assembly 22010462200
35 FMS 30700080000 O-Ring KFCBS00398 24A   215706024XX Body Assembly 215706026XX
36   22220920000 Plunger 22220920100 38A FMS 22220952215 Trigger Assembly 22220952315
37   20770930016 Plunger Cap   56A   22021361101 Latch Door Assembly
39 FMS 30803240001 Spring Pin   77A   20970832115 Belt Hook Assembly
40 FMS 20770890001 Trigger Pin 20770890101 77A-1   209707X00XX End Cap 207707X04XX
41 FMS 30700078000 Grommet   77A-2   20970830115 Belt Hook
42 FMS 22012840015 Guide, Contact Trip   77A-3   30700188000 O-Ring
43 FMS 22011480001 Upper Safety Lever   77A-4   20970840001 Cover Belt Hook
44   22011600001 Adjusting Nut   77A-5   33425000001 C-Ring


One Sheeter

Application
SOFAS To make the wooden frame

FABRIC SAMPLE  ALBUMS
To staple hard board /angle boards to fabric to form sample albums
