SKU: PRO-PS8016V2

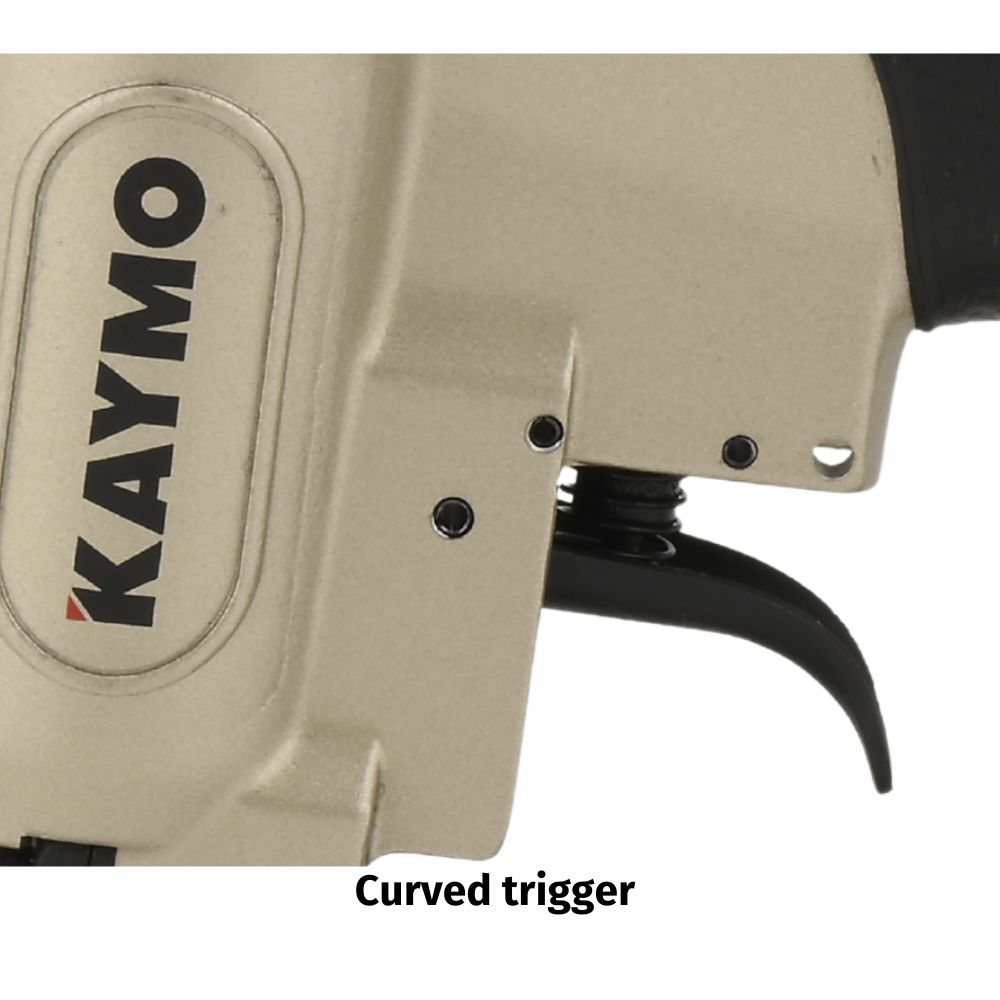

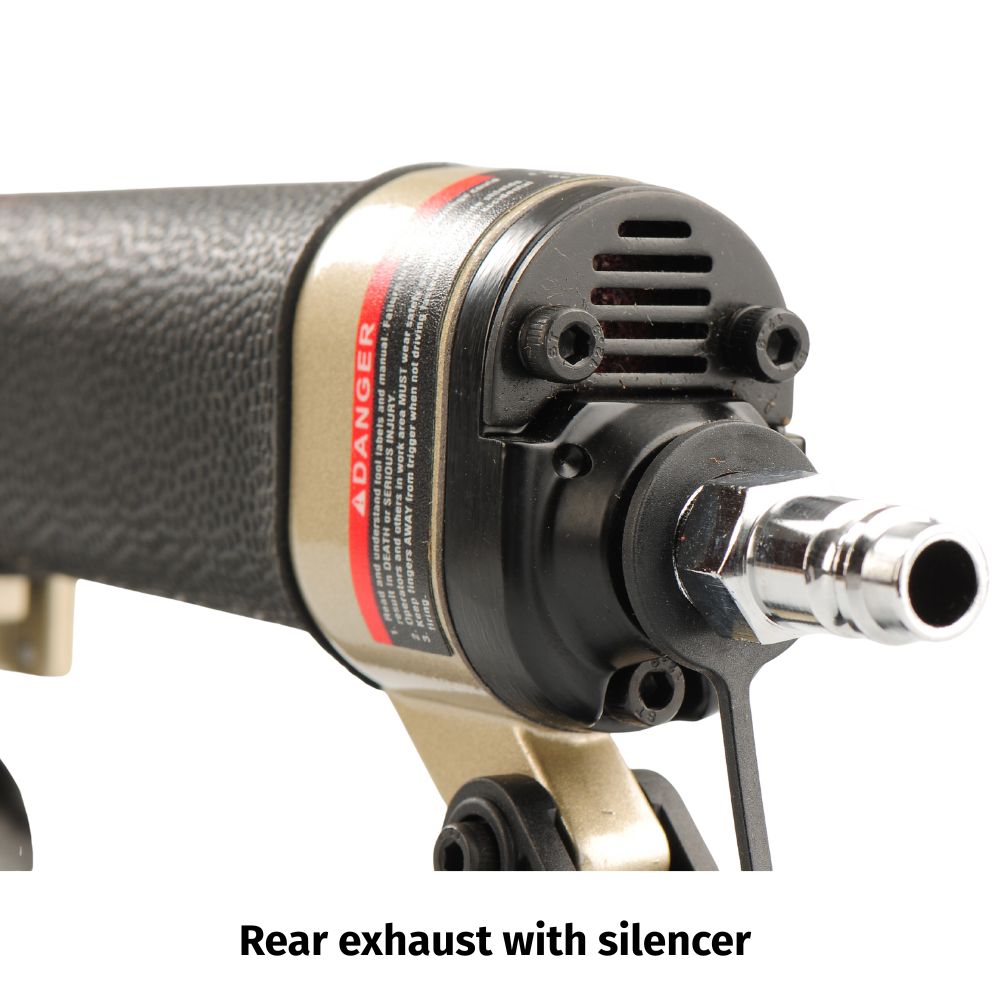

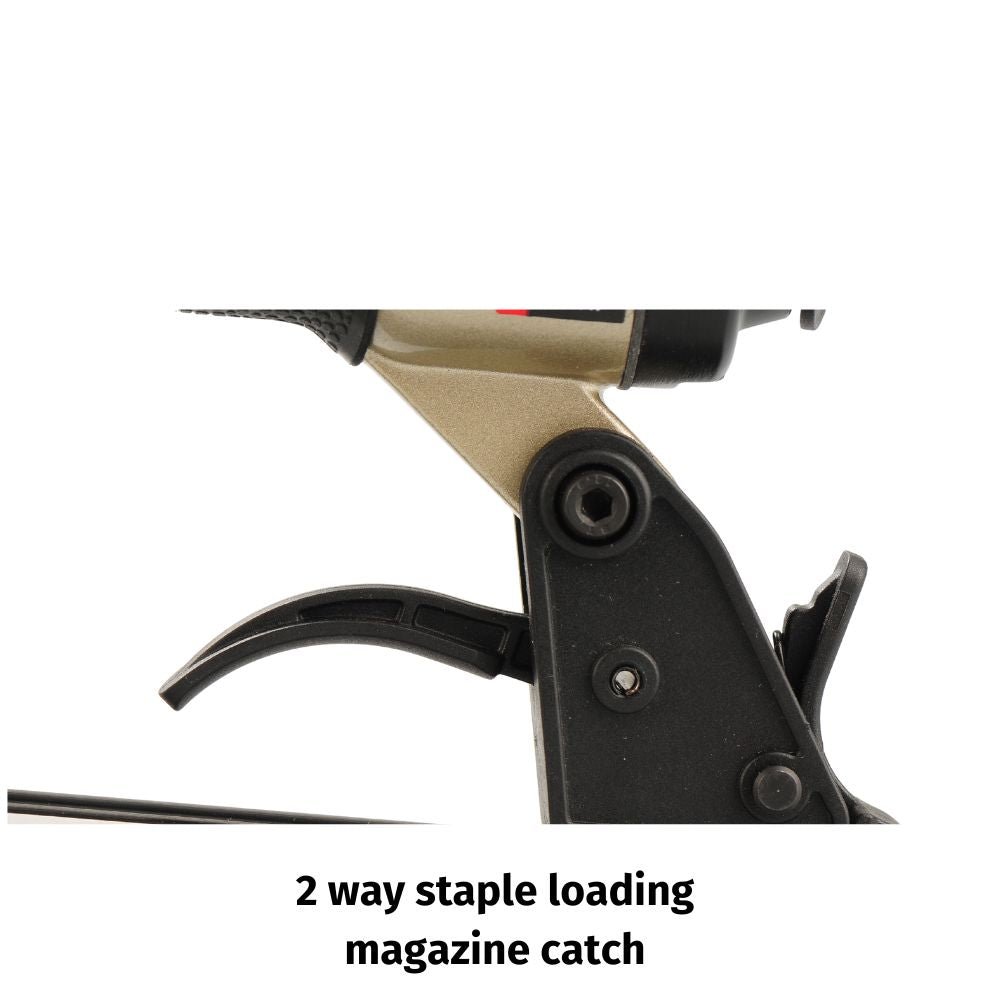

Rear exhaust. 2 way staple loading magazine catch. Internal parts made of metal. Curved trigger for easy & quick stapling. Ergonomic rubber grip. Air requirement: CFM. PRESSURE: 60 - 95 psi.
₹ 1/-
Blow Up
Spares
| SR | FMS | PART CODE | PART NAME | ALT CODE |
| 101 | FMS | 2040100-02100-0 | BOLT ASSY | 666022 |
| 102 | Â | 11369-003A601-1 | CAPÂ Â | KFCBS00509 |
| 103 | FMS | 11370-0010003-1 | SEALÂ | KFCBS00510 |
| 104 | FMS | 11360-0960001-1 | COMPRESSION SPRING | KFCBS00511 |
| 105 | Â | 11399-0960001-1 | COLLAR | KFCBS00512 |
| 106 | Â | 2041100-03050-0Â | O - RINGÂ | KFCBS00691 |
| 107 | FMS | 2041102-02050-0 | O - RING | KFCBS00513 |
| 108 | FMS | 11368-0960001-1 | HD.VALVE PISTON | KFCBS00514 |
| 109 | FMS | 2041104-03060-0 | O - RING | KFCBS00515 |
| 110 | FMS | 2041106-02050-0 | O - RING | KFCBS00516 |
| 111 | FMS | 2041100-03040-0 | O - RING | KFCBS00057 |
| 112 | FMS | 1132M-0964701-1 | PACKINGÂ | KFCBS00517 |
| 113 | FMS | 2041106-02010-0 | O - RING | KFCBS00518 |
| 114 | FMS | 11204-0040016-2 | DRIVER UNIT | KFCBS00519 |
| 115 | FMS | 2041105-03060-0 | O - RING | KFCBS00520 |
| 116 | FMS | 1131E-0960001-1 | CYLINDER PRESS RING | KFCBS00521 |
| 117 | FMS | 2041109-04070-0 | O - RING | KFCBS00522 |
| 118 | FMS | 11320-0650001-1 | CYLINDER | KFCBS00623 |
| 119 | Â | 11322-0034701-1 | CYLINDER RING | KFCBS00523 |
| 120 | FMS | 11327-0734701-2Â | BUMPER | KFCBS00524 |
| 121 | FMS | 11388-0044701-1 | DRIVER GUIDE | KFCBS00525 |
| 201 | Â | 1133R-0010001-1 | SEAL | KFCBS00669 |
| 202 | FMS | 11373-0010001-1 | TRIGGER VALVE HEAD | KFCBS00526 |
| 203 | FMS | 11375-0014701-1 | TRIGGER VALVE STEM | KFCBS00527 |
| 204 | FMS | 2041109-01010-0 | O - RINGÂ | 622094 |
| 205 | FMS | 2041109-02030-0 | O - RING | KFCBS00528 |
| 206 | FMS | 11374-0034701-1 | PLUNGER CAP | KFCBS00529 |
| 207 | Â | 11376-0154701-1Â | SPRING | KFCBS00670 |
| 208 | Â | 11316-0034704-1 | TRIGGER | KFCBS00530 |
| 209 | Â | 2040400-05120-0 | SPRING PIN | KFCBS00531 |
| 210 | Â | 2040400-04120-0 | SPRING PINÂ | KFCBS00532 |
| 211 | Â | 2040400-04100-0 | SPRING PINÂ | KFCBS00533 |
| 301 | Â | 11230-0035206-1 | GUN BODY UNIT | Â |
| 302 | Â | 1132H-0964701-1 | GASKET | KFCBS00534 |
| 303 | Â | 1132T-0960002-1 | MUFFLER | KFCBS00535 |
| 304 | Â | 11346-096A402-1 | END CAP | KFCBS00536 |
| 305 | Â | 11394-0964701-1 | GUIDE PLATE | KFCBS00537 |
| 306 | Â | 1132L-0014701-1 | DUSTY COVER | KFCBS00053 |
| 307 | Â | 1135V-0000003-1 | AIR PLUGÂ | ACC016 |
| 308 | FMS | 2040100-02070-0 | BOLT ASSY | 666022 |
| 401 | FMS | 2040100-02070-2 | BOLT ASSY | KM0412 |
| 402 | Â | 2040100-02080-0 | BOLT ASSY | Â |
| 403 | Â | 11351-0044709-1 | DRIVER GUIDE COVER | KFCBS00538 |
| 404 | Â | 11380-0654701-1 | GASKET | KFCBS00539 |
| 405 | Â | 11391-0044705-1 | MAGAZINE B | KFCBS00540 |
| 406 | FMS | 11363-0044706-1 | PUSHER | KFCBS00613 |
| 407 | Â | 11323-0044704-1 | POSITIONING SHEET | KFCBS00718 |
| 408 | FMS | 11328-0030001-1 | PUSHER SPRING | UH0901 |
| 409 | Â | 11303-0044704-1 | DRIVER GUIDE | KFCBS00541 |
| 410 | Â | 11389-0044707-1 | MAGAZINE AÂ | KFCBS00542 |
| 411 | Â | 11347-0044704-1 | REAR PLATE | KFCBS00543 |
| 412 | Â | 2040400-04030-0 | SPRING PIN | KFCBS00693 |
| 413 | FMS | 2040103-02050-0 | COUNTER SUNK SCREW | KF0408 |
| 414 | FMS | 11305-0654702-1 | STOPPER | KFCBS00544 |
| 415 | Â | 2040102-02010-2 | HALF ROUND HD.HEX.BOLT | Â |
| 416 | Â | 11323-0654701-1 | POSITIONING SHEET | KFCBS00545 |
| 417 | Â | 11343-0654702-1 | LATCH BÂ | KFCBS00546 |
| 418 | Â | 2040400-05080-0 | SPRING PIN | KFCBS00403 |
| 419 | Â | 11315-0654701-1 | SPRING | KFCBS00547 |
| 420 | Â | 11343-0654701-1 | LATCH A | KFCBS00548 |
| 421 | Â | 11344-0034702-1 | LATCH PINÂ | KFCBS00551 |
| 422 | FMS | 2040302-22010-0 | Â E - RING | YE2501 |
| 423 | Â | 2040101-02020-2 | HEX.SOC.HD.BOLT | Â |
| 424 | Â | 2040201-02050-0 | FLAT WASHER | Â |
| 425 | Â | 2040100-02140-0Â | BOLT W/FLAT WASHER | Â |
| 426 | Â | 11305-0654701-1 | STOPPER | KFCBS00549 |
| 427 | Â | 2040500-02010-0 | LOCK NUTÂ Â | 30604070001 |
| 428 | Â | 2040400-04050-0 | SPRING PIN | Â |
| 429 | Â | 11379-0040002-1 | ROLLER | KFCBS00550 |
| 430 | Â | 2040103-02040-0 | COUNTER SUNK SCREW | Â |
| 431 | Â | 2040103-02070-0 | COUNTER SUNK SCREW | Â |
One Sheeter
Application
|
To fix 3mm / 4mm veneer to wooden frame |
|
|
To fix upholstery & elastic band |
|
|
To fix upholstery to chair / stool base |
|
|
To fix fabric to MDF, particle board or ply tiles |
|
|
To fix rubber pad to wooden runner base |
|
|
To join wooden strips together |
|
|
To fix netted pockets |
|
|
To fix sole to the heel |
|
|
To fix canvas to wooden frame |
|
|
To fix screens onto the wooden frame |
