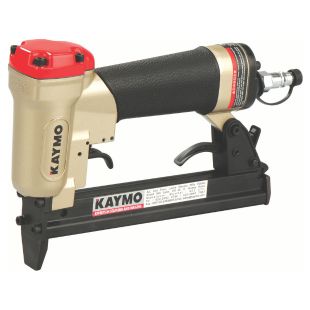

SKU: PRO-PS1013J

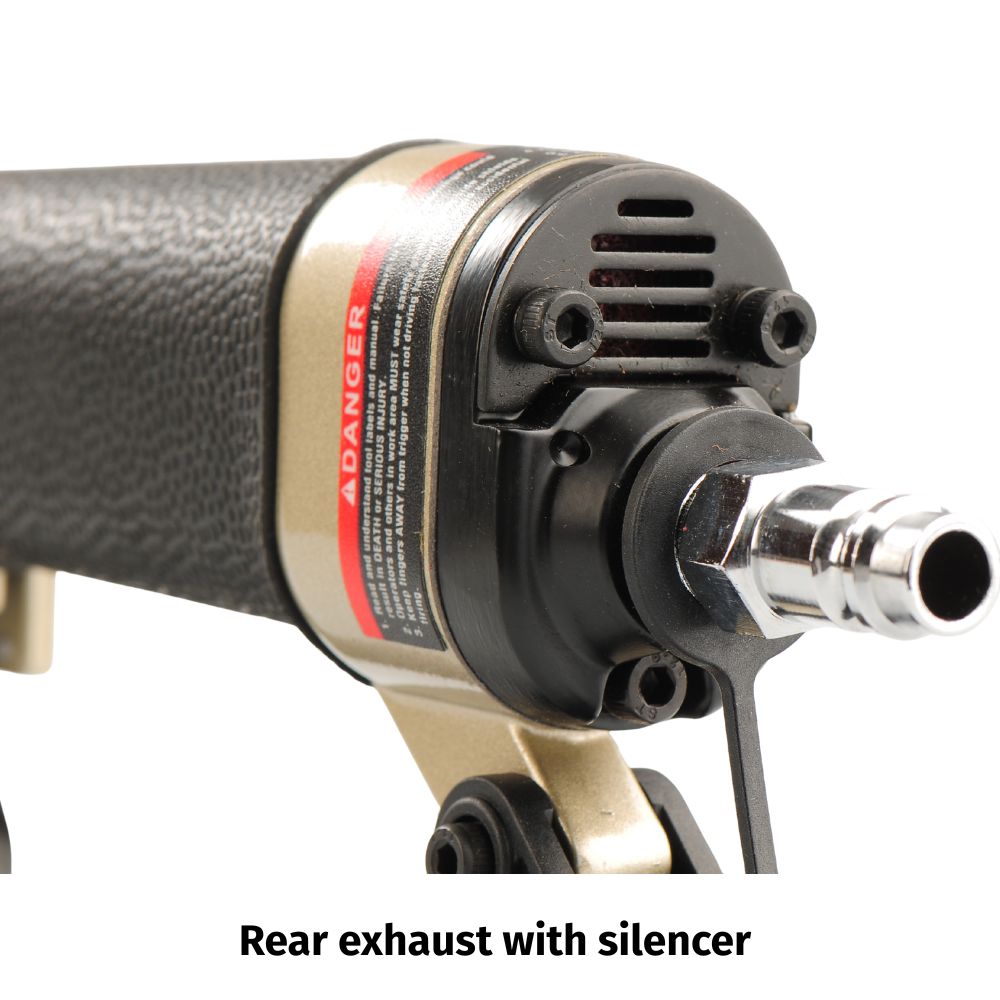

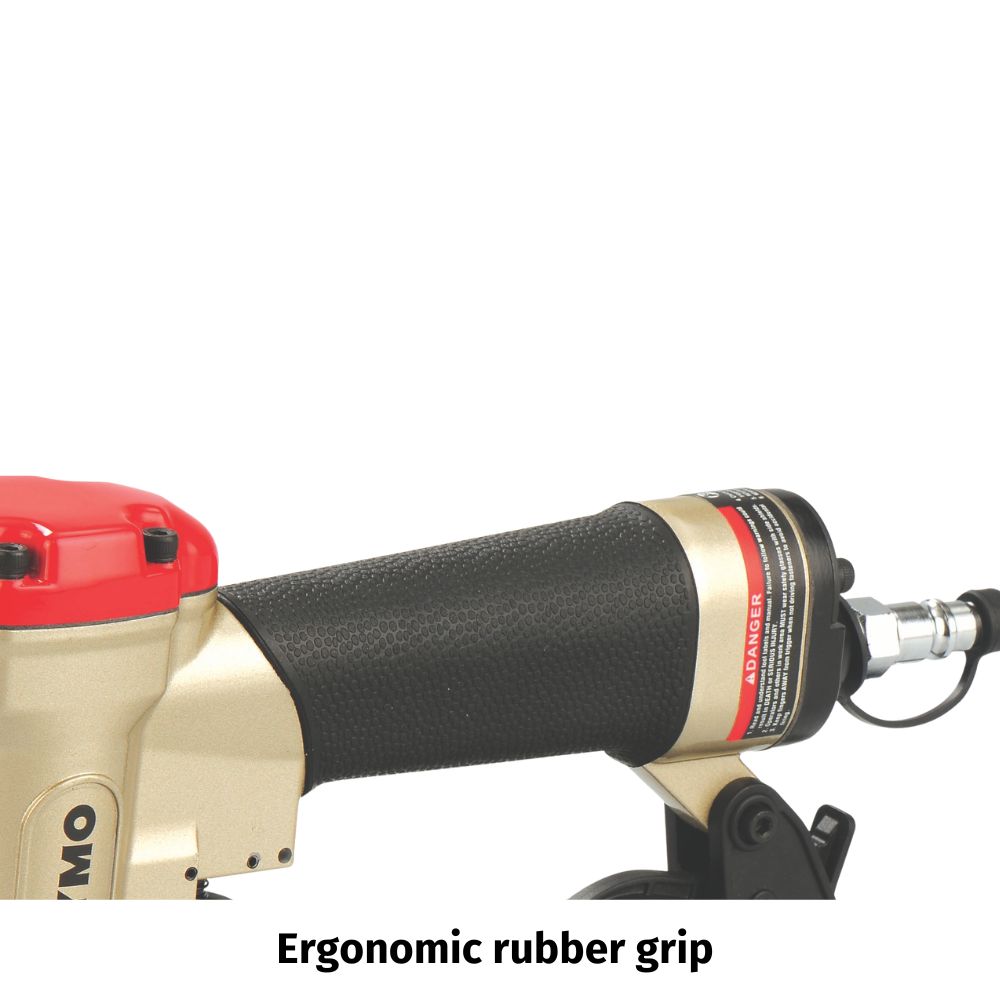

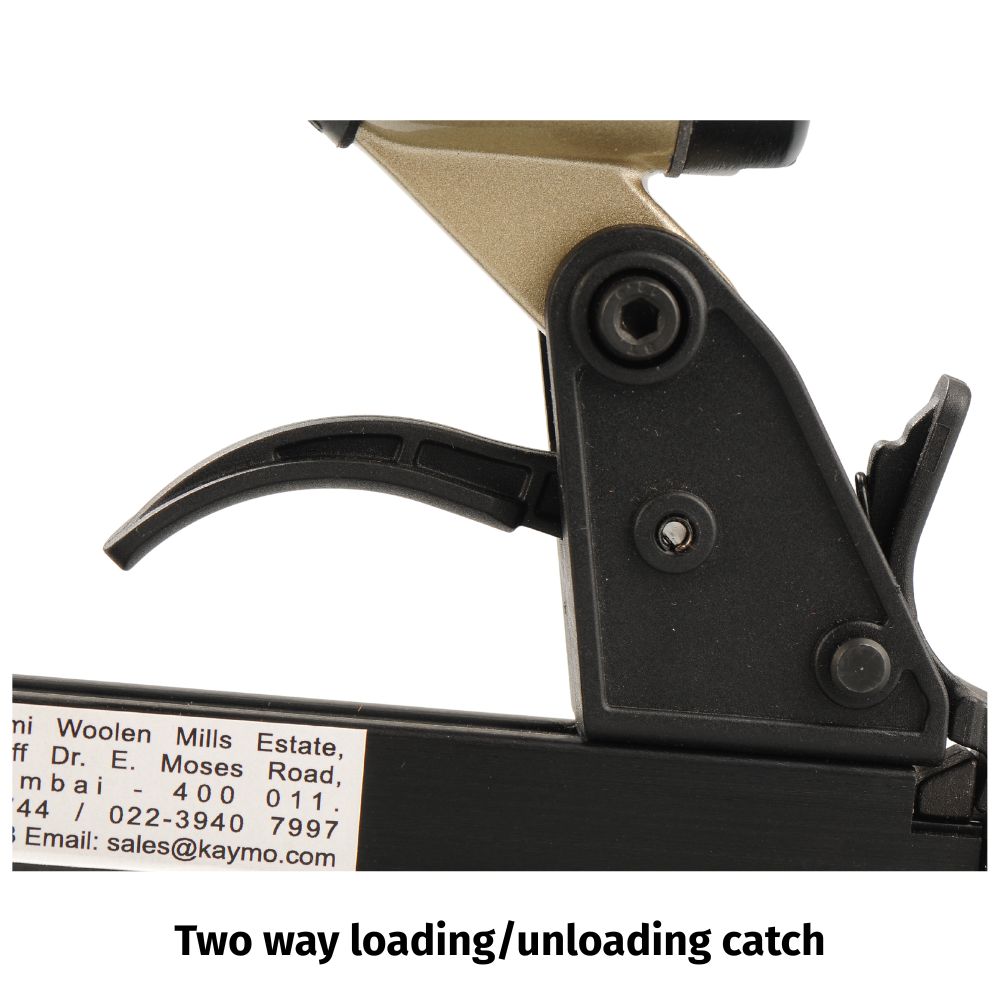

Rear exhaust with silencer. Ergonomic rubber grip. 2 way optional loading / unloading catch. Curved trigger for better stapling. Fasteners recommended: 6 -13 mm. PRESSURE: 60 - 95 psi.
₹ 1/-
Blow Up
Spares
| . | TOOL NAME: | PRO-PS1013J | REV.1ST APRIL 2022 | ||||||
| SR | FMS | PART CODE | PART NAME | ALT CODE | SR | FMS | PART CODE | PART NAME | ALT CODE |
| 101 | FMS | 2040100-02100-0 | BOLT ASSY | 666022 | 304 | 11346-096A401-1 | END CAP | ||
| 102 | 11369-003A401-1 | CAP | KFCBS00756 | 305 | 11394-0964701-1 | GUIDE PLATE | KFCBS00537 | ||
| 103 | FMS | 11370-0010003-1 | SEAL | KFCBS00510 | 307 | 1135V-0000001-1 | AIR PLUG | ||
| 104 | FMS | 11360-0960001-1 | COMPRESSION SPRING | KFCBS00511 | 308 | FMS | 2040100-02070-0 | BOLT ASSY | 666022 |
| 105 | 11399-0960001-2 | COLLAR | KFCBS00512 | 401 | FMS | 2040100-02070-2 | BOLT ASSY | KM0412 | |
| 106 | 2041100-03050-0 | O RING | KFCBS00691 | 402 | 2040100-02080-0 | BOLT ASSY | KFCBS00757 | ||
| 107 | FMS | 2041102-02050-0 | O RING | KFCBS00513 | 403 | 11351-0214701-1 | DRIVER GUIDE COVER | KFCBS00646 | |
| 108 | FMS | 11368-0960001-1 | HD.VALVE PISTON | KFCBS00514 | 404 | 11380-0654701-1 | GASKET | KFCBS00539 | |
| 109 | FMS | 2041104-03060-0 | O RING | KFCBS00515 | 405 | 11391-0214701-1 | MAGAZINE B | KFCBS00764 | |
| 110 | FMS | 2041106-02050-0 | O RING | KFCBS00516 | 406 | FMS | 11363-0214701-1 | PUSHER | KFCBS00664 |
| 111 | FMS | 2041100-03040-0 | O RING | KFCBS00057 | 407 | FMS | 11328-0030001-1 | PULL SPRING | UH0901 |
| 112 | FMS | 1132M-0964701-1 | PACKING | KFCBS00517 | 408 | 11303-0214701-1 | DRIVER GUIDE | KFCBS00643 | |
| 113 | FMS | 2041106-02010-0 | ORING | KFCBS00518 | 409 | 11379-0210001-1 | ROLLER | KFCBS00776 | |
| 114 | 11204-0210003-2 | DRIVER UNIT | KFCBS00645 | 410 | 11389-0214701-1 | MAGAZINE A | KFCBS00647 | ||
| 115 | FMS | 2041105-03060-0 | O RING | KFCBS00520 | 411 | 11347-0214701-1 | REAR PLATE | KFCBS00648 | |
| 116 | FMS | 1131E-0960001-1 | CYLINDER PRESS RING | KFCBS00521 | 412 | 11323-0044704-1 | POSITIONING SHEET | KFCBS00718 | |
| 117 | FMS | 2041109-04070-0 | O RING | KFCBS00522 | 413 | FMS | 2040103-02050-0 | COUNTER SUNK SCREW | KF0408 |
| 118 | FMS | 11320-0650001-1 | CYLINDER | KFCBS00623 | 414 | FMS | 11305-0654702-1 | STOPPER | KFCBS00544 |
| 119 | 11322-0034701-1 | CYLINDER RING | KFCBS00523 | 415 | 2040102-02010-2 | HALF ROUND HD.HEX.BOLT | KFCBS00760 | ||
| 120 | FMS | 11327-0734701-2 | BUMPER | KFCBS00524 | 416 | 11323-065470 1-1 | POSITIONING SHEET | KFCBS00545 | |
| 121 | 11388-0114701-1 | DRIVER GUIDE | KFCBS00750 | 417 | 11343-0654702-1 | LATCH B | KFCBS00546 | ||
| 201 | 1133R-0010001-1 | SEAL | KFCBS00669 | 418 | 2040400-05090-0 | SPRING PIN | HY1005063 | ||
| 202 | FMS | 11373-0010001-1 | TRIGGER VALVE HEAD | KFCBS00526 | 419 | 11315-0654701-1 | SPRING | KFCBS00547 | |
| 203 | FMS | 11375-0014701-1 | TRIGGER VALVE STEM | KFCBS00527 | 420 | 11343-0654701-1 | LATCH A | KFCBS00548 | |
| 204 | FMS | 2041109-01010-0 | O RING | 622094 | 421 | 11344-0034702-1 | LATCH PIN | KFCBS00551 | |
| 205 | FMS | 2041109-02030-0 | O RING | KFCBS00528 | 422 | FMS | 2040302-22010-0 | E RING | YE2501 |
| 206 | FMS | 11374-0034701-1 | PLUNGER CAP | KFCBS00529 | 423 | 2040101-02020-2 | HEX.SOC.HD.BOLT | KFCBS00771 | |
| 207 | 11376-0154701-1 | SPRING | KFCBS00670 | 424 | 2040201-02050-0 | FLAT WASHER | KFCBS00772 | ||
| 208 | 11316-0034704-1 | TRIGGER | KFCBS00530 | 425 | 2040100-02140-0 | BOLT W/FLAT WASHER | KFCBS00761 | ||
| 209 | 2040400-05120-0 | SPRING PIN | KFCBS00531 | 426 | 2040500-02010-0 | LOCK NUT | 3.0604E+10 | ||
| 210 | 2040400-04120-0 | SPRING PIN | KFCBS00532 | 427 | 11305-0654701-1 | STOPPER | KFCBS00549 | ||
| 211 | 2040400-04100-0 | SPRING PIN | KFCBS00533 | 428 | 2040400-03040-0 | SPRING PIN | KFCBS00777 | ||
| 301 | 11230-0036611-1 | GUN BODY UNIT | 429 | 2040400-04020-0 | SPRING PIN | KFCBS00775 | |||
| 302 | 1132H-0964701-1 | GASKET | KFCBS00534 | 430 | 2040103-02040-0 | COUNTER SUNK SCREW | KFCBS00770 | ||
| 303 | 1132T-0960002-1 | MUFFLER | KFCBS00535 | 431 | 2040103-02070-0 | COUNTER SUNK SCREW | KFCBS00759 |
One Sheeter
Application
| SOFAS | Â To fix 3mm / 4mm veneer to wooden frame |
| To fix upholstery & elastic band | |
| MODULAR / KITCHENS | To fix fabric to MDF, particle board or ply tiles |
| BICYCLE SEATS | To fix rexine & foam to moulded plastic base |
