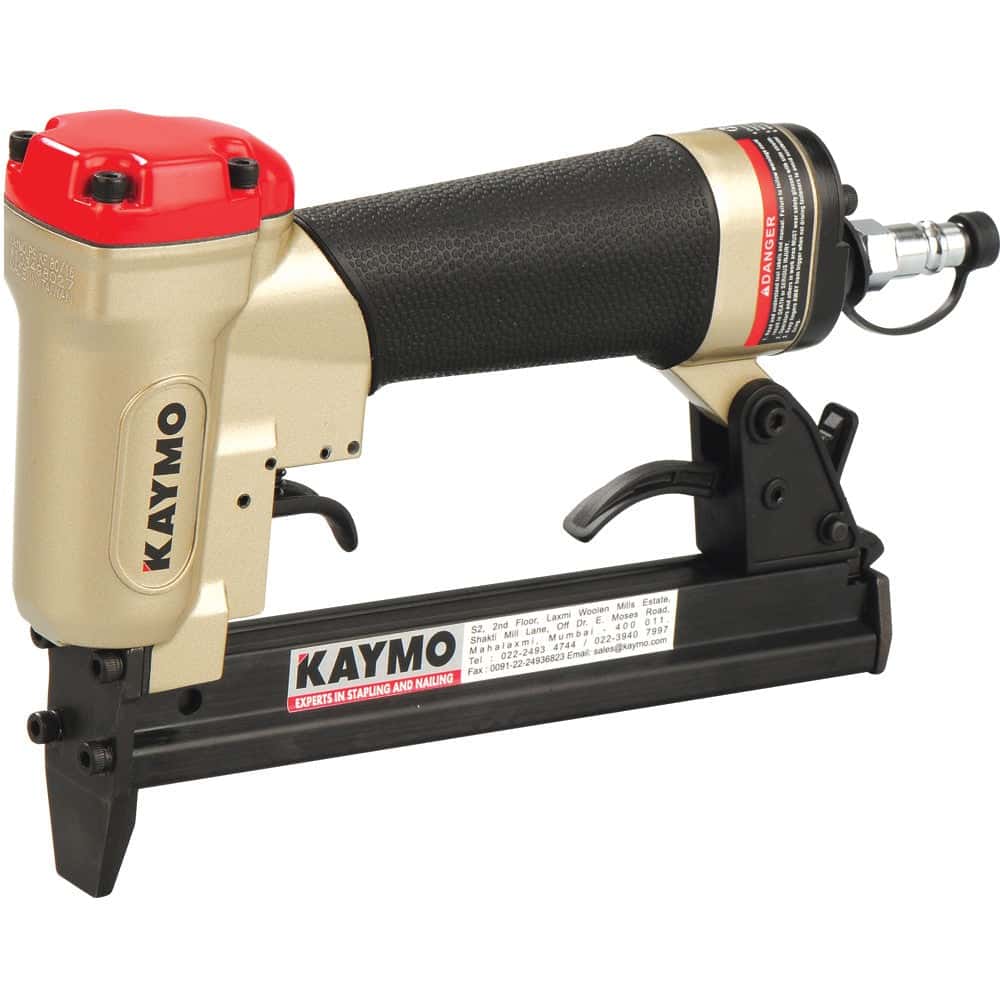

SKU: PRO-PS1013FV2

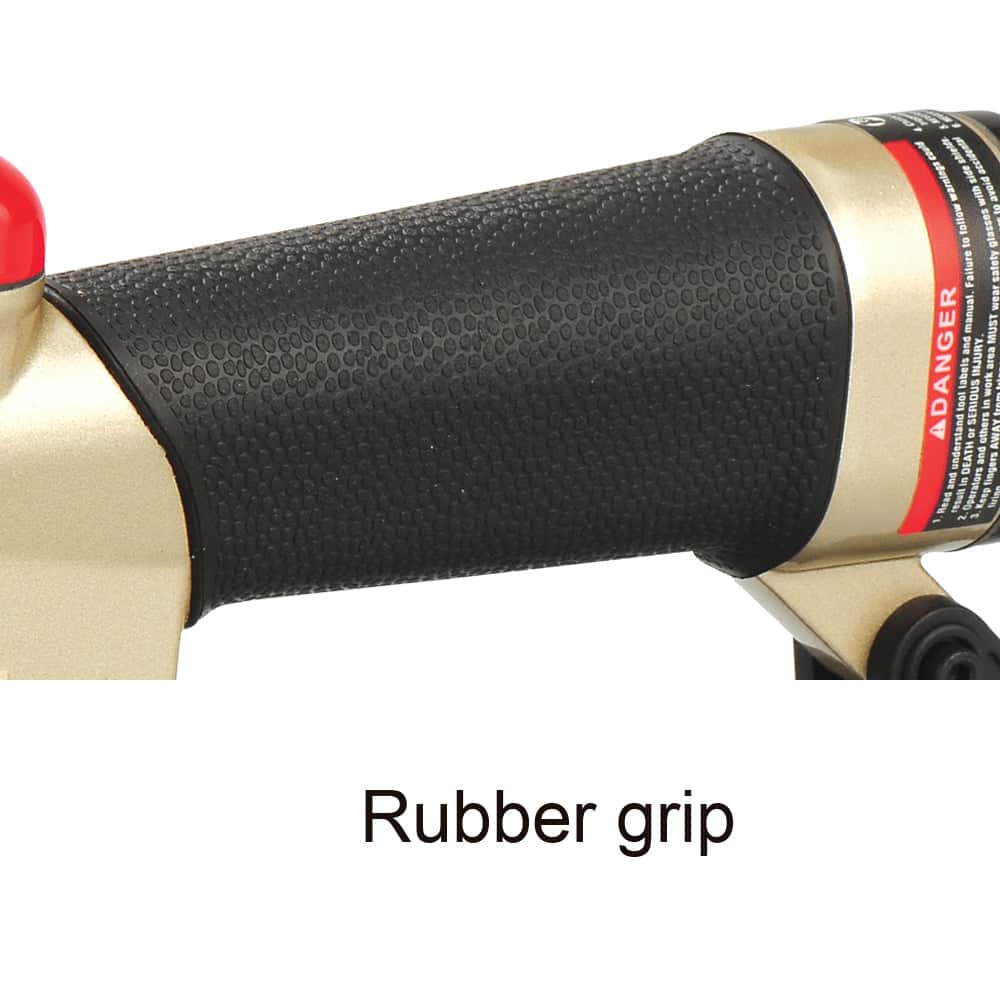

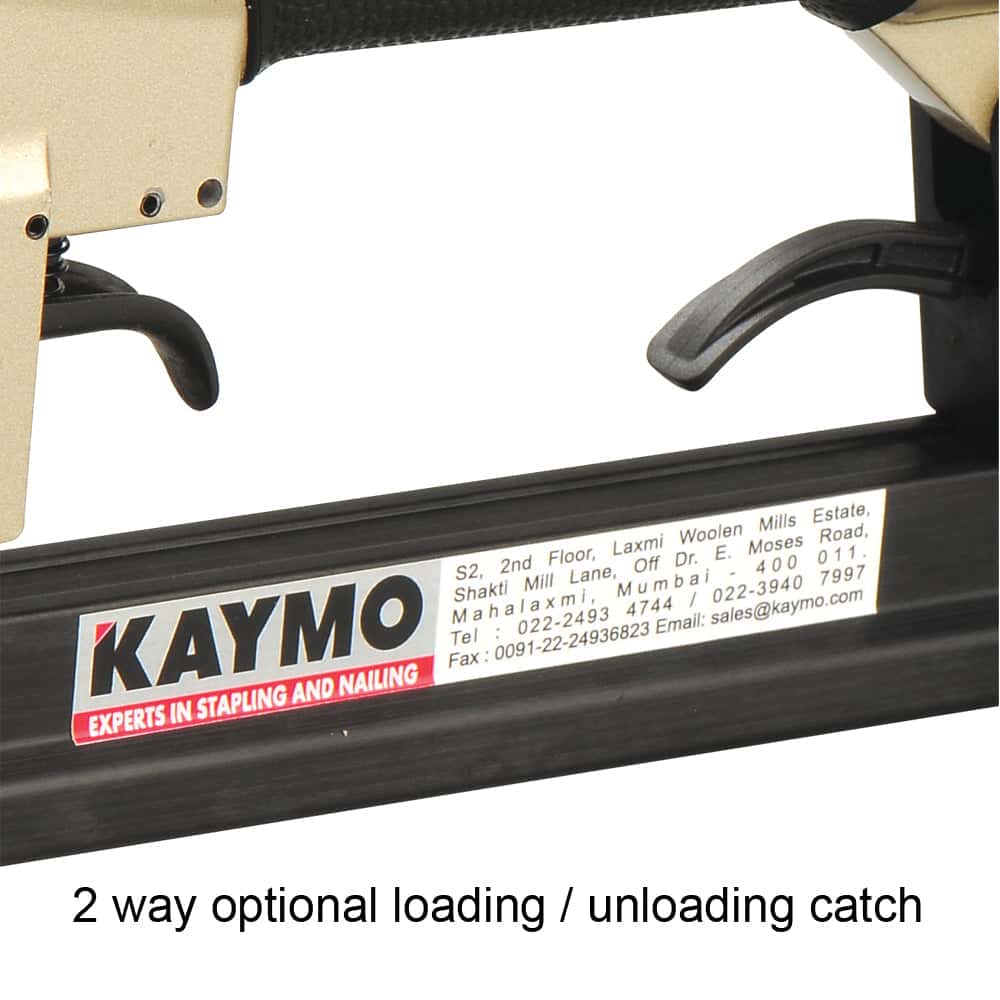

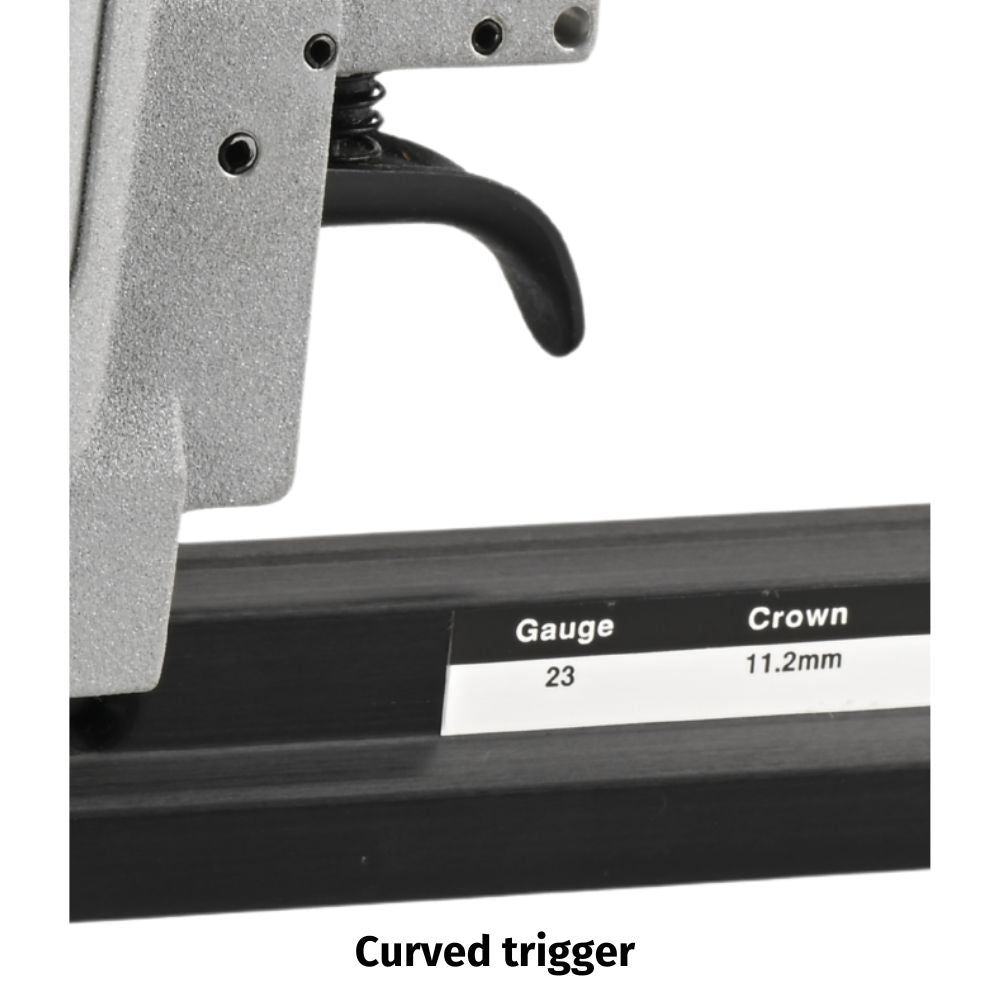

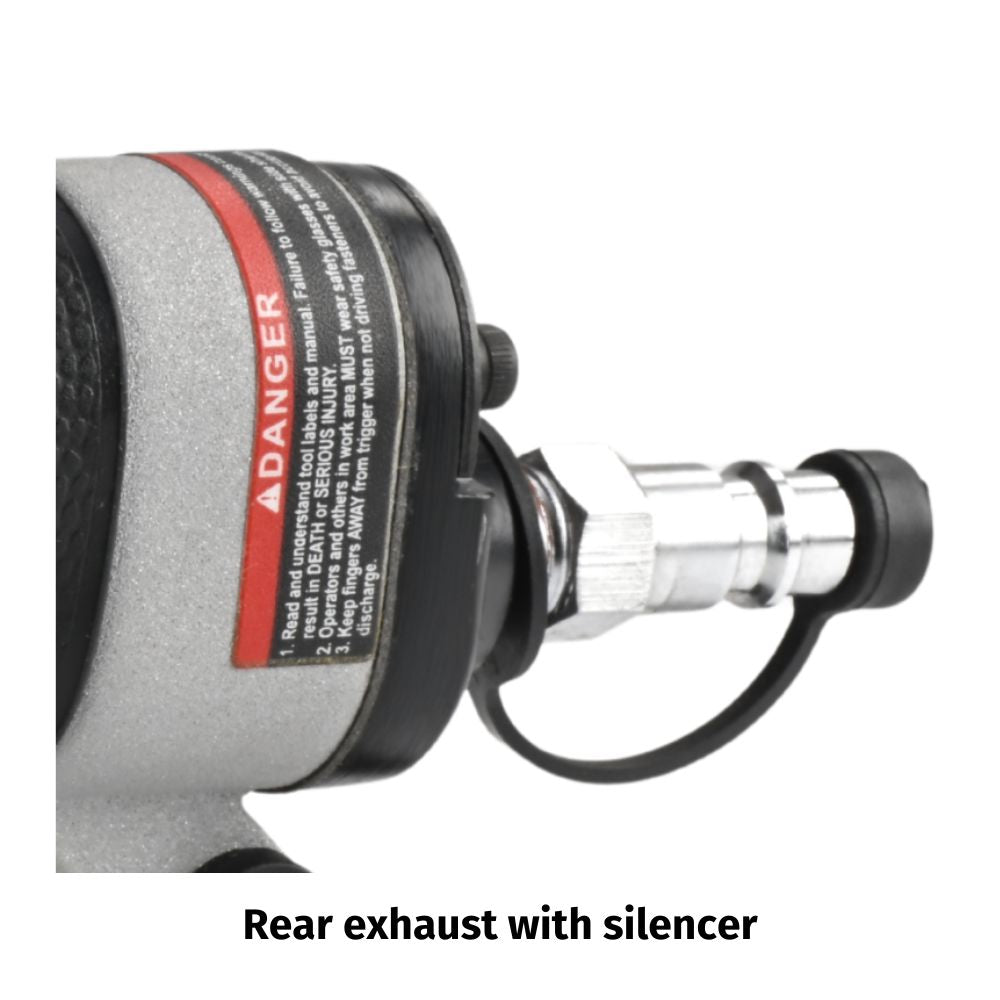

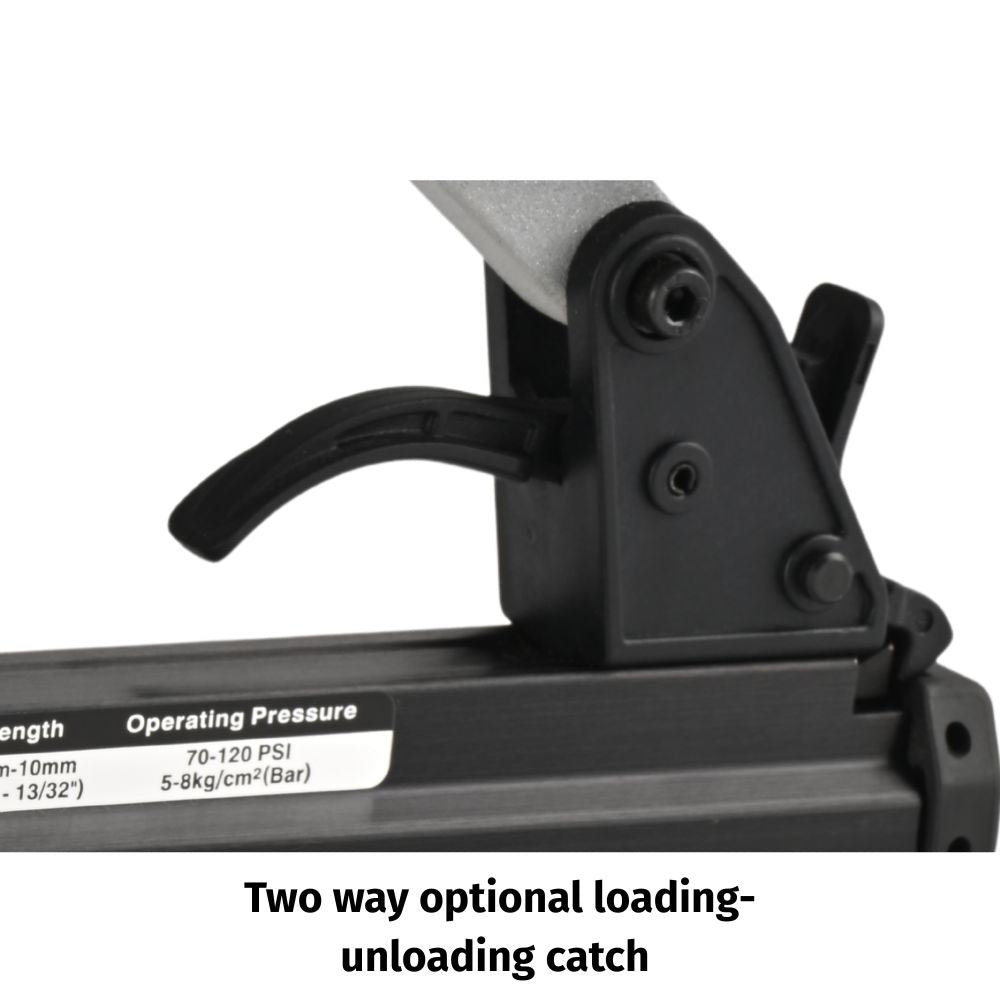

Rear exhaust with silencer. Two way magazine opening catch. Ergonomic rubber grip. Curved trigger for quick stapling. Fasteners recommended 6-13 mm
₹ 1/-

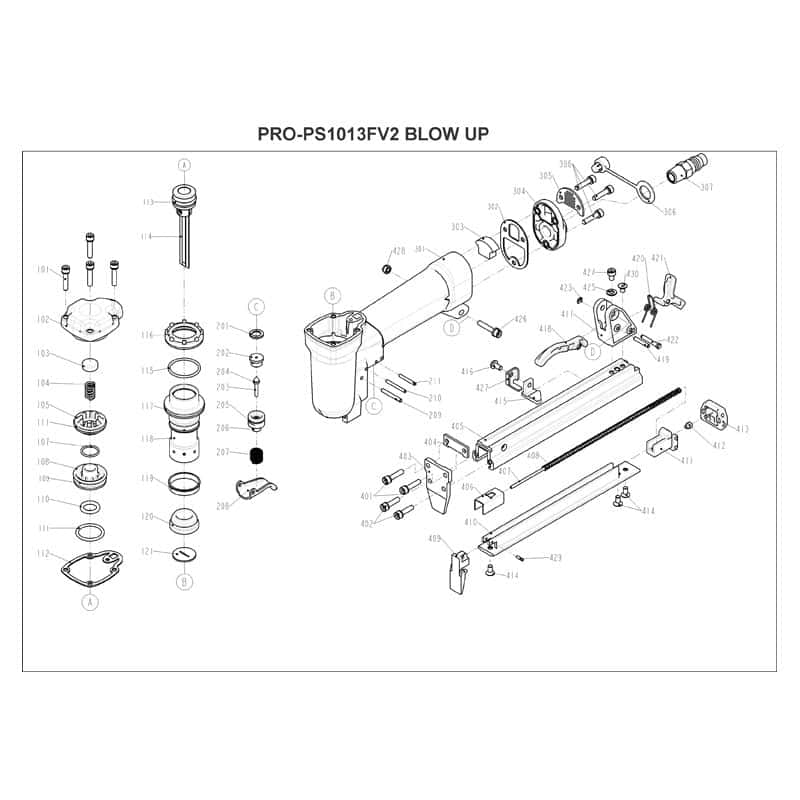

Blow Up
Spares
| . | TOOL NAME: | PRO-PS1013FV2 | REV.1ST APRIL 2022 | ||||||
| SR | FMS | PART CODE | PART NAME | ALT CODE | SR | FMS | PART CODE | PART NAME | ALT CODE |
| 101 | FMS | 2040100-02100-0 | BOLT ASSY | 666022 | 305 | 11394-0964701-1 | GUIDE PLATE | KFCBS00537 | |
| 102 | 11369-0039901-1 | CAP | 306 | 1132L-0014701-1 | DUSTY COVER | KFCBS00053 | |||
| 103 | FMS | 11370-0010003-1 | SEAL | KFCBS00510 | 307 | 1135V-0000005-1 | AIR PLUG | ACC016 | |
| 104 | 11360-0650001-1 | COMPRESSION SPRING | 308 | FMS | 2040100-02070-0 | BOLT ASSY | 666022 | ||
| 105 | 11399-0960001-2 | COLLAR | KFCBS00512 | 401 | FMS | 2040100-02070-2 | BOLT ASSY | KM0412 | |
| 107 | FMS | 2041102-02050-0 | O - RING | KFCBS00513 | 402 | 2040100-02080-0 | BOLT ASSY | KFCBS00757 | |
| 108 | FMS | 11368-0960001-1 | HD.VALVE PISTON | KFCBS00514 | 403 | 11351-0654701-1 | DRIVER GUIDE COVER | ||
| 109 | FMS | 2041104-03060-0 | O - RING | KFCBS00515 | 404 | 11380-0654701-1 | GASKET | KFCBS00539 | |
| 110 | FMS | 2041106-02050-0 | O - RING | KFCBS00516 | 405 | 11391-0654701-1 | MAGAZINE B | ||
| 111 | FMS | 2041100-03051-0 | O - RING | KFCBS00296 | 406 | 11363-0654701-1 | PUSHER | KFCBS00768 | |
| 112 | FMS | 1132M-0964701-1 | PACKING | KFCBS00517 | 407 | 11395-0314701-1 | ROD | ||
| 113 | FMS | 2041106-02010-0 | O - RING | KFCBS00518 | 408 | 11367-0304701-1 | PUSHER SPRING | ||
| 114 | 11204-0654701-3 | DRIVER UNIT | 409 | 11303-0654701-1 | DRIVER GUIDE | ||||
| 115 | FMS | 2041105-03060-0 | O - RING | KFCBS00520 | 410 | 11389-0654701-1 | MAGAZINE A | ||
| 116 | FMS | 1131E-0960001-1 | CYLINDER PRESS RING | KFCBS00521 | 411 | 11347-0654701-1 | REAR PLATE | ||
| 117 | FMS | 2041109-04070-0 | O - RING | KFCBS00522 | 412 | 2040101-01080-2 | HEX.SOC.HD.BOLT | ||
| 118 | 11320-0650001-1 | CYLINDER | KFCBS00623 | 413 | 11390-0654701-1 | PROTECTING HOOD COVER | KFCBS00769 | ||
| 119 | 11322-0034701-1 | CYLINDER RING | KFCBS00523 | 414 | 2040103-02050-3 | COUNTER SUNK SCREW | |||
| 120 | FMS | 11327-0734701-2 | BUMPER | KFCBS00524 | 415 | FMS | 11305-0654702-1 | STOPPER | KFCBS00544 |
| 121 | 11388-0114701-1 | DRIVER GUIDE | KFCBS00750 | 416 | 2040102-02010-2 | HALF ROUND HD.HEX.BOLT | KFCBS00760 | ||
| 201 | 1133R-0010001-1 | SEAL | KFCBS00669 | 417 | 11323-0654701-1 | POSITIONING SHEET | KFCBS00545 | ||
| 202 | FMS | 11373-0010001-1 | TRIGGER VALVE HEAD | KFCBS00526 | 418 | 11343-0654702-1 | LATCH B | KFCBS00546 | |
| 203 | FMS | 11375-0014701-1 | TRIGGER VALVE STEM | KFCBS00527 | 419 | 2040400-05090-0 | SPRING PIN | HY1005063 | |
| 204 | FMS | 2041109-01010-0 | O - RING | 622094 | 420 | 11315-0654701-1 | SPRING | KFCBS00547 | |
| 205 | FMS | 2041109-02030-0 | O - RING | KFCBS00528 | 421 | 11343-0654701-1 | LATCH A | KFCBS00548 | |
| 206 | FMS | 11374-0034701-1 | PLUNGER CAP | KFCBS00529 | 422 | 11344-0034702-1 | LATCH PIN | KFCBS00551 | |
| 207 | 11376-0154701-1 | SPRING | KFCBS00670 | 423 | FMS | 2040302-22010-0 | E - RING | YE2501 | |
| 208 | 11316-0034704-1 | TRIGGER | KFCBS00530 | 424 | 2040101-02020-2 | HEX.SOC.HD.BOLT | KFCBS00771 | ||
| 209 | 2040400-05370-0 | SPRING PIN | 425 | 2040201-02050-0 | FLAT WASHER | KFCBS00772 | |||
| 210 | 2040400-04370-0 | SPRING PIN | 426 | 2040100-02140-0 | BOLT W/FLAT WASHER | KFCBS00761 | |||
| 211 | 2040400-04100-0 | SPRING PIN | KFCBS00533 | 427 | 11305-0654701-1 | STOPPER | KFCBS00549 | ||
| 301 | 11230-0036611-3 | GUN BODY UNIT | 428 | 2040500-02010-0 | LOCK NUT | 30604070001 | |||
| 302 | 1132H-0964701-1 | GASKET | KFCBS00534 | 429 | 2040400-03040-0 | SPRING PIN | KFCBS00777 | ||
| 303 | 1132T-0960002-1 | MUFFLER | KFCBS00535 | 430 | 2040103-02040-0 | COUNTER SUNK SCREW | KFCBS00770 | ||
| 304 | 11346-096A402-1 | END CAP | KFCBS00536 |

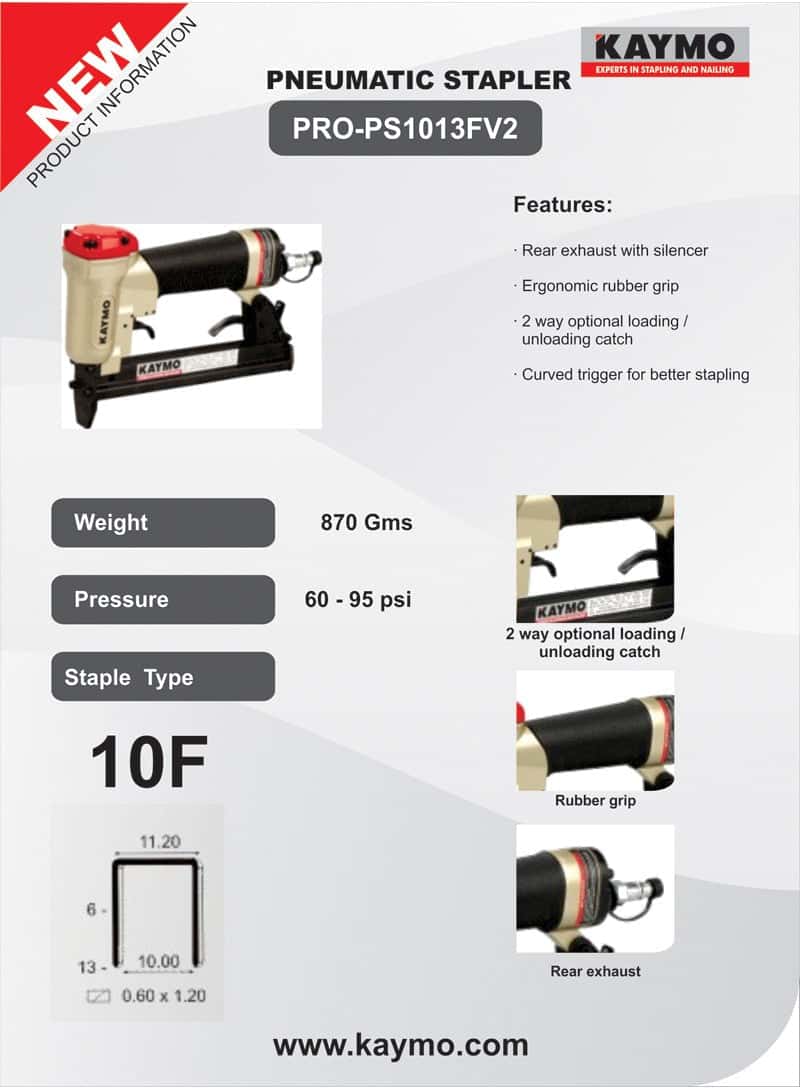

One Sheeter
Application
| MODULAR / KITCHENS | To fix fabric to MDF, particle board or ply tiles |
| DOOR TRIMS | To fix rexine onto back of hardboard door trims |
