PNEUMATIC STAPLER KAYMO PRO-10050V2

Name: PNEUMATIC STAPLER KAYMO PRO-10050V2
Brand: Kaymo
SKU: PRO-PS10050V2
Price: 1.0 INR
Availability: InStock

SKU: PRO-PS10050V2

The KAYMO PRO-PS10050V2 is a high-performance pneumatic stapler, designed for fast and efficient stapling in furniture & modular kitchens. Featuring a lightweight magnesium housing, 360° Read More...

Features:

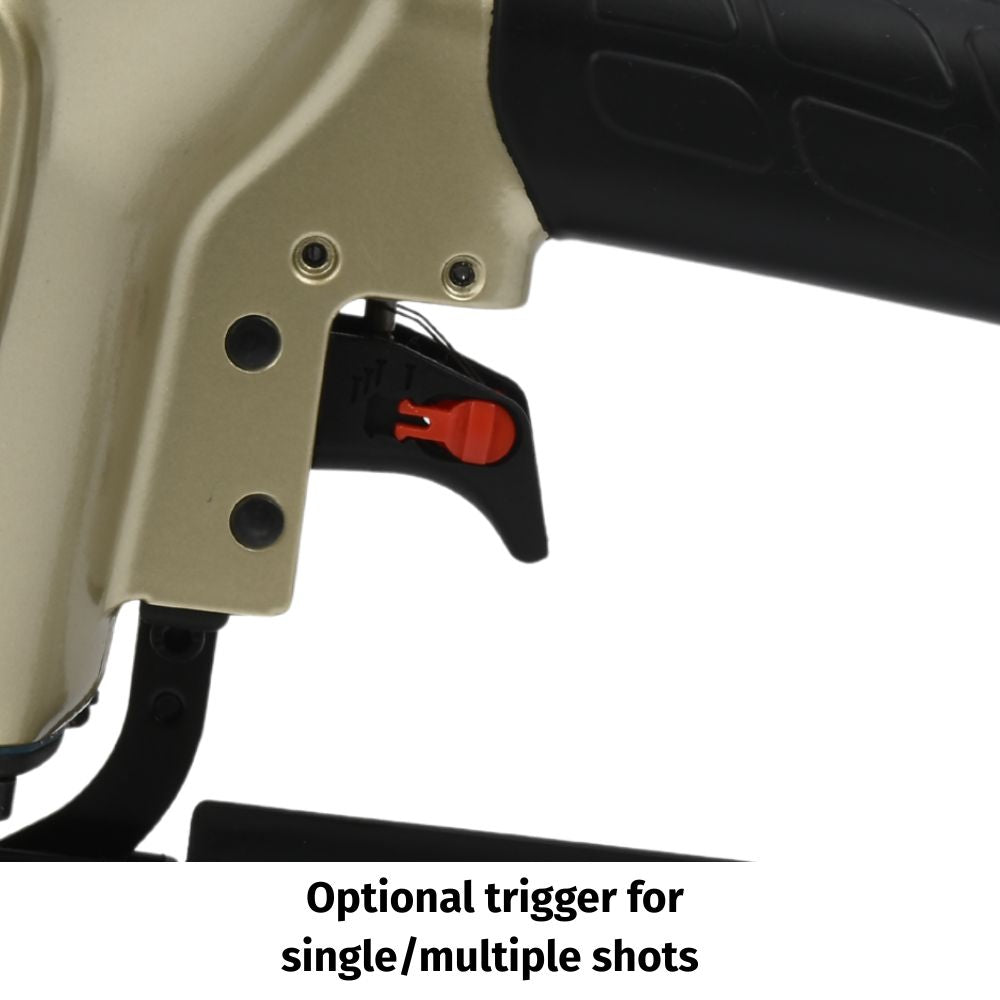

Optional trigger for single & multiple shots

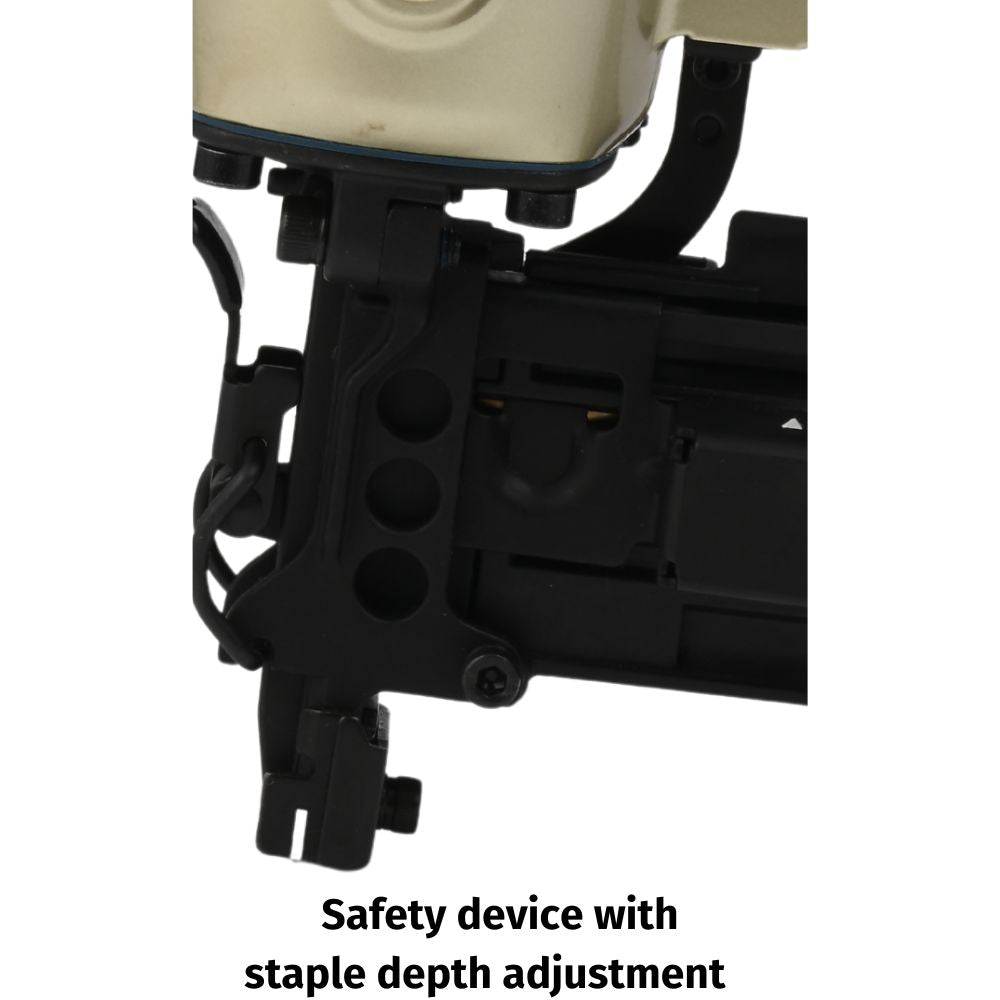

Safety device with staple depth adjustment
Light weight fibre magazine with wide pusher spring

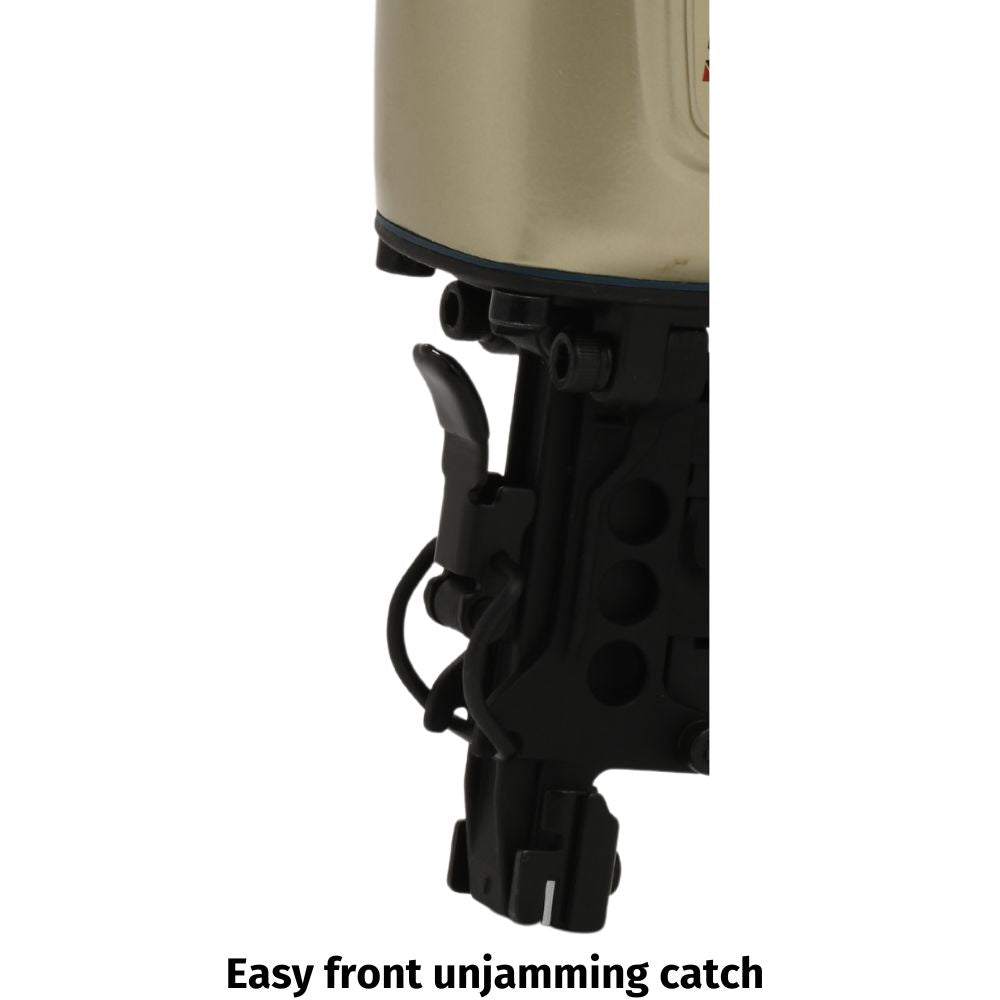

Easy front unjamming catch
Light weight magnesium alloy housing

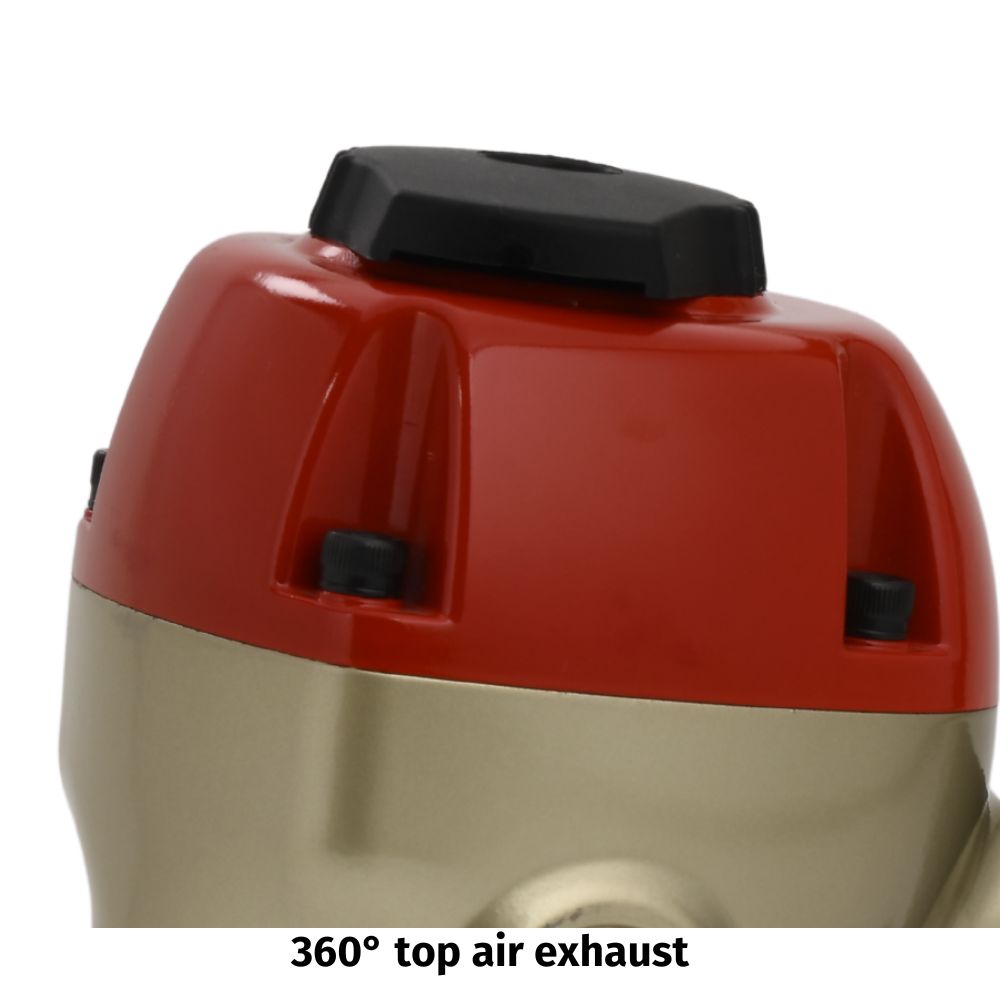

360° exhaust deflector
Fastener Range: 16mm – 50mm

Applications:

Sofas
Furniture
Modular kitchens
Carrom boards

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

STAPLES KAYMO 100 SERIES

AIR FILTER + REGULATOR LUBRICATOR SET KAYMO 1/2" WITH GAUGE

Blow Up

Spares

.		TOOL NAME:	PRO-PS10050V2					REV.1ST APRIL 2022
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1		32206140766	Hex.Soc.Hd.Bolt		47		20111080166	Bottom
2	FMS	20790000001	Deflector Bushing		48		30106200866	Hex.Soc.Hd.Bolt
3	FMS	20790010115	Deflector		49		20793680001	Latch Door Pin
4		30106250866	Hex.Soc.Hd.Bolt		50		20791350266	Nose
5		207900202XX	Cap		51		20791340066	Door
6		20750140217	Piston Stopper		52		20971170001	Roll Pin
7	FMS	20970160100	Head Valve Spring		54		30503060166	Hex.Soc.Hd.Bolt
8	FMS	30700110000	O-Ring		55		20791440100	Steel
9	FMS	30700111000	O-Ring		57		20791520001	Safety Cover
10		20750150000	Piston Head Valve		58		30105080266	Hex.Soc.Hd.Bolt
11		20790180116	Cylinder Hold Down		59		20792130001	Pusher
12		30700112000	O-Ring		60	FMS	20792360115	Latch
13		30700113000	O-Ring		61		20792090100	Spiral Spring
14		20750370000	Cylinder Spacer		62		20792110016	Roller
15		30700121000	O-Ring		63	FMS	32104198012	Roller Pin
17	FMS	20750250117	Cylinder Seal		64		30105300866	Hex.Soc.Hd.Bolt
18	FMS	30700075000	O-Ring		65		20792050315	Magazine	20792050415
19		20790350100	Cylinder		66		20792180215	Magazine Cap
20		20750470115	Bumper		67		30105180166	Hex.Soc.Hd.Bolt	KM0520
21		20790480001	Driver Guide		68		30605080001	Locknut
22		20750130015	Cap Gasket		69		20792170001	Bracket
24		30700185000	O-Ring		70		30106220166	Hex.Soc.Hd.Bolt
25	FMS	207707X02XX	End Cap		71		30900002001	Flat Washer
26	FMS	30700079000	O-Ring		72		30606100001	Locknut
27	FMS	30700081000	O-Ring		73		20792620001	Spring
28	FMS	20770900016	Valve		74	FMS	20792290001	Spring
29	FMS	30700002000	O-Ring		75	FMS	30700157000	O-Ring
30	FMS	30700201000	O-Ring		76		30106250266	SCREW	35206200166
31	FMS	30700071000	O-Ring		77		20792900066	Safety Adaptor
32	FMS	20770910016	Valve Plunger		16A	FMS	20790461101	Driver Assembly
33	FMS	20770960001	Spring		23A		207506026XX	Body Assembly
34	FMS	30700080000	O-Ring	KFCBS00398	37A		22220952215	Trigger Assembly
35	FMS	22220920000	Plunger		43A		22241482001	Upper Safety Lever Assy
36	FMS	20770930016	Plunger Cap		53A		20791362201	Latch Door Assembly
38	FMS	30803240001	Spring Pin		56A		20791511101	Lower Safety Lever Assy.
39	FMS	30700078000	Grommet		76A		20970832215	Belt Hook Assembly
40		20970890001	Trigger Pin		76A-1		209707X01XX	End Cap
41		22222840215	Contact Trip Guide		76A-2		20970830115	Belt Hook
42		20791490001	Safety Spring		76A-3		30700188000	O-Ring
44		30104100166	Hex.Soc.Hd.Bolt	ECO9040C01	76A-4		20970840001	Cover Belt Hook
45		30604070001	Locknut		76A-5		33425000001	C-Ring
46		20011070000	Gasket

One Sheeter

Application

SOFAS	To make wooden frames
MODULAR / KITCHENS	To fix fabric to MDF, particle board or ply tiles
WOODEN CRATES	To close wooden cases
WOODEN PALLETS	To make wooden pallets
CARROM BOARDS	To fix the back reinforcement to the frame
CARROM BOARDS	To make the board frame
