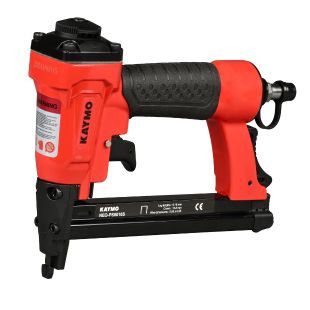

PNEUMATIC STAPLER KAYMO NEO-8016S WITH EXTRA SAFETY

PNEUMATIC STAPLER KAYMO NEO-8016S WITH EXTRA SAFETY

Name: PNEUMATIC STAPLER KAYMO NEO-8016S WITH EXTRA SAFETY
Brand: Kaymo
SKU: NEO-PS8016S
Availability: InStock

SKU: NEO-PS8016S

The KAYMO NEO-8016S Pneumatic Stapler is a powerful, lightweight, and efficient tool designed for precision stapling in various applications. Featuring a 360° top air exhaust, Read More...

Features:

360° Top Air Exhaust – Directs air away for a cleaner workspace.

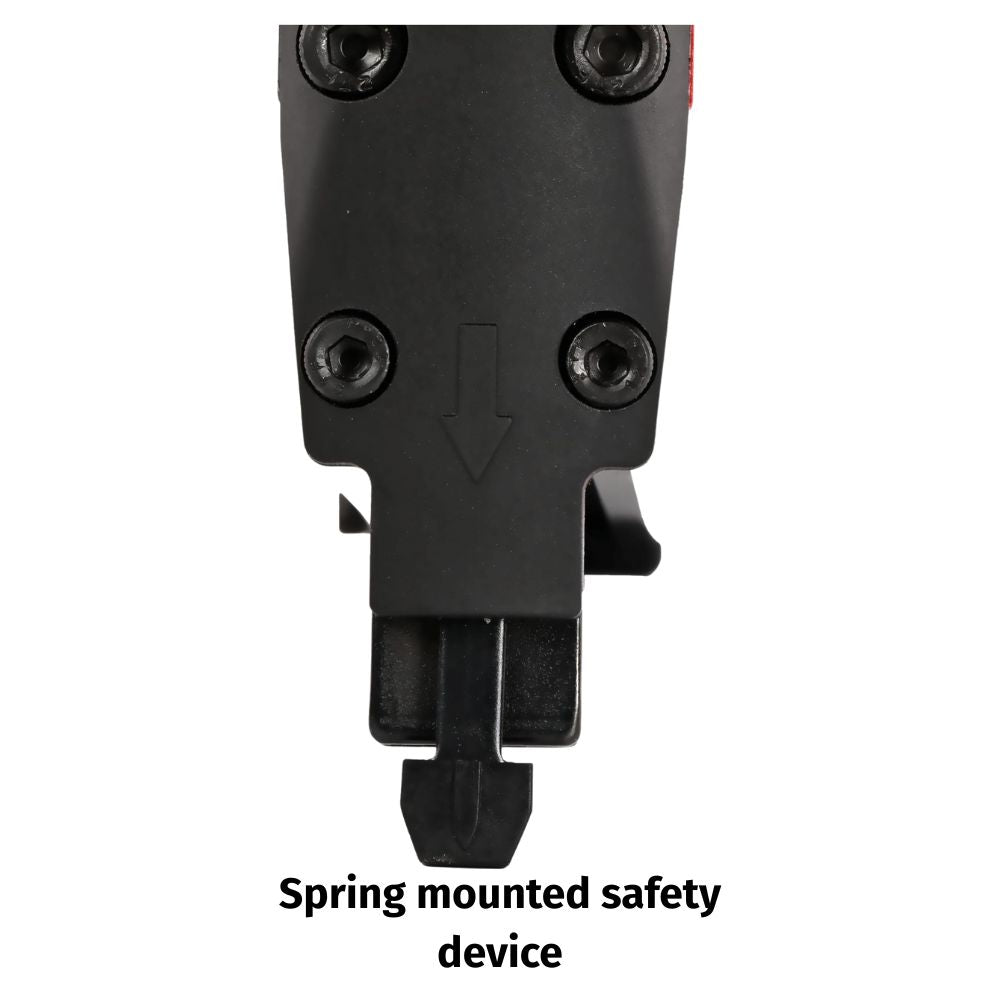

Spring-Mounted Safety Device – Enhances user safety during operation.

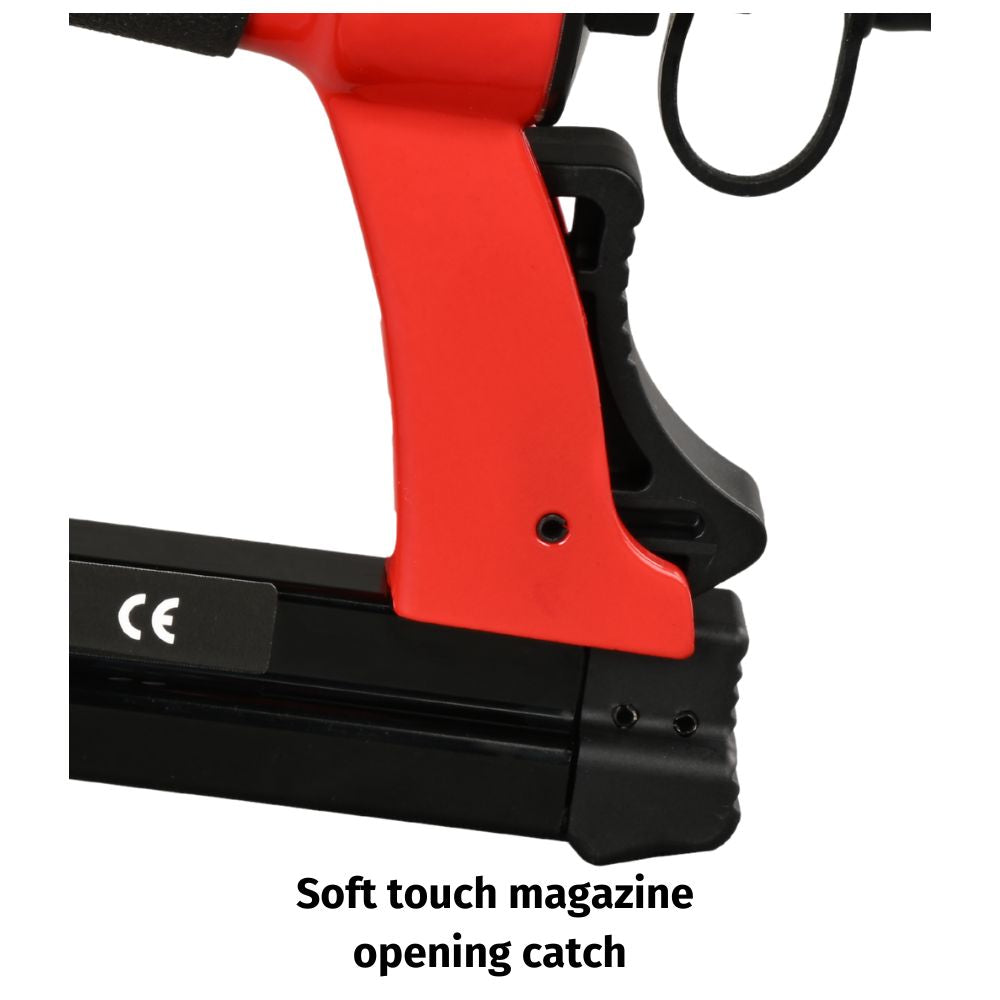

Soft-Touch Magazine Opening Spring – Ensures easy and smooth reloading.
Staple Viewing Window – Allows quick monitoring of staple levels.

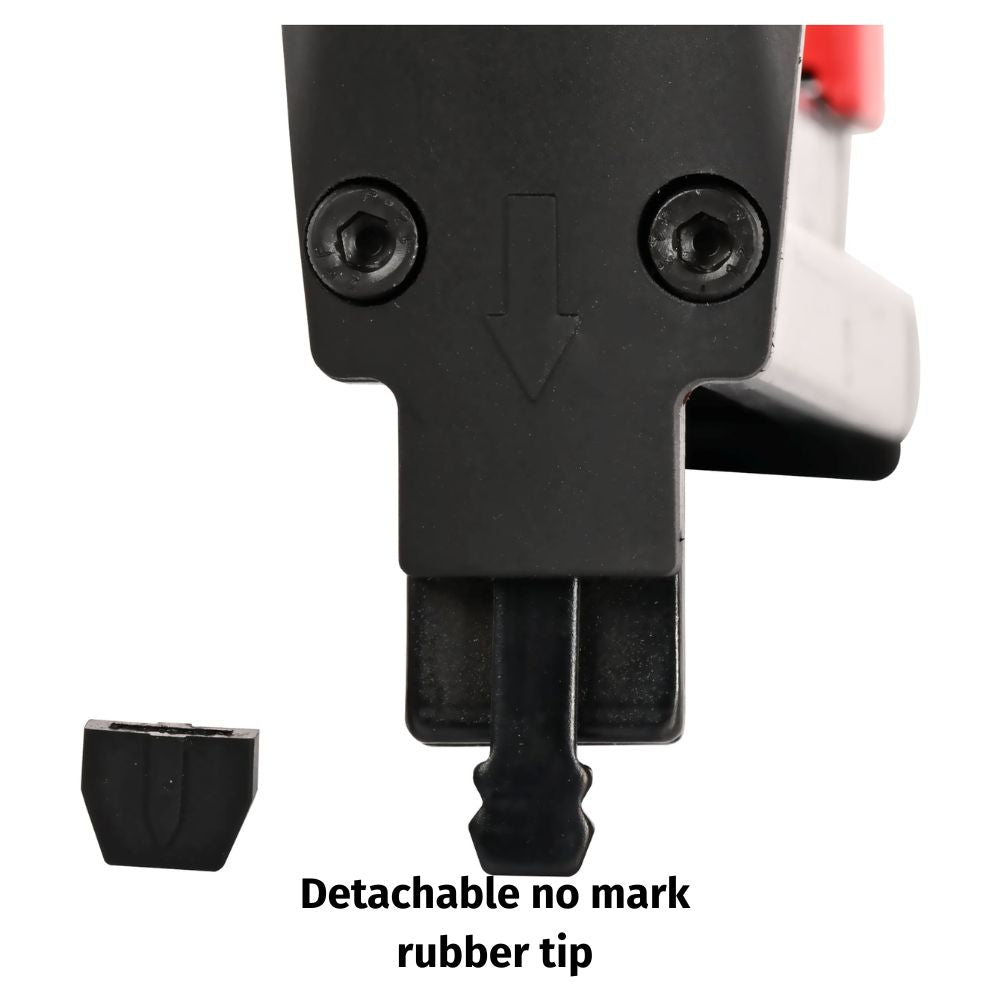

Detachable No-Mark Rubber Tip – Protects surfaces from marks and scratches

Applications:

Shipping labels, auto ancillary, fabric upholstery, DIY projects, and interiors

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

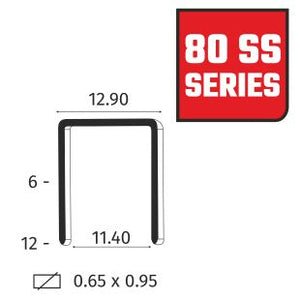

STAPLES KAYMO 80 SERIES SS

STAPLES KAYMO 80 SERIES

1/4" FRL AIR CONTROL FRL512

1/4" Female Socket (Steel One Touch European Type) S3320SF Coupler

Blow Up

Spares

		TOOL MODEL:	NEO-PS8016S
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1		NEOPS8016S01	Hex Bolt M5X6	NEO1005009N	29		NEOPS8016S29	Compression Spring	NEO80028
2		NEOPS8016S02	Exhaust Cover	NEO80LC02	30		NEOPS8016S30	Trigger
3		NEOPS8016S03	O-ring 26.2X2.5	NEO80008	31		NEOPS8016S31	Step Pin 3X24
4		NEOPS8016S04	Hex Bolt M5X18	KM0520	32		NEOPS8016S32	Air Plug	S3120PMA5208
5		NEOPS8016S05	Cylinder Cap	NEO80LC05	33		NEOPS8016S33	End Cap	NEO80LC33
6		NEOPS8016S06	Cylinder Cap Gasket	NEO80LC06	34		NEOPS8016S34	O-ring 31.3X3.5	NEO80LC34
7		NEOPS8016S07	Shim	NEO80LC07	35		NEOPS8016S35	Spring Pin 3X20
8		NEOPS8016S08	Compression Spring	HY1013J006	36		NEOPS8016S36	Compression Spring
9		NEOPS8016S09	O-ring 11.7X2.5	NEO80006	37		NEOPS8016S37	Click fixer
10		NEOPS8016S10	Head Valve Piston	NEO80009	38		NEOPS8016S38	Fixed Magazine
11		NEOPS8016S11	O-ring 21.3X3	NEO80010	39		NEOPS8016S39	Driver Guide
12		NEOPS8016S12	O-ring 10X3.5	NEO80011	40		NEOPS8016S40	Driver Guide Cover
13		NEOPS8016S13	O-ring 31.3X2.5	NEO80LC13	41		NEOPS8016S41	Hex Bolt M45X18
14		NEOPS8016S14	Support Collar	NEO80LC14	42		NEOPS8016S42	Hex Bolt M4X12
15		NEOPS8016S15	O-ring 17.3X3	NEO80013	43		NEOPS8016S43	Spacer
16		NEOPS8016S16	Driver		44		NEOPS8016S44	Mobile Magazine
17		NEOPS8016S17	Cylinder	NEO80LC17	45		NEOPS8016S45	Magazine end stopper
18		NEOPS8016S18	O-ring 24.5X2	NEO80LC18	46		NEOPS8016S46	Spring Pin 2.5X16
19		NEOPS8016S19	Bumper	NEO80016	47		NEOPS8016S47	Compression Spring	UH0901
20		NEOPS8016S20	Body		48		NEOPS8016S48	Nail Pusher	NEO80040
21		NEOPS8016S21	Rubber Grip		49		NEOPS8016S49	Hex Bolt M4X8	KF0412
22		NEOPS8016S22	Seal (12.5-8-1.5)	NEOF50039	50		NEOPS8016S50	Hex Bolt M3X5
23		NEOPS8016S23	Trigger valve head	NEOF50040	51		NEOPS8016S51	Compression Spring
24		NEOPS8016S24	Nozzle	NEO80020	52		NEOPS8016S52	Safety tip
25		NEOPS8016S25	Compression Spring	NEOF50041	53		NEOPS8016S53	Non marring tip
26		NEOPS8016S26	O-ring 2.2X1.5	NEOF50042	54		NEOPS8016S54	Trigger Valve Guide	NEOF50044
27		NEOPS8016S27	Trigger valve stem	NEOF50043	55		NEOPS8016S55	Trigger Plate
28		NEOPS8016S28	O-ring 11.2X1.9	NEOF50045	56		NEOPS8016S56	Spring Pin 2.5X10

One Sheeter

Application

SHIPPING LABELS	To fix labels to wooden cases
AUTO ANCILLARY	Fixing carpet to wooden floors
FABRIC UPHOLSTERY	Fixing fabric/ leather onto wood
INTERIORS	To fix flame retardant wool to wood
DIY PROJECTS	Furniture repair, re-upholstery work
