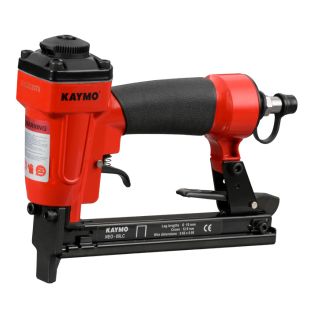

SKU: NEO-80LC
Durable full metal magazine and slider.
Curved metal trigger for fast stapling.

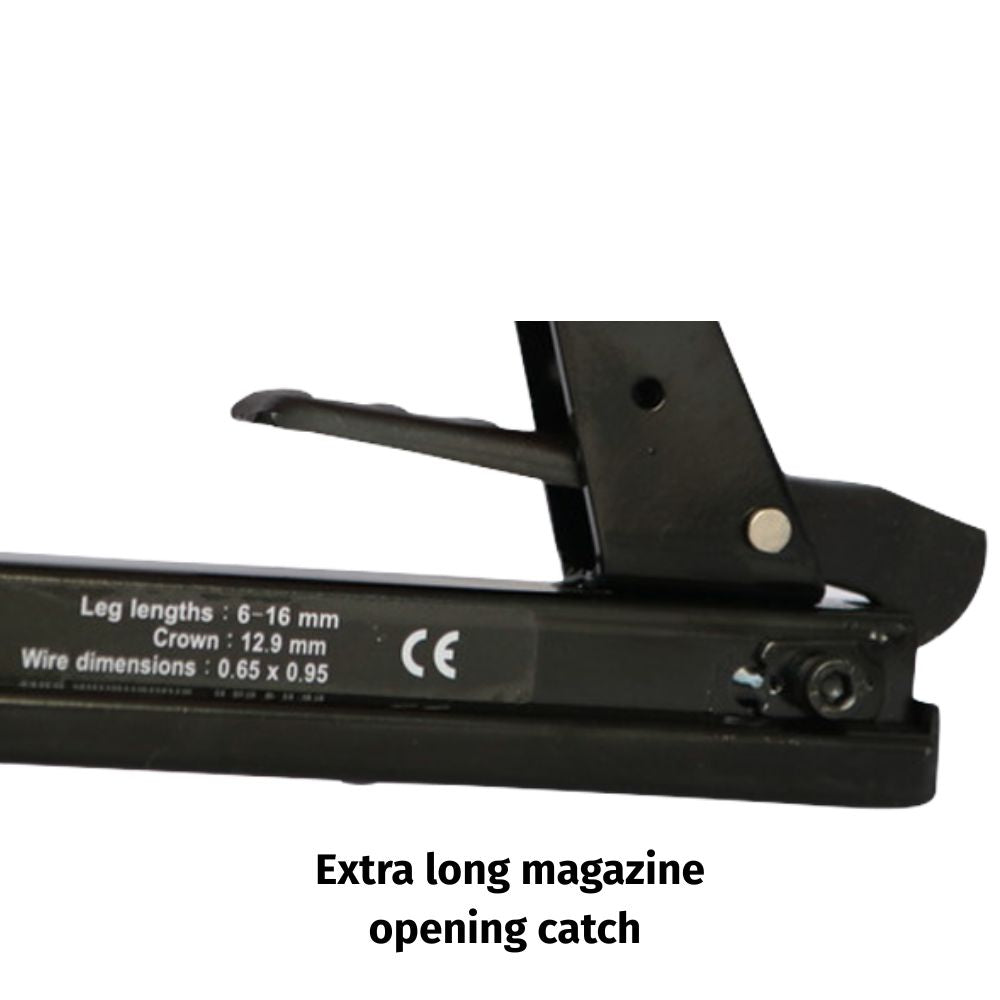

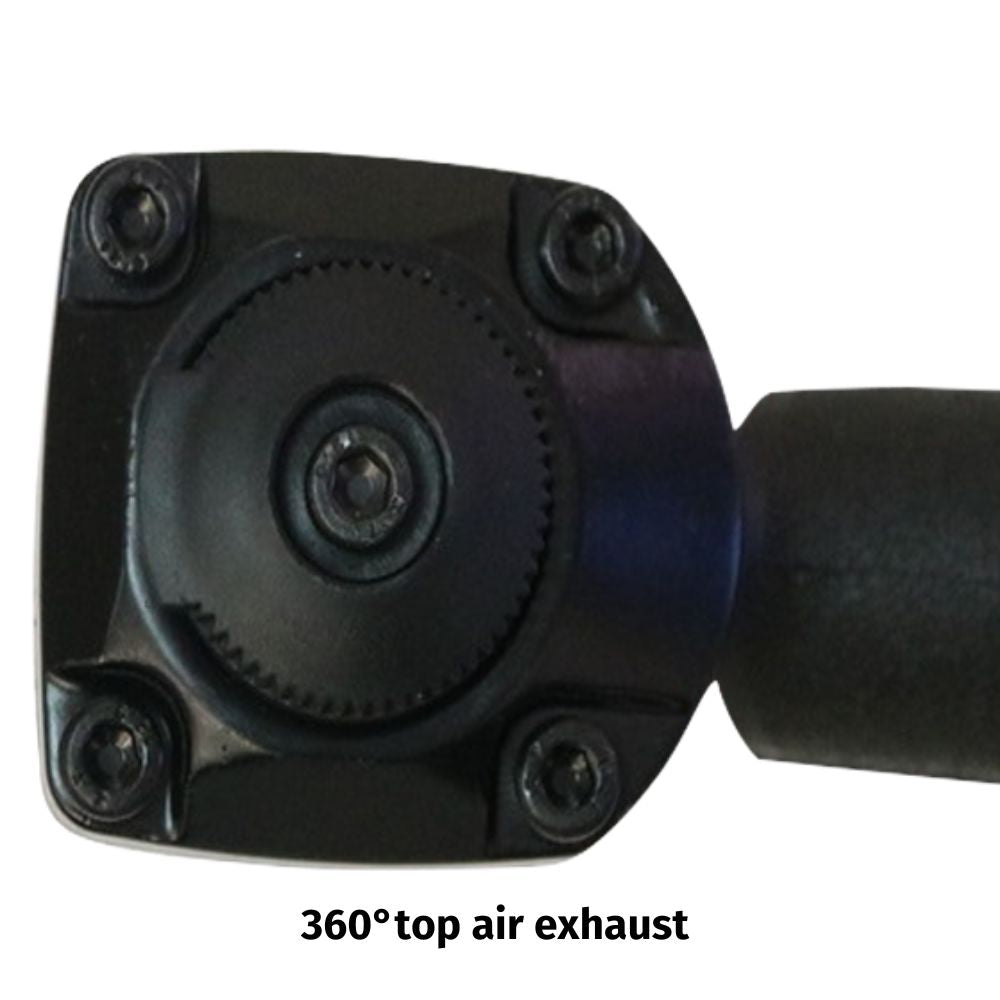

Fixed top air exhaust. User friendly robust magazine opening latch.
Durable driver blade for different wood variety.

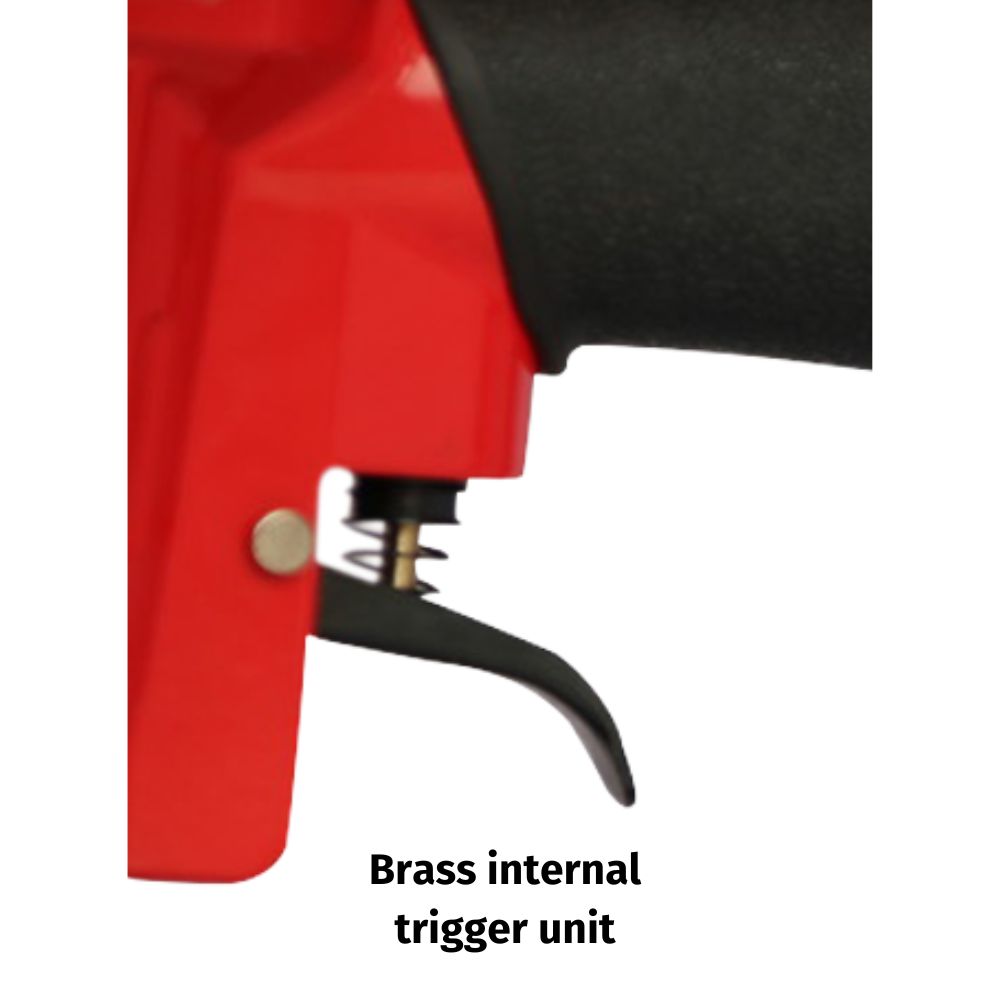

Internal brass servo valve parts that do not corrode.
130 staples loading capacity.
Curved metal trigger for fast stapling.
Fixed top air exhaust. User friendly robust magazine opening latch.
Durable driver blade for different wood variety.
Internal brass servo valve parts that do not corrode.
130 staples loading capacity.
₹ 0/-
Blow Up
Spares
| SR | FMS | PART CODE | PART NAME | ALT CODE |
| 0 | TOOL CODE: | NEO-80LC | ||
| 1 | NEO80LC01 | Hex Bolt M5X6 | NEO1005059N | |
| 2 | FMS | NEO80LC02 | Exhaust Cover | |
| 3 | FMS | NEO80LC03 | O-ring 26.2X2.5 | NEO80008 |
| 4 | FMS | NEO80LC04 | Hex Bolt M5X18 | KM0520 |
| 5 | NEO80LC05 | Cylinder Cap | ||
| 6 | FMS | NEO80LC06 | Cylinder Cap Gasket | |
| 7 | FMS | NEO80LC07 | Shim | |
| 8 | FMS | NEO80LC08 | Compression Spring | HY1013J006 |
| 9 | FMS | NEO80LC09 | O-ring 11.7X2.5 | NEO80006 |
| 10 | FMS | NEO80LC10 | Head Valve Piston | NEO80009 |
| 11 | FMS | NEO80LC11 | O-ring 21.3X3 | NEO80010 |
| 12 | FMS | NEO80LC12 | O-ring 10X3.5 | NEO80011 |
| 13 | FMS | NEO80LC13 | O-ring 31.3X2.5 | |
| 14 | NEO80LC14 | Support Collar | ||
| 15 | FMS | NEO80LC15 | O-ring 17.3X3 | NEO80013 |
| 16 | FMS | NEO80LC16 | Piston+Driver | NEO80014 |
| 17 | NEO80LC17 | Cylinder | ||
| 18 | FMS | NEO80LC18 | O-ring 24.5X2 | |
| 19 | FMS | NEO80LC19 | Bumper | NEO80016 |
| 20 | NEO80LC20 | Body | ||
| 21 | NEO80LC21 | Rubber Grip | ||
| 22 | FMS | NEO80LC22 | Seal (12.5-7-2) | NEO80022 |
| 23 | FMS | NEO80LC23 | Trigger valve head | NEO80023 |
| 24 | FMS | NEO80LC24 | Nozzle | NEO80020 |
| 25 | FMS | NEO80LC25 | Trigger valve stem | NEO80024 |
| 26 | FMS | NEO80LC26 | O-ring 1.2X1.9 | NEO80025 |
| 27 | FMS | NEO80LC27 | O-ring 11.2X1.9 | NEO80026 |
| 28 | FMS | NEO80LC28 | Trigger valve guide | NEO80027 |
| 29 | FMS | NEO80LC29 | Compression Spring | NEO80028 |
| 30 | FMS | NEO80LC30 | Trigger | NEO80031 |
| 31 | FMS | NEO80LC31 | Step Pin 3X24 | |
| 32 | NEO80LC32 | Air Plug | ACC016 | |
| 33 | FMS | NEO80LC33 | End Cap | |
| 34 | FMS | NEO80LC34 | O-ring 31.3X3.5 | |
| 35 | FMS | NEO80LC35 | Screw Nut M5 | NEO80029 |
| 36 | FMS | NEO80LC36 | Screw Bolt M5X22 | KM0520 |
| 37 | FMS | NEO80LC37 | Washer Spring 5 | S0410500 |
| 38 | NEO80LC38 | Driver Guide | NEO80041 | |
| 39 | NEO80LC39 | Fixed Magazine | NEO80037 | |
| 40 | NEO80LC40 | Spacer | NEO80043 | |
| 41 | NEO80LC41 | Magazine Click Latch | NEO80033 | |
| 42 | FMS | NEO80LC42 | Step Pin 3X18 | NEO80035 |
| 43 | FMS | NEO80LC43 | Torsion Spring | NEO80034 |
| 44 | FMS | NEO80LC44 | Hex Bolt M4X3 | NEO80036 |
| 45 | FMS | NEO80LC45 | Mobile Magazine | NEO80038 |
| 46 | FMS | NEO80LC46 | Nail Pusher | NEO80040 |
| 47 | FMS | NEO80LC47 | Compression Spring | UH0901 |
| 48 | FMS | NEO80LC48 | Screw Bolt M5X20 | KM0520 |
One Sheeter
Application
|
To Fix Sofas, Chairs, Modular Kitchens, Wooden Flooring, Flush doors, Carrom Boards, Artist Canvas, Screen Printing |
|
| INTERIORS |
Home Carpentry |
