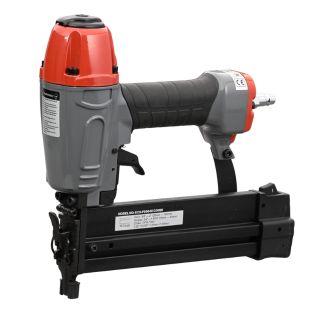

SKU: ECO-PS9040COMBI

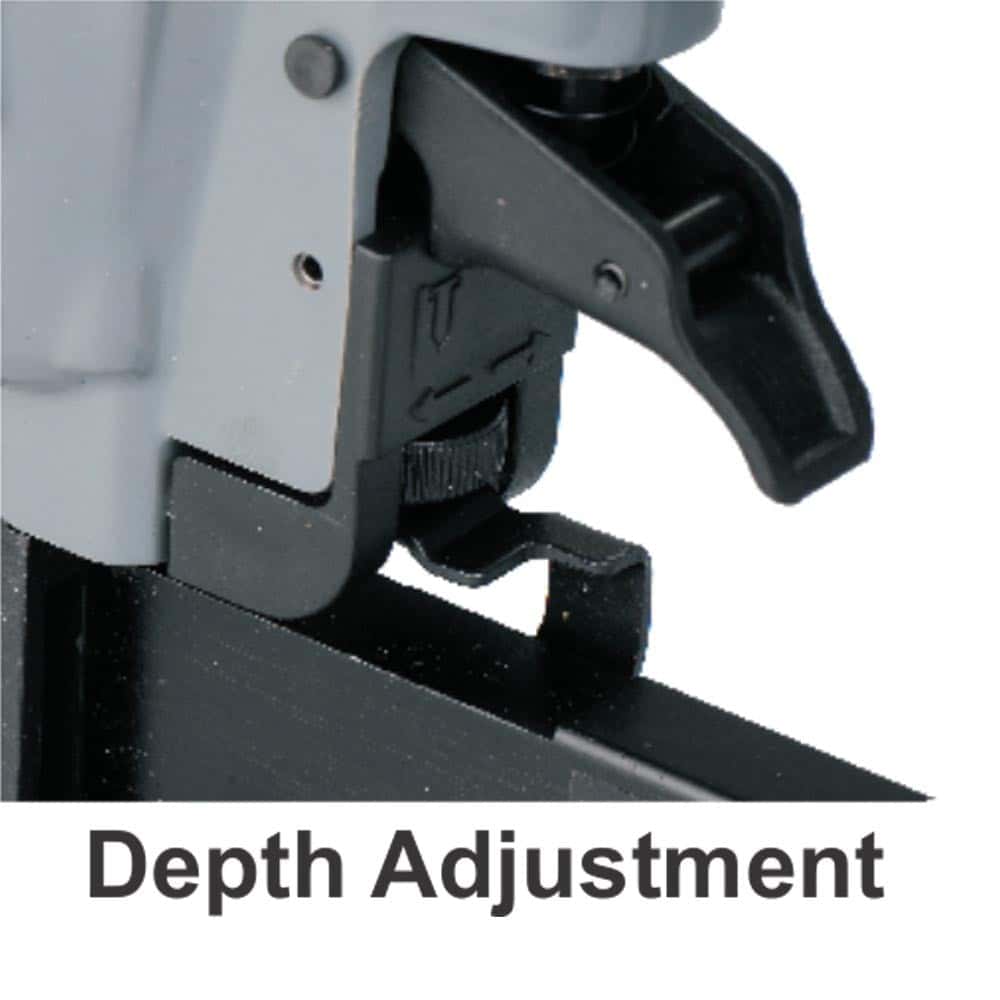

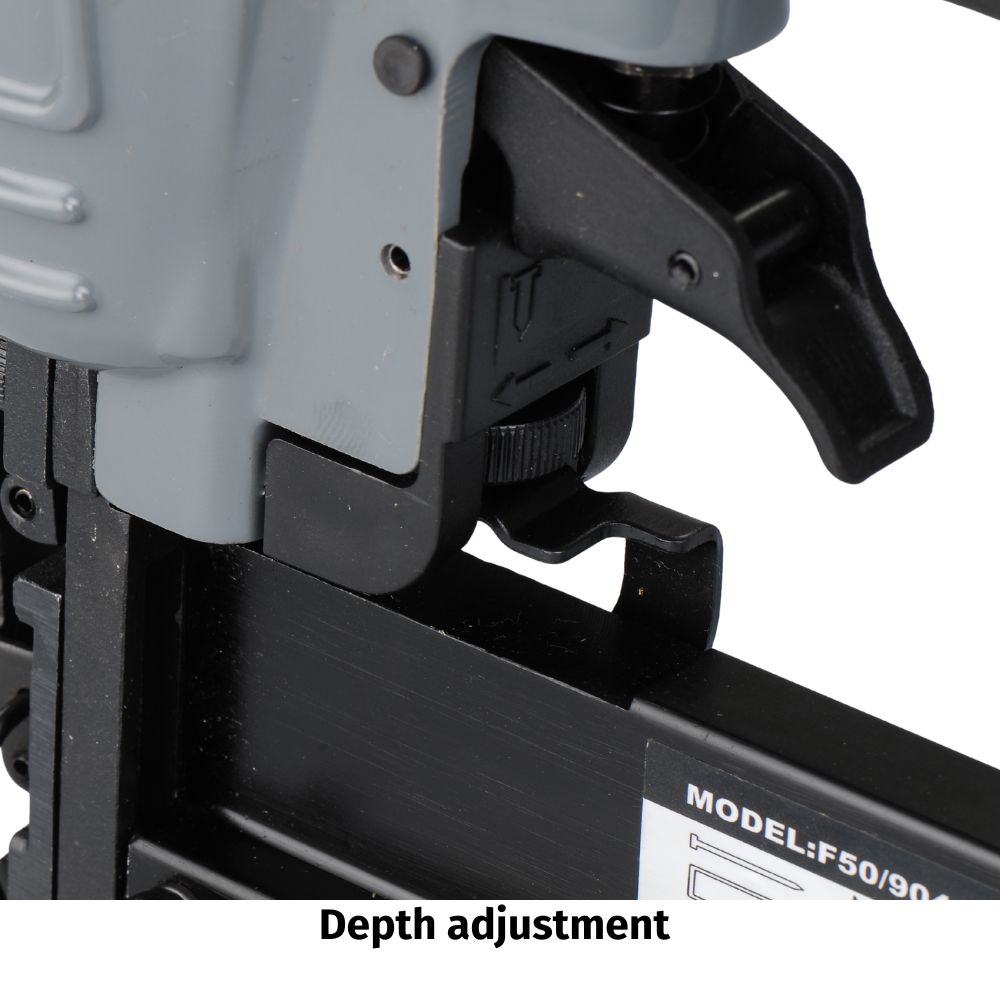

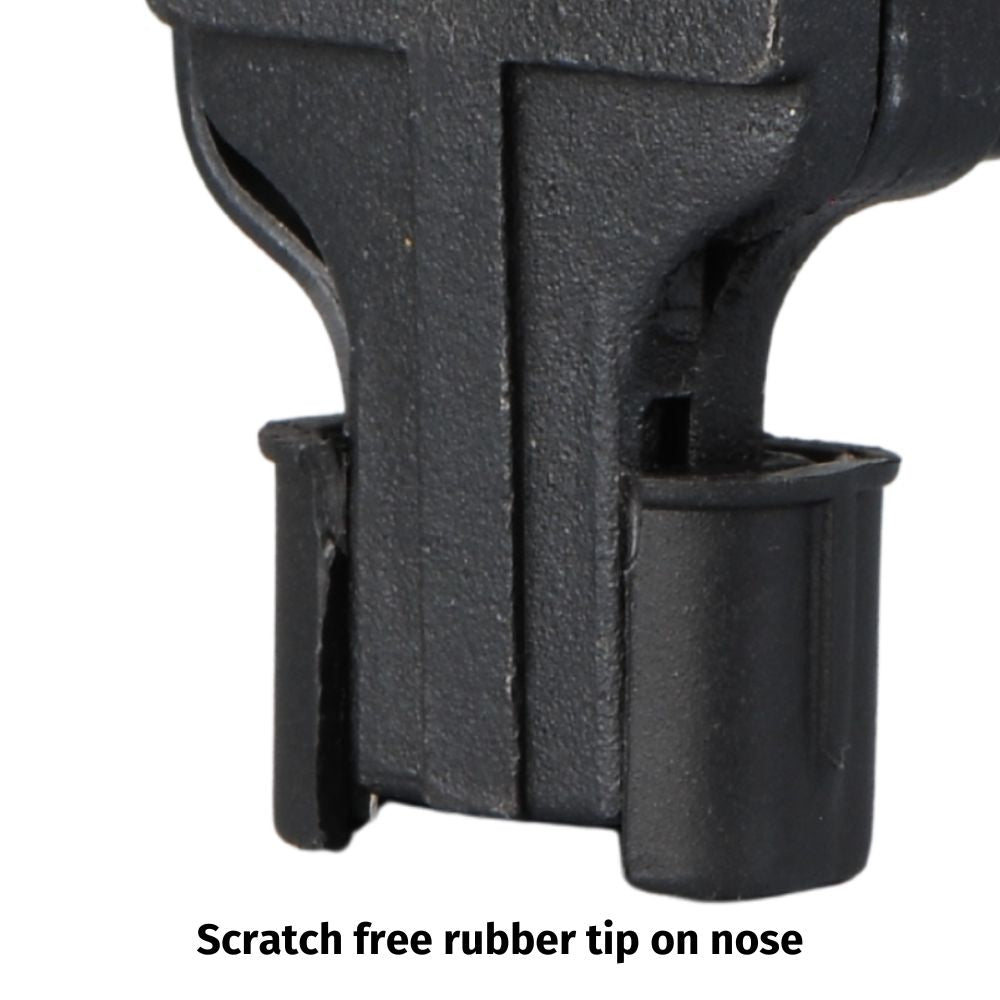

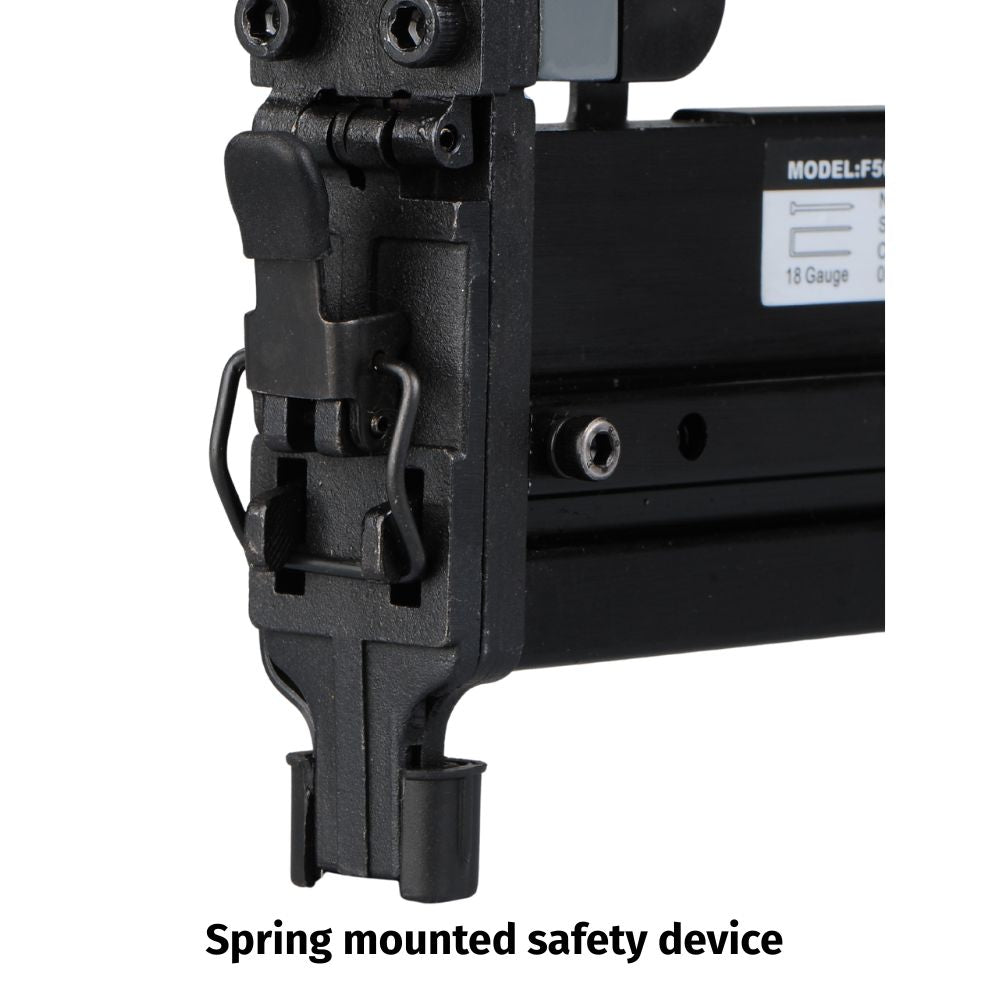

360 degree exhaust. Depth adjustment. Spring mounted safety device. Scratch free rubber tip on nose. PRESSURE: 60~95 psi.

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

₹ 7,520/-
Blow Up

Spares
SR FMS PART CODE PART NAME ALT CODE
1   ECO9040C01 SCREW
2 FMS ECO9040C02 BUSHING
3 FMS ECO9040C03 EXHAUST COVER
4 FMS ECO9040C04 WASHER
5 ECO9040C05 SCREW
6 ECO9040C06 SPRING WASHER
7 ECO9040C07 CYLINDER CAP
8 FMS ECO9040C08 GASKET
9 FMS ECO9040C09 VALVE SEAT
10 FMS ECO9040C10 O-RING 15.7X2
11 FMS ECO9040C11 O-RING 38.8X3
12 FMS ECO9040C12 VALVE HY18G32012
13 FMS ECO9040C13 O-RING 33.5X3.5
14 FMS ECO9040C14 STOPPED WASHER
15 FMS ECO9040C15 COLLAR
16 FMS ECO9040C16 O-RING 50.5X2.5
17 FMS ECO9040C17 O-RING 28.3X3
18 FMS ECO9040C18 PISTON ASSEMBLY
19   ECO9040C19 CYLINDER
20 FMS ECO9040C20 O-RING 36.3X2.5
21 FMS ECO9040C21 O-RING 35.3X2.5
22 FMS ECO9040C22 BUMPER
23
ECO9040C23 BODY
24 FMS ECO9040C24 JOINT GUIDE
25
ECO9040C25 SAFE GUIDE
26 FMS ECO9040C26 SPRING
27
ECO9040C27 SAFE BRACKET
28 FMS ECO9040C28 SAFE BRACKET ASSEMBLY
29 FMS ECO9040C29 SAFE SLEEVE
30 ECO9040C30 LATCH SLEEVE HY18G50053
31 FMS ECO9040C31 LATCH ASSEMBLY
32 FMS ECO9040C32 SPRING PIN
33 FMS ECO9040C33 SPRING PIN
34 FMS ECO9040C34 SEAL
35 FMS ECO9040C35 TRIGGER VALVE HEAD HY18G50031
36 FMS ECO9040C36 O-RING 15X1.9
37 FMS ECO9040C37 TRIGGER VALVE GUIDE
38 FMS ECO9040C38 O-RING 5.5X1.5
39 FMS ECO9040C39 SPRING
40 FMS ECO9040C40 TRIGGER VALVE
41 FMS ECO9040C41 WASHER
42 FMS ECO9040C42 TRIGGER ASSEMBLY
43 FMS ECO9040C43 TRIGGER PIN
44 ECO9040C44 FRONT PLATE
45 FMS ECO9040C45 SPRING PIN
46 ECO9040C46 SCREW
47 ECO9040C47 PLATE
48 FMS ECO9040C48 ORIENTED BAR
49
ECO9040C49 SCREW
50 FMS ECO9040C50 STOPPED PLATE
51 FMS ECO9040C51 SPRING WASHER
52 FMS ECO9040C52 SCREW
53 FMS ECO9040C53 SPRING PIN
54 FMS ECO9040C54 DRIVE GUIDE
55 FMS ECO9040C55 RAIL
56 ECO9040C56 FIXED MAGAZINE
57 FMS ECO9040C57 SPRING
58 FMS ECO9040C58 LOCK
59 FMS ECO9040C59 SPRING PIN
60
ECO9040C60 MAGAZINE PLATE
61 FMS ECO9040C61 SPRING PIN
62 ECO9040C62 JOINT GUIDE
63 ECO9040C63 RAIL
64 ECO9040C64 MOVABLE MAGAZINE
65 ECO9040C65 SCREW
66 FMS ECO9040C66 SPRING
67 FMS ECO9040C67 FEEDER SHOE
68 ECO9040C68 SUPPORT
69 ECO9040C69 SCREW
70 ECO9040C70 NUT
71 ECO9040C71 SCREW
72 ECO9040C72 SOFT GRIP SLEEVE
73 FMS ECO9040C73 GASKET
74 ECO9040C74 END CAP
75 ECO9040C75 SCREW
76 ECO9040C76 AIR PLUG
One Sheeter

Application
SOFAS To fix 3mm / 4mm veneer to wooden frame

To fix upholstery & elastic band
MODULAR / KITCHENS To fix fabric to MDF, particle board or ply tiles
