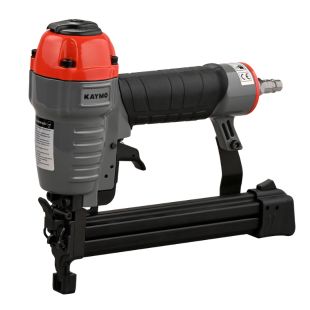

PNEUMATIC STAPLER KAYMO ECO-9025

Name: PNEUMATIC STAPLER KAYMO ECO-9025
Brand: Kaymo
SKU: ECO-PS9025
Availability: InStock

SKU: ECO-PS9025

The KAYMO ECO-PS9025 is a compact yet powerful pneumatic stapler, designed for precision and durability. With a 360-degree air exhaust, staple depth adjustment, and full Read More...

Features:

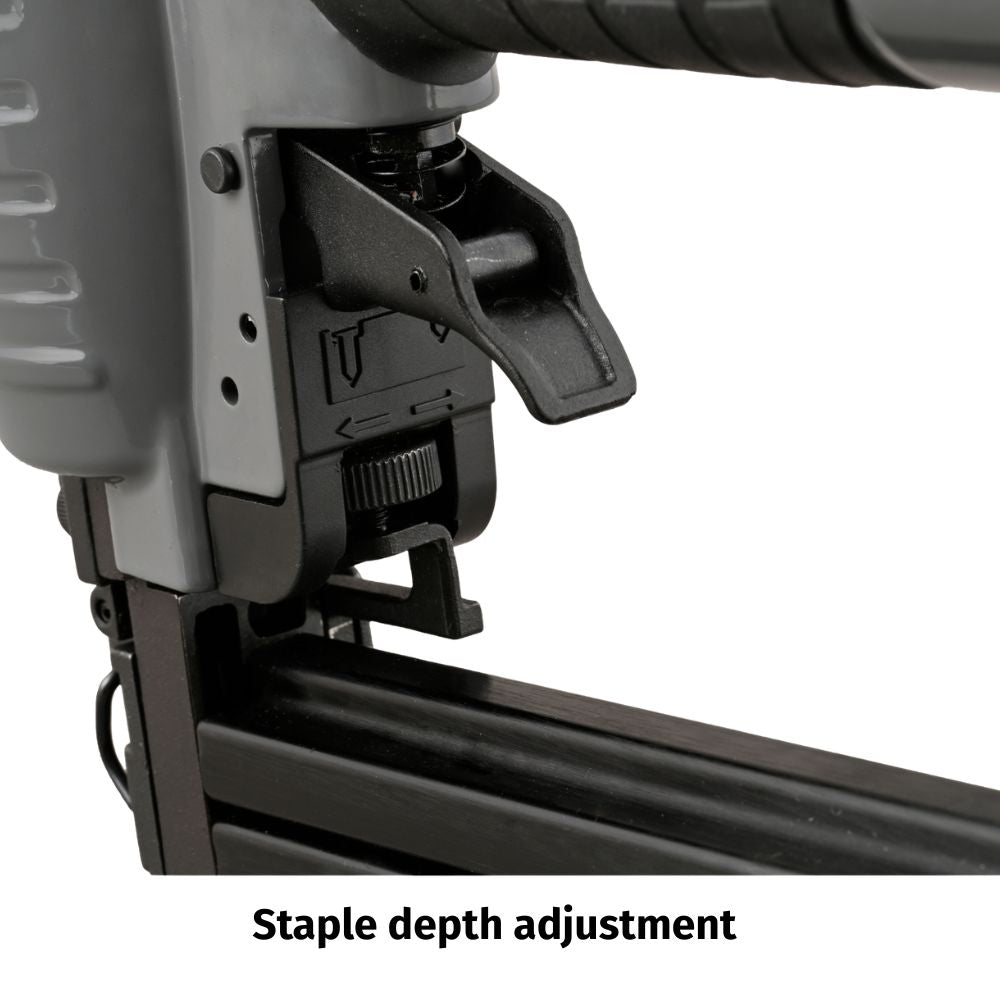

Staple depth adjustment

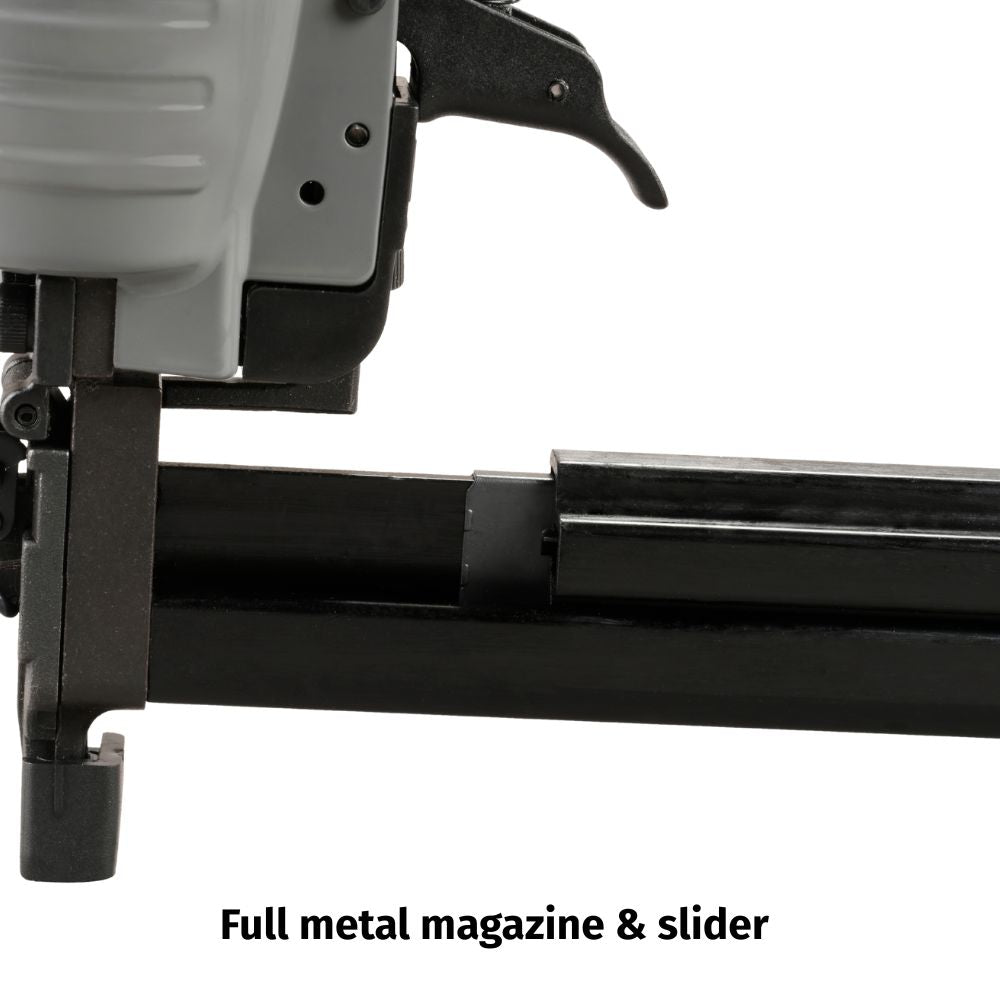

Full metal magazine slider

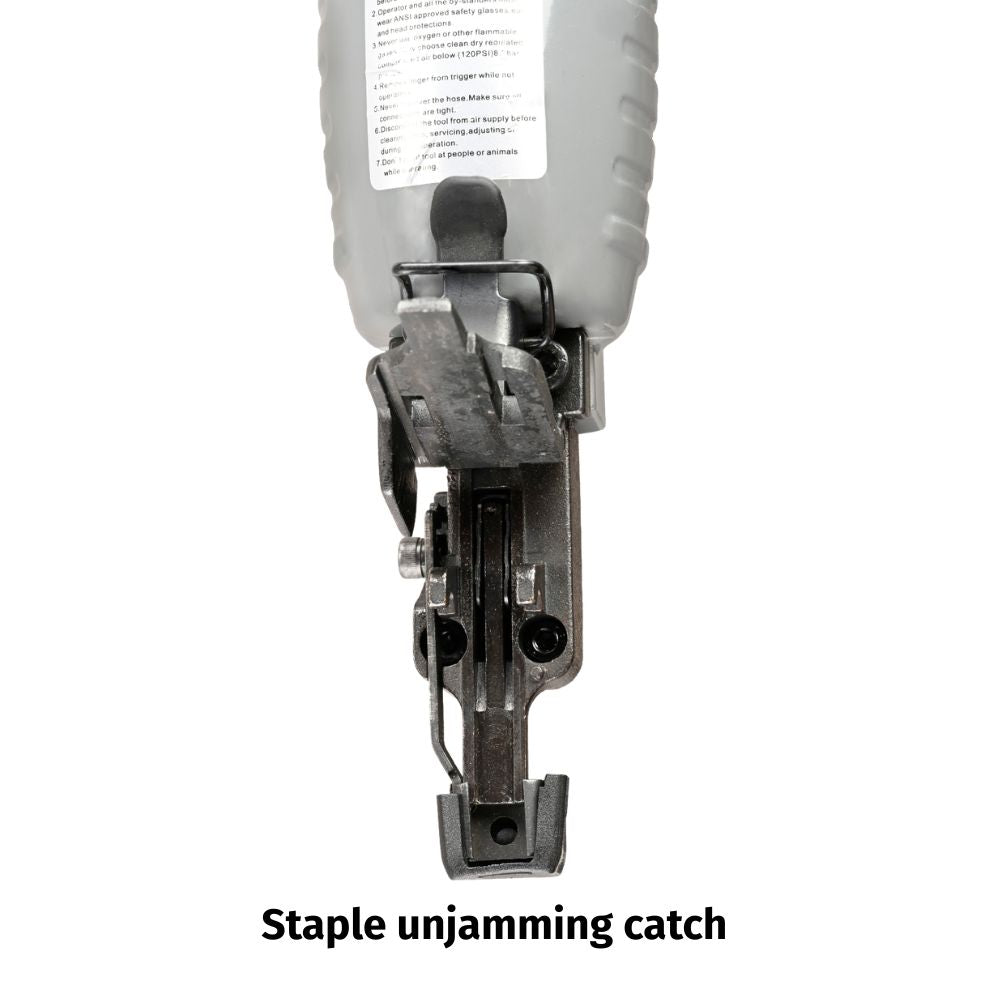

Staple unjamming catch

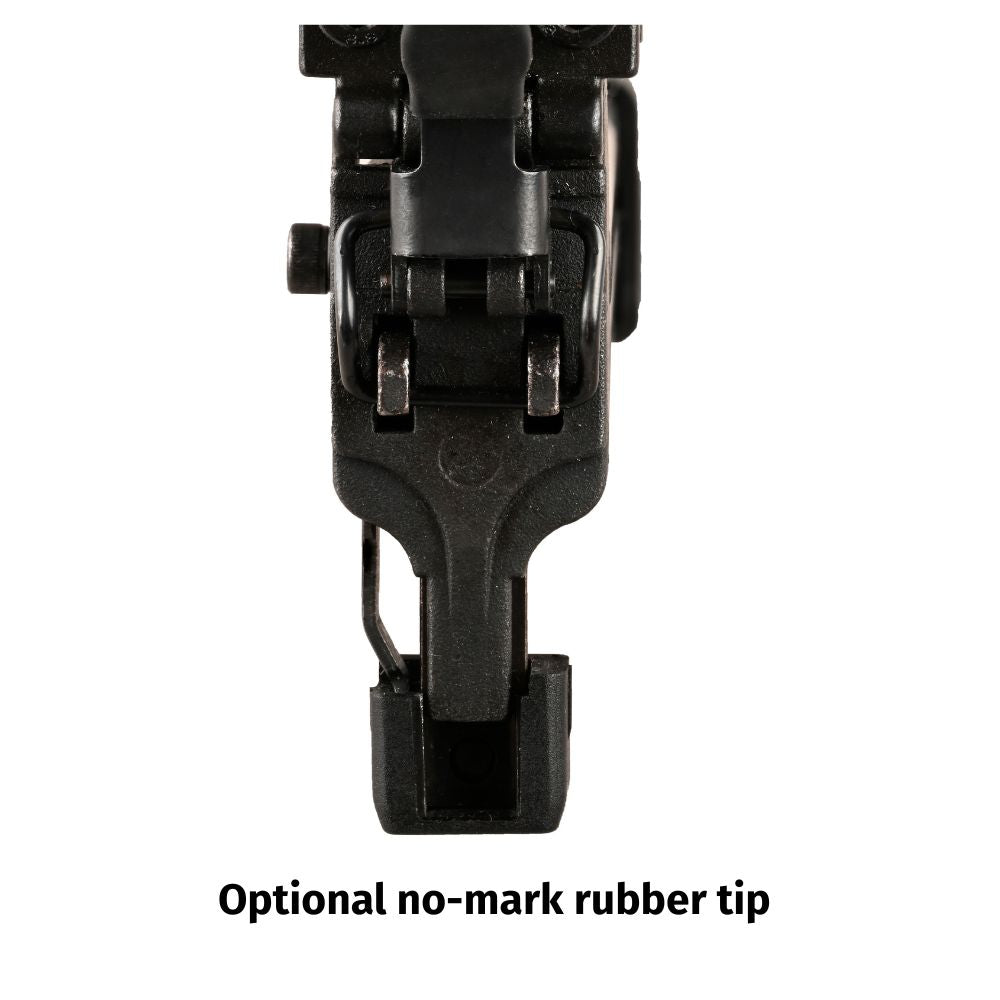

Optional no mark rubber tip
Magazine opening latch
Compact & powerful tool
Fastener Range: 12mm – 25mm

Applications:

Party poppers
Aluminium profile garden furniture
Furniture
Carrom boards
Speaker boxes

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

AIR FILTER + REGULATOR LUBRICATOR SET KAYMO 1/2" WITH GAUGE

FITTING KAYMO 6.35mmx8mm(1/4"x8 mm) PUSH TO CONNECT STRAIGHT

Blow Up

Spares

		TOOL MODEL:	ECO-PS9025					REV.1ST APRIL 2023
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1	FMS	ECO9025001	SCREW M4*10	ECO9040C01	38	FMS	ECO9025038	SEAL	ECO18G32030N
2	FMS	ECO9025002	BUSHING	ECO9040C02	39	FMS	ECO9025039	TRIGGER VALVE HEAD	ECO18G32031N
3	FMS	ECO9025003	EXHAUST COVER	ECO9040C03	40	FMS	ECO9025040	SPRING	ECO18G32032N
4	FMS	ECO9025004	WASHER	ECO9040C04	41	FMS	ECO9025041	O-RING 5.5*1.5	ECO18G32034N
5	FMS	ECO9025005	SCREW M5*22	ECO9040C05	42	FMS	ECO9025042	TRIGGER VALVE STEM	ECO18G32033N
6	FMS	ECO9025006	WASHER	ECO9040C06	43	FMS	ECO9025043	O-RING 15*1.9	ECO18G32036N
7		ECO9025007	CYLINDER CAP		44	FMS	ECO9025044	TRIGGER VALVE GUIDE	ECO18G32035N
8	FMS	ECO9025008	GASKET	ECO9040C08	45	FMS	ECO9025045	SPRING	ECO18G32037N
9	FMS	ECO9025009	SEAL	ECO9040C09	46	FMS	ECO9025046	WASHER	ECO9040C41
10	FMS	ECO9025010	SPRING	HY18G32009	47	FMS	ECO9025047	TRIGGER	ECO9040C42
11	FMS	ECO9025011	O-RING 15.7*2	ECO9040C10	48	FMS	ECO9025048	PIN	ECO9040C43
12	FMS	ECO9025012	O-RING 38.8*3	ECO9040C11	49	FMS	ECO9025049	SCREW M5*20	KM0520
13	FMS	ECO9025013	VALVE	HY18G32012	50	FMS	ECO9025050	PLATE	HY18G32036
14	FMS	ECO9025014	O-RING 33.5*3.5	ECO9040C13	51	FMS	ECO9025051	SCREW M4*16	KM0416
15	FMS	ECO9025015	STOPPED WASHER	ECO9040C14	52		ECO9025052	DRIVE GUIDE
16	FMS	ECO9025016	COLLAR	HY18G32015	53		ECO9025053	SOFT GRIP SLEEVE	ECO9040C72
17	FMS	ECO9025017	O-RING 50.5*2.5	ECO9040C16	54	FMS	ECO9025054	SCREW M5*18	KM0520
18	FMS	ECO9025018	O-RING 28.3*3	ECO9040C17	55		ECO9025055	SUPPORT
19	FMS	ECO9025019	PISTON ASSEMBLY		56	FMS	ECO9025056	SCREW M4*8	KM0408
20	FMS	ECO9025020	CYLINDER		57	FMS	ECO9025057	NUT M5	NEO1005075N
21	FMS	ECO9025021	O-RING 36.3*2.5	ECO9040C20	58	FMS	ECO9025058	MOVABLE MAGAZINE
22	FMS	ECO9025022	O-RING 35.3*2.5	ECO9040C21	59	FMS	ECO9025059	SPRING
23	FMS	ECO9025023	BUMPER	HY18G32021	60	FMS	ECO9025060	SPRING SEAT
24		ECO9025024	BODY		61	FMS	ECO9025061	FEEDER SHOE
25	FMS	ECO9025025	JOINT GUIDE	ECO9040C24	62		ECO9025062	FIXED MAGAZINE
26	FMS	ECO9025026	SAFE GUIDE		63	FMS	ECO9025063	SPRING PIN	ECOF3242
27	FMS	ECO9025027	SPRING	ECO9040C26	64	FMS	ECO9025064	TRIGGER SPRING	ECOF3240
28	FMS	ECO9025028	SAFE BRACKET A		65	FMS	ECO9025065	O-RING 40.2*2.3	HY1013J045
29	FMS	ECO9025029	SAFE BRACKET ASSEMBLY		66	FMS	ECO9025066	END CAP	HY18G32062
30	FMS	ECO9025030	SAFE BRACKET B		67	FMS	ECO9025067	AIR PLUG	S3120PMA5208
31	FMS	ECO9025031	RUBBER COVER	ECO9040C29	68	FMS	ECO9025068	SPRING PIN
32	FMS	ECO9025032	RUBBER SLEEVE	HY18G50045	69		ECO9025069	LOCK	ECO9040C58
33	FMS	ECO9025033	LATCH ASSEMBLY	HY18G32038	70	FMS	ECO9025070	SPRING	ECO9040C57
34	FMS	ECO9025034	SPRING PIN 2.5*16	HY18G32040	71	FMS	ECO9025071	STOPPED PLATE	ECO9040C50
35	FMS	ECO9025035	FRONT PLATE		72	FMS	ECO9025072	SCREW M4*6	KM0406
36	FMS	ECO9025036	SPRING PIN 2.5*24	HY18G32041	73	FMS	ECO9025073	SPRING WASHER	ECO9040C51
37	FMS	ECO9025037	SPRING PIN 3*26	ECO18G32029N	74	FMS	ECO9025074	STOPPED PIECE	ECO9040C50

One Sheeter

Application

FURNITURE	To join MDF to wood & join ply to ply in furniture partitions
	To join Pre-laminated particle board to wood
SPEAKER BOXES	To fix MDF to MDF & Plywood to Plywood
PARTY POPPERS	To join the corrugated roll to the cracker actuation base
ALUMINIUM PROFILE GARDEN FURNITURE	To fix the Rehau polymer weave strands to the Aluminium frame.
SIGNAGES	To join wooden pieces together to form wooden frames
CARROM BOARDS	To join the wooden rear reinforcement strips of wood to the carrom board
