Name: PNEUMATIC STAPLER KAYMO ECO-8016LN LONG NOSE
Brand: Kaymo
SKU: ECO-PS8016LN
Availability: InStock

SKU: ECO-PS8016LN

The KAYMO ECO-PS8016LN is a high-impact pneumatic stapler built for durability and precision. With a long reach 2” nose, full metal magazine unit, and top Read More...

Features:

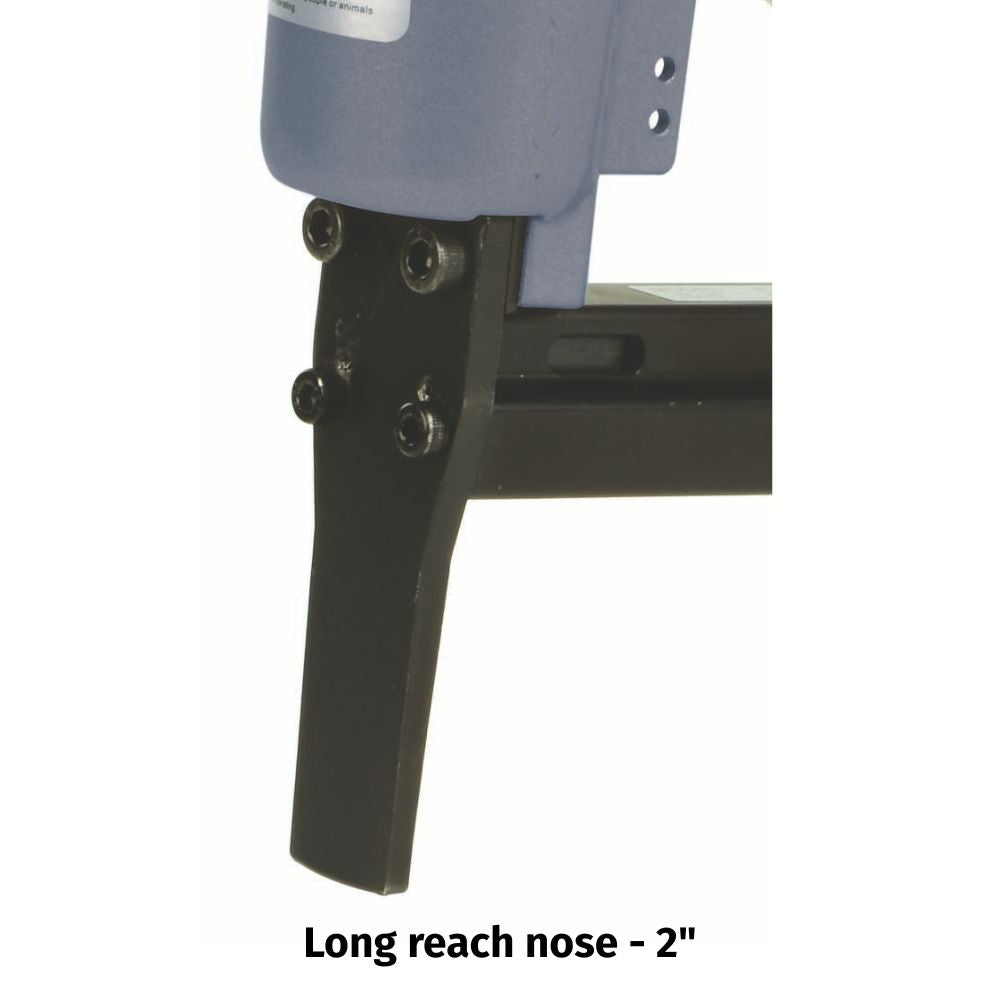

Long reach nose – 2”

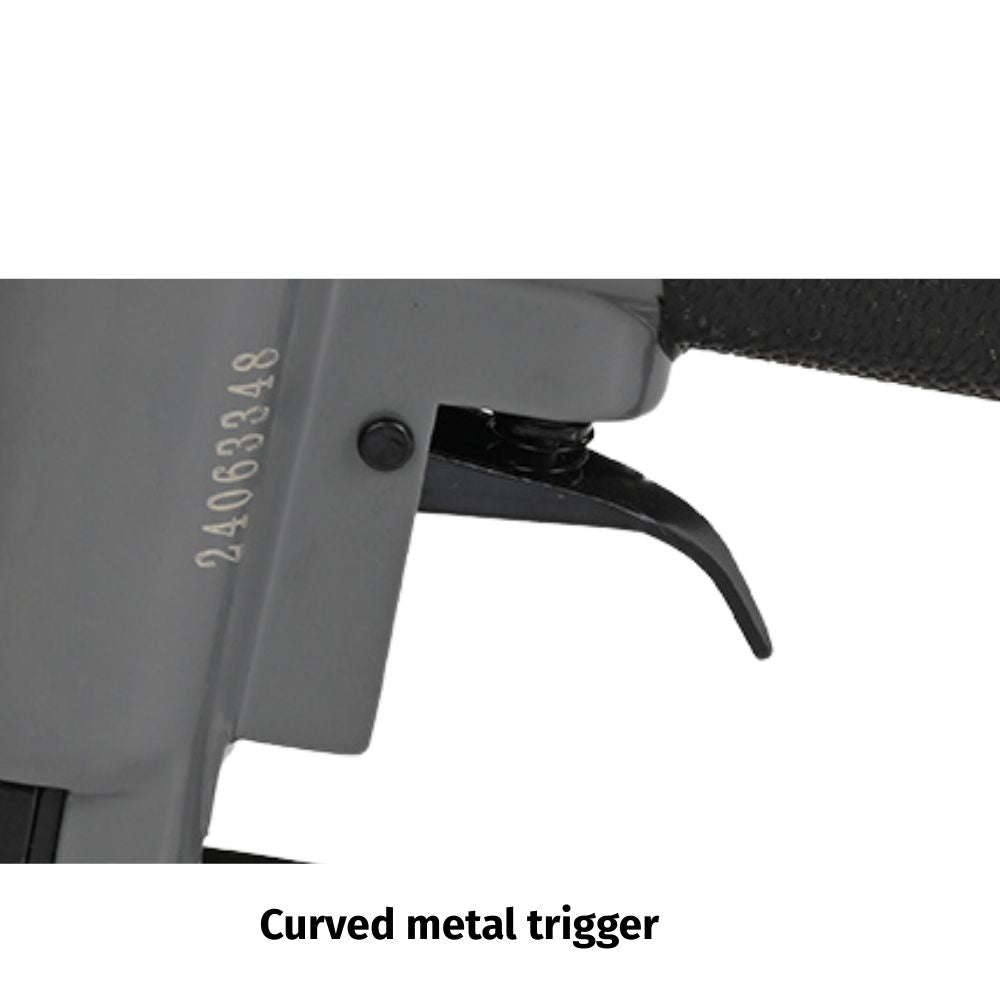

Curved metal trigger

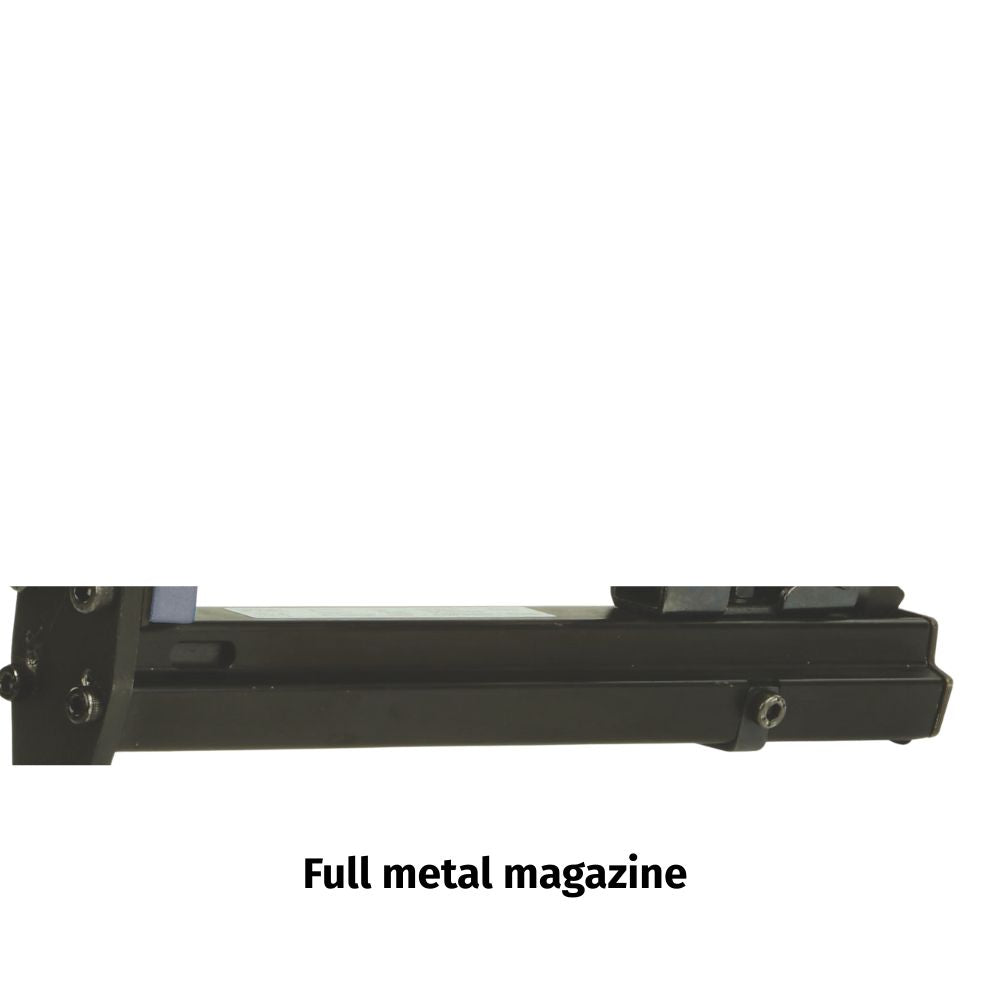

Full metal magazine
Top fixed exhaust

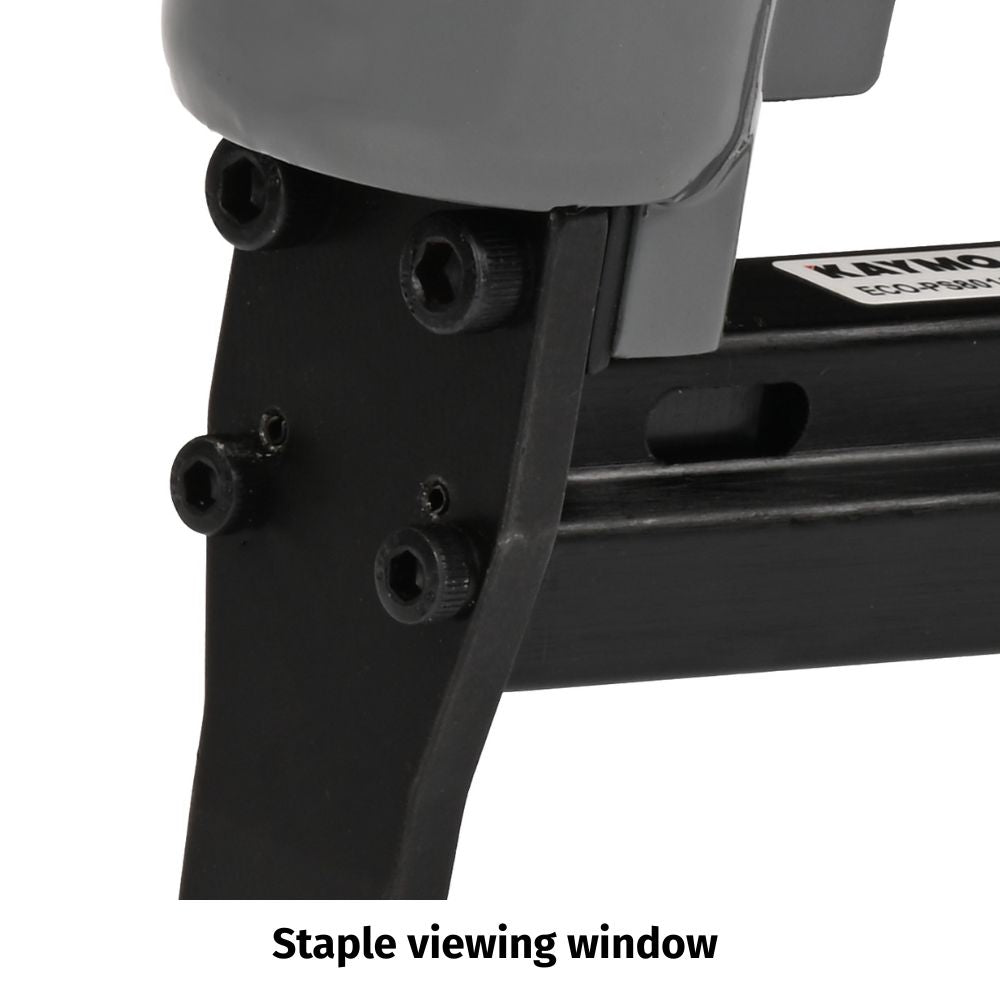

Staple viewing window
High impact stapler
Fastener Range: 6mm - 16 mm

Applications:

Two wheeler seats
Sofas
Chairs
Modular kitchens
Artist’s canvas
Carrom boards
Wooden flooring
Flush doors
Screen printing

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

STAPLES KAYMO 80 SERIES

STAPLES KAYMO 80 SERIES BLACK

STAPLES KAYMO 80 SERIES SS

FITTING KAYMO 6.35mmx8mm(1/4"x8 mm) PUSH TO CONNECT STRAIGHT

AIR FILTER + REGULATOR LUBRICATOR SET KAYMO 1/4" WITH GAUGE

Blow Up

Spares

		TOOL MODEL:	ECO-PS8016LN					REV.1ST APRIL 2023
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1		ECO8016LN01	SCREW		28	FMS	ECO8016LN28	LOCKING WASHER	YE2501
2	FMS	ECO8016LN02	EXHAUST COVER	ECO1013F02	29		ECO8016LN29	TRIGGER
3	FMS	ECO8016LN03	GASKET	HY1013J003	30	FMS	ECO8016LN30	PIN	HY1013J027
4		ECO8016LN04	LENGTHEN LOOP		31		ECO8016LN31	PLATE	HY8016029
5	FMS	ECO8016LN05	SEAL	HY1013J004	32		ECO8016LN32	DRIVE GUIDE
6	FMS	ECO8016LN06	O-RING	HY1013J005	33	FMS	ECO8016LN33	SCREW	KM0520
7	FMS	ECO8016LN07	SPRING	HY1013J006	34	FMS	ECO8016LN34	SCREW	KM0412
8	FMS	ECO8016LN08	O-RING	HY8016007	35	FMS	ECO8016LN35	WHEEL	HY7116036
9	FMS	ECO8016LN09	VALVE	HY1013J008	36	FMS	ECO8016LN36	TENSION SPRING	UH0901
10	FMS	ECO8016LN10	O-RING	HY1013J009	37	FMS	ECO8016LN37	FEEDER SHOE	HY8016034
11	FMS	ECO8016LN11	STOPPED WASHER	HY1013J010	38	FMS	ECO8016LN38	SCREW	HY7116039
12	FMS	ECO8016LN12	COLLAR	HY1013J011	39	FMS	ECO8016LN39	PIN	HY8016037
13	FMS	ECO8016LN13	O-RING	HY1013J012	40		ECO8016LN40	MOVEABLE MAGAZINE
14		ECO8016LN14	PISTON ASSEMBLY		41	FMS	ECO8016LN41	SCREW	KM0406
15		ECO8016LN15	CYLINDER		42	FMS	ECO8016LN42	STOPPED PIECE	HY8016047
16	FMS	ECO8016LN16	O-RING	HY1013J014	43		ECO8016LN43	FIXED MAGAZINE	HY8016040
17	FMS	ECO8016LN17	O-RING	622115	44	FMS	ECO8016LN44	SUPPORT	HY8016048
18	FMS	ECO8016LN18	BUMPER	HY1013J016	45	FMS	ECO8016LN45	TORSION SPRING	HY7116041
19		ECO8016LN19	BODY	ECO1013F17	46	FMS	ECO8016LN46	PIN	HY1013J039
20	FMS	ECO8016LN20	JOINT GUIDE	HY8016018	47	FMS	ECO8016LN47	LOCK	HY7116043
21	FMS	ECO8016LN21	SEAL	HY1013J019	48	FMS	ECO8016LN48	WASHER	S0410400
22	FMS	ECO8016LN22	TRIGGER VALVE HEAD	HY1013J020	49	FMS	ECO8016LN49	NUT	NEO1005075N
23	FMS	ECO8016LN23	TRIGGER VALVE STEM	HY1013J021	50	FMS	ECO8016LN50	NUT	NEO1005079N
24	FMS	ECO8016LN24	O-RING 6.5X1.5	HY1013J022	51		ECO8016LN51	SOFT GRIP SLEEVE	HY1013J044
25	FMS	ECO8016LN25	O-RING	HY1013J024	52	FMS	ECO8016LN52	O-RING	HY1013J045
26	FMS	ECO8016LN26	TRIGGER VALVE GUIDE	HY1013J023	53		ECO8016LN53	END CAP	HY7116052
27	FMS	ECO8016LN27	SPRING	NEO80028	54		ECO8016LN54	AIR PLUG (ACCESSORY)	S3120PMA

One Sheeter

Application

2 WHEELER SEATS	To fix rexine & foam to moulded plastic base

BICYCLE SEATS	To fix rexine & foam to moulded plastic base

ARTIST'S CANVAS	To fix canvas to wooden frame

SCREEN PRINTING	To fix screens onto the wooden frame
