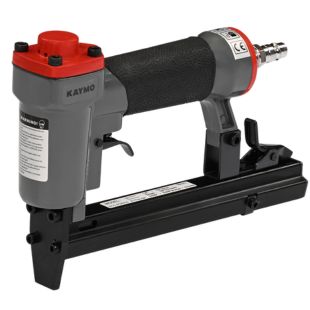

PNEUMATIC STAPLER KAYMO ECO-8016

Name: PNEUMATIC STAPLER KAYMO ECO-8016
Brand: Kaymo
SKU: ECO-PS8016
Price: 3510.0 INR
Availability: InStock

SKU: ECO-PS8016

The KAYMO ECO-PS8016 is a lightweight, high-performance pneumatic stapler designed for precision and ease of use. Its ergonomic rubber grip and curved trigger enhance comfort Read More...

Features:

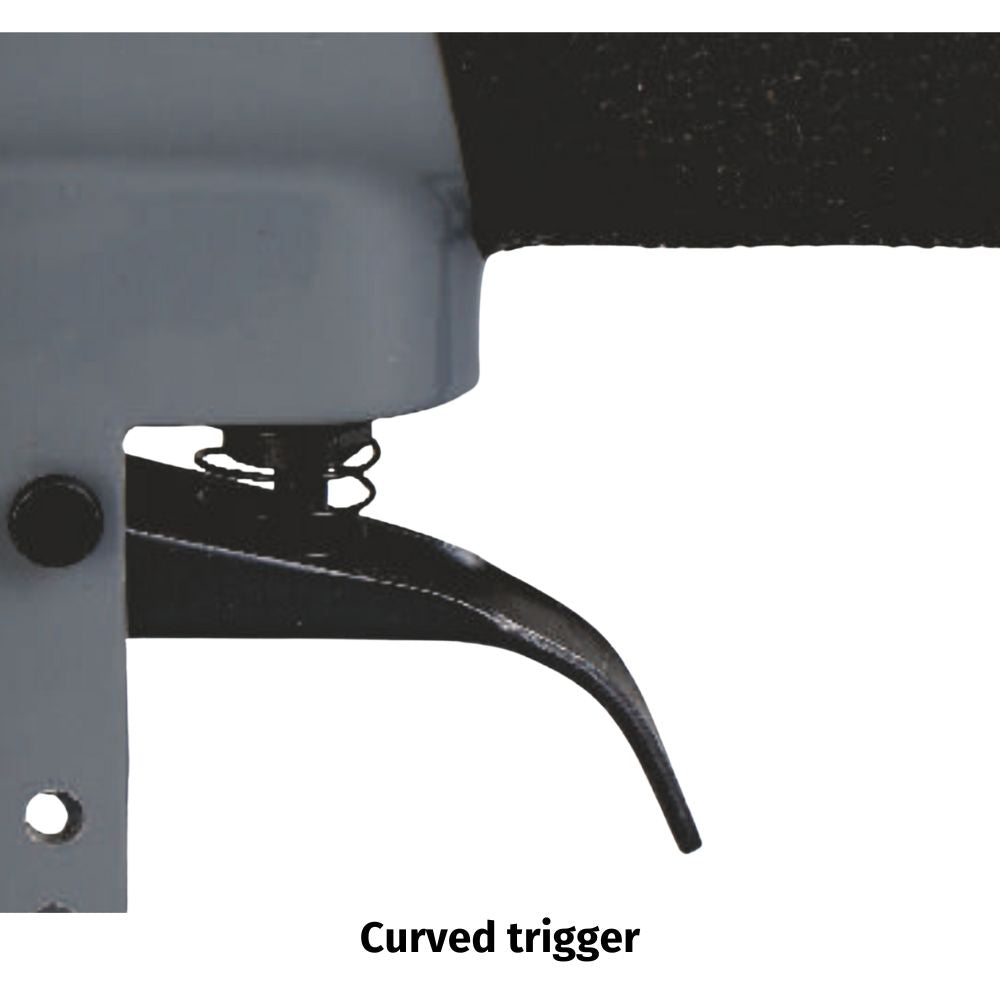

Curved trigger for better operational grip

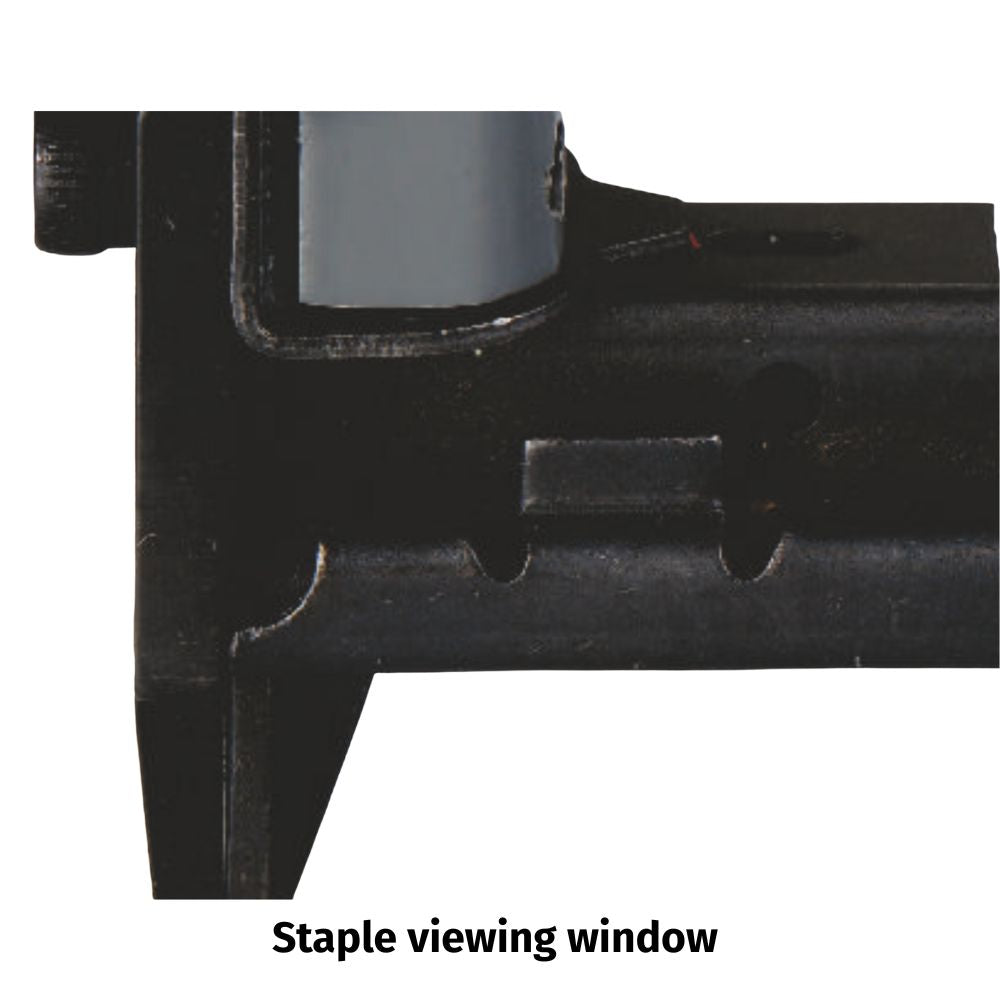

Staple viewing window

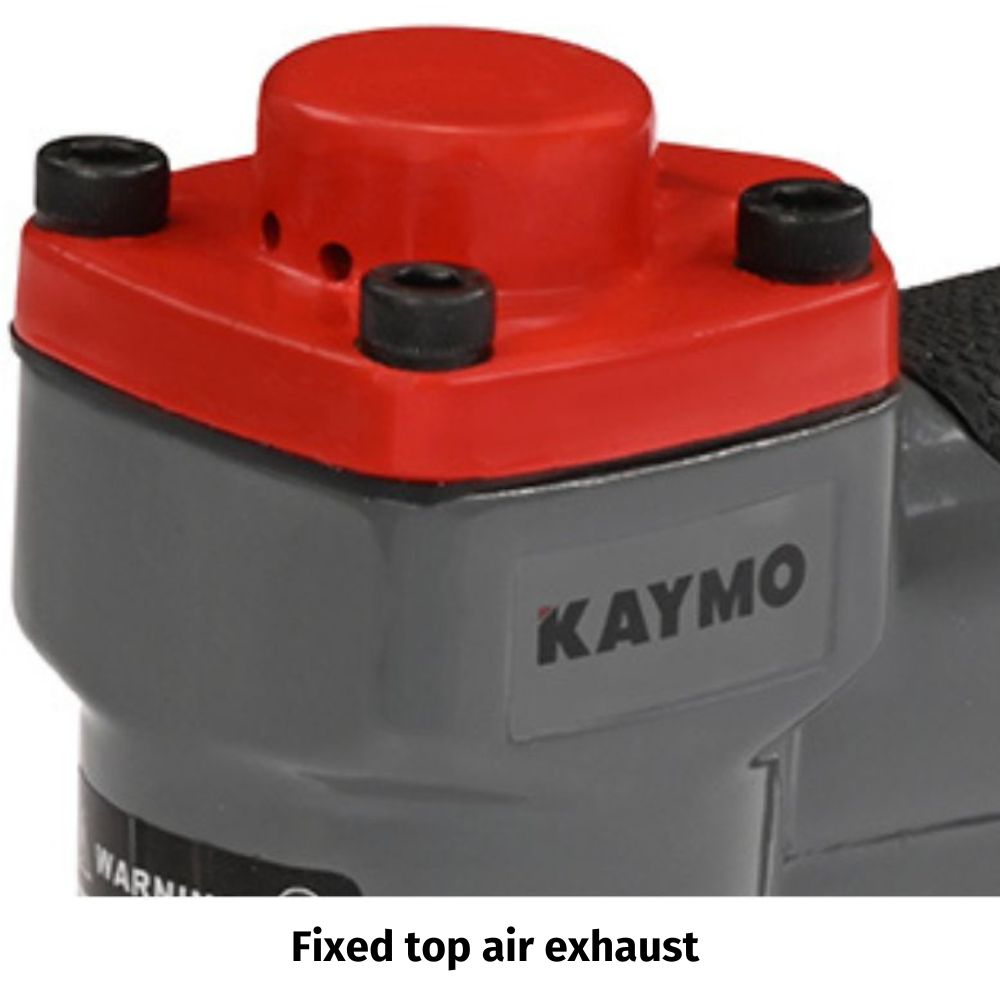

Fixed top air exhaust

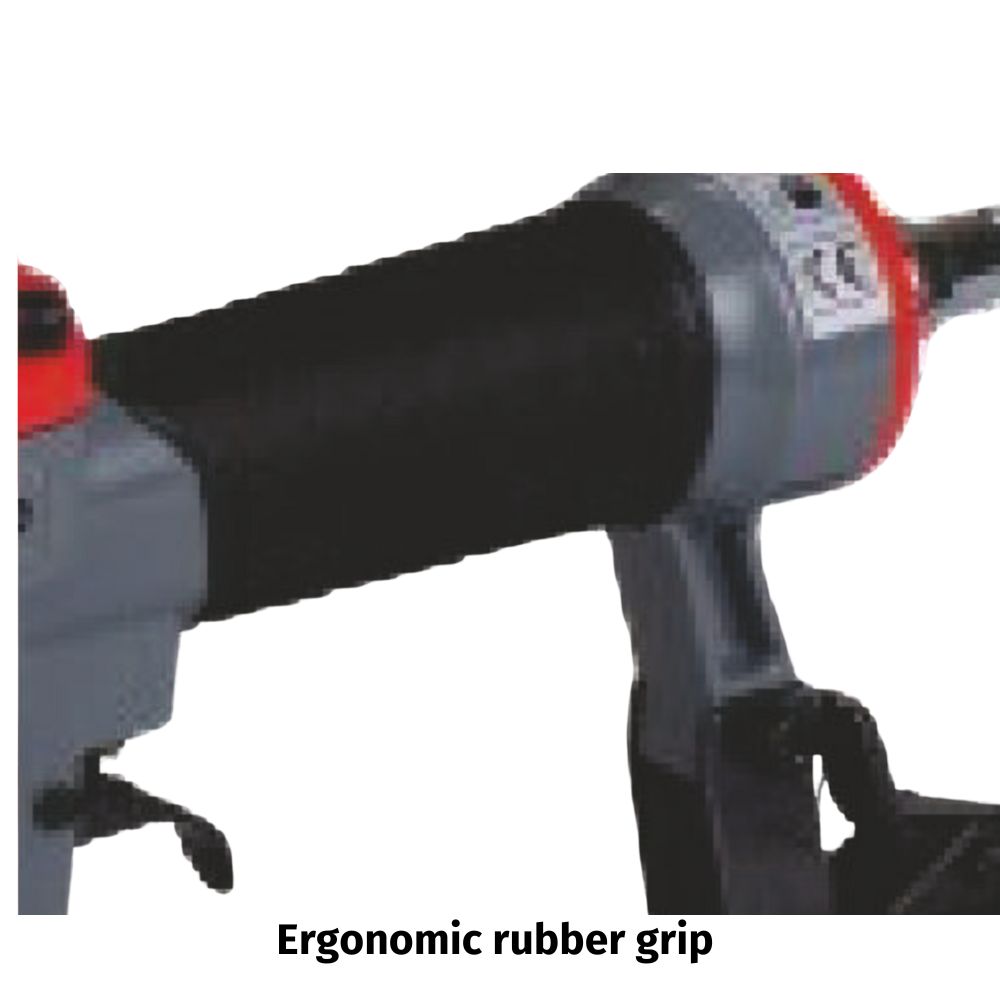

Ergonomic rubber grip
Light weight tool
Durable build
Fastener Range: 6mm - 16 mm

Applications:

Sofas
Chairs
Modular kitchens
Flush doors
Carrom boards
Shoes
Interiors
Artists’ canvas
Screen printing

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

STAPLES KAYMO 80 SERIES

STAPLE REMOVER KAYMO SR

STAPLES KAYMO 80 SERIES BLACK

STAPLES KAYMO 80 SERIES SS

AIR FILTER + REGULATOR LUBRICATOR SET KAYMO 1/4" WITH GAUGE

Blow Up

Spares

		TOOL MODEL:	ECO-PS8016					REV.1ST APRIL 2023
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1	FMS	HY8016001	SCREW	KM0520	28	FMS	HY8016028	LOCKING WASHER	YE2501
2		HY8016002	CYLINDER CAP	ECO1013F02	29		HY8016029	PLATE
3	FMS	HY8016003	GASKET	HY1013J003	30		HY8016030	DRIVE GUIDE
4	FMS	HY8016004	SEAL	HY1013J004	31	FMS	HY8016031	SCREW	KM0520
5	FMS	HY8016005	O-RING 15.7*2	HY1013J005	32	FMS	HY8016032	PIN	HY7116032
6	FMS	HY8016006	SPRING	HY1013J006	33	FMS	HY8016033	SCREW	KM0412
7	FMS	HY8016007	O-RING 31.3*2.3		34	FMS	HY8016034	FEEDER SHOE
8	FMS	HY8016008	VALVE	HY1013J008	35	FMS	HY8016035	TENSION SPRING	UH0901
9	FMS	HY8016009	O-RING 26.8*2.8	HY1013J009	36	FMS	HY8016036	WHEEL
10	FMS	HY8016010	STOPPED WASHER	HY1013J010	37		HY8016037	PIN
11	FMS	HY8016011	COLLAR	HY1013J011	38	FMS	HY8016038	MOVABLE MAGAZINE
12	FMS	HY8016012	O-RING 23.3*3	HY1013J012	39	FMS	HY8016039	SCREW	HY7116039
13	FMS	HY8016013	PISTON ASSEMBLY		40	FMS	HY8016040	FIXED MAGAZINE
14	FMS	HY8016014	O-RING 35.3*2.5	HY1013J014	41	FMS	HY8016041	TORSION SPRING	HY7116041
15	FMS	HY8016015	CYLINDER	HY1013J015	42	FMS	HY8016042	PIN	HY1013J039
16	FMS	HY8016016	BUMPER	HY1013J016	43	FMS	HY8016043	LOCK	HY7116043
17		HY8016017	BODY	ECO1013F17	44		HY8016044	NUT	NEO1005075N
18	FMS	HY8016018	JOINT GUIDE		45		HY8016045	SPRING WASHER	S0410400
19	FMS	HY8016019	SEAL	HY1013J019	46	FMS	HY8016046	SCREW	KM0406
20	FMS	HY8016020	TRIGGER VALVE HEAD	HY1013J020	47	FMS	HY8016047	STOPPED PIECE
21	FMS	HY8016021	TRIGGER VALVE STEM	HY1013J021	48	FMS	HY8016048	SUPPORT
22	FMS	HY8016022	O-RING 5.5*1.5	HY1013J022	49		HY8016049	NUT	NEO1005079N
23	FMS	HY8016023	O-RING 15*1.9	HY1013J024	50		HY8016050	SOFT GRIP SLEEVE	HY1013J044
24	FMS	HY8016024	TRIGGER VALVE GUIDE	HY1013J023	51	FMS	HY8016051	O-RING 40.2*2.3	HY1013J045
25	FMS	HY8016025	SPRING	NEO80028	52		HY8016052	END CAP	HY7116052
26		HY8016026	TRIGGER	ECO1013F26	53		HY8016053	AIR PLUG	S3120PMA
27		HY8016027	PIN	HY1013J027

One Sheeter

Application

SOFAS	To fix 3mm / 4mm veneer to wooden frame
	To fix upholstery & elastic band
CHAIRS	To fix upholstery to chair / stool base
MODULAR / KITCHENS	To fix fabric to MDF, particle board or ply tiles
WOODEN FLOORING	To fix rubber pad to wooden runner base
FLUSH DOORS	To join wooden strips together
CARROM BOARDS	To fix netted pockets
SHOES	To fix sole to the heel
ARTIST'S CANVAS	To fix canvas to wooden frame
SCREEN PRINTING	To fix screens onto the wooden frame
