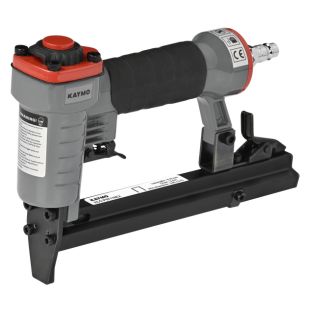

PNEUMATIC STAPLER KAYMO ECO-7116E2

SKU: ECO-PS7116E2

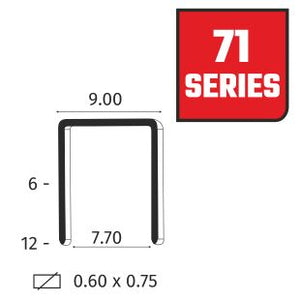

Ergonomic rubber grip. Metal internal parts. Economically priced spares. Air requirement: CFM. PRESSURE: 60- 90 psi. Fasteners recommended: 6-16 mm

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

₹ 3,560/-
Blow Up
Spares
TOOL MODEL: ECO-PS7116E2
SR FMS PART CODE PART NAME ALT CODE RATE SR FMS PART CODE PART NAME ALT CODE RATE
1   HY7116E2001 SCREW KM0520 50 29   HY7116E2029 TRIGGER   40
2   HY7116E2002 EXHAUST COVER ECO642260 100 30   HY7116E2030 PIN HY1013J027 22
3   HY7116E2003 CYLINDER CAP ECO642202 165 31   HY7116E2031 SCREW KM0412 50
4   HY7116E2004 GASKET HY1013J003 40 32   HY7116E2032 DRIVE GUIDE HY7116030 120
5   HY7116E2005 SEAL HY1013J004 40 33   HY7116E2033 SPRING PIN HY7116032 22
6   HY7116E2006 O-RING 15.7*2 HY1013J005 22 34   HY7116E2034 FRONT PLATE HY7116029 33
7   HY7116E2007 SPRING HY1013J006 22 35   HY7116E2035 FIXED MAGAZINE UNIT HY7116040 440
8   HY7116E2008 O-RING 31.3*2.3 HY8016007 40 36   HY7116E2036 SCREW HY7116039 33
9   HY7116E2009 VALVE   100 37   HY7116E2037 STOPPED PIECE HY8016047 30
10   HY7116E2010 O-RING 26.8*2.8 HY1013J009 30 38   HY7116E2038 SCREW KM0406 50
11   HY7116E2011 COLLAR HY1013J011 30 39   HY7116E2039 MOVABLE MAGAZINE UNIT HY7116038 710
12   HY7116E2012 O-RING 16.7*2.8   15 40   HY7116E2040 PIN   15
13   HY7116E2013 O-RING 23.3*3 HY1013J012 30 41   HY7116E2041 WHEEL HY7116036 50
14   HY7116E2014 PISTON ASSEMBLY   460 42   HY7116E2042 TENSION SPRING UH0901 120
15   HY7116E2015 O-RING 35.3*2.5 HY1013J014 22 43   HY7116E2043 FEEDER SHOE HY7116034 40
16   HY7116E2016 CYLINDER   365 44   HY7116E2044 SPRING WASHER S0410400 22
17   HY7116E2017 BUMPER HY1013J016 105 45   HY7116E2045 NUT NEO1005075N 14
18   HY7116E2018 JOINT GUIDER   20 46   HY7116E2046 SUPPORT HY8016048 65
19   HY7116E2019 BODY   1050 47   HY7116E2047 SCREW KM0520 50
20   HY7116E2020 SEAL HY1013J019 30 48   HY7116E2048 PIN HY1013J039 65
21   HY7116E2021 TRIGGER VALVE HEAD HY1013J020 65 49   HY7116E2049 TORSION SPRING HY7116041 30
22   HY7116E2022 O-RING 15*1.9 HY1013J024 22 50   HY7116E2050 LOCK HY7116043 140
23   HY7116E2023 TRIGGER VALVE GUIDER HY1013J023 22 51   HY7116E2051 NUT NEO1005079N 15
24   HY7116E2024 O-RING 6.5*1.4 HY1013J022 22 52   HY7116E2052 SOFT GRIP SLEEVE HY1013J044 105
25   HY7116E2025 TRIGGER VALVE STEM HY1013J021 55 53   HY7116E2053 O-RING 40.2*2.3 HY1013J045 55
26   HY7116E2026 SAFE BRACKET   25 54   HY7116E2054 END CAP HY7116052 240
27   HY7116E2027 SPRING HY1013J025 22 55   HY7116E2055 AIR PLUG S3120PMA5208 50
28   HY7116E2028 LOCKING WASHER YE2501 22
One Sheeter
Application
MODULAR / KITCHENS To fix fabric to MDF, particle board or ply tiles

To join MDF to MDF, ply & particle board
SHOES To fix sole to the heel
