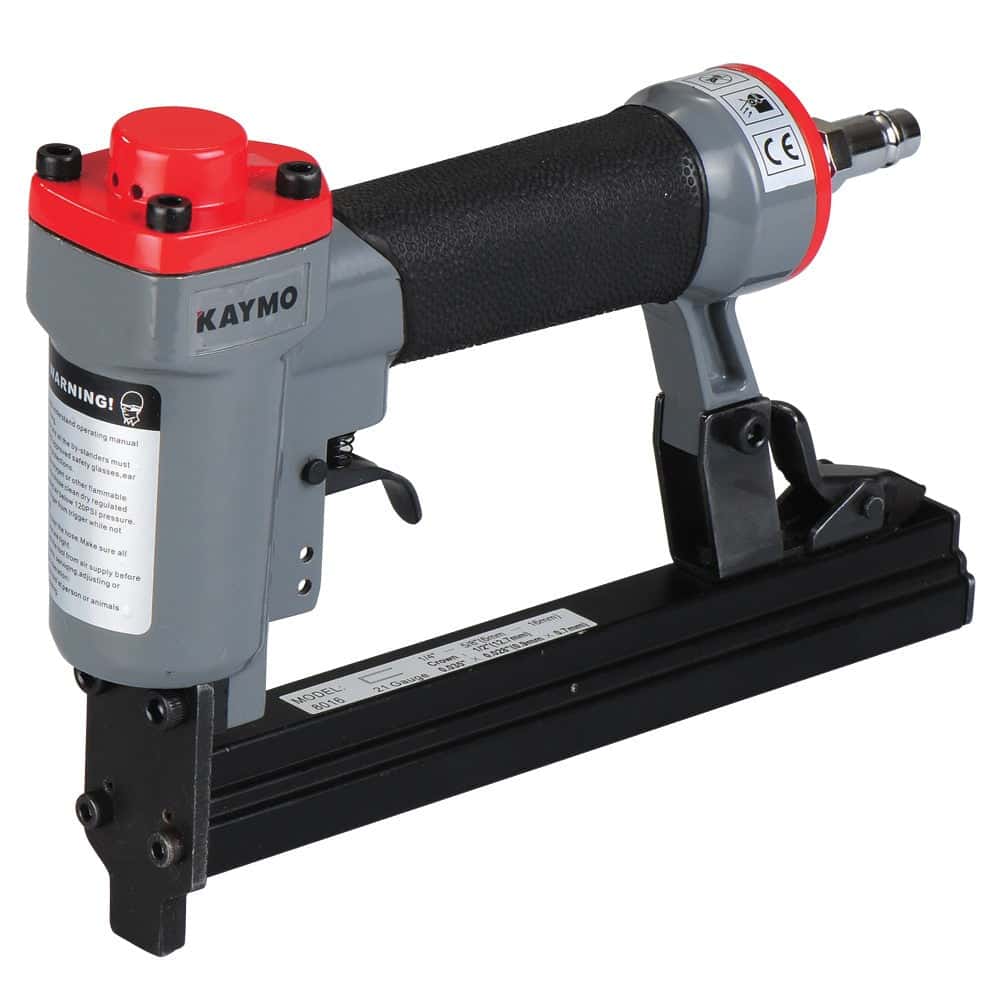

PNEUMATIC STAPLER KAYMO ECO-7116

Name: PNEUMATIC STAPLER KAYMO ECO-7116
Brand: Kaymo
SKU: ECO-PS7116
Price: 3560.0 INR
Availability: InStock

SKU: ECO-PS7116

Ergonomic rubber grip. Metal internal parts. Economically priced spares. Air requirement: CFM. PRESSURE: 60- 90 psi. Fasteners recommended: 6-16 mm

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

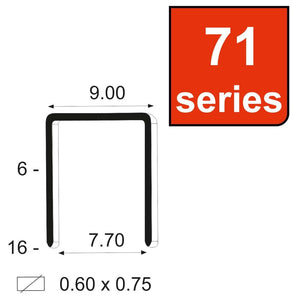

STAPLES KAYMO 71 SERIES HEAVY DUTY

1/4" FRL AIR CONTROL FRL512

PUSH-TO-CONNECT FITTING JPC STRAIGHT 1/4

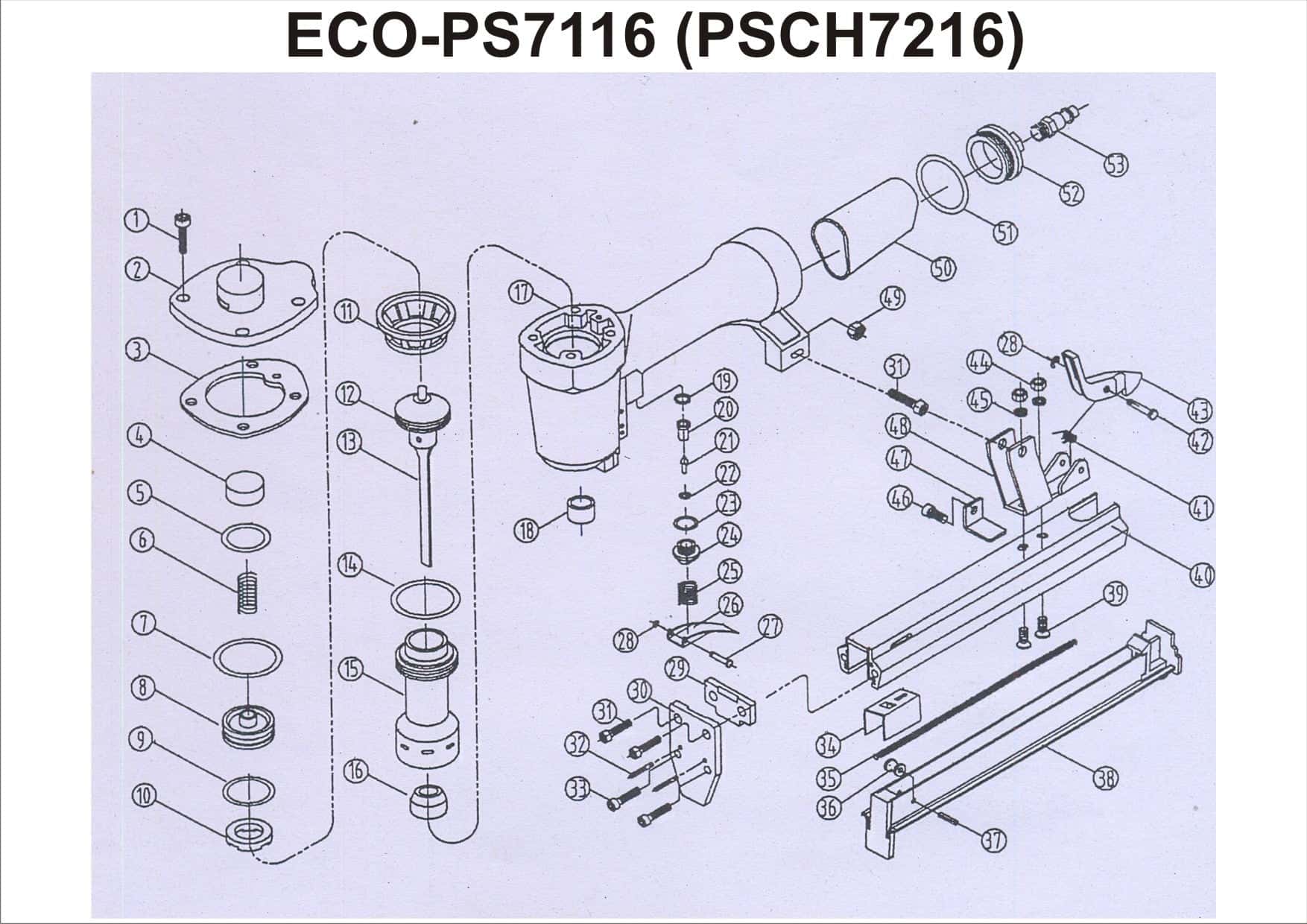

Blow Up

Spares

.		TOOL MODEL	ECO-PS7116					REV.1ST APRIL 2022
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1	FMS	HY7116001	SCREW	KM0520	28	FMS	HY7116028	LOCKING WASHER	YE2501
2		HY7116002	CYLINDER CAP	ECO1013F02	29		HY7116029	PLATE
3	FMS	HY7116003	GASKET	HY1013J003	30		HY7116030	DRIVER GUIDE
4	FMS	HY7116004	SEAL	HY1013J004	31	FMS	HY7116031	SCREW	KM0520
5	FMS	HY7116005	O-RING 15.7*2	HY1013J005	32	FMS	HY7116032	PIN
6	FMS	HY7116006	SPRING	HY1013J006	33	FMS	HY7116033	SCREW	KM0412
7	FMS	HY7116007	O-RING 31.3*2.3	HY8016007	34	FMS	HY7116034	FEEDER SHOE
8	FMS	HY7116008	VALVE	HY1013J008	35	FMS	HY7116035	TENSION SPRING	UH0901
9	FMS	HY7116009	O-RING 26.8*2.8	HY1013J009	36	FMS	HY7116036	WHEEL
10	FMS	HY7116010	STOPPED WASHER	HY1013J010	37		HY7116037	PIN	HY8016037
11	FMS	HY7116011	COLLAR	HY1013J011	38		HY7116038	MOVABLE MAGAZINE
12	FMS	HY7116012	O-RING 23.3*3	HY1013J012	39	FMS	HY7116039	SCREW
13	FMS	HY7116013	PISTON ASSEMBLY		40		HY7116040	FIXED MAGAZINE
14	FMS	HY7116014	O-RING 35.3*2.5	HY1013J014	41	FMS	HY7116041	TORSION SPRING
15	FMS	HY7116015	CYLINDER	HY1013J015	42	FMS	HY7116042	PIN	HY1013J039
16	FMS	HY7116016	BUMPER	HY1013J016	43	FMS	HY7116043	LOCK
17		HY7116017	BODY	ECO1013F17	44		HY7116044	NUT	NEO1005075N
18	FMS	HY7116018	JOINT GUIDE	HY8016018	45		HY7116045	SPRING WASHER	S0410400
19	FMS	HY7116019	SEAL	HY1013J019	46	FMS	HY7116046	SCREW	KM0406
20	FMS	HY7116020	TRIGGER VALVE HEAD	HY1013J020	47	FMS	HY7116047	STOPPED PIECE
21	FMS	HY7116021	TRIGGER VALVE STEM	HY1013J021	48	FMS	HY7116048	SUPPORT	HY8016048
22	FMS	HY7116022	O-RING 5.5*1.5	HY1013J022	49		HY7116049	NUT	NEO1005079N
23	FMS	HY7116023	O-RING 15*1.9	HY1013J024	50		HY7116050	SOFT GRIP SLEEVE	HY1013J044
24	FMS	HY7116024	TRIGGER VALVE GUIDE	HY1013J023	51	FMS	HY7116051	O-RING 40.2*2.3	HY1013J045
25	FMS	HY7116025	SPRING	HY1013J025	52		HY7116052	END CAP
26		HY7116026	TRIGGER	ECO1013F26	53		HY7116053	AIR PLUG	ACC016
27		HY7116027	PIN	HY1013J027

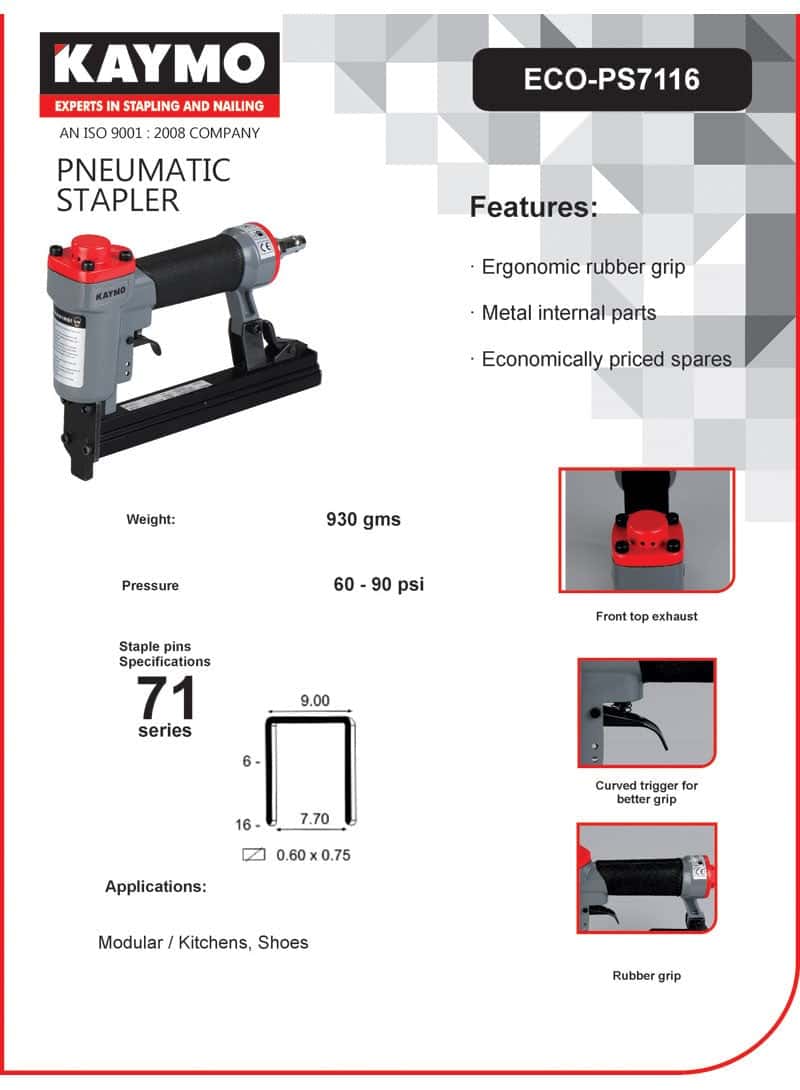

One Sheeter

Application

MODULAR / KITCHENS	To fix fabric to MDF, particle board or ply tiles
	To join MDF to MDF, ply & particle board
SHOES	To fix sole to the heel
