PNEUMATIC STAPLER KAYMO ECO-1022J

Name: PNEUMATIC STAPLER KAYMO ECO-1022J
Brand: Kaymo Fastener Company
SKU: ECO-PS1022J
Availability: InStock

SKU: ECO-PS1022J

The KAYMO ECO-PS1022J is a versatile and efficient pneumatic stapler designed for precise and secure fastening. Equipped with a staple viewing window, large magazine latch, Read More...

Features:

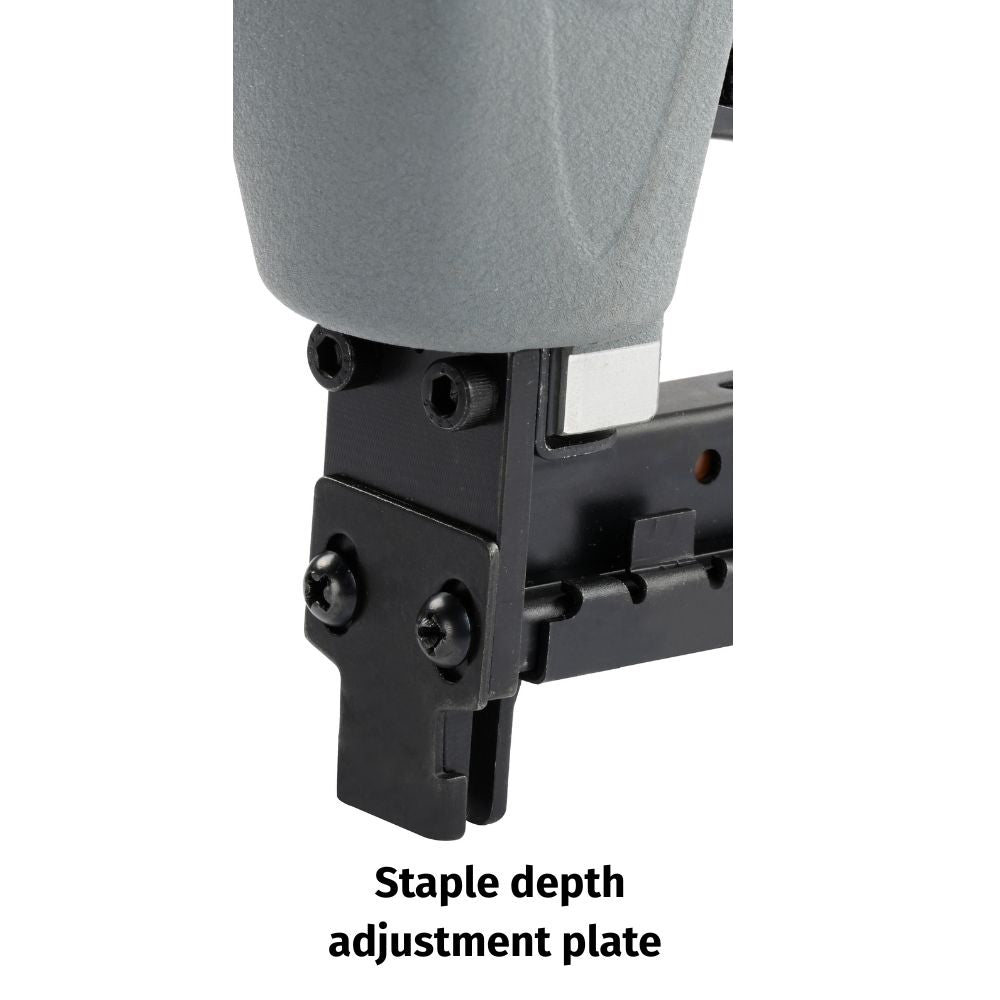

Staple depth adjustment plate

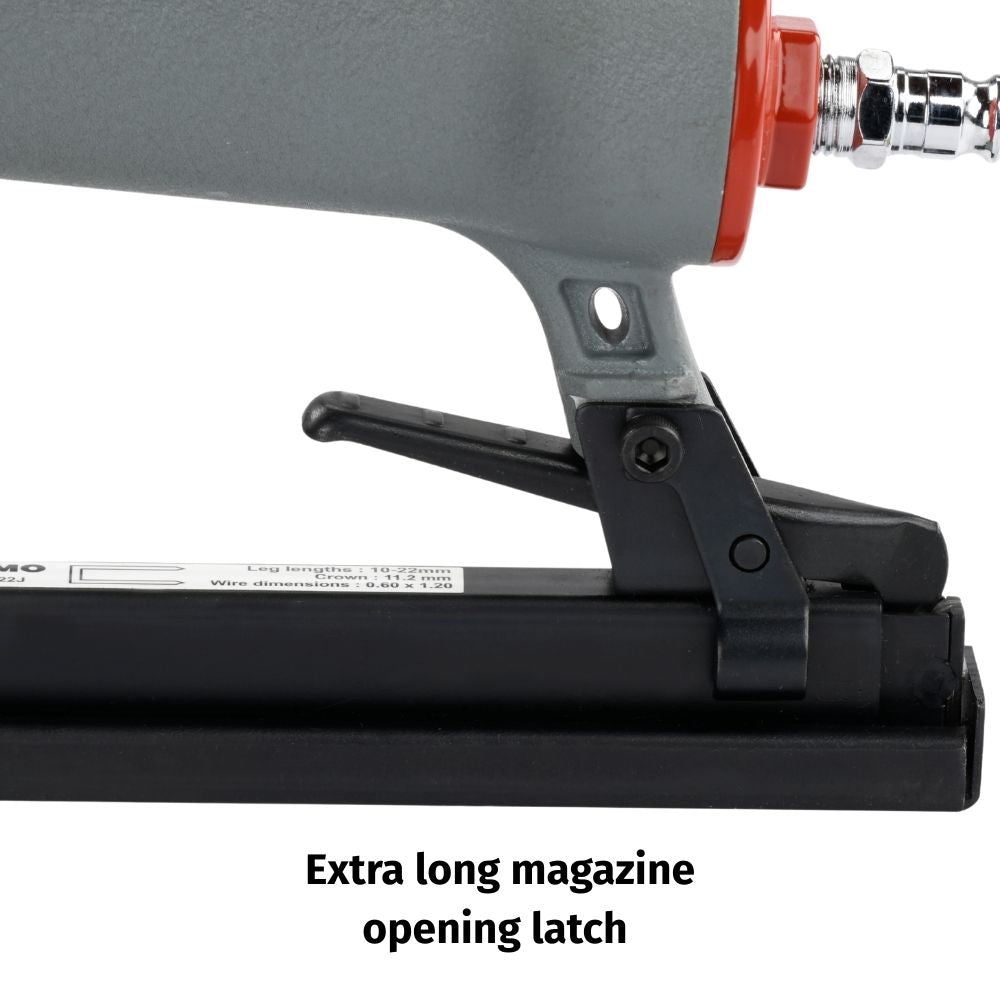

Extra long magazine opening latch

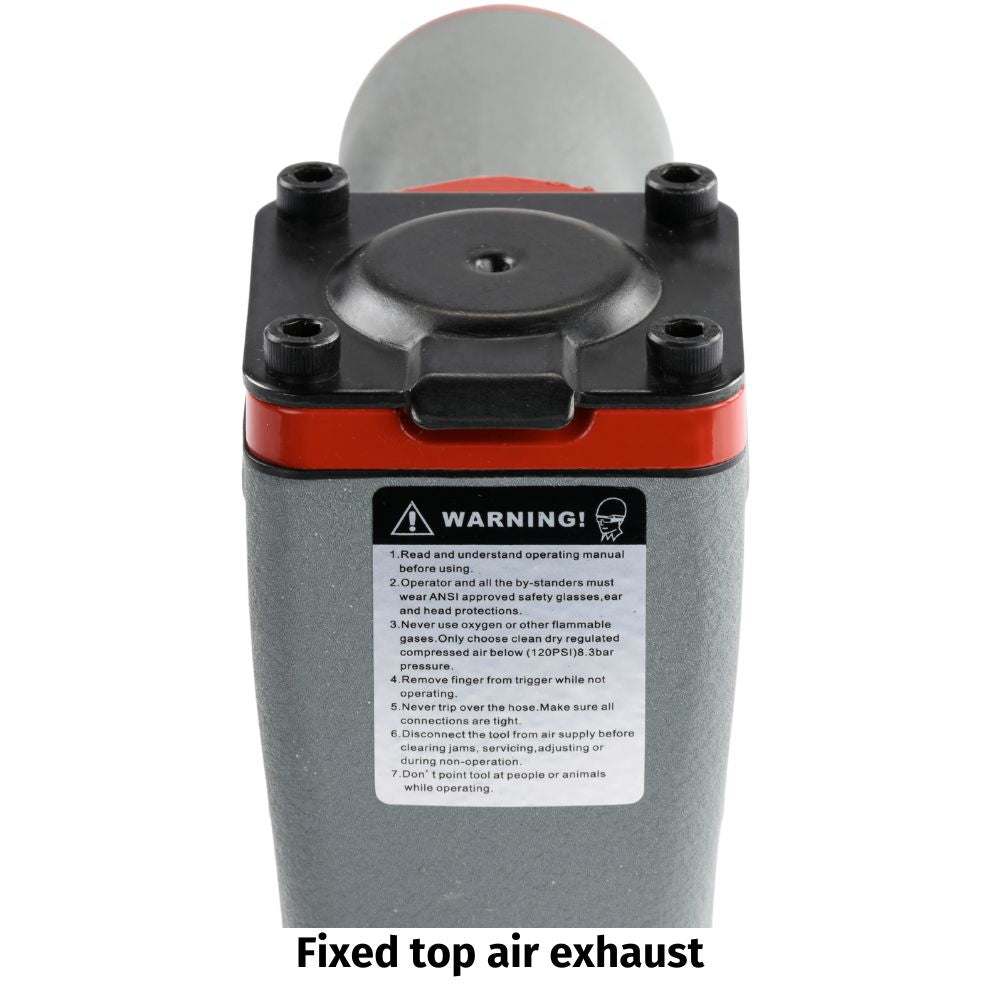

Fixed top air exhaust
Easy reach nose plate

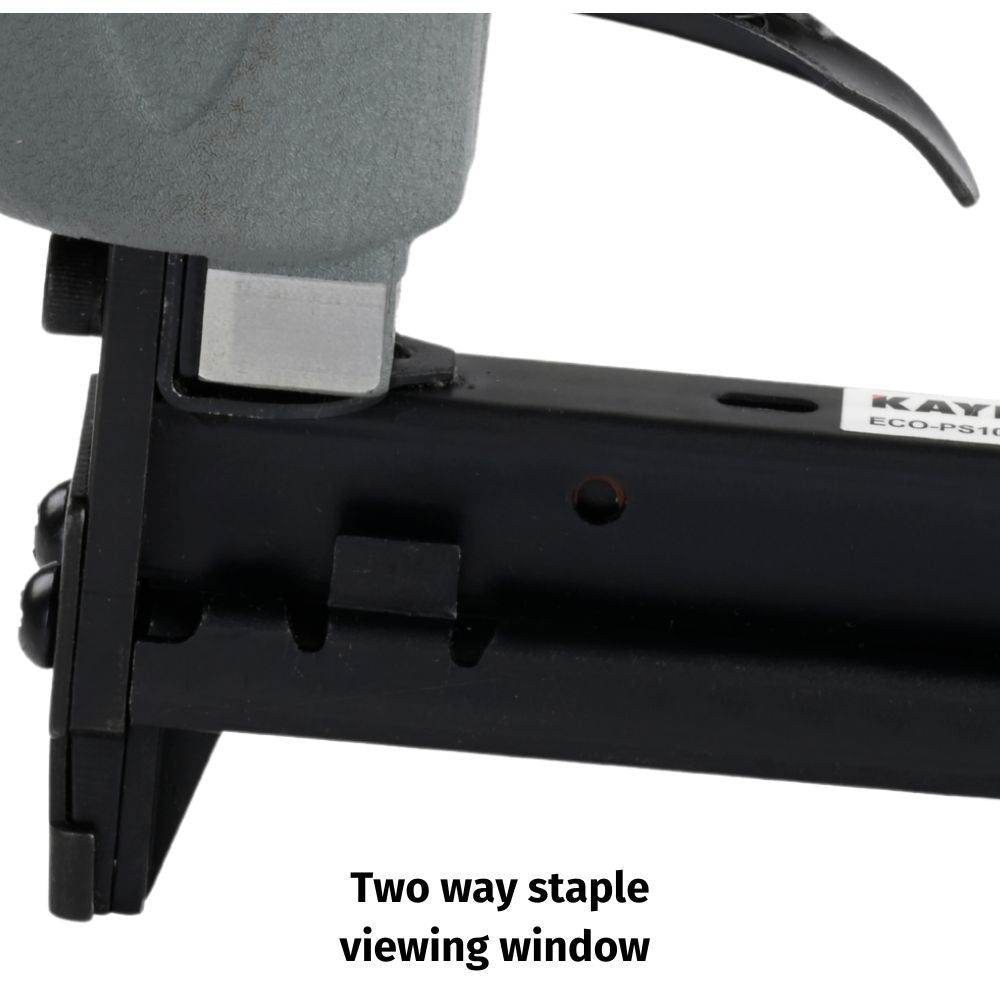

Staple viewing window
Fastener Range: 10mm – 22mm

Applications:

Sofas
Chairs
Upholstery
Modular kitchens
Carrom boards

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

STAPLES KAYMO 10J SERIES

AIR FILTER + REGULATOR LUBRICATOR SET KAYMO 1/4" WITH GAUGE

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

BLOW UP

SPARES

		TOOL MODEL:	ECO-PS1022J					REV.1ST APRIL 2023
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1	FMS	ECO1022J001	SCREW	KM0520	25	FMS	ECO1022J025	SPRING	NEO80028
2	FMS	ECO1022J002	EXHAUST COVER		26		ECO1022J026	TRIGGER	ECO1013JV226
3		ECO1022J003	CYLINDER CAP		27	FMS	ECO1022J027	PIN	HY1013J027
4		ECO1022J004	GASKET		28		ECO1022J028	LOCKING WASHER	YE2501
5	FMS	ECO1022J005	SPRING		29		ECO1022J029	SPACER	HY1013J028
6	FMS	ECO1022J006	O RING 18.4 X 2.4		30		ECO1022J030	DRIVER GUIDE
7	FMS	ECO1022J007	O RING 36.3 X 2.5		31		ECO1022J031	ADJUST PLATE
8	FMS	ECO1022J008	VALVE		32	FMS	ECO1022J032	SCREW
9	FMS	ECO1022J009	O RING 31.5 X 3.5		33	FMS	ECO1022J033	MOVABLE MAGAZINE
11		ECO1022J011	COLLAR		34	FMS	ECO1022J034	WHEEL
12		ECO1022J012	O RING 48.5 X 2.5		35	FMS	ECO1022J035	FEEDER SHOE
13		ECO1022J013	O RING 27.4 X 3		36		ECO1022J036	SPRING
14	FMS	ECO1022J014	PISTON ASSEMBLY		37		ECO1022J037	FIXED MAGAZINE
15	FMS	ECO1022J015	CYLINDER		38	FMS	ECO1022J038	SPRING PIN
16	FMS	ECO1022J016	BUMPER		39	FMS	ECO1022J039	SCREW	KM0520
17		ECO1022J017	BODY		40		ECO1022J040	PIN	HY1013J039
18		ECO1022J018	JOINT GUIDE	ECO1013F18	41		ECO1022J041	STOPPED PIECE
19	FMS	ECO1022J019	SEAL	HY1013J019	42		ECO1022J042	TORSION SPRING	ECO1013F41
20	FMS	ECO1022J020	TRIGGER VALVE HEAD	HY1013J020	43	FMS	ECO1022J043	LOCK
21	FMS	ECO1022J021	TRIGGER VALVE STEM	HY1013J021	44		ECO1022J044	NUT	NEO1005059N
22	FMS	ECO1022J022	O RING 6.5 X 1.4	HY1013J022	45		ECO1022J045	END CAP	HY7116052
23	FMS	ECO1022J023	O RING 15 X 1.9	HY1013J024	46		ECO1022J046	O RING 40.2 X 2.3	HY1013J045
24	FMS	ECO1022J024	TRIGGER VALVE GUIDER	HY1013J023	47		ECO1022J047	AIR PLUG	S3120PMA
					2A		ECO1022J002a	SEAL

ONE SHEETER

APPLICATION

SOFAS	To fix 3mm / 4mm veneer to wooden frame
	To fix upholstery & elastic band
MODULAR / KITCHENS	To fix fabric to MDF, particle board or ply tiles
BICYCLE SEATS	To fix rexine & foam to moulded plastic base
