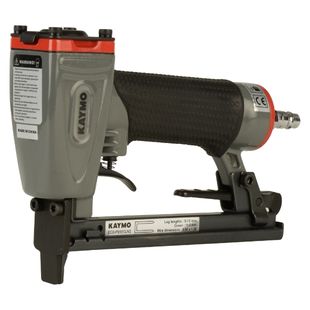

PNEUMATIC STAPLER KAYMO ECO-1013JV2

Name: PNEUMATIC STAPLER KAYMO ECO-1013JV2
Brand: Kaymo
SKU: ECO-PS1013JV2
Availability: InStock

SKU: ECO-PS1013JV2

The KAYMO ECO-PS1013JV2 is a durable and efficient pneumatic stapler, designed for precision and ease of use. Its robust housing allows better airflow, ensuring smooth Read More...

Features:

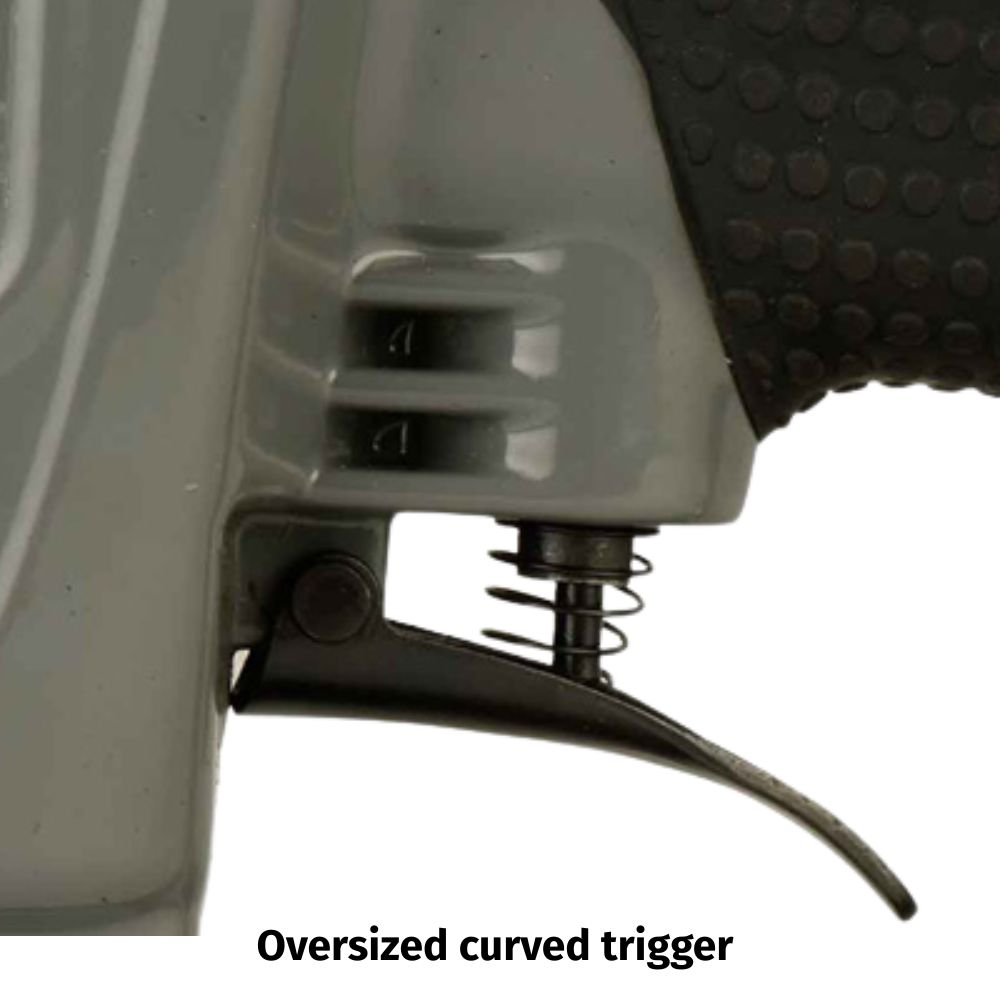

Curved trigger for better operational grip

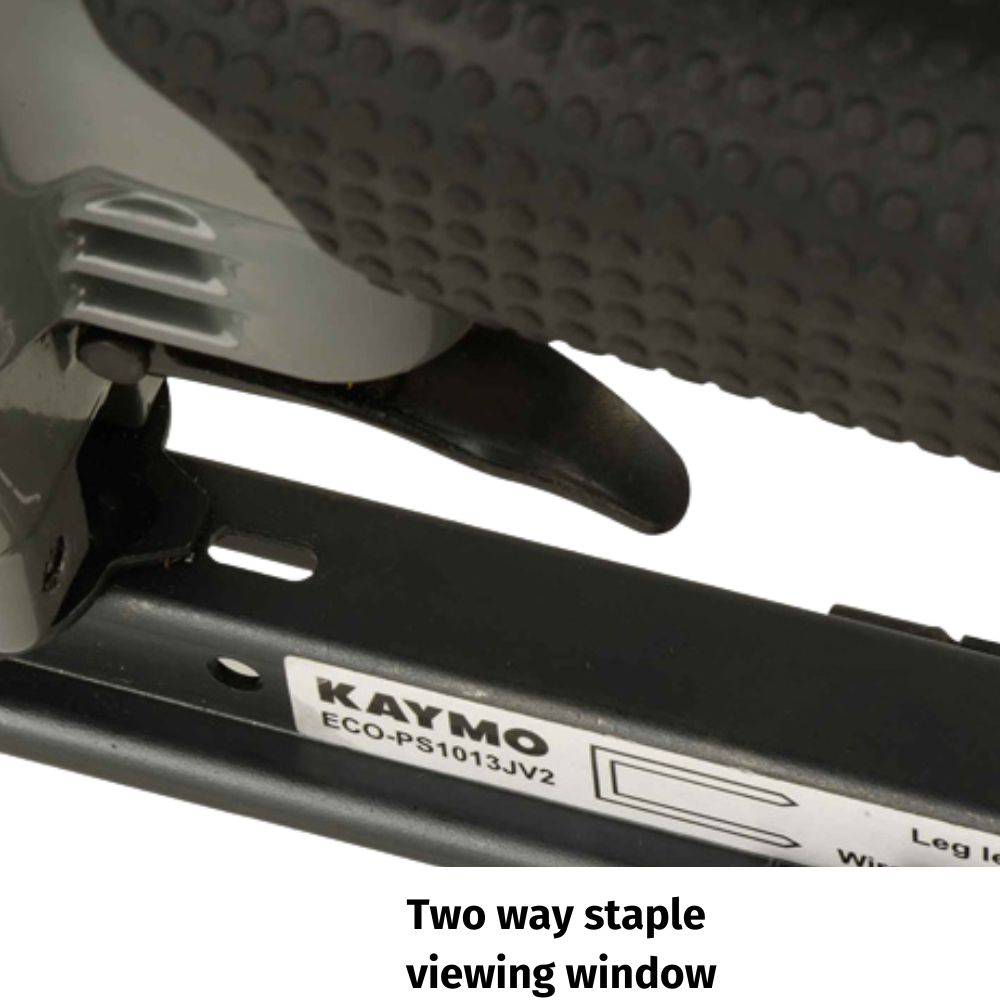

Staple viewing window

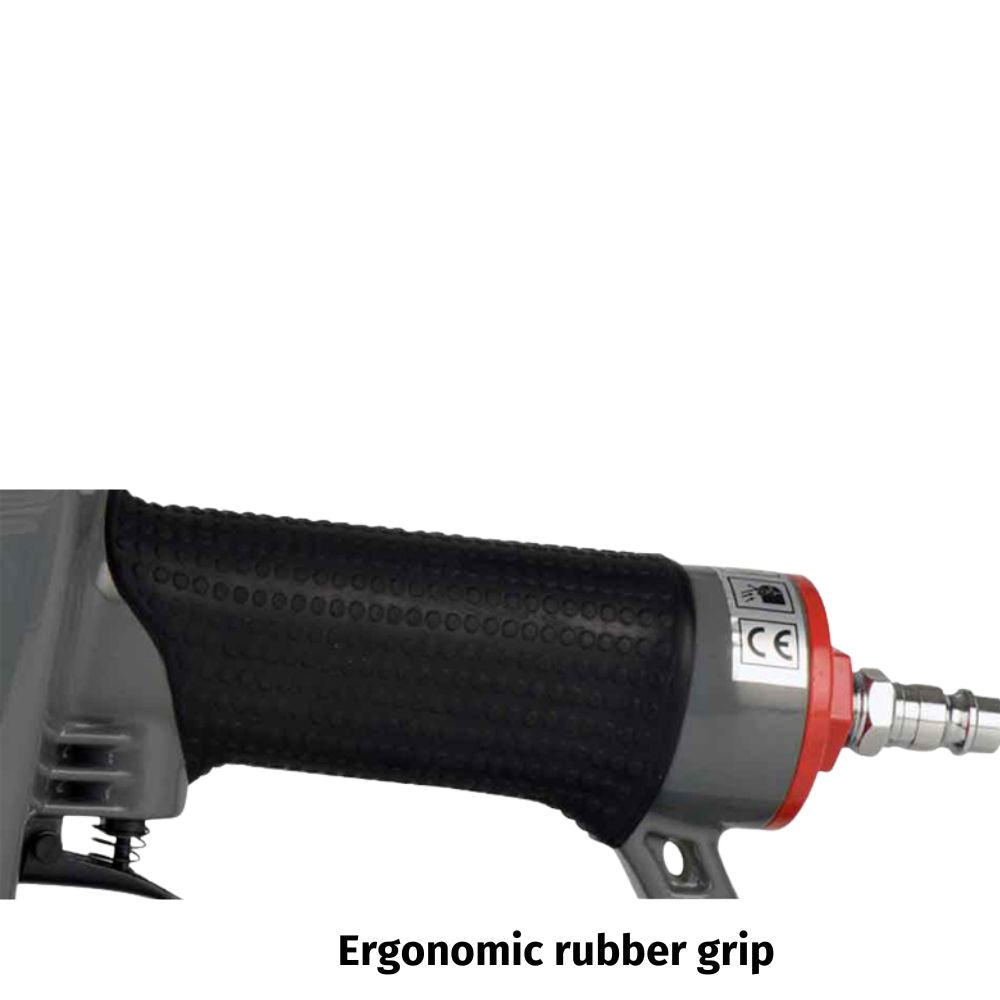

Ergonomic rubber grip
Robust housing body
Fastener Range: 6mm – 13mm

Applications:

Furniture
Sofas
Carrom boards
2-wheeler seats
Upholstery

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

STAPLES KAYMO 10J SERIES

AIR FILTER + REGULATOR LUBRICATOR SET KAYMO 1/4" WITH GAUGE

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

Blow Up

Spares

		TOOL MODEL:	ECO-PS1013JV2					REV.1ST ARPIL 2023
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1	FMS	ECO1013JV201	SCREW	KM0520	25	FMS	ECO1013JV225	SPRING	NEO80028
2	FMS	ECO1013JV202	SEAL		26		ECO1013JV226	TRIGGER
3		ECO1013JV203	CYLINDER CAP		27	FMS	ECO1013JV227	LOCK WASHER	YE2501
4		ECO1013JV204	GASKET		28		ECO1013JV228	PIN	HY1013J027
5	FMS	ECO1013JV205	O-RING	HY1013J005	29		ECO1013JV229	SPACER	HY1013J028
6	FMS	ECO1013JV206	SPRING	HY1013J006	30		ECO1013JV230	DRIVE GUIDE	HY1013J030
7	FMS	ECO1013JV207	VALVE	HY1013J008	31		ECO1013JV231	MAGAZINE	ECO1013F32
8	FMS	ECO1013JV208	O-RING	HY8016007	32	FMS	ECO1013JV232	FEEDER SHOE	HY1013J033
9	FMS	ECO1013JV209	O-RING	HY1013J009	33	FMS	ECO1013JV233	SPRING	ECO1013F34
10	FMS	ECO1013JV210	STOPPED WASHER	HY1013J010	34	FMS	ECO1013JV234	SPRING GUIDER	HY1013J035
11		ECO1013JV211	COLLAR		35	FMS	ECO1013JV235	SCREW	HY1013J036
12		ECO1013JV212	O-RING		36		ECO1013JV236	MAGAZINE
13		ECO1013JV213	CYLINDER		37		ECO1013JV237	SCREW	KM0520
14	FMS	ECO1013JV214	O-RING	HY1013J012	38	FMS	ECO1013JV238	PIN	HY1013J039
15	FMS	ECO1013JV215	PISTON ASSEMBLY	HY1013J013	39	FMS	ECO1013JV239	STOPPDE PIECE	HY1013J040
16	FMS	ECO1013JV216	BUMPER	HY1013J016	40		ECO1013JV240	TORSIN SPRING	ECO1013F41
17		ECO1013JV217	BODY		41		ECO1013JV241	LOCK	ECO1013F42
18		ECO1013JV218	JOINT GUIDER		42		ECO1013JV242	NUT	NEO1005079N
19	FMS	ECO1013JV219	SEAL	HY1013J019	43	FMS	ECO1013JV243	O-RING	HY1013J045
20	FMS	ECO1013JV220	TRIGGER VALVE HEAD	HY1013J020	44		ECO1013JV244	END CAP	HY7116052
21	FMS	ECO1013JV221	O-RING	HY1013J022	45		ECO1013JV245	AIR PLUG	S3120PMA5208
22	FMS	ECO1013JV222	TRIGGER VALVE STEM	HY1013J021	46		ECO1013JV246	SOFT GRIP SLEEVE	HY1013J044
23	FMS	ECO1013JV223	O-RING	HY1013J024	2A		ECO1013JV202A	EXHAUST COVER
24	FMS	ECO1013JV224	TRIGGER VALVE GUIDE	HY1013J023

One Sheeter

Application

Furniture & Interiors

Sofas, modular kitchens, and more
