PNEUMATIC STAPLER KAYMO ECO-1013F

Name: PNEUMATIC STAPLER KAYMO ECO-1013F
Brand: Kaymo
SKU: ECO-PS1013F
Price: 1.0 INR
Availability: InStock

SKU: ECO-PS1013F

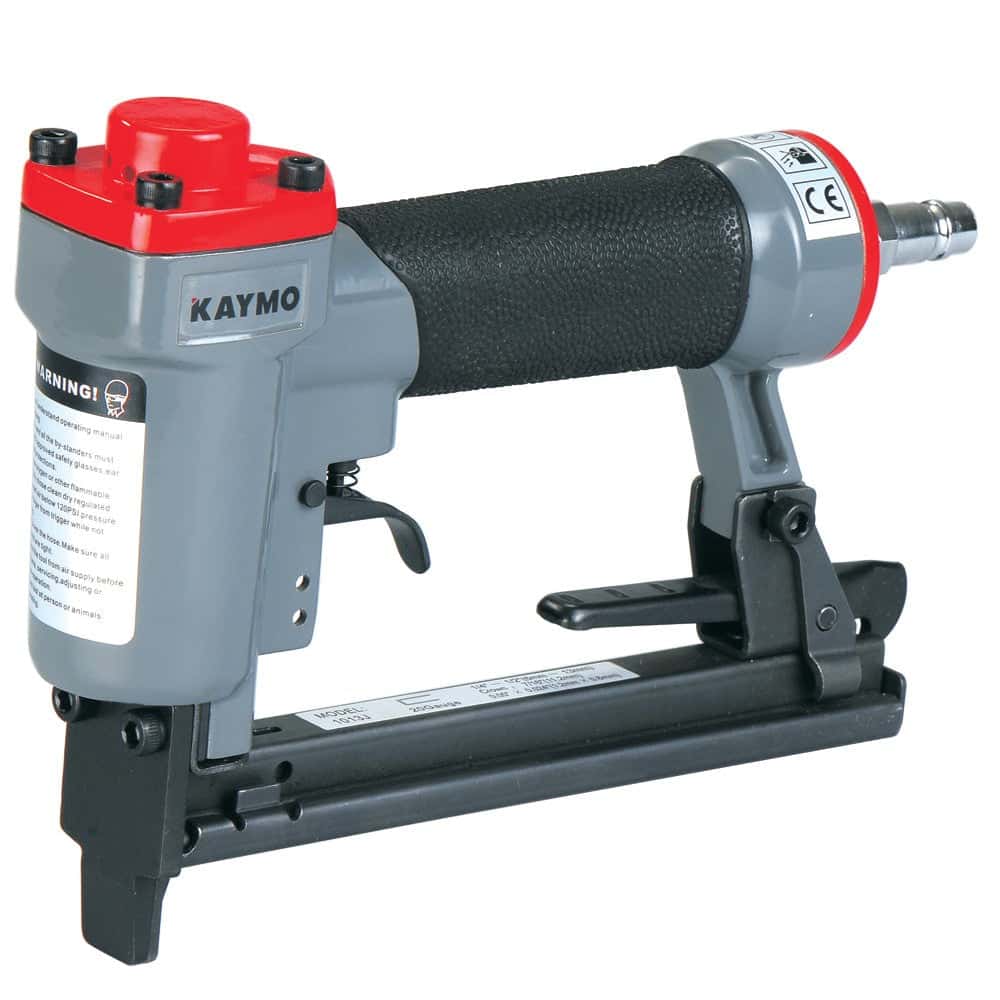

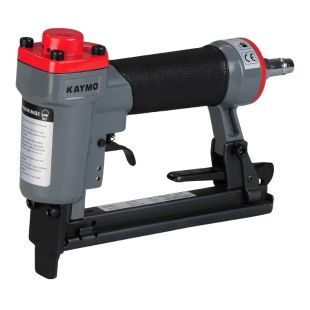

The KAYMO ECO-PS1013F is a lightweight and ergonomic pneumatic stapler, designed for precision fastening. Featuring a curved trigger for better grip, an ergonomic rubber handle, Read More...

Features:

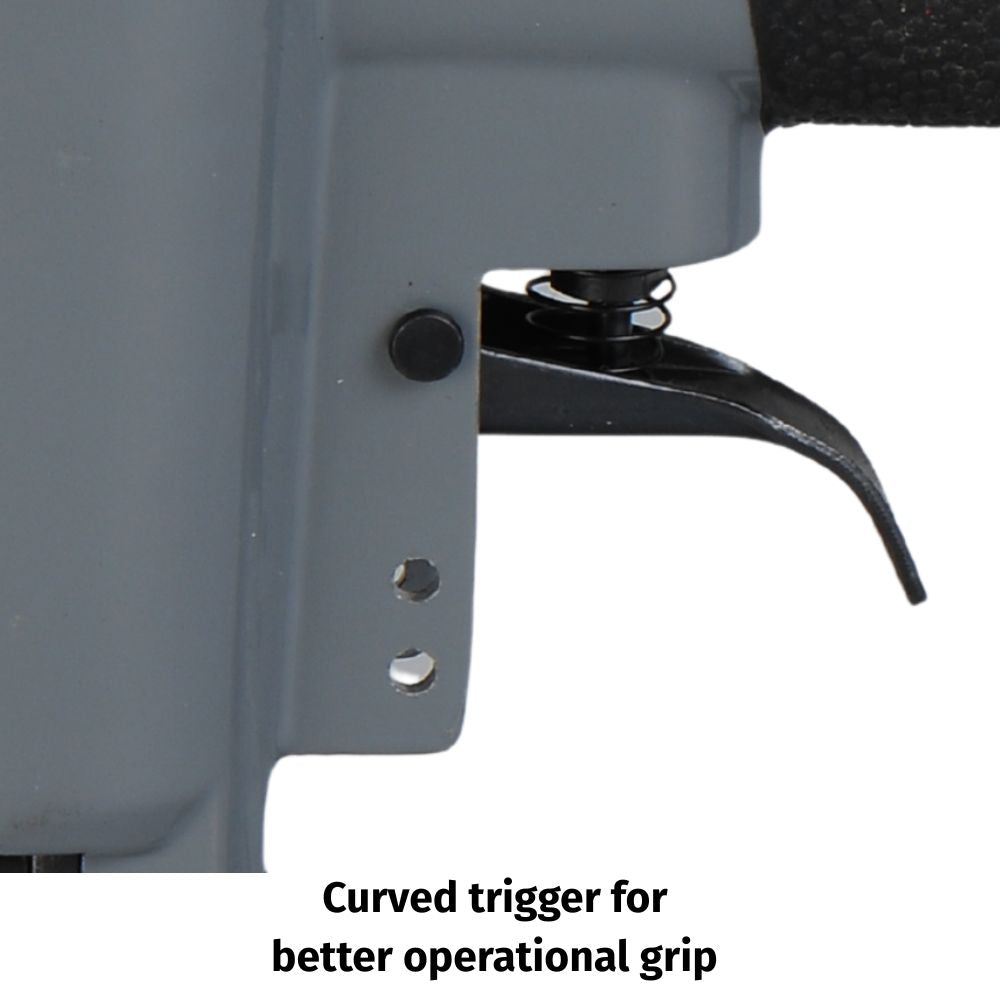

Curved Trigger – Enhances grip and control during operation.
Ergonomic Rubber Grip – Ensures comfort and reduces fatigue.
Lightweight Design – Weighs just 890g, allowing easy handling.

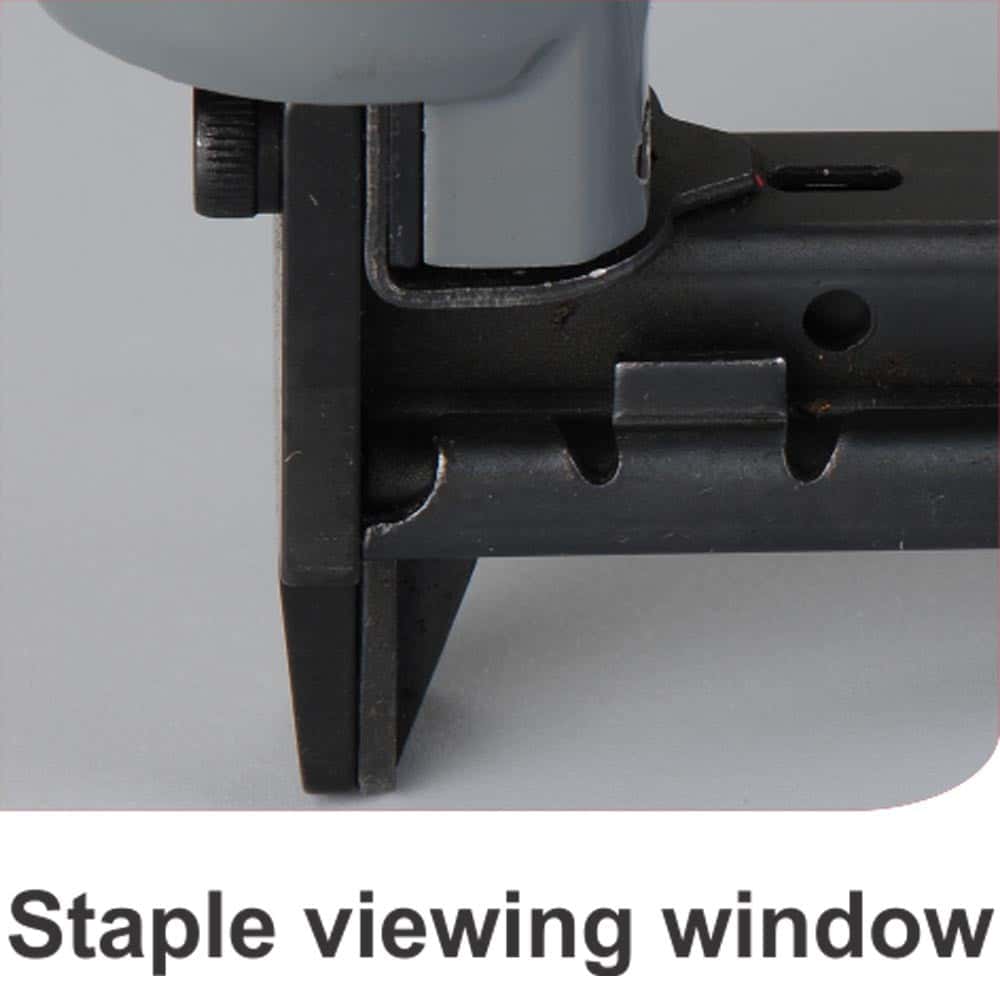

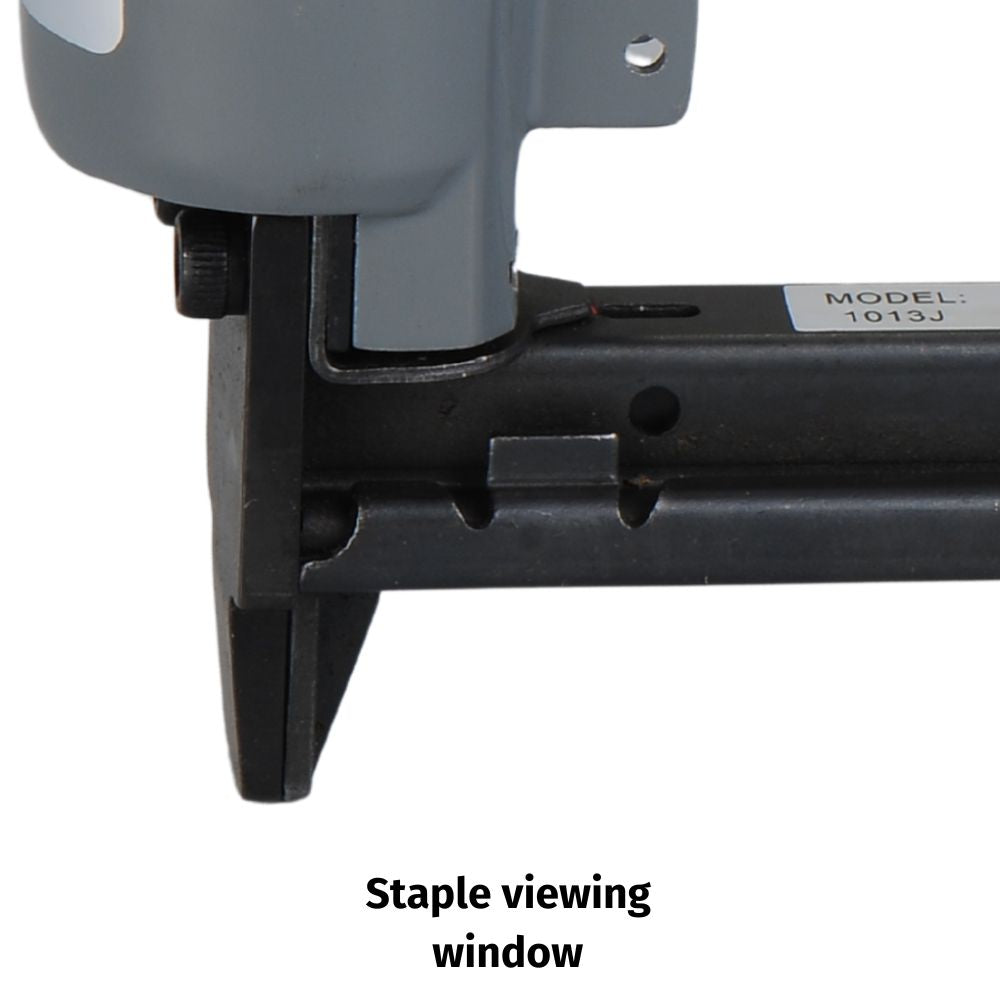

Staple Viewing Window – Helps monitor staple levels for seamless workflow.

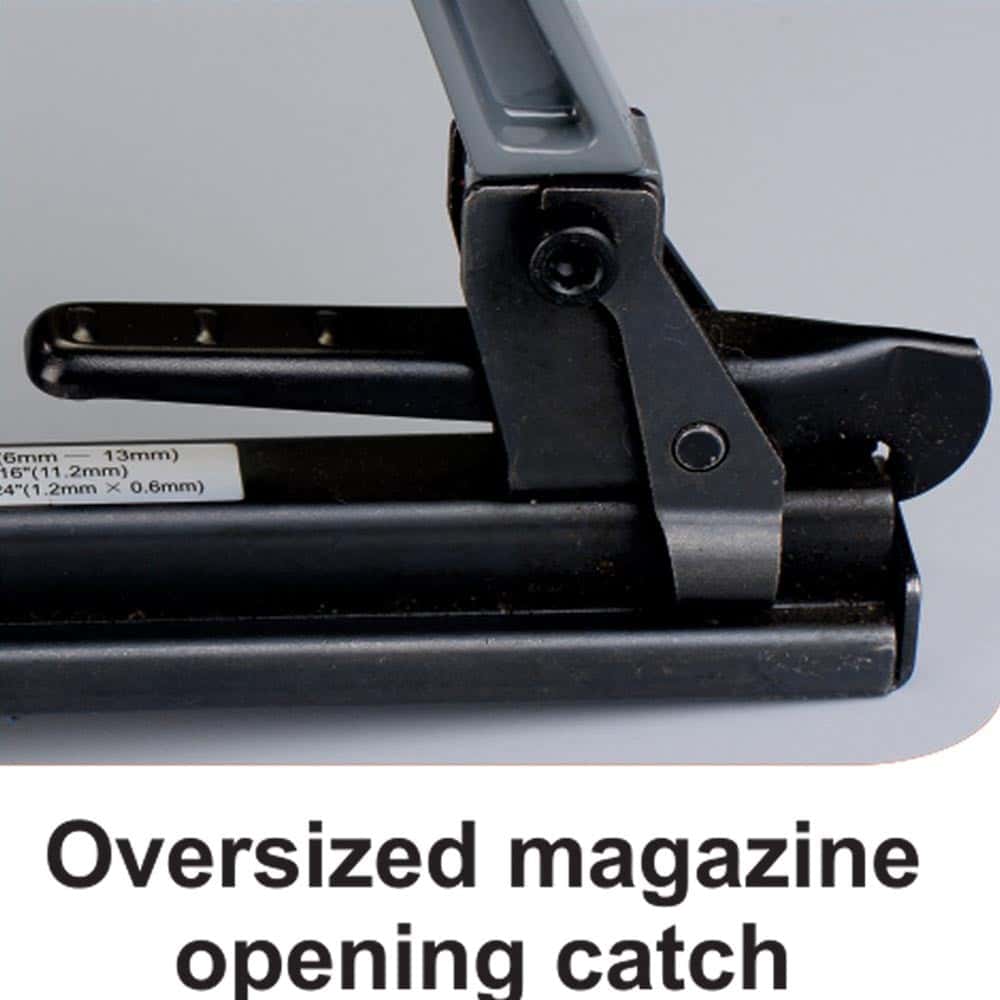

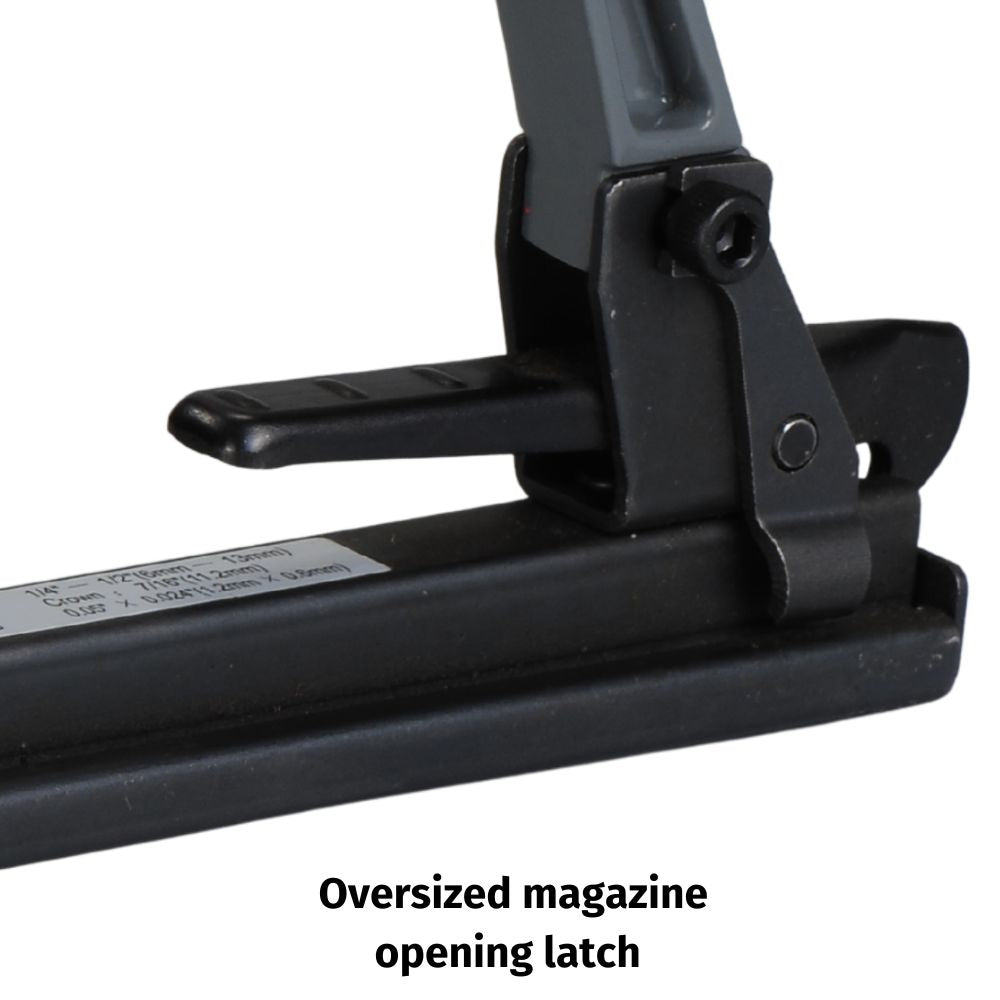

Oversized Magazine Catch – Enables quick and hassle-free reloading

Applications:

Modular Kitchen Assembly – Provides secure and precise stapling.
Door Trims Installation – Ensures strong and durable fastening

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

STAPLES KAYMO 10F SERIES HEAVY DUTY

1/4" FRL AIR CONTROL FRL512

PUSH-TO-CONNECT FITTING JPC STRAIGHT 1/4

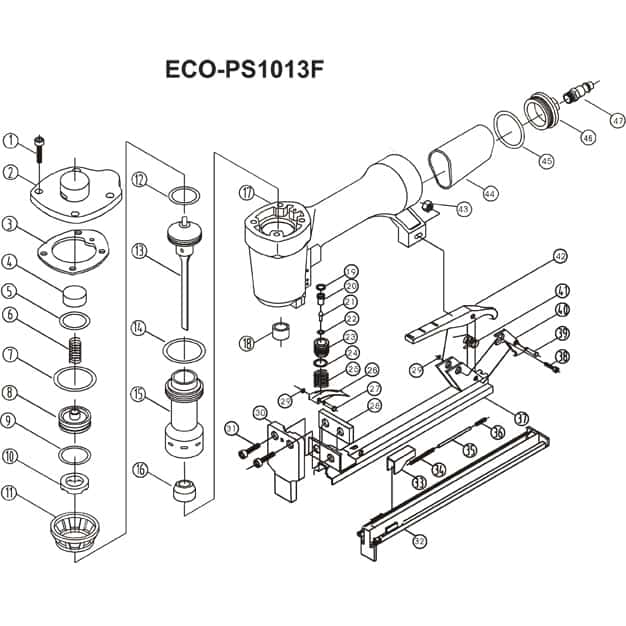

Blow Up

Spares

		TOOL MODEL:	ECO-PS1013F					REV.1ST APRIL 2023
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1	FMS	ECO1013F01	SCREW	KM0520	25	FMS	ECO1013F25	SPRING	NEO80028
2		ECO1013F02	CYLINDER CAP		26		ECO1013F26	TRIGGER
3	FMS	ECO1013F03	GASKET	HY1013J003	27		ECO1013F27	PIN	HY1013J027
4	FMS	ECO1013F04	SEAL	HY1013J004	28		ECO1013F28	PLATE
5	FMS	ECO1013F05	O-RING 15.7×2	HY1013J005	29		ECO1013F29	LOCKING WASHER	YE2501
6	FMS	ECO1013F06	SPRING	HY1013J006	30		ECO1013F30	DRIVE GUIDE
7	FMS	ECO1013F07	O-RING 31.3*2.3	HY8016007	31	FMS	ECO1013F31	SCREW	KM0520
8	FMS	ECO1013F08	VALVE	HY1013J008	32		ECO1013F32	MOVABLE MAGAZINE
9	FMS	ECO1013F09	O-RING 26.8*2.8	HY1013J009	33	FMS	ECO1013F33	FEEDER SHOE
10	FMS	ECO1013F10	STOPPED WASHER	HY1013J010	34	FMS	ECO1013F34	TENSION SPRING
11	FMS	ECO1013F11	COLLAR	HY1013J011	35		ECO1013F35	GUIDER BAR	HY1013J035
12	FMS	ECO1013F12	O-RING 23.3×3	HY1013J012	36		ECO1013F36	SCREW	HY1013J036
13	FMS	ECO1013F13	PISTON ASSEMBLY		37		ECO1013F37	FIXED MAGAZINE
14	FMS	ECO1013F14	O-RING 35.3*2.5	HY1013J014	38	FMS	ECO1013F38	SCREW	KM0412
15		ECO1013F15	CYLINDER	HY1013J015	39	FMS	ECO1013F39	PIN	HY1013J039
16	FMS	ECO1013F16	BUMPER	HY1013J016	40	FMS	ECO1013F40	STOPPED PIECE	HY1013J040
17		ECO1013F17	BODY		41		ECO1013F41	TORSION SPRING
18	FMS	ECO1013F18	JOINT GUIDE		42		ECO1013F42	LOCK
19		ECO1013F19	SEAL	HY1013J019	43	FMS	ECO1013F43	NUT	NEO1005079N
20	FMS	ECO1013F20	TRIGGER VALVE HEAD	HY1013J020	44		ECO1013F44	SOFT GRIP SLEEVE	HY1013J044
21	FMS	ECO1013F21	TRIGGER VALVE STEM	HY1013J021	45	FMS	ECO1013F45	O-RING 40.2*2.3	HY1013J045
22	FMS	ECO1013F22	O-RING 5.5*1.5	HY1013J022	46		ECO1013F46	END CAP	HY7116052
23	FMS	ECO1013F23	TRIGGER VALVE GUIDE	HY1013J023	47		ECO1013F47	AIR PLUG	S3120PMA
24	FMS	ECO1013F24	O-RING 15*1.9	HY1013J024

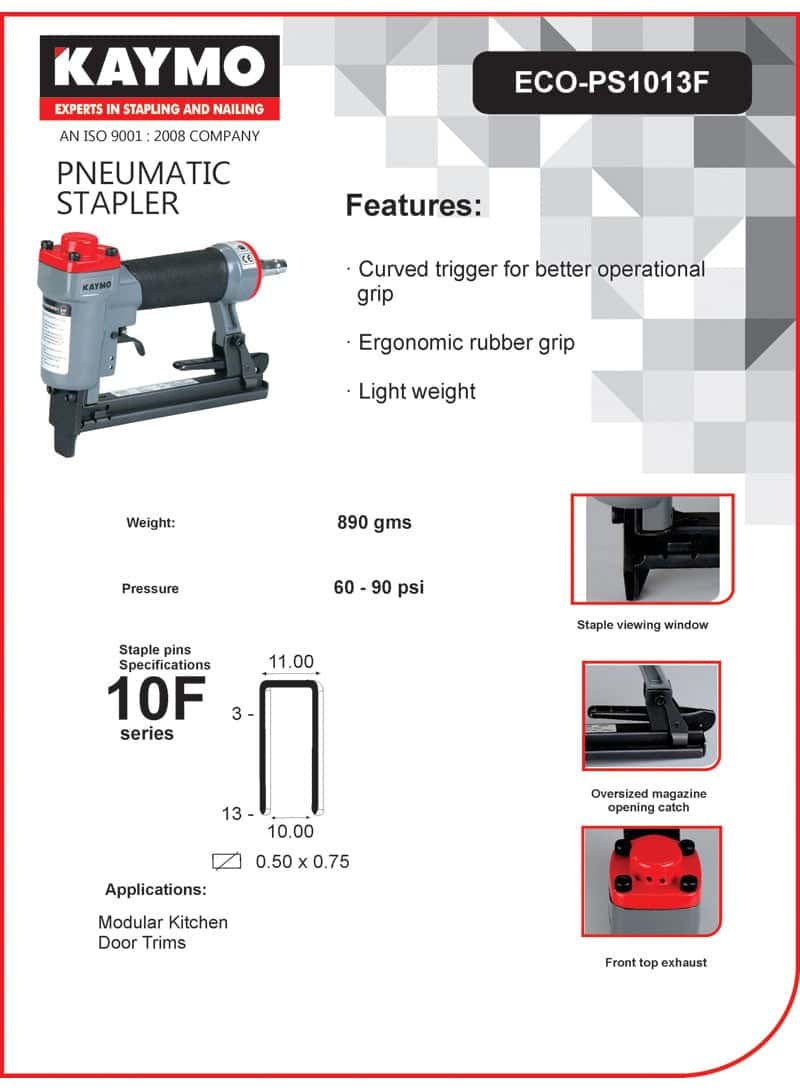

One Sheeter

Application

MODULAR / KITCHENS	To fix fabric to MDF, particle board or ply tiles
DOOR TRIMS	To fix rexine onto back of hardboard door trims

PNEUMATIC STAPLER KAYMO ECO-1013F
