SKU: XPRO-PS8016RALM

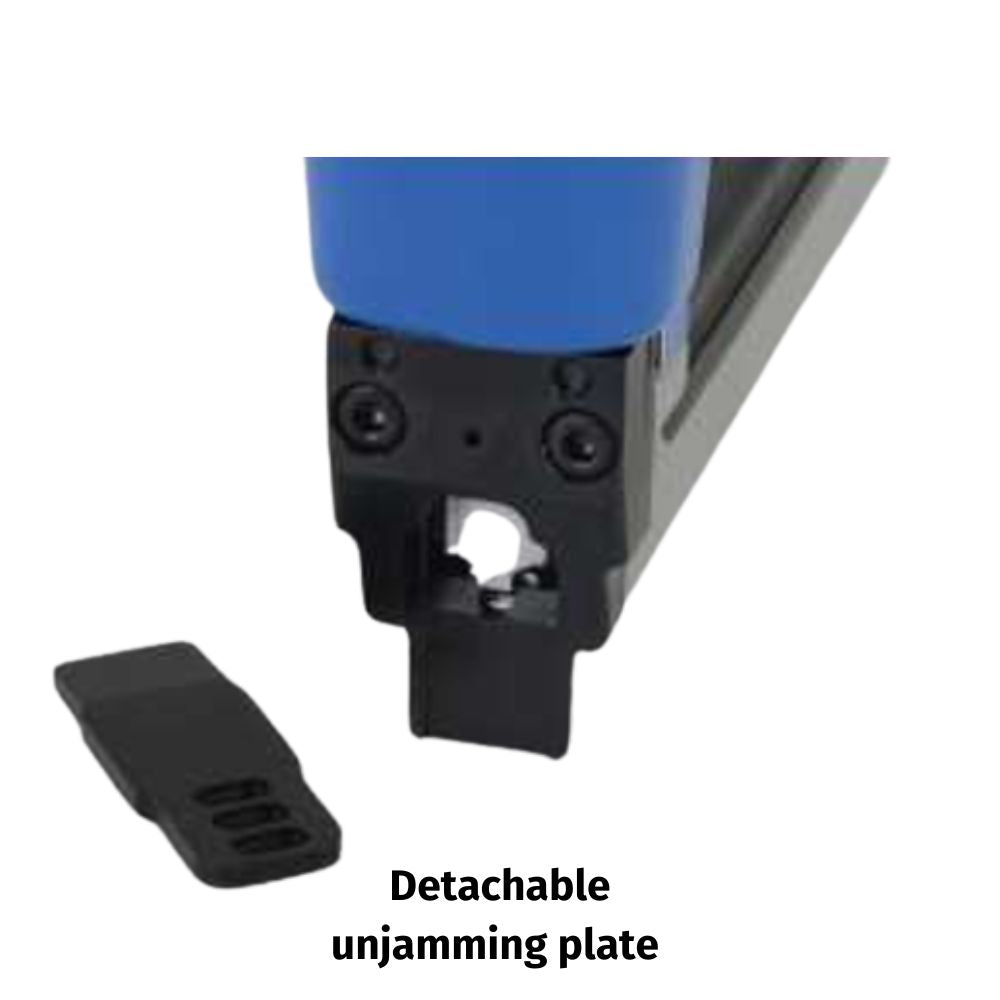

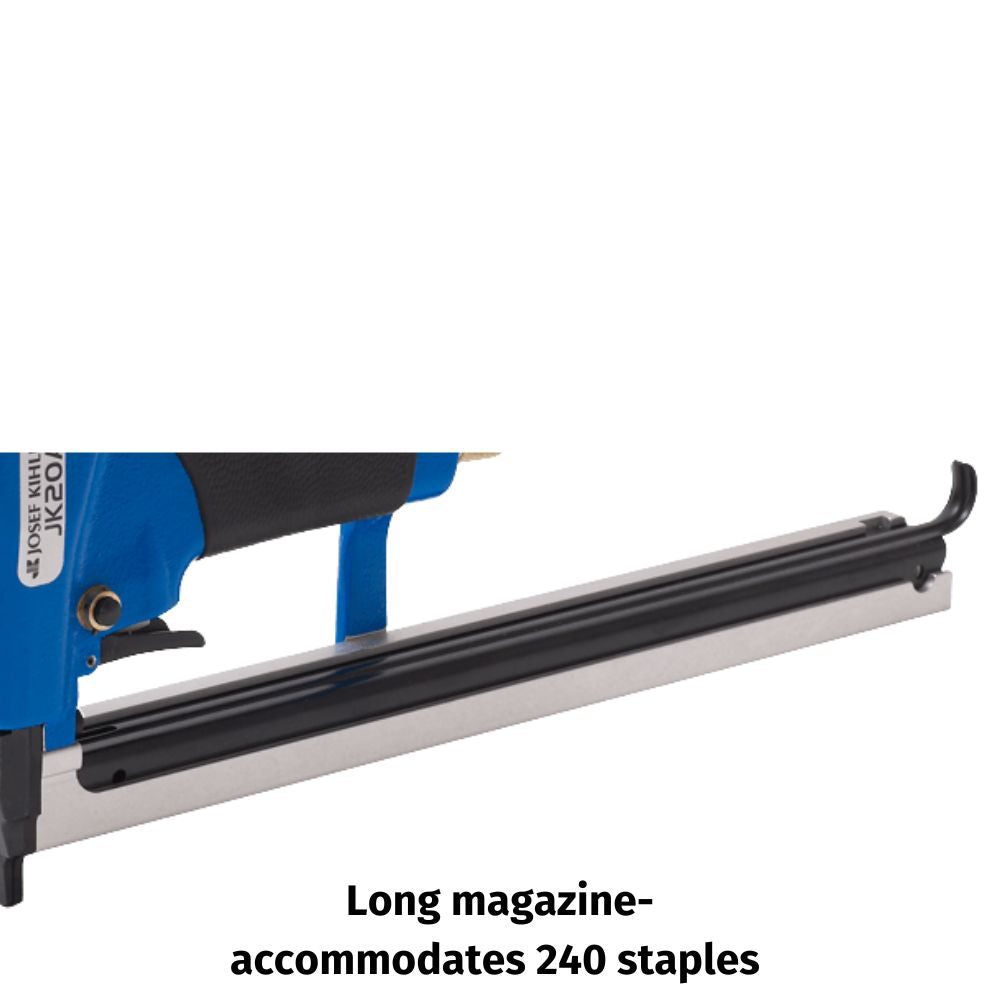

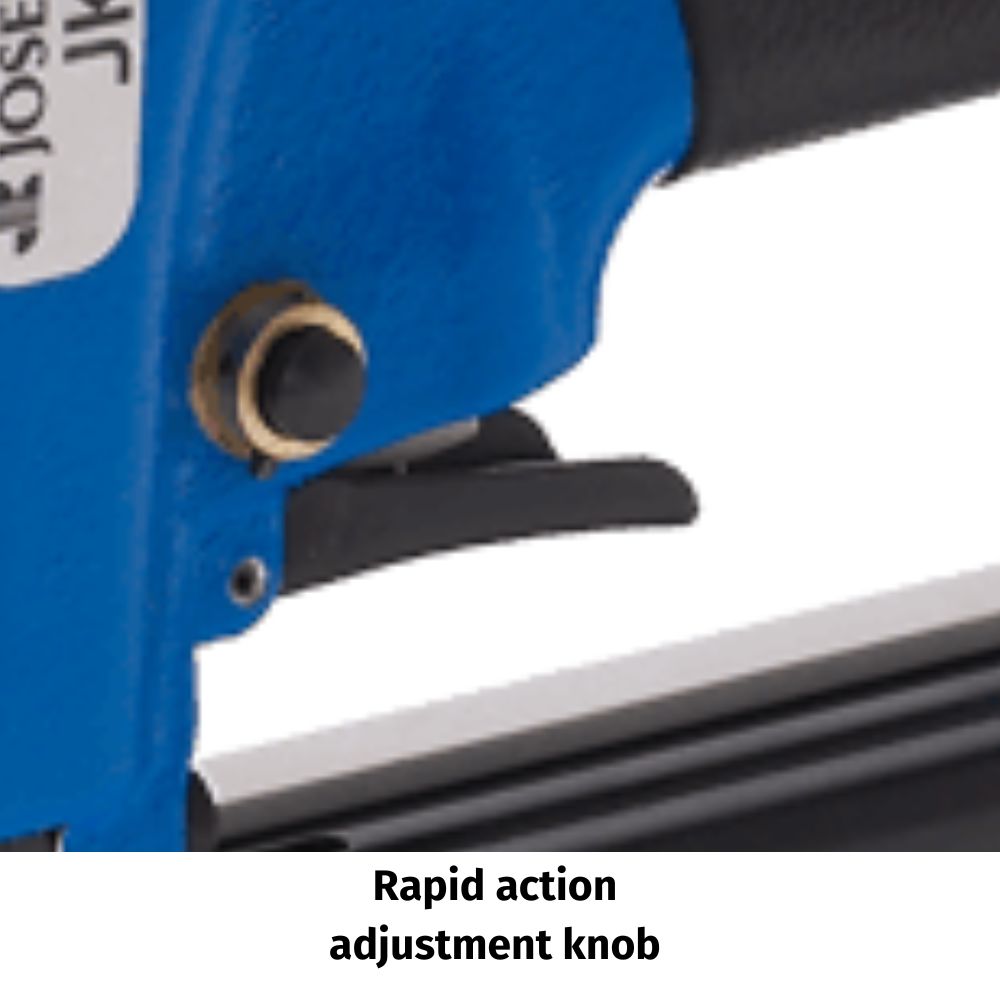

Fully closed magazine. Long magazine to accommodate 240 staples. Ergonomic rubber grip. Rear exhaust with sound absorber. Rapid action adjustment knob. Can be set for fast stapling and natural single shot firing. Easy nose un jamming plate. Fasteners recommended 3-14 mm.
₹ 1/-
Blow Up
Spares
| TOOL NAME: | XPRO-PS8016RALM | REV.1ST APRIL 2022 | |||||||
| SR | FMS | PART CODE | PART NAME | ALT CODE | SR | FMS | PART CODE | PART NAME | ALT CODE |
| 1 | 150436 | Cylinder Cap | 41 | 170030 | Magazine Lid Long | ||||
| 2 | FMS | 972177 | O-ring | 42 | 987023 | Nipple | |||
| 3 | 134102 | Piston with driver long | 44 | FMS | 148015 | Seal Back Valve | |||
| 3 | 134241 | Piston with driver Short | 45 | FMS | 972028 | O-ring | |||
| 5 | 145099 | Driver pin | 46 | 972185 | O-ring | ||||
| 6 | 164039 | driver blade long | 47 | 139460 | Top Cap | ||||
| 6 | 164094 | driver blade short | 50 | FMS | 972021 | O-ring | |||
| 7 | 150102 | Cylinder top ring | 51 | FMS | 146102 | Nut | |||
| 8 | 190066 | Cylinder | 52 | FMS | 972040 | O-ring | |||
| 9 | FMS | 972007 | O-ring | 191082 | Valve Stem | ||||
| 10 | 150409 | Cage | 54 | 972057 | O-ring | ||||
| 11 | FMS | 972071 | O-ring | 55 | 173065 | Valve Spring | |||
| 12 | FMS | 149054 | Bumper | 56 | 191081 | Upper Valve Cage | |||
| 13 | FMS | 972023 | O-ring | 57 | FMS | 972039 | O-ring | ||
| 14 | 166212 | Rear Nozzle Plate | 58 | FMS | 972030 | O-ring | |||
| 15 | 135613 | Guide Door | 59 | 972020 | O-ring | ||||
| 16 | FMS | 946662 | Screw | KM0412 | 60 | 191079 | Lower Valve Cage | ||
| 18 | 166209 | Door | 61 | 972076 | O-ring | ||||
| 24 | 946705 | Screw | 62 | 191083 | Air Stem | ||||
| 30 | FMS | 946608 | Screw | 63 | 972070 | O-ring | |||
| 31 | FMS | 165040 | Trigger | 65 | 191053 | Button Single Shot | |||
| 32 | FMS | 945039 | Tension Pin | 66 | 972034 | O-ring | |||
| 33 | 132218 | Magazine Short | 67 | 945041 | Tension Pin | ||||
| 33 | 132223 | Long Magazine | 70 | FMS | 972124 | Set of Piston Rings | |||
| 34 | 132678 | Rail Short | 71 | 972084 | O-ring | ||||
| 34 | 132681 | Rail Long | 72 | 146106 | Regulator Screw | ||||
| 35 | FMS | 150121 | Lock Cage | 74 | 146086 | Regulator Screw Assy | |||
| 36 | 951037 | Retainer | 75 | 136074 | Cylinder With Seals | ||||
| 37 | 160051 | Lock Piston | 76 | FMS | 971004 | Sound Absorber | |||
| 38 | 173052 | Lock Spring | 77 | 947008 | Lock Washer | ||||
| 39 | FMS | 173053 | Feeder Spring short | 82 | FMS | 191084 | Valve Cage | ||
| 39 | FMS | 173054 | Feeder Spring Long | 83 | 110287 | Warning Label | |||
| 40 | FMS | 161118 | Pusher | 84 | 35292 | Handle Sleeve | |||
| 41 | 170029 | Magazine Lid Short | 100 | 142165 | REBUILD KIT 779 |
One Sheeter
Application
|
To fix 3mm / 4mm veneer to wooden frame |
|
|
To fix upholstery & elastic band |
|
|
To fix upholstery to chair / stool base |
