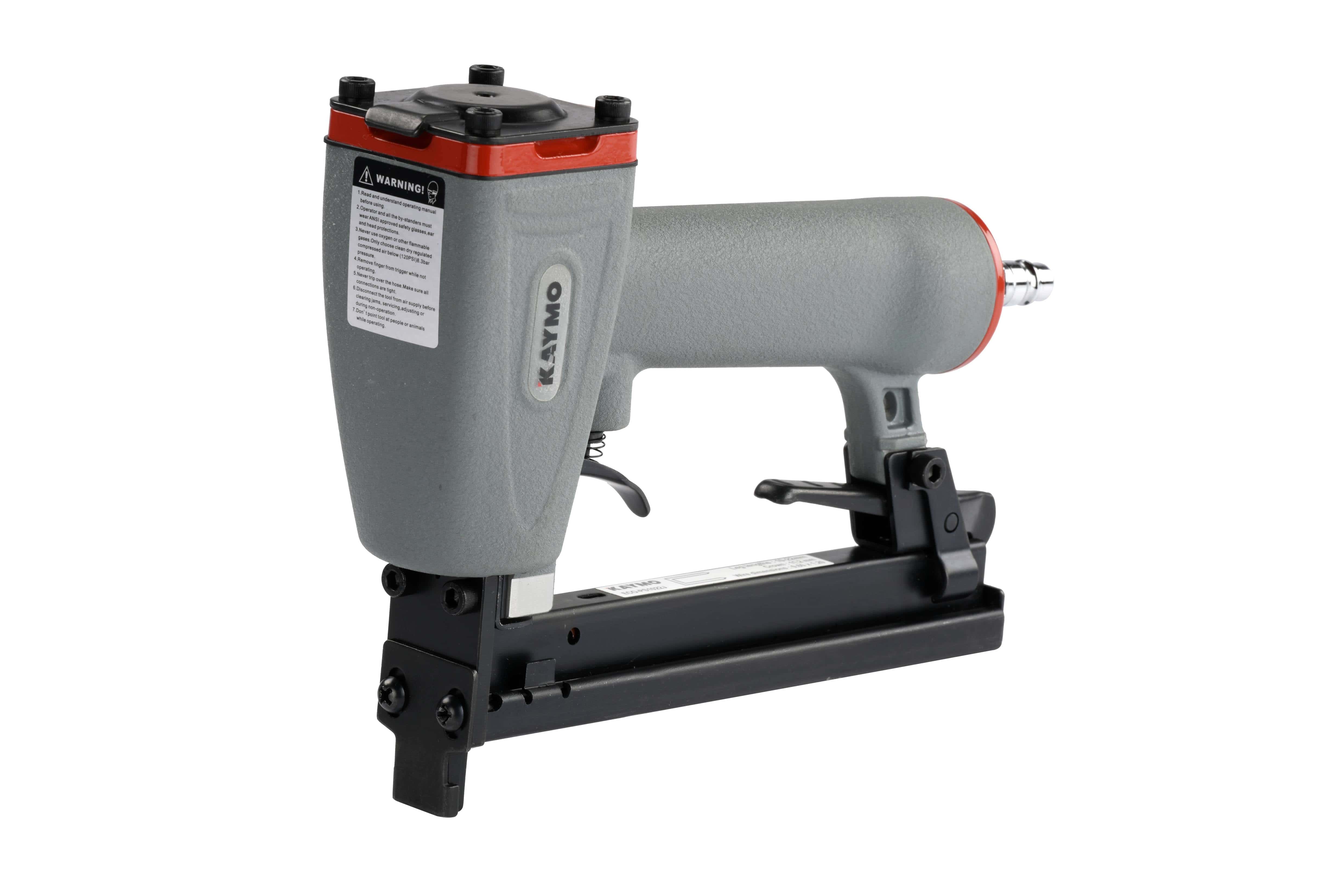

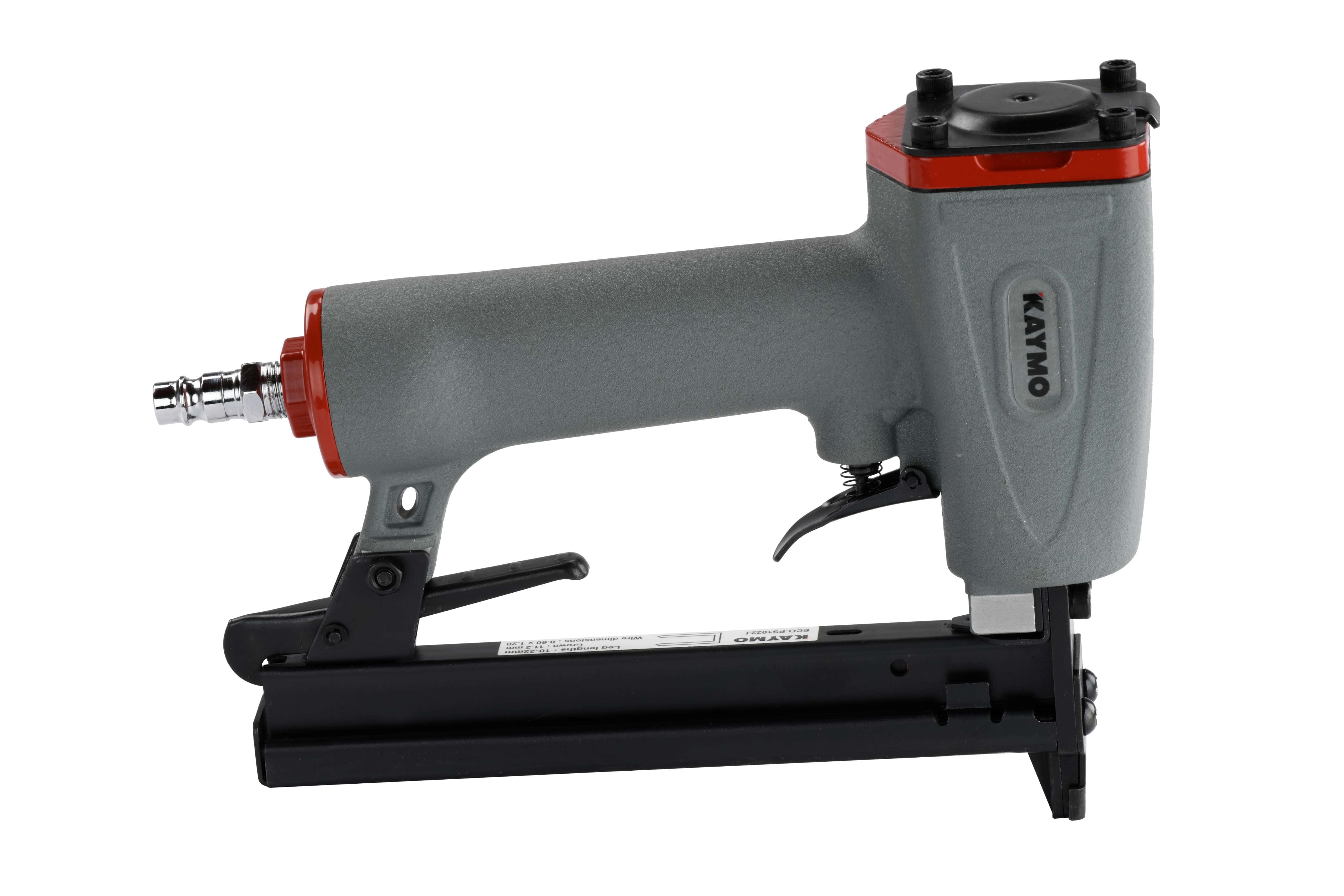

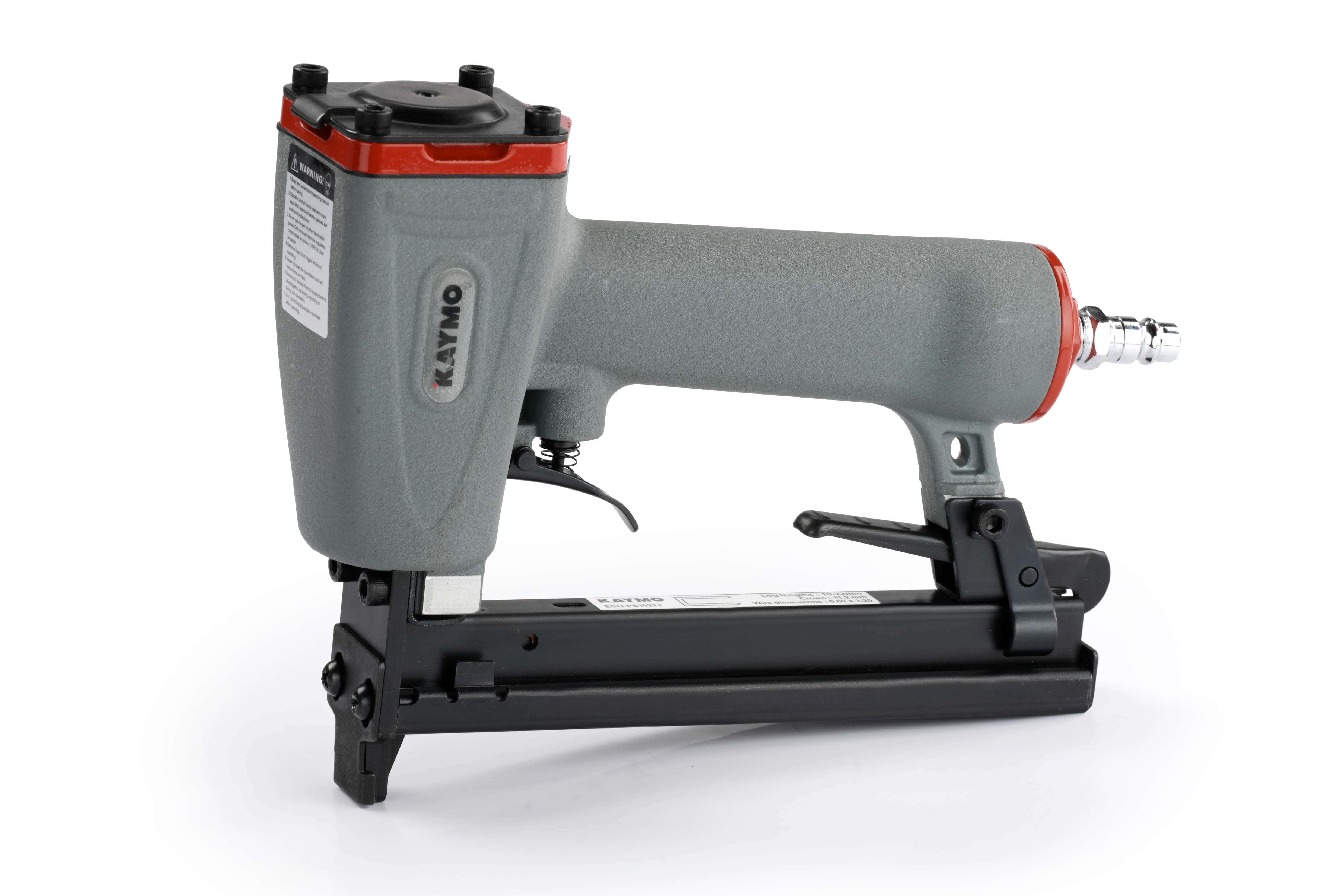

SKU: ECO-PS1022J

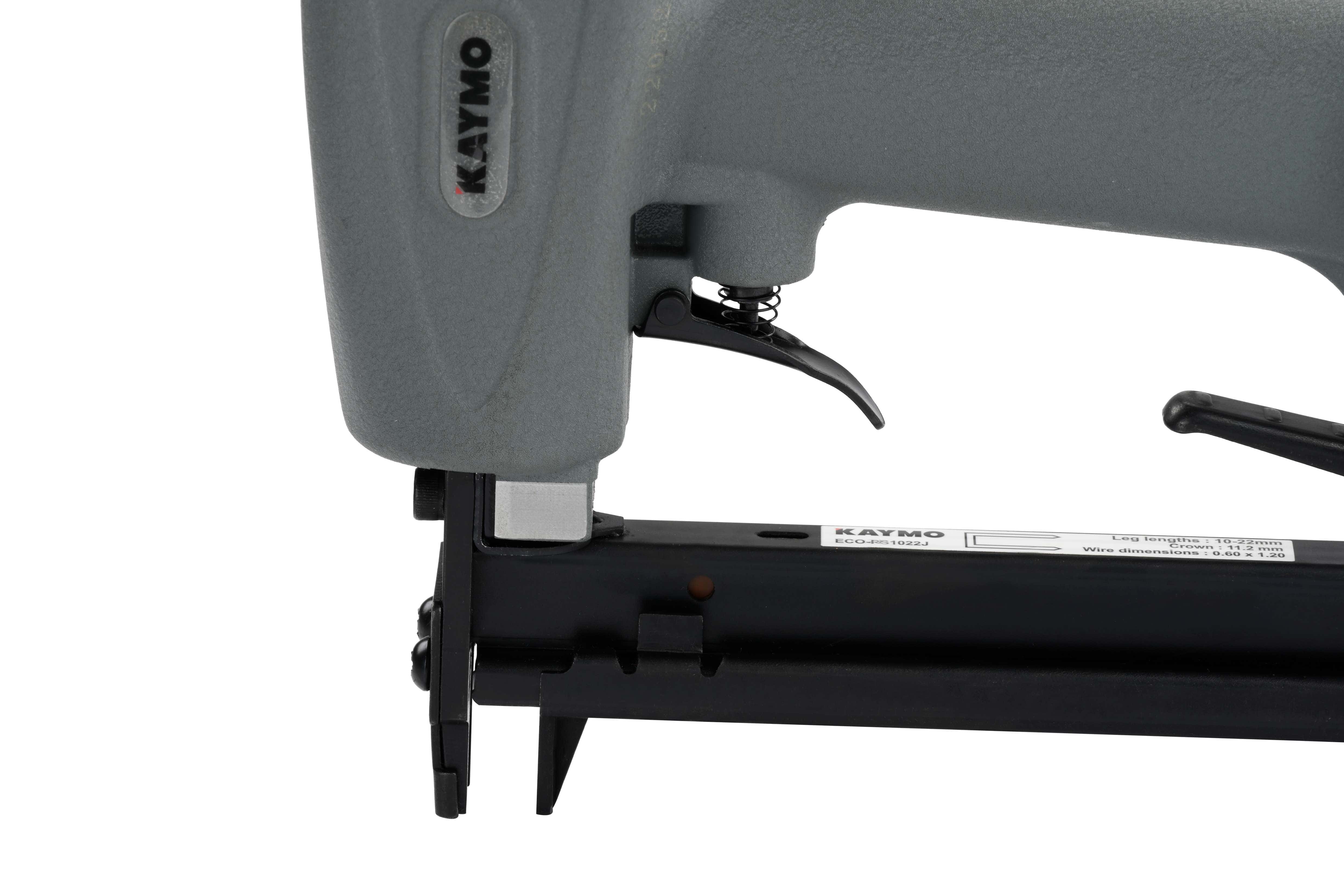

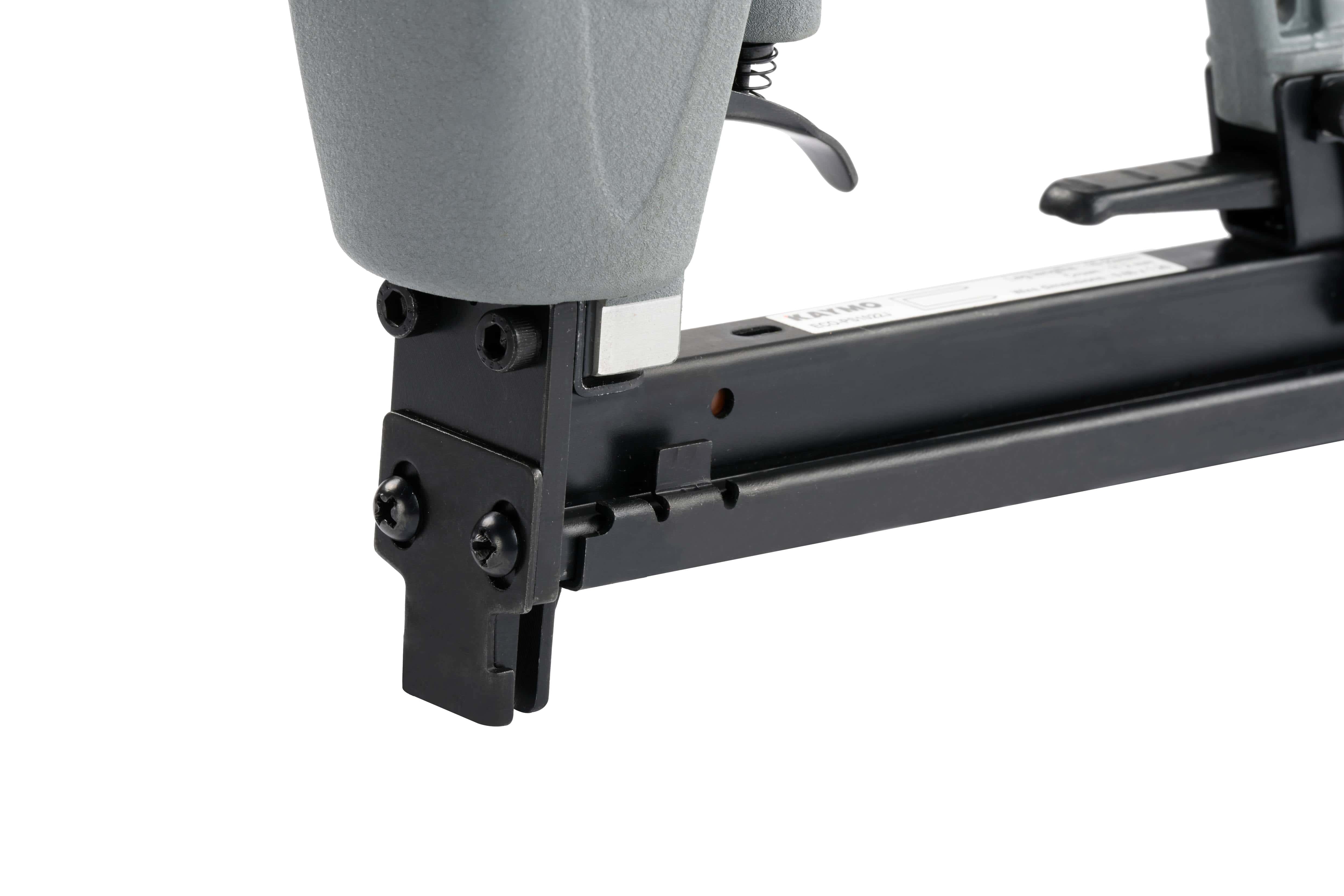

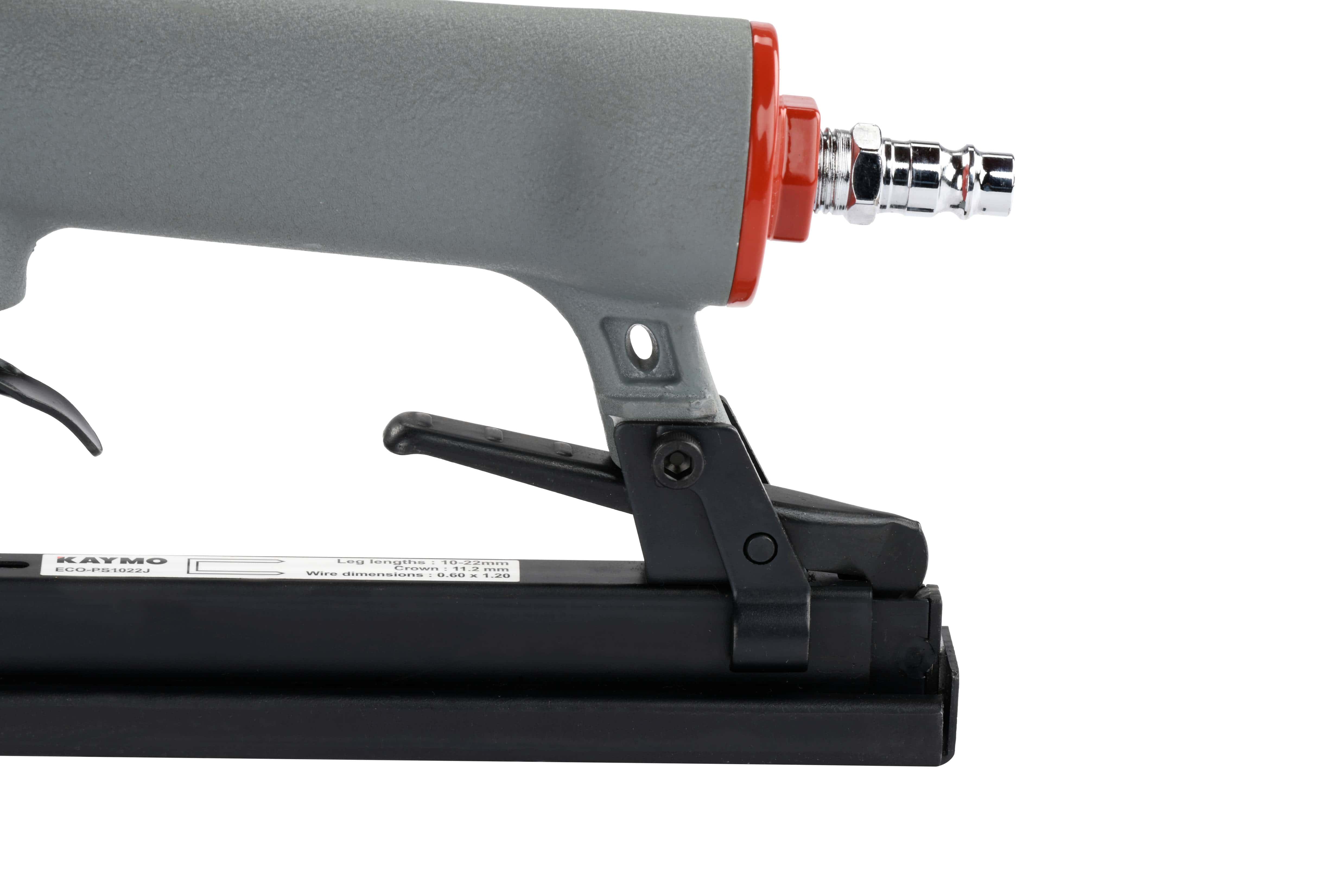

Ergonomic rubber grip.Full metal magazine and slider.Two way staple viewing window on magazine.Metal internal spare parts for long life cycle.Efficiently designed nose piece for tool stability.
₹ 0/-
BLOW UP
SPARES
| TOOL MODEL: | ECO-PS1022J | REV.1ST APRIL 2023 | ||||||||
| SR | FMS | PART CODE | PART NAME | ALT CODE | SR | FMS | PART CODE | PART NAME | ALT CODE | |
| 1 | FMS | ECO1022J001 | SCREW | KM0520 | 25 | FMS | ECO1022J025 | SPRING | NEO80028 | |
| 2 | FMS | ECO1022J002 | EXHAUST COVER | 26 | ECO1022J026 | TRIGGER | ECO1013JV226 | |||
| 3 | ECO1022J003 | CYLINDER CAP | 27 | FMS | ECO1022J027 | PIN | HY1013J027 | |||
| 4 | ECO1022J004 | GASKET | 28 | ECO1022J028 | LOCKING WASHER | YE2501 | ||||
| 5 | FMS | ECO1022J005 | SPRING | 29 | ECO1022J029 | SPACER | HY1013J028 | |||
| 6 | FMS | ECO1022J006 | O RING 18.4 X 2.4 | 30 | ECO1022J030 | DRIVER GUIDE | ||||
| 7 | FMS | ECO1022J007 | O RING 36.3 X 2.5 | 31 | ECO1022J031 | ADJUST PLATE | ||||
| 8 | FMS | ECO1022J008 | VALVE | 32 | FMS | ECO1022J032 | SCREW | |||
| 9 | FMS | ECO1022J009 | O RING 31.5 X 3.5 | 33 | FMS | ECO1022J033 | MOVABLE MAGAZINE | |||
| 11 | ECO1022J011 | COLLAR | 34 | FMS | ECO1022J034 | WHEEL | ||||
| 12 | ECO1022J012 | O RING 48.5 X 2.5 | 35 | FMS | ECO1022J035 | FEEDER SHOE | ||||
| 13 | ECO1022J013 | O RING 27.4 X 3 | 36 | ECO1022J036 | SPRING | |||||
| 14 | FMS | ECO1022J014 | PISTON ASSEMBLY | 37 | ECO1022J037 | FIXED MAGAZINE | ||||
| 15 | FMS | ECO1022J015 | CYLINDER | 38 | FMS | ECO1022J038 | SPRING PIN | |||
| 16 | FMS | ECO1022J016 | BUMPER | 39 | FMS | ECO1022J039 | SCREW | KM0520 | ||
| 17 | ECO1022J017 | BODY | 40 | ECO1022J040 | PIN | HY1013J039 | ||||
| 18 | ECO1022J018 | JOINT GUIDE | ECO1013F18 | 41 | ECO1022J041 | STOPPED PIECE | ||||
| 19 | FMS | ECO1022J019 | SEAL | HY1013J019 | 42 | ECO1022J042 | TORSION SPRING | ECO1013F41 | ||
| 20 | FMS | ECO1022J020 | TRIGGER VALVE HEAD | HY1013J020 | 43 | FMS | ECO1022J043 | LOCK | ||
| 21 | FMS | ECO1022J021 | TRIGGER VALVE STEM | HY1013J021 | 44 | ECO1022J044 | NUT | NEO1005059N | ||
| 22 | FMS | ECO1022J022 | O RING 6.5 X 1.4 | HY1013J022 | 45 | ECO1022J045 | END CAP | HY7116052 | ||
| 23 | FMS | ECO1022J023 | O RING 15 X 1.9 | HY1013J024 | 46 | ECO1022J046 | O RING 40.2 X 2.3 | HY1013J045 | ||
| 24 | FMS | ECO1022J024 | TRIGGER VALVE GUIDER | HY1013J023 | 47 | ECO1022J047 | AIR PLUG | S3120PMA | ||
| 2A | ECO1022J002a | SEAL |
ONE SHEETER
APPLICATION
| SOFAS | To fix 3mm / 4mm veneer to wooden frame |
| To fix upholstery & elastic band | |
| MODULAR / KITCHENS | To fix fabric to MDF, particle board or ply tiles |
| BICYCLE SEATS | To fix rexine & foam to moulded plastic base |
