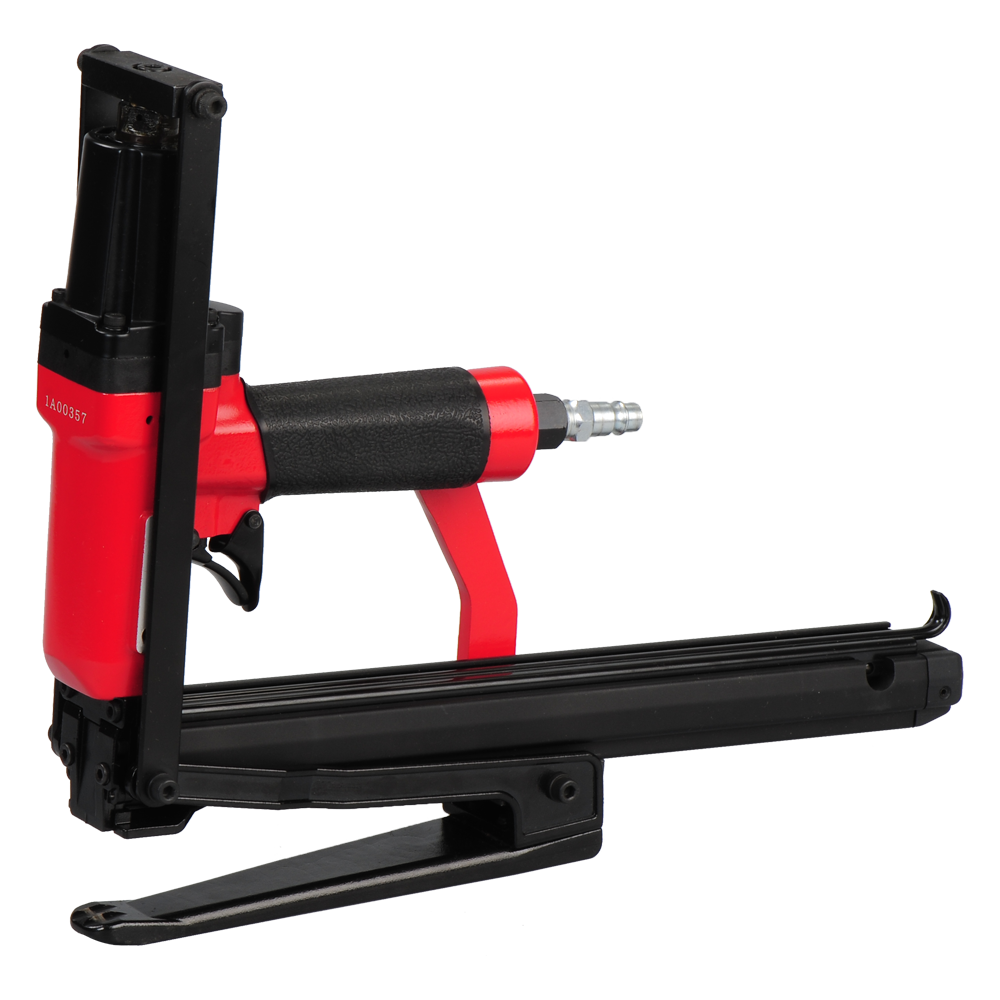

PNEUMATIC PLIER KAYMO PRO-8025 BROAD JAW

PNEUMATIC PLIER KAYMO PRO-8025 BROAD JAW

Name: PNEUMATIC PLIER KAYMO PRO-8025 BROAD JAW
Brand: Kaymo
SKU: PRO-PL8025BJ
Availability: InStock

SKU: PRO-PL8025BJ

The KAYMO PRO-PL8025BJ is a heavy-duty pneumatic plier from Kaymo, specially designed for stapling materials like glass wool and wire mesh—commonly used in expansion joint Read More...

Features:

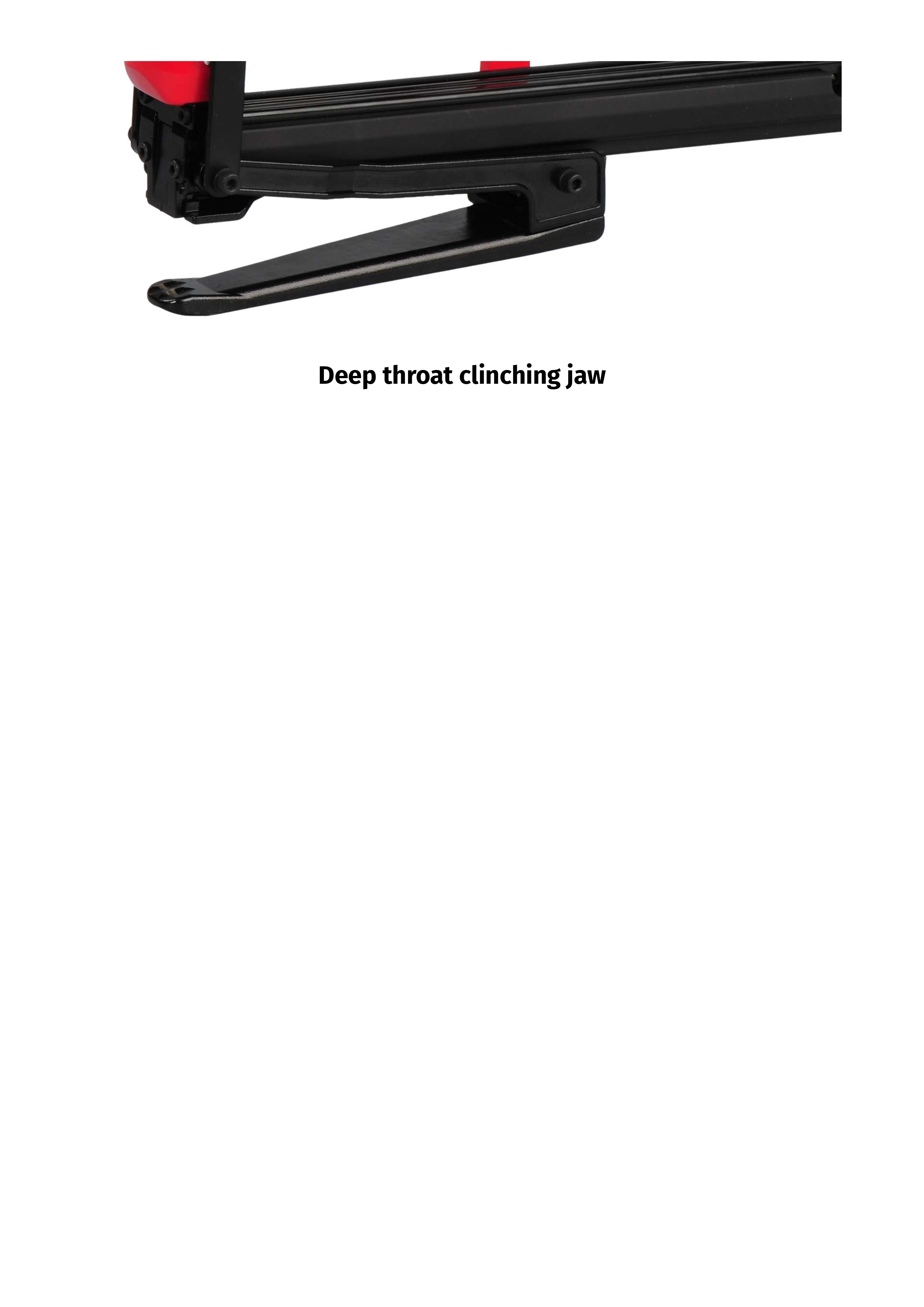

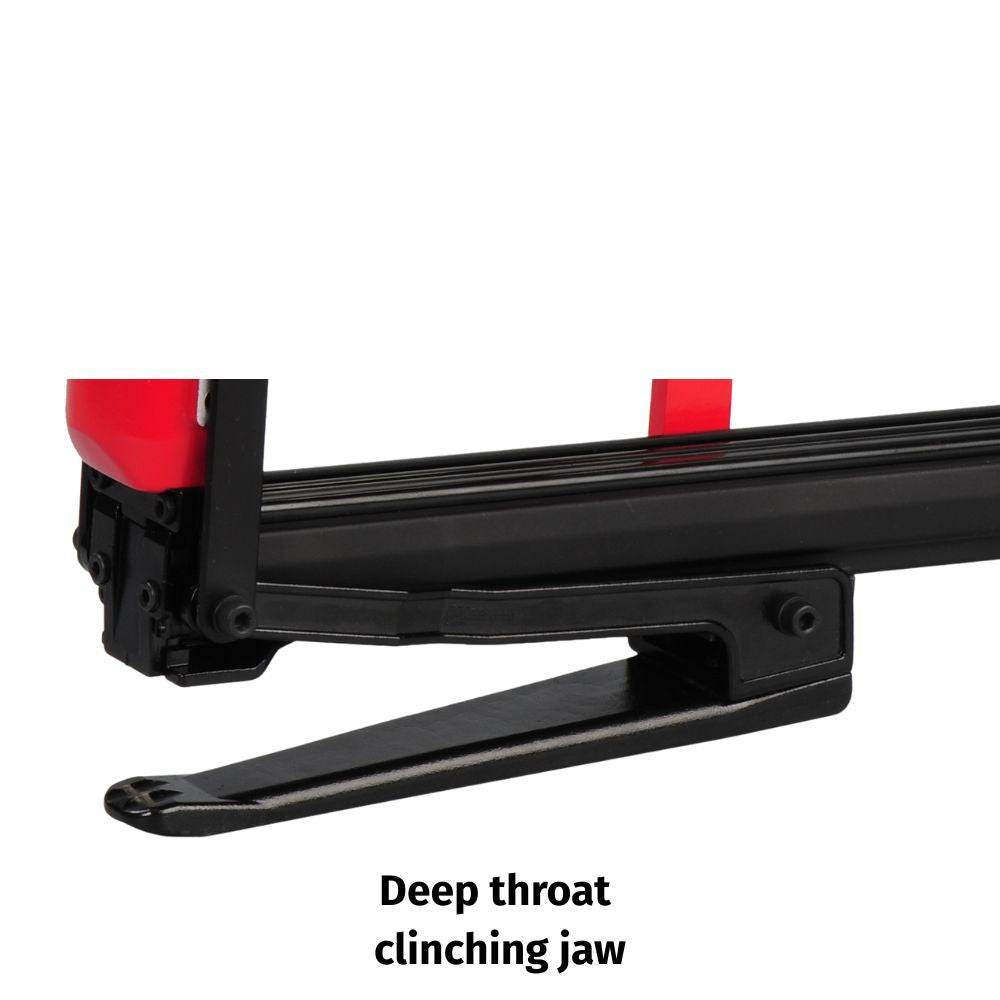

Deep throat clinching jaw

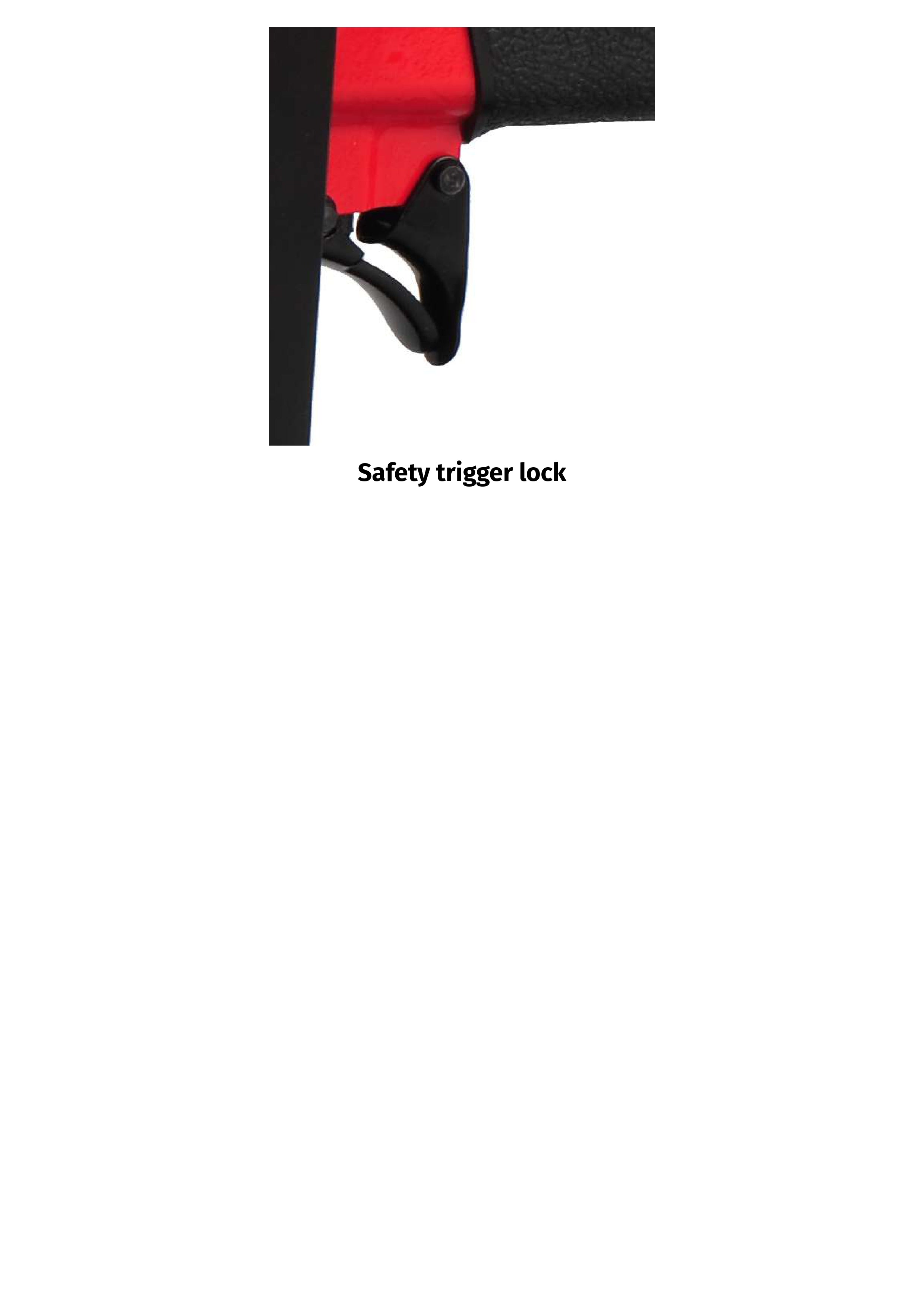

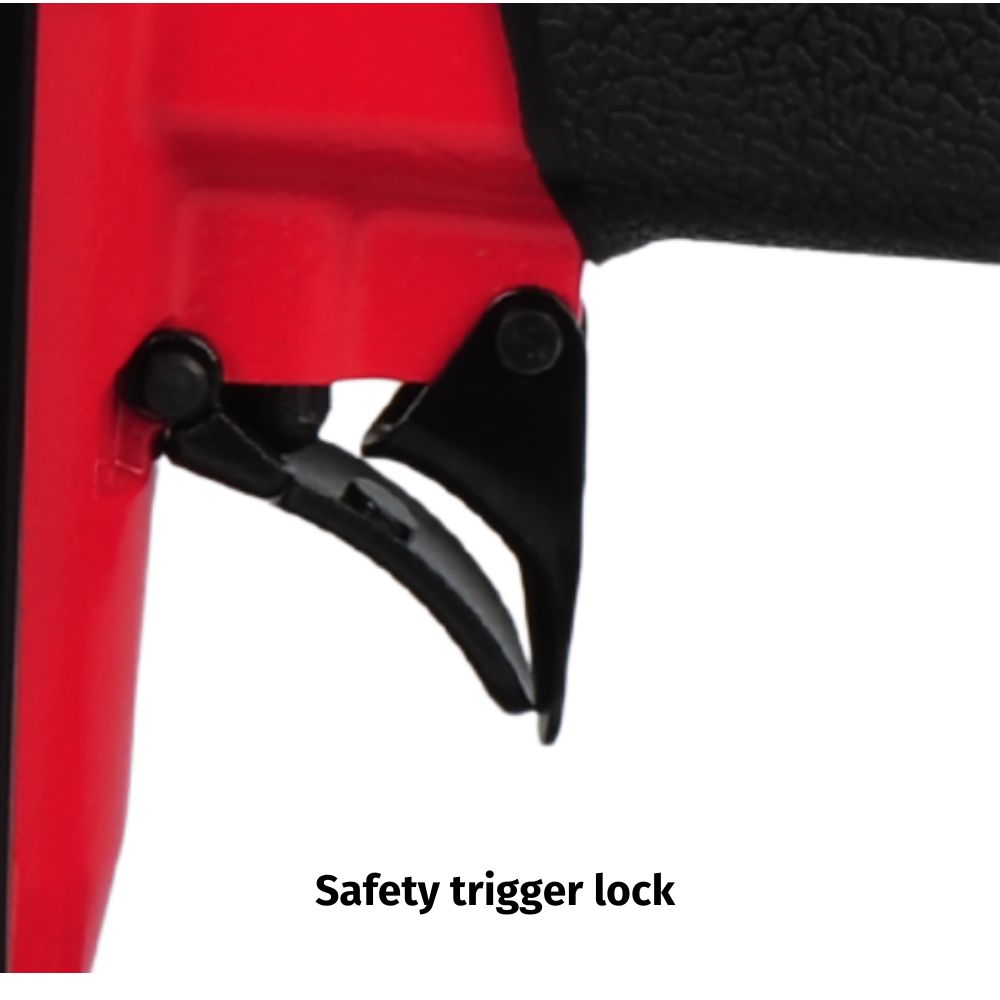

Safety trigger lock

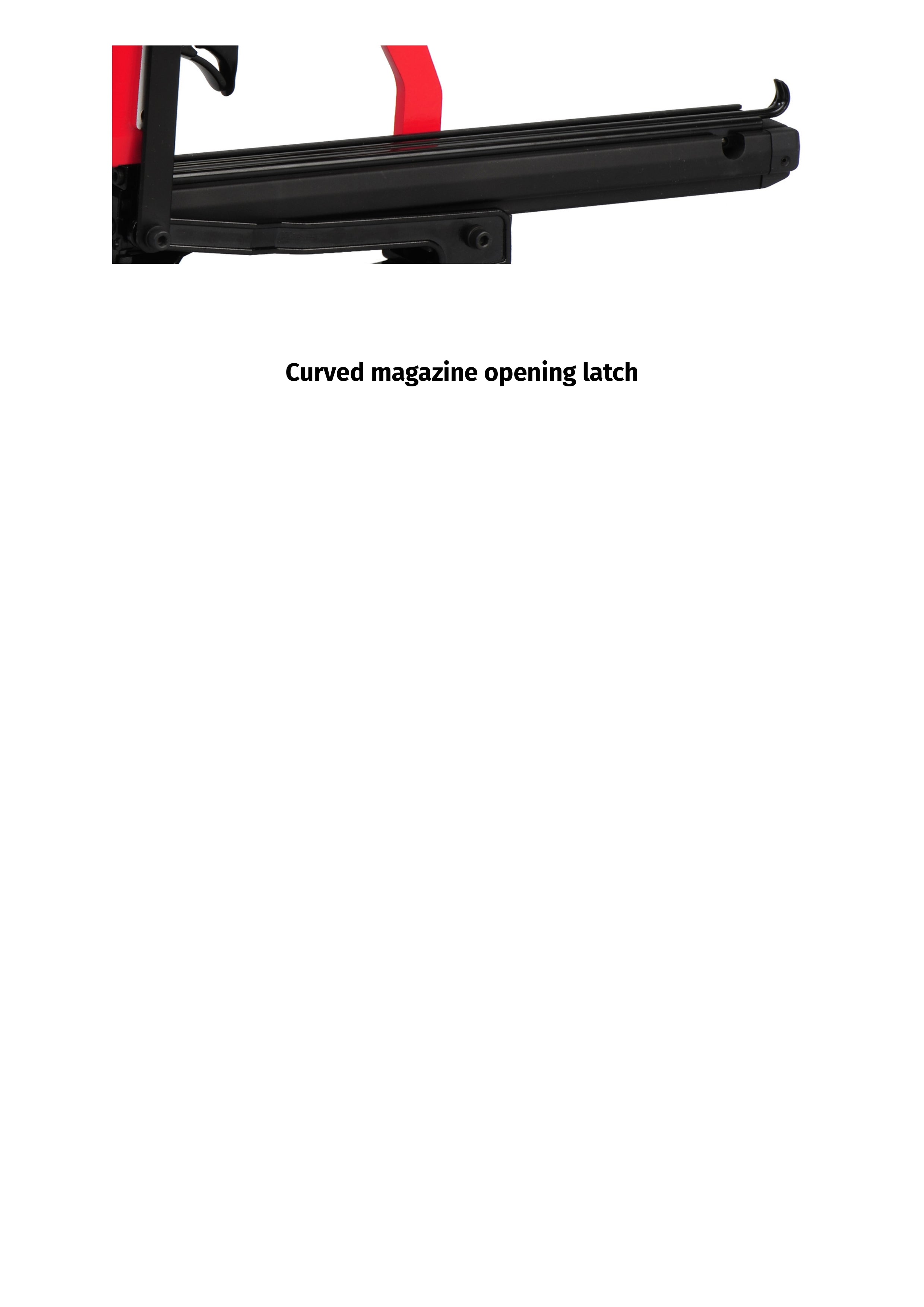

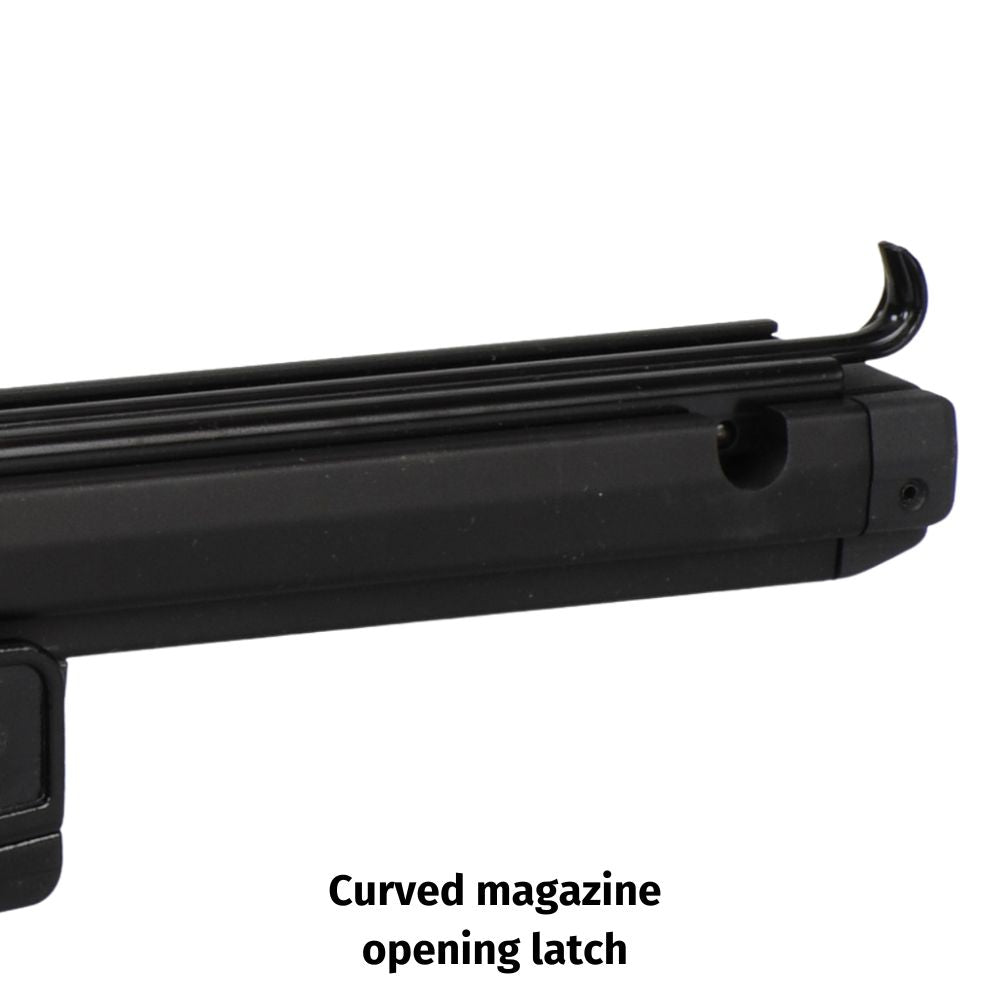

Curved magazine opening latch
Metal internal parts
Long magazine – accommodates 168 staples
Fastener Range: 8mm - 25mm

Applications:

Expansion joints – to staple glass wool & wire mesh together

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

AIR RECOIL HOSE KAYMO 8x12 MM PU 15M BRAIDED BLUE

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

Blow Up

Spares

		TOOL MODEL:	PRO-PL8025BJ					REV.1ST APRIL2023
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
	FMS	YG0401	SPRING WASHER	S0410400			WU0801	VALVE
	FMS	KM0406	HEX.SOC.HD.BOLT			FMS	WU0901	CYLINDER CAP
	FMS	WU4601	TONGUE				WU1002	CAP
	FMS	CC5901	COMPRESSION SPRING			FMS	WU1101	WASHER ADJUSTMENT STROKE
	FMS	JF0402	PUSHER			FMS	WU1201	REVERSAL CYLINDER RING NUT
	FMS	JF0501	NAIL SEAT ASSY.			FMS	WU1301	REVERSAL CYLINDER SHAFT
	FMS	JF0801	ROLLER			FMS	WU1401	MAIN PISTON
	FMS	KM0306	HEX.SOC.HD.BOLT				WU1402W	TRIGGER VALVE CAP ASSY.
	FMS	KM0414	HEX.SOC.HD.BOLT			FMS	WU1501	BUMPER
	FMS	KM0416	HEX.SOC.HD.BOLT			FMS	WU1601	SCREW
	FMS	KM0430	HEX.SOC.HD.BOLT			FMS	WU1801	DIAPHRAGM VALVE
	FMS	KM0508	HEX.SOC.HD.BOLT			FMS	WU2002	WASHER
	FMS	KM0510	HEX.SOC.HD.BOLT				WU2201W	HEAD VALVE CAP ASSY.
	FMS	KM0512	HEX.SOC.HD.BOLT				WU2301	COVER PLATE(B)
	FMS	KM0514	HEX.SOC.HD.BOLT			FMS	WU2401	COVER PLATE(A)
	FMS	KM0616	HEX.SOC.HD.BOLT			FMS	WU2401W	HEAD VALVE SEAT ASSY.
		KP4022	PARALLEL PIN			FMS	WU2601	MAGAZINE CAP
	FMS	KS3032	SPRING PIN	100220		FMS	WU2901	LATCH SEAT
	FMS	OA007A	O-RING			FMS	WU3001	LATCH
	FMS	OA010A	O-RING			FMS	WU3701	COMPRESSION SPRING
	FMS	OA013A	O-RING			FMS	WU3801	COMPRESSION SPRING
	FMS	OA016A	O-RING			FMS	WU3901	PULL SPRING
	FMS	OA111A	O-RING			FMS	WU4201	COVER
	FMS	OA117H	O-RING			FMS	WU4401	BRACKET
	FMS	OA122A	O-RING			FMS	WU4501	SUPPORT
	FMS	OA122H	O-RING				WU4701	POWER ARM
	FMS	OA126H	O-RING			FMS	WU4801	CAP
	FMS	OB042A	O-RING			FMS	WU4901	FIXED SUPPORT
	FMS	OB052A	O-RING			FMS	WU5001	CORTON PROTECTOR
	FMS	OB082A	O-RING			FMS	WU5101	FLAT WASHER
	FMS	OB403A	O-RING				WU5901	PILOT VALVE BODY
	FMS	OP006A	O-RING				WW0101	GUIDE PLATE
	FMS	OP028H	O-RING			FMS	WW0202	DRIVER
	FMS	OS003A	O-RING			FMS	WW0302W	DRIVER ASSY.
	FMS	OS009A	O-RING			FMS	YE6001	E-RING
	FMS	OS038A	O-RING				YI0101	SERIES FOOT VALVE
	FMS	PA5003	COUPLING PLUG			FMS	YI1101	SREWED JOINT
		US2001	MAGAZINE SEAT			FMS	YI1201	FITTING
		WU0103	BODY			FMS	YI1203	FITTING
	FMS	WU0201	CYLINDER			FMS	YI1204	FITTING
	FMS	WU0301	BUMPER				YI1301	HOSE
		WU0502	MAIN PISTON				YI1501	HEX HEAD PLUG-WITH SHOULDER
		WU0601	HEAD VALVE SEAT			FMS	YW0401	FLAT WASHER
	FMS	WU0701	GASKET

PNEUMATIC PLIER KAYMO PRO-8025 BROAD JAW

Compatible Products

AIR RECOIL HOSE KAYMO 8x12 MM PU 15M BRAIDED BLUE

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

Blow Up

Spares

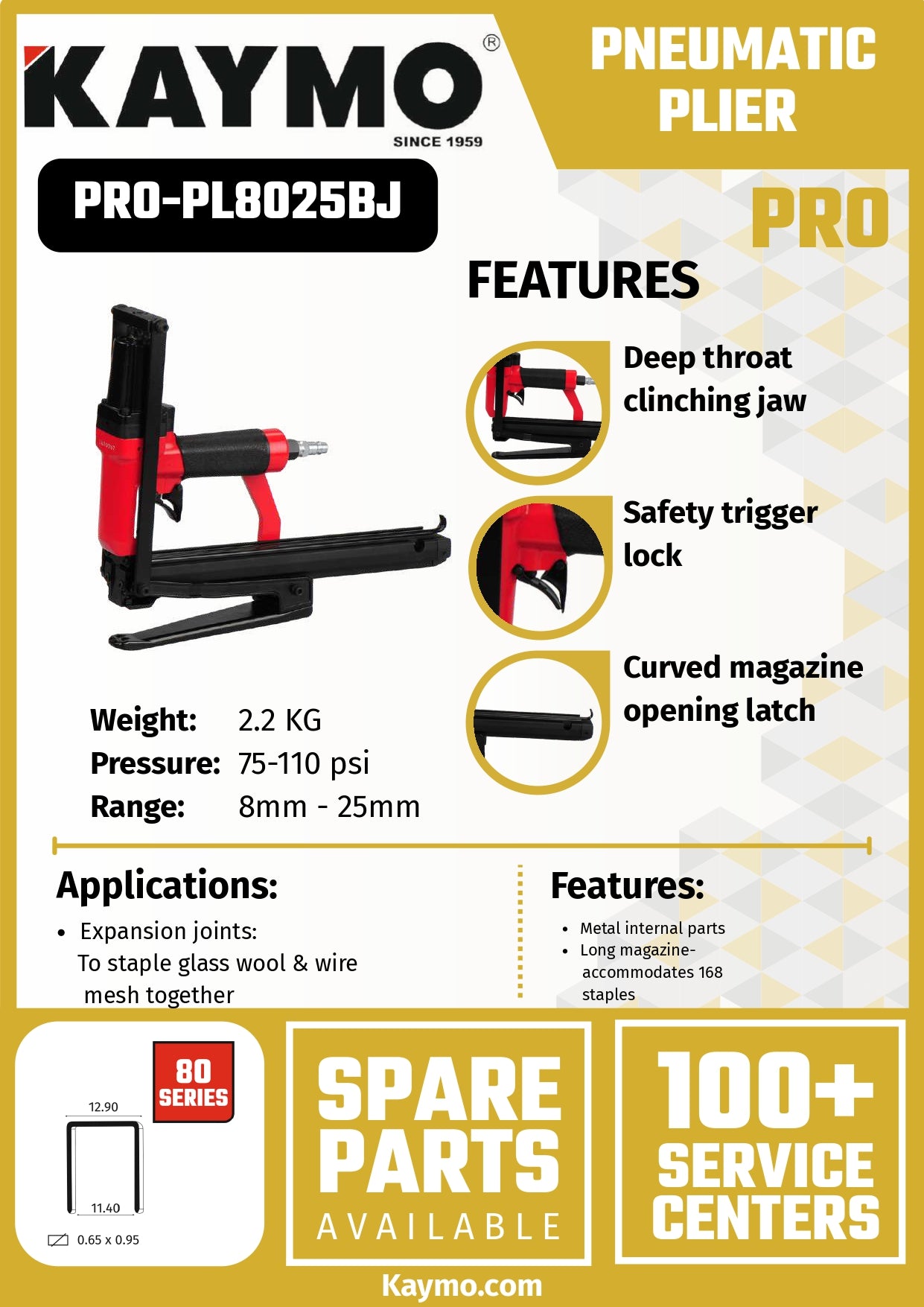

One Sheeter
