PNEUMATIC PLIER KAYMO PRO-77925 SJ SHORT JAW

PNEUMATIC PLIER KAYMO PRO-77925 SJ SHORT JAW

Name: PNEUMATIC PLIER KAYMO PRO-77925 SJ SHORT JAW
Brand: Kaymo
SKU: PRO-PL77925SJ
Availability: InStock

SKU: PRO-PL77925SJ

The KAYMO PRO-PL77925SJ is a high-performance pneumatic plier engineered for secure and efficient stapling in industrial applications. Featuring a detachable clinching anvil, oversized trigger, and Read More...

Features:

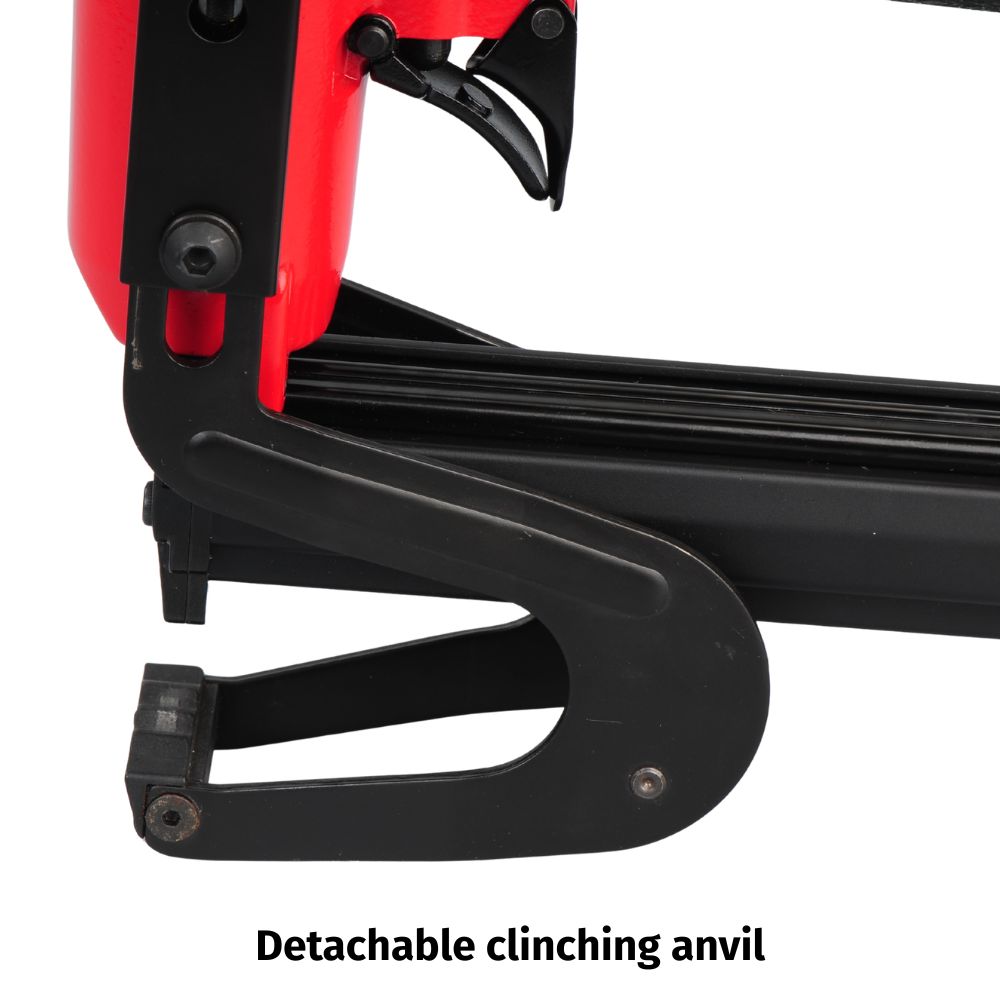

Detachable clinching anvil

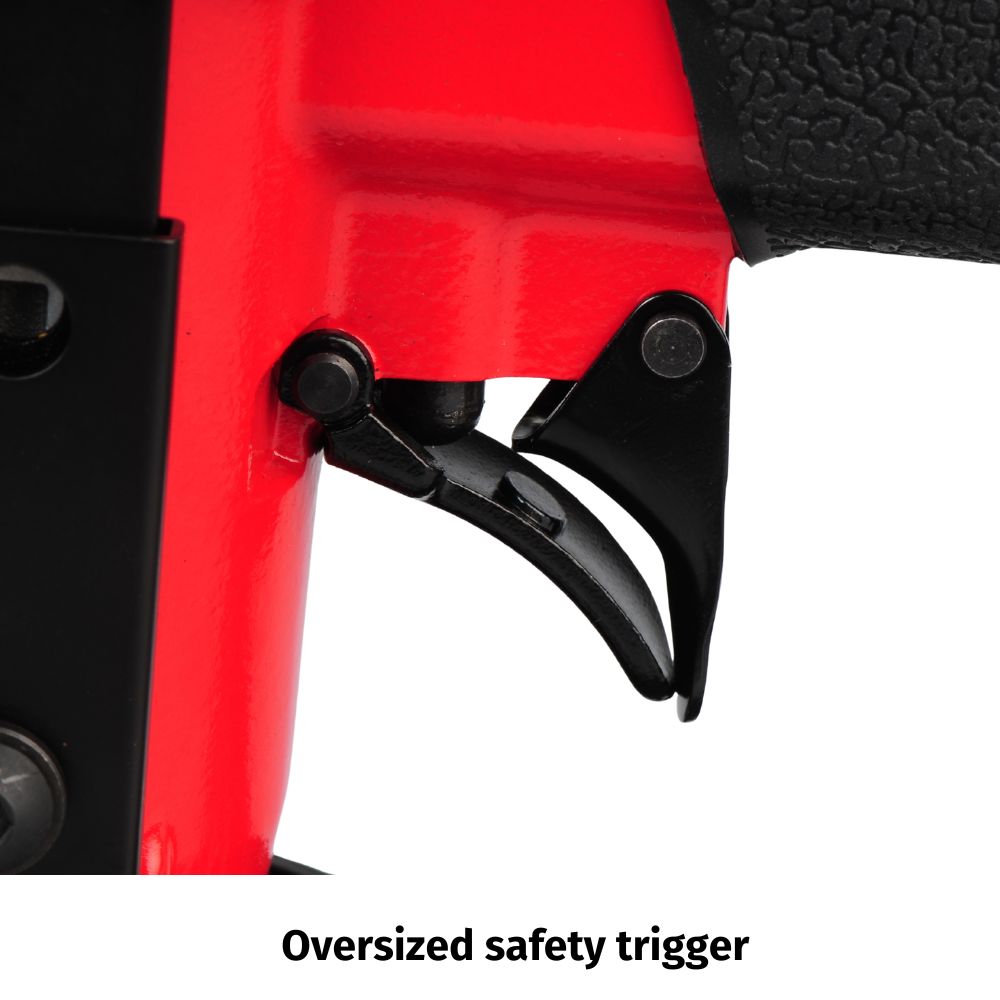

Oversized safety trigger

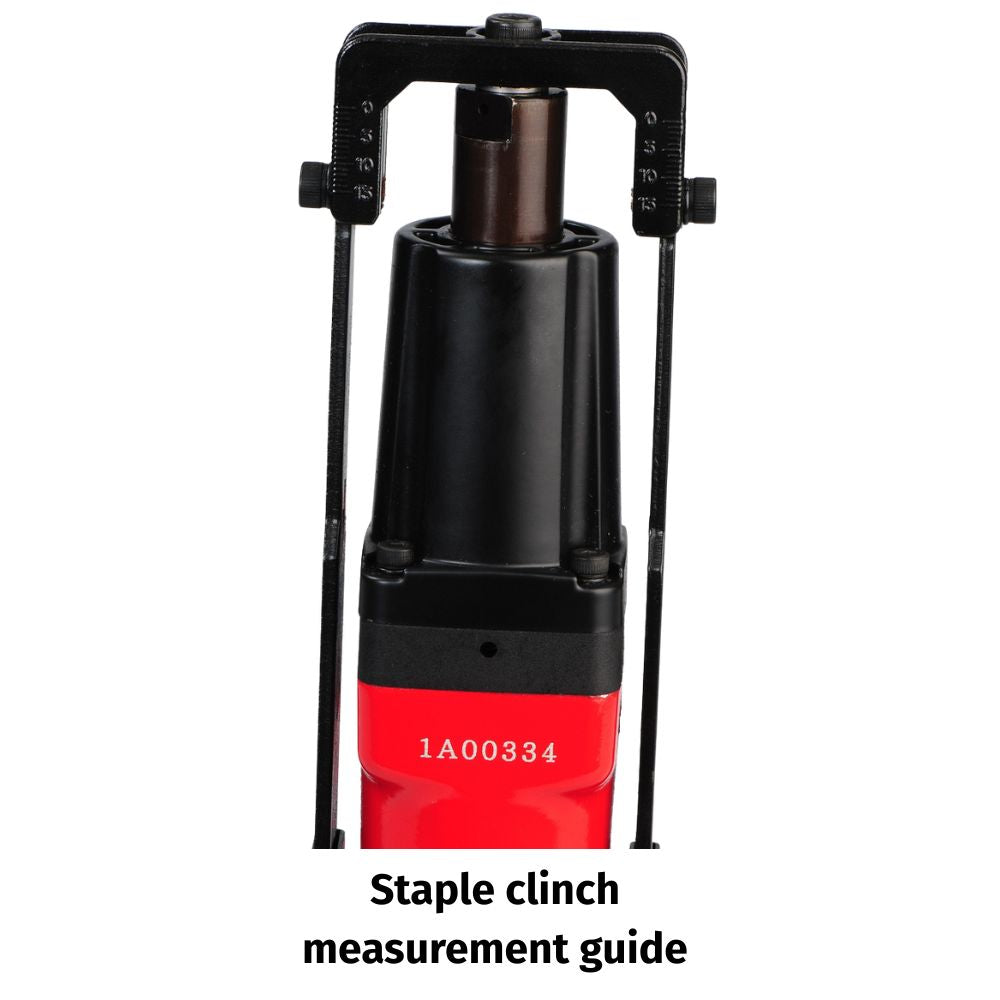

Staple clinch measurement guide
Metal internal parts

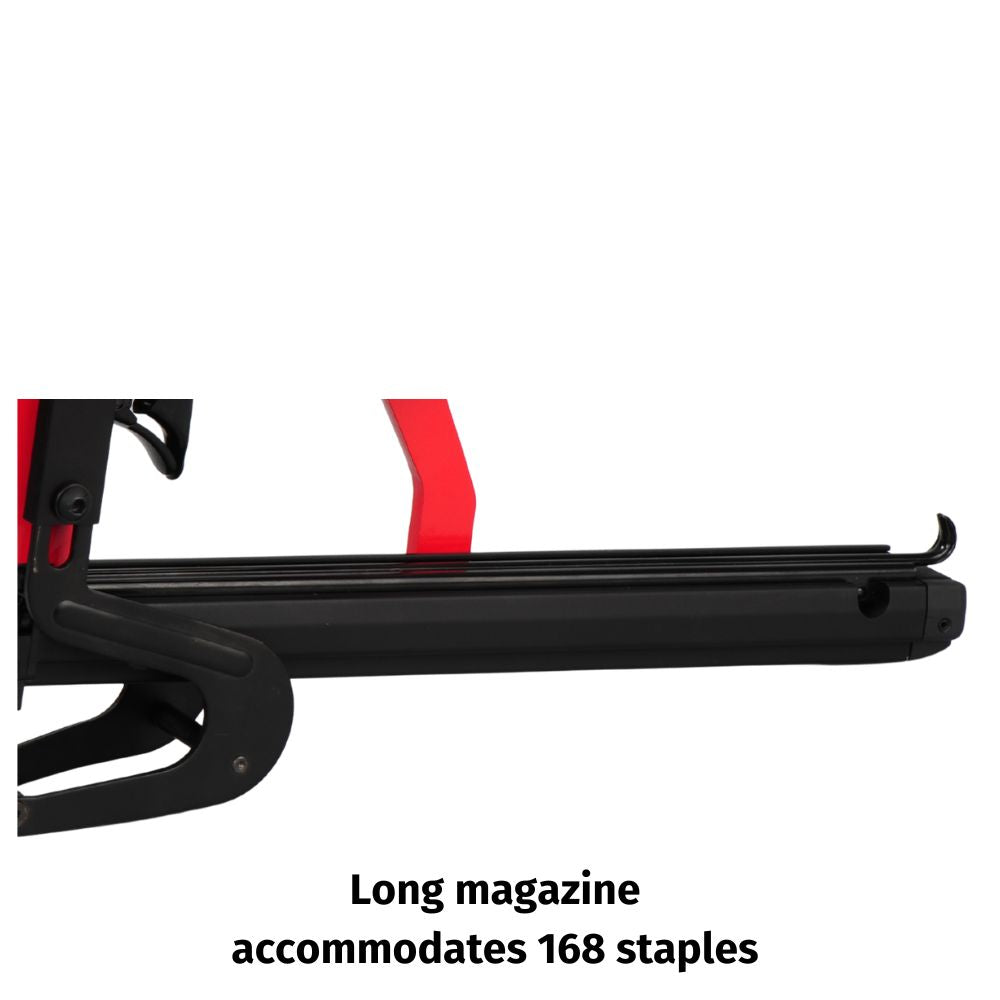

Long magazine – accommodates 168 staples
Fastener Range: 8mm – 25mm

Applications:

Mattresses
Angle & edge boards
Corrugated trays

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

STAPLES KAYMO 779 SERIES BL

AIR FILTER + REGULATOR LUBRICATOR SET KAYMO 1/2" WITH GAUGE

FITTING KAYMO 6.35mmx8mm(1/4"x8 mm) PUSH TO CONNECT STRAIGHT

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

Blow Up

Spares

		TOOL MODEL:	PRO-PL77925SJ					REV.1ST APRIL2023
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1	FMS	CC5901	COMPRESSION SPRING		46	FMS	WU0201	CYLINDER
2	FMS	JF0201	COVER PLATE(B)		47	FMS	WU0301	BUMPER
3	FMS	JF0301	COVER PLATE(A)		48	FMS	WU0501	MAIN PISTON	WU0502
4	FMS	JF0302W	DRIVER ASSY.		49		WU0601	HEAD VALVE SEAT
5	FMS	JF0401	PUSHER		50	FMS	WU0701	GASKET
6	FMS	JF0501	NAIL SEAT ASSY.		51		WU0801	VALVE
7	FMS	JF0801	ROLLER		52	FMS	WU0901	CYLINDER CAP
8	FMS	JF0902	DRIVER BLADE		53	FMS	WU1001	CAP
9	FMS	JH0101	GUIDE PLATE		54	FMS	WU1101	WASHER ADJUSTMENT STROKE
10	FMS	KF0410	FLAT HD.BOLT		55	FMS	WU1101W	TRIGGER VALVE ASSY.
11	FMS	KM0306	HEX.SOC.HD.BOLT		56	FMS	WU1201	REVERSAL CYLINDER RING NUT
12	FMS	KM0406	HEX.SOC.HD.BOLT		57	FMS	WU1301	REVERSAL CYLINDER SHAFT
13		KM0414	HEX.SOC.HD.BOLT		58	FMS	WU1401	MAIN PISTON
14		KM0416	HEX.SOC.HD.BOLT		59	FMS	WU1401W	TRIGGER VALVE CAP ASSY.
15	FMS	KM0430	HEX.SOC.HD.BOLT		60	FMS	WU1501	BUMPER
16		KM0510	HEX.SOC.HD.BOLT		61	FMS	WU1601	SCREW
17		KM0616	HEX.SOC.HD.BOLT		62	FMS	WU1701	RUBBER PLATE
18		KP3006	PARALLEL PIN		63	FMS	WU1801	DIAPHRAGM VALVE
19	FMS	KP3022	PARALLEL PIN		64	FMS	WU1901	FIXED SUPPORT
20	FMS	KR0614	BUTTON HD.BOLT		65	FMS	WU2001	WASHER
21	FMS	KS3032	SPRING PIN	100220	66	FMS	WU2002	WASHER
22	FMS	OA007A	O-RING		67	FMS	WU2101	TRIGGER
23		OA008A	O-RING		68		WU2201W	HEAD VALVE CAP ASSY.
24	FMS	OA010A	O-RING		69	FMS	WU2401W	HEAD VALVE SEAT ASSY.
25	FMS	OA013A	O-RING		70		WU2501	MAGAZINE SEAT
26	FMS	OA016A	O-RING		71	FMS	WU2601	MAGAZINE CAP
27	FMS	OA111A	O-RING		72	FMS	WU2901	LATCH SEAT
28	FMS	OA117H	O-RING		73	FMS	WU3001	LATCH
29	FMS	OA122A	O-RING		74	FMS	WU3101	PIN
30	FMS	OA122H	O-RING		75		WU3201	TRIGGER VALVE STEM
31	FMS	OA126H	O-RING		76		WU3301	TRIGGER VALVE SEAT
32	FMS	OB042A	O-RING		77	FMS	WU3401	PAWL
33	FMS	OB403A	O-RING		78	FMS	WU3501	SHORT JAW
34	FMS	OP006A	O-RING		79	FMS	WU3601	COMPRESSION SPRING
35	FMS	OP028H	O-RING		80	FMS	WU3701	COMPRESSION SPRING
36		OS003A	O-RING		81	FMS	WU3801	COMPRESSION SPRING
37		OS006A	O-RING		82	FMS	WU3901	PULL SPRING
38		OS009A	O-RING		83	FMS	WU4201	COVER
39		OS010A	O-RING		84	FMS	WU5101	FLAT WASHER
40	FMS	OS038A	O-RING		85		YE2501	E-RING
41	FMS	PA5003	COUPLING PLUG		86	FMS	YE6001	E-RING
42	FMS	PF1601	SPRING		87		YG0401	SPRING WASHER	S0410400
43		PF1701	SAFETY LEVER		88		YG0501	SPRING WASHER	S0410500
44		PF1801	PIN		89		YW0401	FLAT WASHER
45		WU0101	BODY		90		YW0501	FLAT WASHER

One Sheeter

Application

MATTRESSES

To fix inner lining to metal springs
