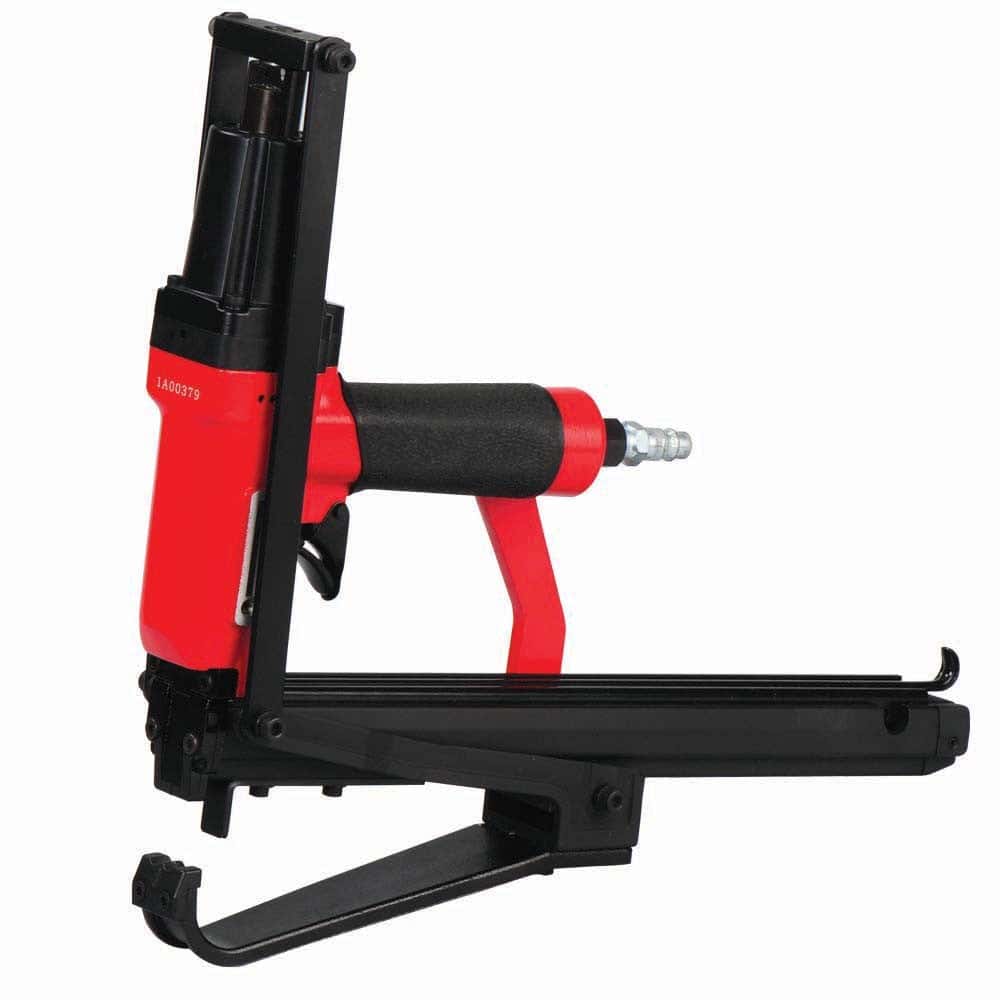

PNEUMATIC PLIER KAYMO PRO-77925 LJ LONG JAW

PNEUMATIC PLIER KAYMO PRO-77925 LJ LONG JAW

Name: PNEUMATIC PLIER KAYMO PRO-77925 LJ LONG JAW
Brand: Kaymo
SKU: PRO-PL77925LJ
Availability: InStock

SKU: PRO-PL77925LJ

The KAYMO PRO-PL77925LJ is a robust pneumatic plier designed for secure and efficient fastening applications. Built with industrial-grade metal components, a high-capacity magazine, and an Read More...

Features:

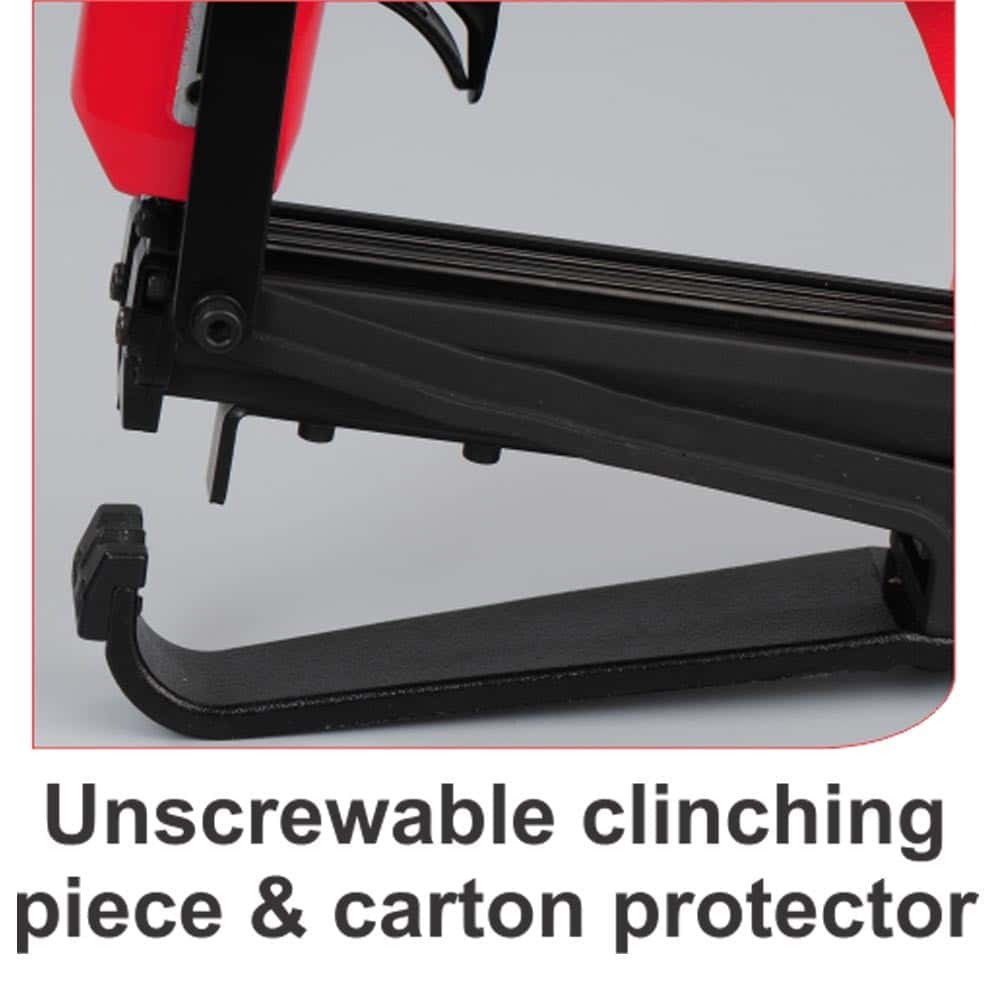

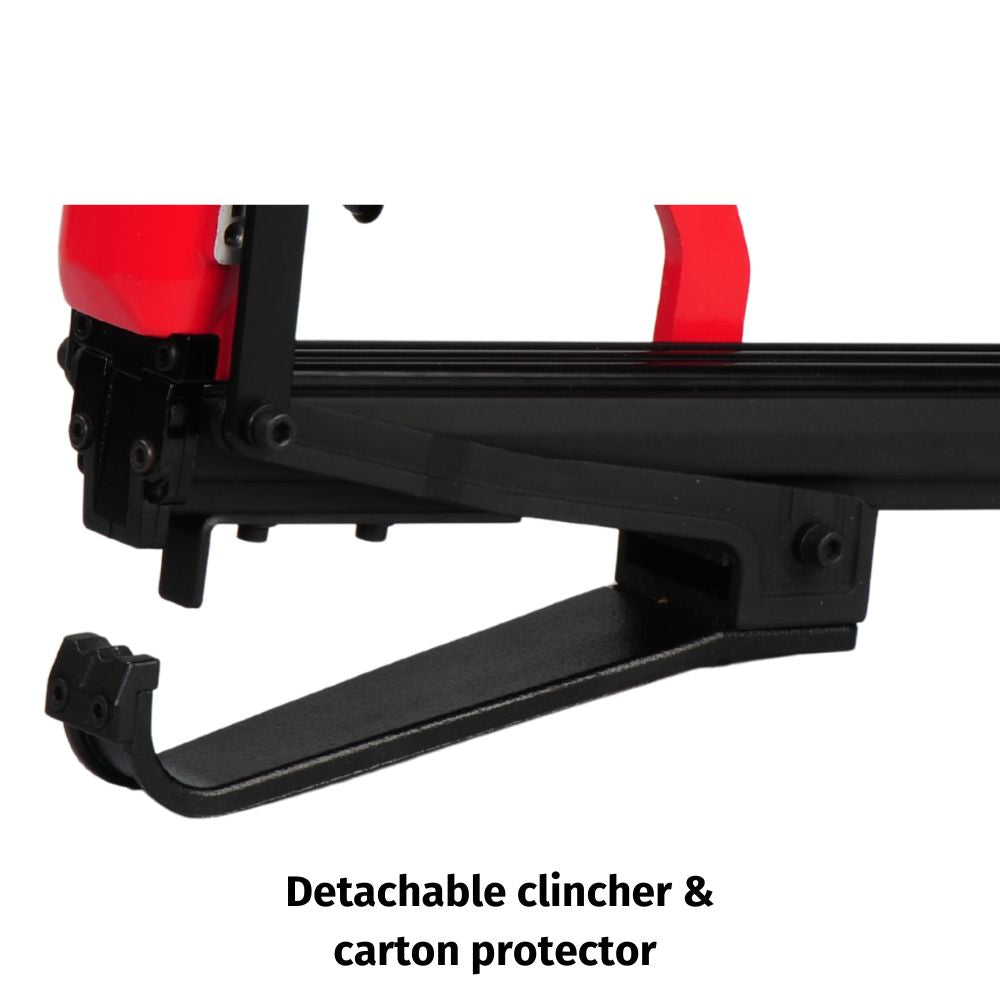

Detachable clincher & carton protector

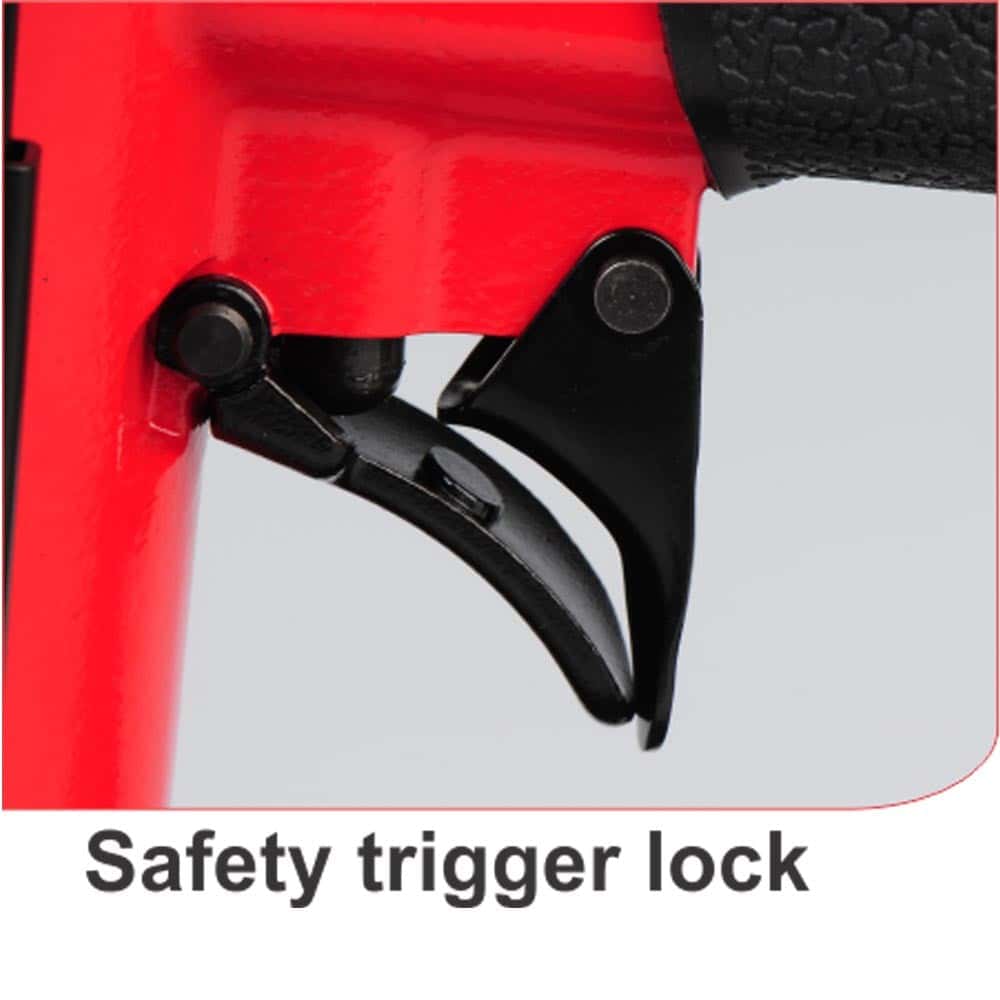

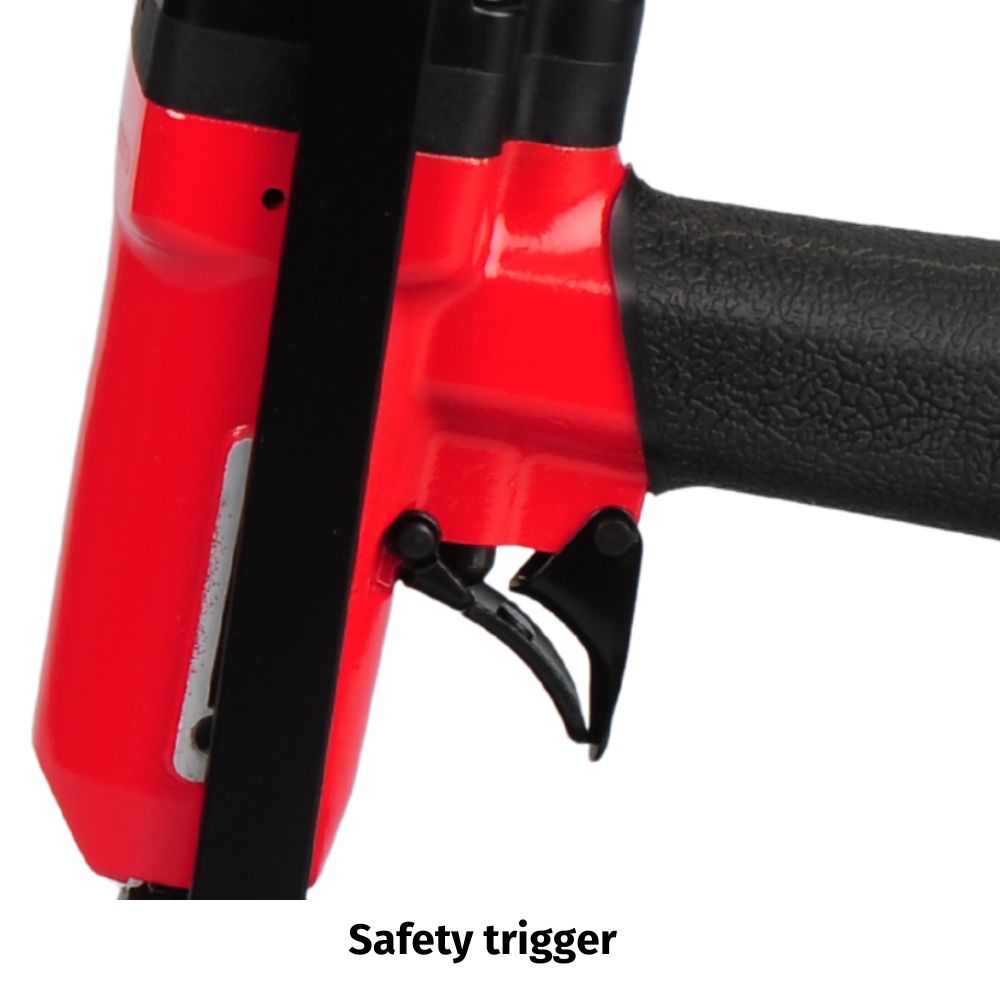

Safety trigger

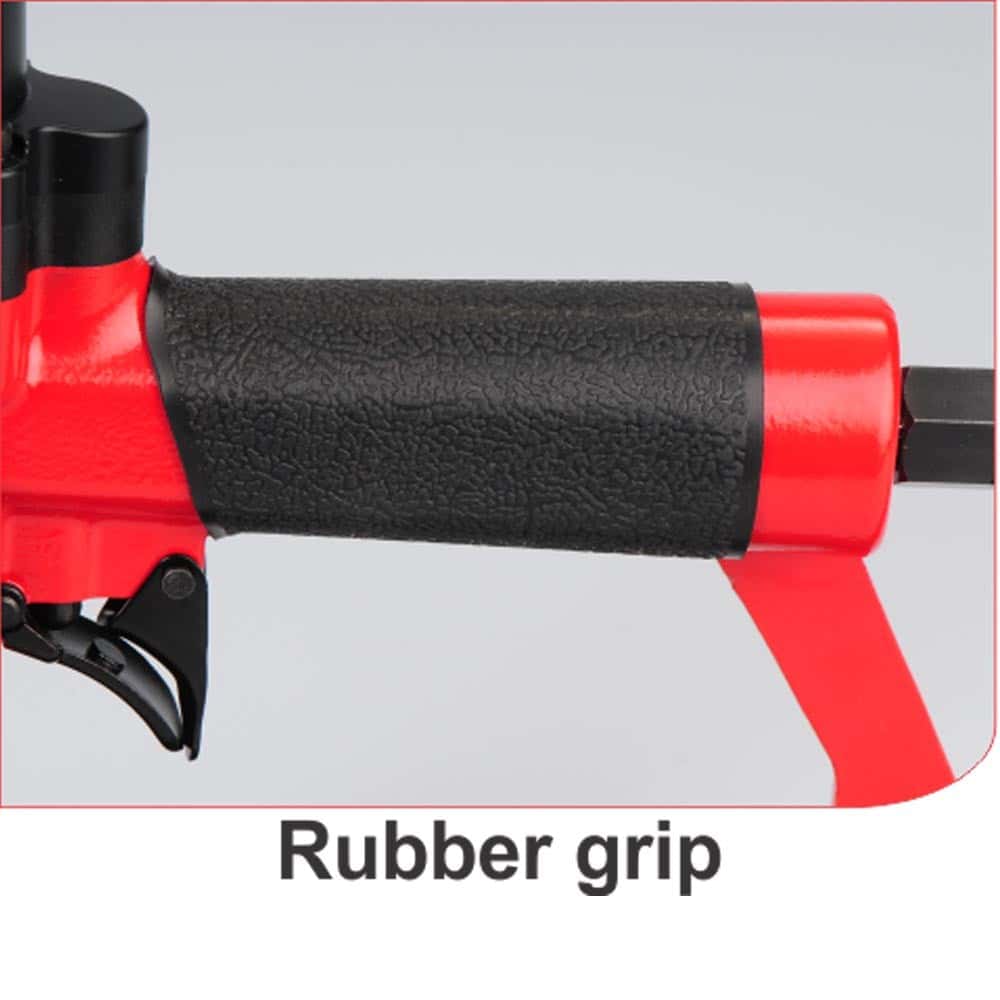

Ergonomic rubber grip

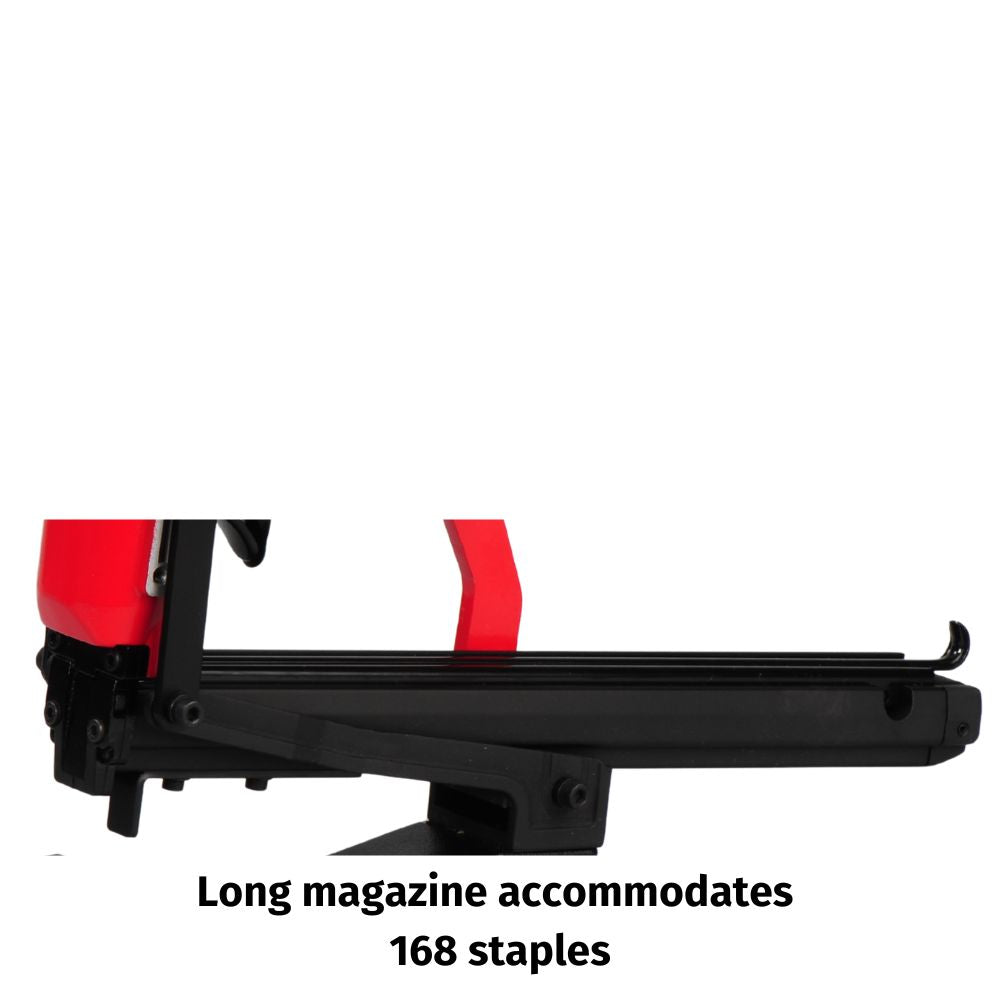

Long magazine accommodates – 168 staples
Metal internal parts
Fastener Range: 8mm – 25mm

Applications:

To make angle & edge board trays
Auto ancillary
Corrugated packing

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

STAPLES KAYMO 779 SERIES BL

AIR FILTER + REGULATOR LUBRICATOR SET KAYMO 1/2" WITH GAUGE

FITTING KAYMO 6.35mmx8mm(1/4"x8 mm) PUSH TO CONNECT STRAIGHT

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

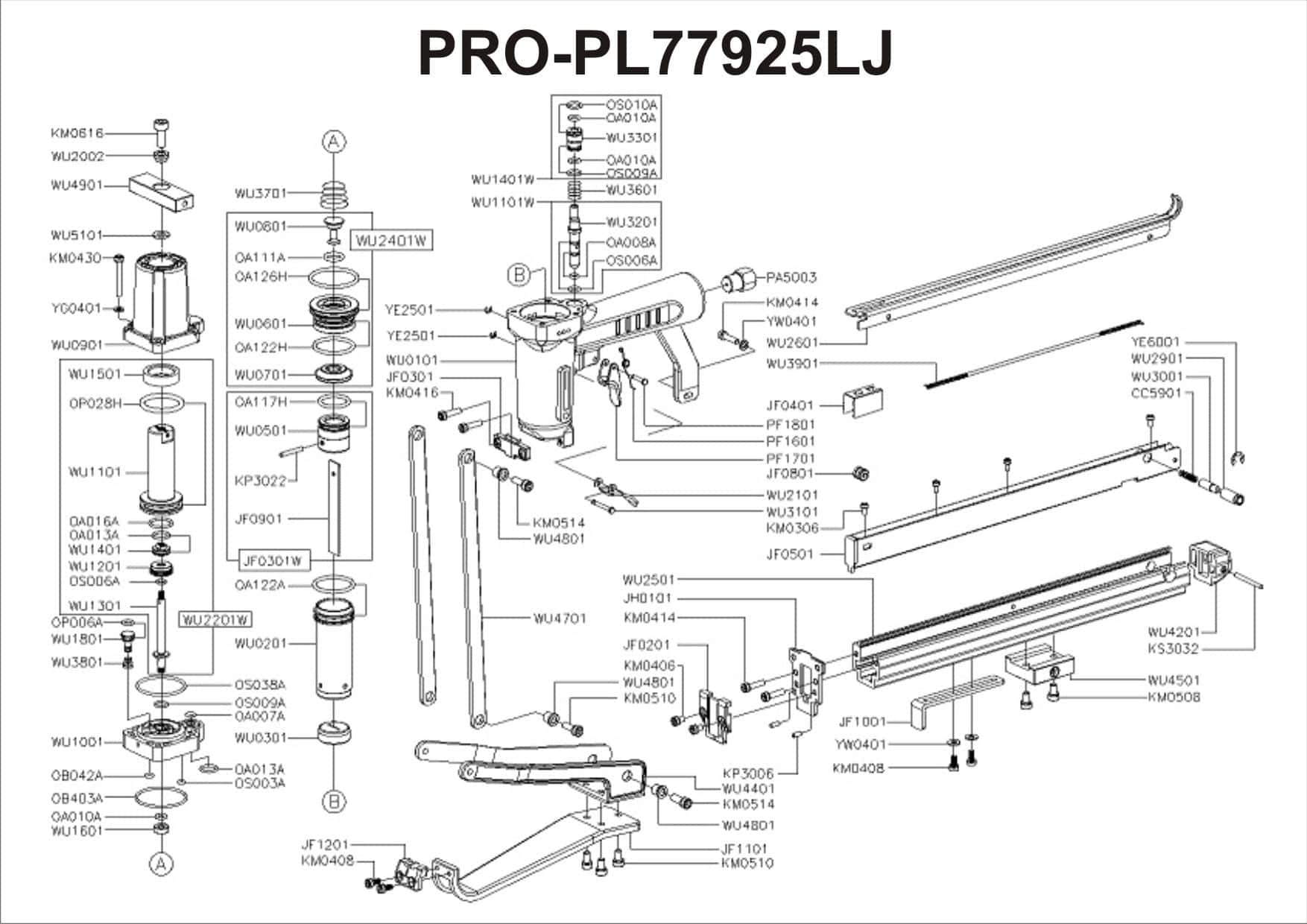

Blow Up

Spares

		TOOL MODEL:	PRO-PL77925LJ					REV.1ST APRIL2023
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1		CC5901	COMPRESSION SPRING		48		PF1701	SAFETY LEVER
2		JF0201	COVER PLATE(B)		49		PF1801	PIN
3	FMS	JF0301	COVER PLATE(A)		50		WU0101	BODY
4	FMS	JF0302W	DRIVER ASSY.		51	FMS	WU0201	CYLINDER
5	FMS	JF0401	PUSHER		52	FMS	WU0301	BUMPER
6	FMS	JF0501	NAIL SEAT ASSY.		53		WU0502	MAIN PISTON
7	FMS	JF0801	ROLLER		54		WU0601	HEAD VALVE SEAT
8	FMS	JF0902	DRIVER BLADE		55	FMS	WU0701	GASKET
9	FMS	JF1001	STOP		56		WU0801	VALVE
10	FMS	JF1101	TONGUE		57	FMS	WU0901	CYLINDER CAP
11	FMS	JF1201	PAWL		58	FMS	WU1001	CAP
12	FMS	JH0101	GUIDE PLATE		59	FMS	WU1101	WASHER ADJUSTMENT STROKE
13	FMS	KM0306	HEX.SOC.HD.BOLT		60	FMS	WU1101W	TRIGGER VALVE ASSY.
14	FMS	KM0406	HEX.SOC.HD.BOLT		61	FMS	WU1201	REVERSAL CYLINDER RING NUT
15		KM0408	HEX.SOC.HD.BOLT		62	FMS	WU1301	REVERSAL CYLINDER SHAFT
16		KM0414	HEX.SOC.HD.BOLT		63	FMS	WU1401	MAIN PISTON
17		KM0416	HEX.SOC.HD.BOLT		64	FMS	WU1401W	TRIGGER VALVE CAP ASSY.
18	FMS	KM0430	HEX.SOC.HD.BOLT		65	FMS	WU1501	BUMPER
19		KM0508	HEX.SOC.HD.BOLT		66	FMS	WU1601	SCREW
20		KM0510	HEX.SOC.HD.BOLT		67	FMS	WU1801	DIAPHRAGM VALVE
21		KM0512	HEX.SOC.HD.BOLT		68	FMS	WU2002	WASHER
22		KM0514	HEX.SOC.HD.BOLT		69	FMS	WU2101	TRIGGER
23		KM0616	HEX.SOC.HD.BOLT		70		WU2201W	HEAD VALVE CAP ASSY.
24		KP3006	PARALLEL PIN		71	FMS	WU2401W	HEAD VALVE SEAT ASSY.
25		KP3022	PARALLEL PIN		72		WU2501	MAGAZINE SEAT
26	FMS	KS3032	SPRING PIN	100220	73	FMS	WU2601	MAGAZINE CAP
27	FMS	OA007A	O-RING		74	FMS	WU2901	LATCH SEAT
28		OA008A	O-RING		75	FMS	WU3001	LATCH
29	FMS	OA010A	O-RING		76	FMS	WU3101	PIN
30	FMS	OA013A	O-RING		77		WU3201	TRIGGER VALVE STEM
31	FMS	OA016A	O-RING		78		WU3301	TRIGGER VALVE SEAT
32	FMS	OA111A	O-RING		79	FMS	WU3601	COMPRESSION SPRING
33	FMS	OA117H	O-RING		80	FMS	WU3701	COMPRESSION SPRING
34	FMS	OA122A	O-RING		81	FMS	WU3801	COMPRESSION SPRING
35	FMS	OA122H	O-RING		82	FMS	WU3901	PULL SPRING
36	FMS	OA126H	O-RING		83	FMS	WU4201	COVER
37	FMS	OB042A	O-RING		84	FMS	WU4401	BRACKET
38	FMS	OB403A	O-RING		85	FMS	WU4501	SUPPORT
39	FMS	OP006A	O-RING		86		WU4701	POWER ARM
40	FMS	OP028H	O-RING		87	FMS	WU4801	CAP
41		OS003A	O-RING		88	FMS	WU4901	FIXED SUPPORT
42		OS006A	O-RING		89	FMS	WU5101	FLAT WASHER
43		OS009A	O-RING		90		YE2501	E-RING
44		OS010A	O-RING		91	FMS	YE6001	E-RING
45	FMS	OS038A	O-RING		92		YG0401	SPRING WASHER	S0410400
46	FMS	PA5003	COUPLING PLUG		93		YW0401	FLAT WASHER
47	FMS	PF1601	SPRING

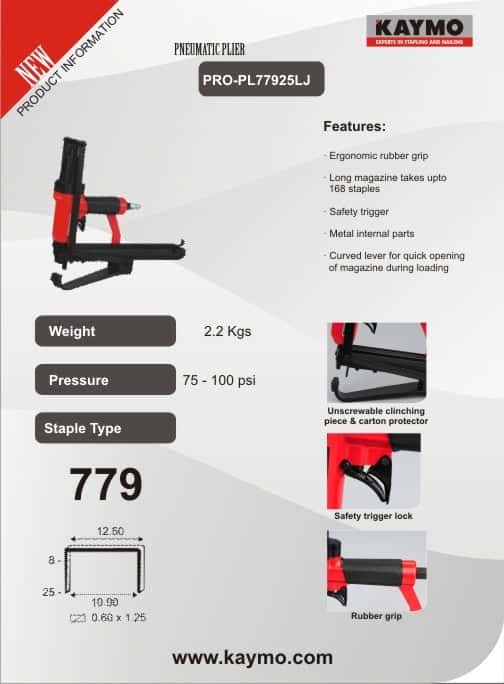

One Sheeter

Application

ANGLE & EDGE BOARDS

To make angle & edge boards trays

PNEUMATIC PLIER KAYMO PRO-77925 LJ LONG JAW

Compatible Products

STAPLES KAYMO 779 SERIES BL

AIR FILTER + REGULATOR LUBRICATOR SET KAYMO 1/2" WITH GAUGE

FITTING KAYMO 6.35mmx8mm(1/4"x8 mm) PUSH TO CONNECT STRAIGHT

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

Blow Up

Spares

One Sheeter

Application
