PNEUMATIC PLIER KAYMO PRO-77925 BJ BROAD JAW

Name: PNEUMATIC PLIER KAYMO PRO-77925 BJ BROAD JAW
Brand: Kaymo
SKU: PRO-PL77925BJ
Availability: InStock

SKU: PRO-PL77925BJ

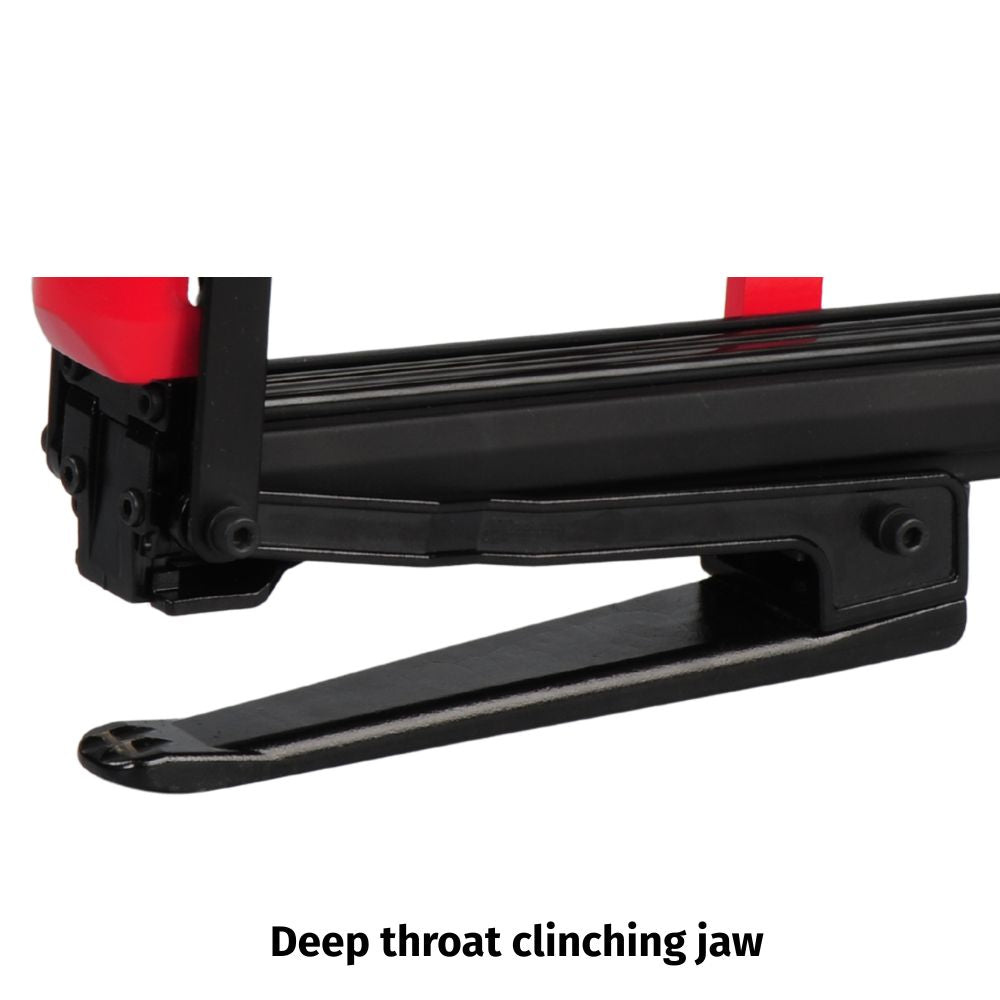

The KAYMO PRO-PL77925BJ is a high-performance pneumatic plier designed for efficient clinching and fastening applications. Featuring a deep throat clinching jaw, large magazine capacity, and Read More...

Features:

Ergonomic Rubber Grip – Ensures comfortable handling during prolonged use.

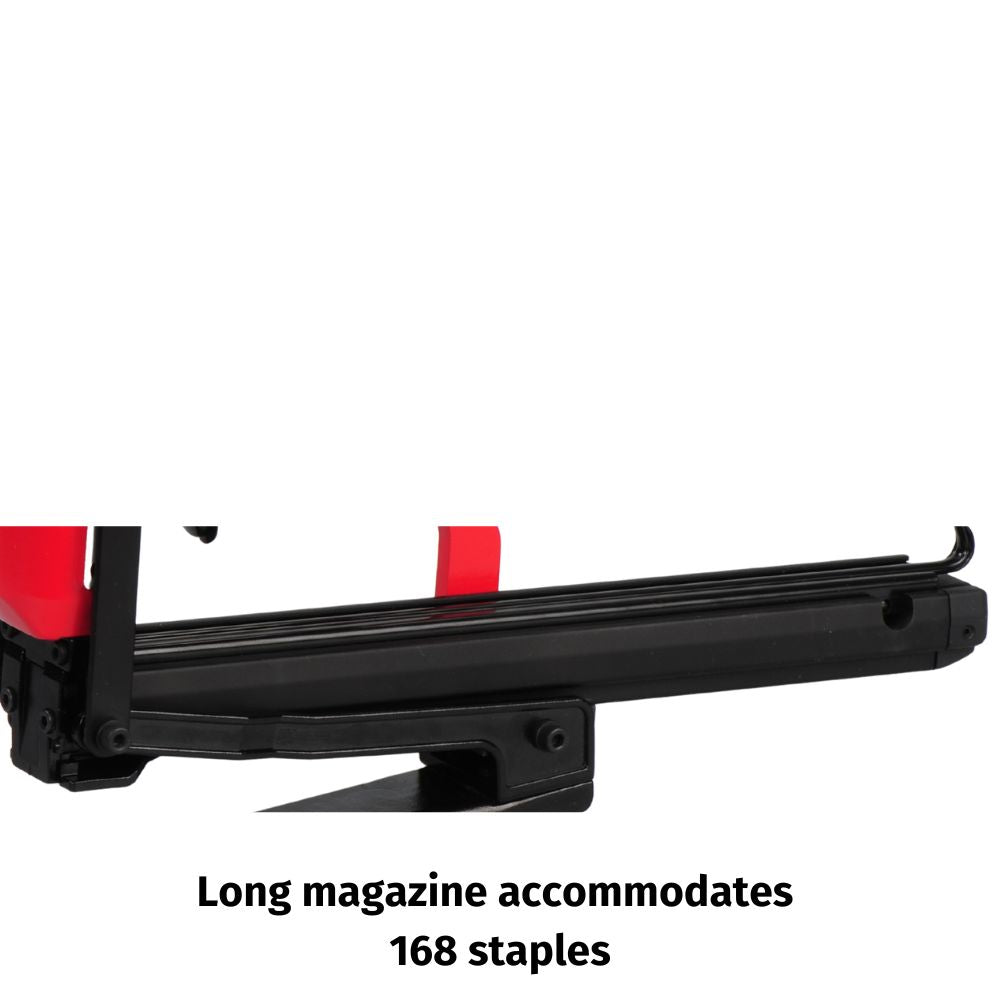

High-Capacity Magazine – Holds up to 168 staples for uninterrupted work.

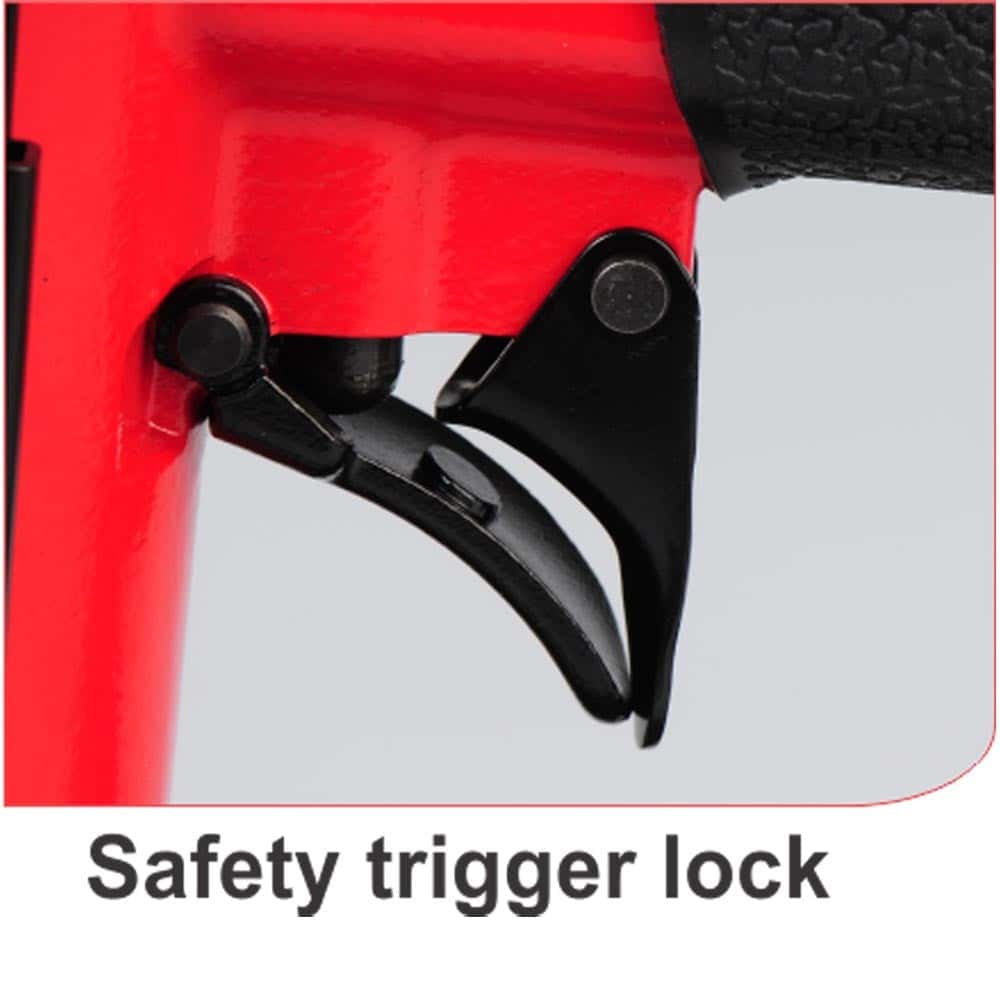

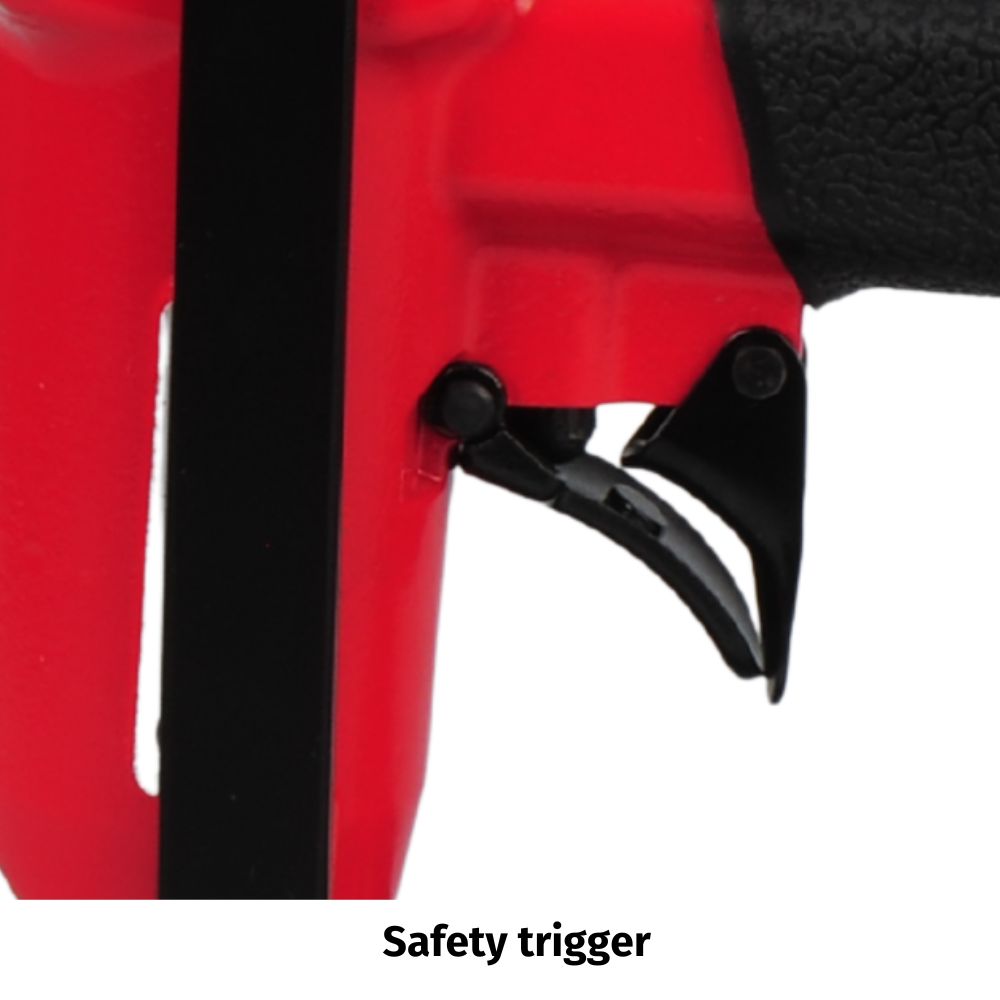

Safety Trigger Lock – Prevents accidental firing for enhanced safety.
Durable Metal Internal Parts – Ensures longevity and reliability.

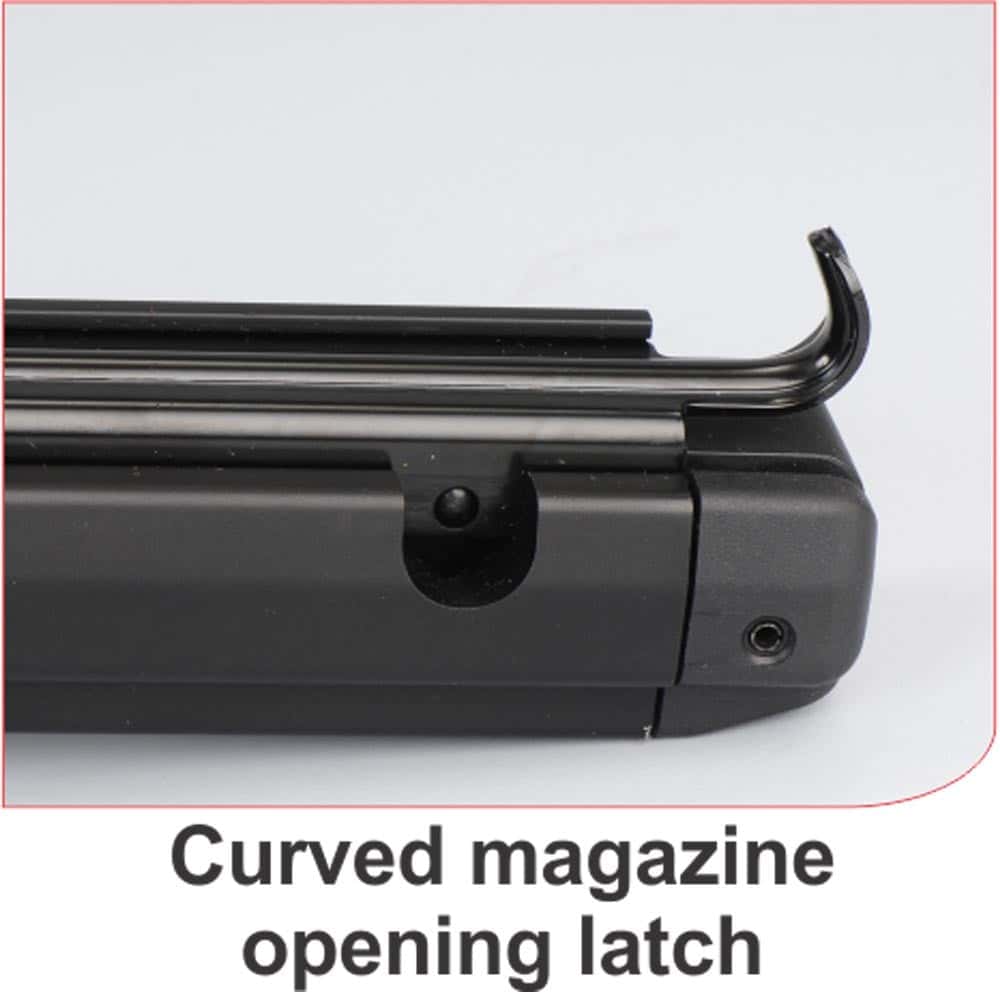

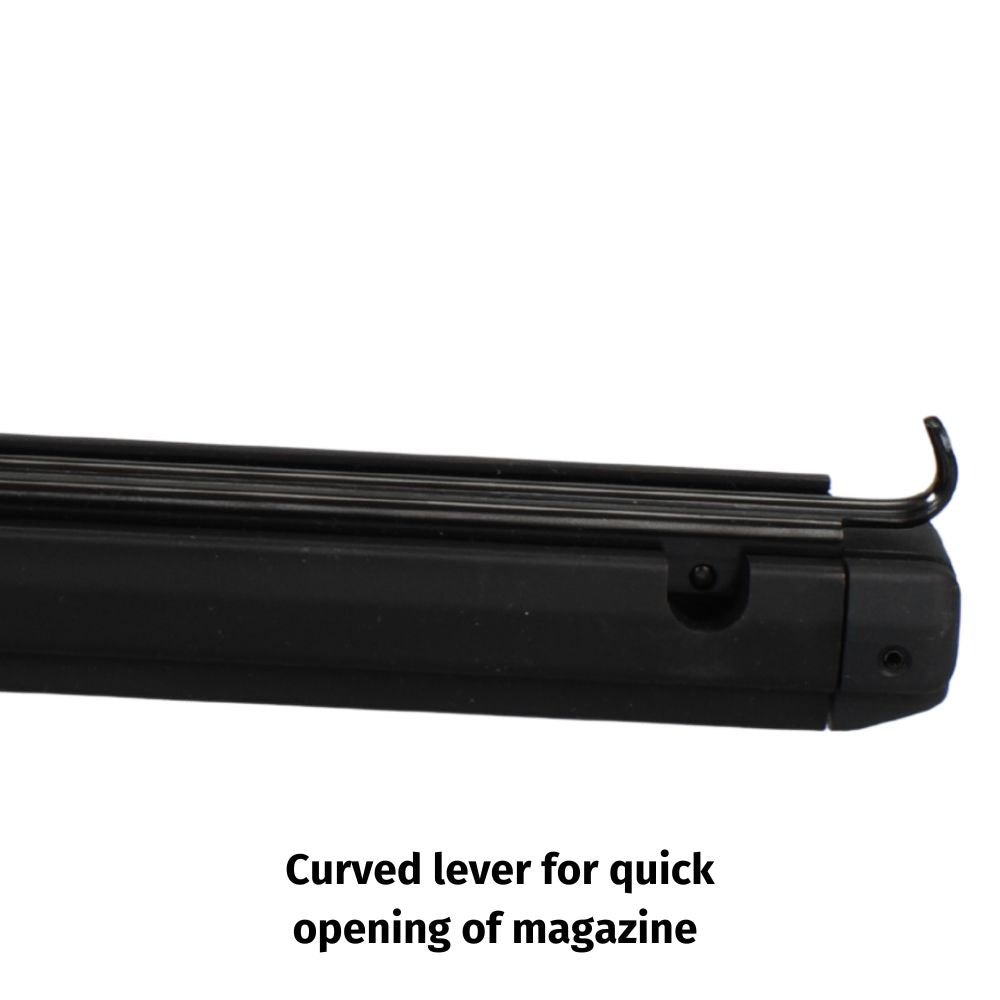

Curved Lever Mechanism – Enables quick magazine opening for easy reloading

Applications:

Expansion joints- To staple glasswool & wire mesh together

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

STAPLES KAYMO 779 SERIES BL

1/2" F/RL AIR CONTROL UNIT, PT FRL884

PUSH-TO-CONNECT FITTING JPC STRAIGHT 1/4

B80 1/4" PT AIR BLOW GUN WITH 12CM STEEL TUBE

Blow Up

Spares

.		TOOL NAME:	PRO-PL77925BJ					REV.1ST APRIL 2022
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1		CC5901	COMPRESSION SPRING	215	47	FMS	WU0201	CYLINDER
2		JF0201	COVER PLATE(B)	1420	48	FMS	WU0301	BUMPER
3	FMS	JF0301	COVER PLATE(A)	1200	49		WU0502	MAIN PISTON
4	FMS	JF0302W	DRIVER ASSY.	1540	50		WU0601	HEAD VALVE SEAT
5	FMS	JF0401	PUSHER	580	51	FMS	WU0701	GASKET
6	FMS	JF0501	NAIL SEAT ASSY.	2770	52		WU0801	VALVE
7	FMS	JF0801	ROLLER	515	53	FMS	WU0901	CYLINDER CAP
8	FMS	JF0902	DRIVER BLADE	710	54	FMS	WU1001	CAP
9	FMS	JH0101	GUIDE PLATE	2770	55	FMS	WU1101	WASHER ADJUSTMENT STROKE
10	FMS	KM0306	HEX.SOC.HD.BOLT	22	56	FMS	WU1101W	TRIGGER VALVE ASSY.
11		KM0406	HEX.SOC.HD.BOLT	50	57	FMS	WU1201	REVERSAL CYLINDER RING NUT
12		KM0414	HEX.SOC.HD.BOLT	22	58	FMS	WU1301	REVERSAL CYLINDER SHAFT
13		KM0416	HEX.SOC.HD.BOLT	22	59	FMS	WU1401	MAIN PISTON
14	FMS	KM0430	HEX.SOC.HD.BOLT	22	60	FMS	WU1401W	TRIGGER VALVE CAP ASSY.
15		KM0508	HEX.SOC.HD.BOLT	22	61	FMS	WU1501	BUMPER
16		KM0510	HEX.SOC.HD.BOLT	22	62	FMS	WU1601	SCREW
17		KM0512	HEX.SOC.HD.BOLT	33	63	FMS	WU1801	DIAPHRAGM VALVE
18		KM0514	HEX.SOC.HD.BOLT	40	64	FMS	WU2002	WASHER
19		KM0616	HEX.SOC.HD.BOLT	22	65	FMS	WU2101	TRIGGER
20		KP3006	PARALLEL PIN	55	66		WU2201W	HEAD VALVE CAP ASSY.
21		KP3022	PARALLEL PIN	65	67	FMS	WU2401W	HEAD VALVE SEAT ASSY.
22	FMS	KS3032	SPRING PIN	55	68		WU2501	MAGAZINE SEAT
23	FMS	OA007A	O-RING	33	69	FMS	WU2601	MAGAZINE CAP
24		OA008A	O-RING	40	70	FMS	WU2901	LATCH SEAT
25	FMS	OA010A	O-RING	40	71	FMS	WU3001	LATCH
26	FMS	OA013A	O-RING	40	72	FMS	WU3101	PIN
27	FMS	OA016A	O-RING	40	73		WU3201	TRIGGER VALVE STEM
28	FMS	OA111A	O-RING	55	74		WU3301	TRIGGER VALVE SEAT
29	FMS	OA117H	O-RING	95	75	FMS	WU3601	COMPRESSION SPRING
30	FMS	OA122A	O-RING	95	76	FMS	WU3701	COMPRESSION SPRING
31	FMS	OA122H	O-RING	105	77	FMS	WU3801	COMPRESSION SPRING
32	FMS	OA126H	O-RING	120	78	FMS	WU3901	PULL SPRING
33	FMS	OB042A	O-RING	33	79	FMS	WU4201	COVER
34	FMS	OB403A	O-RING	120	80	FMS	WU4401	BRACKET
35	FMS	OP006A	O-RING	40	81	FMS	WU4501	SUPPORT
36	FMS	OP028H	O-RING	105	82		WU4602	TONGUE
37		OS003A	O-RING	40	83		WU4701	POWER ARM
38		OS006A	O-RING	40	84	FMS	WU4801	CAP
39		OS009A	O-RING	40	85	FMS	WU4901	FIXED SUPPORT
40		OS010A	O-RING	40	86	FMS	WU5001	CORTON PROTECTOR
41	FMS	OS038A	O-RING	65	87	FMS	WU5101	FLAT WASHER
42	FMS	PA5003	COUPLING PLUG	380	88		YE2501	E-RING
43	FMS	PF1601	SPRING	145	89	FMS	YE6001	E-RING
44		PF1701	SAFETY LEVER	280	90		YG0401	SPRING WASHER	S0410400
45		PF1801	PIN	215	91		YW0401	FLAT WASHER
46		WU0101	BODY	12480	100		KFCPL00001	779 LONG TONGUE 300mm

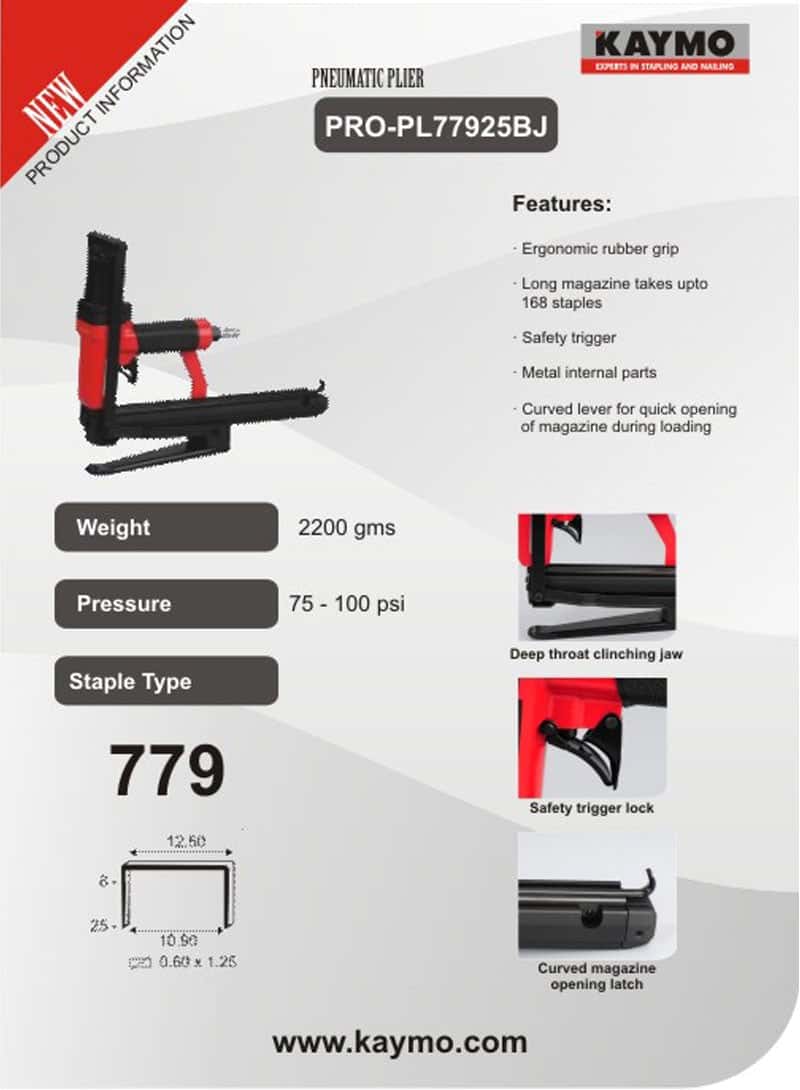

One Sheeter

Application

EXPANSION JOINTS

To staple glasswool & wire mesh together
