PNEUMATIC PLIER KAYMO PRO-59032 LONG

Name: PNEUMATIC PLIER KAYMO PRO-59032 LONG
Brand: Kaymo
SKU: PRO-PL59032L
Availability: InStock

SKU: PRO-PL59032L

The KAYMO PRO-PL59032L is a high-performance pneumatic plier engineered for heavy-duty industrial stapling. Designed for making angle & edge boards trays and securing corrugated boxes Read More...

Features:

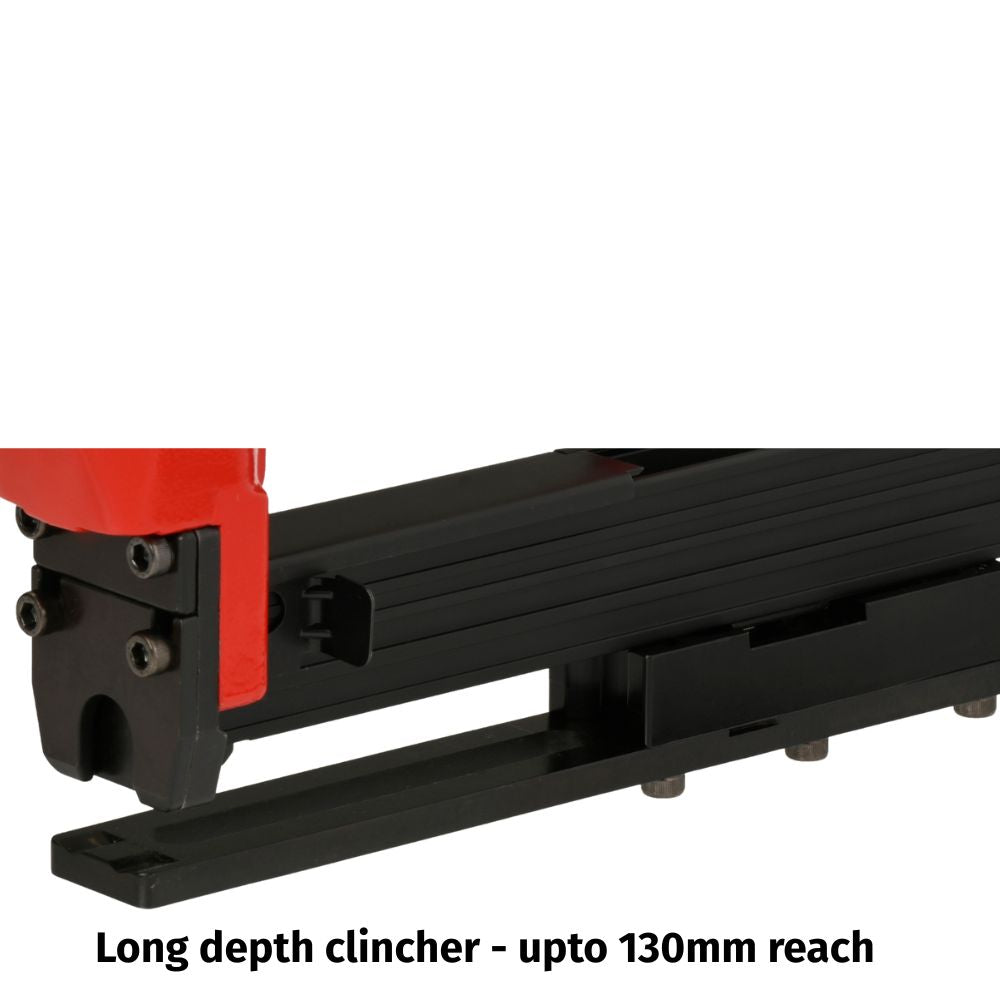

Long depth clincher

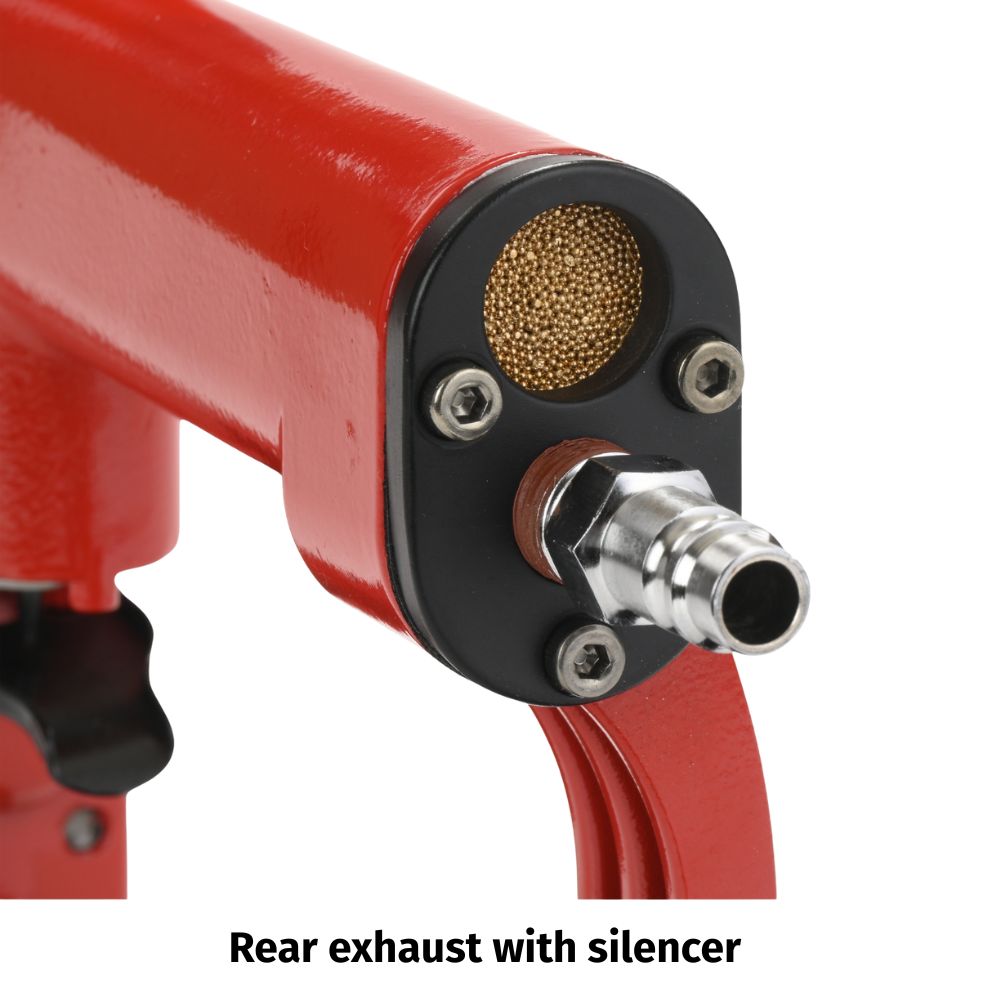

Built-in sound absorber

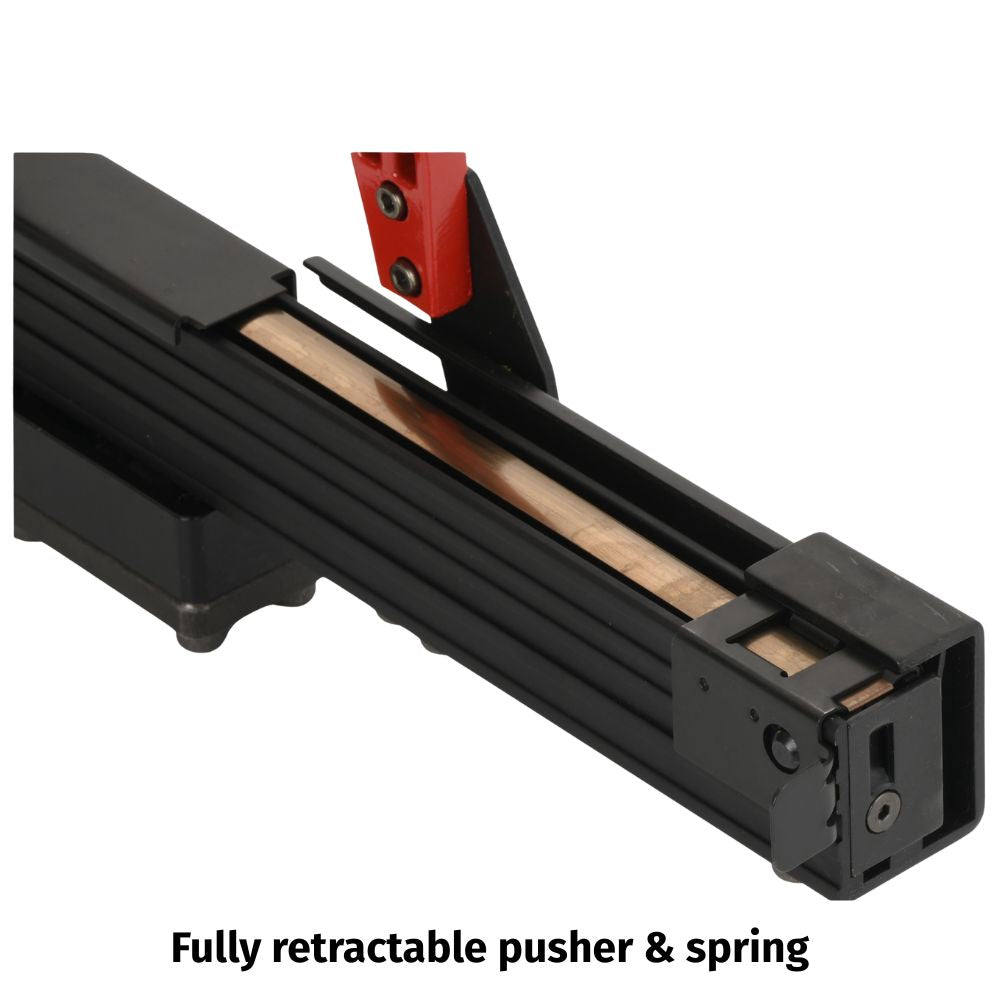

Fully retractable pusher & spring
Multiple height adjustments to suit different thicknesses of angle boards
Professional, light weight tool
Fastener Range: 16mm – 32mm

Applications:

To make angle/edge board trays
To fix empty corrugated boxes onto wooden pallets

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

STAPLES JK 590 SERIES

AIR RECOIL HOSE KAYMO 8x12 MM PU 15M BRAIDED BLUE

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

Blow Up

Spares

		TOOL MODEL:	PRO-PL59032L
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1		A15800101	CAP(BLACK)		39		A19000203	HOLDER
2	FMS	A15800201	PACKING		40	FMS	A19000101	BLOCK B
3	FMS	A15800301	SPACER		41	FMS	A15804401	BLOCK D
4	FMS	A15800401	CYLINDER CAP		42	FMS	A15803701	SPRING
5	FMS	A15800501	SEAL		43	FMS	A15803901	TUBE
6	FMS	A15800703	PISTON		44	FMS	A15803801	SHAFT
9	FMS	A15805401A	DRIVER		45	FMS	A15804001	COVER
10	FMS	A15800601	GLIDE RING		46	FMS	A15803001A	COVER A UNIT
11	FMS	A15801101	CYLINDER		47		A15803301A	COVER B UNIT
12	FMS	A15805001	SEAL		48	FMS	A15803601	SPRING
13	FMS	A15800903	BUMPER 21mm	A15800904	49		A15803501A	COVER C UNIT
14		A15801301	CAGE		50		A19000401	SPACER A
15	FMS	A15801401	CYLINDER RING		51		A19000501	SPACER B
16	FMS	A15801501	BOTTOM WASHER		501	FMS	BAC0405252	HEX.SOC.HD.BOLT
17	FMS	A15801901	VALVE CAGE		502	FMS	BAB015250	O-RING
18	FMS	A15802301	SPRING		503	FMS	BAB030436	O-RING
19	FMS	A15802001	VALVE		504	FMS	BAB030420	O-RING
20	FMS	A15802101	NUT		505	FMS	BAB020520	O-RING
21		A15804901A	BODY SET UNIT		506	FMS	BAB020400	O-RING
22	FMS	A15801701	DRIVER GUIDE		507	FMS	BAB025550	O-RING
23	FMS	A15801601	DRIVER GUIDE COVER B		508	FMS	BAB017124	O-RING
24	FMS	A15801801	DRIVER GUIDE COVER A		509	FMS	BAB015175	O-RING
25	FMS	A05501101	TRIGGER		510	FMS	BAB012021	O-RING
26	FMS	A05501201	ROD		511	FMS	BAC0406252	HEX.SOC.HD.BOLT
27	FMS	A00106001	WASHER		512	FMS	BAF10402	E-RING
28	FMS	A00105803	COVER(BLACK)		513	FMS	BAC0604102	HEX.SOC.HD.BOLT
29		A00100803	AIR PLUG	S3120PMA5208	514	FMS	BAI1401	SILENCER
30	FMS	A15802501	SPRING		515		BAC0204102	HEX.SOC.FLAT COUNTER SUNK HD. SCREW
31	FMS	A15802601	ROLLER		516		BAC0405102	HEX.SOC.HD.BOLT
32	FMS	A15802701	BLACKET		517	FMS	BAC0406102	HEX.SOC.HD.BOLT
33	FMS	A15802801	SHAFT		518	FMS	BAC0406102	HEX.SOC.HD.BOLT
34	FMS	A15802901	PUSHER		519	FMS	BAC0406142	HEX.SOC.HD.BOLT
35	FMS	A15802401	BLOCK		519	FMS	BAC0406202	HEX.SOC.HD.BOLT
36		A15802201	MAGAZINE		520	FMS	BAC0406202	HEX.SOC.HD.BOLT
37	FMS	A15804101	BLOCK A		520	FMS	BAC0406252	HEX.SOC.HD.BOLT
38	FMS	A19000301	ANVIL		521	FMS	BAC0406302	HEX.SOC.HD.BOLT
39		A19000201	HOLDER		522	FMS	BAC0604102	HEX.SOC.HD.BOLT

One Sheeter

Application

ANGLE & EDGE BOARDS

To make angle & edge boards trays
