PNEUMATIC PLIER KAYMO PRO-59032

Name: PNEUMATIC PLIER KAYMO PRO-59032
Brand: Kaymo
SKU: PRO-PL59032
Availability: InStock

SKU: PRO-PL59032

The KAYMO PRO-PL59032 is a high-performance pneumatic plier engineered for heavy-duty industrial stapling. Designed for making angle & edge boards trays and securing corrugated boxes Read More...

Features:

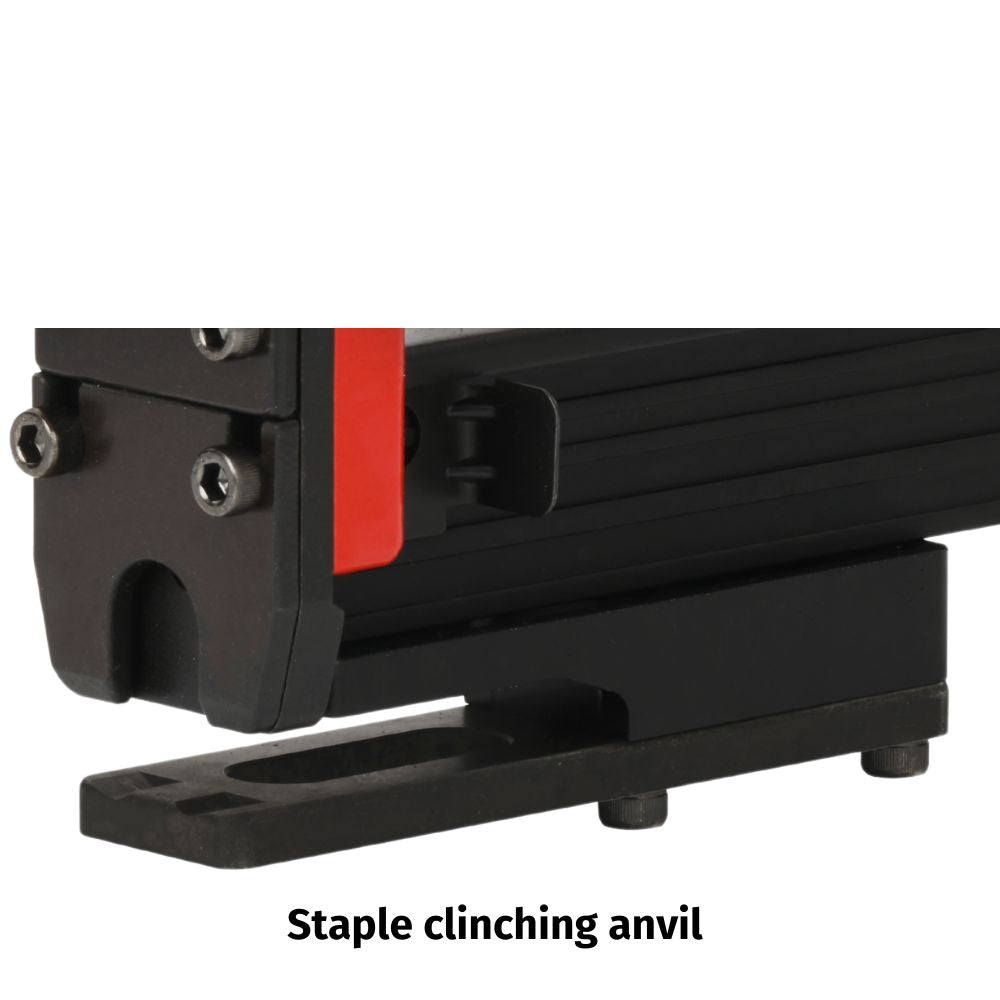

Staple clinching anvil

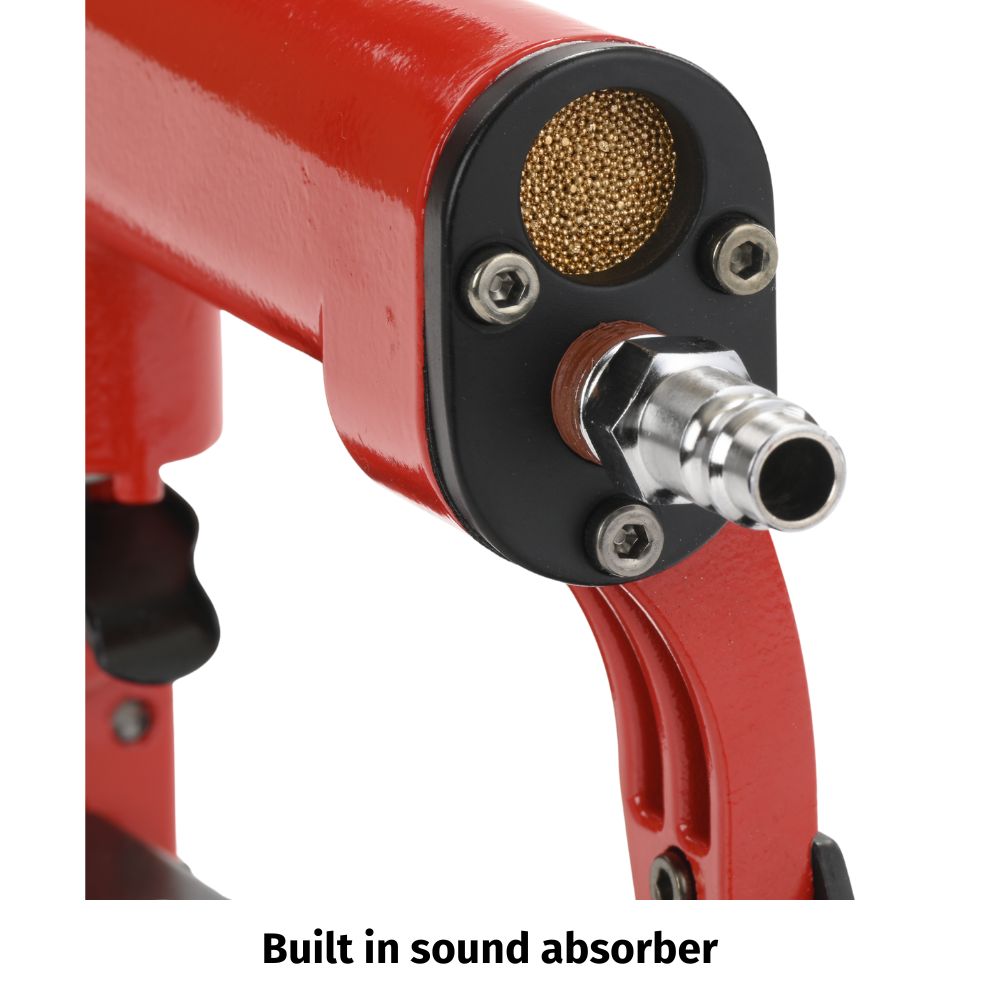

Built in sound absorber

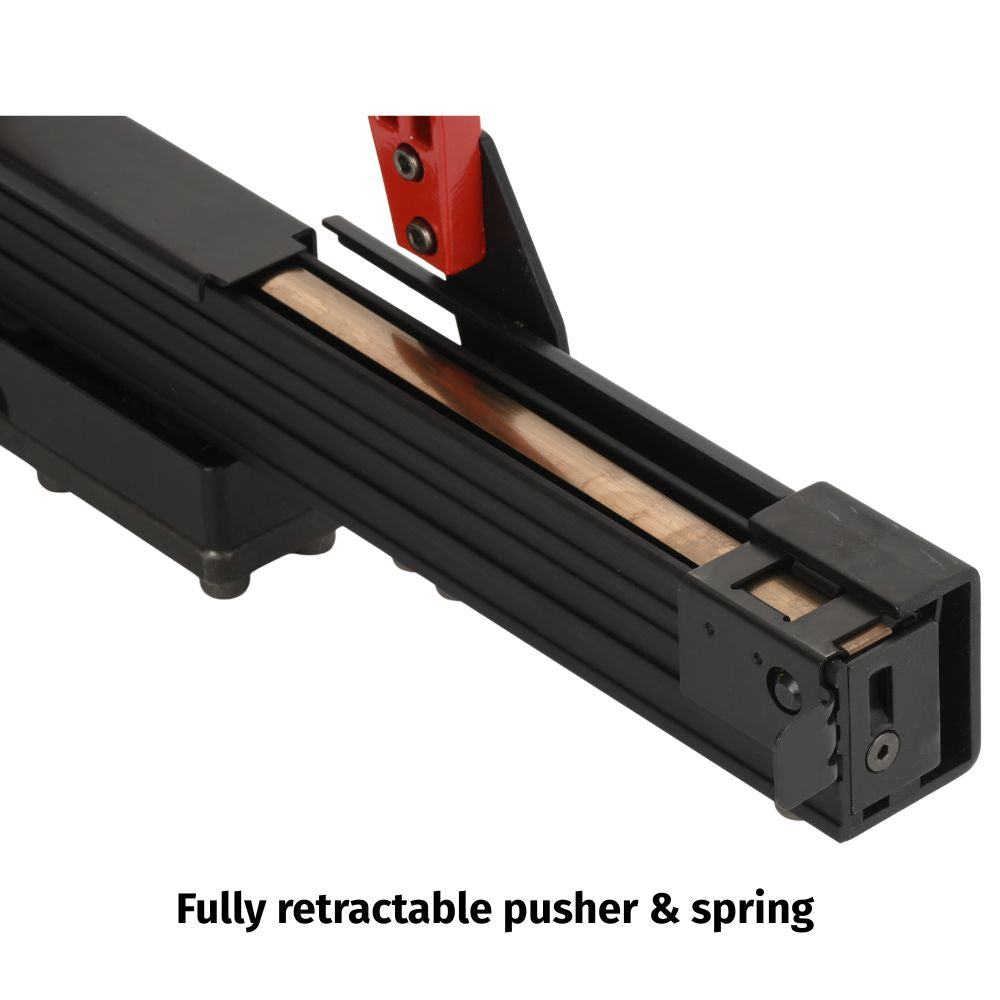

Fully retractable pusher & spring

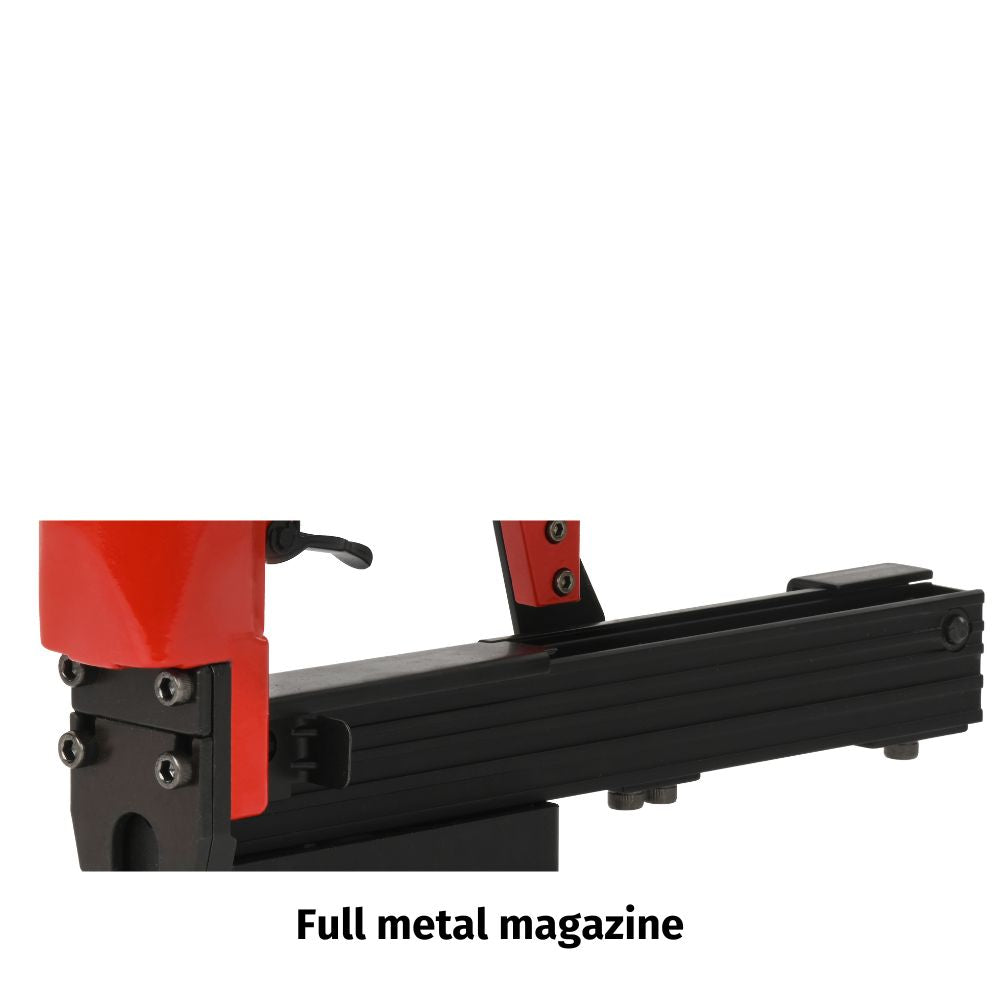

Full metal magazine
Multiple height adjustments to suit different thicknesses of angle boards
Professional & light weight tool
Recommended Range 16-32 mm.

Applications:

To fix angle/edge board trays
To fix empty corrugated boxes onto wooden pallets

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

STAPLES JK 590 SERIES

AIR RECOIL HOSE KAYMO 8x12 MM PU 15M BRAIDED BLUE

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

Blow Up

Spares

		TOOL MODEL:	PRO-PL59032
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1		A15800101	Cap		38	FMS	A15804601	Anvil
2	FMS	A15800201	Packing		39		A15804501	Holder
3	FMS	A15800301	Spacer		40	FMS	A15804201	Block B
4	FMS	A15800401	Cylinder cap		41	FMS	A15804301	Block C
5	FMS	A15800501	Seal		42	FMS	A15804401	Block D
6	FMS	A15800701	Piston	A15800703	43	FMS	A15803701	Spring
8	FMS	A15800903	BUMPER 21mm	A15800904	44	FMS	A15803901	Tube
9		A15805401A	Driver		45		A15803801	Shaft
10	FMS	A15800601	Glide ring		46	FMS	A15804001	Cover
11	FMS	A15801101	Cylinder		47		A15803001A	Cover A unit
12	FMS	A15805001	Seal		48		A15803301A	Cover B unit
14	FMS	A15801301	Cage		49	FMS	A15803601	Spring
15	FMS	A15801401	Cylinder ring		50		A15803501A	Cover C unit
16	FMS	A15801501	Bottom washer		51	FMS	A15804701	Spacer A
17	FMS	A15801901	Valve cage		52	FMS	A15804801	Spacer B
18	FMS	A15802301	Spring		501	FMS	BAC0405252	HEX.SOC.HD.BOLT
19	FMS	A15802001	Valve	A15802002	502	FMS	BAB015250	O-RING
20	FMS	A15802101	Nut		503	FMS	BAB030436	O-RING
21		A15804901A	Body set unit		504	FMS	BAB030420	O-RING
22	FMS	A15801701	Driver guide		505	FMS	BAB020520	O-RING
23	FMS	A15801601	Driver guide cover B		506	FMS	BAB020400	O-RING
24	FMS	A15801801	Driver guide cover A		507	FMS	BAB025550	O-RING
25	FMS	A05501101	Trigger		508	FMS	BAB017124	O-RING
26	FMS	A05501201	Rod		509	FMS	BAB015175	O-RING
27	FMS	A00106001	Washer		510	FMS	BAB012021	O-RING
28		A00105803	Cover		511	FMS	BAC0406252	HEX.SOC.HD.BOLT
29		A00100801	Air plug		512	FMS	BAF10402	E-RING
30	FMS	A15802501	Spring		513	FMS	BAC0604102	HEX.SOC.HD.BOLT
31	FMS	A15802601	Roller		514	FMS	BAI1401	Silencer
32		A15802701	Blacket		515	FMS	BAC0204102	HEX.SOC.FLAT COUNTER SUNK HD. SCREW
33	FMS	A15802801	Shaft		516	FMS	BAC0405102	HEX.SOC.HD.BOLT
34	FMS	A15802901	Pusher		517	FMS	BAC0406102	HEX.SOC.HD.BOLT
35	FMS	A15802401	Block		520	FMS	BAC0406202	HEX.SOC.HD.BOLT
36		A15802201	Magazine		522	FMS	BAC0406302	HEX.SOC.HD.BOLT
37	FMS	A15804101	Block A		**	FMS	SP-2432-P2-4	PISTON-DRIVER ASSY.
