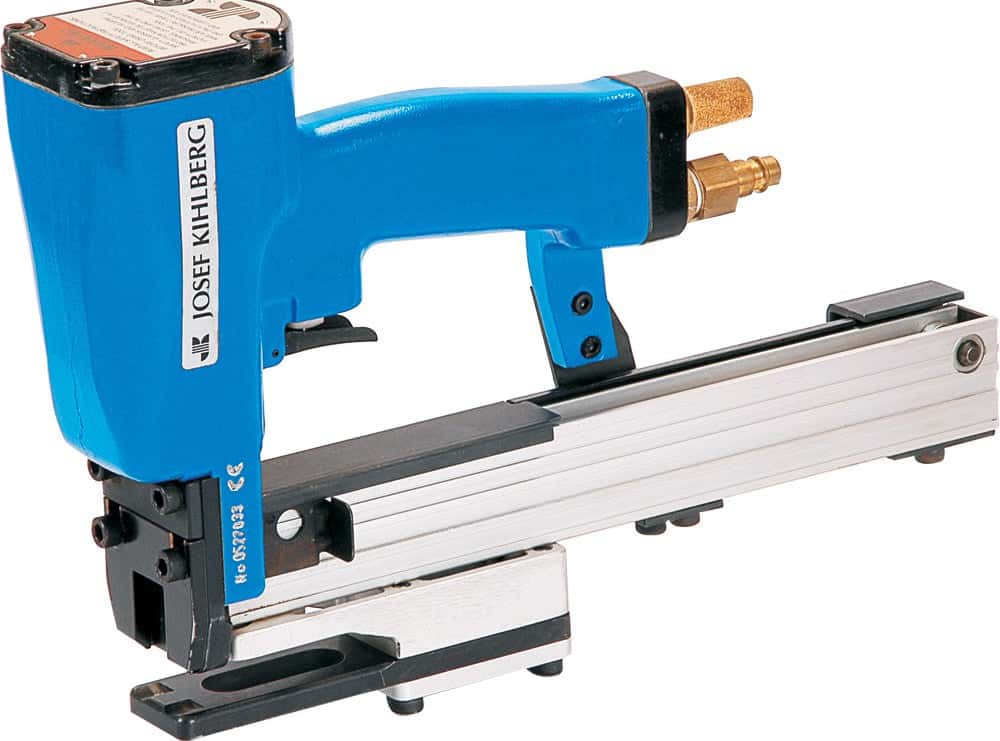

PNEUMATIC PLIER JK XPRO-35T 59025

Name: PNEUMATIC PLIER JK XPRO-35T 59025
Brand: Kaymo
SKU: XPRO-PL59025
Availability: InStock

SKU: XPRO-PL59025

The XPRO-PL59025 Pneumatic Plier is a heavy-duty European tool designed for driving fastners that can penetrate wood, edge boards, and reinforced angle boards. Featuring height Read More...

Features:

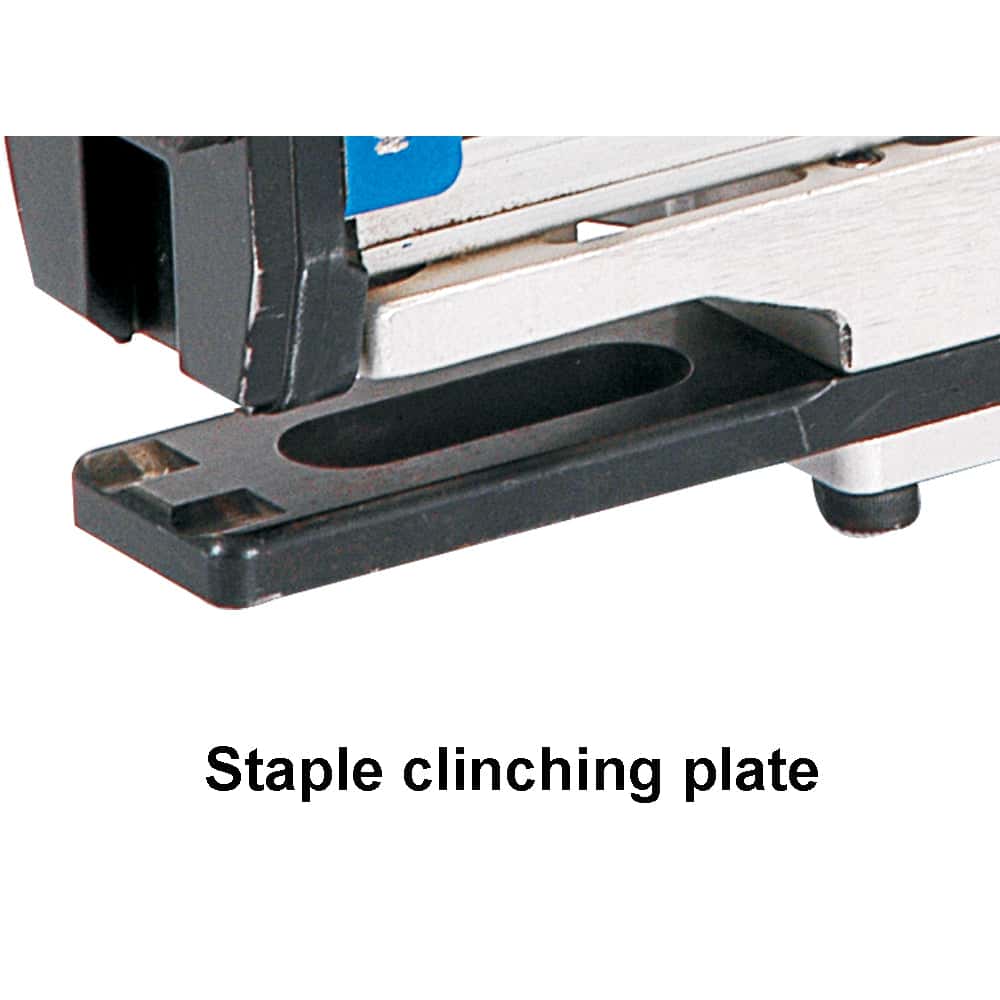

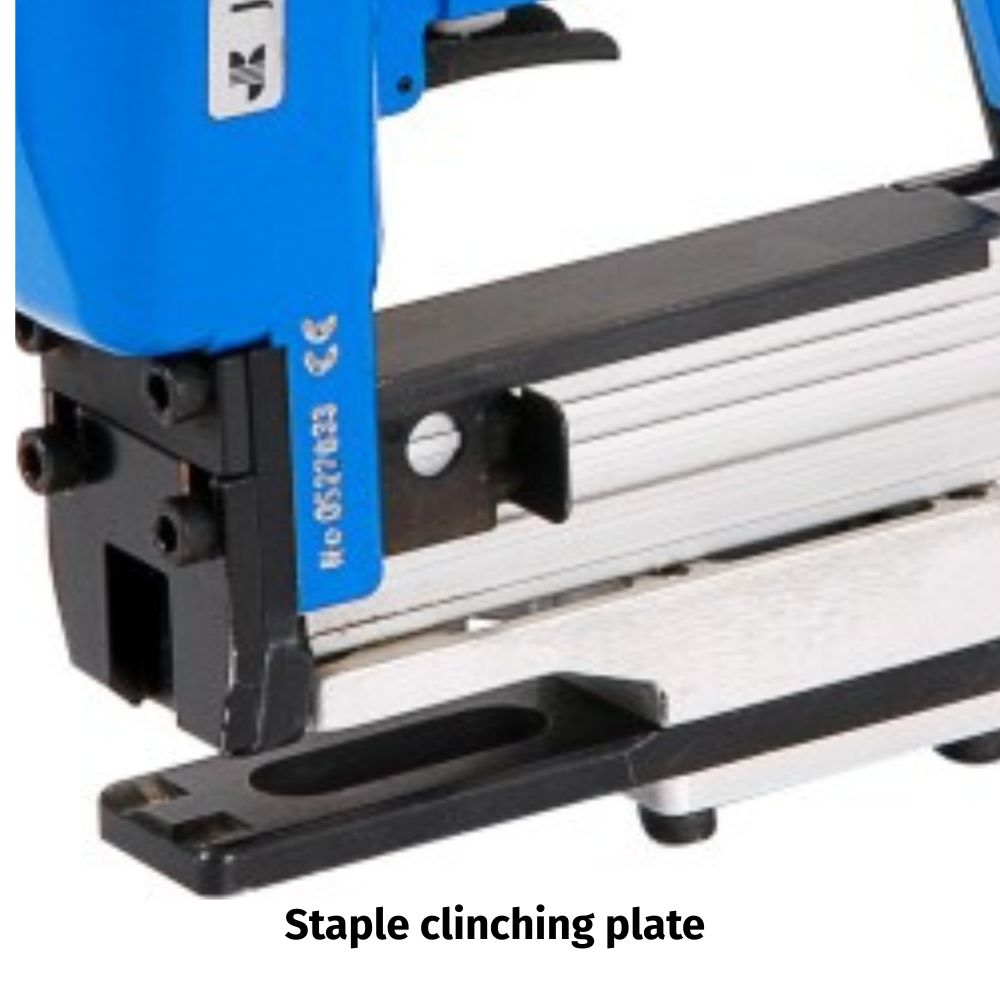

Staple clinching plate

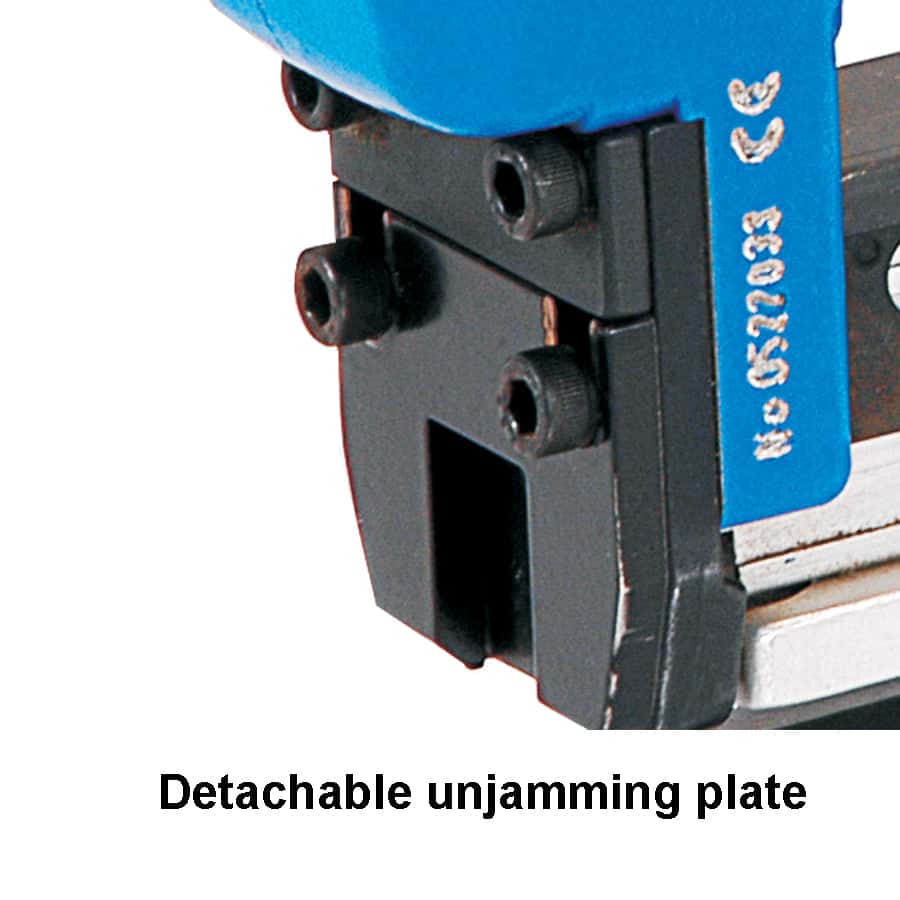

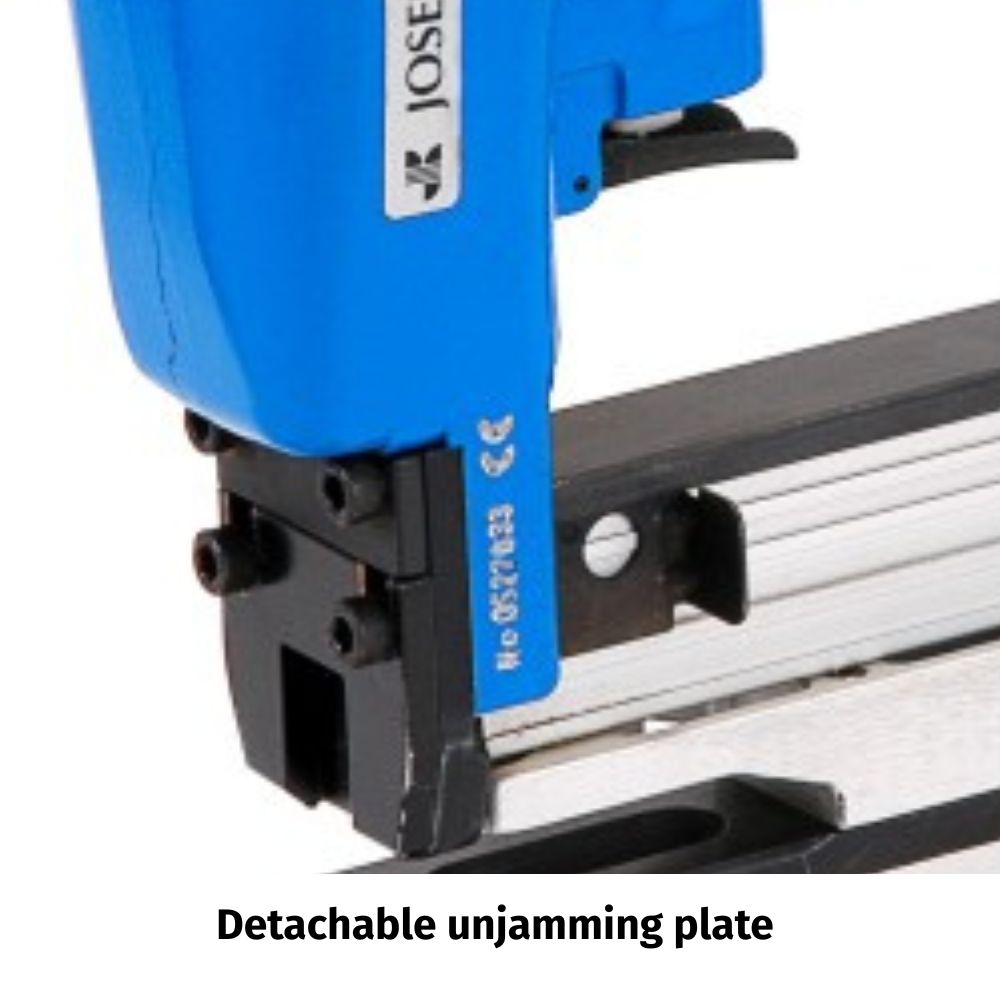

Detachable unjamming plate

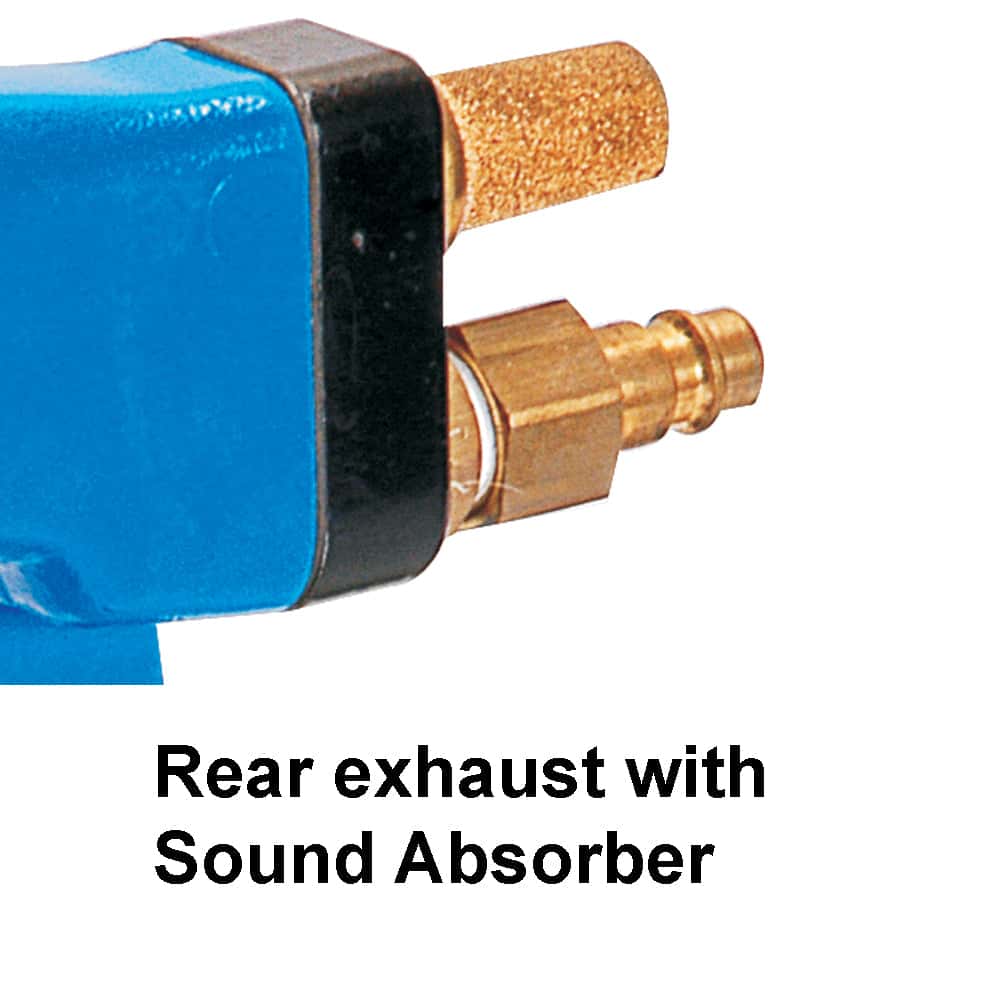

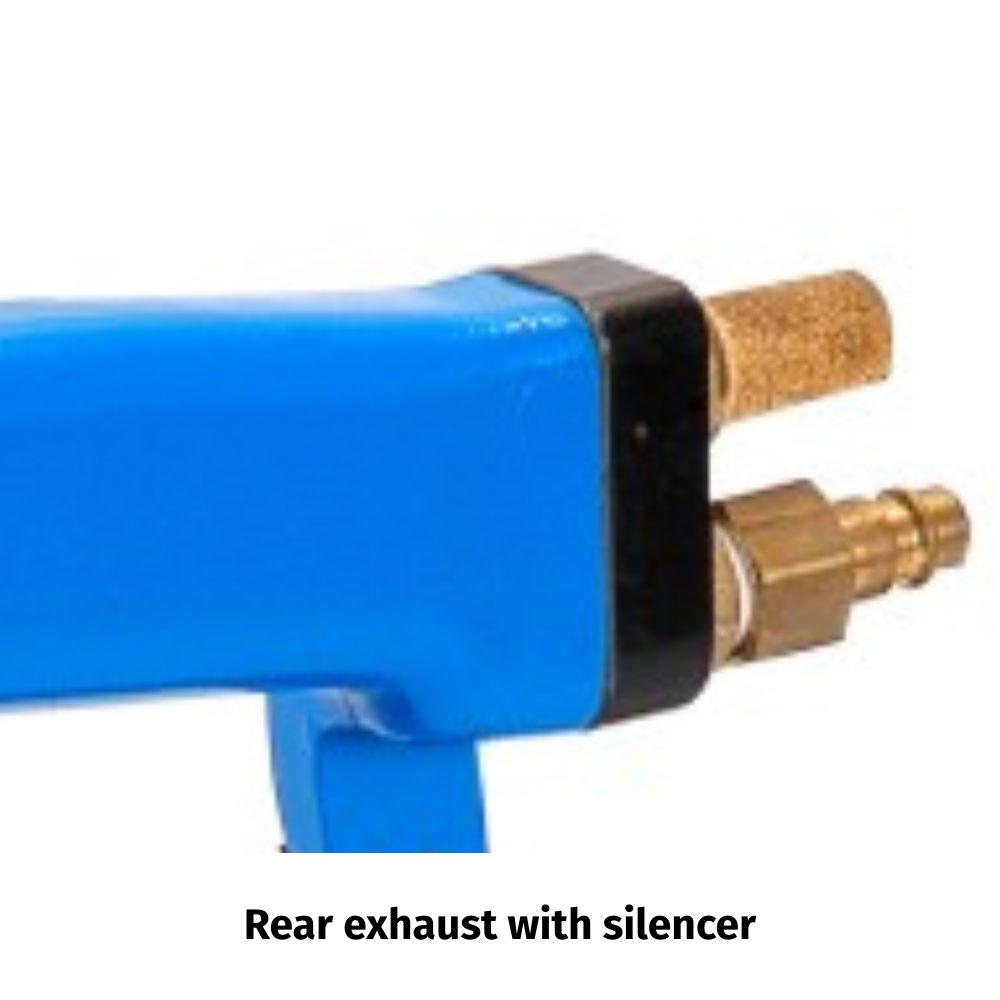

Rear exhaust with silencer
Height adjustment for different thicknesses of angle & edge boards
Fastener Range: 16mm – 25mm

Applications:

To make angle/edge board trays
Corrugated packing

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

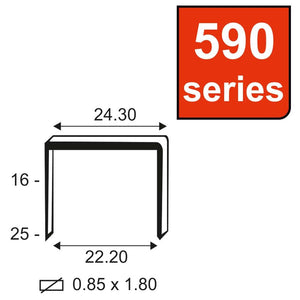

STAPLES JK 590 SERIES

AIR RECOIL HOSE KAYMO 8x12 MM PU 15M BRAIDED BLUE

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

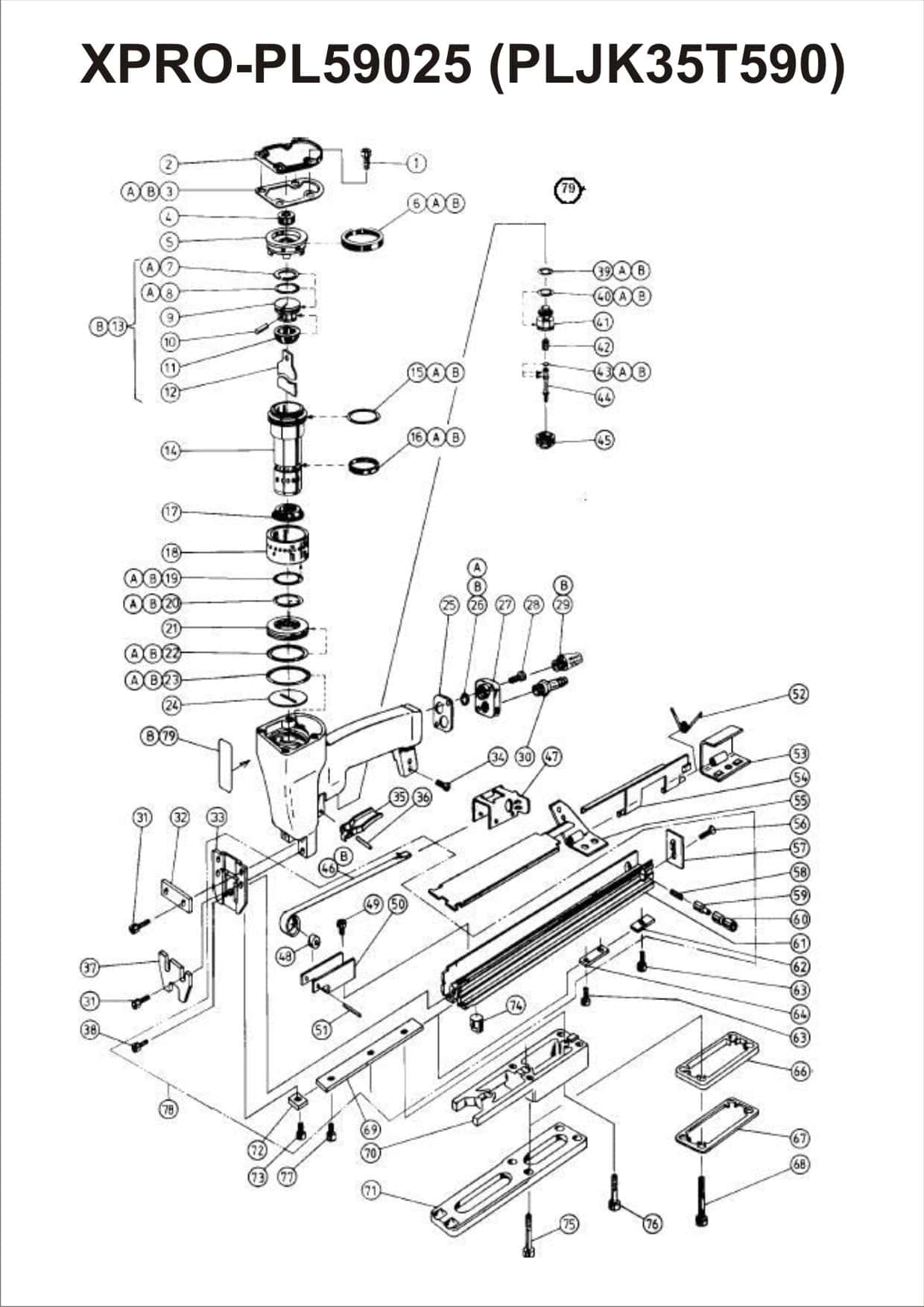

Blow Up

Spares

		TOOL MODEL:	XPRO-PL59025						REV.1ST APRIL 23
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1	FMS	946657	SCREW	KM0520	42	FMS	173066	SPRING
2		179084	CAP		43	FMS	972121	O RING
3	FMS	148034	GASKET		44		191153	VALVE STEM
4	FMS	149044	COMPRESSION WASHER		45		146102	NUT
5		150337	CYLINDER CAP		46	FMS	174057	FEDER SPRING
6	FMS	148040	SEAL		47	FMS	161247	PUSHER
7	FMS	972110	GLIDE RING		48		150291	SPRING CENTER
8	FMS	972119	O RING		49		946702	SCREW
9		191143	PISTON	134243	50		156946	SPRING HOUSE
10		145117	DRIVER PIN		51		145134	SCHAFT FOR SPRING ROLLER
11		149088	UPPER BUMPER		52	FMS	174058	SPRING
11		149088A	UPPER BUMPER PU SUPERIOR		53		135145	COVER HOLDER
12		164098	DRIVER BLADE	134243	54		134194	COVER
13	FMS	134243	PISTON WITH DRIVER		55		134244	STAPLE SHIELD
14		190159	CYLINDER		56		946663	SCREW
15	FMS	972115	O RING		57		160124	PUSHER TOP
16	FMS	148035	SEAL FOR BACK VALVE		58	FMS	173052	LOCK SPRING
17	FMS	149087	LOWER BUMPER BLACK		59	FMS	160123	LOCK PISTON
17	FMS	149087A	LOWER BUMPER SUPERIOR PU		60	FMS	150311	LOCK CAGE
18		150295	CAGE		61		162687	RAIL	162775
19	FMS	972118	O RING		62		146202	NUT
20	FMS	972117	O RING		63	FMS	946697	SCREW
21		150294	CYLINDER RING		64	FMS	146201	NUT
22	FMS	972116	O RING		66		150325	DISTANCE PLATE
23	FMS	972114	O RING		67		150326	DISTANCE PLATE
24	FMS	147093	BOTTOM WASHER		68		946516	SCREW
25	FMS	148033	GASKET		69		146213	NUT
26	FMS	972058	O RING		70		176018	BRACKET
27		179058	CAP		71	FMS	158248	TONGUE
28	FMS	946512	SCREW	KM0412	72		146212	NUT
29	FMS	971003	SOUND ABSORBER		73		946700	SCREW
30		987026	NIPPEL		74		146211	NUT
31		946699	SCREW		75		946699	SCREW
32		162694	FRONT NOZZLE PLATE		76		946538	SCREW
33		162692	REAR NOZZLE PLATE		77		946714	SCREW
34		946511	SCREW		78		132296	RAIL
35	FMS	165040	TRIGGER		79		110174	WARNING LABEL
36	FMS	945039	TENSION PIN		79		110175	WARNING LABEL
37		162695	DOOR		79		942002	HEXAGON SPANNER
38	FMS	946657	SCREW	KM0520	100		155120	BODY
39	FMS	972030	O RING		101		143049	O RING KIT
40	FMS	972039	O RING		102		143050	REPAIR KIT
41		191084	VALVE CAGE

PNEUMATIC PLIER JK XPRO-35T 59025

Compatible Products

STAPLES JK 590 SERIES

AIR RECOIL HOSE KAYMO 8x12 MM PU 15M BRAIDED BLUE

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

Blow Up

Spares

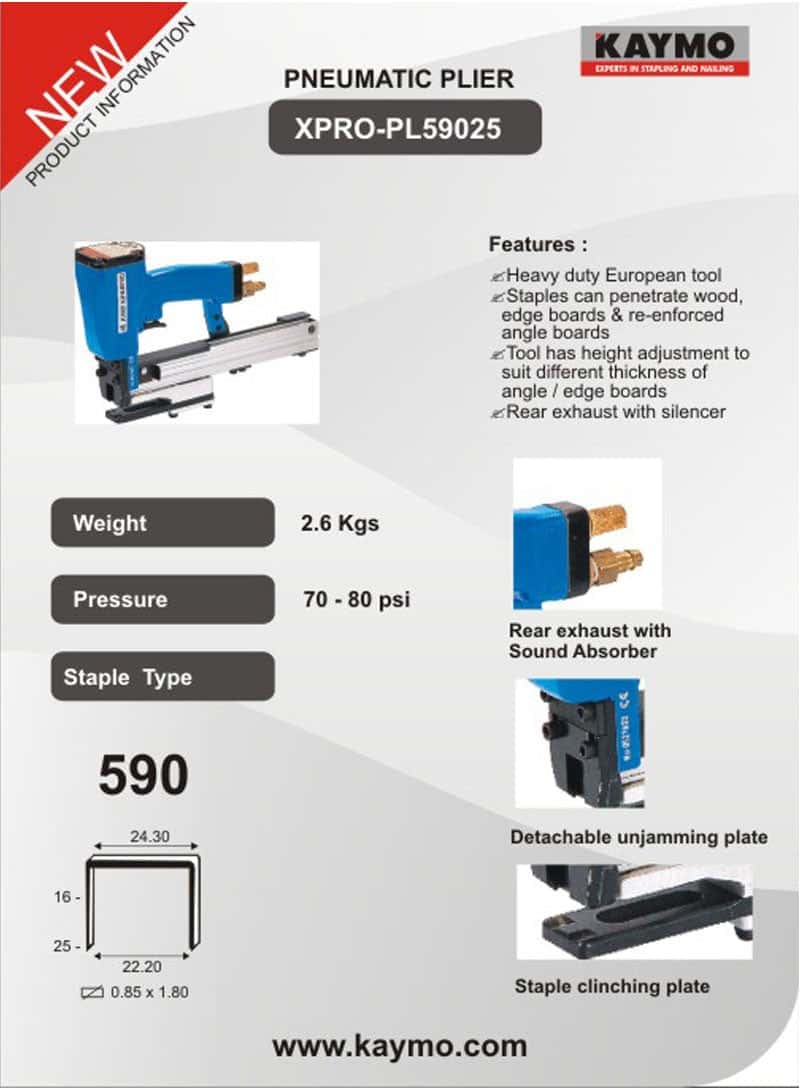

One Sheeter
