PNEUMATIC PLIER JK XPRO-20T 77922 LONG MAG BROAD JAW

PNEUMATIC PLIER JK XPRO-20T 77922 LONG MAG BROAD JAW

Name: PNEUMATIC PLIER JK XPRO-20T 77922 LONG MAG BROAD JAW
Brand: Kaymo
SKU: XPRO-PL77922LM
Price: 1.0 INR
Availability: InStock

SKU: XPRO-PL77922LM

The XPRO-PL77922LM Pneumatic Plier is a high-capacity industrial stapler designed for packaging, angle boards, expansion joints, and auto ancillary applications. With its long magazine and Read More...

Features:

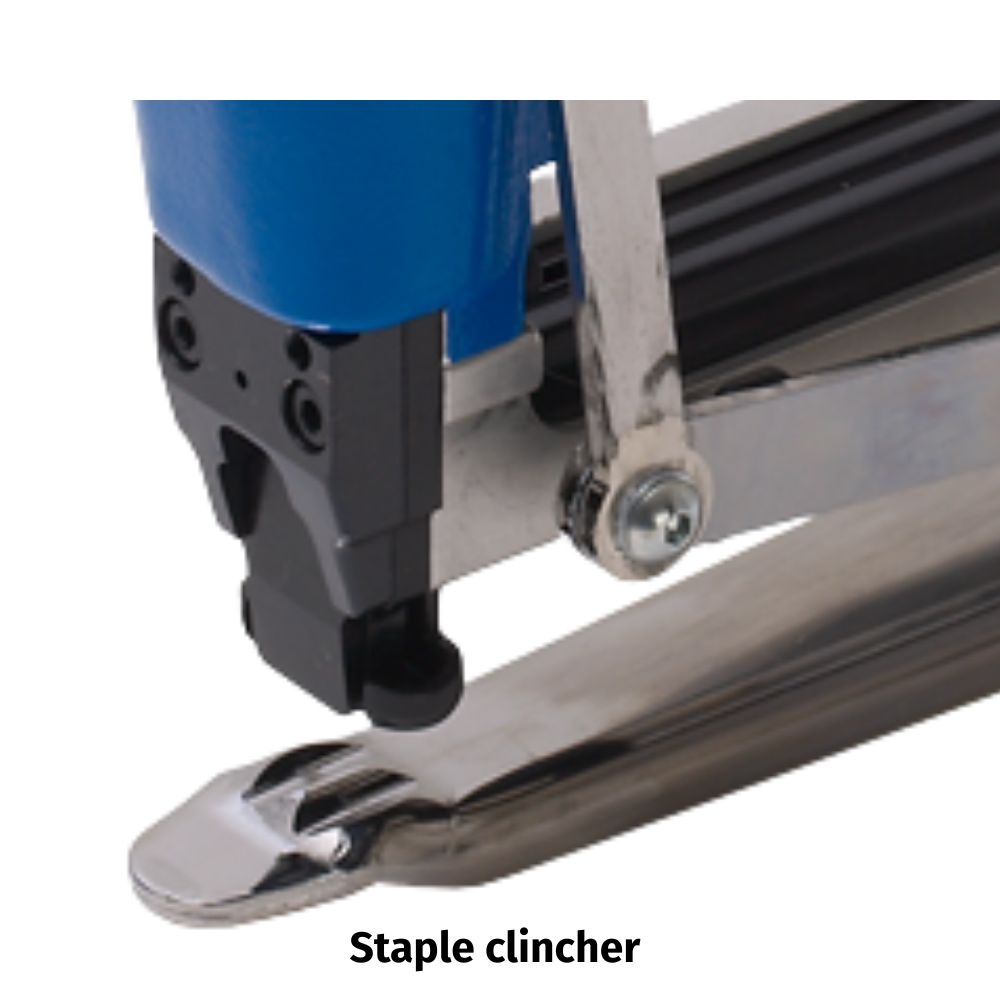

Staple clincher

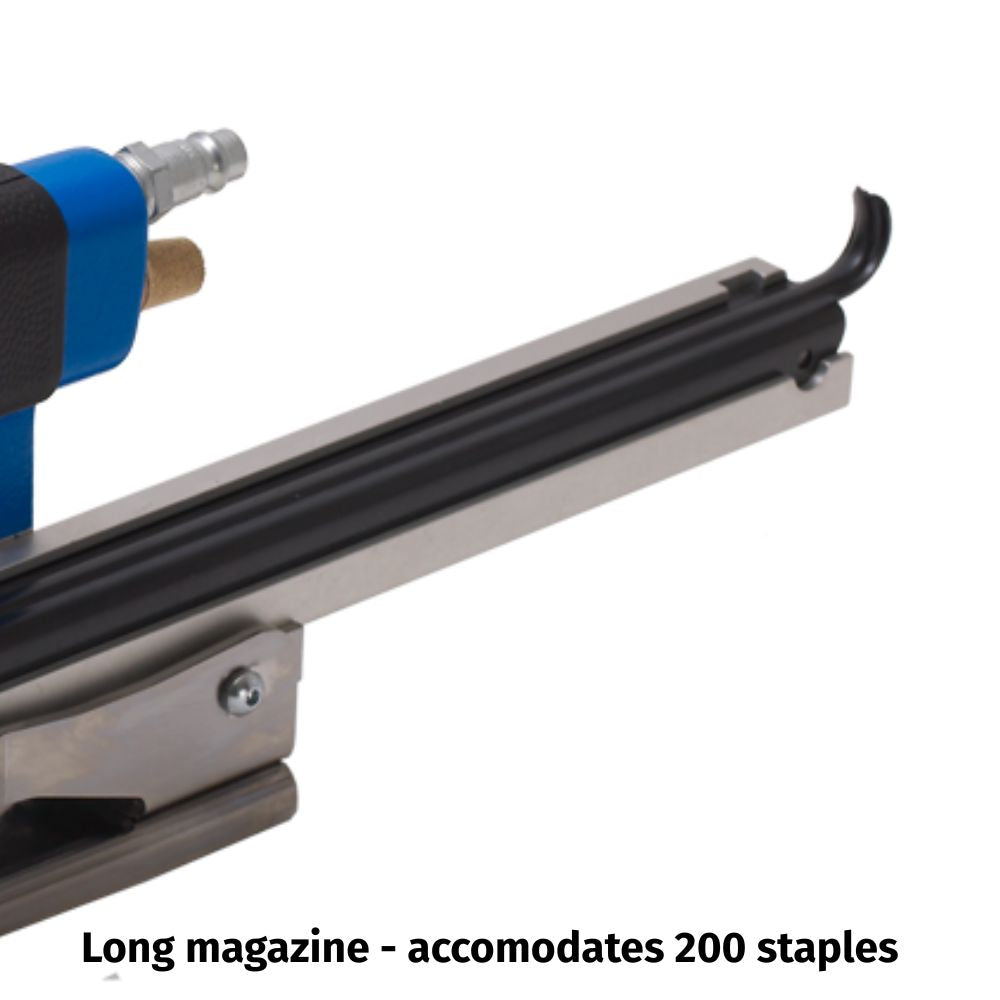

Long magazine accommodates – 200 staples

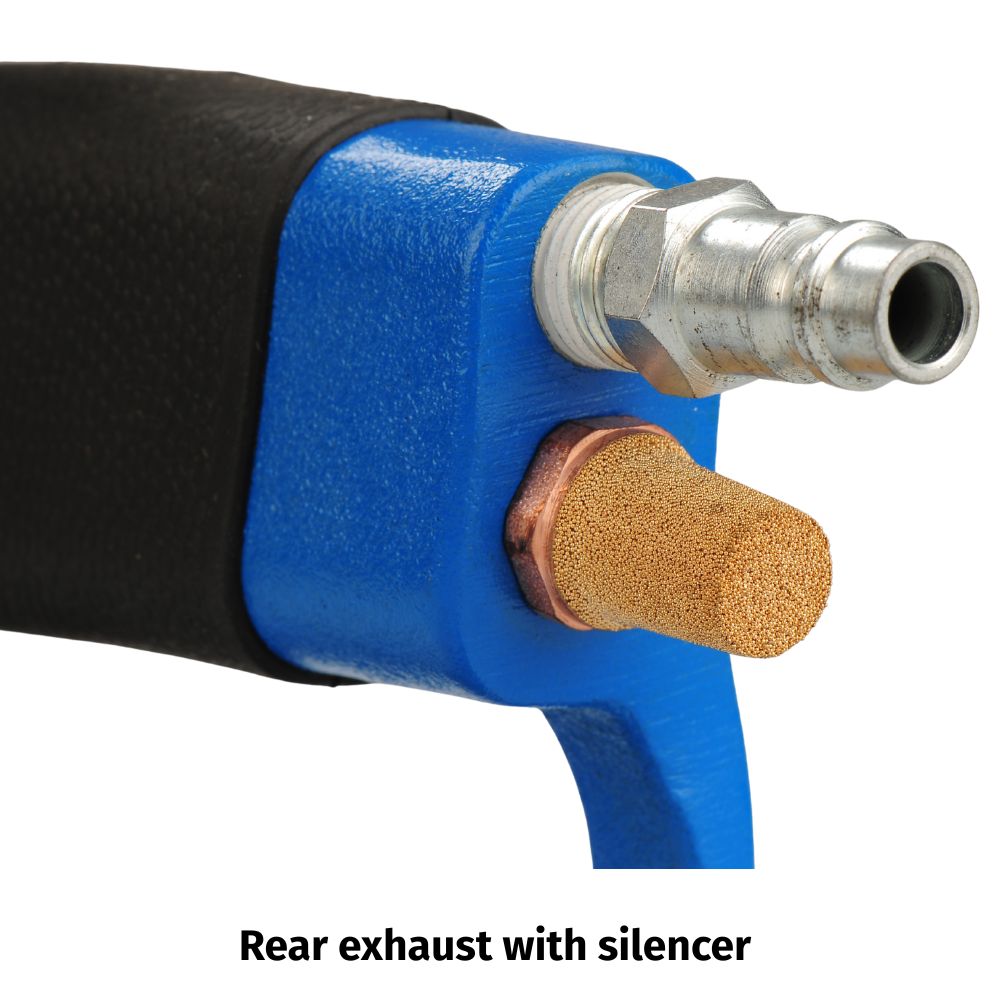

Rear exhaust with silencer
Fully closed magazine
Ergonomic rubber grip
Fastener Range: 12mm – 22mm

Applications:

Angle boards
Auto ancillary
Expansion joints
Packaging

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

STAPLES KAYMO 779 SERIES BL

AIR FILTER + REGULATOR LUBRICATOR SET KAYMO 1/2" WITH GAUGE

FITTING KAYMO 6.35mmx8mm(1/4"x8 mm) PUSH TO CONNECT STRAIGHT

Blow Up

Spares

		TOOL MODEL:	XPRO-PL77922LM					REV.1ST APRIL 23
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1		946786	Screw		48	FMS	972021	O-Ring
2	FMS	947039	Washer		50		987023	Nipple
3	FMS	150257	Spacer		51	FMS	971004	Sound absorber
4		975009	Washer		52		947008	Lock washer
5		978022	Bushing		53	FMS	946512	Screw	KM0412
6	FMS	972010	O-Ring		54	FMS	165040	Trigger
7		179034	Cap	139369	55	FMS	945039	Tension pin
8		139369	Cap cpl.		56	FMS	946608	Screw
9	FMS	972023	O-Ring		57		163342	Power arm
10		190167	Piston		58	FMS	150251	Spacer
11	FMS	972018	O-Ring		59	FMS	947012	Washer
12		190113	Cylinder		60	FMS	946654	Screw
13	FMS	972032	O-Ring		61		170118	Magazine lid short
14	FMS	149071	Compression Washer		61		170119	Magazine lid long
15	FMS	150428	Cylinder Cap		62	FMS	161208	Pusher
16	FMS	972177	O-Ring		63	FMS	173053	Pusher spring short
17		145099	Driver Pin		63	FMS	173054	Pusher spring long
18	FMS	164057	Driver Blade		64	FMS	173052	Lock spring
19	FMS	134163	Piston With driver		65		160051	Lock piston
20		150102	Cylinder top ring		66		951037	Retainer
21		190066	Cylinder		67	FMS	150121	Lock cage
22	FMS	972028	O-Ring		68		132686	Rail short
23	FMS	148015	Seal for back valve		68		132688	Rail long
24	FMS	136074	Cylinder with seal		69		132228	Magazine assembly short
25	FMS	149054	Piston stop		69		132230	Magazine assembly long
26	FMS	972007	O-Ring		70		156955	Rear bracket
27		150409	Cage		71		176616	Bracket
28	FMS	972071	O-Ring		72		157075	Carton protector
30		166219	Rear nozzle plate		73		946641	Screw
32		135613	Front nozzle plate		74		946002	Nut
33	FMS	946662	Screw	KM0412	75		158238	TONGUE BLACK
39		166209	Door		75		158223	TONGUE - SILVER WITH CLINCHER
40	FMS	972030	O-Ring		76	FMS	946654	Screw
41	FMS	972039	O-Ring		77	FMS	972124	Set of piston ring
42	FMS	191084	Valve Cage		79		176617	Nut
43	FMS	173066	Spring		80		110040	Lable
44	FMS	972031	O-Ring		81	FMS	148037	Gasket
45		191085	Valve steam		84	FMS	149089	Bumper
46	FMS	972040	O-Ring		85		35292	Handle sleeve
47	FMS	146102	Nut		100		142168	REBUILD KIT 779

One Sheeter

Application

ANGLE & EDGE BOARDS	To make angle & edge board trays
MATTRESSES	To fix inner lining to metal springs
EXPANSION JOINTS	To staple glass, wool and wire mesh together
