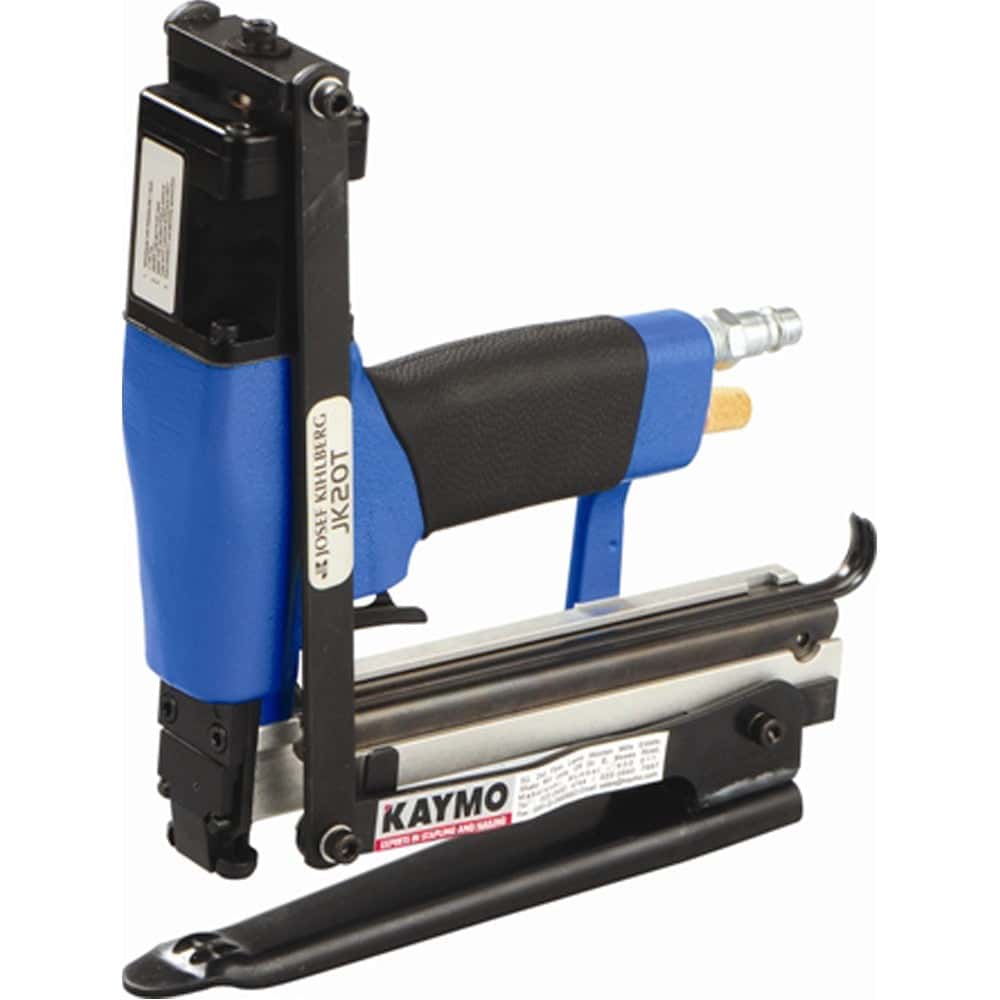

PNEUMATIC PLIER JK XPRO-20T 77922 BJ BROAD JAW

Name: PNEUMATIC PLIER JK XPRO-20T 77922 BJ BROAD JAW
Brand: Kaymo
SKU: XPRO-PL77922BJ
Availability: InStock

SKU: XPRO-PL77922BJ

The XPRO-PL77922BJ Pneumatic Plier is a heavy-duty industrial stapler designed for edge boards, plastic-reinforced angle boards, rubber, and corrugated materials. With its robust construction and Read More...

Features:

Heavy-Duty Build – Designed for durability and high-performance stapling.
Wide Staple Compatibility – Supports staple lengths from 8mm to 22mm for flexible use.
Powerful Penetration – Easily staples rubber, corrugated boards, and reinforced materials.

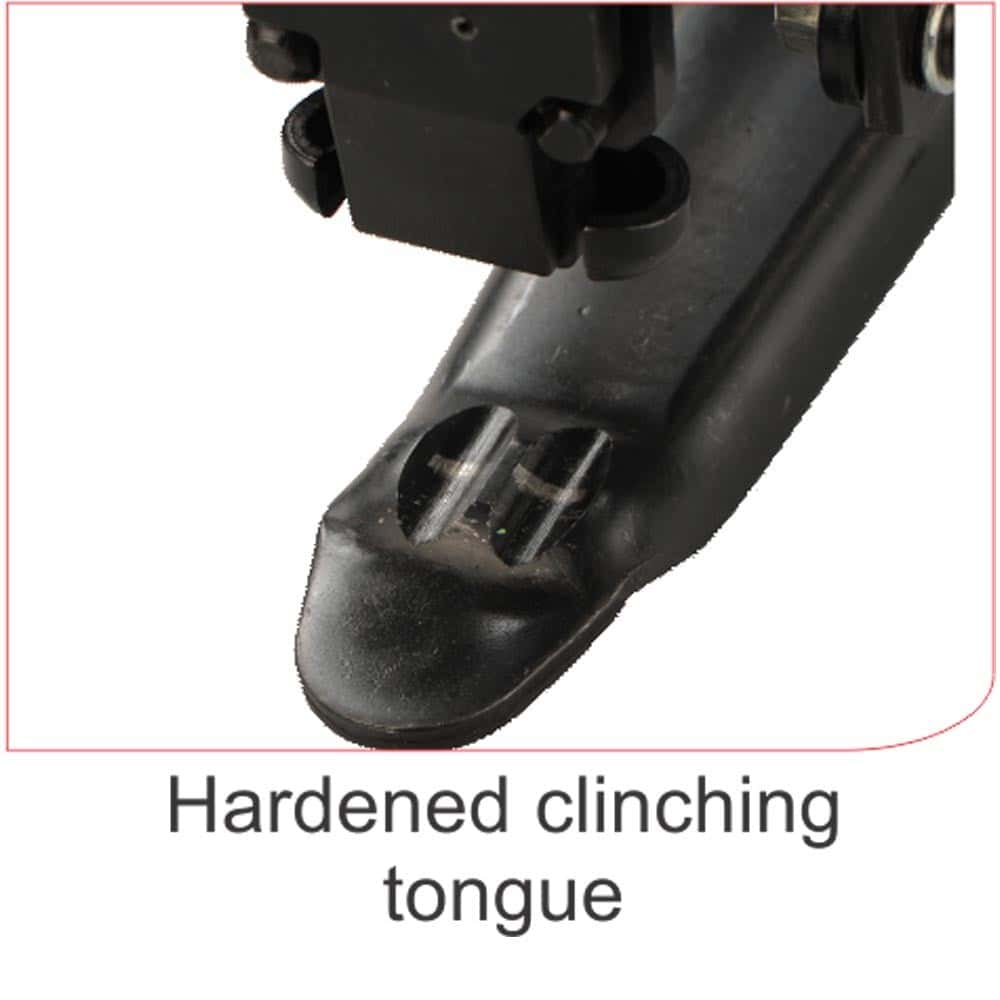

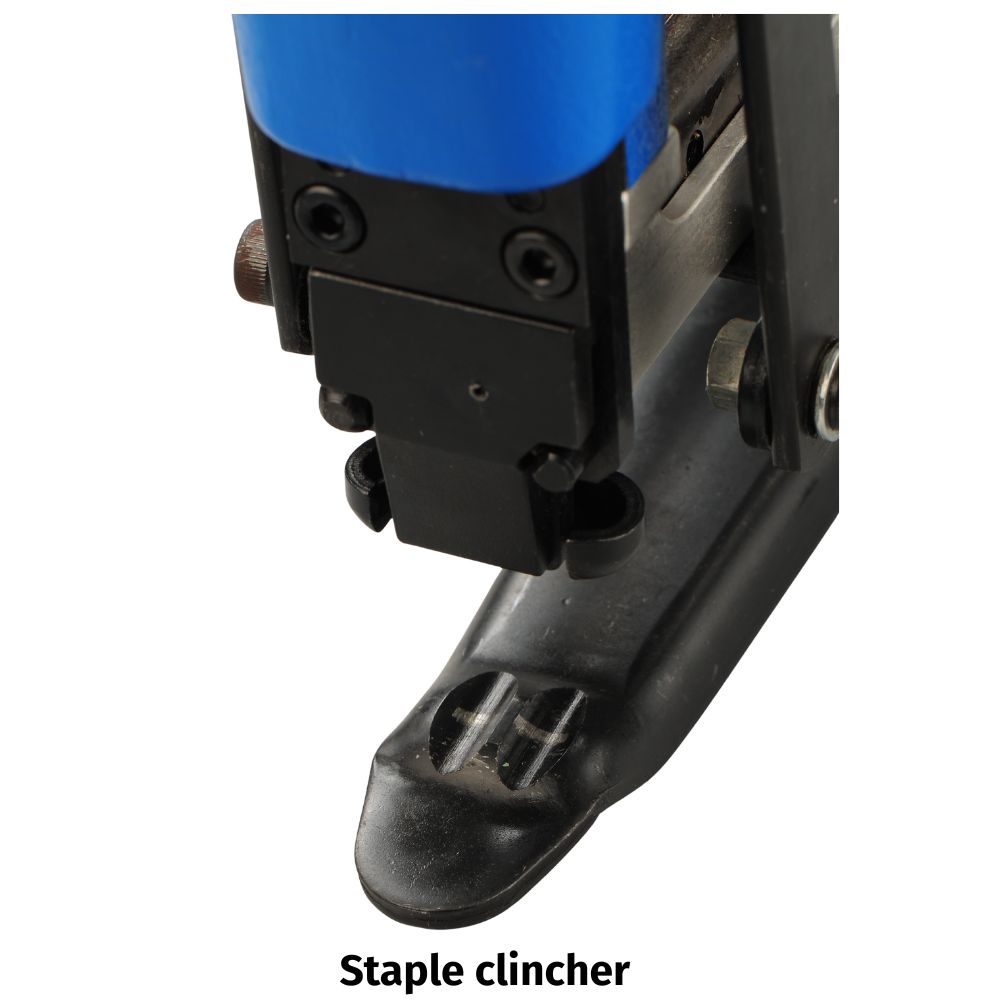

Hardened Clinching Tongue – Provides firm and secure staple fastening.

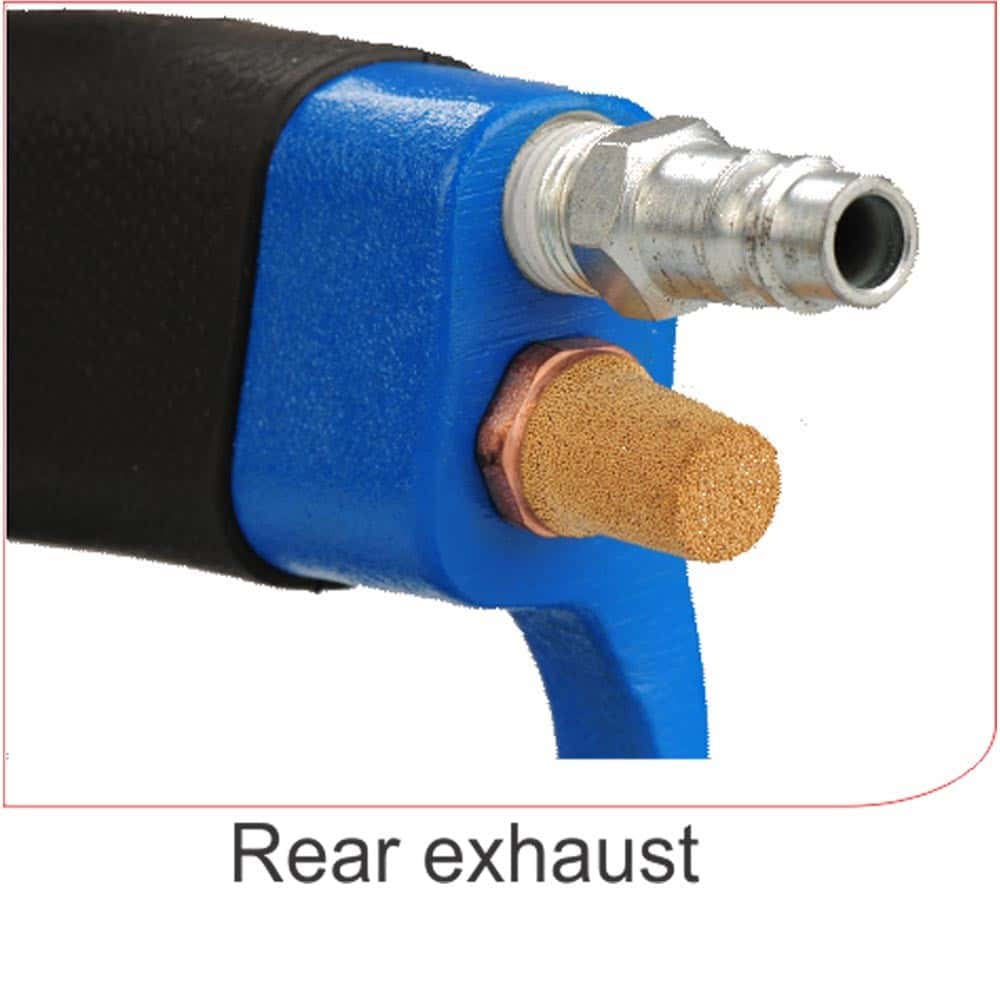

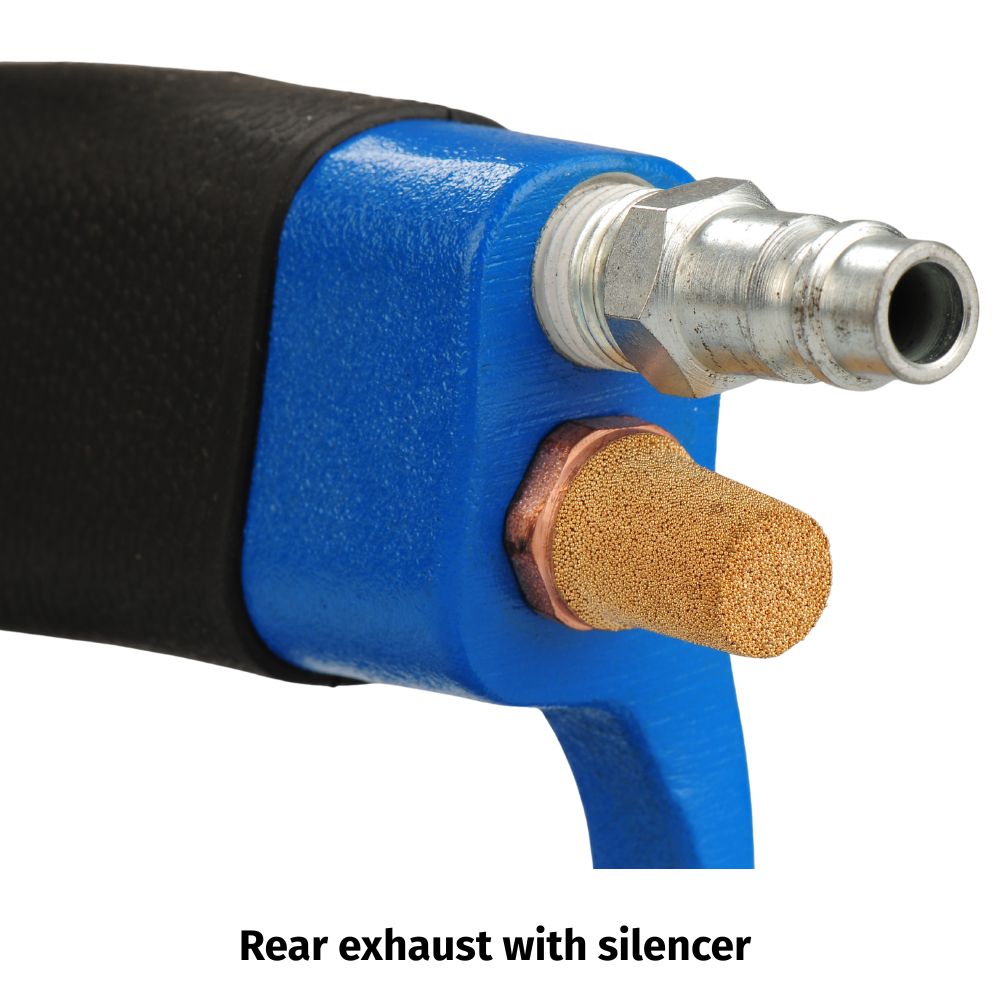

Rear Exhaust System – Reduces noise and directs air away from the user

Applications:

Expansion joints- To staple glasswool & wire mesh together

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

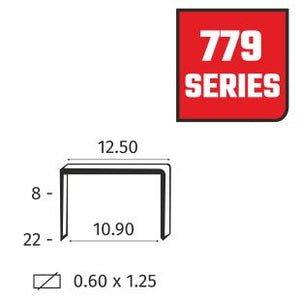

STAPLES KAYMO 779 SERIES HEAVY DUTY

STAPLES KAYMO 779 SERIES BL

1/2" F/RL AIR CONTROL UNIT, PT FRL884

PUSH-TO-CONNECT FITTING JPC STRAIGHT 1/4

B80 1/4" PT AIR BLOW GUN WITH 12CM STEEL TUBE

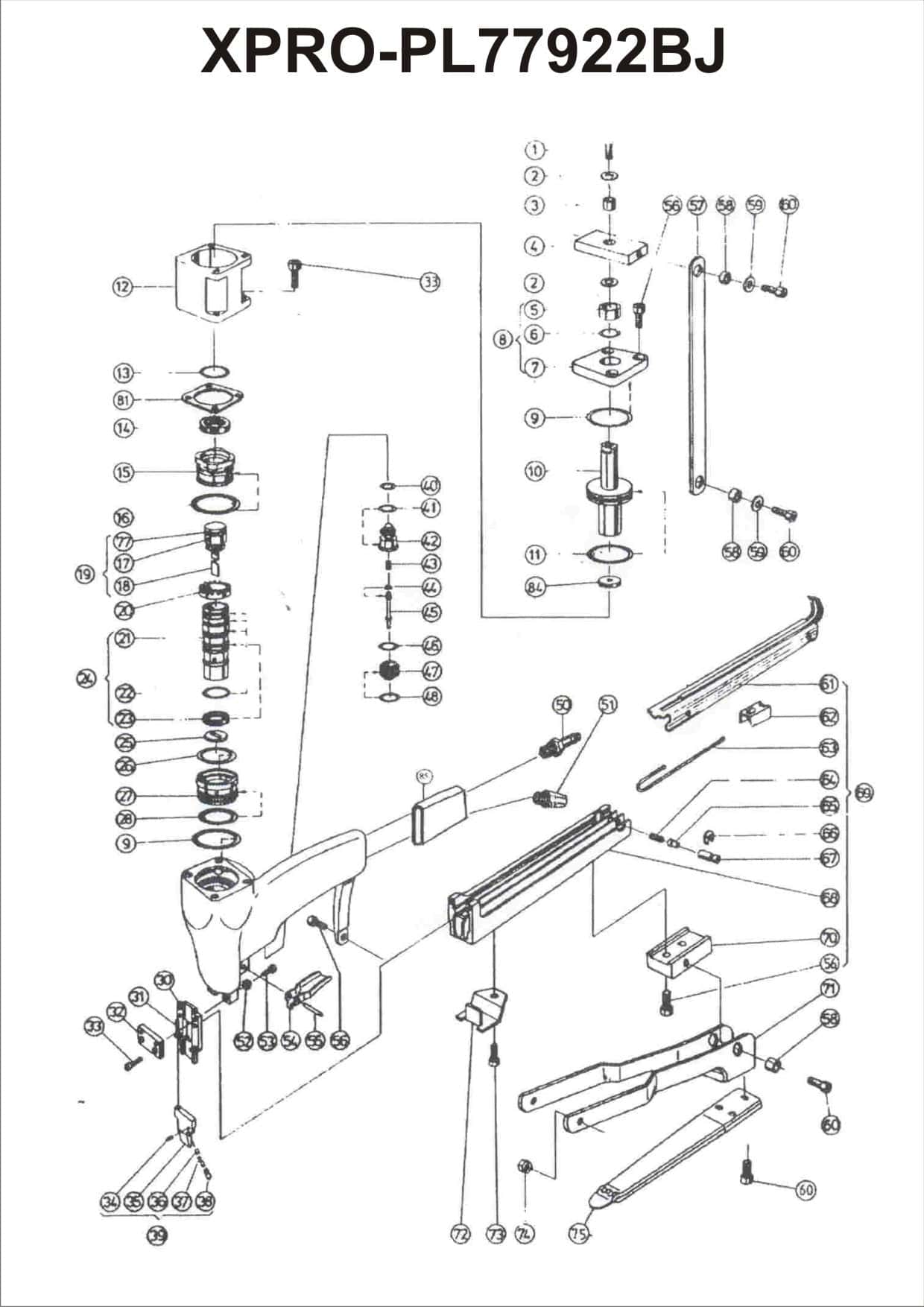

Blow Up

Spares

		TOOL MODEL:	XPRO-PL77922BJ					REV.6TH JANUARY2023
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1		946587	SCREW		46	FMS	972040	O-RING
2		947039	WASHER		47		146102	NUT
3	FMS	150257	SPACER		48		972021	O-RING
4		161179	SHIELD		50		987023	NIPPLE
5		978022	BUSHING		51	FMS	971004	SOUND ABSORBER
6	FMS	972010	O-RING		52		947008	LOCK WASHER
7		179034	CAP	139369	53	FMS	946512	SCREW	KM0412
8		139369	CAP CPL		54	FMS	165040	TRIGGER
9	FMS	972023	O-RING		55	FMS	945039	TENSION PIN
10		190173	PISTON		56		946608	SCREW
11	FMS	972018	O-RING		57		163222	POWER ARM
12		190113	CYLINDER		58	FMS	150251	SPACER
13	FMS	972032	O-RING		59		947012	WASHER
14	FMS	149071	COMPRESSION WASHER		60		946654	SCREW
15		150428	CYLINDER CAP		61		170119	MAGAZINE LID
16	FMS	972177	O-RING		62	FMS	161208	PUSHER
17		145099	DRIVER PIN		63	FMS	173054	FEEDER SPRING
18		164057	DRIVER BLADE		64	FMS	173052	LOCK SPRING
19	FMS	134163	PISTON WITH DRIVER		65		160051	LOCK PISTON
20		150102	CYLINDER TOP RING		66		951037	RETAINER
21		190066	CYLINDER		67		150121	LOCK CAGE
22	FMS	972028	O-RING		68		132773	RAIL
23	FMS	148015	SEAL FOR BACK VALVE		69		132268	MAGAZINE ASSY
24		136074	CYLINDER WITH SEALS		70		156941	REAR BRACKET
25	FMS	149054	PISTON STOP		71		156942	BRACKET	142163
26	FMS	972007	O-RING		72		157082	CARTON PROTECTOR
27		150409	CAGE		73		946641	SCREW
28	FMS	972071	O-RING		74		946002	NUT
30		135555	REAR NOZZLE PLATE	166219	75		158238	TONGUE BLACK
31		945045	PIVOT PIN		75		158223	TONGUE - SILVER WITH CLINCHER
32		162211	FRONT NOZZLE PLATE		77	FMS	972124	SET OF PISTON RINGS
33	FMS	946662	SCREW	KM0412	81	FMS	148037	GASKET
34		945040	TENSION PIN		84	FMS	149089	BUMPER
35		162212	DOOR		85		35292	HANDLE SLEEVE
36		175002	DOOR SPRING		100		170136	PROTECTOR
37		147057	WASHER		101		170137	PROTECTOR
38		160050	LOCK PISTON		102		946577	SCREW
39		135527	DOOR ASSY		103		946641	SCREW
40	FMS	972030	O-RING		104		947032	WASHER
41	FMS	972039	O-RING		105		158237	ANVIL
42		191084	VALVE CAGE		106		143124	O-RING KIT
43	FMS	173066	SPRING		107		143126	REPAIR KIT
44	FMS	972031	O-RING		108		158205	CLINCHING ANVIL
45		191085	VALVE STEM

One Sheeter

Application

EXPANSION JOINTS

To staple glass, wool and wire mesh together
