PNEUMATIC PLIER JK XPRO-20T 77916 BROAD JAW

SKU: XPRO-PL77916BJ

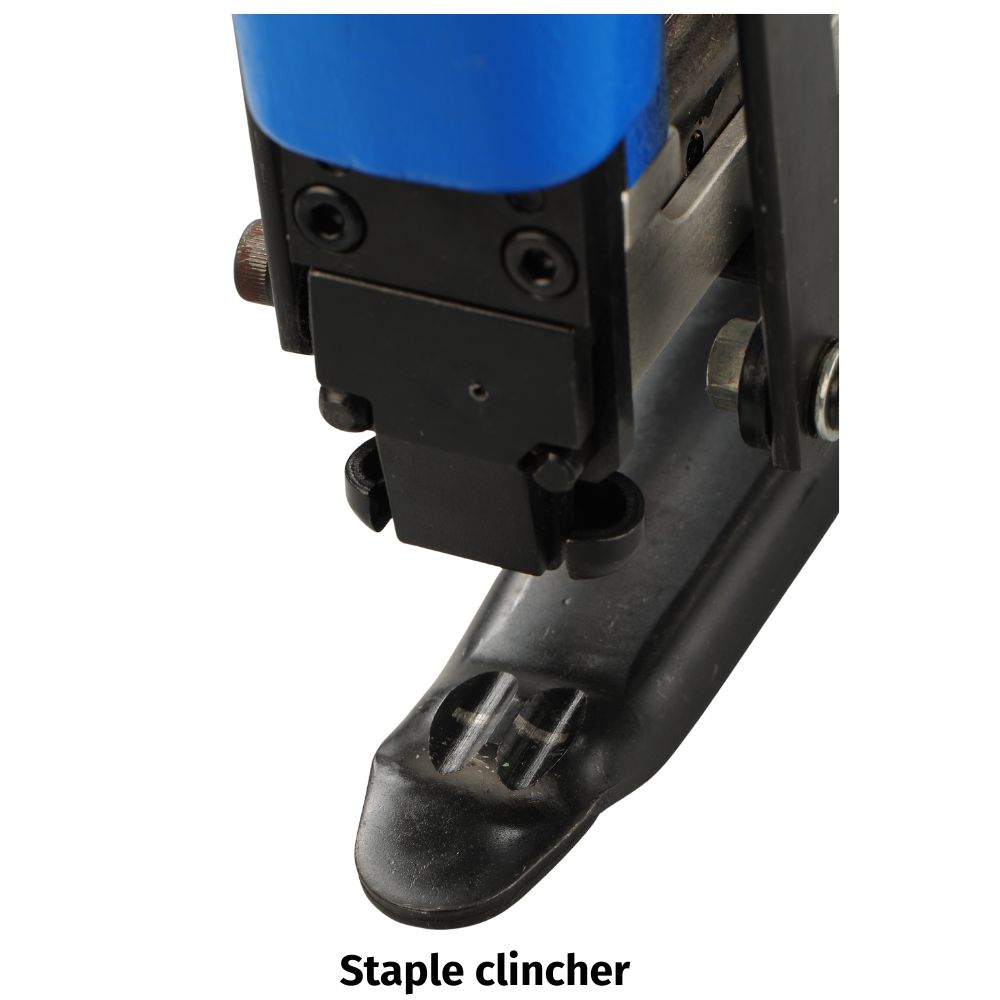

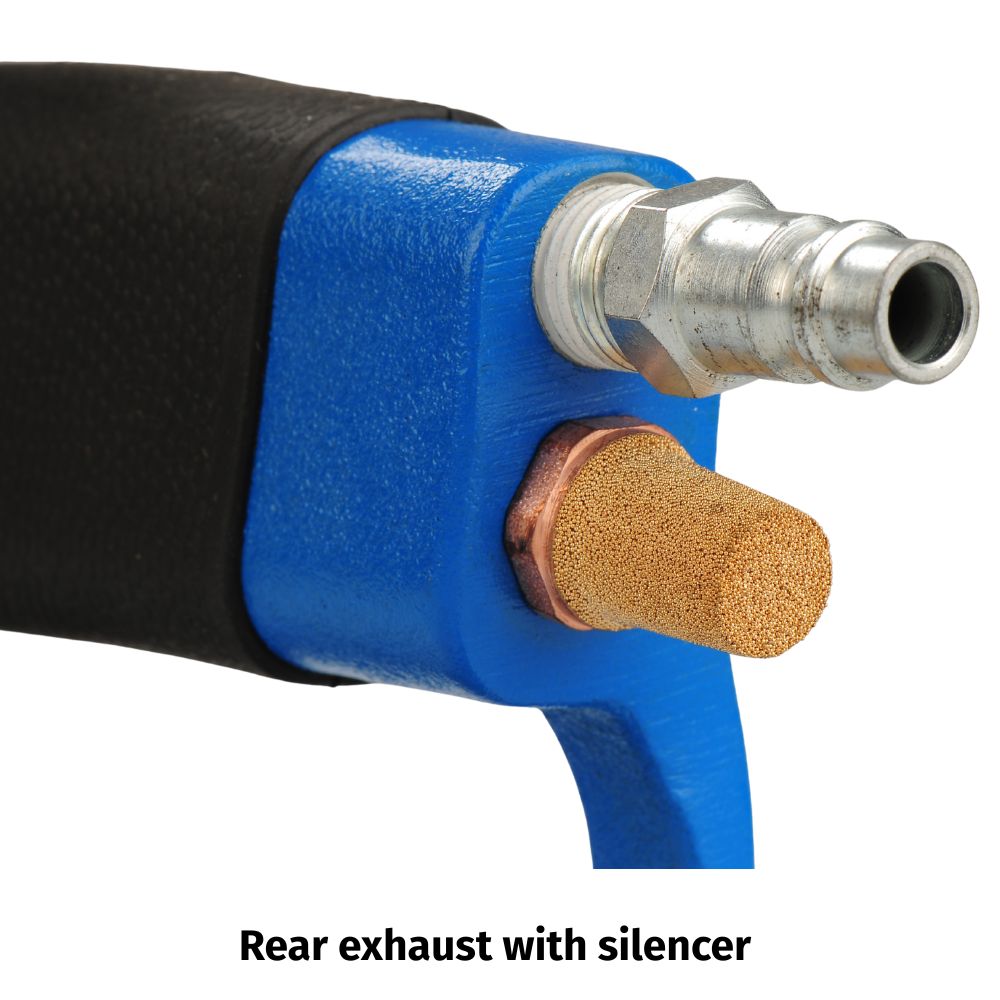

Ergonomic rubber grip. Rear exhaust with sound absorber. Carton protector for controlled depth setting during stapling. Accommodates staples upto 16mm in length. Hardened staple clinching plate. Fasteners recommended: 8-16 mm

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

₹ 0/-
Blow Up
Spares
TOOL MODEL: XPRO-PL77916BJ REV.1ST APRIL 23
SR FMS PART CODE PART NAME ALT CODE SR FMS PART CODE PART NAME ALT CODE
1 FMS 946587 SCREW   42 FMS 191084 VALVE CAGE
2 FMS 947039 WASHER   43 FMS 173066 SPRING
3 FMS 150257 SPACER   44 FMS 972031 O-RING
4   161179 SHIELD   45   191085 VALVE STEM
5   978022 BUSHING   46 FMS 972040 O-RING
6 FMS 972010 O-RING   47 FMS 146102 NUT
7   179034 CAP 139369 48 FMS 972021 O-RING
8   139369 CAP CPL   50   987023 NIPPLE
9 FMS 972023 O-RING   51 FMS 971004 SOUND ABSORBER
10   190167 PISTON   52   947008 LOCK WASHER
11 FMS 972018 O-RING   53 FMS 946512 SCREW KM0412
12   190113 CYLINDER   54 FMS 165040 TRIGGER
13 FMS 972032 O-RING   55 FMS 945039 TENSION PIN
14 FMS 149071 COMPRESSION WASHER   56 FMS 946608 SCREW
15 FMS 150428 CYLINDER CAP   57 FMS 163222 POWER ARM
16 FMS 972177 O-RING   58 FMS 150251 SPACER
17   145099 DRIVER PIN   59 FMS 947012 WASHER
18 FMS 164057 DRIVER BLADE   60 FMS 946654 SCREW
19 FMS 134163 PISTON WITH DRIVER   61   170118 MAGAZINE LID SHORT
20   150102 CYLINDER TOP RING   62 FMS 161208 PUSHER
21   190066 CYLINDER   63 FMS 173053 FEEDER SPRING SHORT
22 FMS 972028 O-RING   64 FMS 173052 LOCK SPRING
23 FMS 148015 SEAL FOR BACK VALVE   65   160051 LOCK PISTON
24 FMS 136074 CYLINDER WITH SEALS   66   951037 RETAINER
25 FMS 149111 PISTON STOP   67 FMS 150121 LOCK CAGE
26 FMS 972007 O-RING   68   132686 RAIL SHORT
27   150409 CAGE   69   132228 MAGAZINE ASSY SHORT
28 FMS 972071 O-RING   70   156955 REAR BRACKET
30   135549 REAR NOZZLE PLATE 166216 71   156942 BRACKET 142163
31   945045 PIVOT PIN   72   157075 CARTON PROTECTOR
32   162211 FRONT NOZZLE PLATE   73   946641 SCREW
33 FMS 946662 SCREW KM0412 74   946002 NUT
34   945040 TENSION PIN   75   158223 TONGUE - SILVER WITH CLINCHER
36   175002 DOOR SPRING   75   158238 TONGUE BLACK
37   147057 WASHER   77 FMS 972124 SET OF PISTON RINGS
38   160050 LOCK PISTON   81 FMS 148037 GASKET
40 FMS 972030 O-RING   84 FMS 149089 BUMPER
41 FMS 972039 O-RING   85   35292 HANDLE SLEEVE
One Sheeter

Application
ANGLE & EDGE BOARDS To make angle & edge board trays
MATTRESSES To fix inner lining to metal springs
EXPANSION JOINTS To staple glass, wool and wire mesh together
