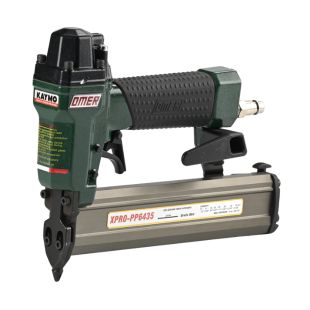

PNEUMATIC PINNER OM XPRO-6435

Name: PNEUMATIC PINNER OM XPRO-6435
Brand: Kaymo
SKU: XPRO-PP6435
Availability: InStock

SKU: XPRO-PP6435

The XPRO-PP6435 Pneumatic Pinner is a lightweight, high-precision pinning tool ideal for fine woodworking, trim work, and delicate applications. With an ergonomic grip, safety features, Read More...

Features:

Ergonomic Rubber Grip – Provides enhanced comfort and control during extended use.

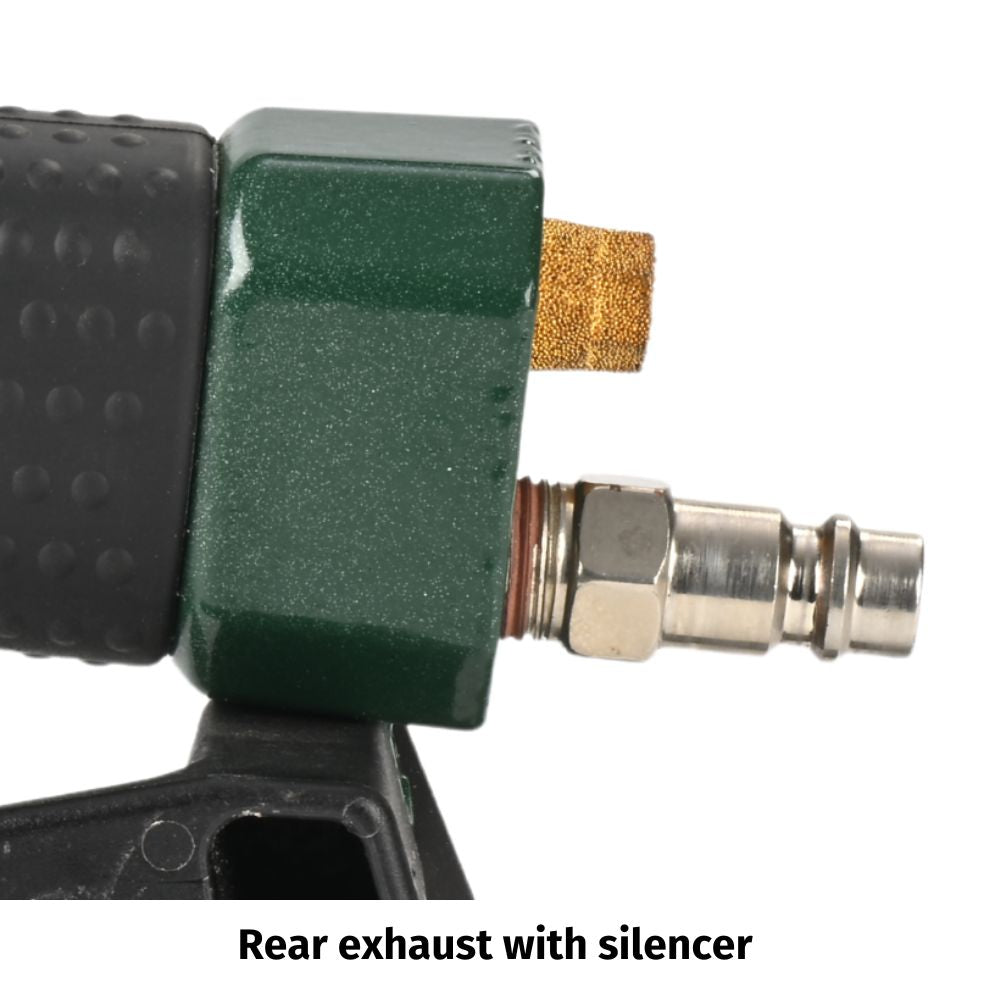

Rear Exhaust with Silencer – Reduces noise and directs air away for a cleaner workspace.

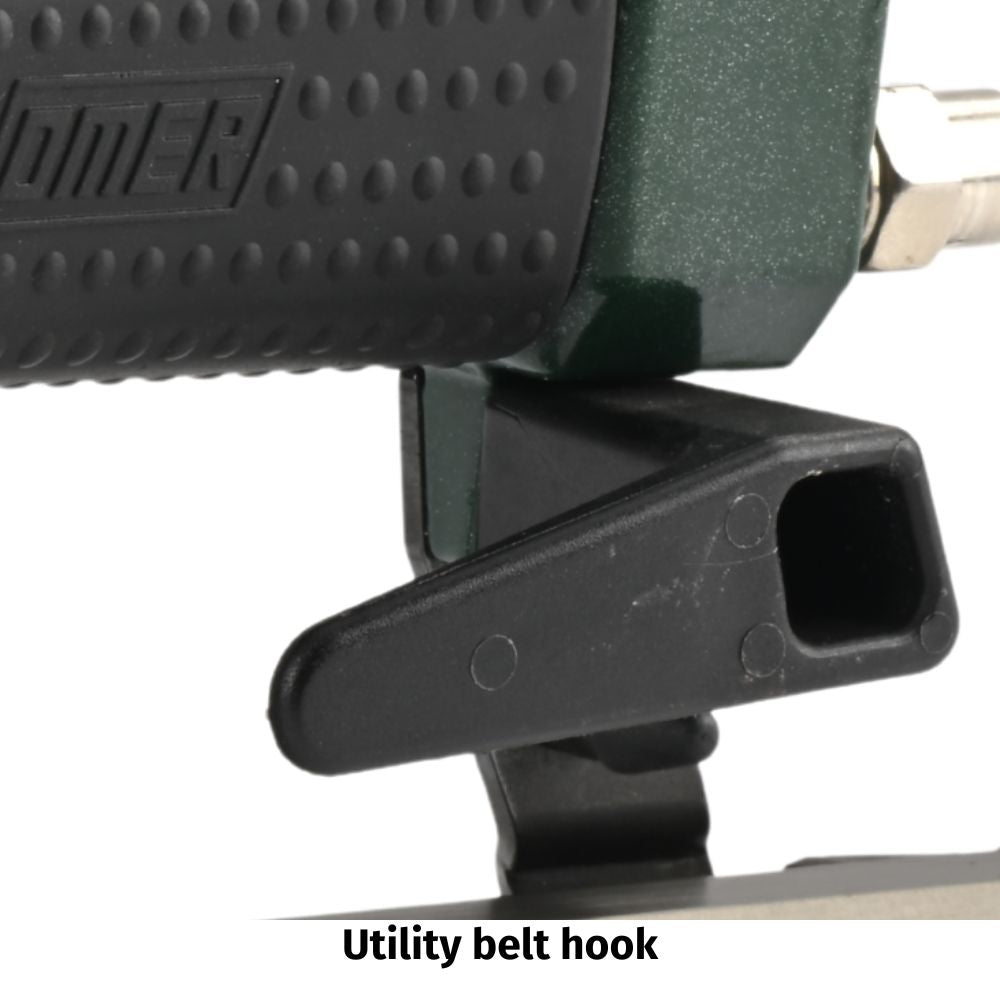

Utility Belt Hook – Allows for easy carrying and quick access on-site.

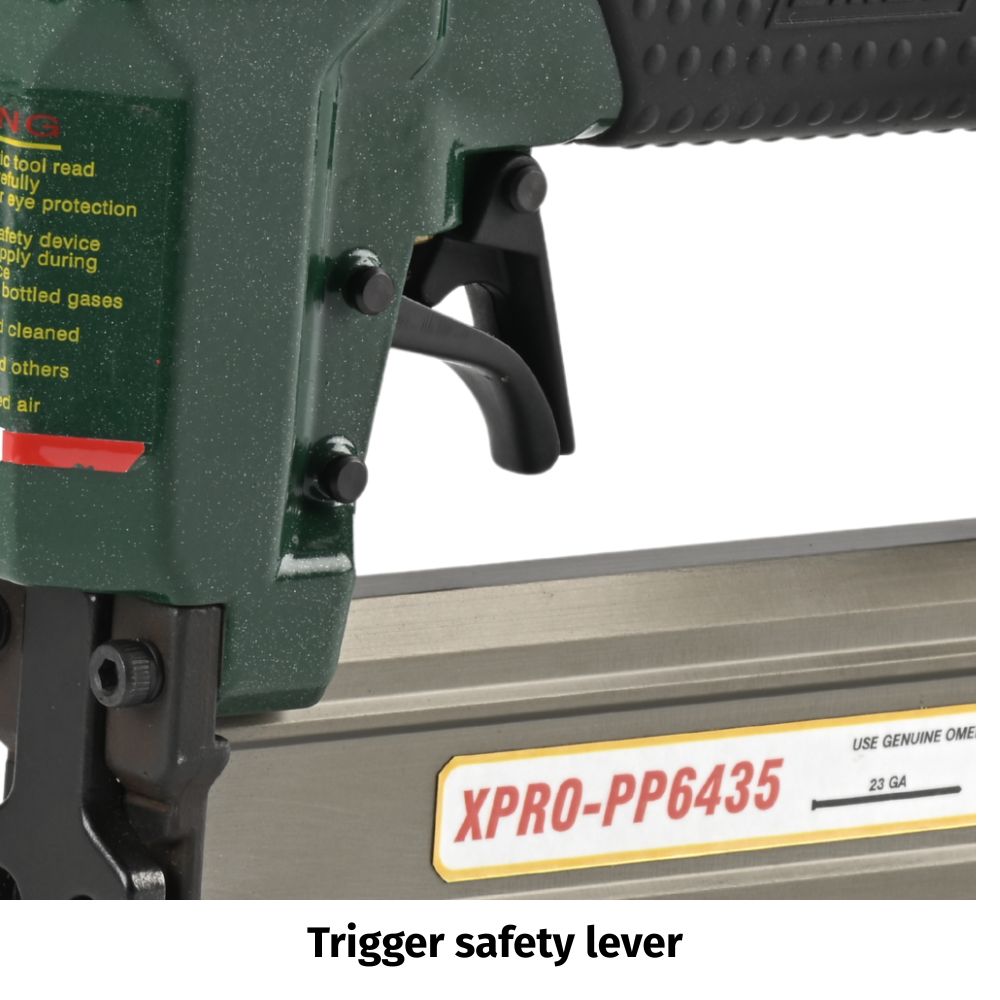

Trigger Safety Lever – Prevents accidental firing for enhanced safety.

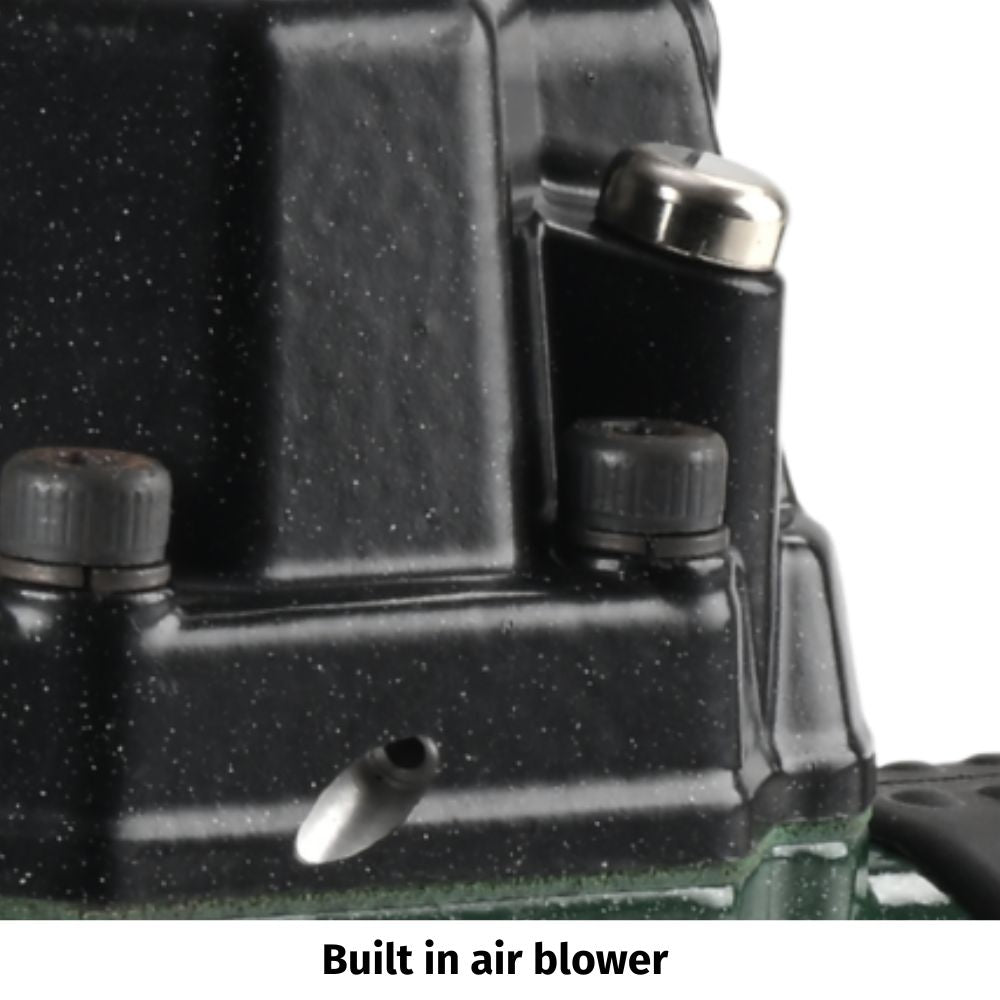

Built-in Air Blower – Helps clear dust and debris from the work surface

Applications:

Interiors, musical instruments, gift articles

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

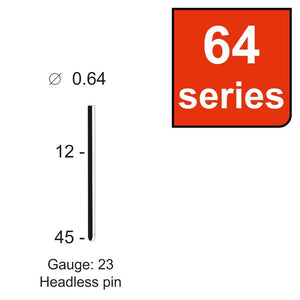

PINS KAYMO 64 SERIES

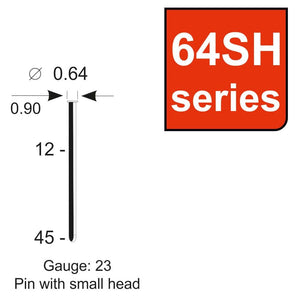

PINS KAYMO 64 SERIES W/SMALL HEAD

1/4" FRL AIR CONTROL FRL512

B80 1/4" PT AIR BLOW GUN WITH 12CM STEEL TUBE

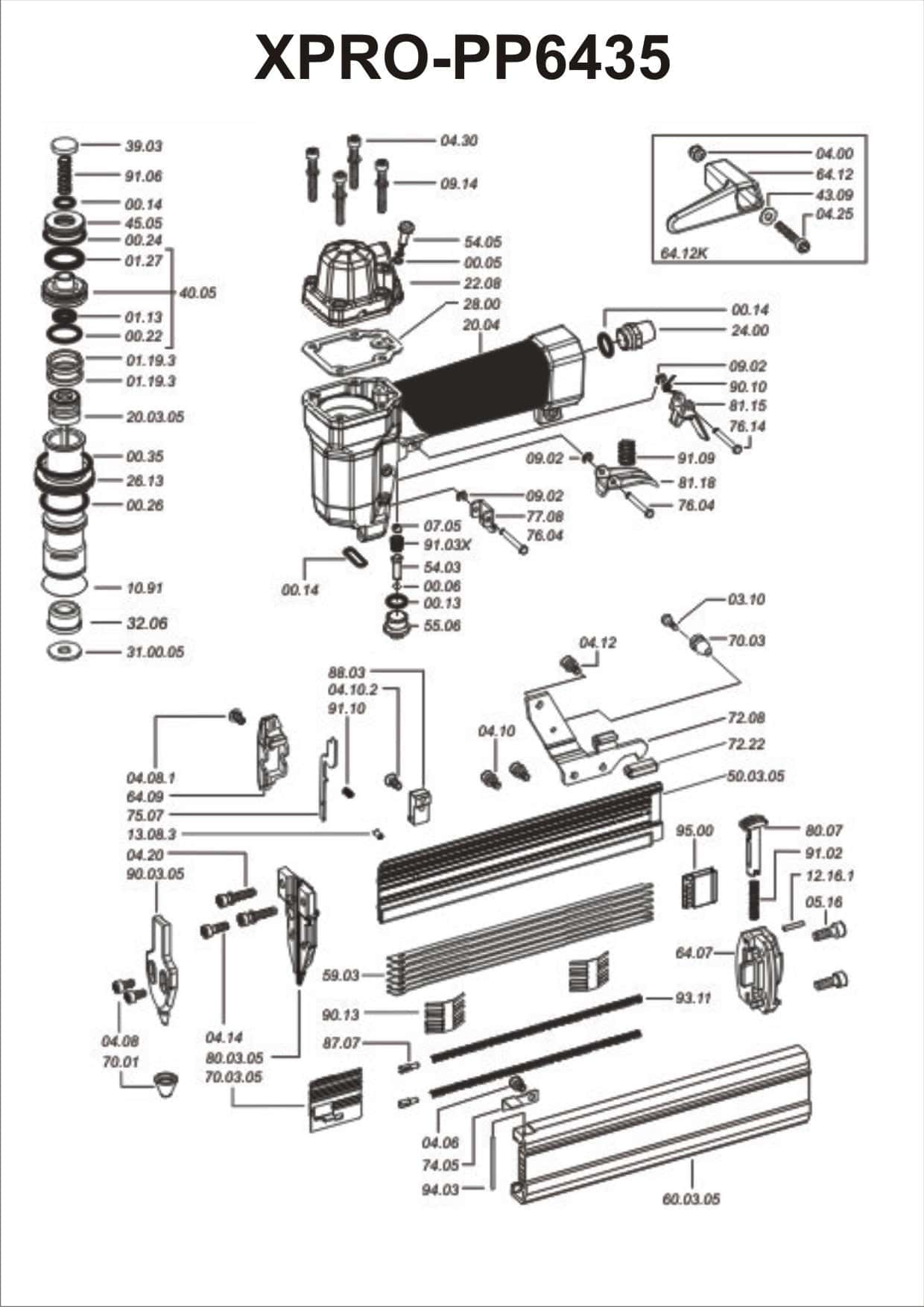

Blow Up

Spares

		TOOL NAME:	XPRO-PP6435					REV.1ST APRIL 2022
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
0.05	FMS	2000005	O-RING 00.05		64.07		2006407	MAGAZINE BOTTOM 64.07
0.06		2000006	O-RING 00.06		64.09		2006409	CARTER 64.09
0.13		2000013	O-RING 00.13		64.12		2006412	HANGING HOOK 64.12
0.14	FMS	2000014	O-RING 00.14		70.01	FMS	2007001	CONTACT TIP 70.01
0.22		2000022	O-RING 00.22		70.03	FMS	2007003	TIP SUPPORT 70.03
0.24		2000024	O-RING 00.24		72.08		2007208	MAGAZINE SUPPORT 72.08
0.26	FMS	2000026	O-RING 00.26		72.22	FMS	2007222	CARRIAGE LOCK 72.22
0.35	FMS	2000035	O-RING 00.35		74.05		2007405	PIN-STOP 74.05
1.13		2000113	O-RING 01.13		75.07	FMS	2007507	TRIGGER LOCK 75.07
1.27		2000127	O-RING 01.27		76.04	FMS	2007604	PIN 76.04
3.1		2000310	SCREW 03.10		76.14		2007614	PIN 76.14
4		2000400	NUT 04.00		77.08	FMS	2007708	SAFETY GUIDE 77.08
4.06		2000406	SCREW 04.06		80.07	FMS	2008007	CLOSING TRIGGER 80.07
4.08	FMS	2000408	SCREW 04.08		81.15	FMS	2008115	TRIGGER SAFETY 81.15
4.1	FMS	2000410	SCREW 04.10	KM0406	81.18		2008118	TRIGGER CONTROL 81.18
4.12	FMS	2000412	SCREW 04.12	KM0412	87.07		2008707	SPRING HOLDER 87.07
4.14		2000414	SCREW 04.14		88.03		2008803	SUPPORT 88.03
4.2	FMS	2000420	SCREW 04.20	666022	90.1	FMS	2009010	SPRING 90.10	P1115203362
4.25		2000425	SCREW 04.25		90.13	FMS	2009013	SPRING 90.13
4.3		2000430	SCREW 04.30		91.02	FMS	2009102	PLUNGER SPRING 91.02
5.16		2000516	SCREW 05.16		91.06		2009106	PLUNGER SPRING 91.06
7.05	FMS	2000705	BALL 07.05		91.09		2009109	SPRING 91.09
9.02	FMS	2000902	SPRING RING 09.02	YE2501	91.1	FMS	2009110	SPRING 91.10
9.14		2000914	WASHER 09.14		93.11	FMS	2009311	PUSHER SPRING 93.11
10.91		2001091	O-RING 10.91		94.03		2009403	PIN 94.03
20.04		2002004	BODY 20.04		95		2009500	SPRING BOX 95.00
22.08		2002208	CAP 22.08		01.19.3		20001193	O-RING 01.19.3
23.04		2002304	TOOL'S BOTTOM 23.04		04.08.1		20004081	SCREW 04.08.1
24	FMS	2002400	SILENCER 24.00	971004	04.10.2	FMS	20004102	SCREW 04.10.2
26.13		2002613	CYLINDER 26.13		12.16.1	FMS	20012161	ROLL PIN 12.16.1
28	FMS	2002800	GASKET 28.00		13.08.3	FMS	20013083	ROLL PIN 13.08.3
32.06		2003206	BUMPER 32.06		20.03.05	FMS	2200305	DRIVER BLADE 20.03.05
39.03	FMS	2003903	PAKING 39.03		31.00.05		2310005	WASHER 31.00.05
40.05		2004005	VALVE 40.05		50.03.05		2500305	MAGAZINE 50.03.05
43.09		2004309	WASHER 43.09		60.03.05		2600305	SLIDER 60.03.05
45.05		2004505	RING VALVE 45.05		70.03.05	FMS	2700305	PUSHER 70.03.05
54.03	FMS	2005403	TRIGGER VALVE 54.03		80.03.05		2800305	BACKNOSE 80.03.05
54.05	FMS	2005405	TRIGGER VALVE 54.05		90.03.05		2900305	NOSE PLATE 90.03.05
55.06	FMS	2005506	CONNECTOR 55.06		91.03X	FMS	2009103X	PLUNGER SPRING 91.03X
59.03	FMS	2005903	SPACER 59.03

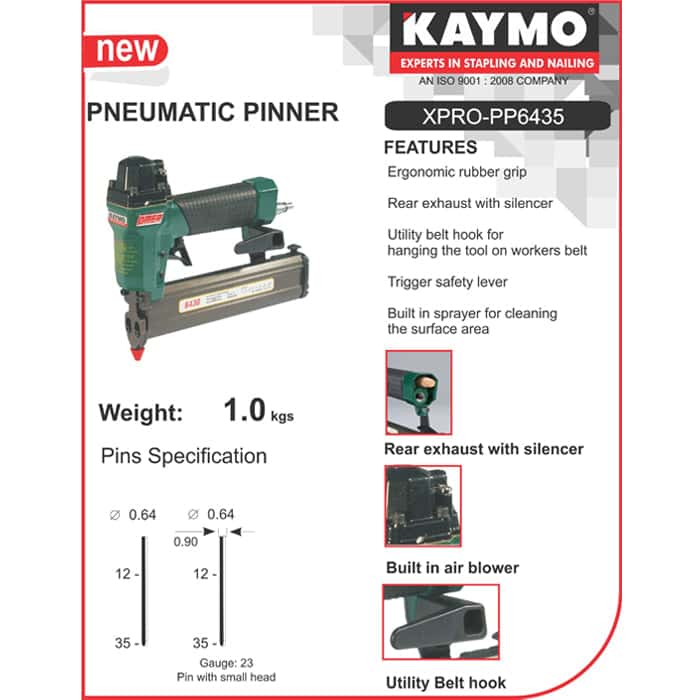

One Sheeter

Application

INTERIORS	To fix decorative mouldings on to wooden cupboards & windows
MUSICAL INSTRUMENTS	To fix finishing veneer / fabric onto wood
GIFT ARTICLES	To join MDF to MDF to make gift articles
GIFT ARTICLES	To join wood to wood to make gift articles
