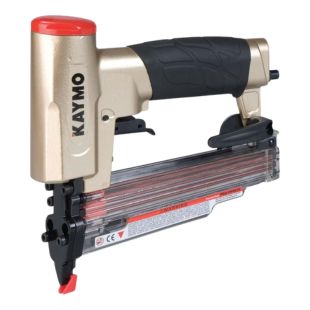

PNEUMATIC PINNER KAYMO PRO-6435

Name: PNEUMATIC PINNER KAYMO PRO-6435
Brand: Kaymo
SKU: PRO-PP6435
Availability: InStock

SKU: PRO-PP6435

The KAYMO PRO-PP6435 is a lightweight and high-precision pneumatic pinner, ideal for fine woodworking, furniture assembly, and decorative trim applications. With a transparent magazine for Read More...

Features:

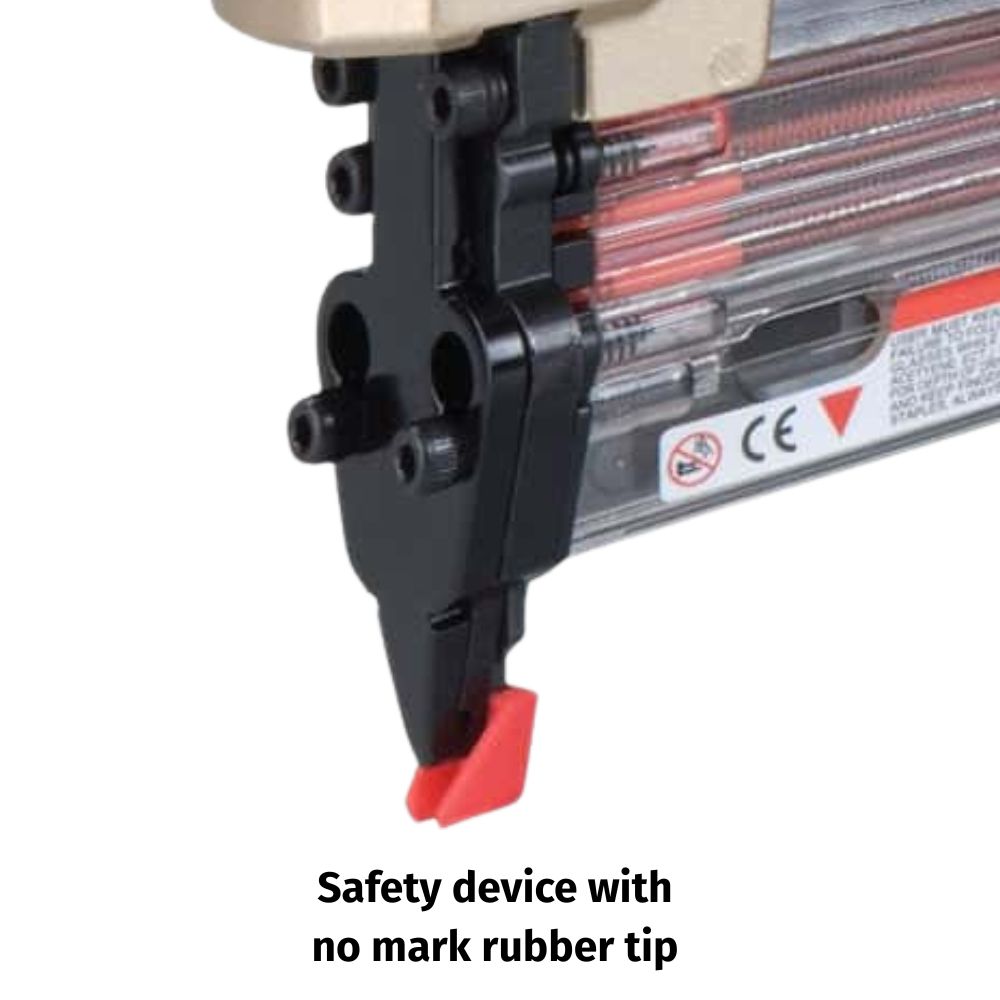

Safety device with no mark rubber tip

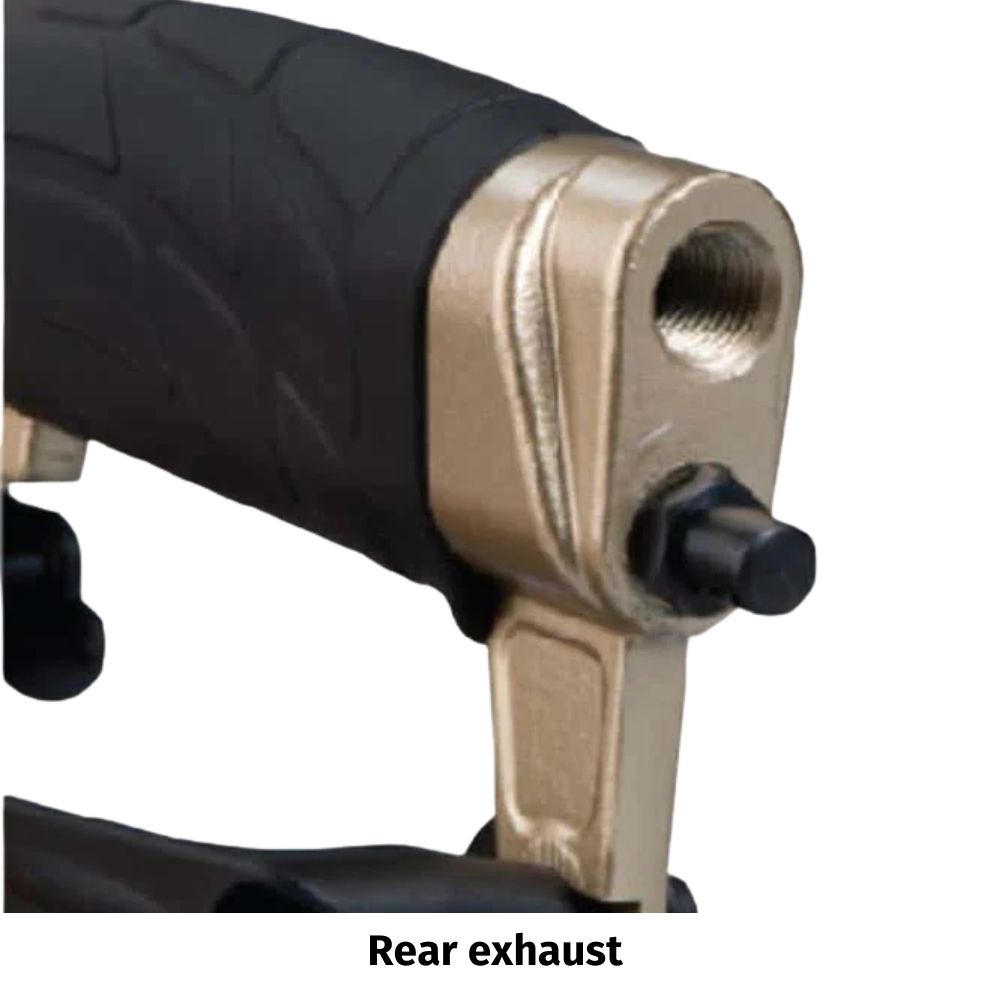

Rear exhaust

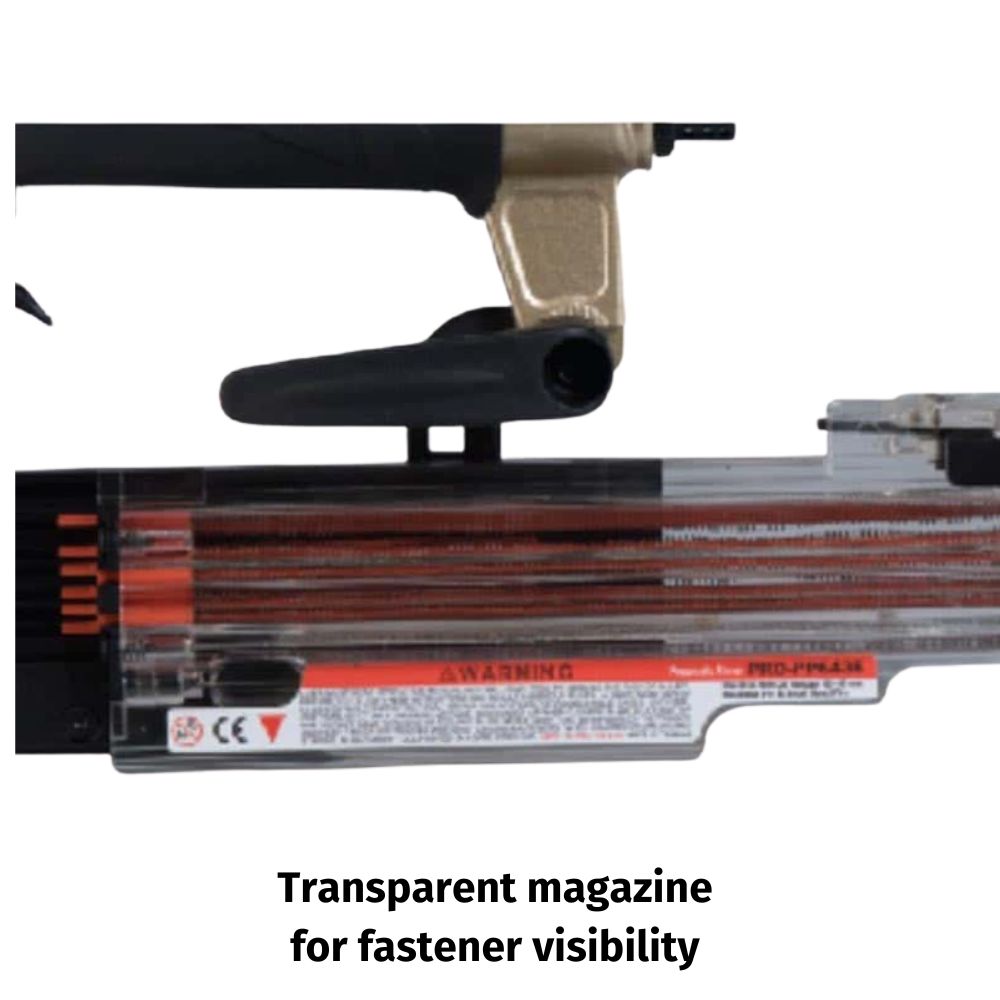

Transparent magazine for fastener visibility
Belt hook
Depth adjustment
Dry fire lock out
Also accommodates pins with small head
Fastener Range: 12mm – 35mm

Applications:

Furniture
Gift articles
Interiors
Musical instruments

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

PINS KAYMO 64 SERIES

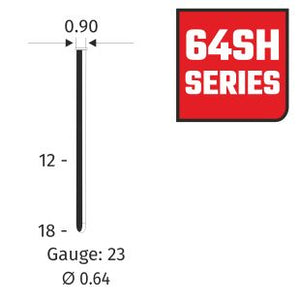

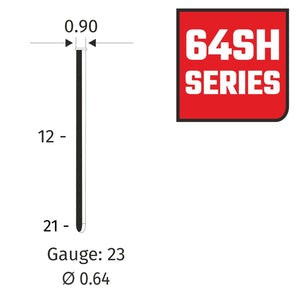

PINS KAYMO 64 SERIES SMALL HEAD

AIR FILTER + REGULATOR LUBRICATOR SET KAYMO 1/4" WITH GAUGE

Blow Up

Spares

		TOOL MODEL:	PRO-PP6435					REV.1ST APRIL2023
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1	FMS	28010	Top cap		34	FMS	98010	Bolt
2	FMS	90015	Cap O-ring		35	FMS	92002	Spring Washer	S0410400
3	FMS	90049	Piston O-ring		36	FMS	28060	Tail Hanger
4	FMS	28090	Piston UNIT	28095-1	37		22160	Plate
4	FMS	28093-1	Piston UNIT NEW	28095-1	38	FMS	93003	Flat HD.Screw
5	FMS	90058	O-ring		39	FMS	12150	Magazine Cover
6	FMS	22030	Cylinder		40	FMS	12180	Pin
7	FMS	22040	Bumper		41	FMS	12190	Pin
8	FMS	18060-1	Trigger Valve Set		42	FMS	12160	Latch
9	FMS	18070	Valve Spring		43	FMS	12170	Latch Spring
10	FMS	90055	O-Ring		44	FMS	98011	Bolt Flat Head
11	FMS	18081	Valve Seat		45	FMS	22220	Spring Guide Seat A
12	FMS	90005	O-ring		46	FMS	22230	Spring Guide
13	FMS	90009	O-ring		47	FMS	22260	Pusher A
14	FMS	18100	Trigger Valve Stem		48	FMS	22280	Lock Out Spring
15	FMS	90007	O-ring		49	FMS	22290	Lock Out Pin
16	FMS	18120	Trigger Valve Cover		50	FMS	22240	Spring Guide Seat B
17	FMS	91007-1	Bolt	KM0412	51	FMS	28080	Spring
18	FMS	91008	Bolt		52	FMS	22270	Pusher Spring
19	FMS	91009	Bolt		53	FMS	22300	Pusher L
20		22070	Front Plate		54	FMS	22310	Pusher C
21		98012	Round Head Screw		55	FMS	96005	Pin
22	FMS	28020	Guiding Plate		56	FMS	22330	Trigger
23	FMS	22090	Safety Cover		57	FMS	22340	Secondary Trigger
24	FMS	22100	Safety A Seat		58		28040	Body	28041
25		22320	Pin		59	FMS	90010	O-ring
26	FMS	20310	Safety Spring		60	FMS	22370	Drive Guider
27	FMS	22120	Safety A		61	FMS	97001	Nut	NEO1005075N
28	FMS	22130	Adjust Knob		62		20180	Hook
29	FMS	90024	O-ring		63	FMS	28050	Air Silencer
30	FMS	22140	Safety		64		94002	Plug	S3120PMA
31	FMS	95001	E-ring	YE2501	65	FMS	91010	Bolt	KM0520
32	FMS	28070	No Mar Tip		66	FMS	95002	E-ring
33		12140	Magazine		67	FMS	YE2501	E-ring

One Sheeter

Application

INTERIORS	To fix decorative mouldings on to wooden cupboards & windows
MUSICAL INSTRUMENTS	To fix finishing veneer onto wood
GIFT ARTICLES	To join MDF to MDF to make gift articles
GIFT ARTICLES	To join wood to wood to make gift articles
