PNEUMATIC PINNER KAYMO ECO-6422

Name: PNEUMATIC PINNER KAYMO ECO-6422
Brand: Kaymo
SKU: ECO-PP6422
Availability: InStock

SKU: ECO-PP6422

The KAYMO ECO-PP6422 is a high-precision pneumatic pinner designed for delicate and detailed fastening applications. Featuring a trigger dial lock, 360° air exhaust, and an Read More...

Features:

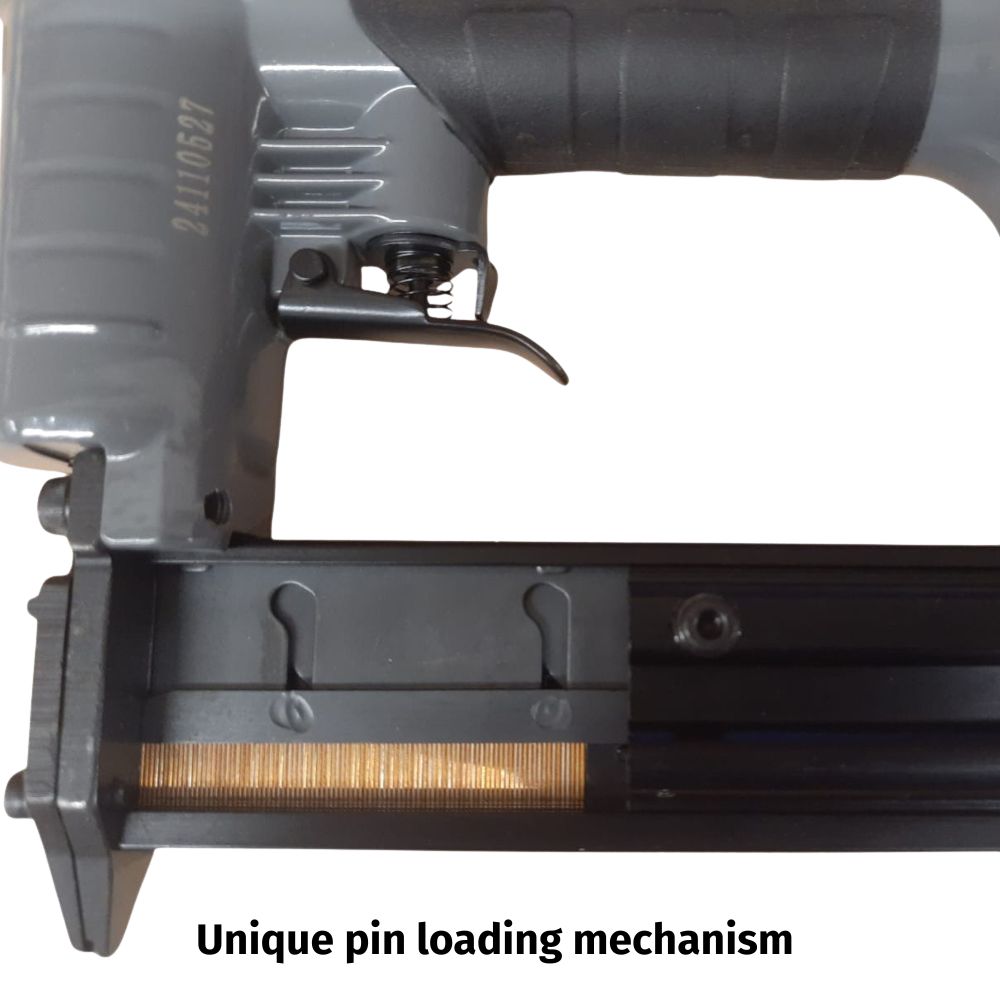

Unique pin loading mechanism

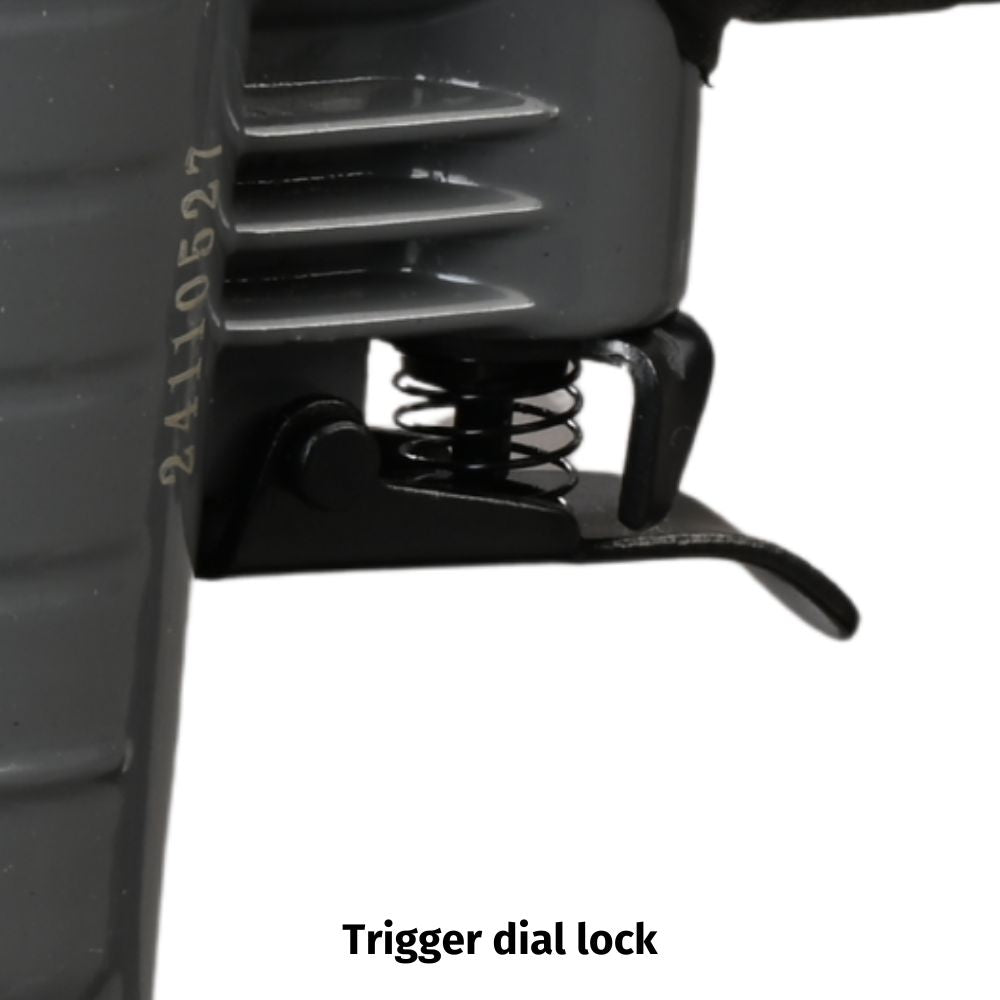

Trigger dial lock

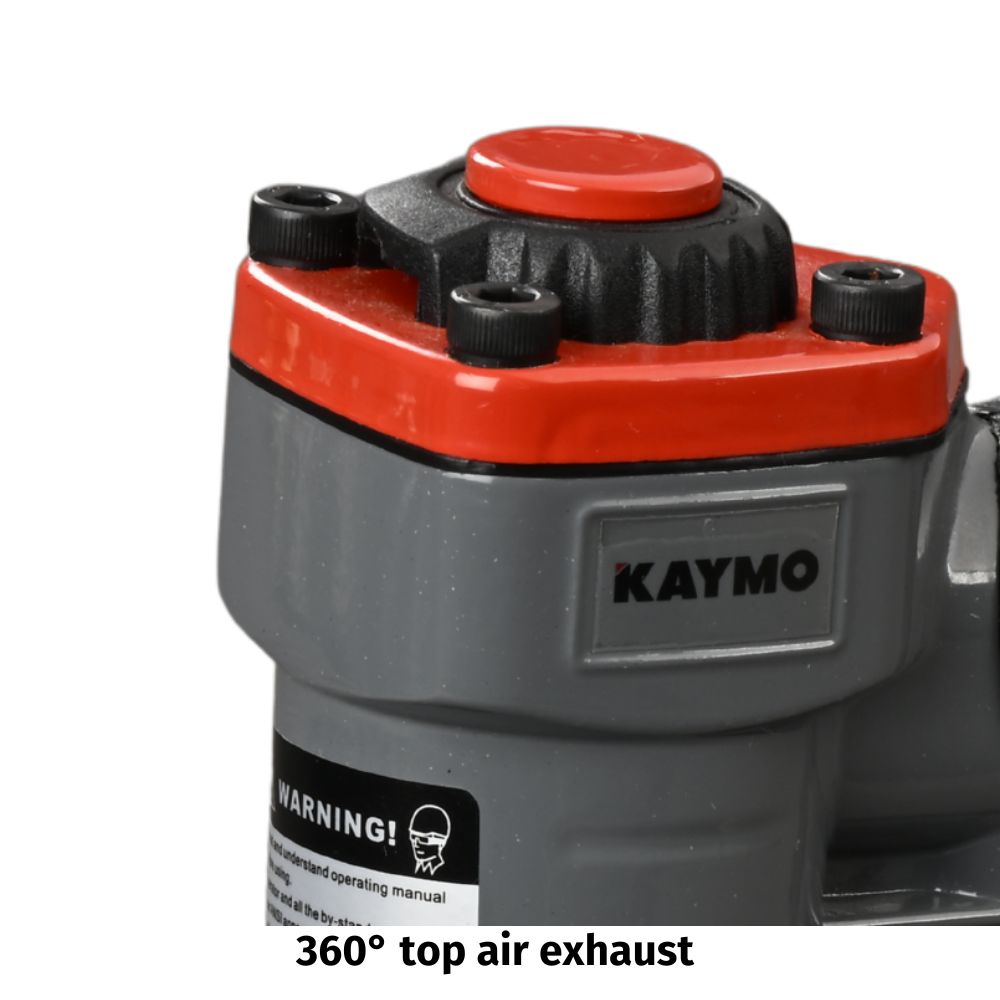

360° top air exhaust
Full metal magazine
Ergonomic rubber grip
Fastener Range: 12mm – 22mm

Applications:

Furniture
Gift articles
Interiors
Musical instruments

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

PINS KAYMO 64 SERIES

AIR FILTER + REGULATOR LUBRICATOR SET KAYMO 1/4" WITH GAUGE

AIR RECOIL HOSE KAYMO 8x12 MM PU 15M BRAIDED BLUE

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

Blow Up

Spares

		TOOL MODEL:	ECO-PP6422					REV.1ST APRIL 2023
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1	FMS	ECO642201	SCREW	KM0520	31	FMS	ECO642231	SCREW	KM0412
2		ECO642202	CYLINDER CAP		32	FMS	ECO642232	SCREW	KM0408
3	FMS	ECO642203	GASKET	HY1013J003	33		ECO642233	PLATE
4	FMS	ECO642204	SEAL	HY1013J004	34		ECO642234	DRIVE GUIDE
5	FMS	ECO642205	O-RING 15.7×2	HY1013J005	35		ECO642235	PIN 1.5X10
6	FMS	ECO642206	SPRING	HY1013J006	36	FMS	ECO642236	FEEDER SHOE
7	FMS	ECO642207	O-RING 31.3×2.3	HY8016007	37		ECO642237	SPRING PIN 2X10
8	FMS	ECO642208	VALVE	HY1013J008	38		ECO642238	LIMITED PIECE ASSEMBLY
9	FMS	ECO642209	O-RING 26.8×2.8	HY1013J009	39		ECO642239	MOVABLE MAGAZINE
10	FMS	ECO642210	STOPPED WASHER	HY1013J010	40	FMS	ECO642240	SPRING PIN 2.5X10
11	FMS	ECO642211	COLLAR	HY1013J011	41		ECO642241	PLATE
12	FMS	ECO642212	O-RING 23.3×3	HY1013J012	42		ECO642242	SLIDE PLATE
13	FMS	ECO642213	PISTON ASSEMBLY		43		ECO642243	FEEDER SHOE BASE
14	FMS	ECO642214	O-RING 35.3×2.5	HY1013J014	44		ECO642244	SPRING
15	FMS	ECO642215	CYLINDER	HY7116E2016	45		ECO642245	SPRING
16	FMS	ECO642216	BUMPER	HY1013J016	46		ECO642246	STOPPED PLATE
17	FMS	ECO642217	SEAL	HY8016018	47	FMS	ECO642247	SCREW	666022
18		ECO642218	BODY		48		ECO642248	PIN
19	FMS	ECO642219	SEAL	HY1013J019	49		ECO642249	SPRING
20	FMS	ECO642220	TRIGGER VALVE HEAD	HY1013J020	50		ECO642250	FIXED MAGAZINE
21	FMS	ECO642221	O-RING 15X1.9	HY1013J024	51		ECO642251	LOCK
22	FMS	ECO642222	TRIGGER VALVE GUIDER	HY1013J023	52		ECO642252	WASHER
23	FMS	ECO642223	O-RING 6.5X1.4	HY1013J022	53		ECO642253	SPRING WASHER	S0410400
24	FMS	ECO642224	TRIGGER VALVE STEM	HY1013J021	54		ECO642254	SUPPORT
25		ECO642225	SAFE BRAKECT	HY7116E2026	55	FMS	ECO642255	NUT	NEO1005079N
26	FMS	ECO642226	SPRING	NEO80028	56		ECO642256	SOFT GRIP SLEEVE	HY1013J044
27	FMS	ECO642227	LOCK WASHER	YE2501	57	FMS	ECO642257	O-RING 40.2×2.3	HY1013J045
28		ECO642228	TRIGGER	HY7116E2029	58		ECO642258	END CAP	HY7116052
29	FMS	ECO642229	PIN	HY1013J027	59		ECO642259	AIR PLUG	S3120PMA5208
30	FMS	ECO642230	SCREW	KM0520	60		ECO642260	EXHAUST COVER

One Sheeter

Application

INTERIORS	To fix decorative mouldings on to wooden cupboards & windows
MUSICAL INSTRUMENTS	To fix finishing veneer onto wood
GIFT ARTICLES	To join MDF to MDF to make gift articles
GIFT ARTICLES	To join wood to wood to make gift articles

PNEUMATIC PINNER KAYMO ECO-6422
