Name: PNEUMATIC NAILER KAYMO PRO-38100V2S WITH SAFETY
Brand: Kaymo
SKU: PRO-PN38100V2S
Availability: InStock

SKU: PRO-PN38100V2S

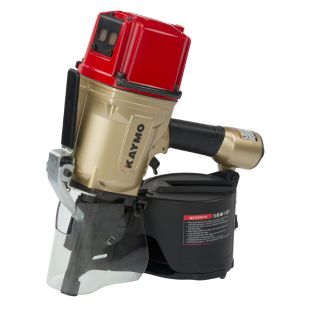

The KAYMO PRO-PN38100V2S is a powerful, heavy-duty pneumatic coil nailer designed for industrial applications requiring strength, durability, and precision. Featuring a wear-proof metal nail tray, Read More...

Features:

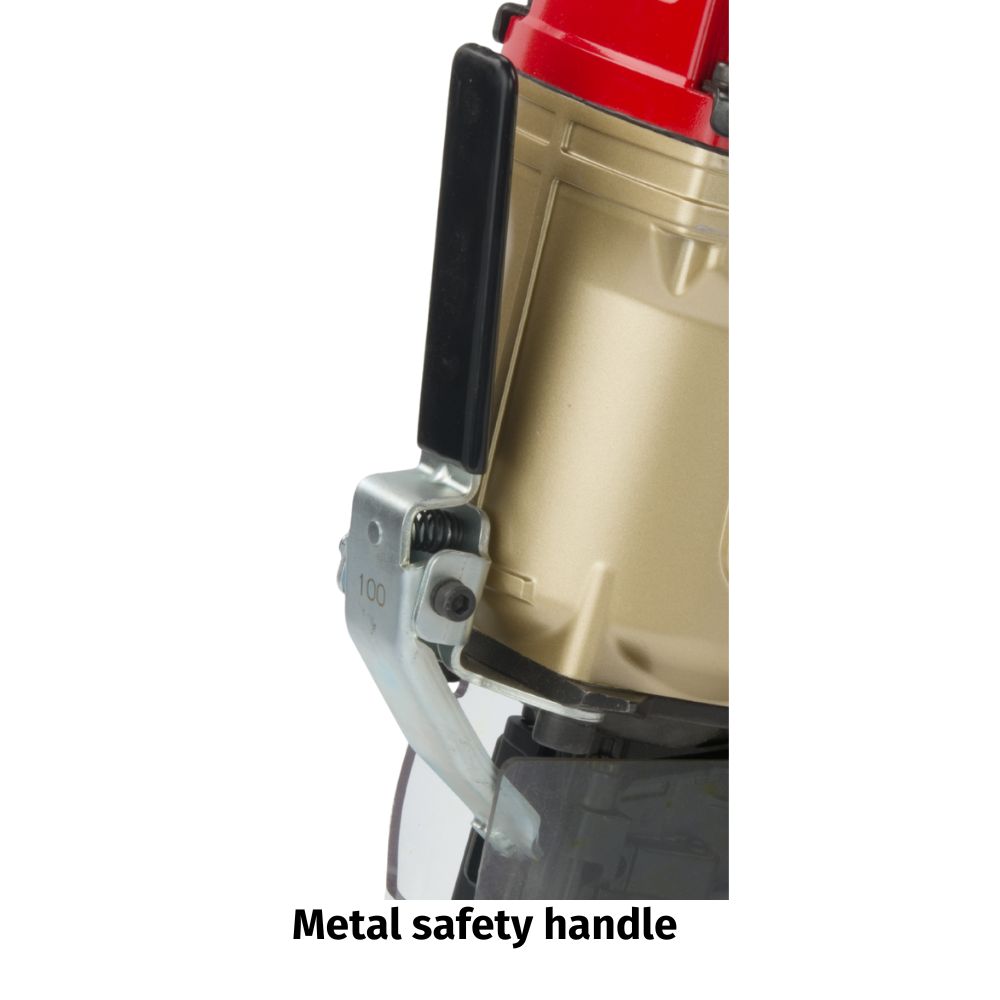

Metal safety handle

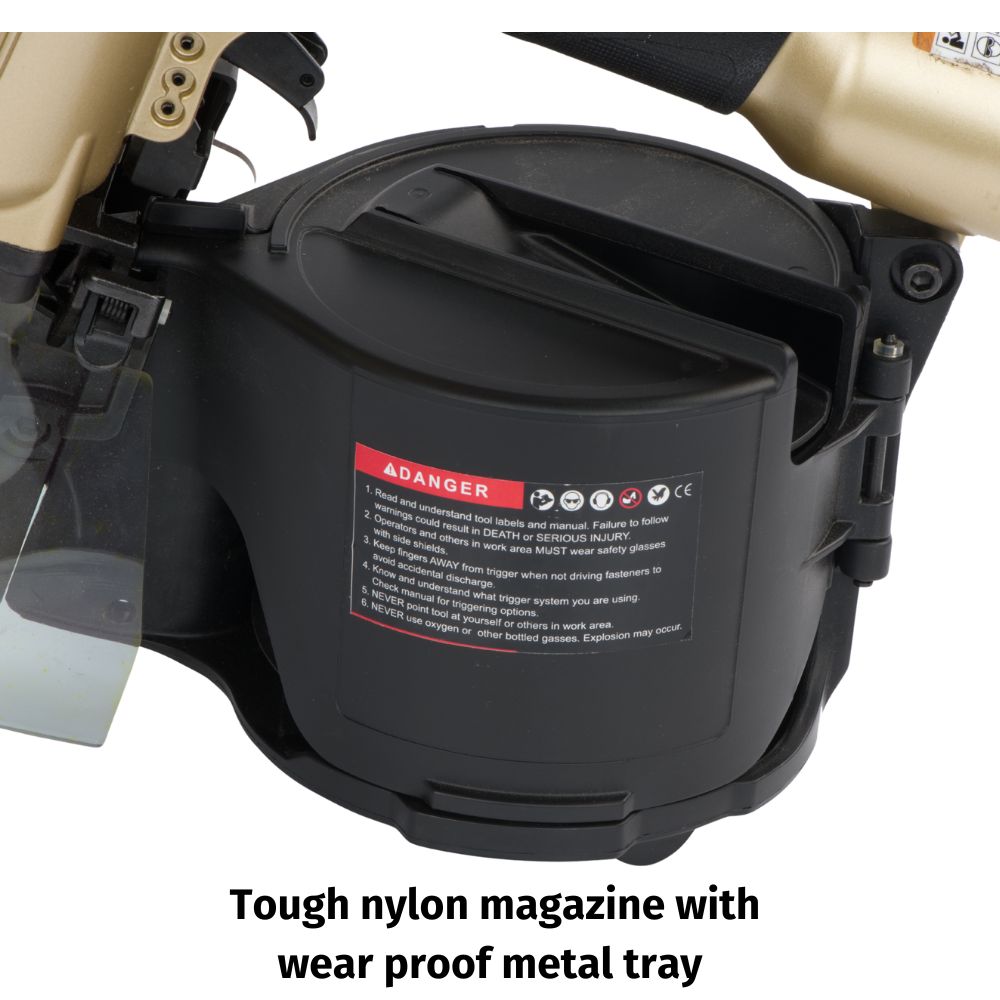

Tough nylon magazine with wear proof metal nail tray

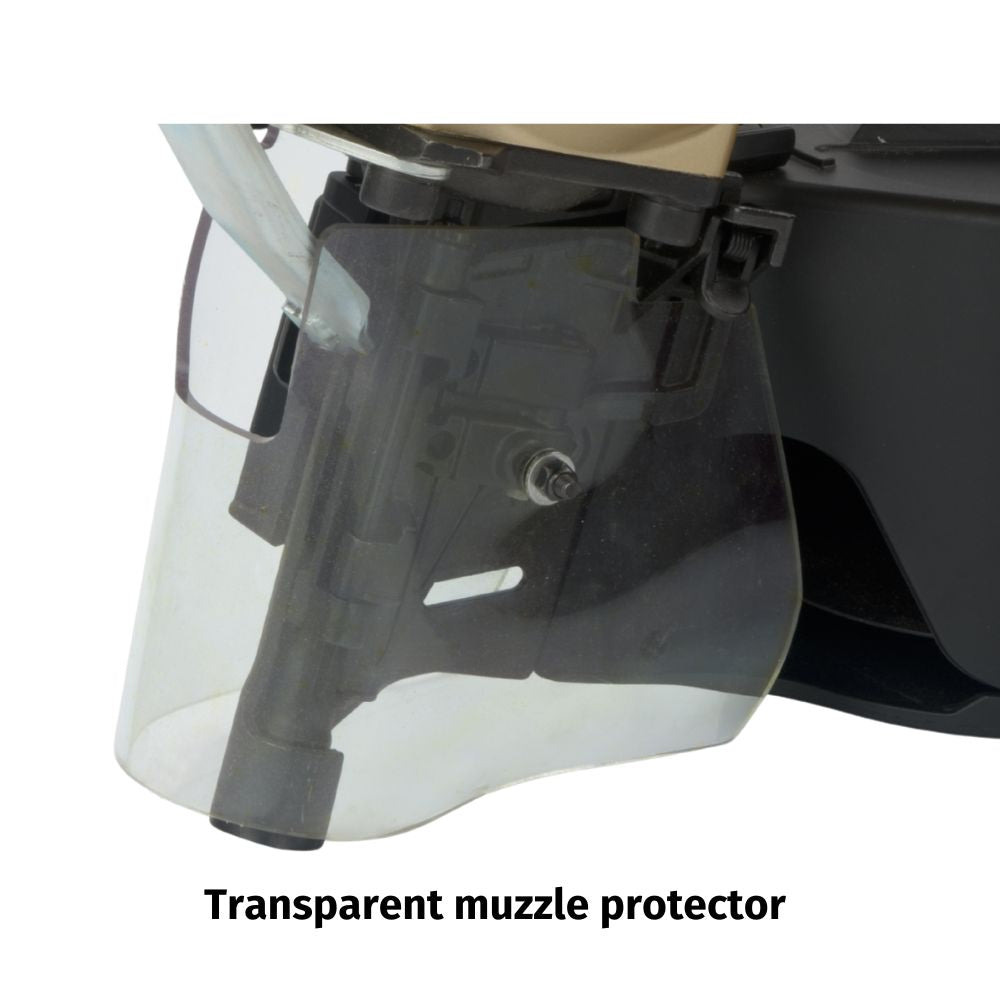

Transparent muzzle protector

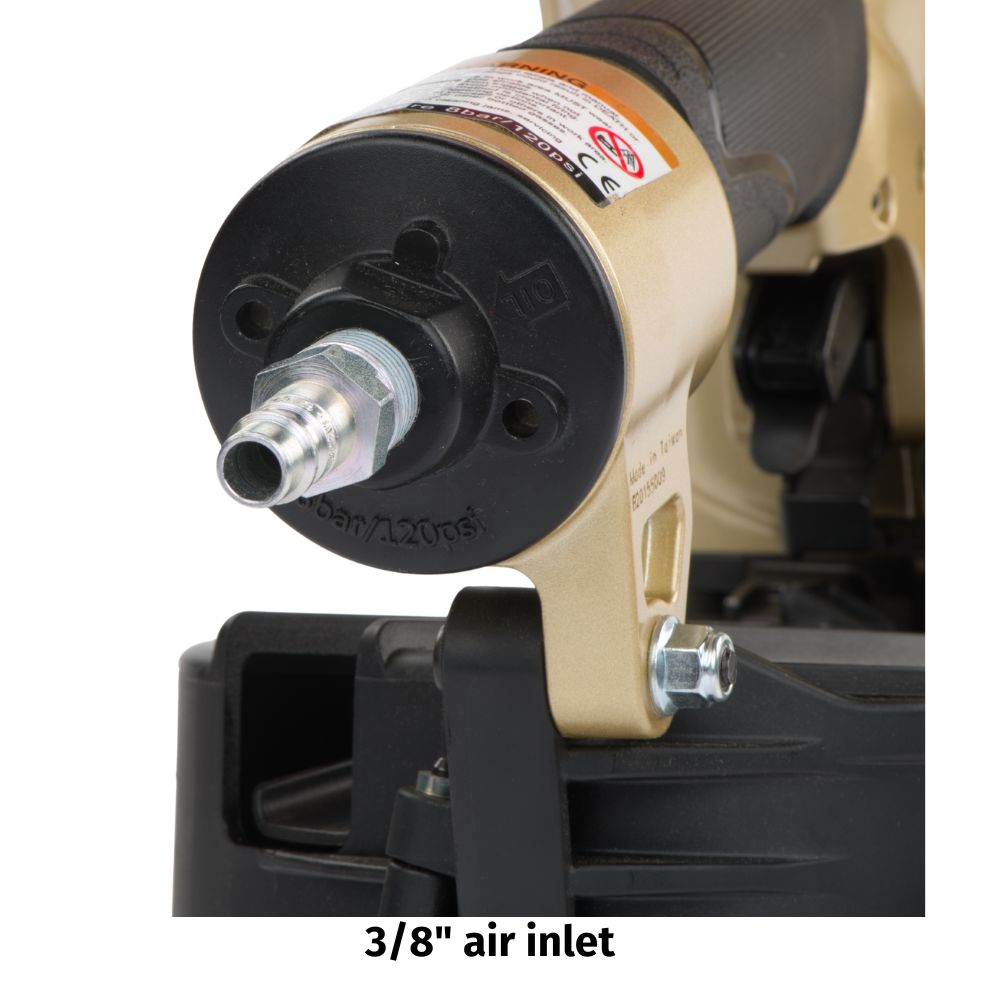

3/8” air inlet
Powerful tool for heavy duty application
Fastener Range: 70mm – 100mm

Applications:

Wooden crates
Wooden pallets
Cable drums

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

COIL NAILS KAYMO 3.0 SERIES

COIL NAILS KAYMO 2.8 SERIES

AIR RECOIL HOSE KAYMO 8x12 MM PU 15M BRAIDED BLUE

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

Blow Up

Spares

		TOOL MODEL:	PRO-PN38100V2S					REV.1ST APRIL2023
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1		100301	Screw	KM0510	49	FMS	100366	Spring, Contact Arm
10		100310	Spring, Head Valve	KFCBS00572	5	FMS	100142	Grommet
11		100311	Washer, Head Valve Spring	KFCBS00574	50	FMS	100367	Contact Arm
12	FMS	100149	O-Ring	KFCBS00322	52	FMS	100340	Step Pin
13	FMS	100313	O-Ring		53	FMS	100336	Spring, Feed Pawl A
14		100894	Head Valve Piston		54	FMS	100337	Spring, Feed Pawl B
15	FMS	100895	O-Ring		55		100339	Feed Pawl
16	FMS	100315	O-Ring		56	FMS	100011	O-Ring	KFCBS00491
17	FMS	103068	Main Piston Unit(Flangeless)		57	FMS	100341	Feed Piston
18		100319	Cylinder		58	FMS	100098	O-Ring	KFCBS00296
19	FMS	100321	O-Ring		59	FMS	100342	Spring, Feed Piston A
2		100300	Exhaust Cover		6	FMS	100208	Screw	KFCBS00388
20		100320	Cylinder Ring		60	FMS	100343	Spring, Feed Piston B	ECO338349
21	FMS	100322	Check valve	KFCBS00583	61	FMS	100344	Stop, Feed Piston	ECO235742
24		103232	Frame		62	FMS	100345	Spring Collar
26		100220	Roll Pin		63	FMS	100104	C-Ring	KFCBS00302
27		103955	100063 Trigger Valve Unit (C.T)	100063	64		100356	Magazine Cover
28	FMS	100067	Trigger Unit (C.T)	ECO235769	66	FMS	100113	Receiver,Spring	KFCBS00312
29		100175	Contact Arm Guide	ECO297035	67		100110	Spacer	KFCBS00314
3		100305	Exhaust Filter		68		100111	Tension Spring	ECO297073
30	FMS	100327	O-Ring	KFCBS00333	69		100358	Nail Support
31	FMS	101453	End Cap		7		100306	Protector
32	FMS	100117	Nut, Elastic Stop M6	KFCBS00088	70		100362	Magazine Post
33		100330	Bumper		71		100363	Magazine
34	FMS	100331	O-Ring		72	FMS	100115	Rubber Washer	ECO235777
35	FMS	100332	O-Ring	ECO297041	73		100364	Step Pin
36		100334	Nose		76		100046	Washer
37		100335	Screw	KFCBS00751	77		100453	Seq.Trigger Valve Assy
38	FMS	100078	Rubber Washer	KFCBS00496	78	FMS	101047	Safety grip
39		100346	Step Pin		79		101050	Screw
4		100302	Cylinder Cap Unit	103305	8	FMS	100307	Cylinder Cap Seal
4		103305	Cylinder Cap Unit KAYMO		80	FMS	101484	Bush
40		100347	Step Pin	ECO235751	81	FMS	100431	Screw
41		100350	Spring, Door Latch		82	FMS	100426	Washer
42	FMS	100349	Door Latch		83	FMS	100571	Anchor Block Lock Nut
44	FMS	103276	Rubber Washer	30700078000	84	FMS	101048	Shield
45		100354	Door		85	FMS	101051	Contact Arm Cover
46		100085	Spring, Check Pawl	ECO235749	86		101490	Magazine Spacer
47	FMS	100197	Check Pawl		9	FMS	100309	Piston Stop
48	FMS	100351	Step Pin

One Sheeter

Application

WOODEN PALLETS

To make wooden pallets
