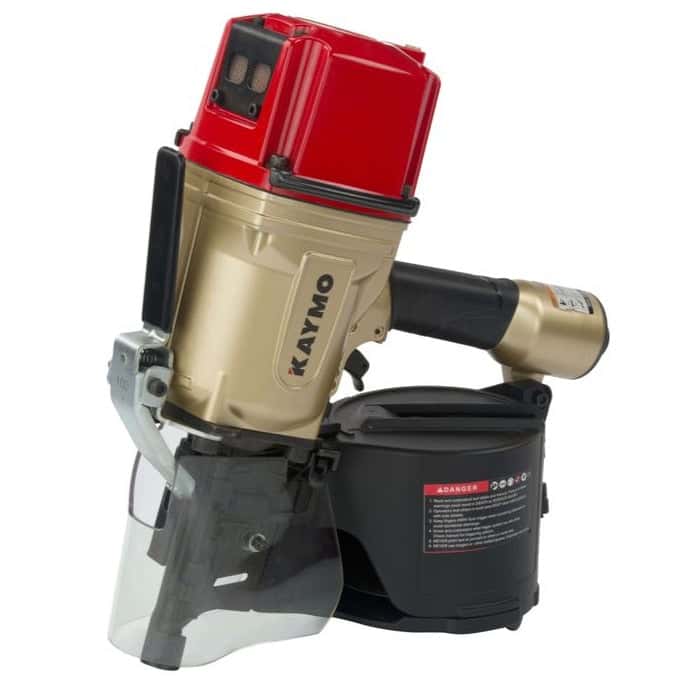

PNEUMATIC NAILER KAYMO PRO- 38100V2S

SKU: PRO-PN38100V2S

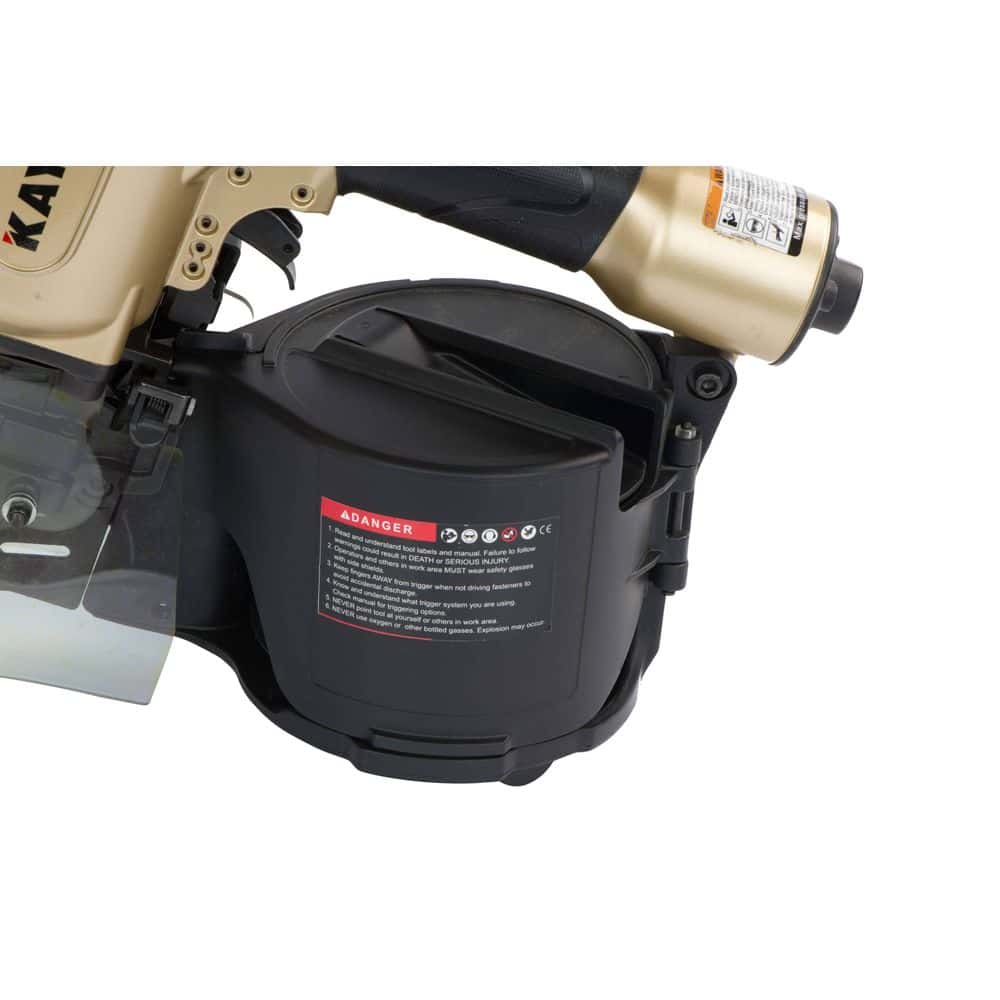

Powerful Tool for heavy duty application. Robust design for proven durability. Wear proof metal nail tray in magazine. Side Metal body protectors help prevent wear on the tool body. 3/8 air inlet.

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

₹ 0/-
Blow Up
Spares
TOOL MODEL: PRO-PN38100V2S REV.1ST APRIL2023
SR FMS PART CODE PART NAME ALT CODE SR FMS PART CODE PART NAME ALT CODE
1   100301 Screw KFCBS00624 49   100366 Spring, Contact Arm
10   100310 Spring, Head Valve   5   100142 Grommet
11   100311 Washer, Head Valve Spring   50   100367 Contact Arm
12   100149 O-Ring KFCBS00322 52   100340 Step Pin
13   100313 O-Ring   53   100336 Spring, Feed Pawl A
14   100894 Head Valve Piston   54   100337 Spring, Feed Pawl B
15   100895 O-Ring   55   100339 Feed Pawl
16   100315 O-Ring   56   100011 O-Ring KFCBS00491
17   103068 Main Piston Unit(Flangeless)   57   100341 Feed Piston
18   100319 Cylinder   58   100098 O-Ring KFCBS00296
19   100321 O-Ring   59   100342 Spring, Feed Piston A
2   100300 Exhaust Cover   6   100208 Screw KFCBS00388
20   100320 Cylinder Ring   60   100343 Spring, Feed Piston B
21   100322 Check valve 103034 61   100344 Stop, Feed Piston
24   103232 Frame   62   100345 Spring Collar
26   100220 Roll Pin   63   100104 C-Ring KFCBS00302
27   103955 100063 Trigger Valve Unit (C.T) 100063 64   100356 Magazine Cover
28 FMS 100067 Trigger Unit (C.T)   66   100113 Receiver,Spring KFCBS00312
29   100175 Contact Arm Guide   67   100110 Spacer KFCBS00314
3   100305 Exhaust Filter   68   100111 Tension Spring ECO297073
30   100327 O-Ring KFCBS00333 69   100358 Nail Support
31   101453 End Cap   7   100306 Protector
32   100117 Nut, Elastic Stop M6 KFCBS00088 70   100362 Magazine Post
33   100330 Bumper   71   100363 Magazine
34   100331 O-Ring   72   100115 Rubber Washer ECO235777
35   100332 O-Ring   73   100364 Step Pin
36   100334 Nose   76   100046 Washer
37   100335 Screw KFCBS00751 77   100453 Seq.Trigger Valve Assy
38   100078 Rubber Washer KFCBS00496 78   101047 Safety grip
39   100346 Step Pin   79   101050 Screw
4   100302 Cylinder Cap Unit 103305 8   100307 Cylinder Cap Seal
4   103305 Cylinder Cap Unit KAYMO   80   101484 Bush
40   100347 Step Pin   81   100431 Screw
41   100350 Spring, Door Latch   82   100426 Washer
42   100349 Door Latch   83   100571 Anchor Block Lock Nut
44   103276 Rubber Washer   84   101048 Shield
45   100354 Door   85   101051 Contact Arm Cover
46   100085 Spring, Check Pawl ECO235749 86   101490 Magazine Spacer
47   100197 Check Pawl   9   100309 Piston Stop
48   100351 Step Pin
One Sheeter
Application
 WOODEN PALLETS To make wooden pallets
